Availability:
2 in stock

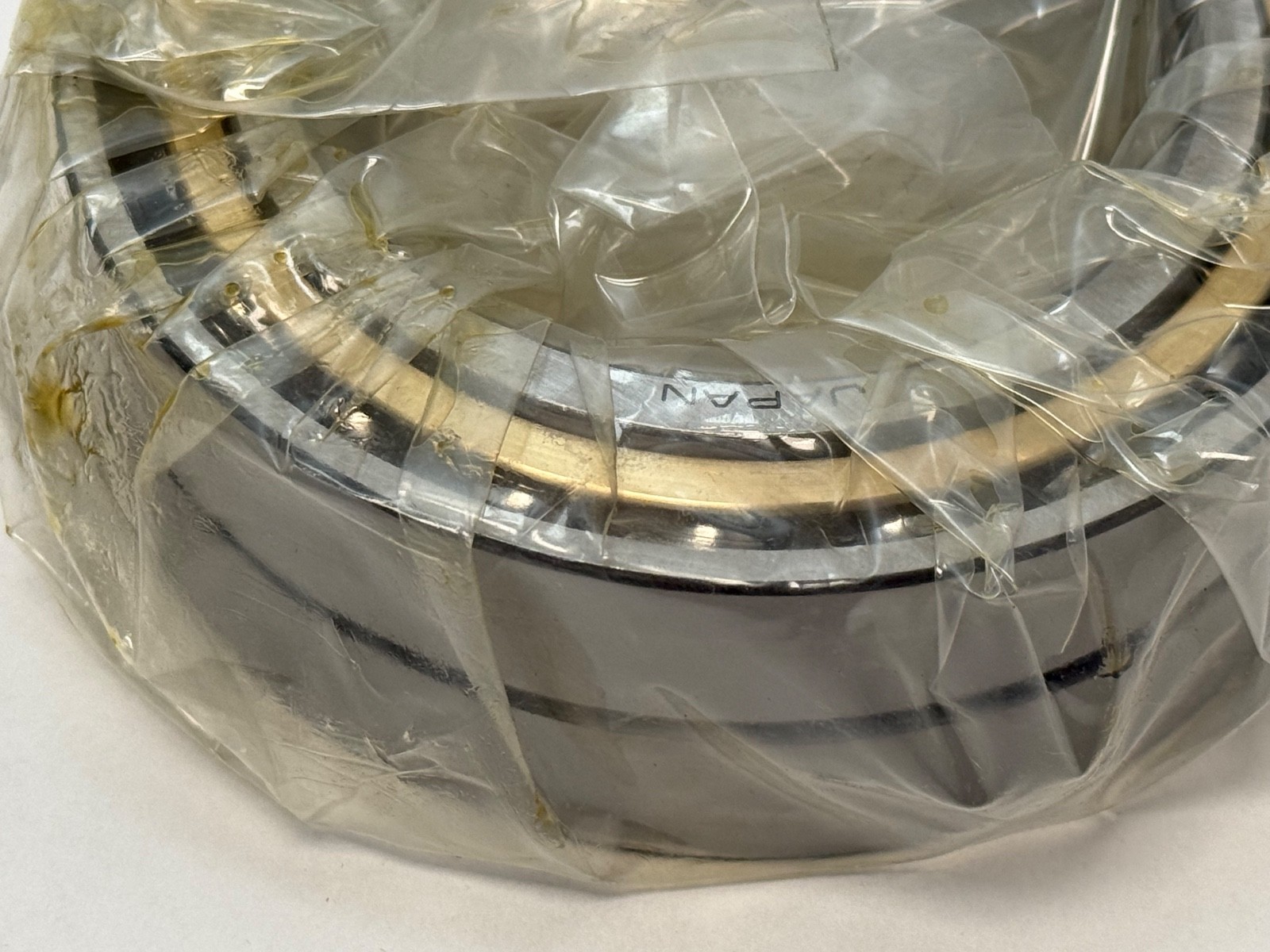

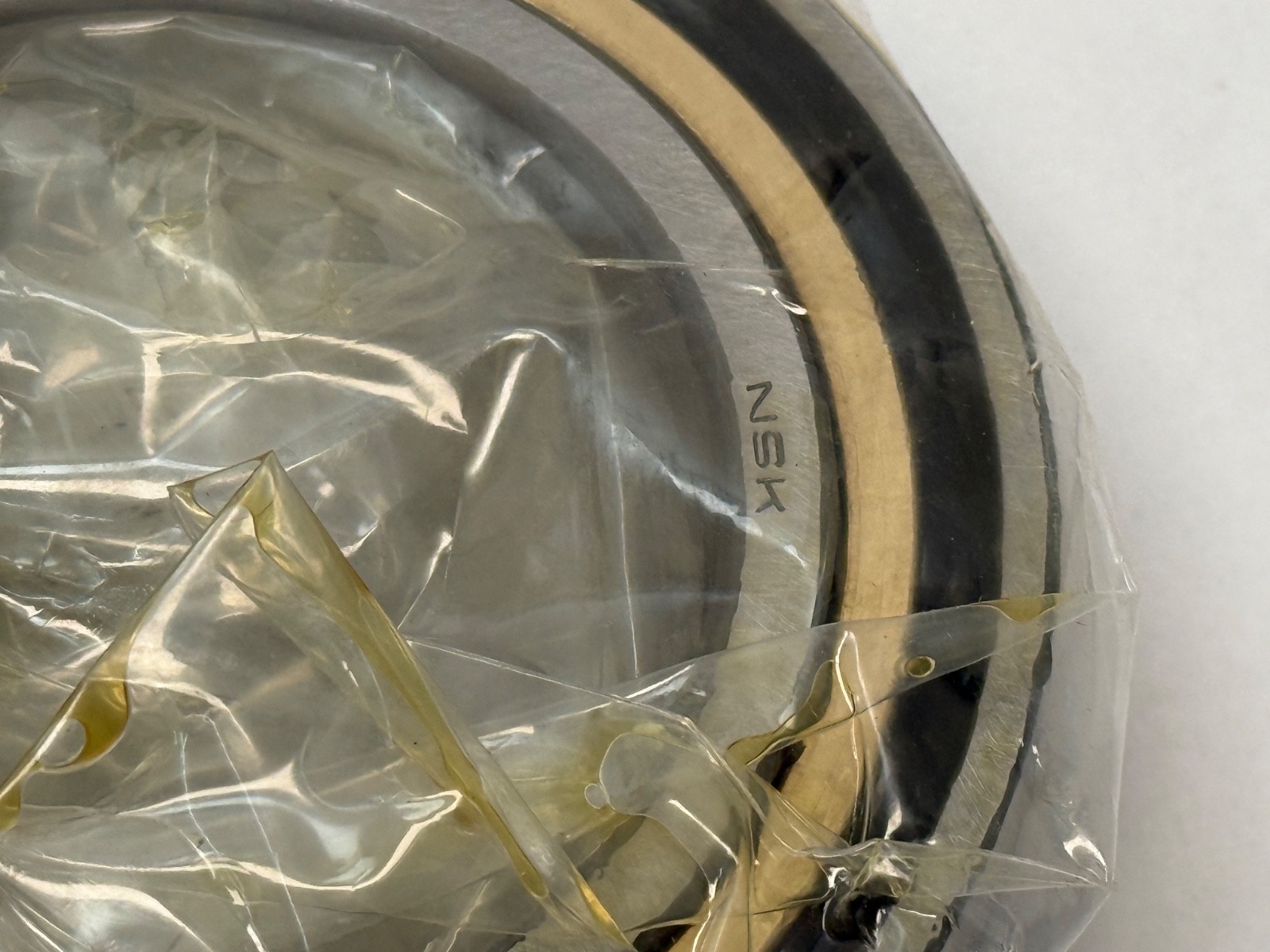

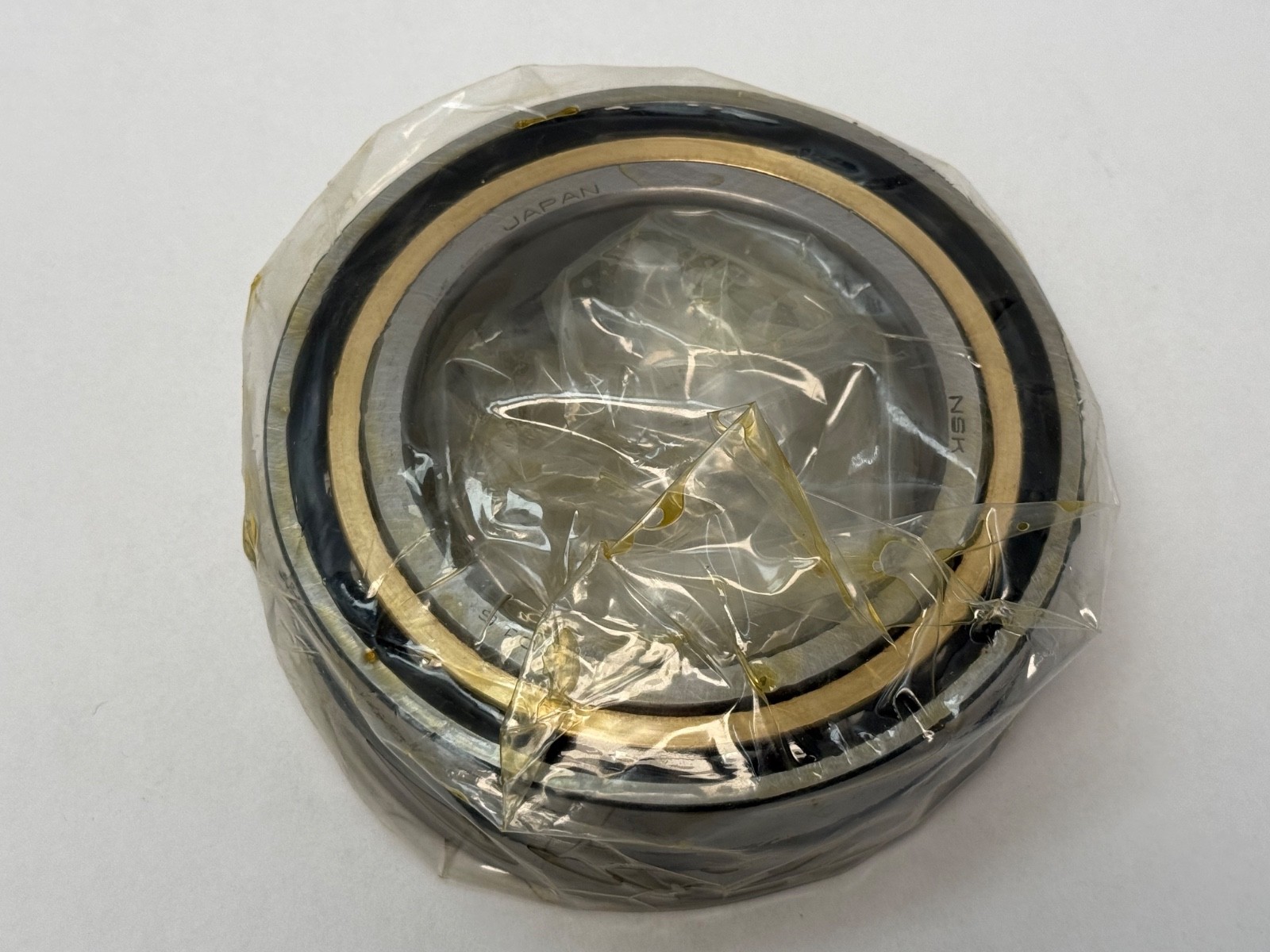

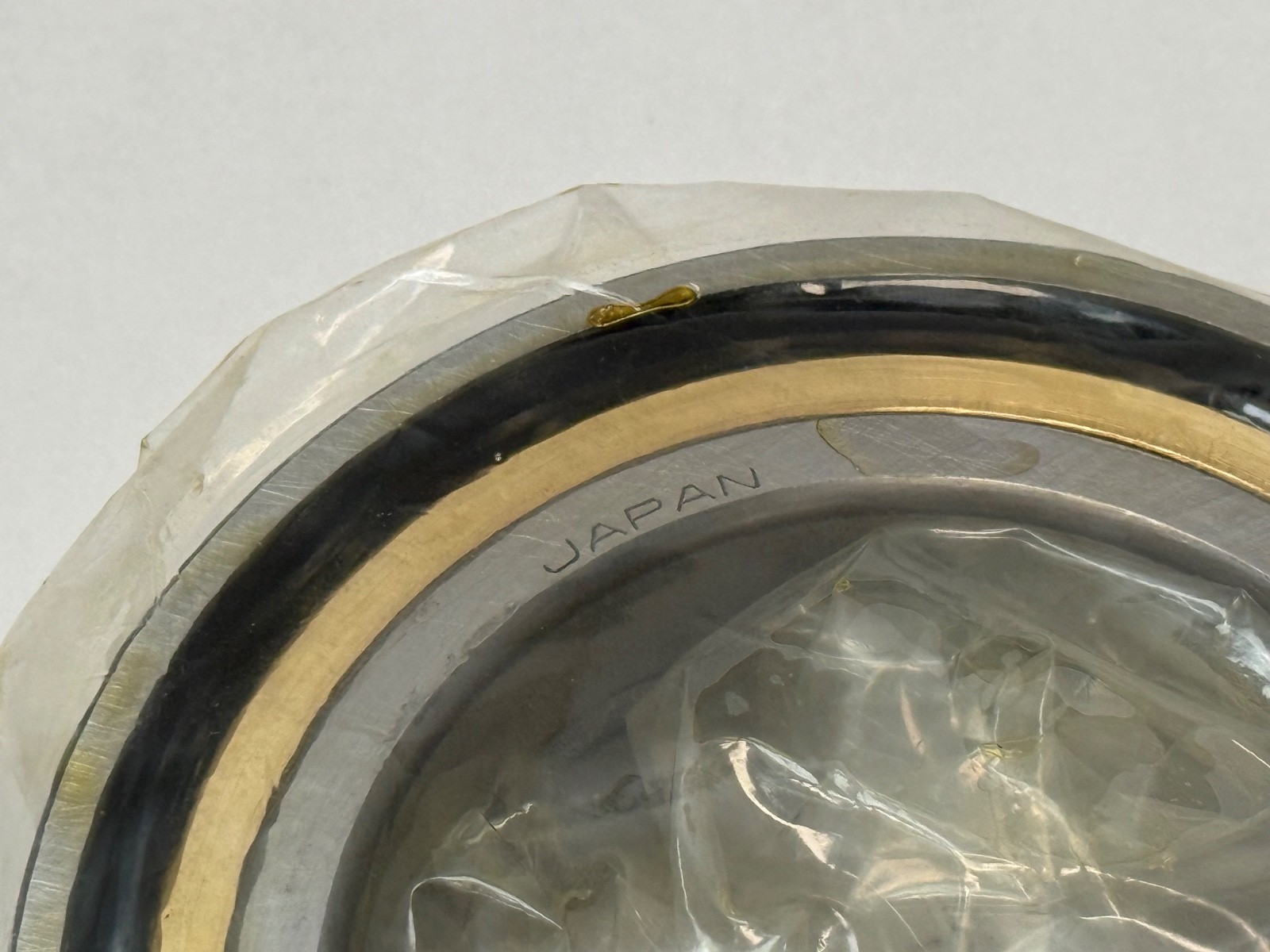

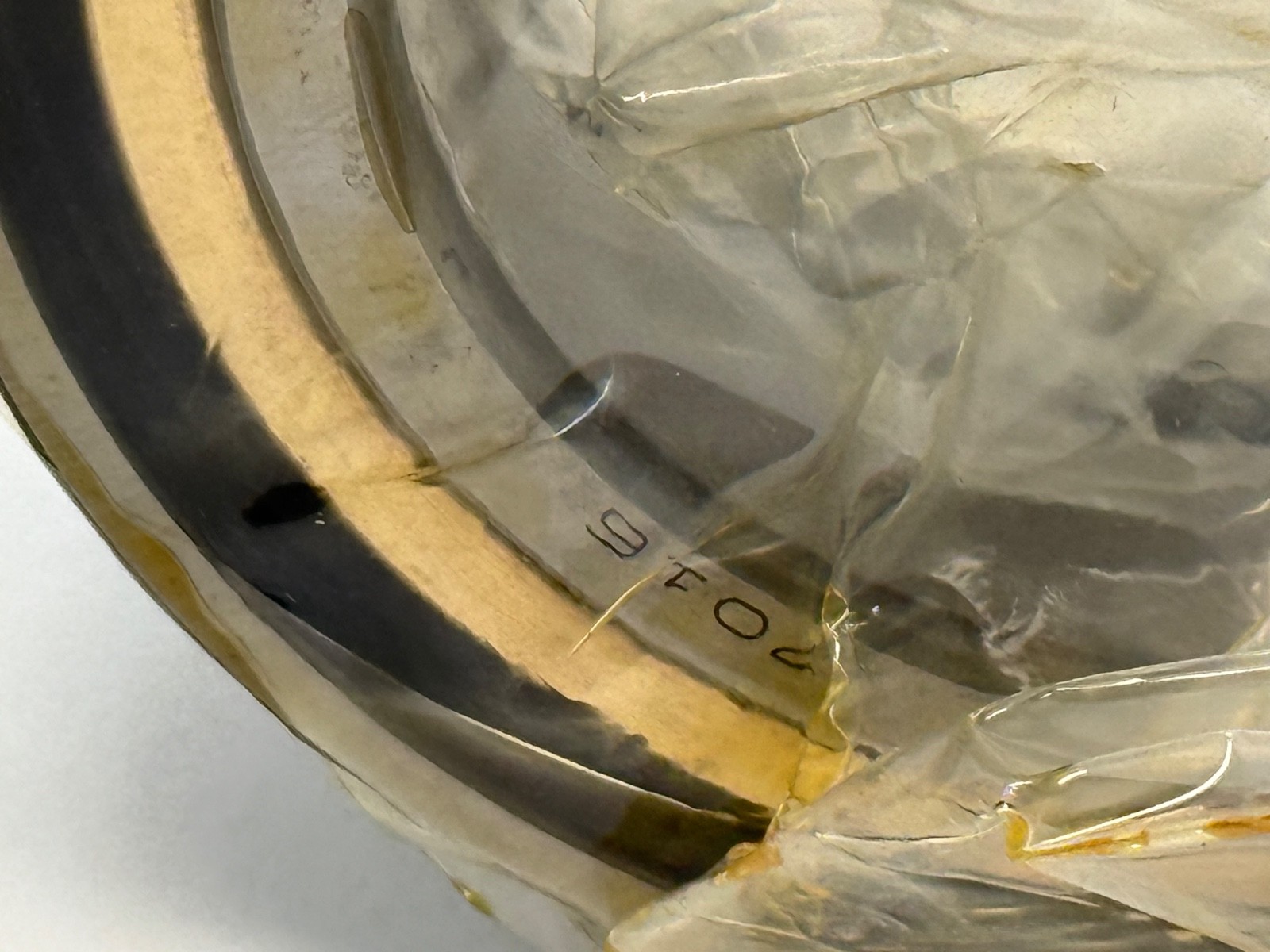

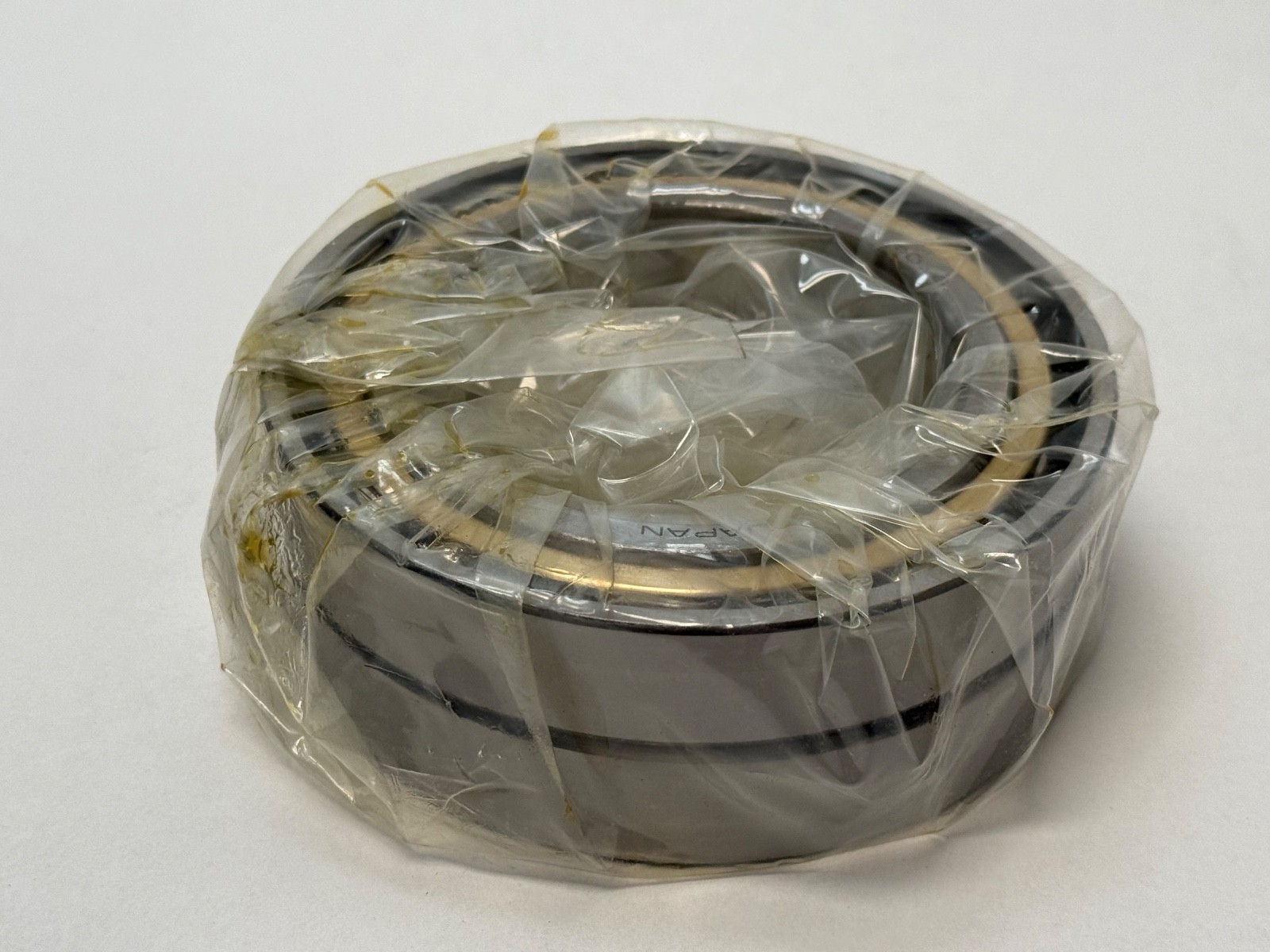

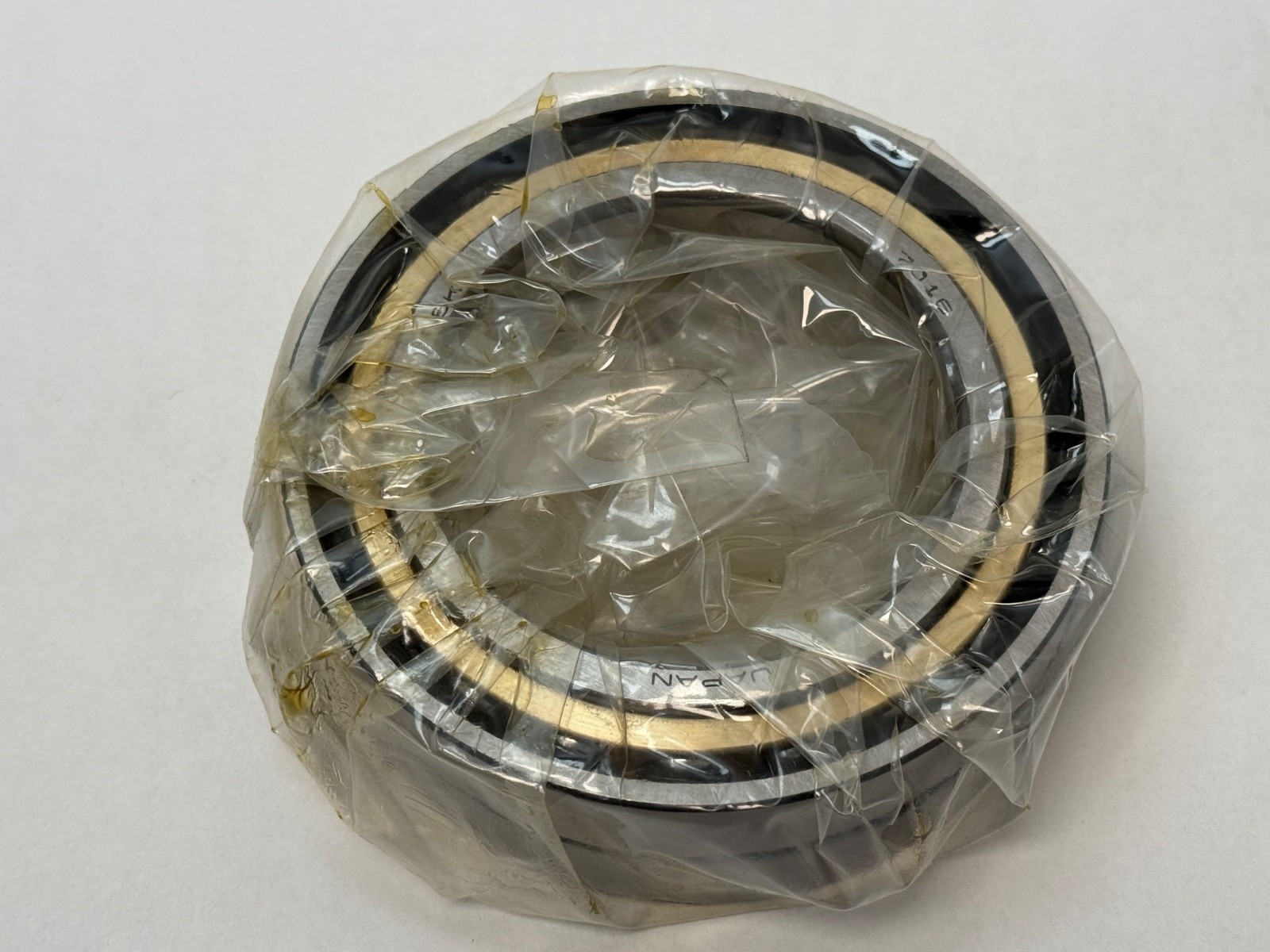

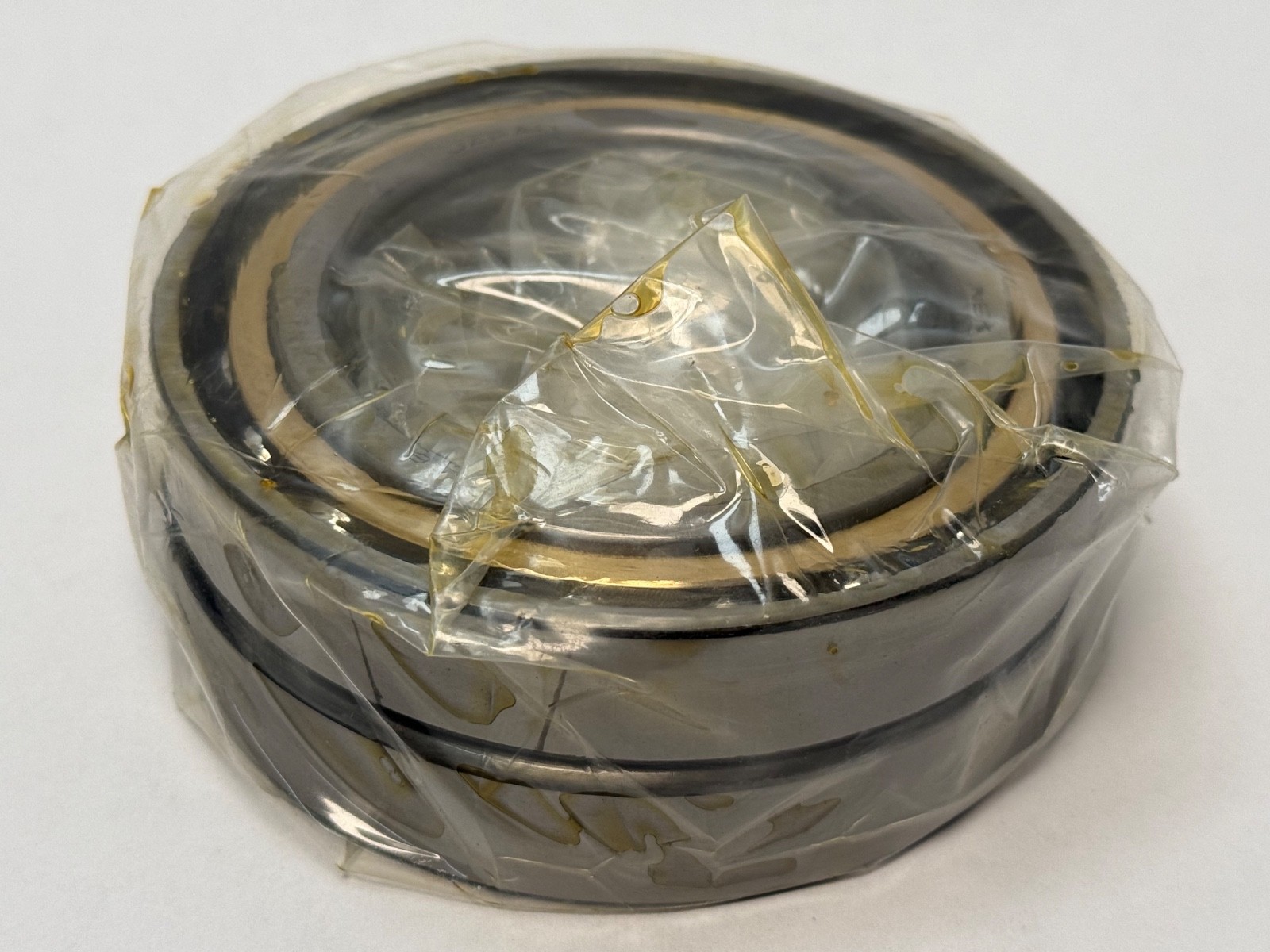

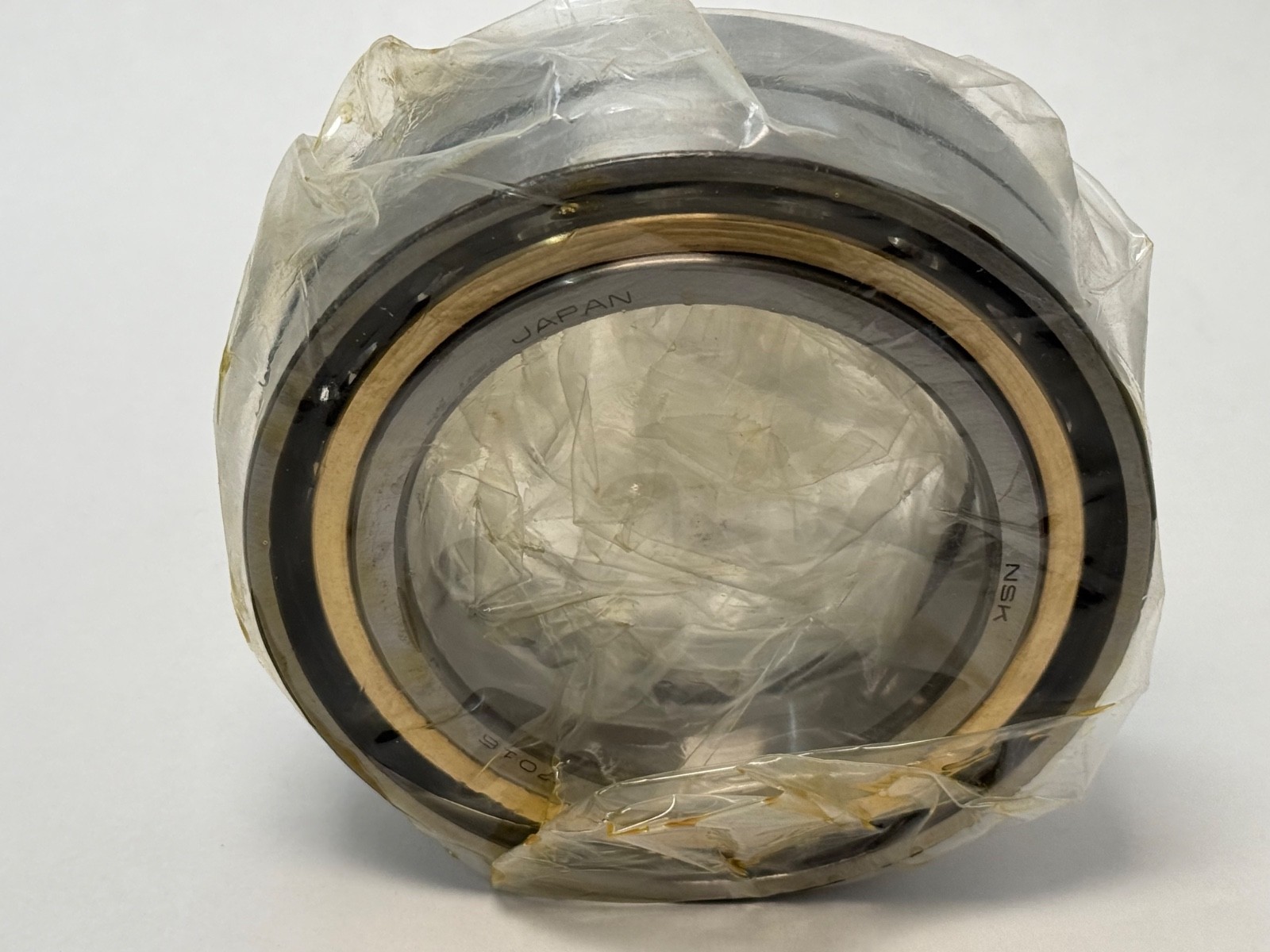

Angular contact ball bearing, 80 x 125 x 22 mm, 30° contact angle, open, pressed steel cage. Cr 60.5 kN, C0r 53 kN per bearing, 4,300 rpm grease.
List Price
$227.72
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7016ADBCP10 |
| Model | 7016 A DB CP10 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Base Number | 7016 |
| Industry Terms | angular contact ball bearing; 30 degree contact angle bearing; matched pair bearing; spindle bearing; thrust capable ball bearing; 7016 bearing; DB pair |
| Common Misspellings | 7016 A; 7016-A; 7016AA; NSK7016A; NKS 7016A; NSK 7016 A DB; 7016ADBCP10 |
| Application Types | Machine-tool spindles; pumps and compressors; gearboxes; electric motors; vertical shaft assemblies carrying combined radial and axial load |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | 7016A; 7016ADB; 7016 A; 7016-A |
| Compatible With Replaces | NSK 7016A; shares the 80x125x22 mm envelope with NSK 7016C (15°) and SKF 7016 ACD (25°) |
| Precision Class | ISO Normal class |
| Additional Attributes | Effective load centre a: 40.6 mm; shaft abutment diameter da min: 87 mm; housing abutment diameter Da max: 118 mm; maximum shaft/housing fillet radius ra max: 1.0 mm; ring chamfer r min: 1.1 mm; ring chamfer r1 min: 0.6 mm |
| Dynamic Load Rating | 60,500 N (Cr, per bearing) |
| Static Load Rating | 53,000 N (C0r, per bearing) |
| Precision Rating | ISO Normal class |
| Item Weight | 0.88 kg (1.94 lb) per bearing |
| Cage Material | Pressed steel |
| Limiting Speed | 4,300 rpm grease; 6,000 rpm oil bath |
| Number Of Rows | 1 per bearing (2 bearings supplied) |
| Contact Angle | 30° |
| Bearing Material | Chrome steel |
| Part Number | 7016A |
NSK 7016A single-row angular contact ball bearing. Bore: 80 mm. Outside Diameter: 125 mm. Width: 22 mm per bearing. Series: 70 (ISO dimension series 10). Contact Angle: 30°. Cage Material: Pressed steel. Precision Class: ISO Normal. Closure: open on both sides. Bearing Material: chrome steel rings and balls.
Dynamic Load Rating: 60,500 N (Cr, per bearing). Static Load Rating: 53,000 N (C0r, per bearing). Limiting Speed: 4,300 rpm grease lubrication, 6,000 rpm oil-bath lubrication. Every figure here is a single-bearing value; a duplex set is rated separately.
Effective Load Centre a: 40.6 mm. Shaft Abutment Diameter da min: 87 mm. Housing Abutment Diameter Da max: 118 mm. Maximum Shaft or Housing Fillet Radius ra max: 1.0 mm. Ring Chamfer r min: 1.1 mm. Ring Chamfer r1 min: 0.6 mm. Mass: 0.88 kg (1.94 lb) per bearing.
70 — single-row angular contact ball bearing, dimension series 10.
16 — bore code, 16 x 5 = 80 mm.
A — 30° contact angle in NSK’s scheme.
DB — back-to-back duplex arrangement.
A 30° contact angle steepens the load line through the balls, so the bearing carries high axial thrust in its designed direction and deflects less axially than a 15° equivalent. The steeper angle raises ball spin and cage load, which is what sets the 4,300 rpm grease limit. The effective load centre at 40.6 mm is the figure to use when calculating the span between load lines on a paired mounting.

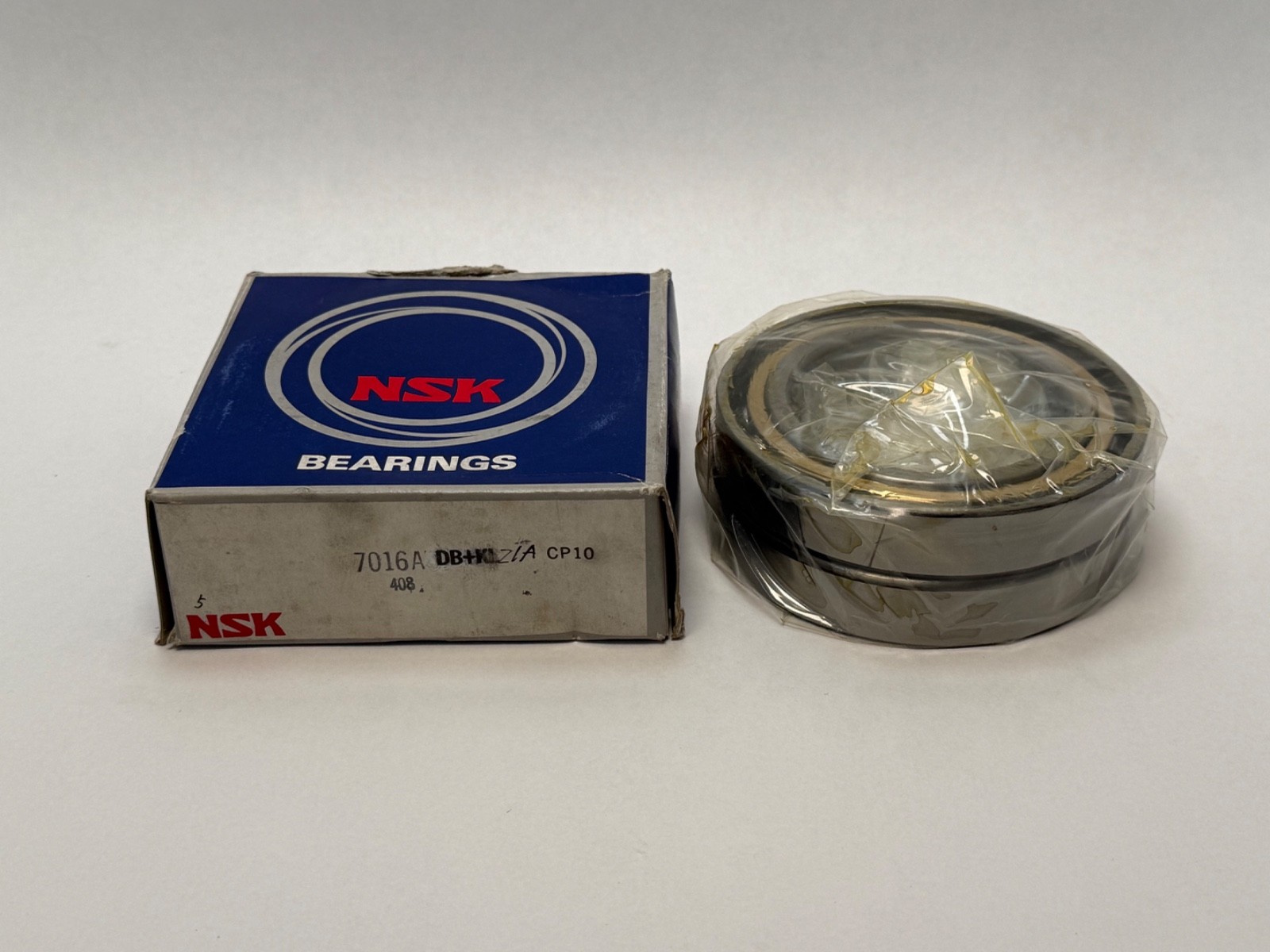

Unit Quantity: 2 Pcs. Two bearings ship together. An angular contact bearing of this type generates an axial component under radial load, so it is normally installed in pairs — back-to-back (DB) for rigidity, face-to-face (DF), or tandem (DT) for shared one-direction thrust.
The 80 x 125 x 22 mm envelope is shared with NSK 7016C at 15° and SKF 7016 ACD at 25°. Match the contact angle as well as the boundary dimensions, because stiffness, preload and calculated life all move with it.
