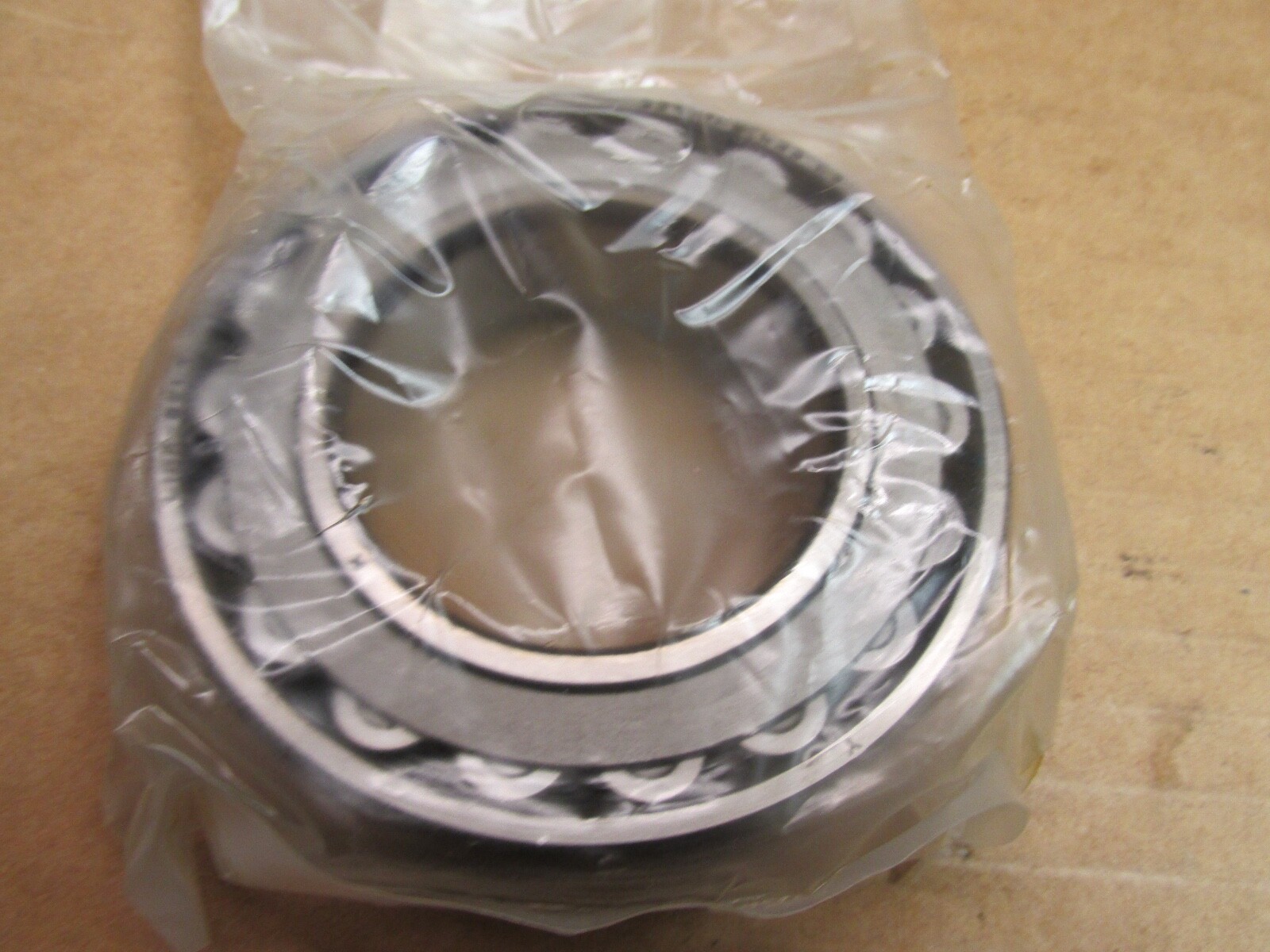

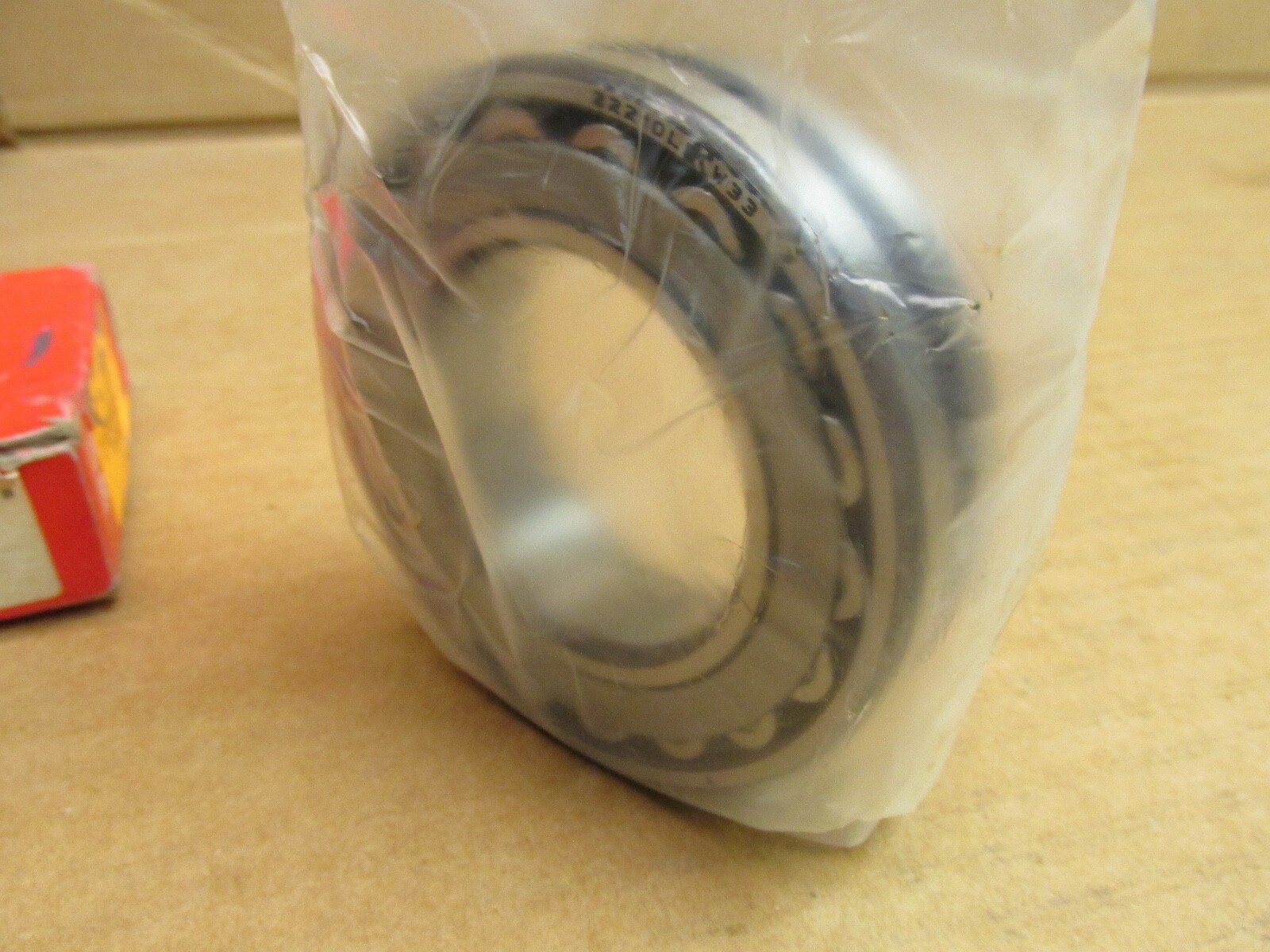

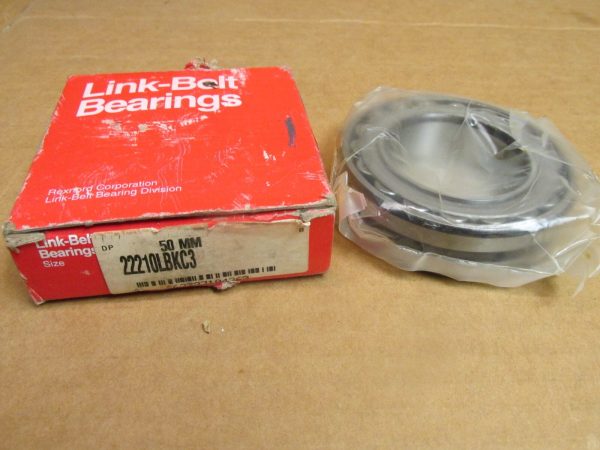

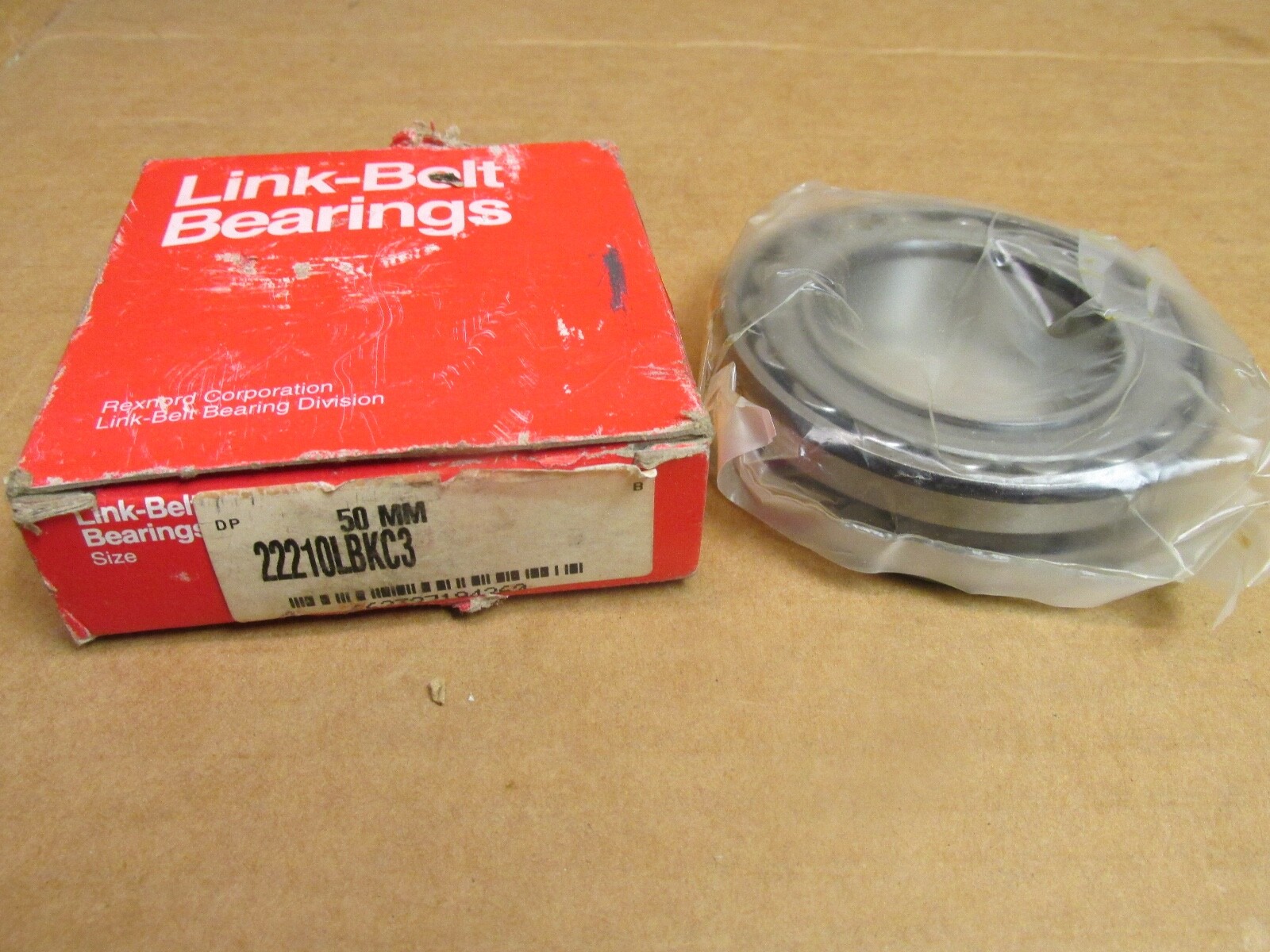

Link-Belt 22210LBKC3 spherical roller bearing, 50 mm tapered bore, 90 mm OD, 23 mm wide, C3 clearance, W33 lube groove. Mounts on an H310 adapter sleeve.
List Price
$60.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | 22210LBKC3 |
| GTIN | 662327194260 |
| Model | 22210LBK C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Material | Bearing Steel |
| Dynamic Load Rating | 22,000 lbf |
| Static Load Rating | 25,500 lbf |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Limiting Speed | 5,000 rpm grease; 5,500 rpm oil |
| Relubrication Feature | W33 groove and holes in outer ring |
| Harmonization Code | 8482.3 |
| Internal Clearance | C3 |
| Base Number | 22210 |
| Industry Terms | spherical roller bearing, SRB, self-aligning roller bearing, tapered bore bearing, 22210K |
| Common Misspellings | Linkbelt 22210LBKC3, Link Belt 22210 LBK C3, 2210LBKC3 |
| Application Types | Split pillow blocks, conveyors, fans, vibrating equipment, gearboxes, printing machinery |
| Mpn Variants | 22210LBKC3, 22210LBK C3, 22210LBKW33C3, 22210LBK W33 C3, 22210K W33 C3, 10440531 |
| Compatible With Replaces | Adapter sleeve H310 with KM10 locknut and MB10 lockwasher |
| Additional Attributes | Min shaft shoulder diameter 2.30 in; Max housing shoulder diameter 3.20 in; Housing fillet radius 0.04 in; Vibration frequencies (per rpm): FTF 0.0071, BPFI 0.1730, BPFO 0.1272, BSF 0.0530 |
| Cross Reference 1 | SKF 22210 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22210-E1-K-C3 |
| Cross Reference 3 | Timken 22210KEJW33C3 |
| Cross Reference 4 | NSK 22210EAKE4C3 |
| Cross Reference 6 | NTN 22210EAKD1C3 |
The Link-Belt 22210LBKC3 is a double-row spherical roller bearing from the Link-Belt 22200 series with a 1:12 tapered bore and C3 internal clearance. It carries heavy radial loads with moderate axial load in either direction and self-aligns to accommodate shaft misalignment.
222 — 22200 series, ISO dimension series 22 spherical roller bearing.
10 — bore code, 50 mm bore.
LB — Link-Belt spherical roller bearing design.
K — tapered bore, 1:12 taper.
C3 — internal clearance greater than normal.
W33 — lubrication groove with holes in the outer ring.
Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 90 mm (3.5433 in). Width: 23 mm. Bore Type: Tapered, 1:12. Internal Clearance: C3. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Closure Type: Open. Dynamic Load Rating: 22,000 lbf. Static Load Rating: 25,500 lbf. Limiting Speed: 5,000 rpm grease; 5,500 rpm oil. Lubricant: grease or oil. Lubrication Feature: W33 groove and holes in the outer ring.
Minimum Shaft Shoulder Diameter: 2.30 in. Maximum Housing Shoulder Diameter: 3.20 in. Housing Fillet Radius: 0.04 in. Mounts on an H310 adapter sleeve with a KM10 locknut and MB10 lockwasher, or directly on a 1:12 tapered shaft seat.
Replaces Link-Belt 22210LBKC3 and 22210LBK W33 C3. Interchanges with SKF 22210 EK/C3, FAG 22210-E1-K-C3, Timken 22210KEJW33C3, NSK 22210EAKE4C3 and NTN 22210EAKD1C3 on the same 50 x 90 x 23 mm envelope with tapered bore and C3 clearance. GTIN: 662327194260. CAD model and data sheet: available from Regal Rexnord (regalrexnord.com).
What adapter sleeve fits the Link-Belt 22210LBKC3?
The H310 adapter sleeve, which seats the 50 mm tapered bore on a 45 mm shaft.
What are the load ratings of the 22210LBKC3?
Link-Belt rates it at 22,000 lbf dynamic and 25,500 lbf static.
What is the maximum speed of the Link-Belt 22210LBKC3?
5,000 rpm on grease and 5,500 rpm on oil.
