FAG22210-E1-K-C3-W33Spherical Roller Bearing – 50 mm ID, 90 mm OD, 23 mm Width, 1:12 Tapered Bore, C3 Clearance, W33 Lubrication Groove

Product Description

What this part is:

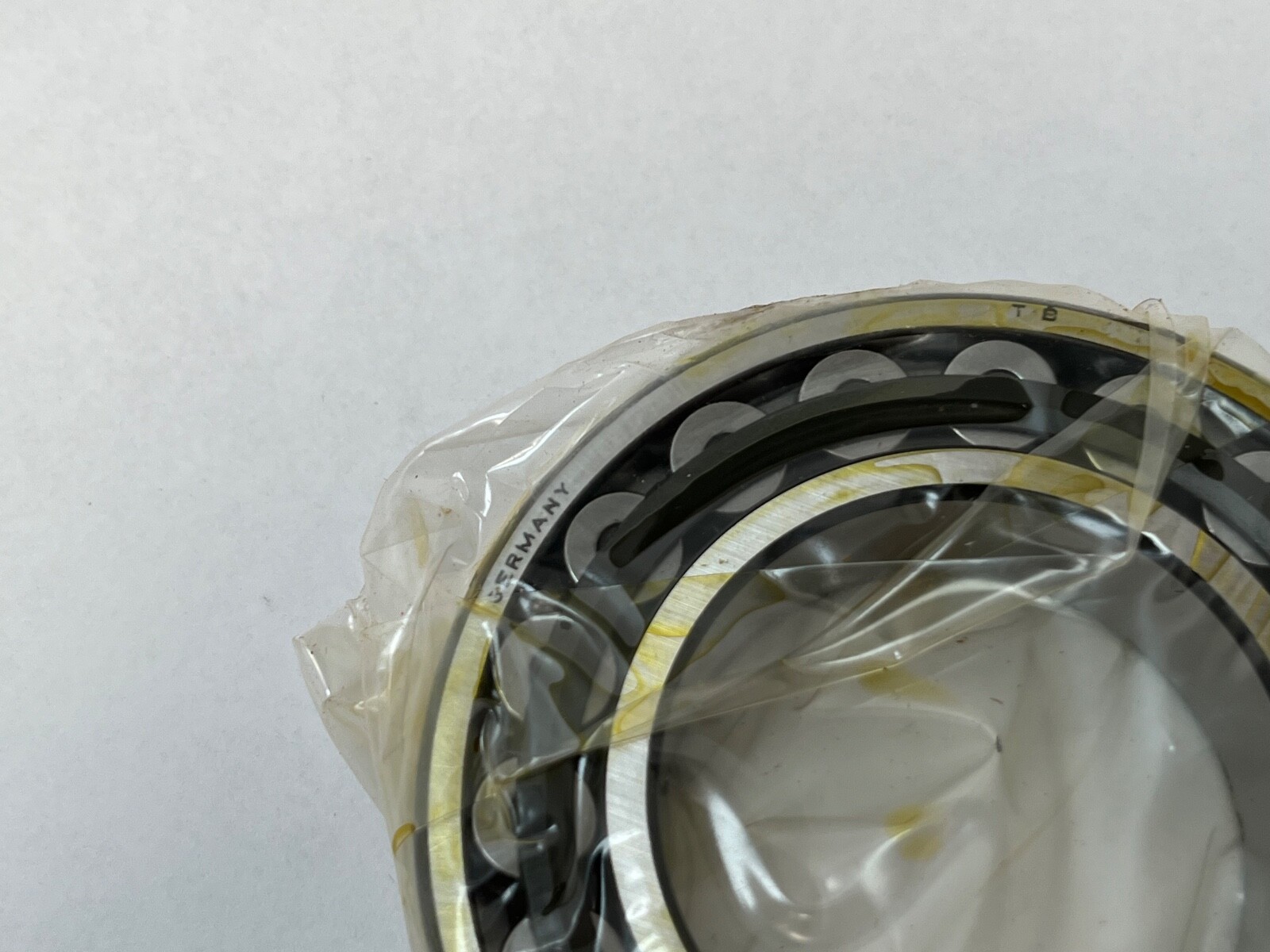

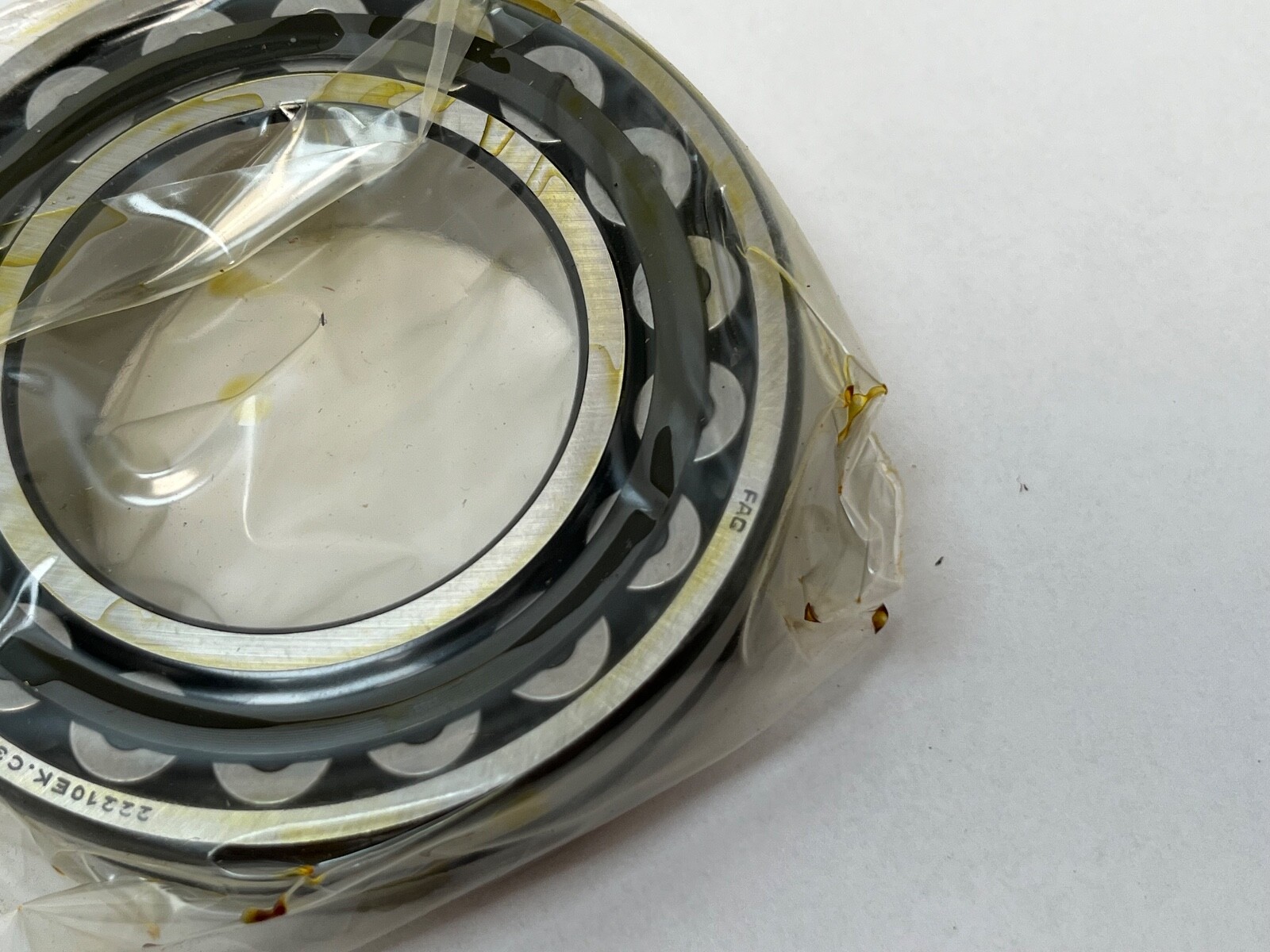

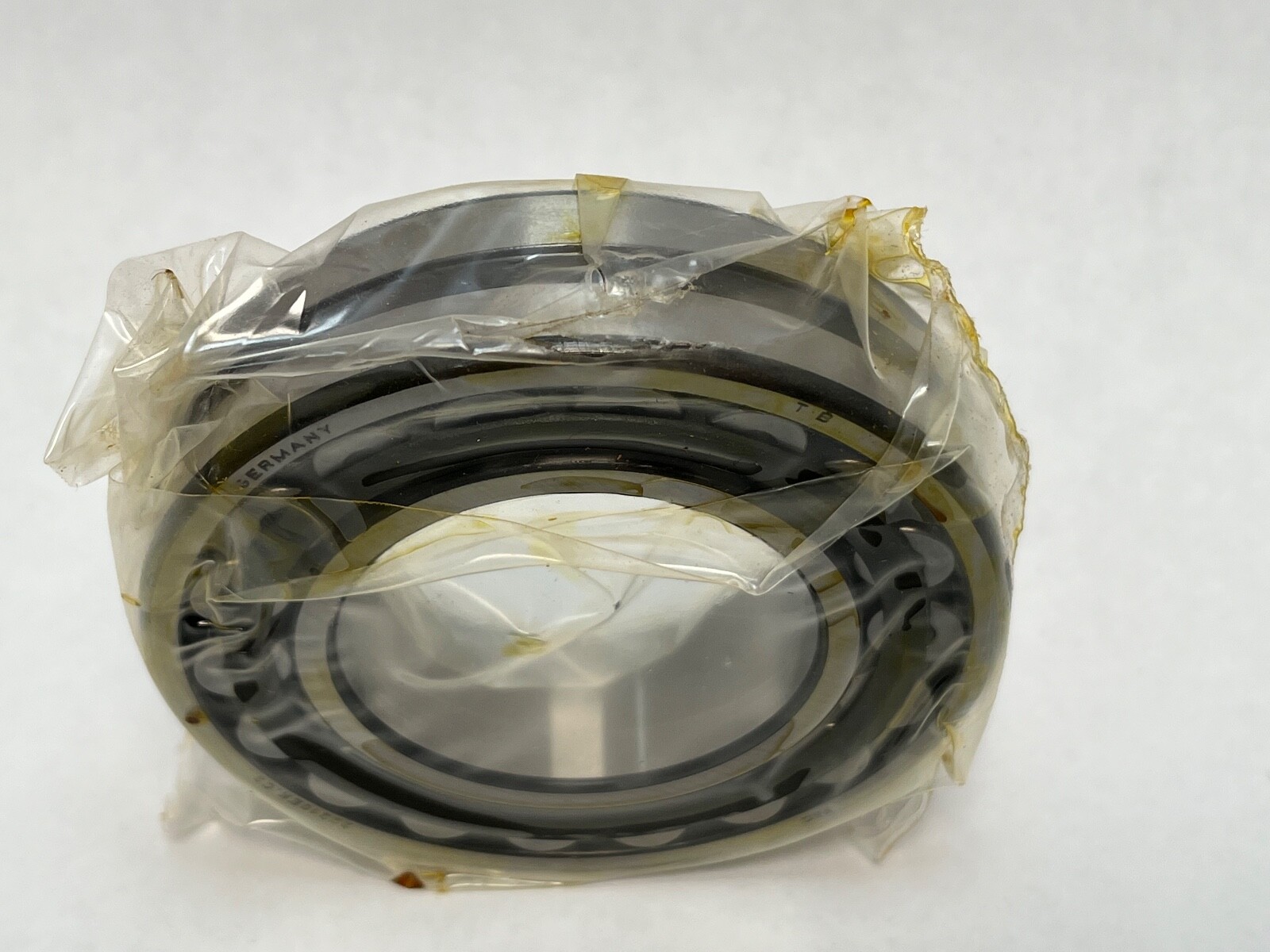

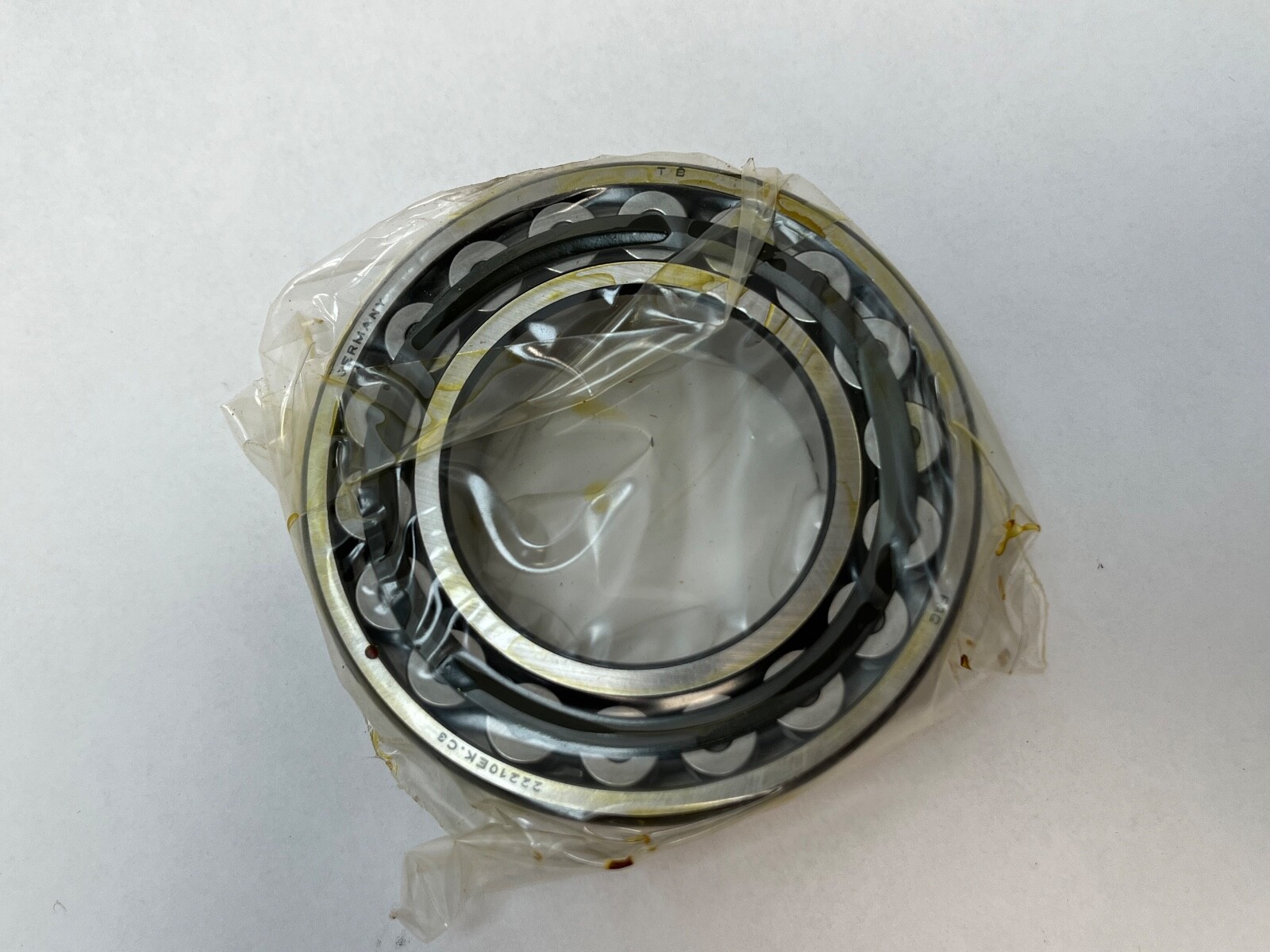

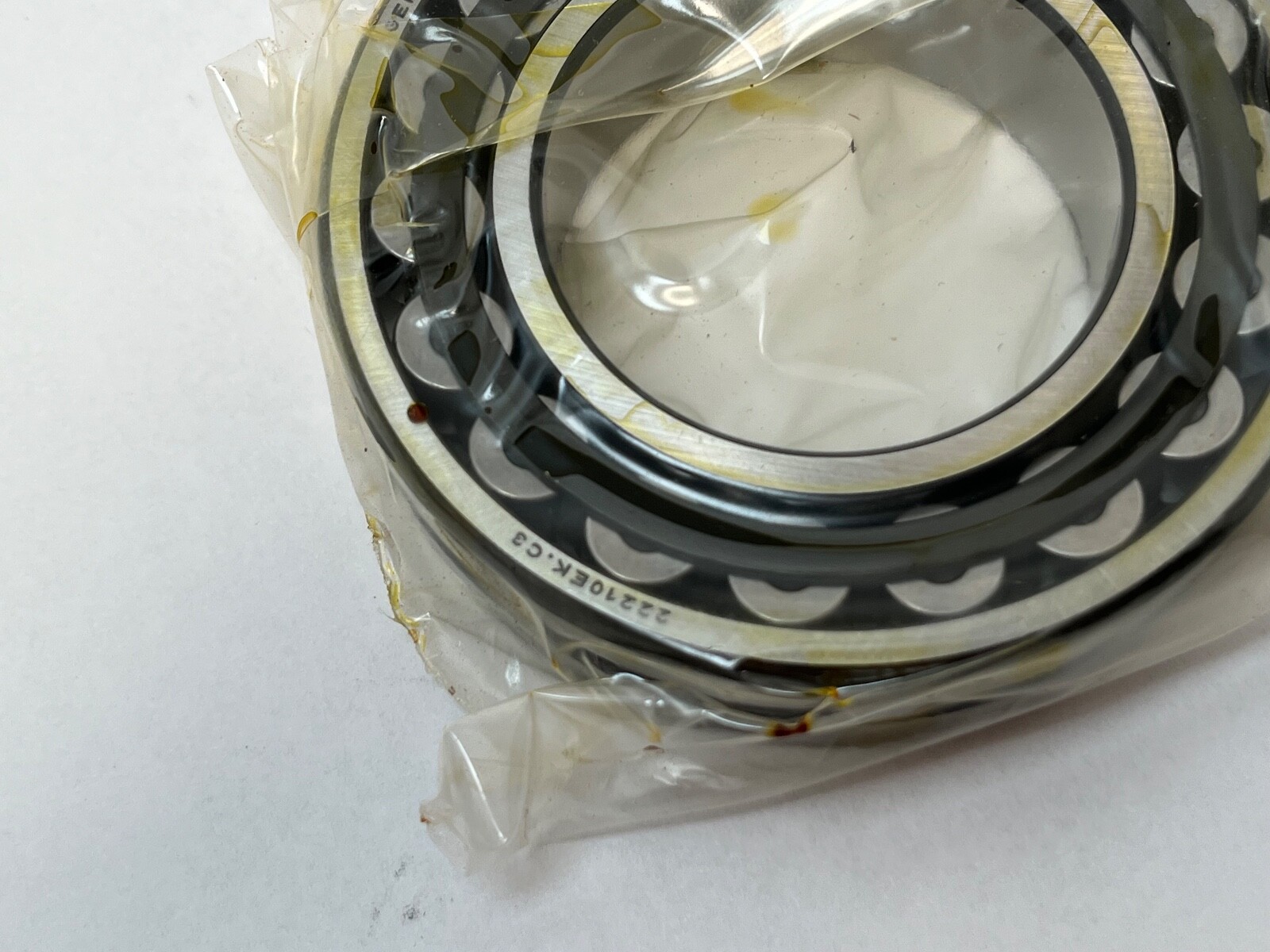

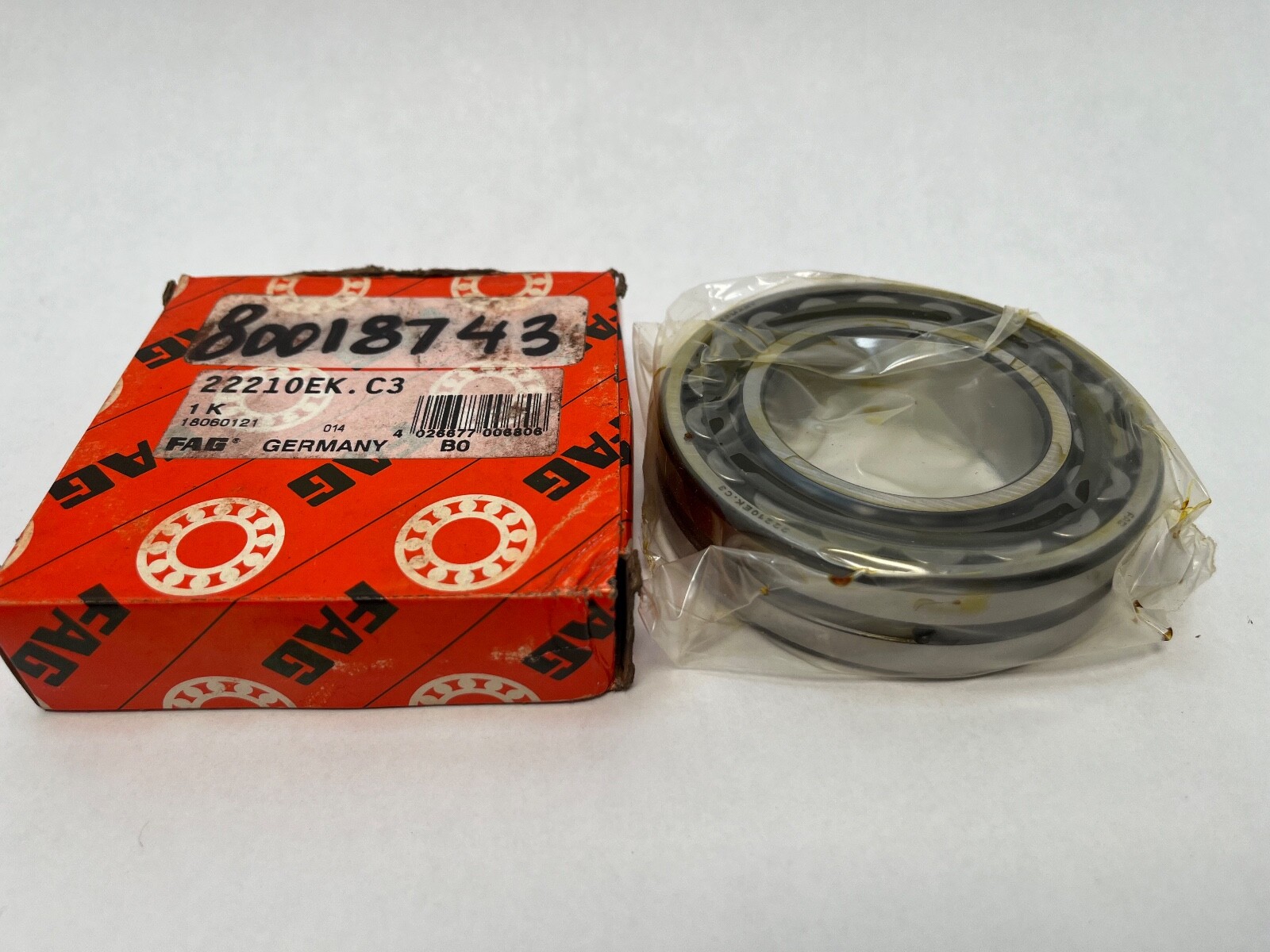

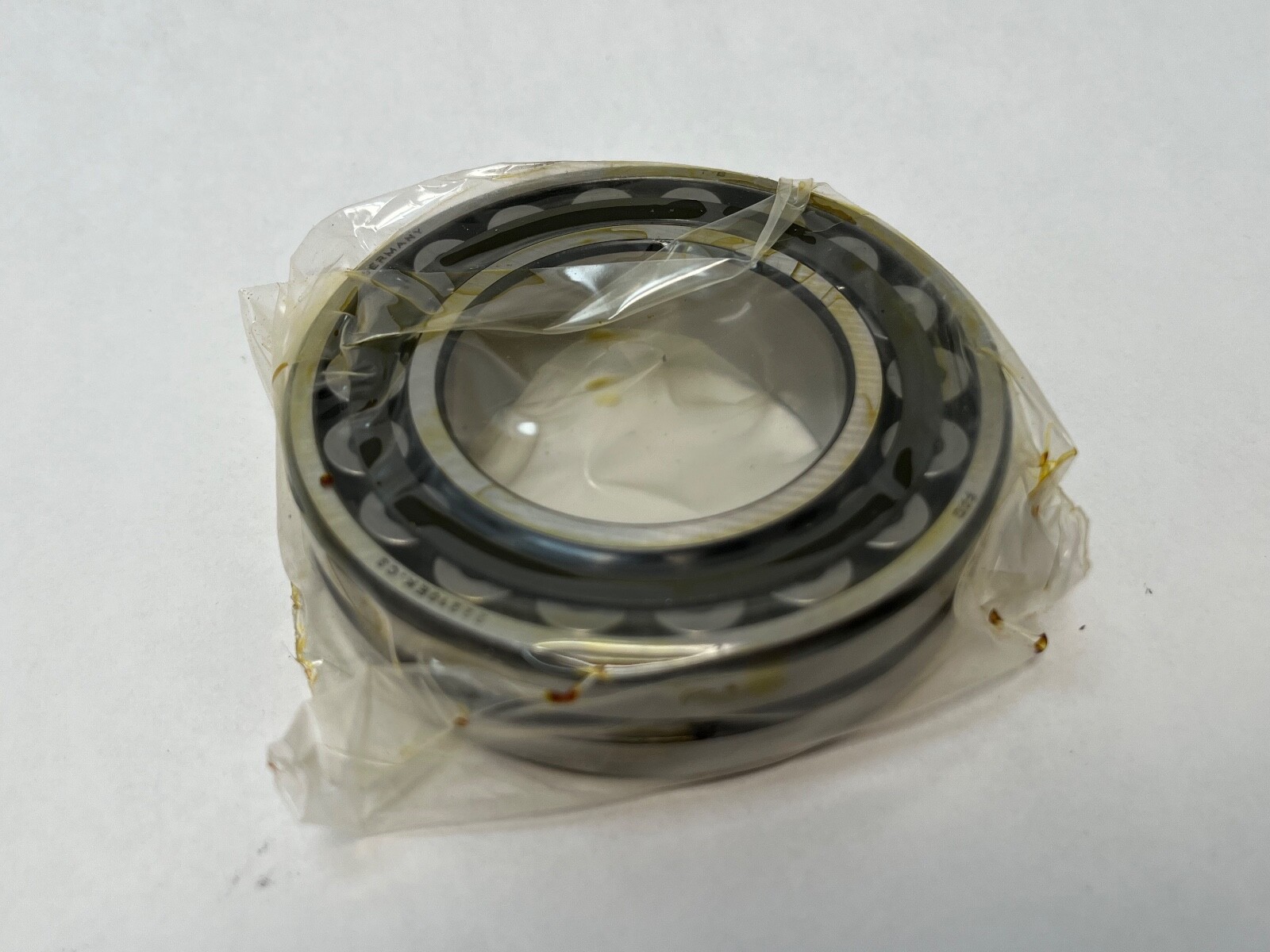

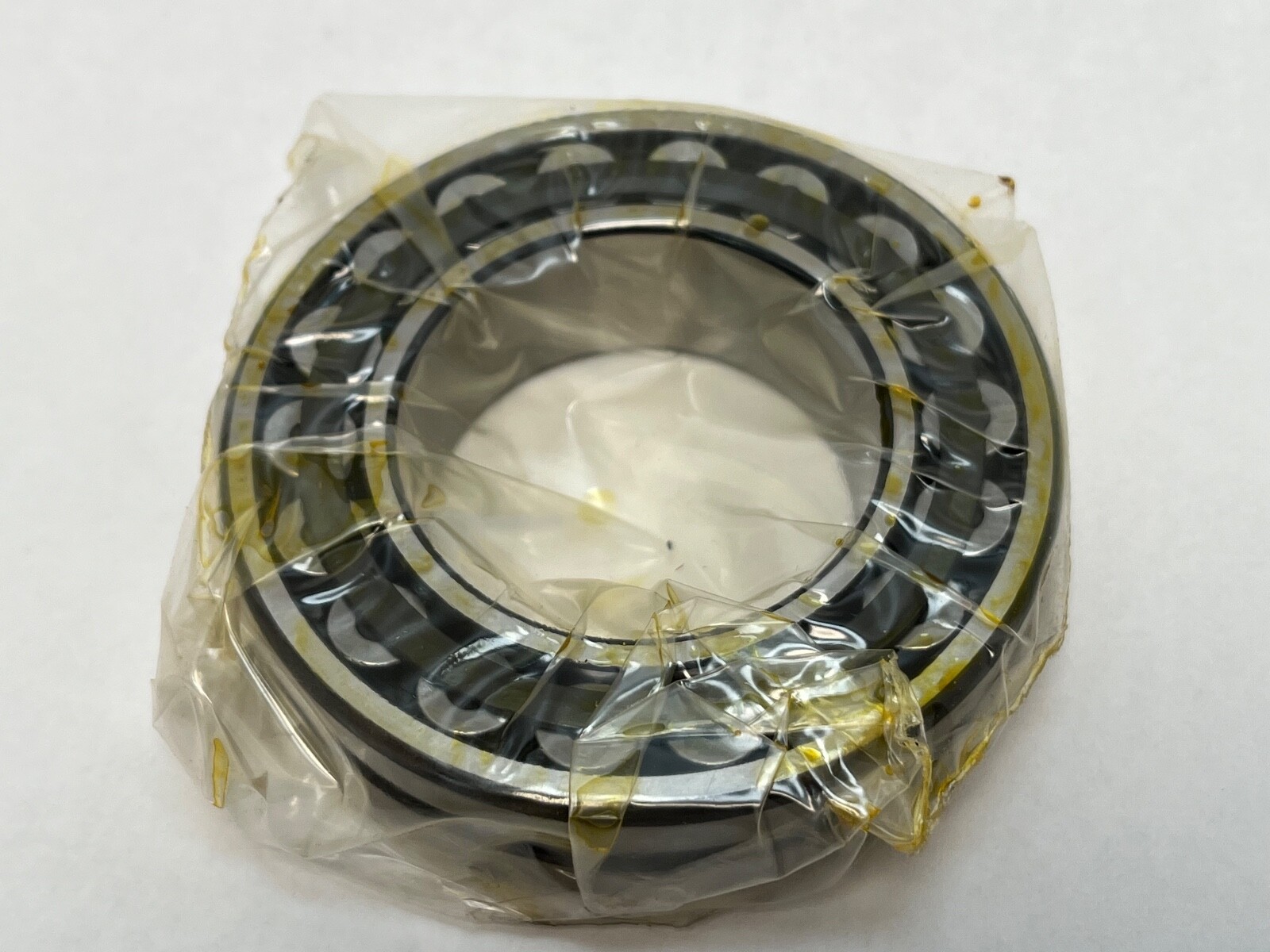

FAG 22210-E1-K-C3-W33, a double-row spherical roller bearing with a 1:12 tapered bore. Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Internal Clearance: C3. Unit Quantity: 1 Pc. Country of Origin: Germany.

Decoding the designation:

22210 — FAG number for the ISO 210 spherical roller size, 50 x 90 x 23 mm.

E1 — reinforced internal execution with a higher roller complement.

K — 1:12 tapered bore.

C3 — radial internal clearance greater than normal.

W33 — annular lubrication groove in the outer ring outside diameter with three radial feed holes.

Specifications:

Dynamic Load Rating: 109 kN. Static Load Rating: 107 kN. Fatigue Limit Load: 14.3 kN. Limiting Speed: 9,500 r/min. Item Weight: 0.622 kg (1.37 lb). Number Of Rows: 2. Rolling Elements: Spherical roller. Cage Material: Pressed steel. Cage Type: Pressed window cage. Closure Type: Open. Lubricant: grease or oil.

Dimensions and mounting:

Bore Diameter: 50 mm, 1:12 taper. Outside Diameter: 90 mm. Overall Width: 23 mm. Adapter sleeve: H310 (tapered outside diameter 50 mm, 45 mm cylindrical shaft seat) with KM 10 locknut and MB 10 lockwasher.

Compatibility and replacement:

Cross-references: SKF 22210 EK/C3W33; NSK 22210 EAKE4 C3; Timken 22210KEJW33C3. MPN variants: 22210EK.C3, 22210-E-K-C3-W33, 22210-E1-K-C3, 22210EKC3W33, 22210EK, 22210 K.

Frequently asked questions:

What size is the FAG 22210-E1-K-C3-W33?

Bore 50 mm, outside diameter 90 mm, width 23 mm, with a 1:12 tapered bore.

Which adapter sleeve fits the tapered bore?

The 50 mm tapered bore seats on an H310 adapter sleeve, which has a 45 mm cylindrical shaft seat.

What does W33 mean?

W33 is an annular lubrication groove in the outer ring outside diameter with three radial feed holes. The bearing takes grease or oil.
