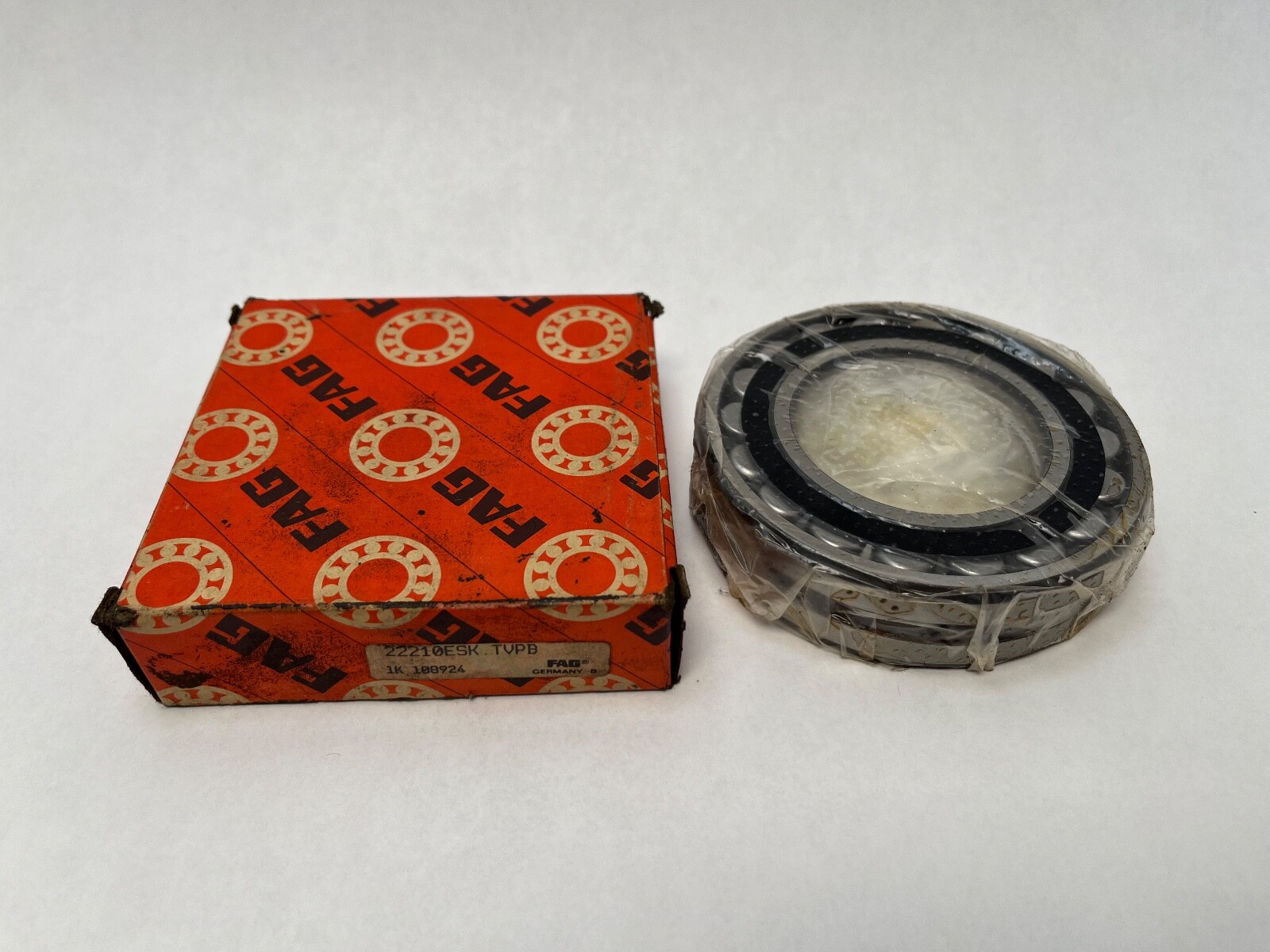

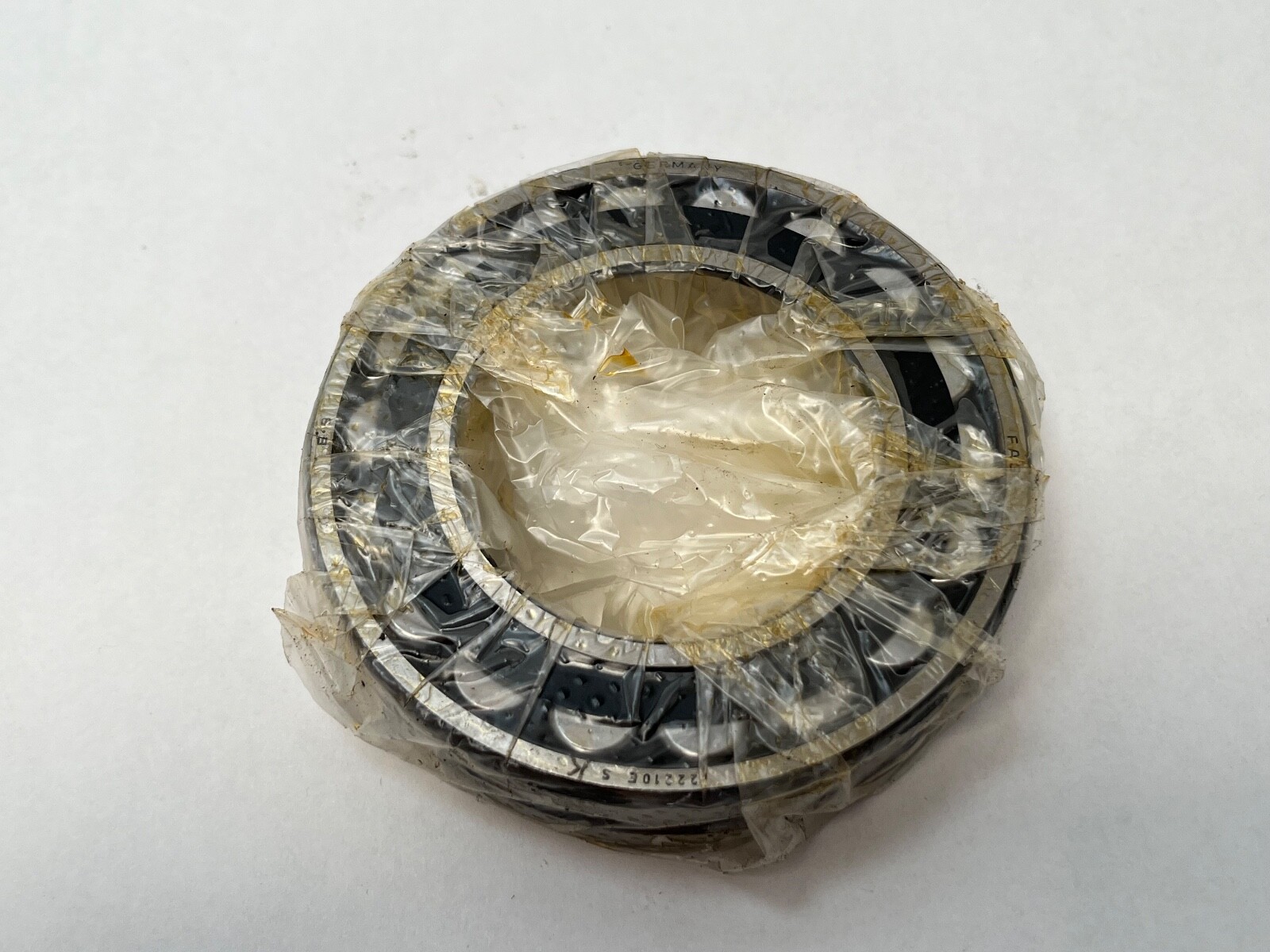

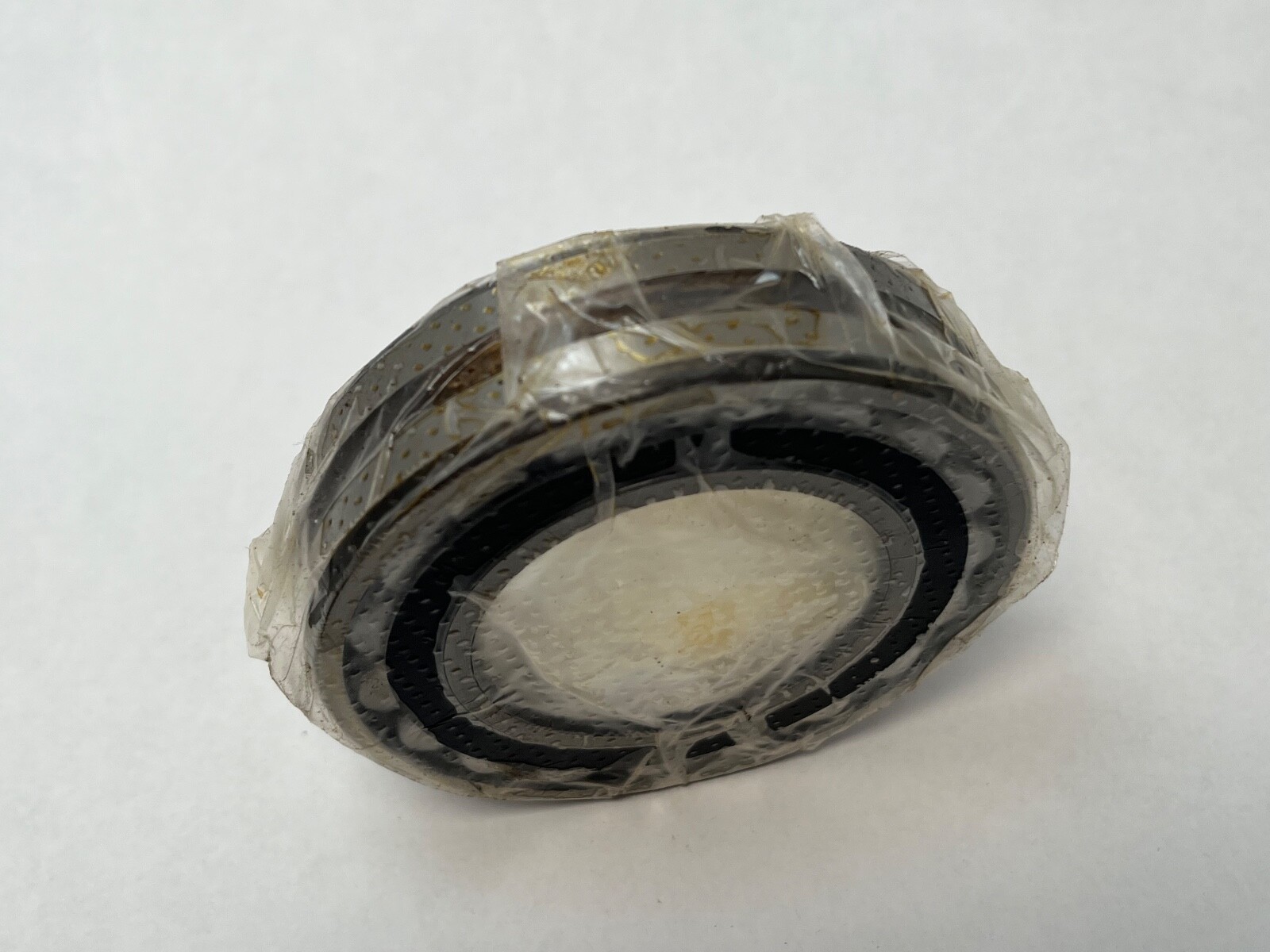

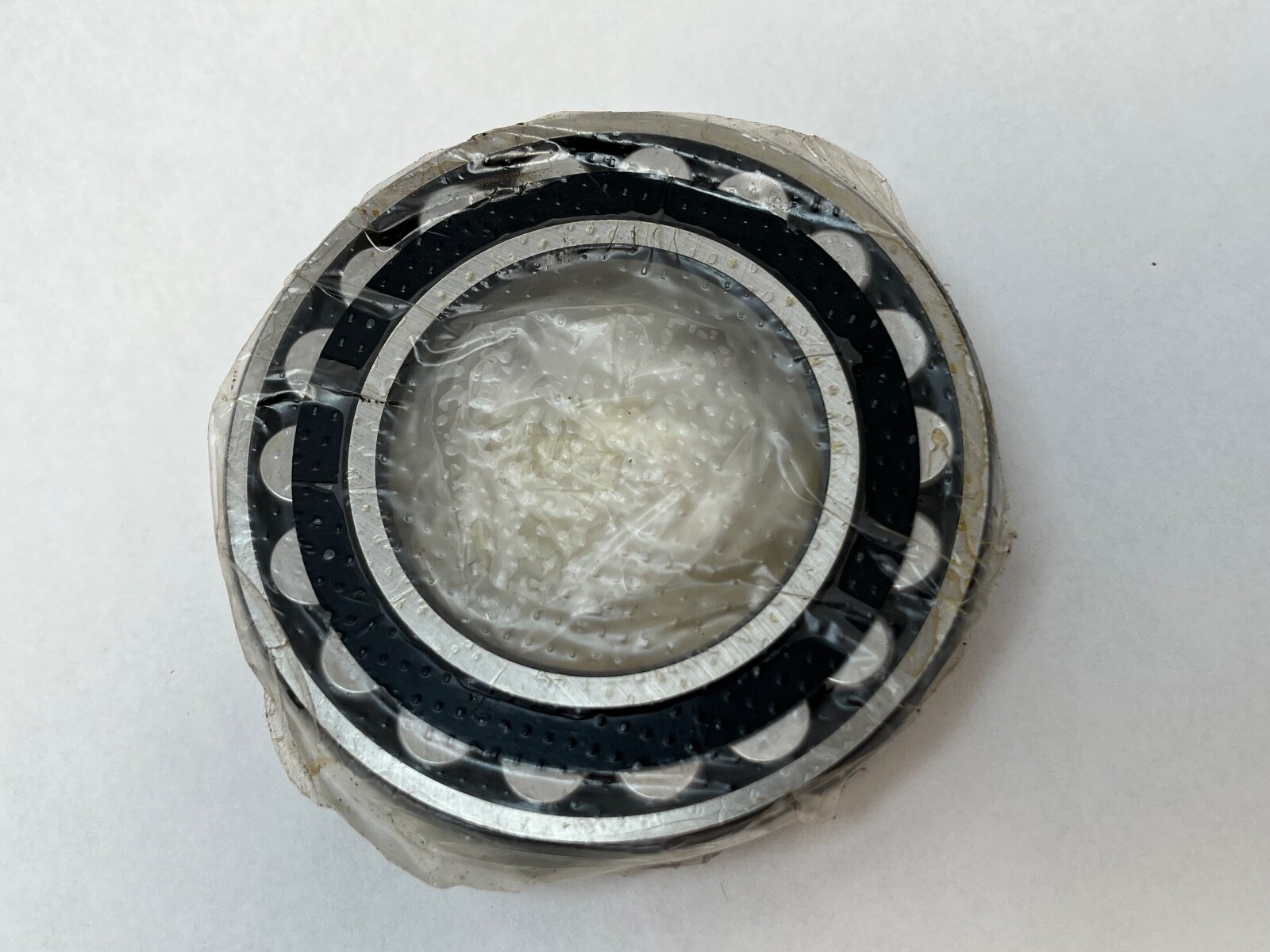

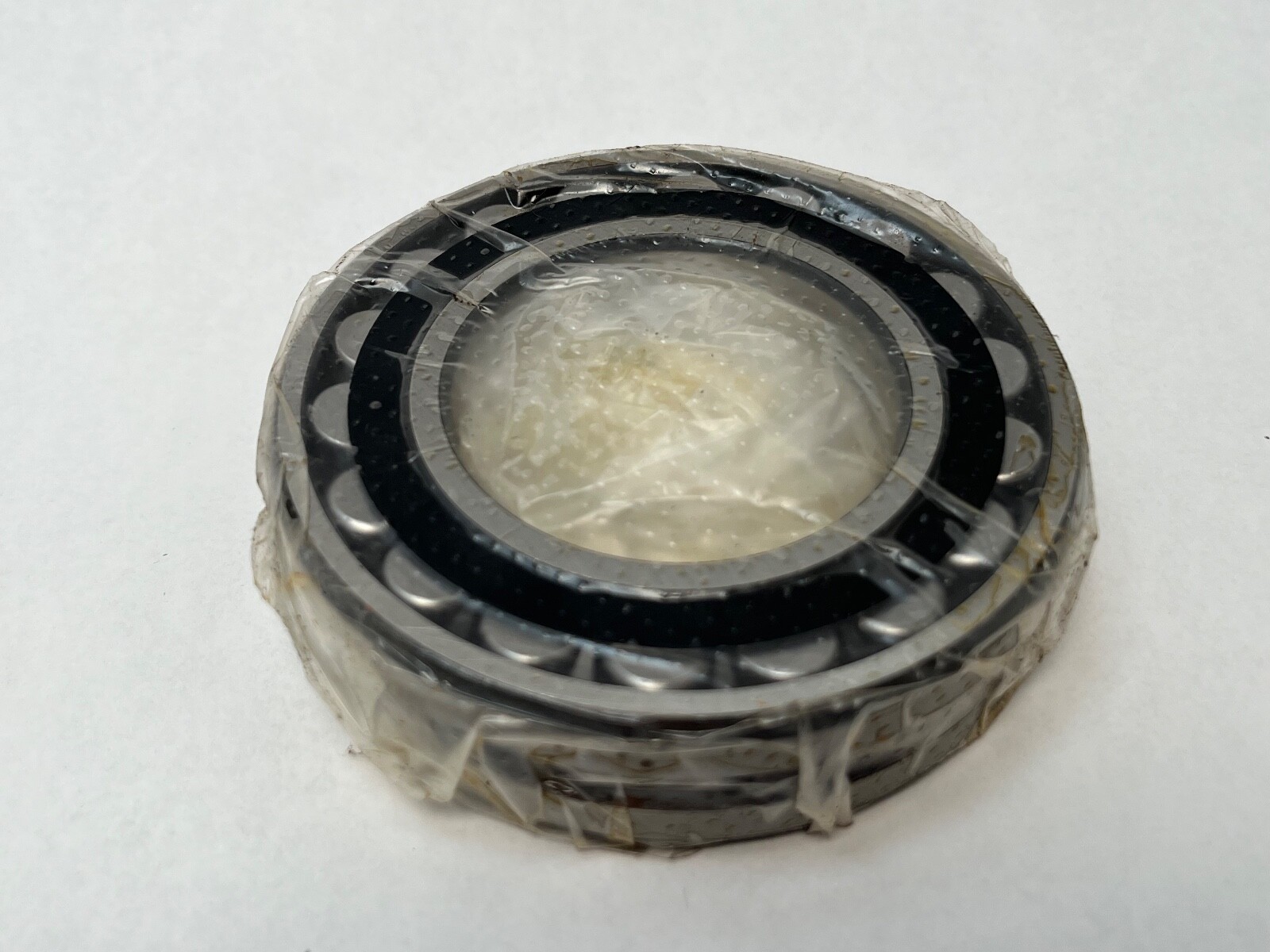

FAG 22210-ES-K-TVPB spherical roller bearing, 50 x 90 x 23 mm, 1:12 tapered bore, polyamide cage, lubrication groove and holes. Adapter sleeve H310.
List Price
$51.54
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22210-ES-K-TVPB |
| Model | 22210-ES-K-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Cage Type | Solid window cage |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Relubrication Feature | Lubrication groove and holes in outer ring (S / W33) |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Base Number | 22210 |
| Mpn Variants | 22210ESK.TVPB, 22210-ES-K-TVPB-W33, 22210ESKTVPBW33, 22210E |
| Compatible With Replaces | Successor: FAG 22210-E1-XL-K |
| Closure Type | Open |
| Cross Reference 1 | SKF 22210 EK |
|---|---|
| Cross Reference 2 | NSK 22210EAKE4 |
| Cross Reference 3 | NTN 22210EK |

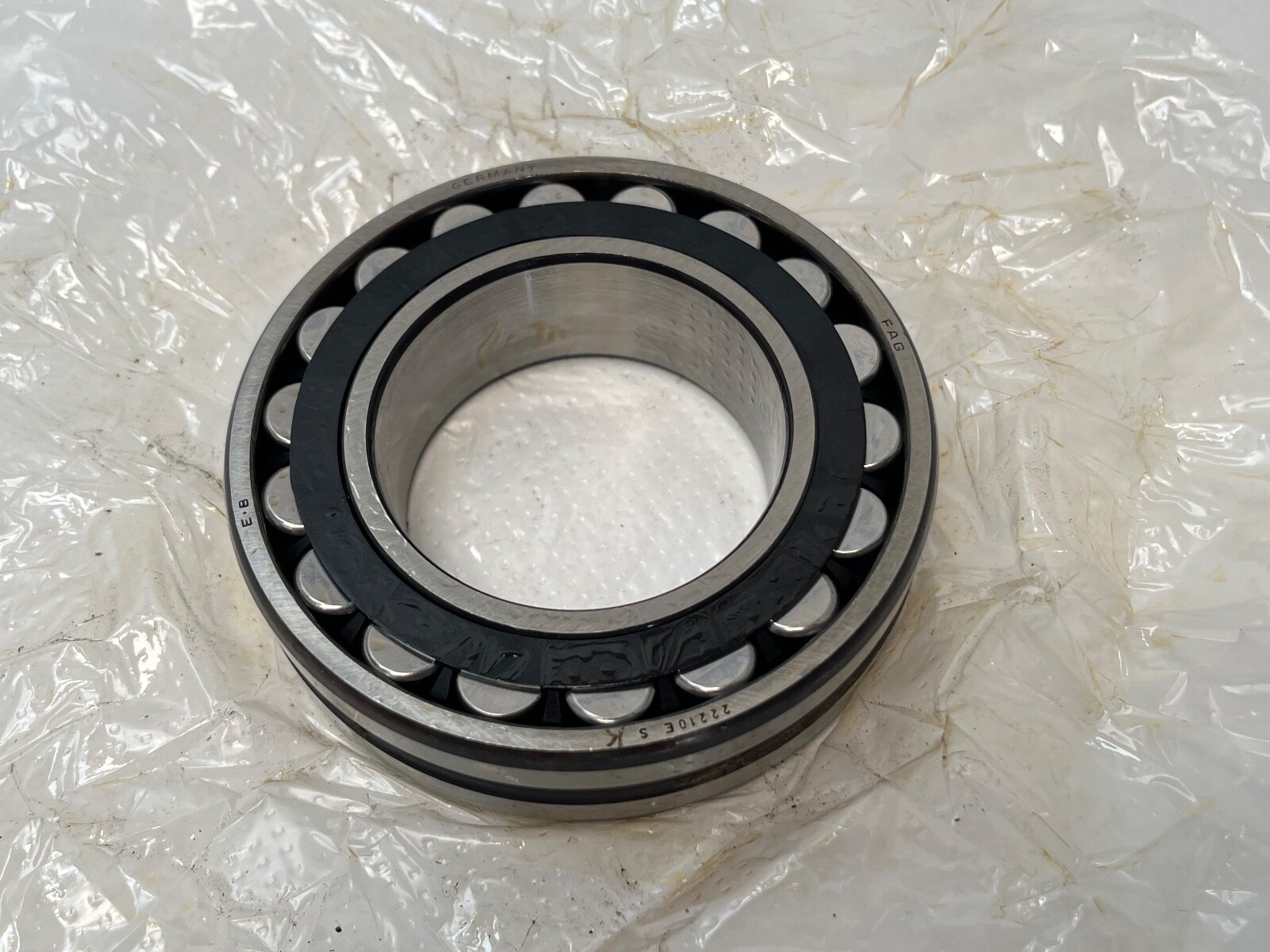

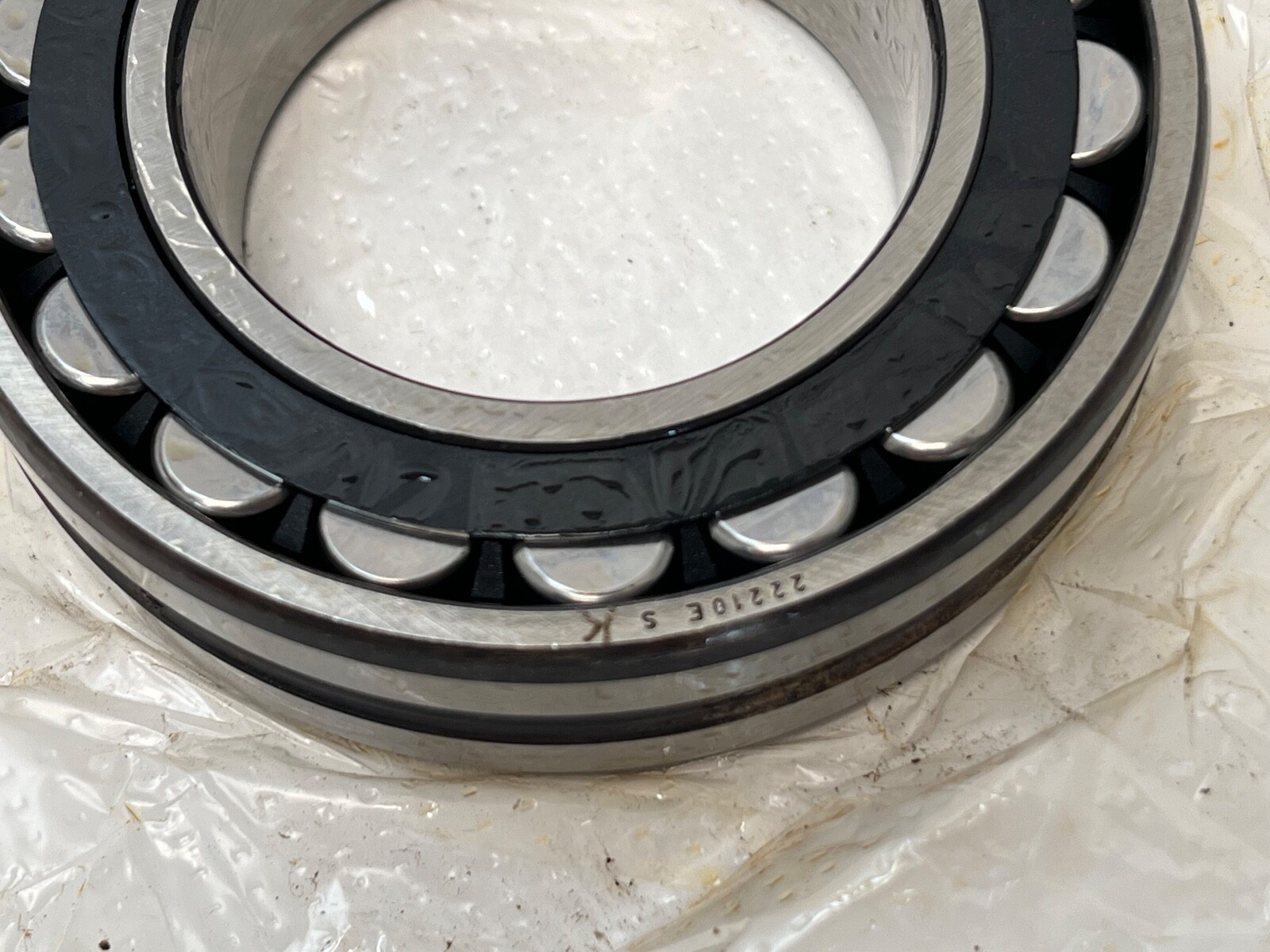

FAG 22210-ES-K-TVPB is a double-row spherical roller bearing with a 50 mm bore, 90 mm outside diameter and 23 mm width. 1:12 tapered bore, glass-fibre reinforced polyamide cage, lubrication groove with holes in the outer ring, open. Two rows of rollers run in a common spherical outer raceway; the bearing accommodates misalignment. Unit Quantity: 1 Pc.
222 — spherical roller bearing, 222 dimension series (DIN 635-2).
10 — bore code, 10 x 5 = 50 mm bore.
E — FAG reinforced internal design.
S — lubrication groove and lubrication holes in the outer ring, the FAG equivalent of W33.
K — tapered bore, taper 1:12.
TVPB — solid window cage of glass-fibre reinforced polyamide.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Cage Material: Polyamide. Cage Type: Solid window cage. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil, fed through the outer-ring groove and holes. Relubrication Feature: Lubrication groove and holes in outer ring (S / W33). Series: 222. Base Number: 22210. Unit Quantity: 1 Pc.
Adapter sleeve: H310. Withdrawal sleeve: AHX310.
Compatible With / Replaces: Schaeffler lists FAG 22210-E1-XL-K as the current tapered-bore execution on the same 50 x 90 x 23 mm envelope. Cross-Reference 1: SKF 22210 EK. Cross-Reference 2: NSK 22210EAKE4. Cross-Reference 3: NTN 22210EK. Each has the 50 x 90 x 23 mm envelope with a tapered bore.
Searchable designation forms: 22210ESK.TVPB, 22210-ES-K-TVPB-W33, 22210ESKTVPBW33, 22210E.
Bore 50 mm, outside diameter 90 mm, width 23 mm, with a 1:12 tapered bore.
S is a lubrication groove with lubrication holes in the outer ring, the FAG equivalent of W33. K is a 1:12 tapered bore. TVPB is a solid window cage of glass-fibre reinforced polyamide.
Adapter sleeve H310 and withdrawal sleeve AHX310.
