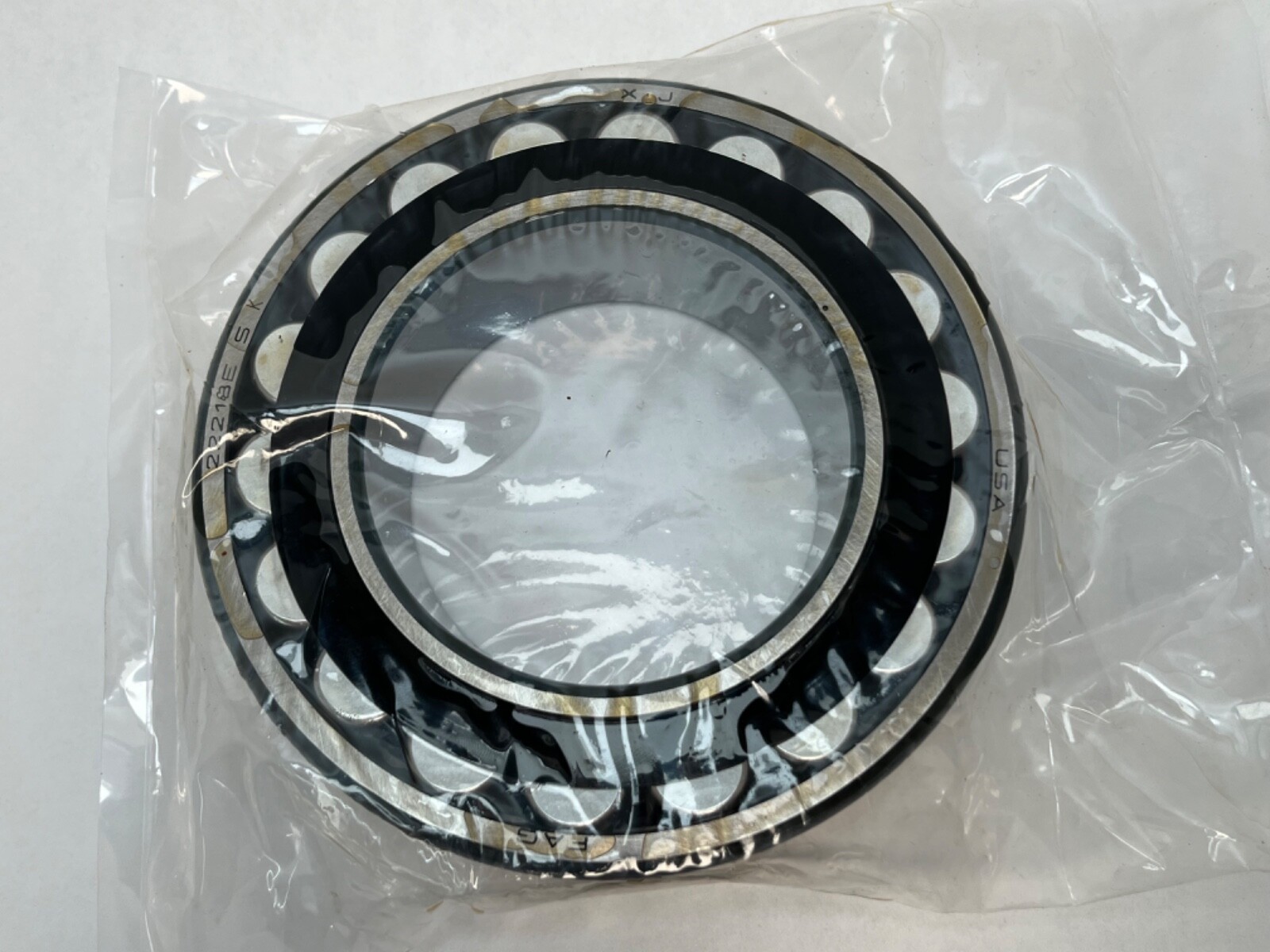

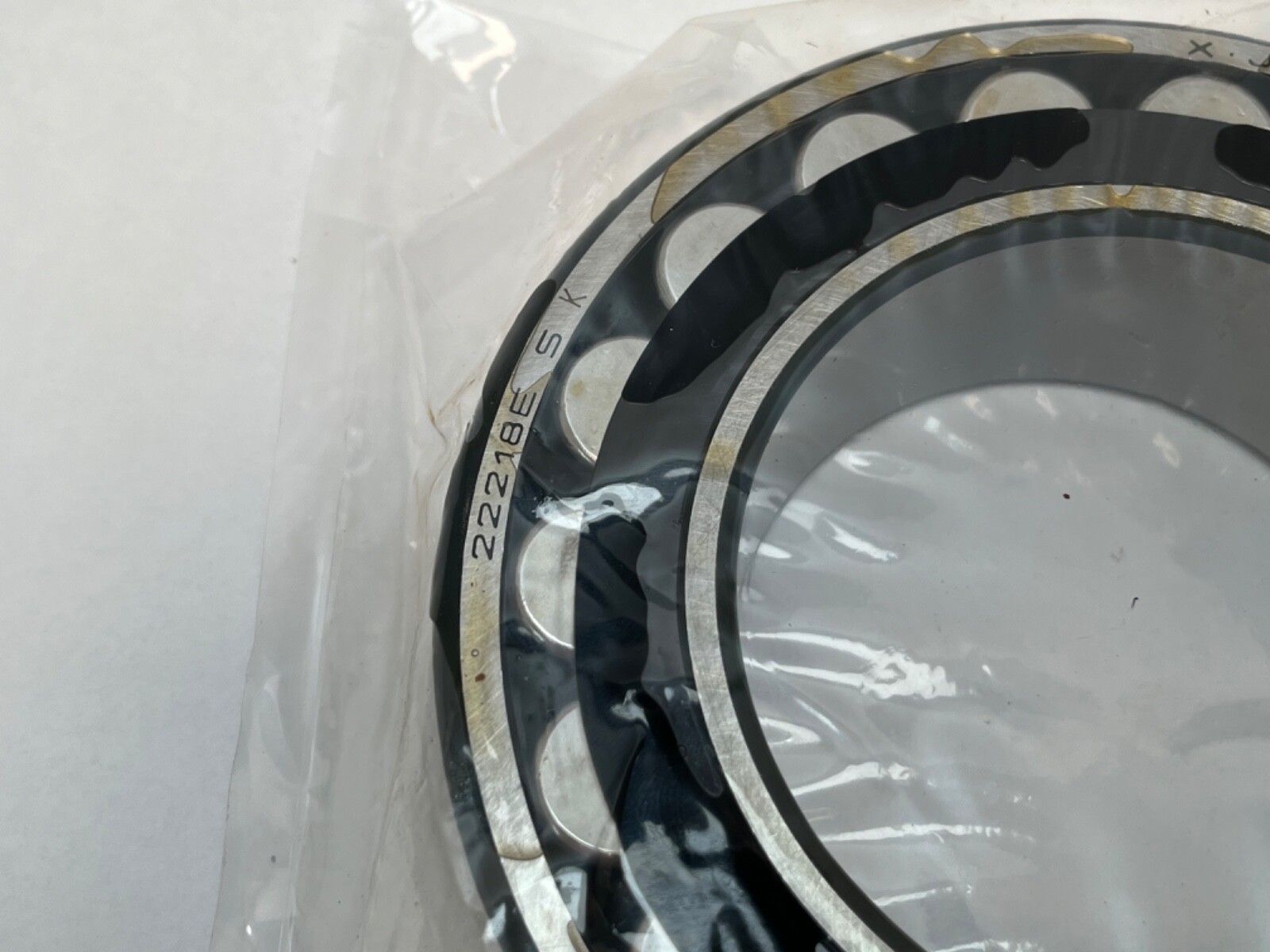

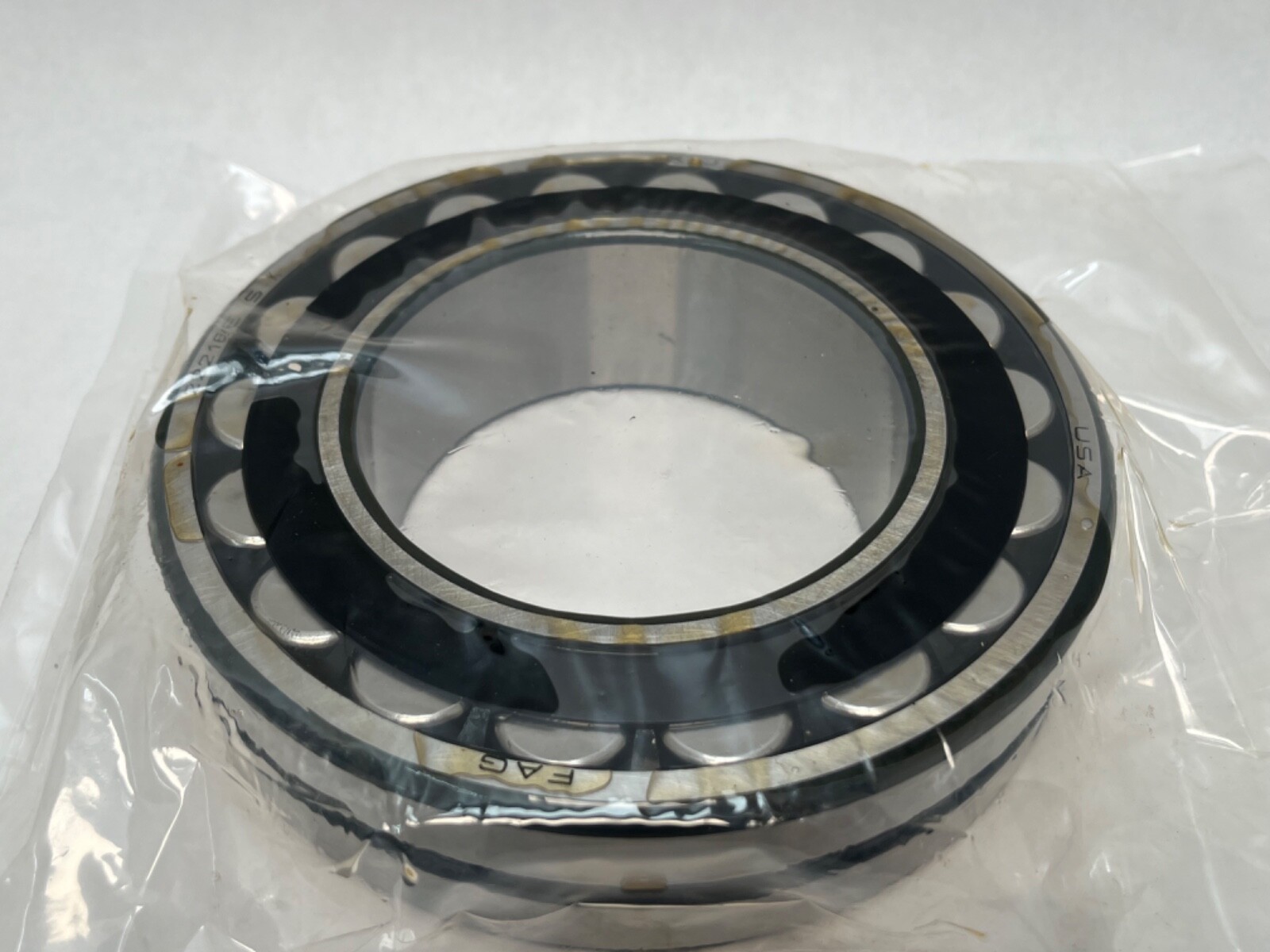

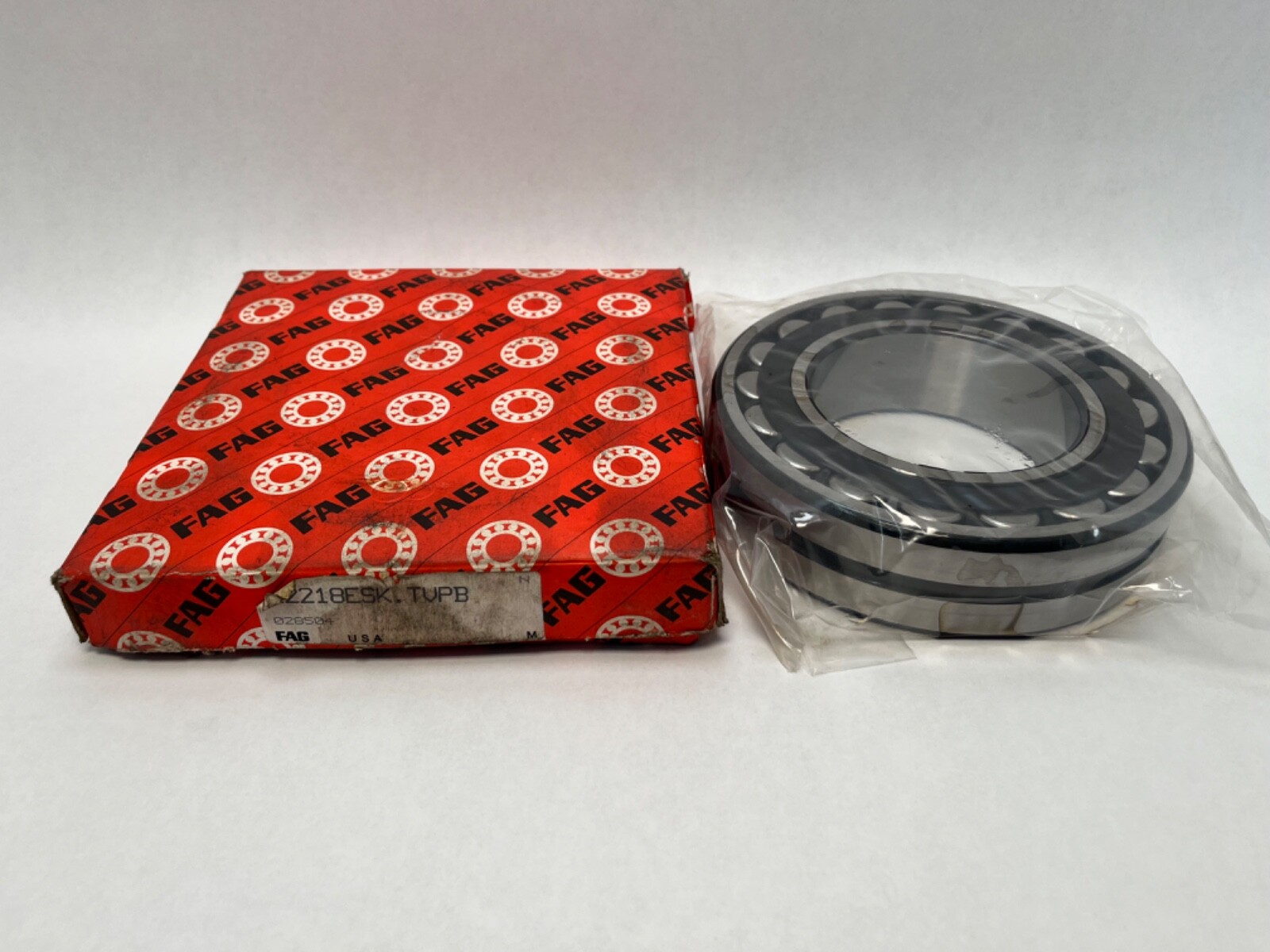

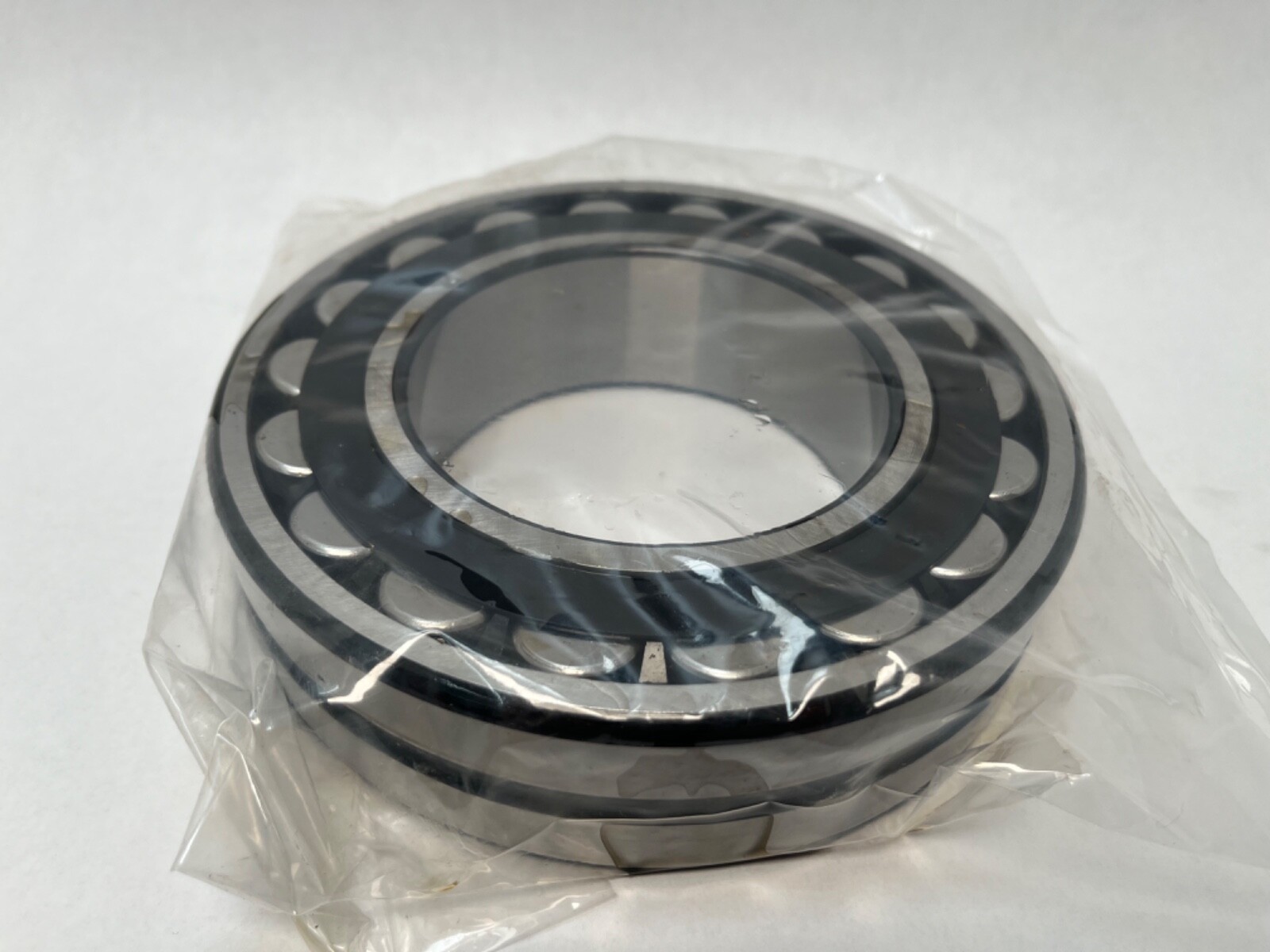

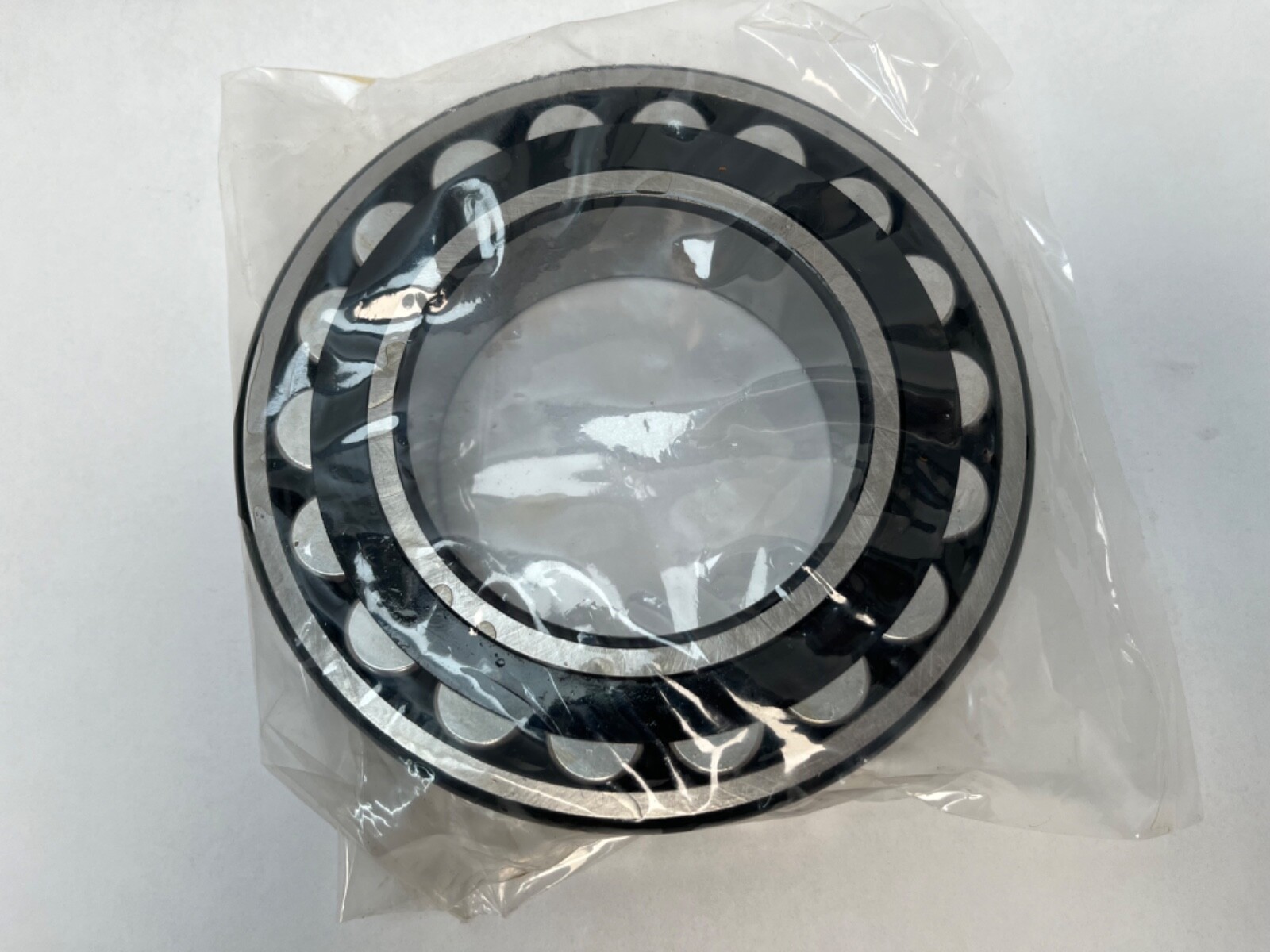

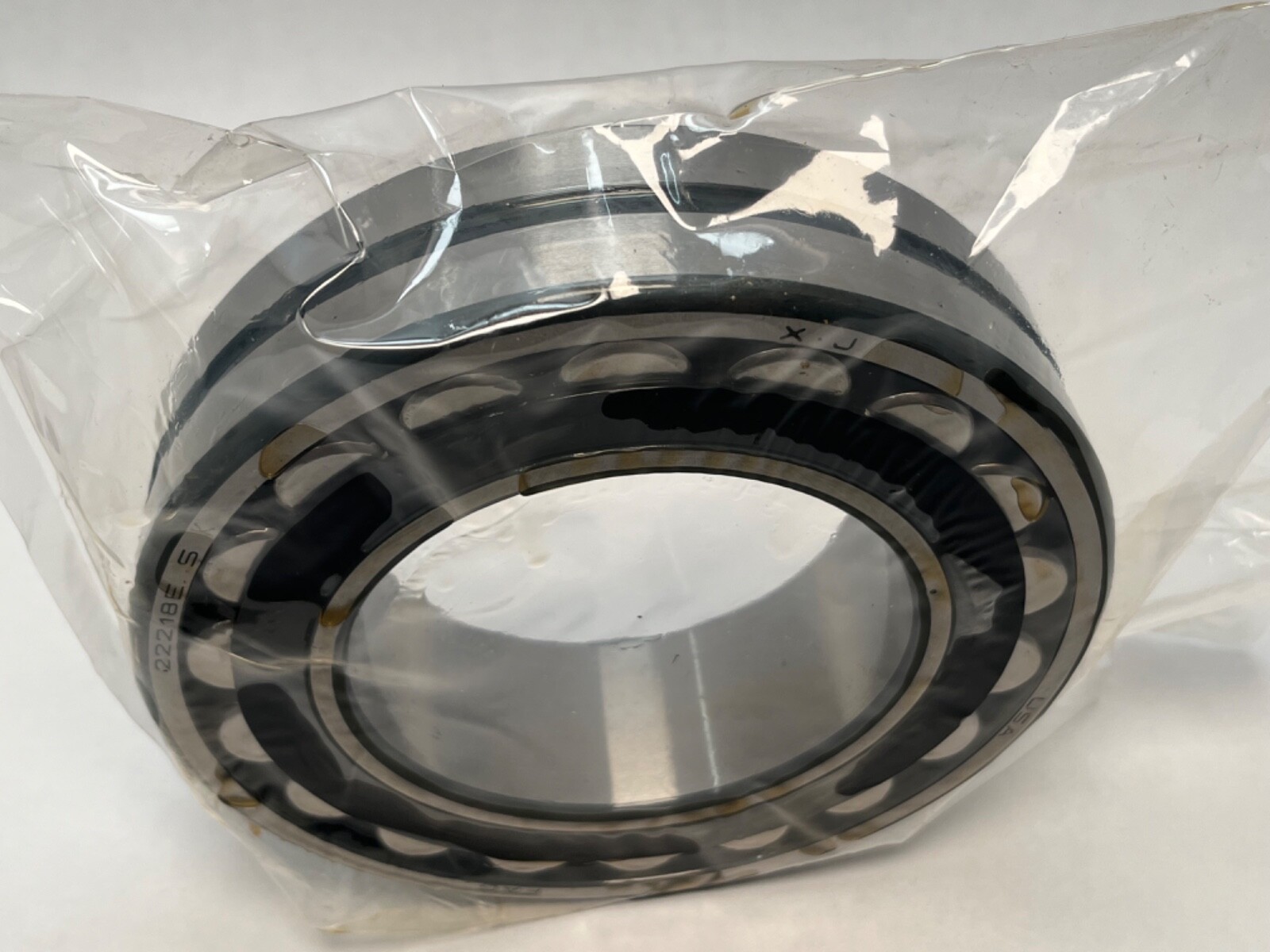

FAG 22218ESK.TVPB spherical roller bearing, 90 x 160 x 40 mm, 1:12 tapered bore, polyamide cage, W33-type lubrication groove, normal clearance, H318 sleeve.
List Price
$120.83
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22218ESK.TVPB |
| Model | 22218ESK.TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Series | 22200 |
|---|---|
| Dynamic Load Rating | 345,000 N |
| Static Load Rating | 375,000 N |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Limiting Speed | 5,200 rpm |
| Overall Width | 40 mm |
| Mpn Variants | 22218ESK.TVPB, 22218-ES-K-TVPB, 22218ESKTVPB, 22218E |
| Compatible With Replaces | Schaeffler successor 22218-E1-XL-K; adapter sleeve H318; withdrawal sleeve AHX318 |
| Additional Attributes | Reference Speed: 3,400 rpm (successor 22218-E1-XL-K). Lubrication groove width: 6.5 mm. |
| Relubrication Feature | Yes |
| Cross Reference 1 | SKF 22218 EK |
|---|---|
| Cross Reference 2 | Timken 22218KEJW33 |
| Cross Reference 3 | NSK 22218CDKE4 |
FAG 22218ESK.TVPB is a double-row spherical roller bearing with a 1:12 tapered bore, a glass-fibre reinforced polyamide cage and an outer-ring lubrication groove with radial holes. Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. The tapered bore mounts on an H318 adapter sleeve or an AHX318 withdrawal sleeve.
22218 — 222 series spherical roller bearing, bore code 18 = 90 mm, envelope 90 x 160 x 40 mm.
E — FAG reinforced internal design without a central rib.
S — lubrication groove and radial lubrication holes in the outer ring.
K — tapered bore, taper 1:12.
TVPB — solid cage of glass-fibre reinforced polyamide.
Successor 22218-E1-XL-K data: Dynamic Load Rating: 345,000 N. Static Load Rating: 375,000 N. Limiting Speed: 5,200 rpm. Reference Speed: 3,400 rpm. Internal Clearance: CN (normal). Cage Material: Glass-fibre reinforced polyamide. Lubricant: grease or oil, fed through the outer-ring groove and holes. Bore Type: Tapered 1:12.
Adapter sleeve: H318. Withdrawal sleeve: AHX318. Successor 22218-E1-XL-K data: Minimum shaft shoulder diameter: 101 mm. Maximum housing shoulder diameter: 149 mm. Maximum fillet radius: 2 mm. Lubrication groove width: 6.5 mm.
Unit Quantity: 1 Pc. Single open double-row spherical roller bearing, tapered bore.
Current Schaeffler successor: 22218-E1-XL-K on the same 90 x 160 x 40 mm envelope. Equivalent tapered-bore executions: SKF 22218 EK, Timken 22218KEJW33, NSK 22218CDKE4.
