Availability:
1 in stock
Single-row deep groove ball bearing, 55 mm bore x 100 mm OD x 21 mm wide, contact seals both sides, C3 clearance. Set of three SNR 6211EE bearings.
List Price
$44.80
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 6211EE |
| Model | 6211EEJ30 6211RS-C3 |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Series | 6200 |
|---|---|
| Lubricant | Grease |
| Base Number | 6211 |
| Industry Terms | deep groove ball bearing, sealed ball bearing, 2RS bearing, radial ball bearing, C3 clearance, 6200 series |
| Common Misspellings | 6211E, 6211EEJ3, 6211EJ30, 6221EE, 6211-2R5 |
| Overall Width | 21 mm |
| Mpn Variants | 6211EE, 6211EEJ30, 6211 EE J30, 6211.EE.J30, 6211EE C3, 6211-2RS-C3, 6211RS-C3, 6211-2RS |
| Precision Class | ABEC 1 / P0 |
| Closure Type | Double Rubber Seal |
| Min Temp | -30 °C |
| Dynamic Load Rating | 45,700 N |
| Static Load Rating | 29,300 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 0.6 kg (1.32 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,300 rpm grease |
| Internal Clearance | C3 |
| Harmonization Code | 84821000 |
| Application Types | electric motors; pumps; fans; gearboxes; general industrial machinery |
| Cross Reference 1 | SKF 6211-2RS1/C3 |
|---|---|
| Cross Reference 2 | FAG 6211-2RSR-C3 |
| Cross Reference 3 | NSK 6211DDUC3 |
| Cross Reference 4 | NTN 6211LLUC3 |
| Cross Reference 5 | Koyo 6211-2RSC3 |

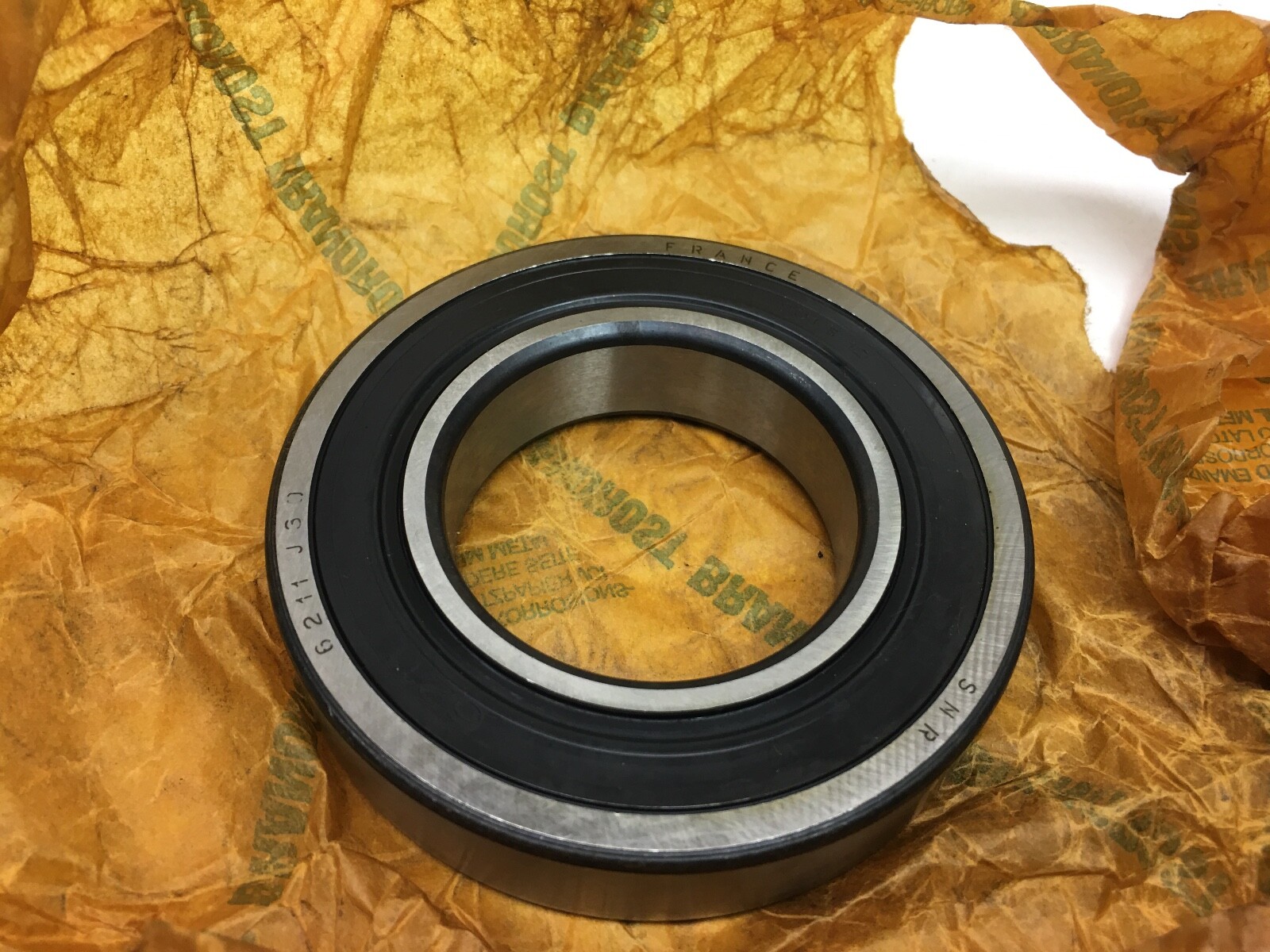

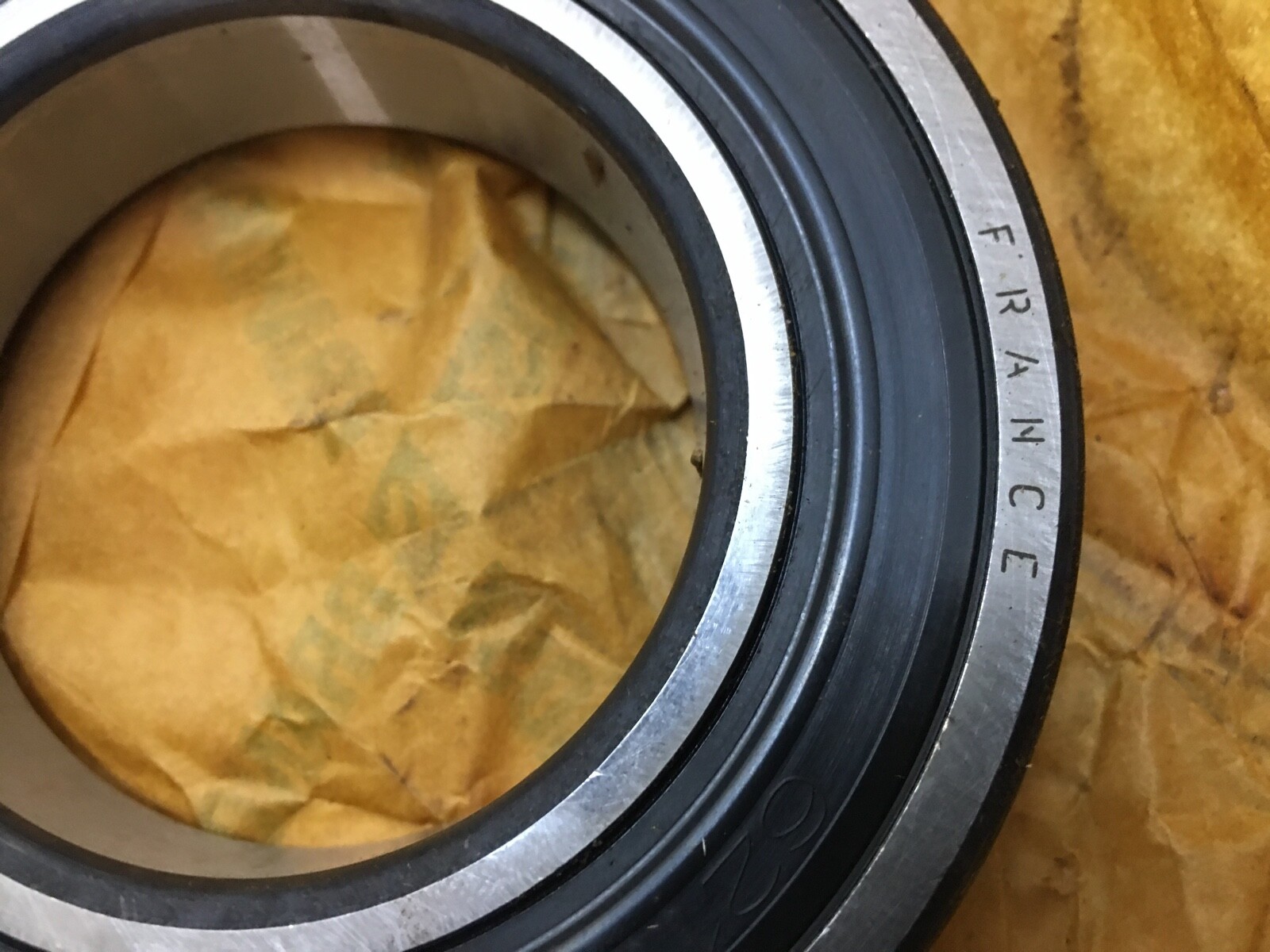

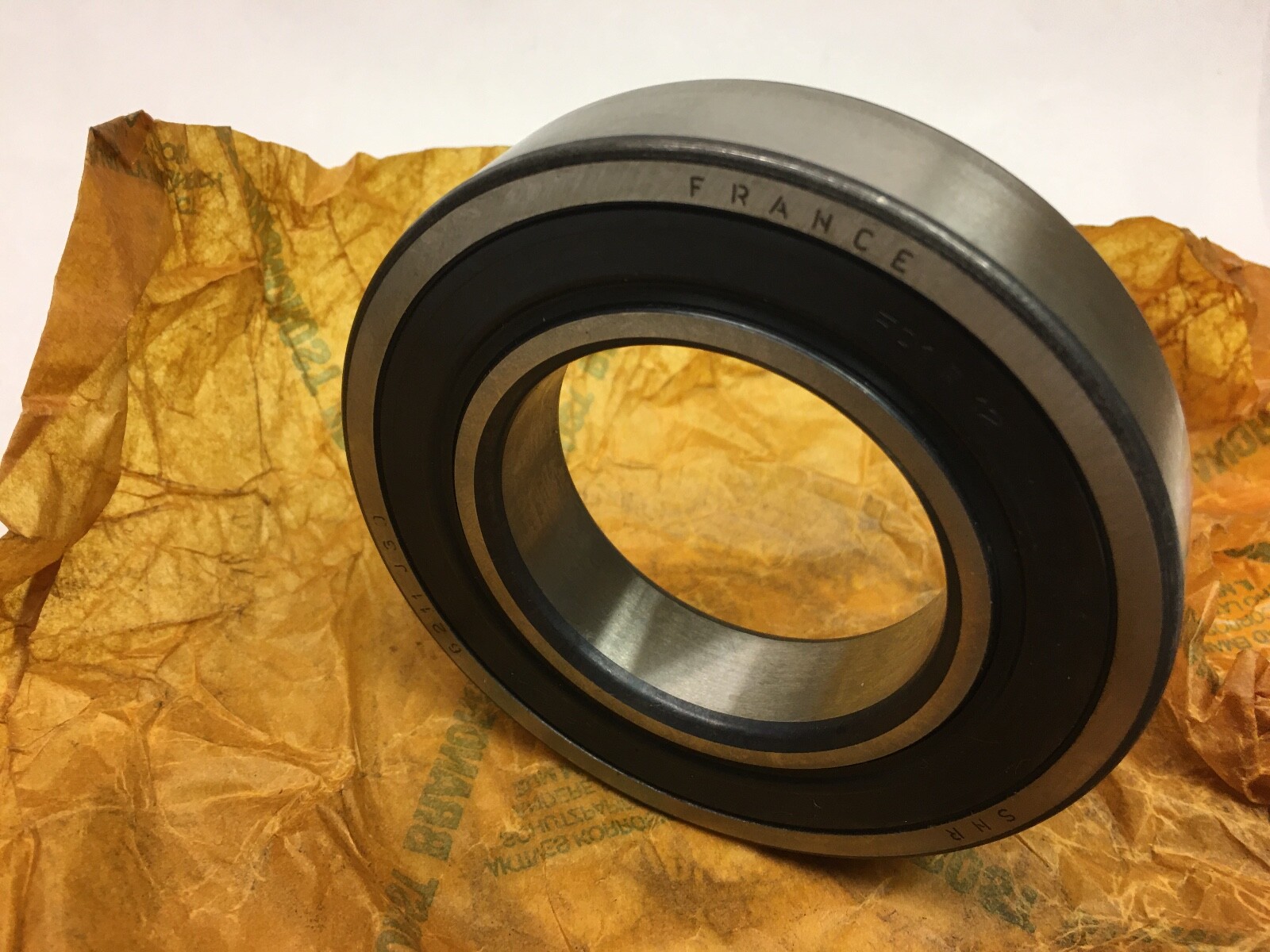

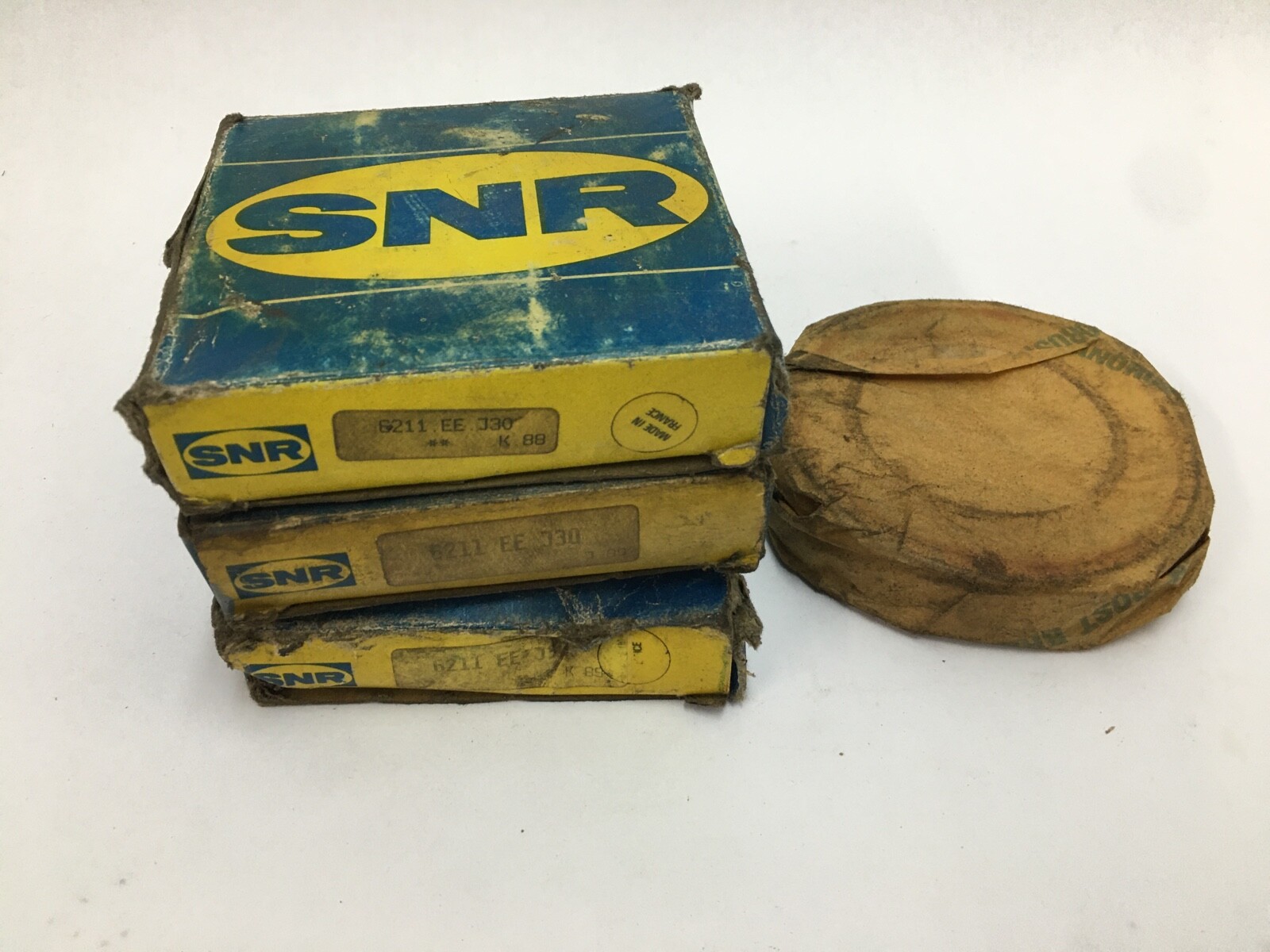

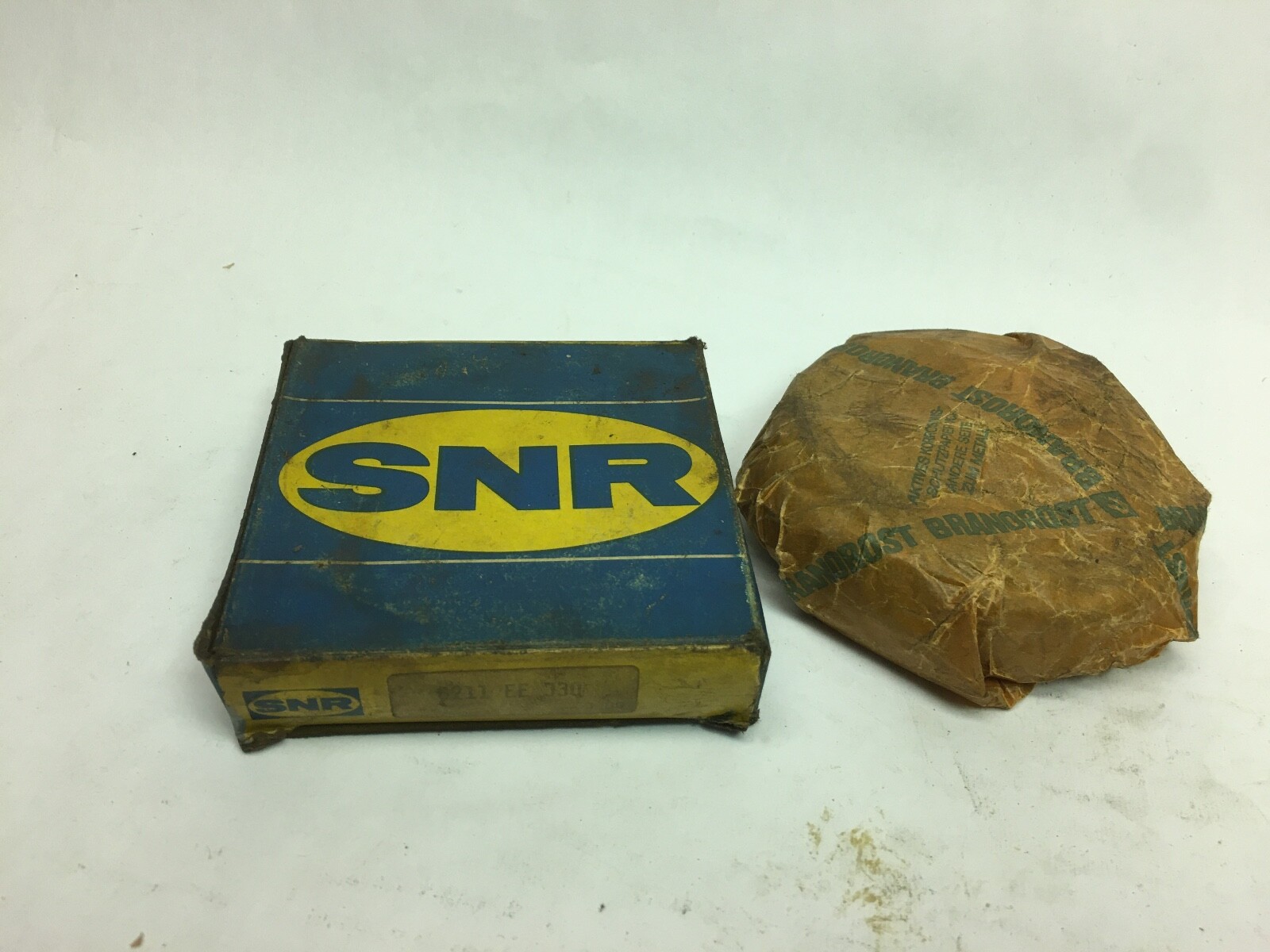

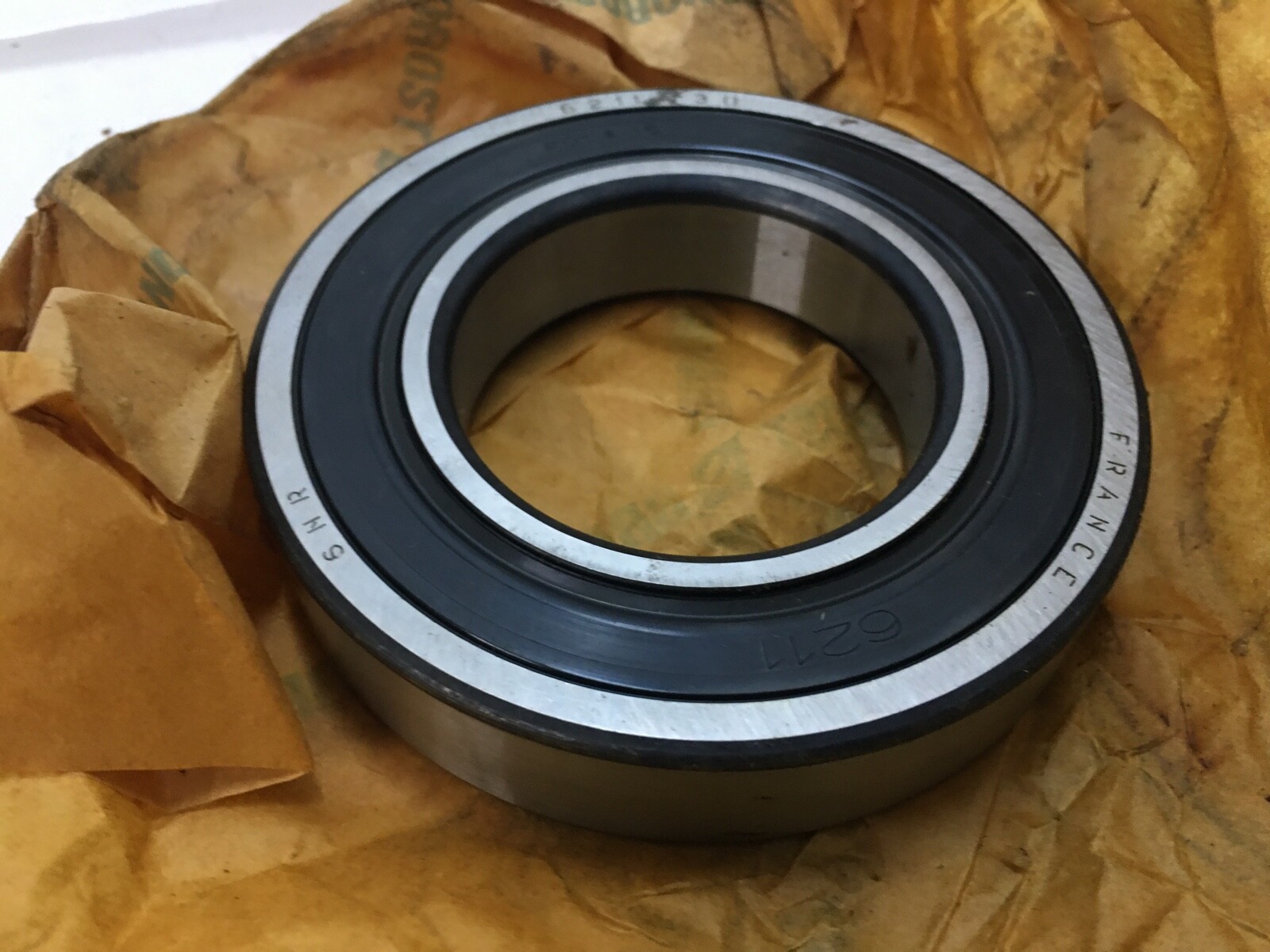

SNR 6211EE is a single-row deep groove ball bearing from NTN-SNR with contact rubber seals on both sides and a pressed steel cage. This listing carries the J30 (C3) clearance execution, marked 6211EEJ30. Unit Quantity: 3 Pcs. Three individual SNR 6211EE J30 bearings.
62 — single-row deep groove ball bearing, ISO light series 02.
11 — bore code 11: 55 mm bore, 100 mm outside diameter, 21 mm width.
EE — SNR contact seals on both sides, equivalent to 2RS.
J30 — SNR radial internal clearance category 3, equivalent to C3.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Dynamic Load Rating: 45,700 N. Static Load Rating: 29,300 N. Fatigue Limit Load: 1,330 N. Limiting Speed: 4,300 rpm grease. Closure Type: Contact seals both sides. Cage Material: Pressed steel. Internal Clearance: C3. Rolling Elements: Ball. Number Of Rows: 1. Min Temp: -30 °C. Max Temp: 120 °C. Item Weight: 0.6 kg (1.32 lb) per bearing.
Inner Ring Shoulder Diameter d1: 66.3 mm. Outer Ring Inner Diameter D1: 88.6 mm. Minimum Chamfer rs: 1.5 mm. Shaft Abutment Diameter da: 63 to 66.3 mm. Housing Abutment Diameter Da max: 92 mm. Fillet Radius ra max: 1.5 mm. Bearing defect frequencies at 60 rpm: BPFO 4.078 Hz, BPFI 5.922 Hz, FTF 0.408 Hz, BSF 5.24 Hz.
Contact-sealed C3 deep groove bearings on the same 55 x 100 x 21 mm envelope: SKF 6211-2RS1/C3, FAG 6211-2RSR-C3, NSK 6211DDUC3, NTN 6211LLUC3, Koyo 6211-2RSC3.
Bore 55 mm, outside diameter 100 mm, width 21 mm.
EE is SNR contact seals on both sides; J30 is SNR radial internal clearance category 3, equivalent to C3.
Dynamic 45,700 N and static 29,300 N, from the NTN Europe datasheet for SNR 6211EE.
