Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

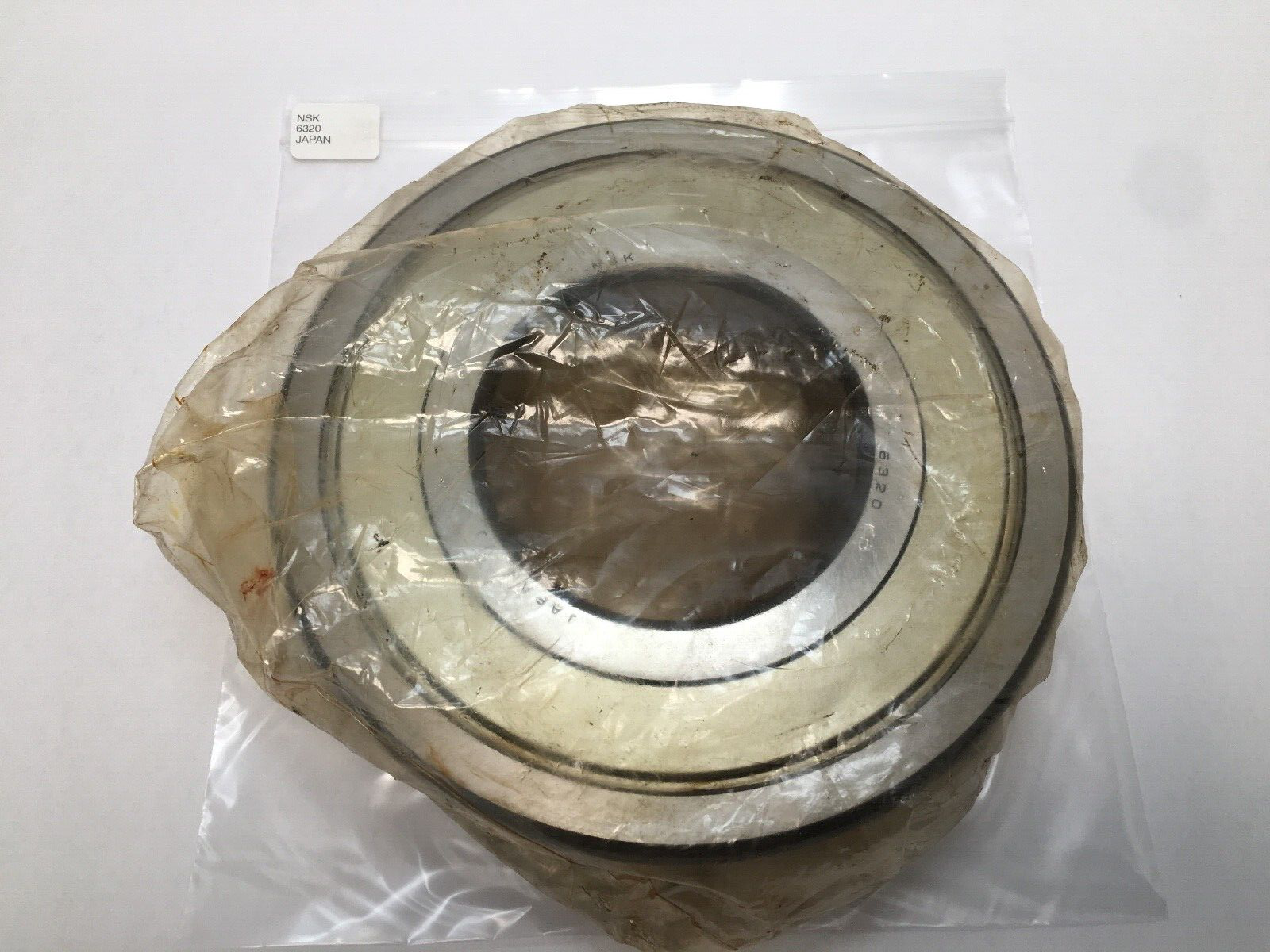

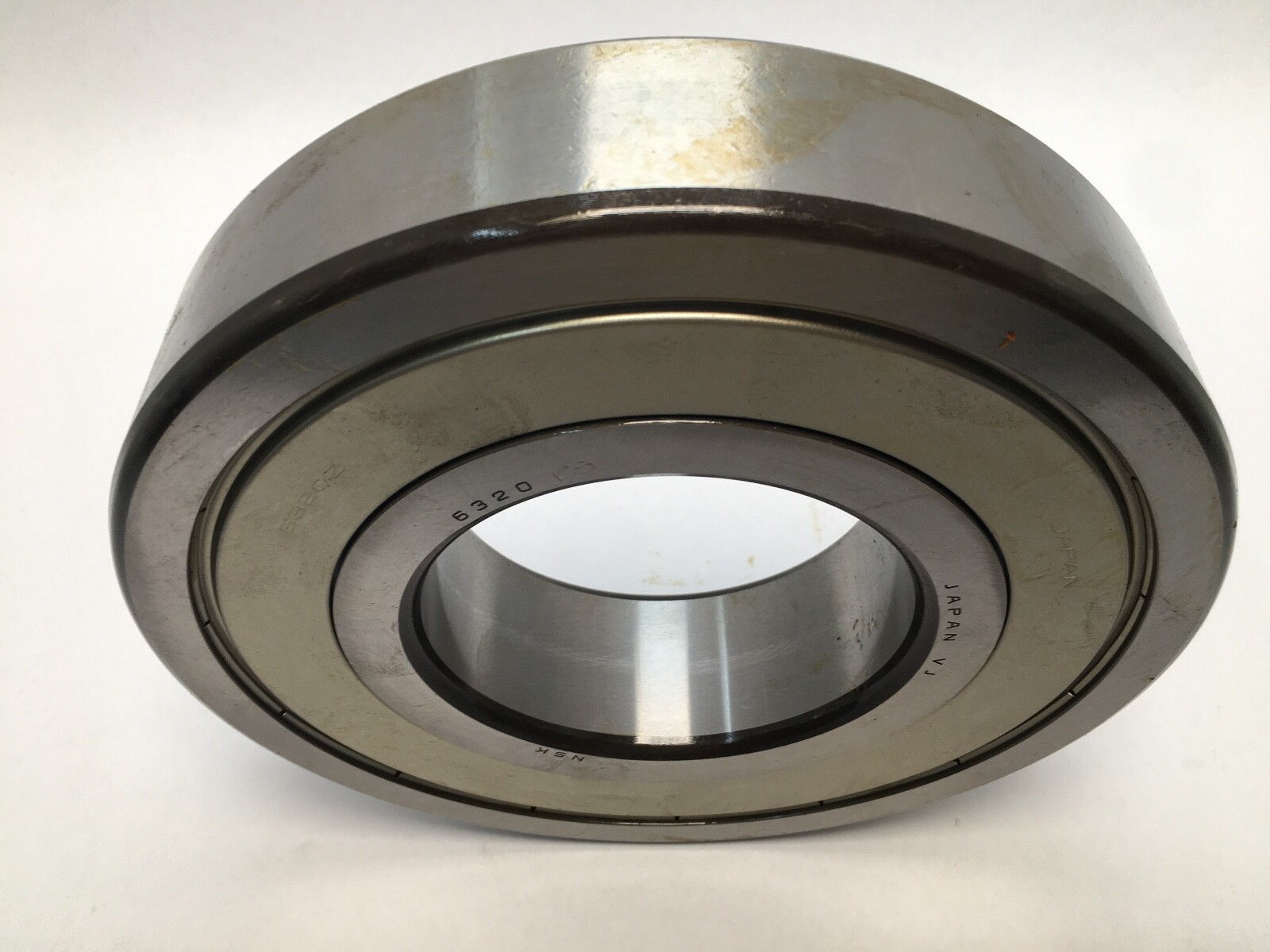

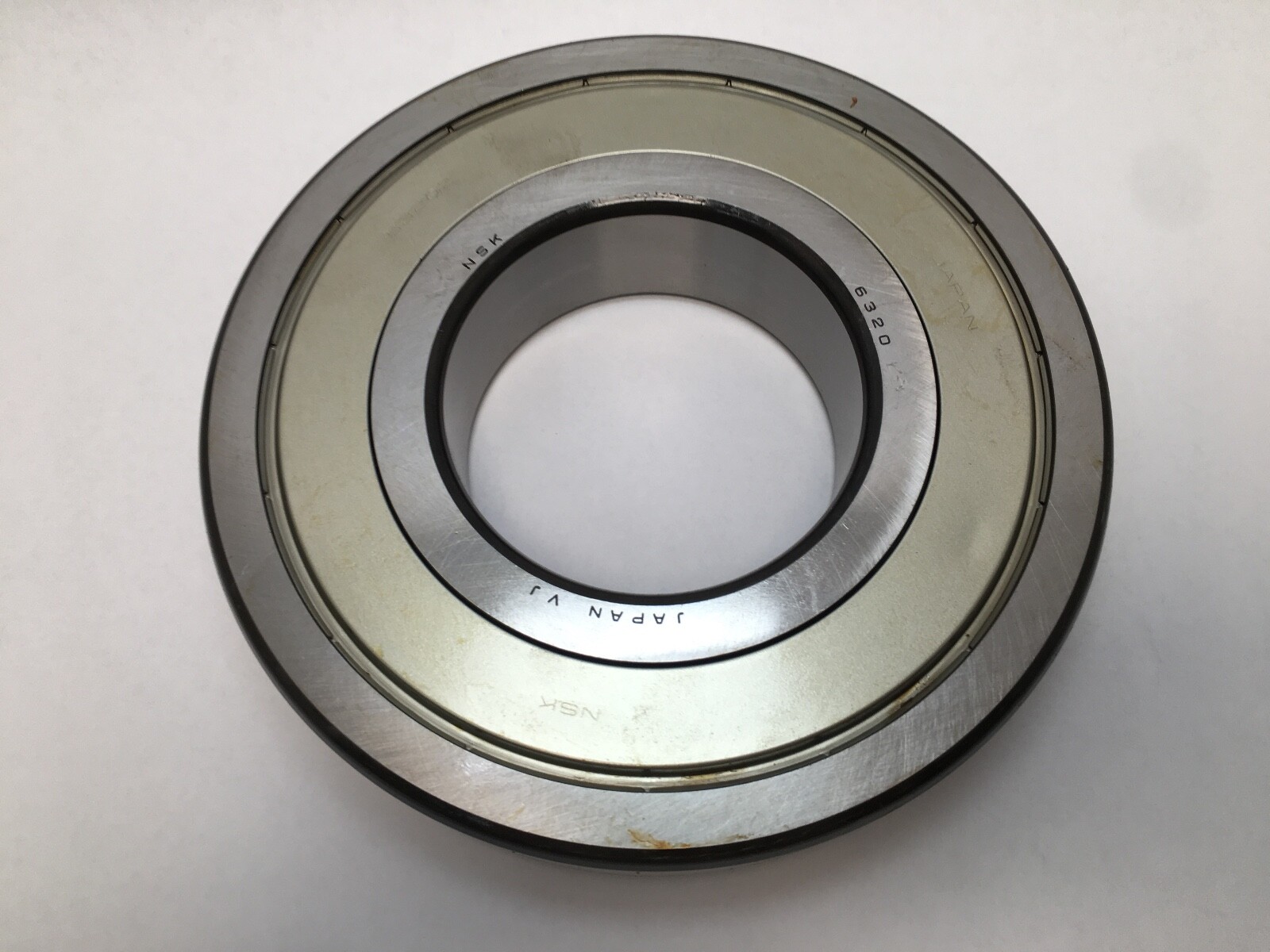

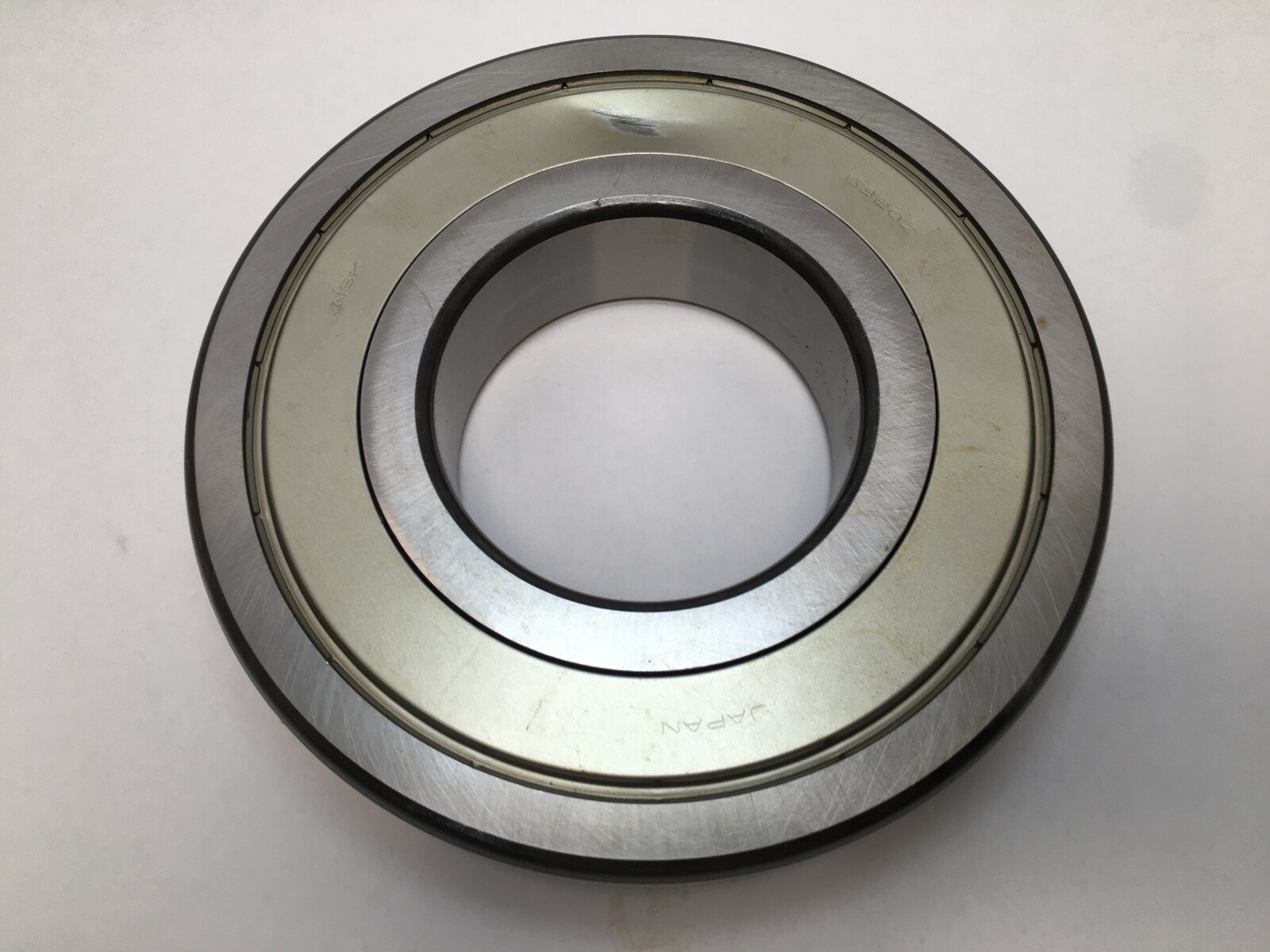

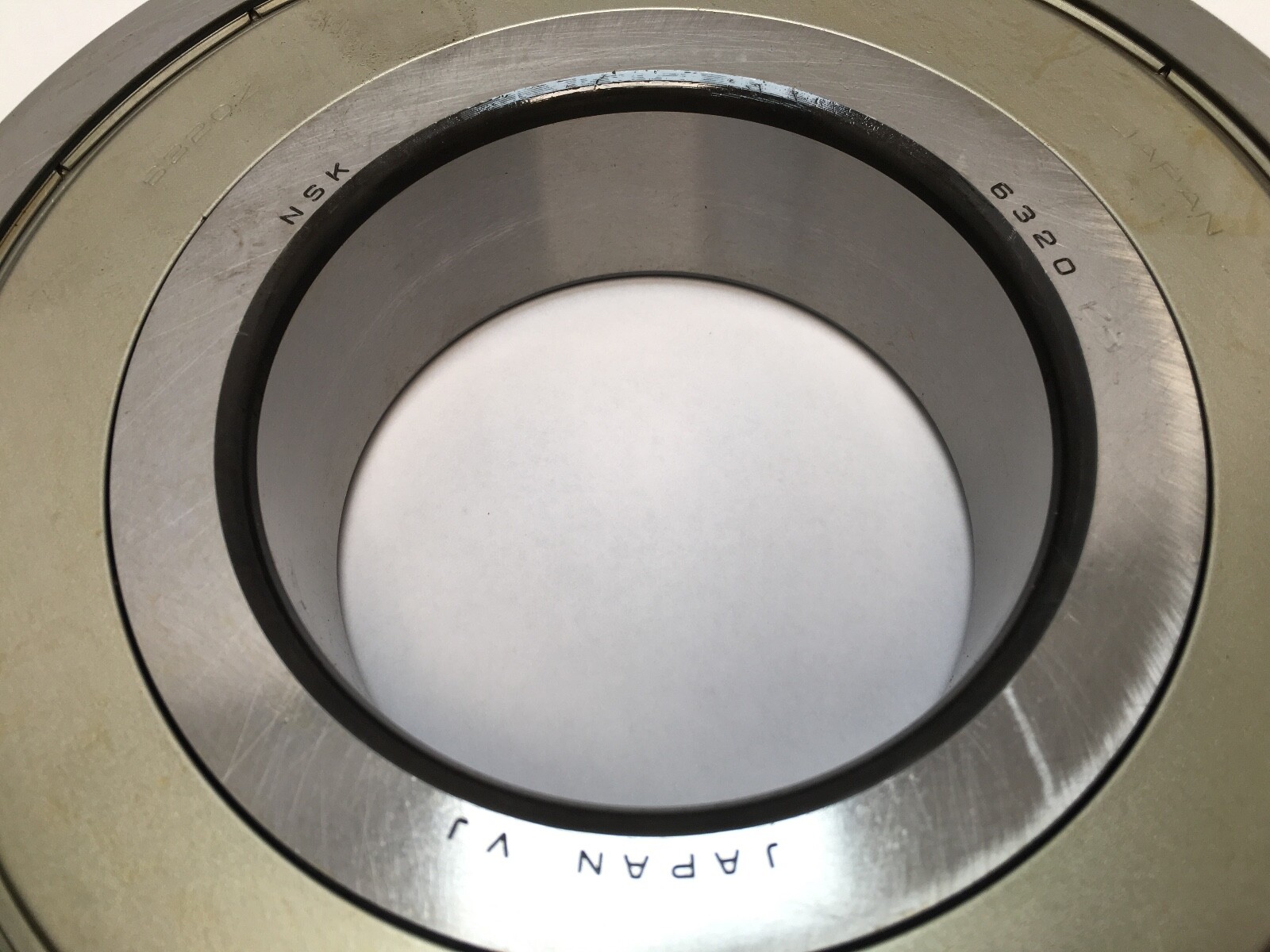

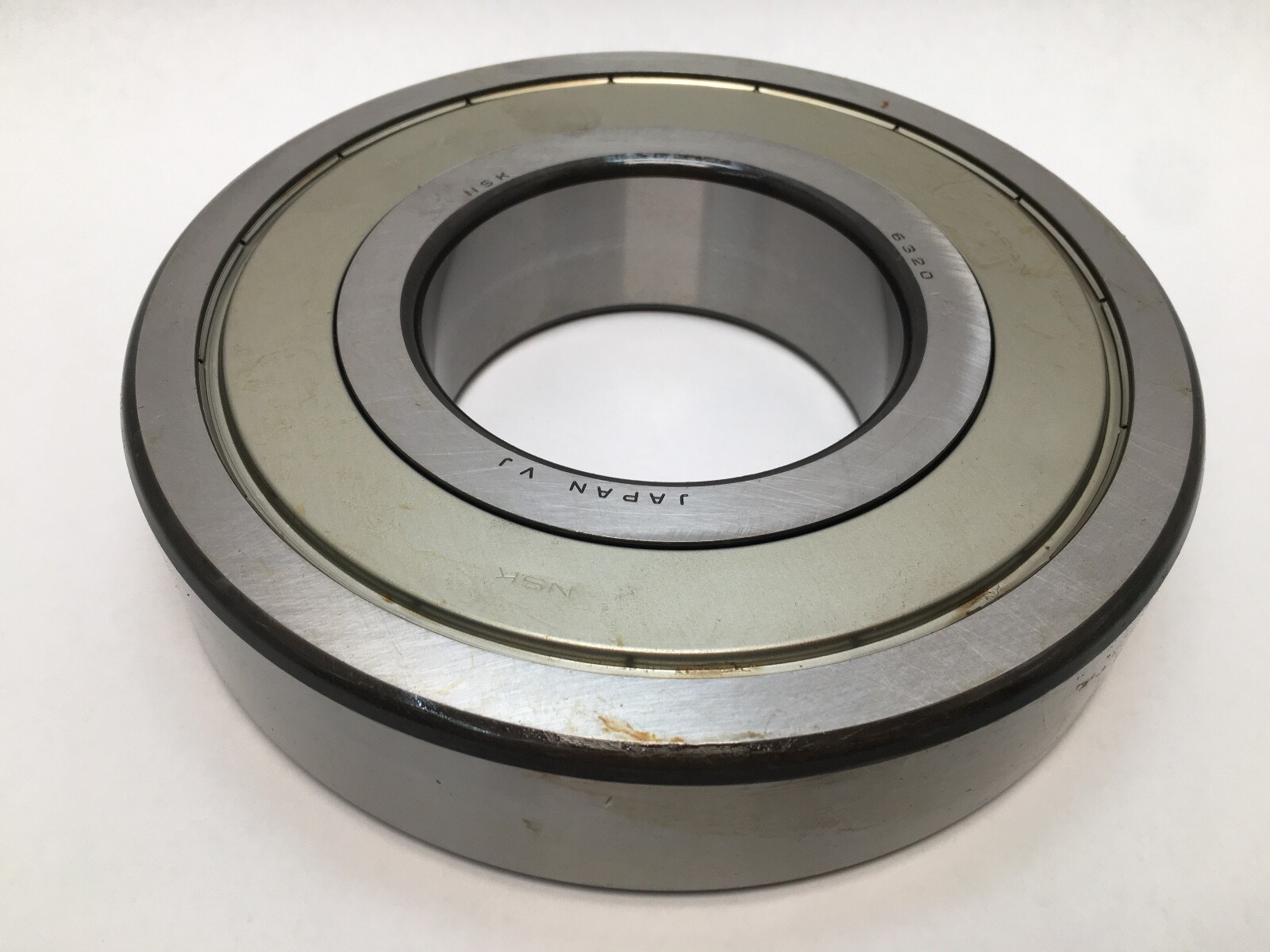

Deep groove ball bearing, 100 x 215 x 47 mm, steel shields both sides. NSK 6320ZZ, 191,000 N dynamic rating, pressed steel cage, heavy 63 series section.
List Price
$302.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 6320ZZ |
| Model | 6320-ZZ |
| Bearing Type | Ball Bearing, Double Shield |
| ID | 100 mm |
| OD | 215 mm |
| Width | 47 mm |
| Material | Bearing Steel |
|---|---|
| Series | 63 |
| Lubricant | grease |
| Base Number | 6320 |
| Industry Terms | deep groove ball bearing; shielded ball bearing; radial ball bearing; single row ball bearing; metal shielded bearing; heavy series ball bearing |
| Common Misspellings | 6320 Z Z; 632OZZ; 6320ZZ2; 63 20 ZZ; 6320zz bearing |
| Application Types | electric motors; pumps; fans and blowers; gearboxes; conveyors; crusher and mill drives |
| Total Width | 47 mm |
| Overall Width | 47 mm |
| Mpn Variants | 6320ZZ; 6320 ZZ; 6320Z; 6320-2Z; 6320 2Z; 6320ZZC3; 6320 |
| Additional Attributes | 8 balls of 36.512 mm diameter. Bearing chamfer r min 3 mm. da min 113 mm; da max 133 mm; Da max 202 mm; ra max 2.5 mm. ISO 63 heavy dimension series. |
| Closure Type | Double Shield |
| Cage Type | Pressed |
| Dynamic Load Rating | 191,000 N |
| Static Load Rating | 141,000 N |
| Rolling Elements | Ball |
| Item Weight | 7.04 kg (15.521 lb) per bearing |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 2,800 rpm grease |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Cross Reference 1 | SKF 6320-2Z |
|---|---|
| Cross Reference 2 | FAG 6320-2Z |
| Cross Reference 3 | NTN 6320ZZ |
| Cross Reference 4 | Koyo 6320ZZ |
| Cross Reference 5 | NACHI 6320ZZ |
| Cross Reference 6 | Timken 320KDD |
| Cross Reference 7 | NSK 6320 - open, no shields |
NSK 6320ZZ single-row deep groove ball bearing with steel shields on both sides. Bore Diameter: 100 mm. Outside Diameter: 215 mm. Overall Width: 47 mm. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Shields both sides. The 63 heavy series puts a large ball on a deep raceway, so this size carries high radial load and moderate axial load in either direction.
6320 — ISO deep groove ball size in the 63 heavy dimension series, 100 mm bore, 215 mm outside diameter, 47 mm width.

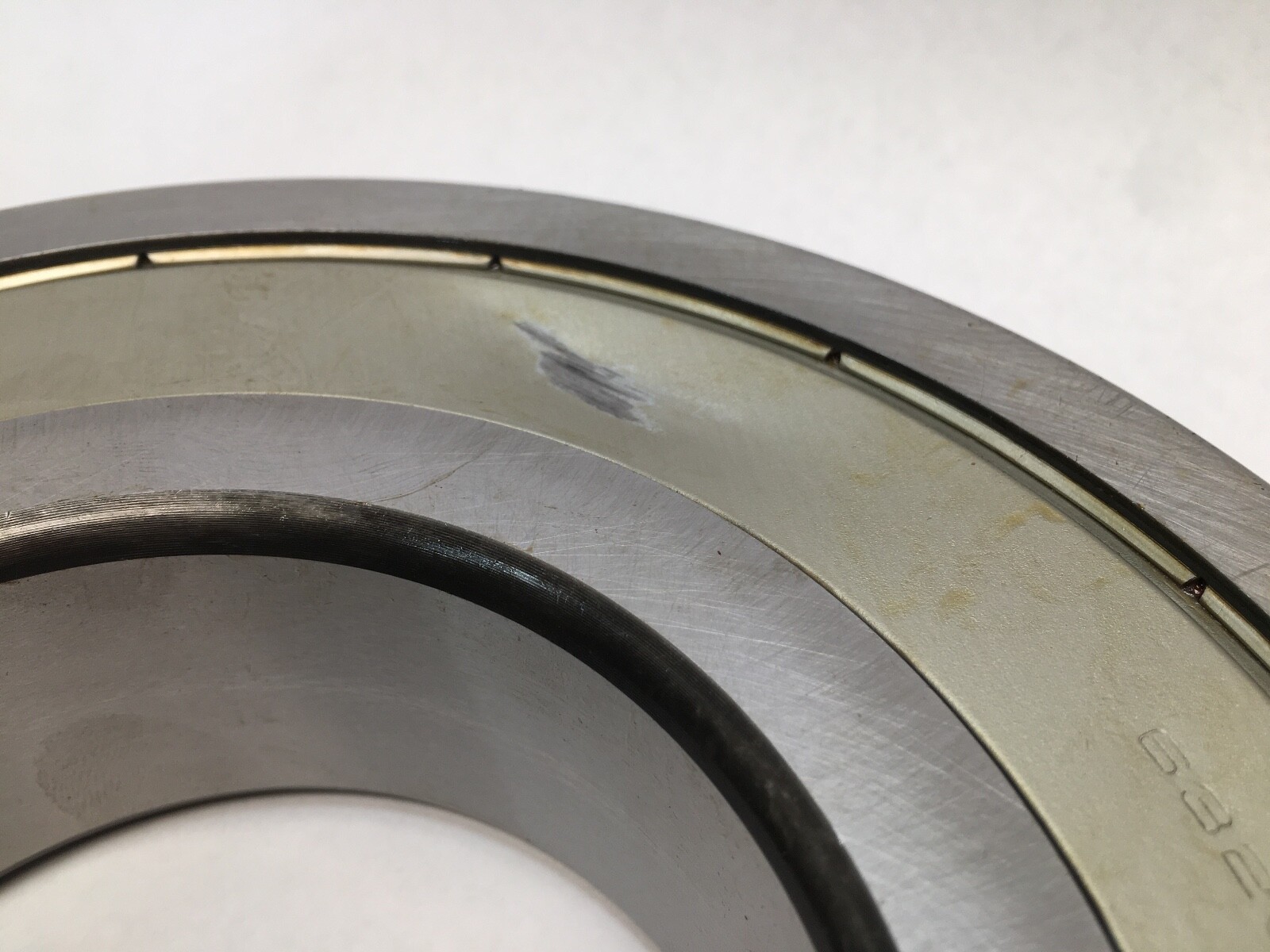

ZZ — pressed steel shields on both sides. The shields run with a close non-rubbing gap to the inner ring, retaining grease and excluding coarse debris without adding seal drag.
Dynamic Load Rating: 191,000 N (42,939 lbf). Static Load Rating: 141,000 N (31,698 lbf). Limiting Speed: 2,800 rpm grease. Item Weight: 7.04 kg (15.521 lb). Cage Material: Pressed steel. Internal Clearance: CN. Lubricant: grease. Ball complement: 8 balls of 36.512 mm diameter. Bearing chamfer r min: 3 mm.
Shaft abutment diameter da: 113 mm minimum, 133 mm maximum. Housing abutment diameter Da max: 202 mm. Maximum abutment fillet radius ra: 2.5 mm.
Unit Quantity: 1 Pc. Number Of Rows: 1.
The 6320 shielded size is also sold as SKF 6320-2Z, FAG 6320-2Z, NTN 6320ZZ, Koyo 6320ZZ, NACHI 6320ZZ and Timken 320KDD, all with shields on both sides. NSK 6320 is the open version of the same size, without shields.
