Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

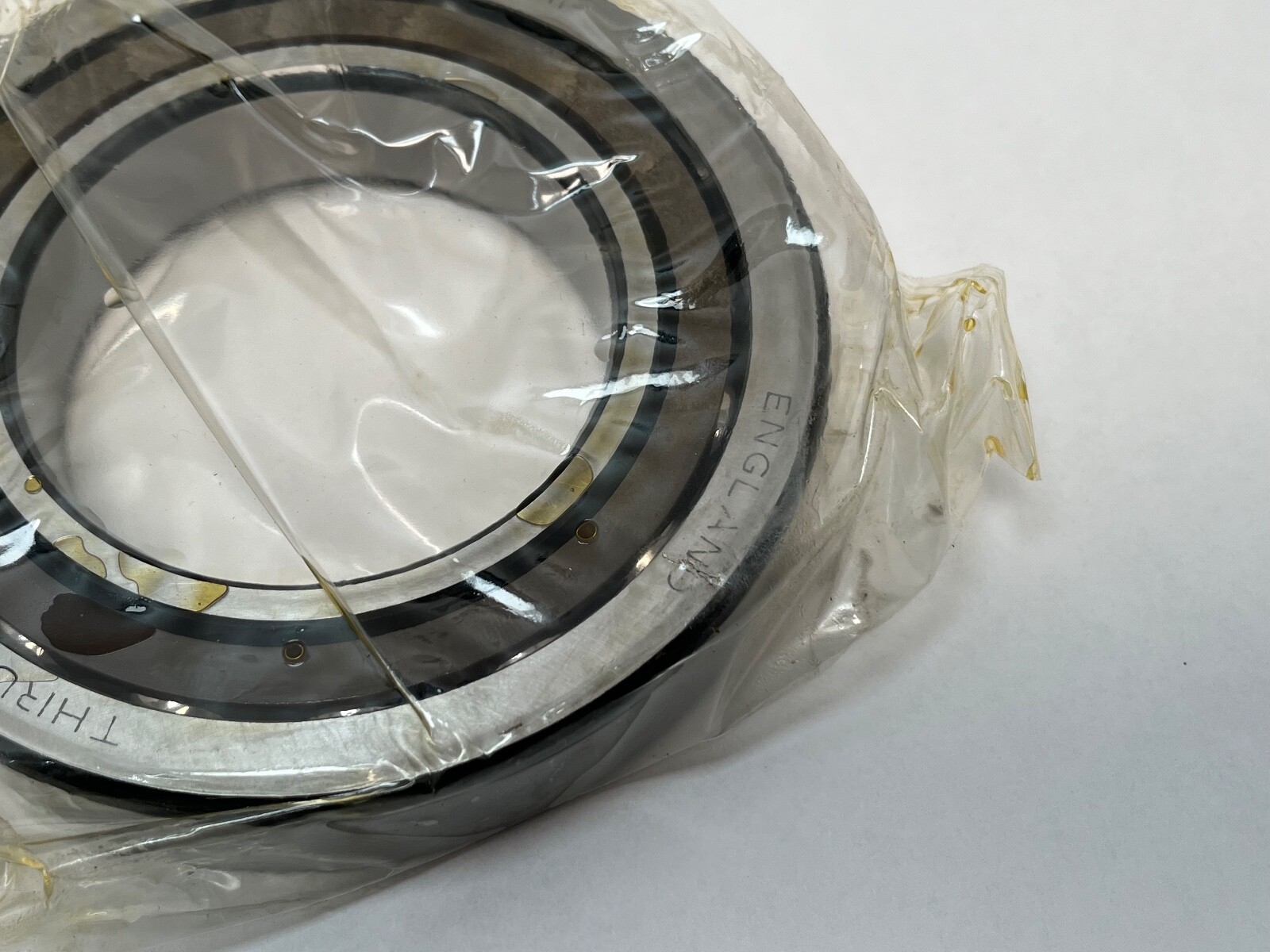

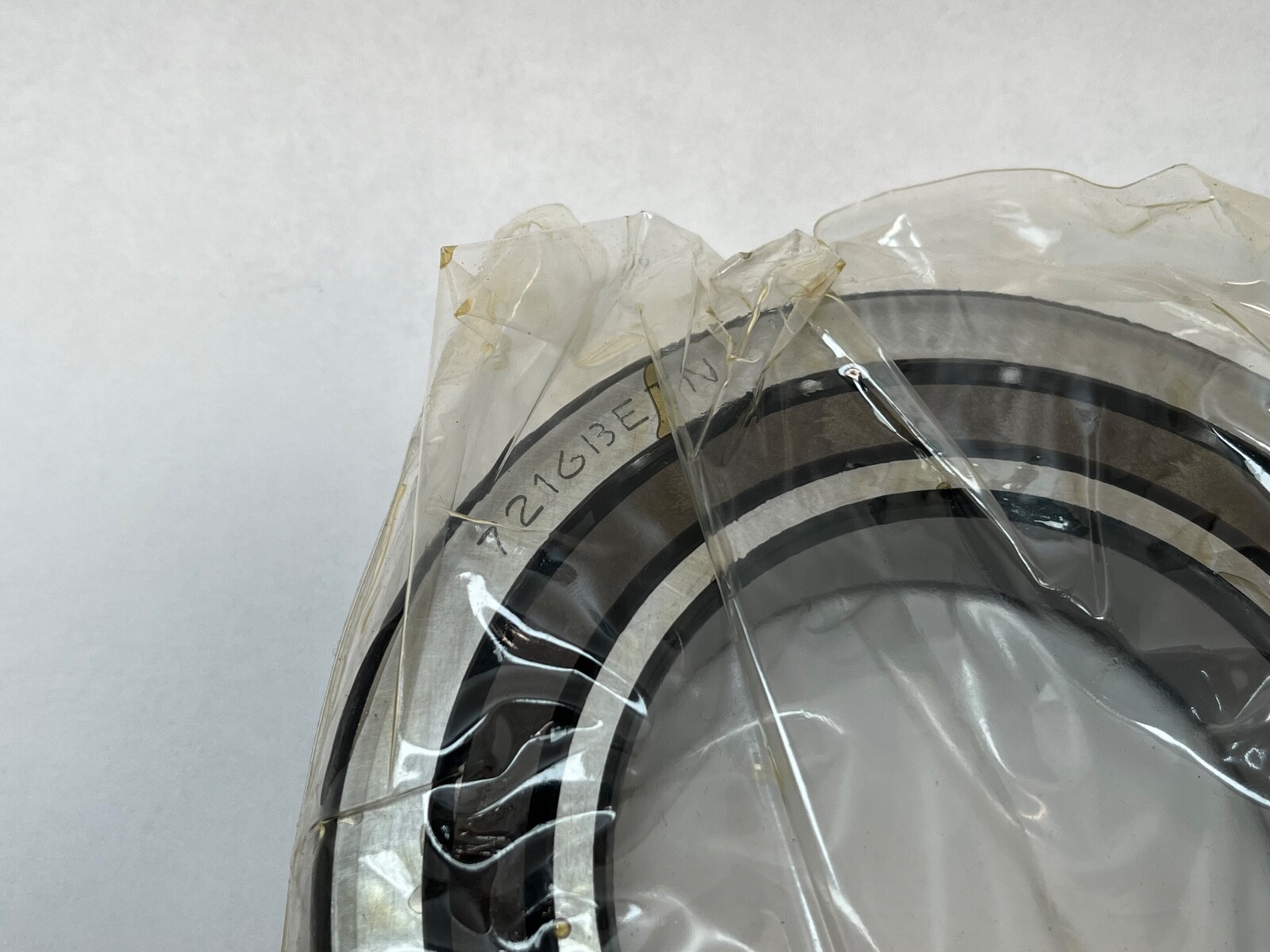

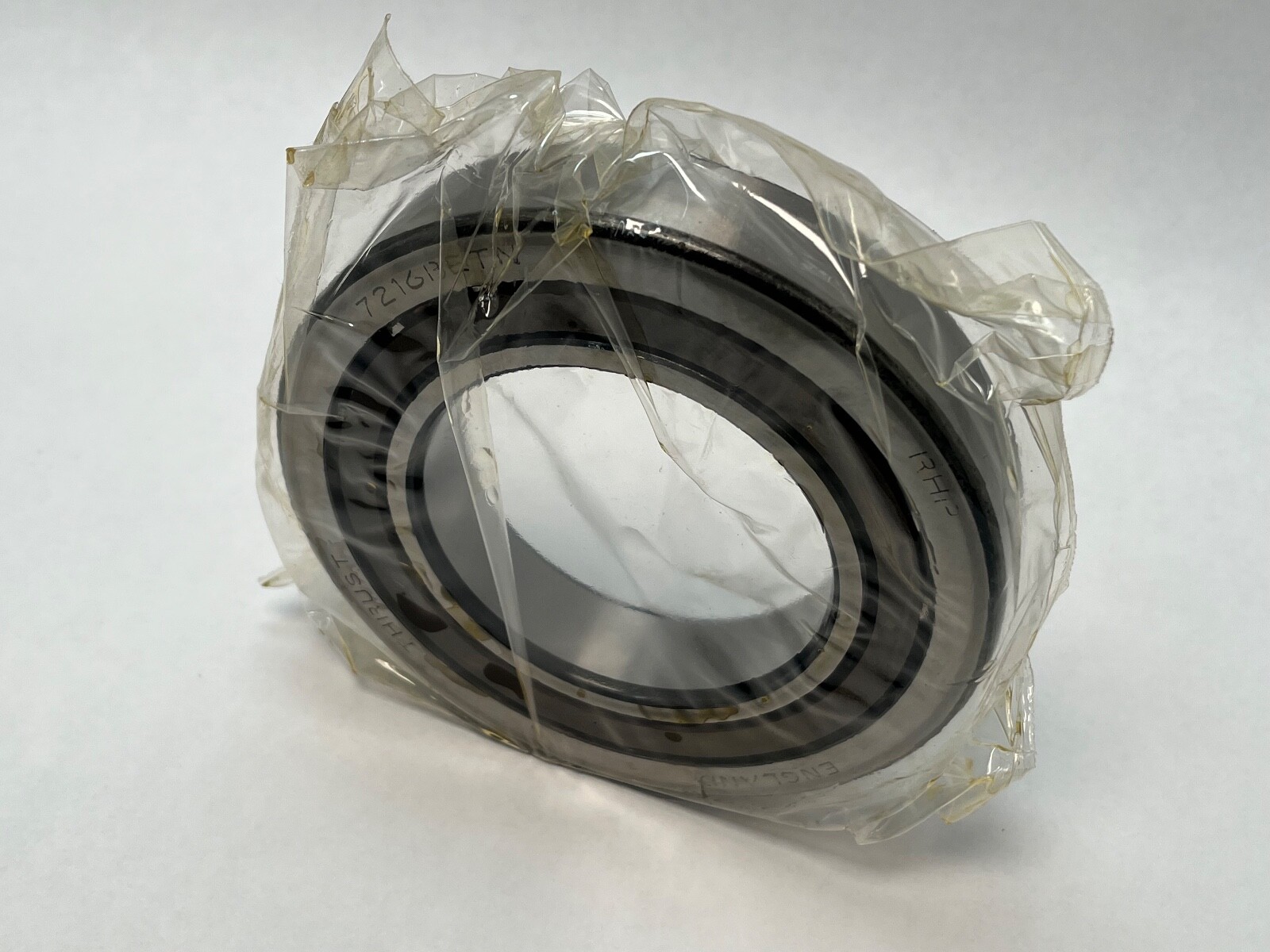

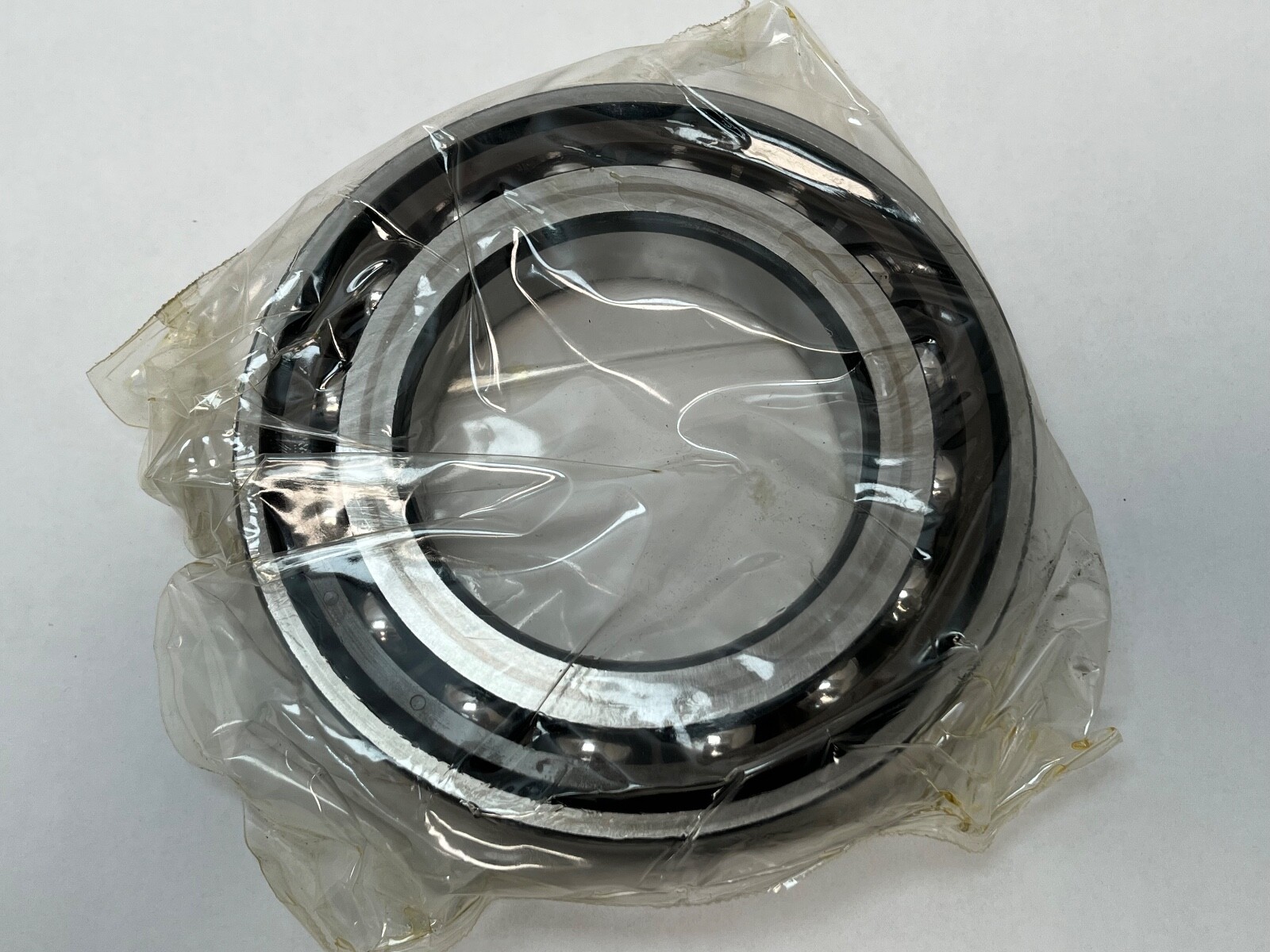

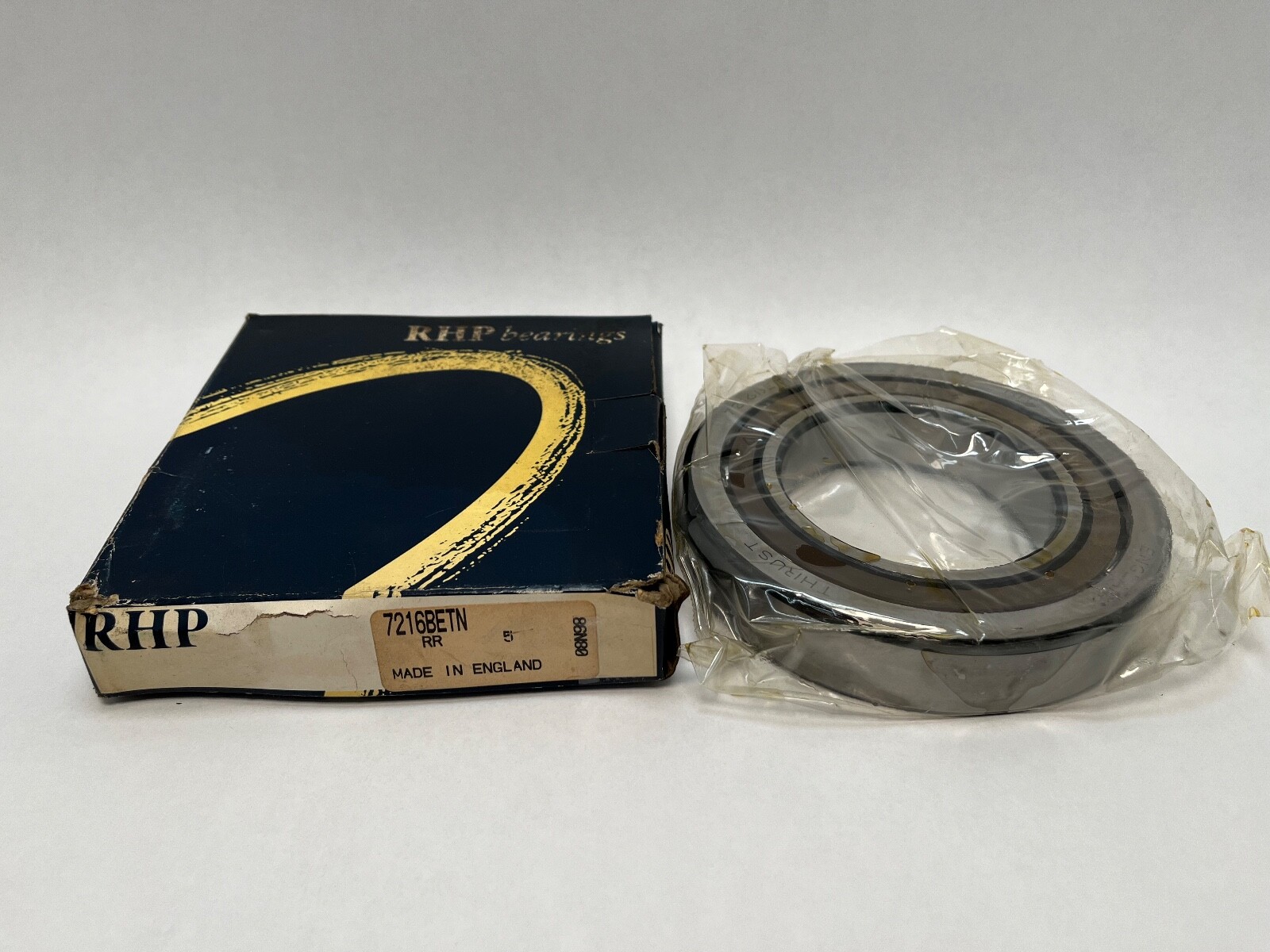

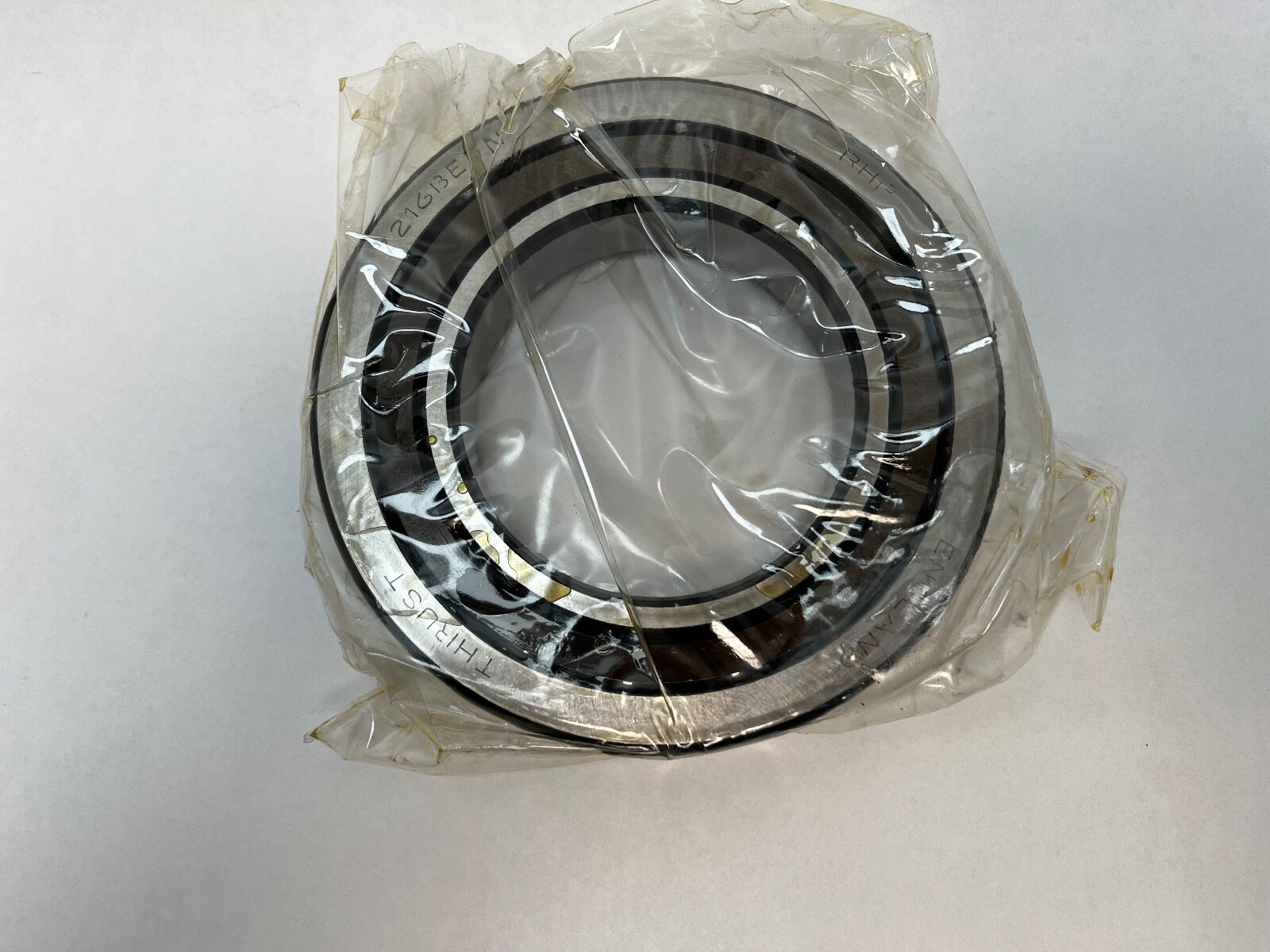

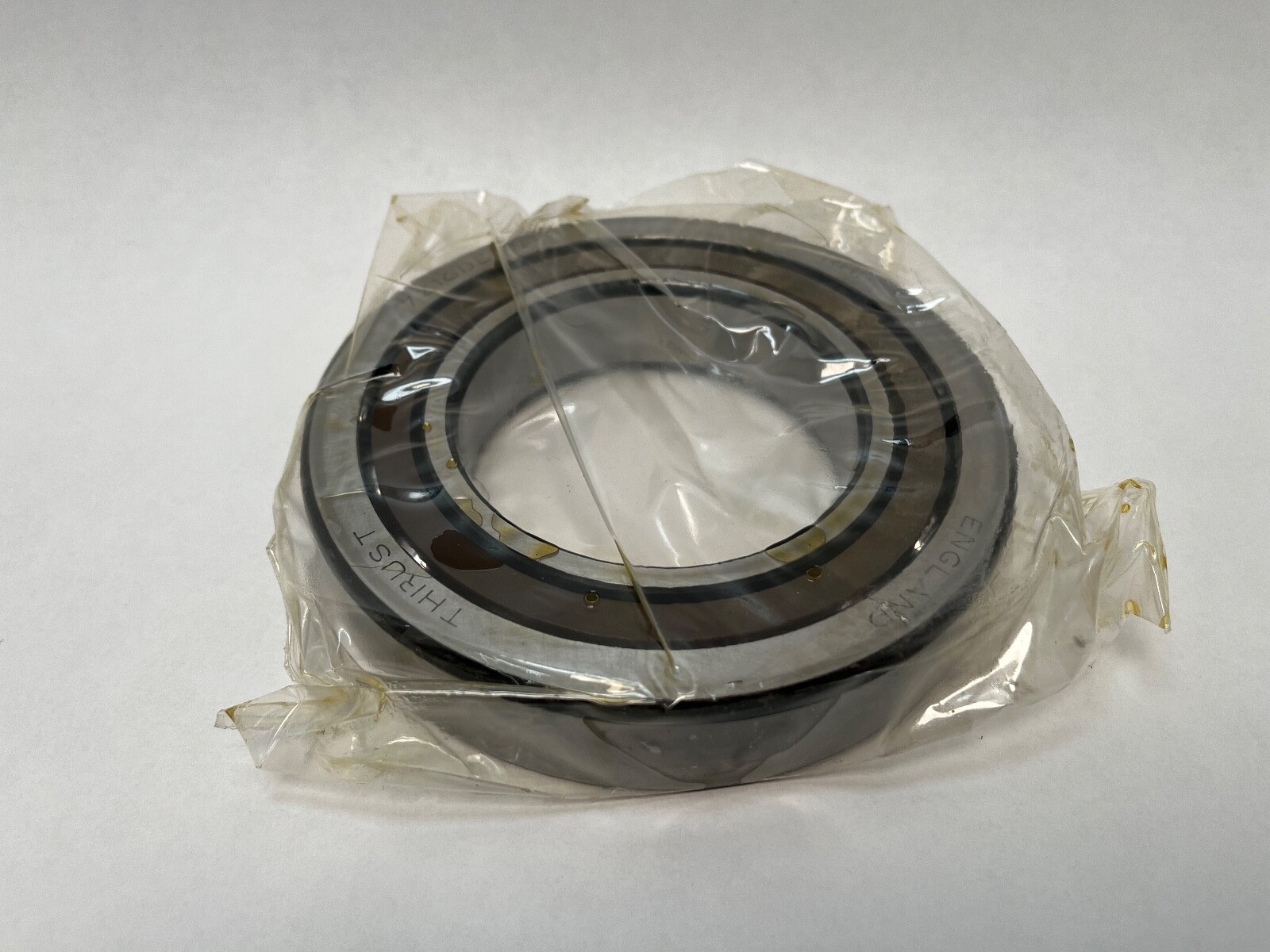

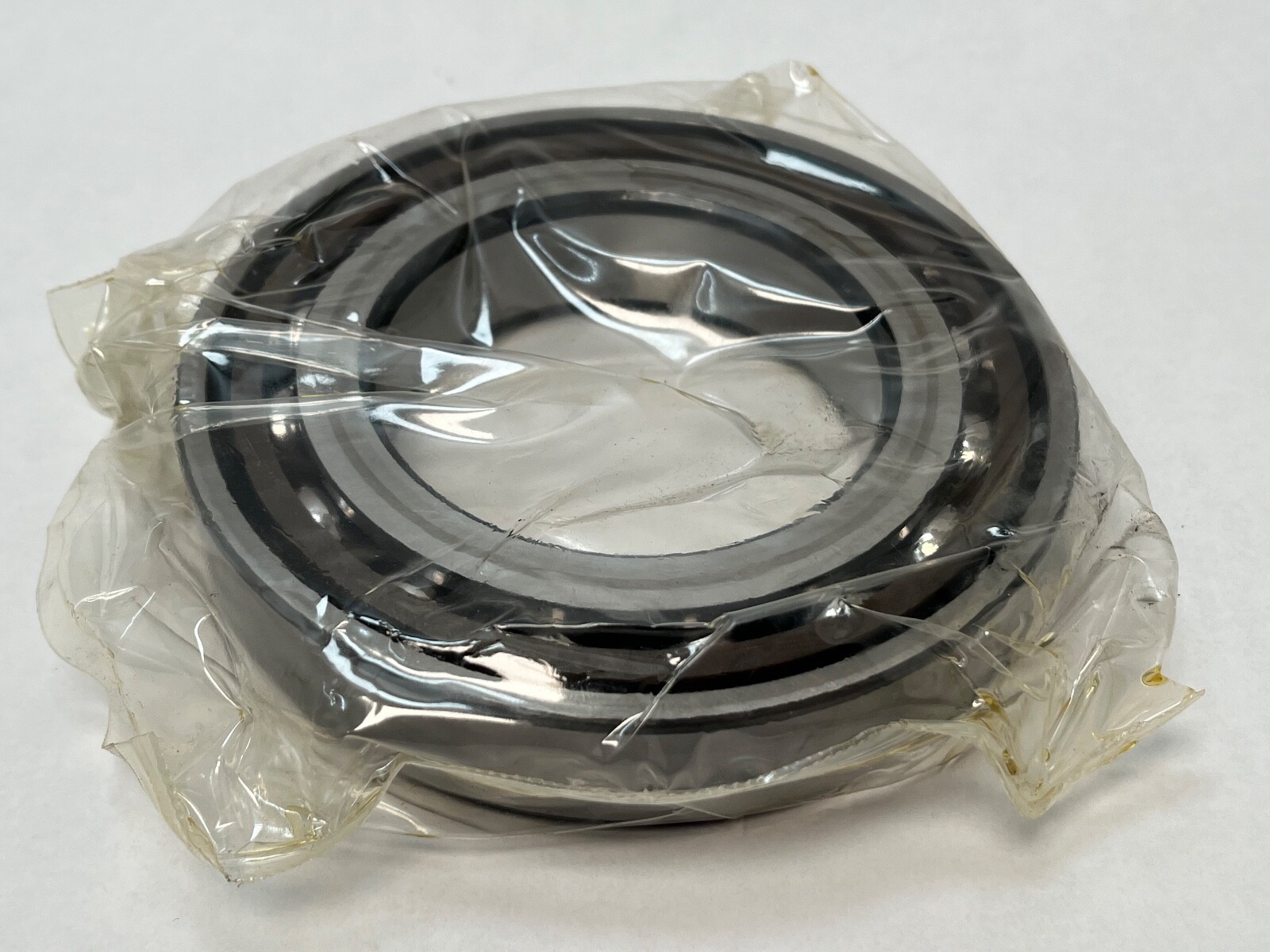

RHP 7216BETN single-row angular contact ball bearing, 80 x 140 x 26 mm, 40 degree contact angle, polyamide cage, high load capacity design, CN clearance.
List Price
$73.03
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7216BETN |
| Model | 7216 BE TN |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Industry Terms | Angular contact ball bearing; 40 degree contact angle; B series angular contact; polyamide cage bearing; single row angular contact |
| Common Misspellings | 7216 BTEN; 7216BENT; 7261BETN; 7216 B ETN |
| Overall Width | 26 mm |
| Mpn Variants | 7216BETN; 7216-B-E-TN; 7216 BE TN; 7216BE; 7216B; 7216BETNG |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | Effective load centre a 59.2 mm; chamfer r min 2 mm; shaft abutment da min 90 mm; housing abutment Da max 130 mm; max fillet radius ra 2 mm |
| Cage Type | Moulded, ball-guided |
| Dynamic Load Rating | 92,000 N |
| Static Load Rating | 70,000 N |
| Series | 7200 |
| Rolling Elements | Ball |
| Item Weight | 1.42 kg (3.13 lb) |
| Cage Material | Polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,000 rpm grease; 6,000 rpm oil |
| Internal Clearance | CN |
| Contact Angle | 40° |
| Application Types | Pumps; gearboxes; machine tool and general industrial shafts; one-direction thrust plus radial load |
| Cross Reference 1 | SKF 7216 BEP - E design, 40 deg contact angle |
|---|---|
| Cross Reference 2 | FAG 7216-B-XL-TVP - XL design, ratings differ |
| Cross Reference 3 | NSK 7216BEAT85 - 40 deg, E design, polyamide cage |
| Cross Reference 4 | NTN 7216BG - 40 deg contact angle |
| Cross Reference 5 | Fafnir 7216WN - 40 deg contact angle |
| Cross Reference 6 | Koyo 7216B - 40 deg contact angle |
| Cross Reference 7 | SNR 7216B - 40 deg contact angle |
RHP 7216BETN single-row angular contact ball bearing, standard precision B range, 40° contact angle, open, polyamide cage, high load capacity execution. Bore 80 mm, outside diameter 140 mm, width 26 mm. Unit Quantity: 1 Pc.
7216 — ISO 72 dimension series, bore code 16. Bore 80 mm, outside diameter 140 mm, width 26 mm.
B — the 40° contact angle of the standard-precision ISO B range.
E — high load capacity execution.
TN — moulded polyamide cage.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Series: 7200. Contact Angle: 40°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Polyamide. Cage Type: Moulded, ball-guided. Precision Class: ABEC 1 / P0. Internal Clearance: CN. Dynamic Load Rating: 92,000 N. Static Load Rating: 70,000 N. Limiting Speed: 4,000 rpm grease; 6,000 rpm oil. Item Weight: 1.42 kg (3.13 lb). Country of Origin: United Kingdom.
Envelope: 80 x 140 x 26 mm. Effective load centre a: 59.2 mm from the bearing face. Chamfer dimension r min: 2 mm. Shaft abutment diameter da: 90 mm min. Housing abutment diameter Da: 130 mm max. Maximum fillet radius ra: 2 mm.
Cross-Reference 1: SKF 7216 BEP – E design, 40 deg contact angle. Cross-Reference 2: FAG 7216-B-XL-TVP – XL design, ratings differ. Cross-Reference 3: NSK 7216BEAT85 – 40 deg, E design, polyamide cage. Cross-Reference 4: NTN 7216BG – 40 deg contact angle. Cross-Reference 5: Fafnir 7216WN – 40 deg contact angle. Cross-Reference 6: Koyo 7216B – 40 deg contact angle. Cross-Reference 7: SNR 7216B – 40 deg contact angle. MPN Variants: 7216BETN, 7216-B-E-TN, 7216 BE TN, 7216BE, 7216B, 7216BETNG.
40°. B is the ISO code for 40°.
A moulded polyamide cage.
80 mm bore, 140 mm outside diameter, 26 mm width. Dynamic Load Rating: 92,000 N. Static Load Rating: 70,000 N.
