Availability:
1 in stock
Deep groove ball bearing, 85 mm bore x 150 mm OD x 28 mm wide, steel shields both sides, C3 clearance. NTN 6217ZZC3, 6200 series single row, grease filled.
List Price
$40.99

1 in stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6217ZZC3 |
| Model | 6217ZZC3 |
| Bearing Type | Deep Groove Ball Bearing, Shields both sides |
| ID | 85 mm |
| OD | 150 mm |
| Width | 28 mm |
| Series | 6200 |
|---|---|
| Lubricant | Grease |
| Material | Chrome Steel |
| Additional Attributes | Chamfer r min 2.0 mm; shaft abutment da min 94 mm; housing abutment Da max 141 mm |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Industry Terms | 6217 shielded ball bearing; 85x150x28 bearing; double shielded deep groove bearing; C3 clearance 6217 bearing |
| Common Misspellings | 6217 ZZC3; NTN6217ZZC3; 6217ZZ C3; NTN 6217-ZZ; 6217Z2C3 |
| Application Types | electric motors; pumps; gearboxes; fans and blowers; general industrial machinery |
| Mpn Variants | 6217ZZC3, 6217-ZZ-C3, 6217 ZZ C3, 6217ZZ/C3 |
| Closure Type | Shields both sides |
| Cross Reference 1 | SKF 6217-2Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6217-2Z-C3 |
| Cross Reference 3 | Koyo 6217ZZC3 |
| Cross Reference 4 | NSK 6217ZZC3 |

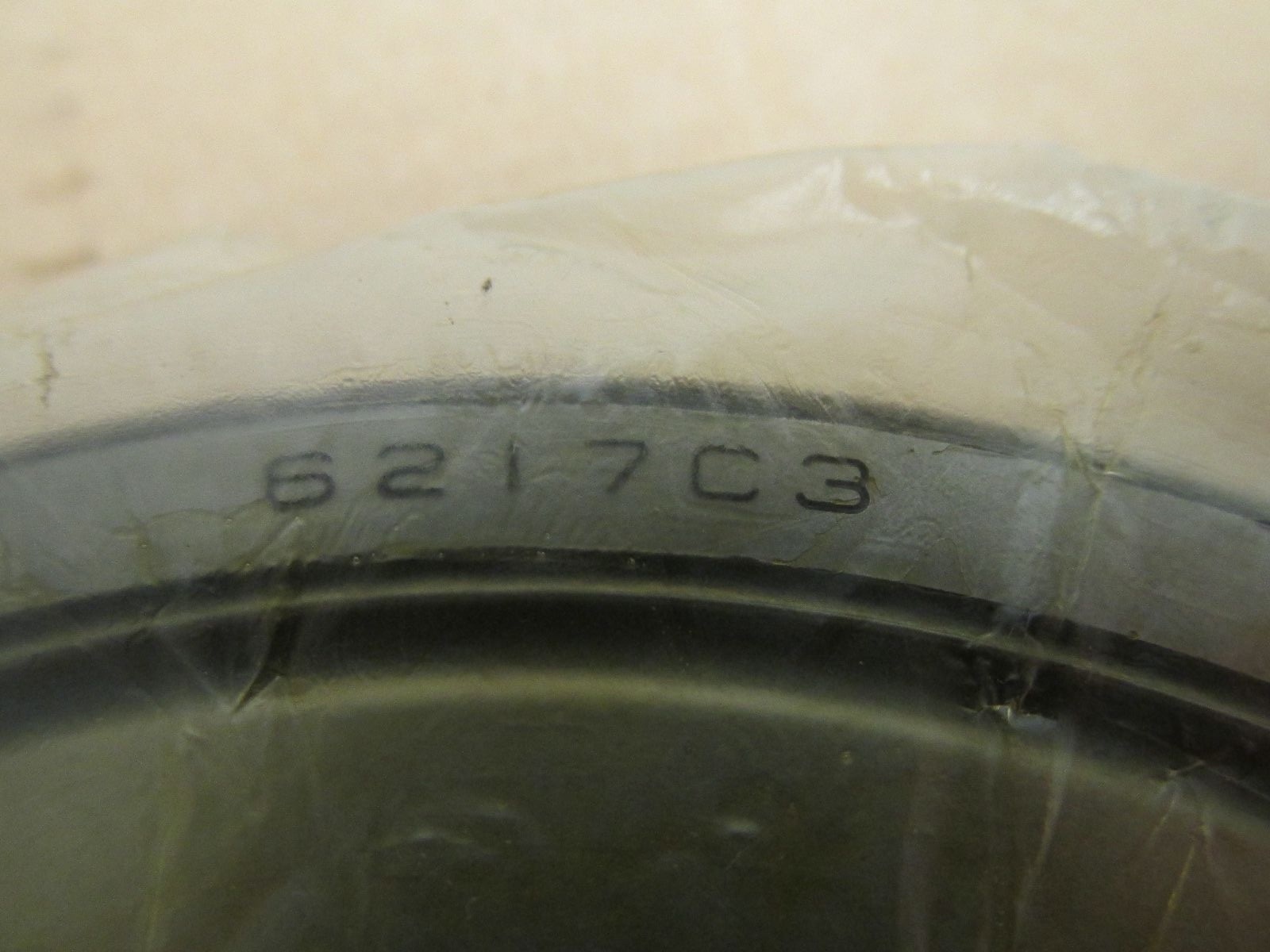

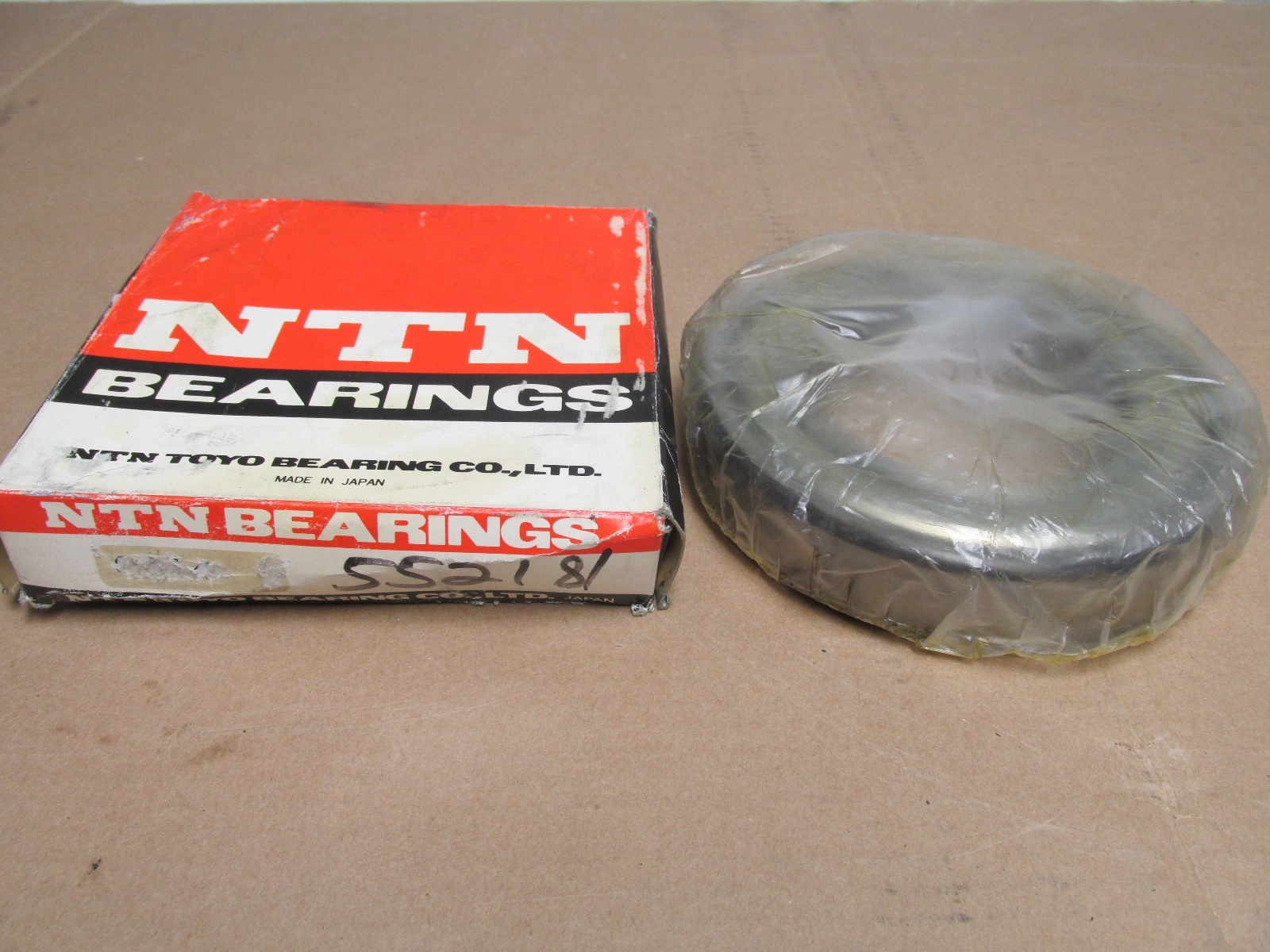

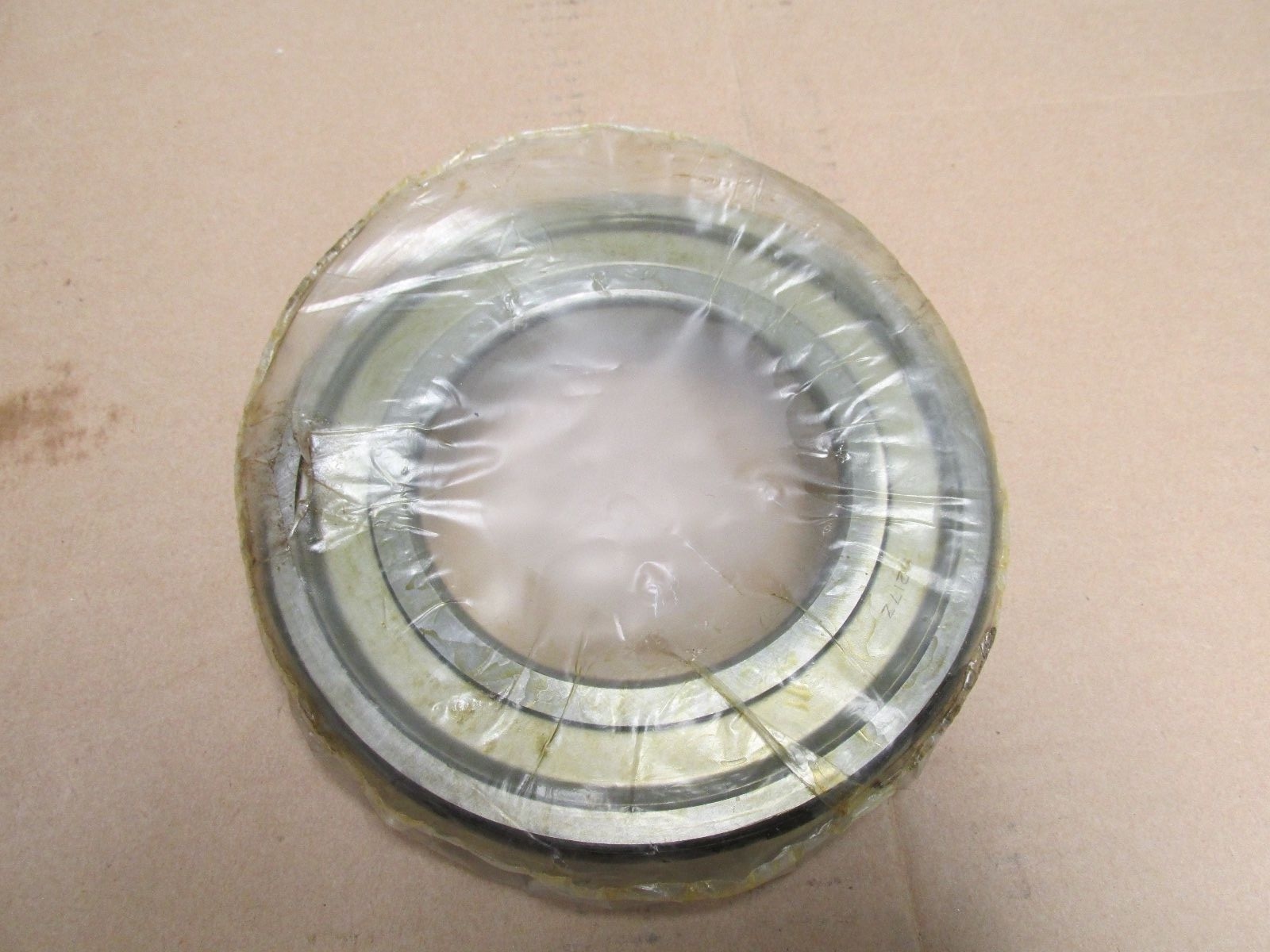

NTN 6217ZZC3 is a single-row deep groove ball bearing in the 6200 series, with steel shields on both sides, C3 internal clearance and a grease fill. It has an 85 mm bore, 150 mm outside diameter and 28 mm width.
6217 — 62 series deep groove ball bearing; bore code 17 = 85 mm bore.
ZZ — steel shields on both sides, factory greased.
C3 — radial internal clearance greater than normal.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 28 mm. Closure Type: Shields both sides. Internal Clearance: C3. Lubricant: Grease. Material: Chrome steel. Bore Type: Straight. Rolling Elements: Ball. Number Of Rows: 1. Series: 6200. Unit Quantity: 1 Pc.
Chamfer r min: 2.0 mm. Shaft abutment da min: 94 mm. Housing abutment Da max: 141 mm.
Cross-references: SKF 6217-2Z/C3, FAG 6217-2Z-C3, Koyo 6217ZZC3 and NSK 6217ZZC3. All are double-shield, C3 clearance bearings in the 85 x 150 x 28 mm size. MPN variants: 6217ZZC3, 6217-ZZ-C3, 6217 ZZ C3, 6217ZZ/C3.
85 mm bore, 150 mm outside diameter and 28 mm width.
ZZ is steel shields on both sides. C3 is radial internal clearance greater than normal.
Yes. It is factory greased.
