RHP7002-C-T-DUM-P4Angular Contact Ball Bearing – 15 mm ID, 32 mm OD, 9 mm Width, 15° Contact Angle, ABEC 7 / P4, Medium Preload, Open.

Product Description

What this part is:

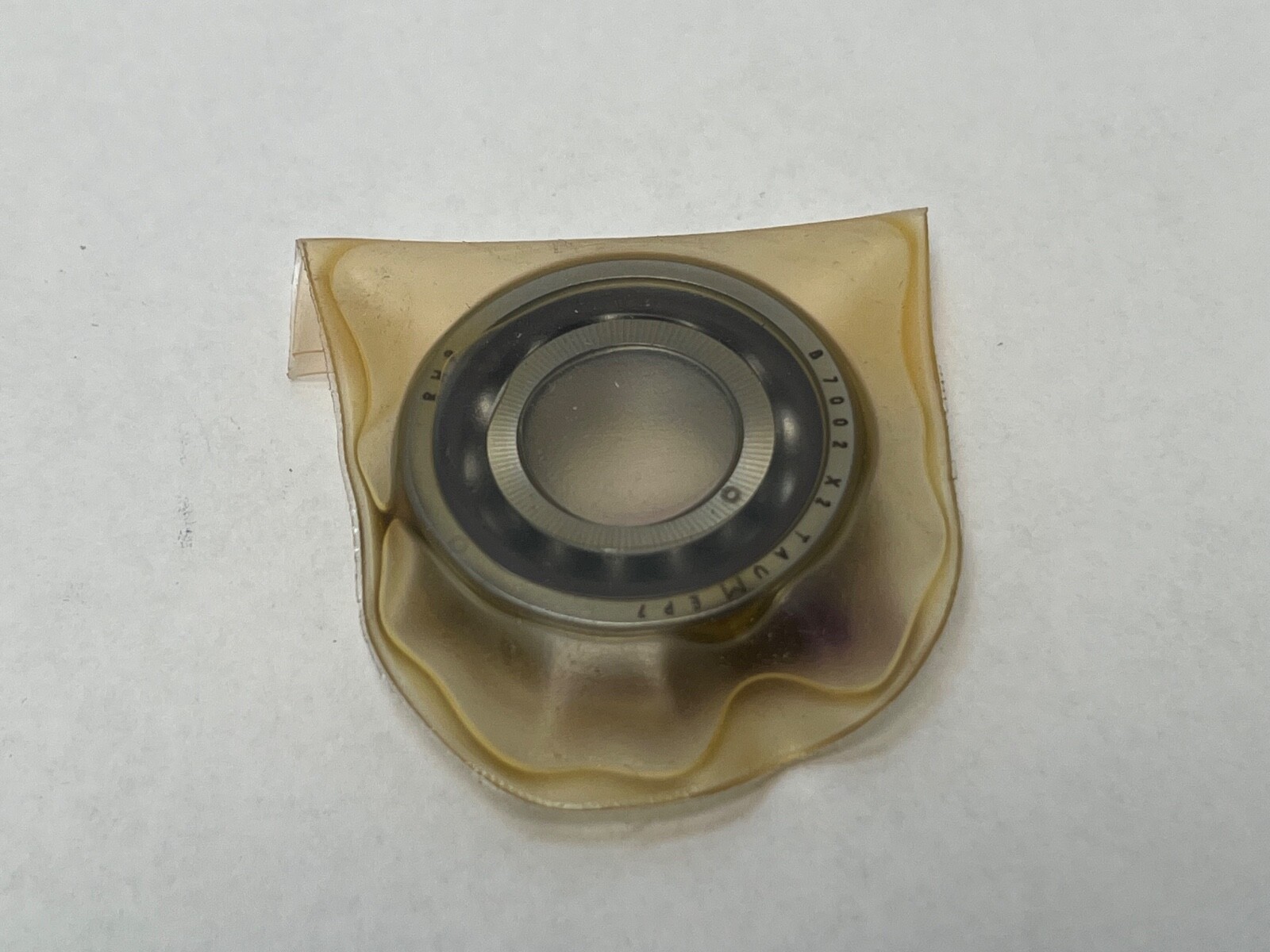

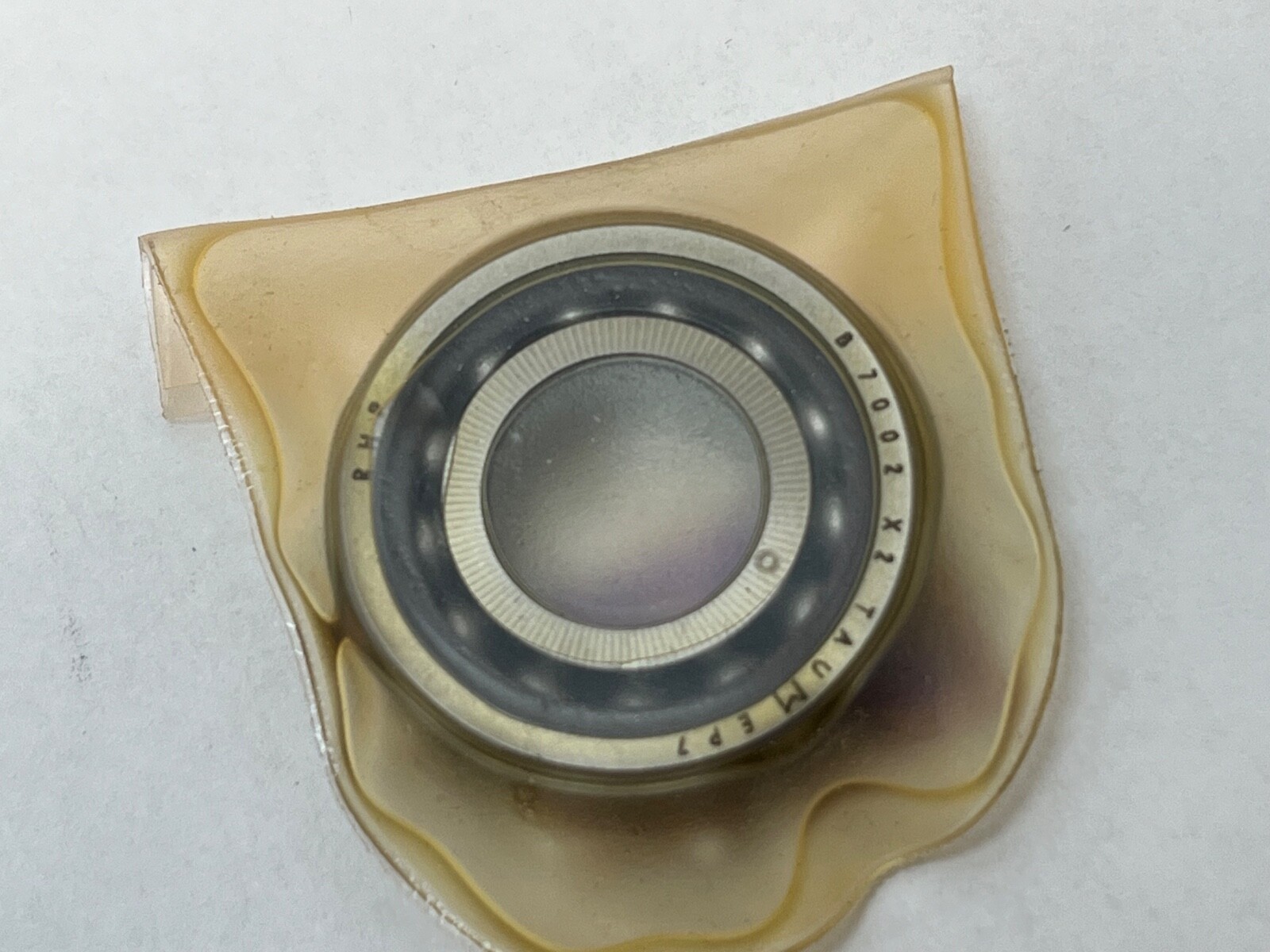

RHP 7002-C-T-DUM-P4 super precision single-row angular contact ball bearing, 15° contact angle, medium preload, ABEC 7 / P4, open, machined phenolic outer-ring guided cage. Unit Quantity: 1 Pc, one bearing from a factory-matched duplex pair (-1/2PR).

Decoding the designation:

7 — single-row angular contact ball bearing.

0 — RHP dimension series 0, ISO series 10.

02 — bore code 02, a 15 mm bore.

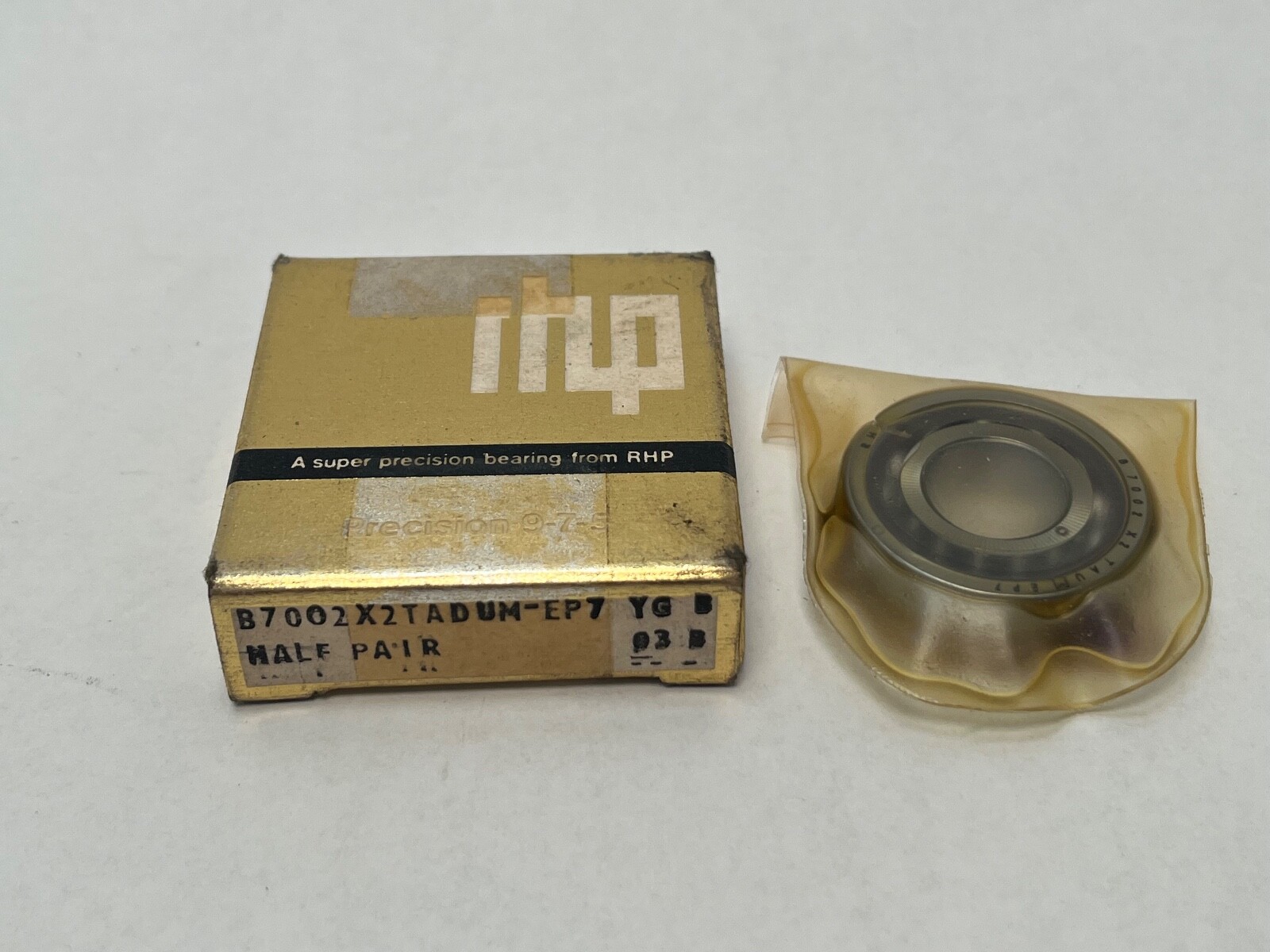

C — 15° contact angle. The carton’s B-series code X2, the Fafnir number 2MM9102WI and the FAG and SKF cross-numbers B7002-C-T-P4S and 7002 CD/P4A all state the same 15°.

T — machined cage in laminated phenolic resin, outer-ring guided.

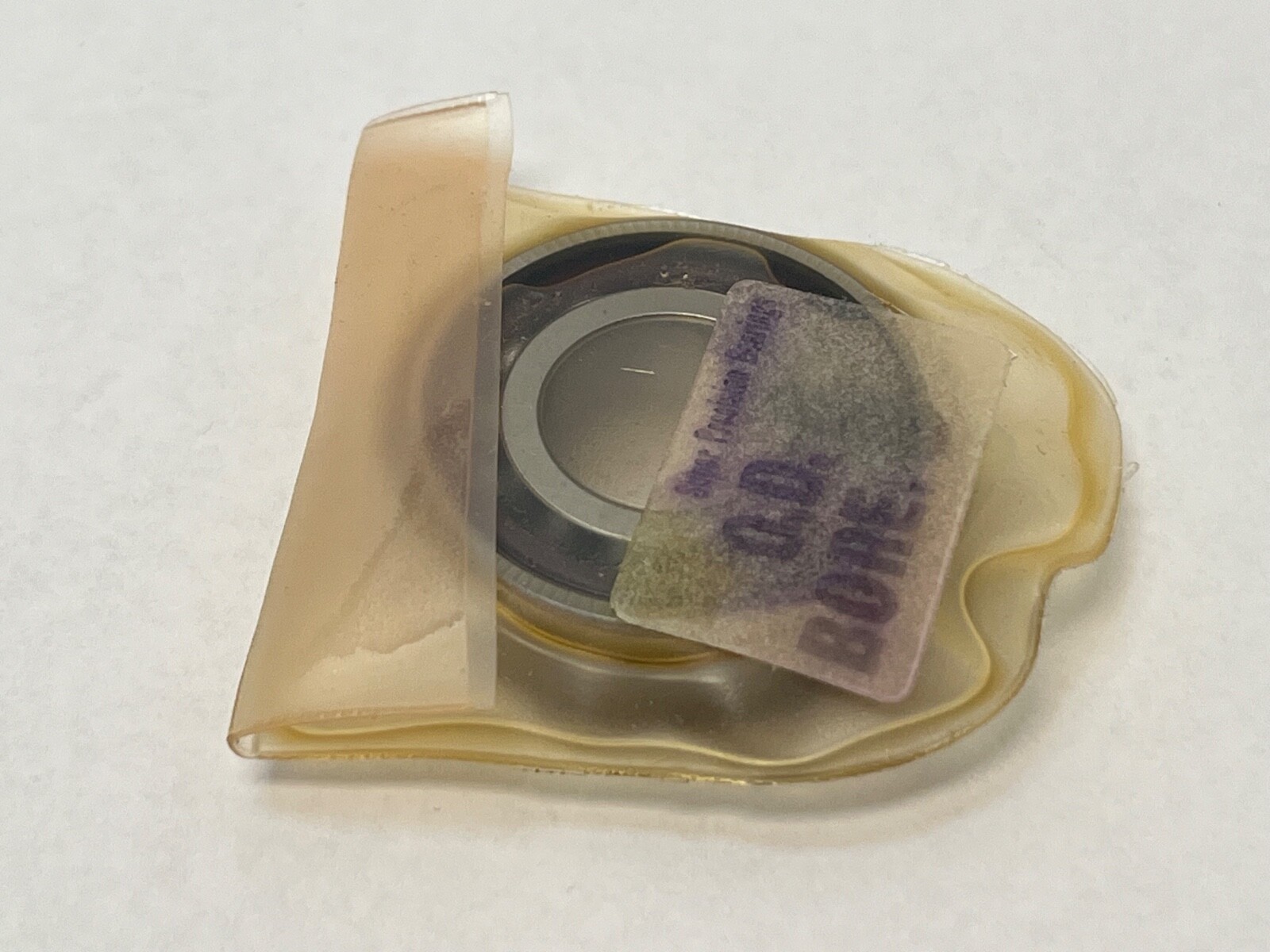

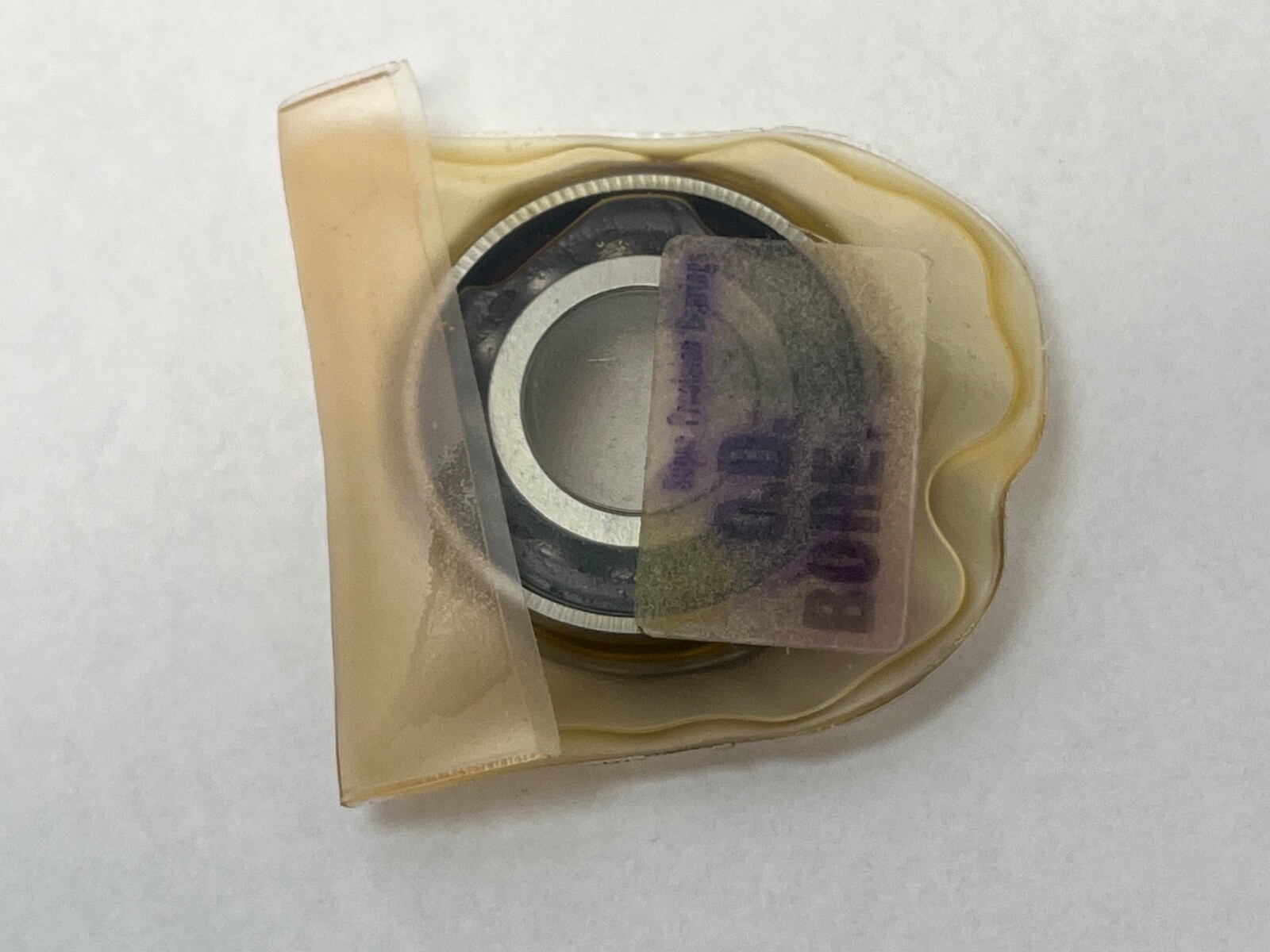

DU — duplex universal. The factory set is two bearings ground together with the bores and outside diameters size-graded to share load evenly.

M — medium preload. The SKF cross-number on the same carton carries DGB, SKF’s own medium preload code.

P4 — RHP precision grade P4, ABEC 7. The carton’s EP7 marking is the British Standards form of the same grade.

-1/2PR — half a pair. Unit Quantity: 1 Pc.

Specifications:

Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Series: 7000. Base Number: 7002. Precision Class: ABEC 7 / P4. Preload: Medium (M). Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Bearing steel, SAE 52100 equivalent, through hardened and heat treated for dimensional stability. Lubricant: Grease or oil. Max temp: 120 °C. Harmonization Code: 8482.10.50.

Dynamic Load Rating: 6,250 N. Static Load Rating: 3,400 N. Limiting Speed: 44,200 rpm grease; 71,400 rpm oil. Running Accuracy: Kia 2.5 µm max inner ring; Kea 5 µm max outer ring. Mounted as a back-to-back or face-to-face pair, the medium setting gives an axial preload of 69 N and an axial stiffness of 29 N/µm, and the pair speed is 60 per cent of the single-bearing figure. Item Weight: 0.031 kg (0.07 lb).

Dimensions and mounting:

Shaft abutment diameter d1: 17.5 mm minimum. Abutment diameter D1: 29.5 mm maximum. Abutment diameter D2: 30.8 mm maximum. Chamfer dimension r: 0.3 mm minimum. Chamfer dimension r1: 0.15 mm minimum. Effective load centre a: 7.6 mm. Internal free volume: 1.4 cm³. Pitch circle diameter for lubrication jets: 21.3 mm. Mounting Arrangement: one bearing from a factory-matched duplex pair, universally face-ground; inner and outer rings are the same width, so it pairs with a second universally ground bearing back-to-back, face-to-face or in tandem.

Compatibility and replacement:

Same envelope, same 15° contact angle and same P4 class: SKF 7002 CD/P4ADGB, FAG B7002-C-T-P4S, NSK 7002CTRDUMP4, NTN 7002C/GNP4, Koyo 7002C/GNP4, Timken/Fafnir 2MM9102WICRDUM, SNR 7002CVUJ84. The SKF, FAG and Fafnir numbers are marked on this carton alongside the RHP designation. MPN Variants: 7002-C-T-DUM-P4, 7002CTDUMP4, 7002CTDUMP4-1/2PR, B7002X2TADUMEP7.

Frequently asked questions:

What size is the RHP 7002CTDUMP4?

Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm.

What contact angle and preload does it have?

Contact Angle: 15°. Preload: Medium (M).

What are the load ratings and limiting speeds?

Dynamic Load Rating: 6,250 N. Static Load Rating: 3,400 N. Limiting Speed: 44,200 rpm grease; 71,400 rpm oil.
