SNR7002CVDUJ74Angular Contact Ball Bearing – Straight Bore, 15 mm ID, 32 mm OD, 9 mm Width, Open, 15° Contact Angle, Light Preload.

Product Description

What this part is

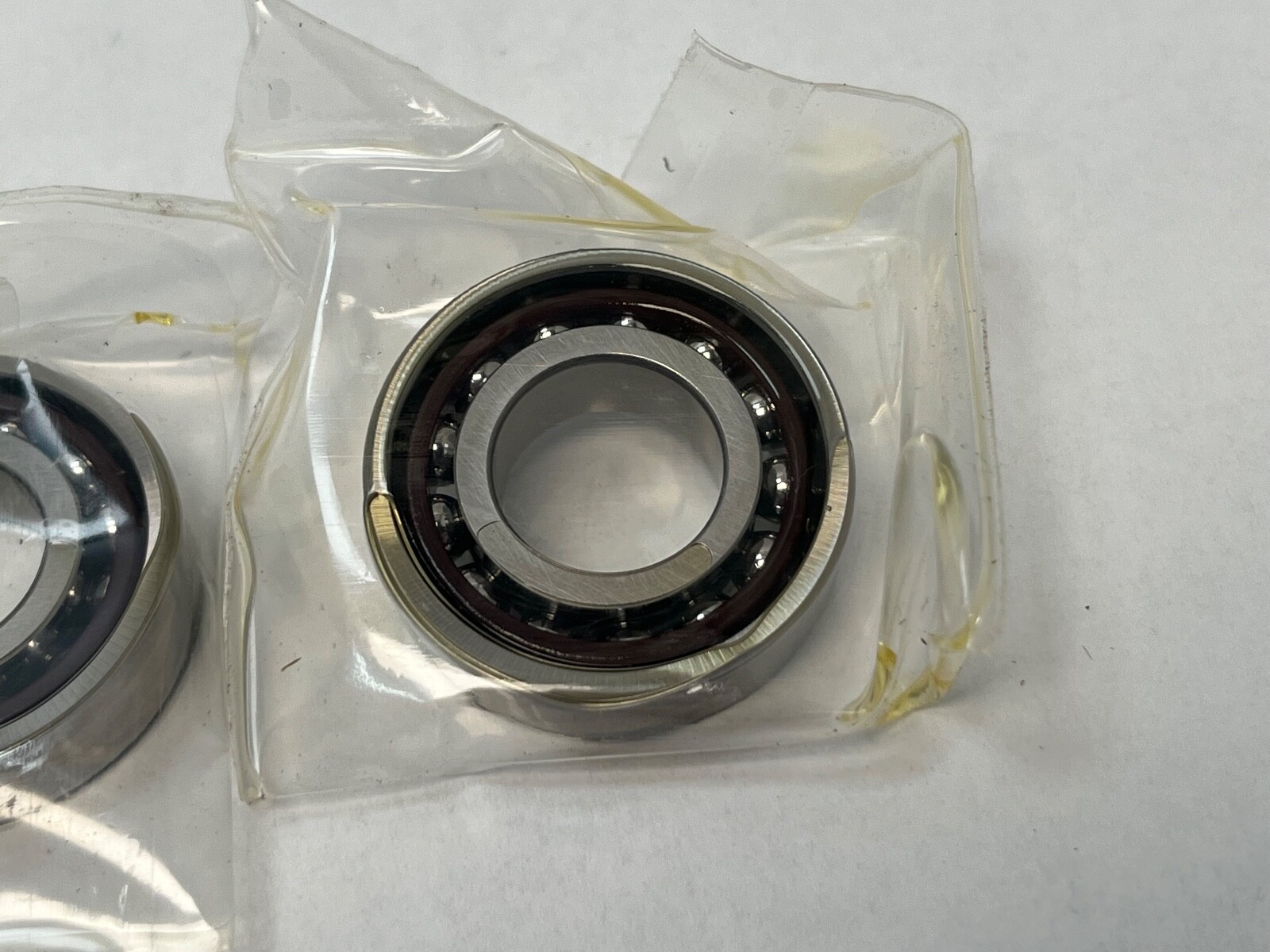

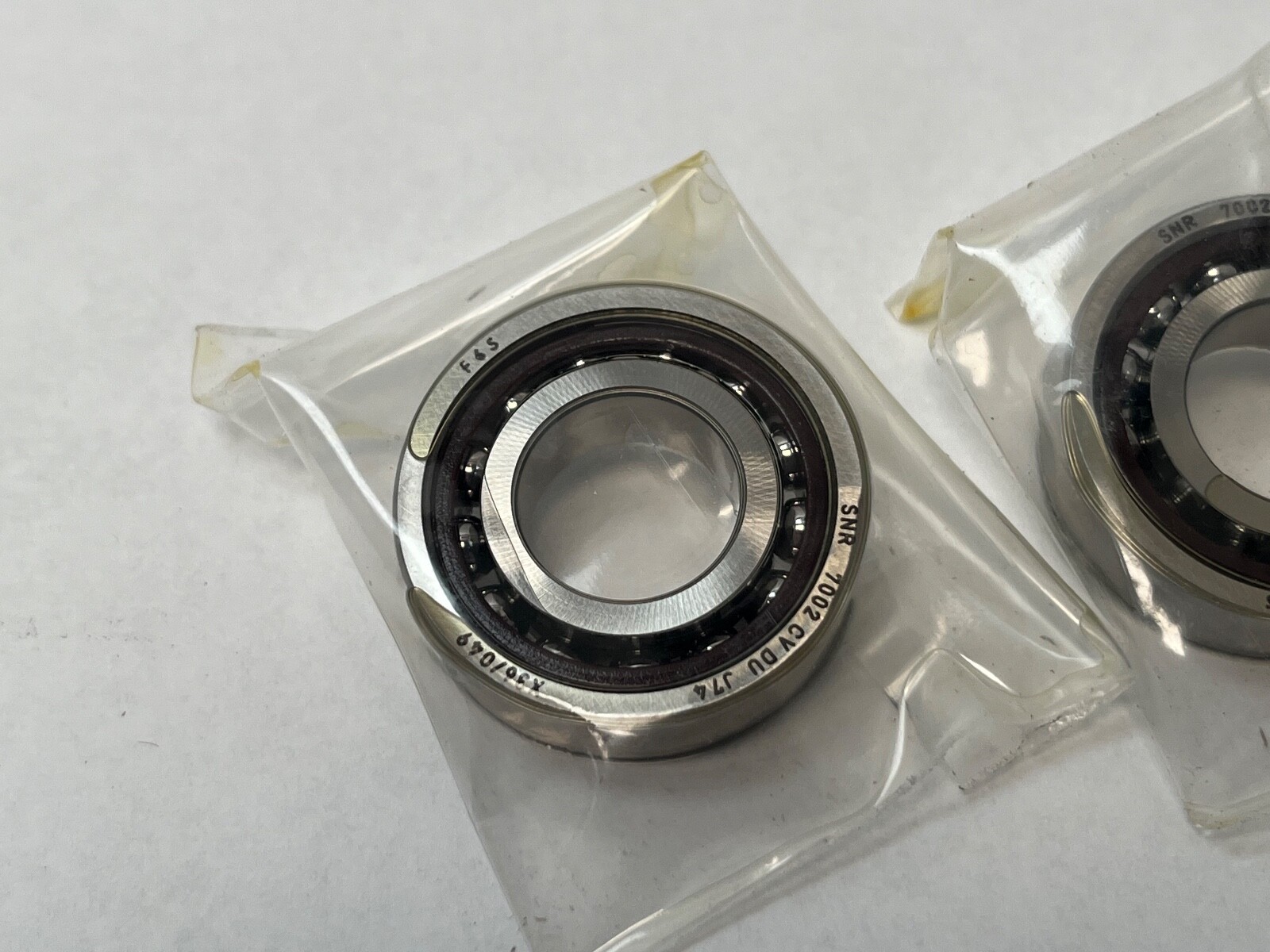

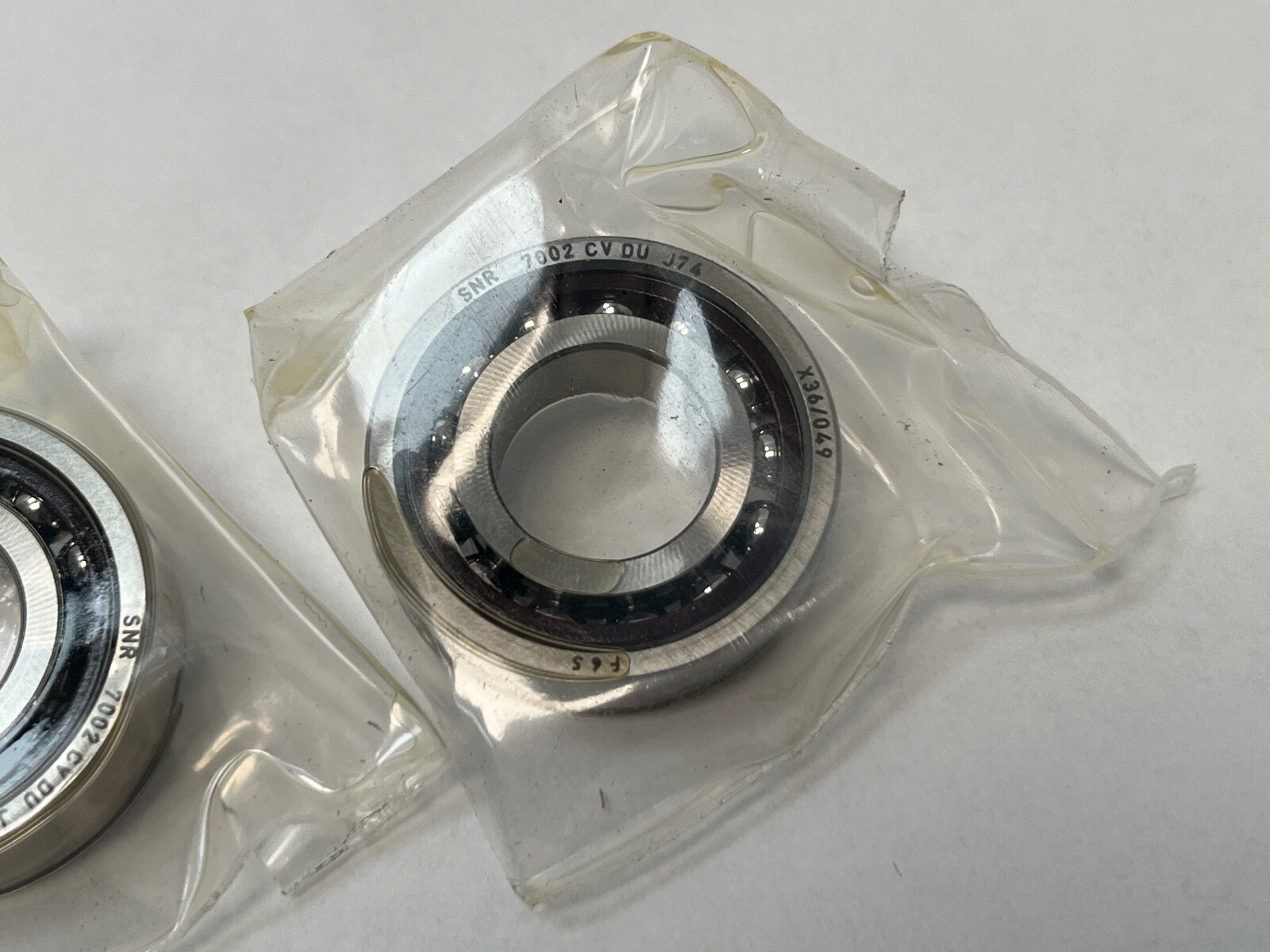

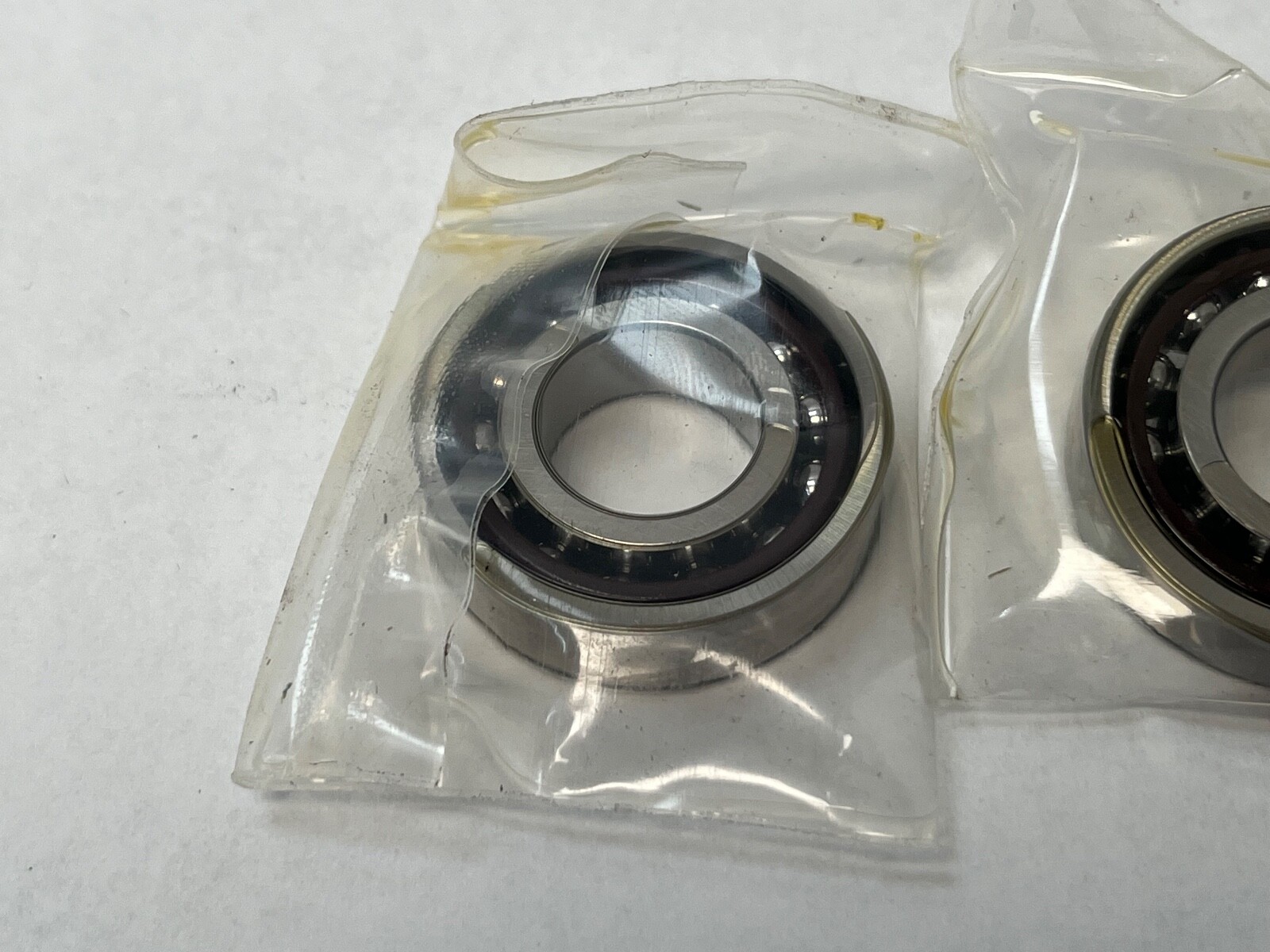

SNR 7002CVDUJ74 super-precision angular contact ball bearing, ISO 70 series, 15 x 32 x 9 mm. Brand: SNR. Manufacturer Part Number: 7002CVDUJ74. Bearing Type: Angular contact ball bearing. Bore: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing Steel. Closure Type: Open. Design Units: Metric. Snap Ring Included: No. Country of Origin: France.

Decoding the designation

Contact Angle: 15°, carried by the C in 7002C. Preload: Light, carried by the J74 code. Precision Class: ISO P4, equivalent to ABEC 7. Cage Material: Phenolic. Series: 7000. Base Number: 7002. Searchable forms of the designation: 7002CVDUJ74, 7002-C-V-DU-J74, 7002 C V DU J74, 7002C.

What these specs mean in practice

A 15° contact angle favours speed and radial rigidity over thrust capacity, which suits a machine-tool spindle position. Light preload keeps the ball complement in contact under a modest set force, giving repeatable running accuracy with low heat generation. ISO P4 holds tighter bore, outside diameter and running accuracy than standard class, locating the shaft more closely and running with less vibration. The phenolic cage is light and quiet at speed.

Quantity and configuration

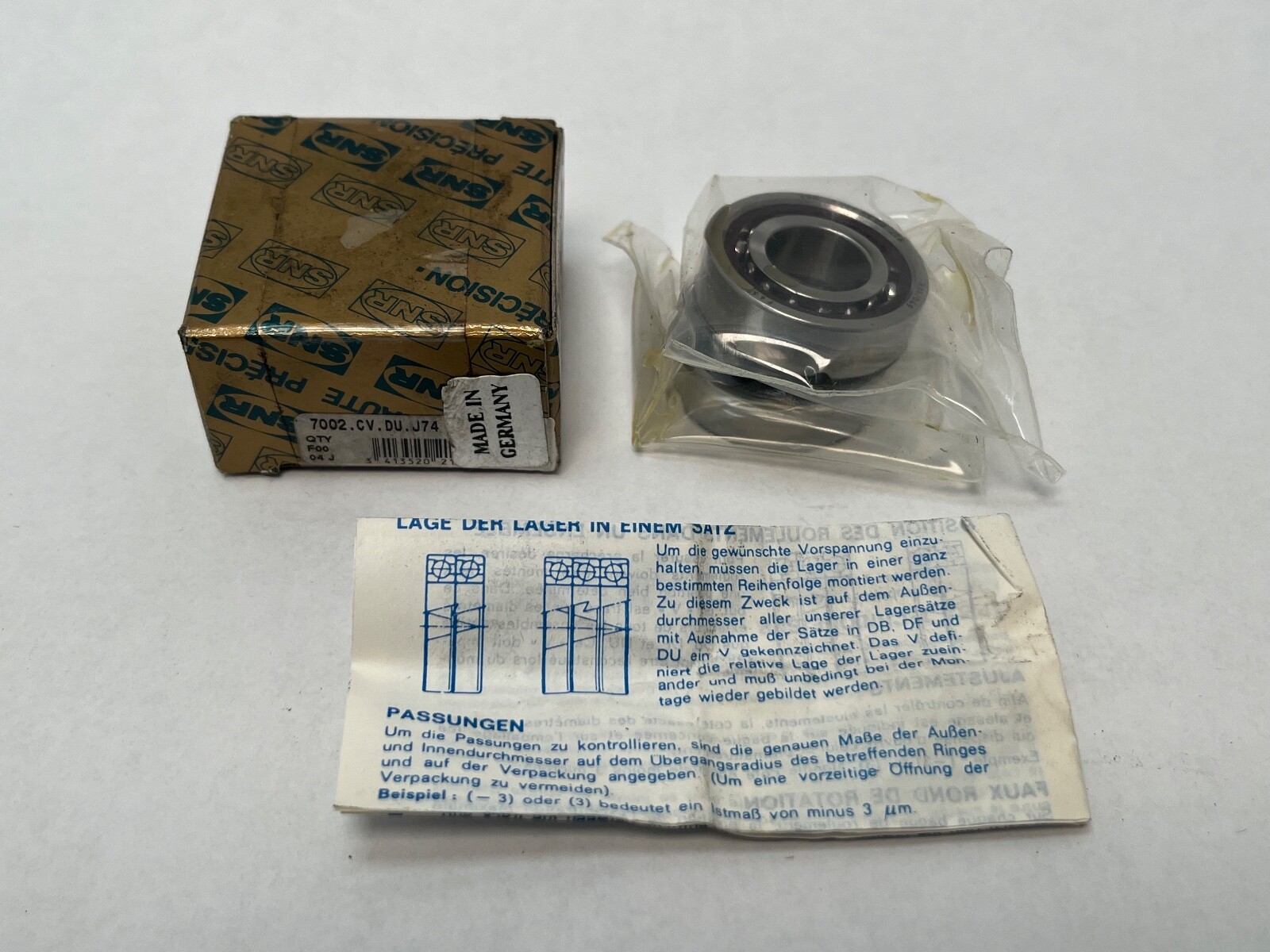

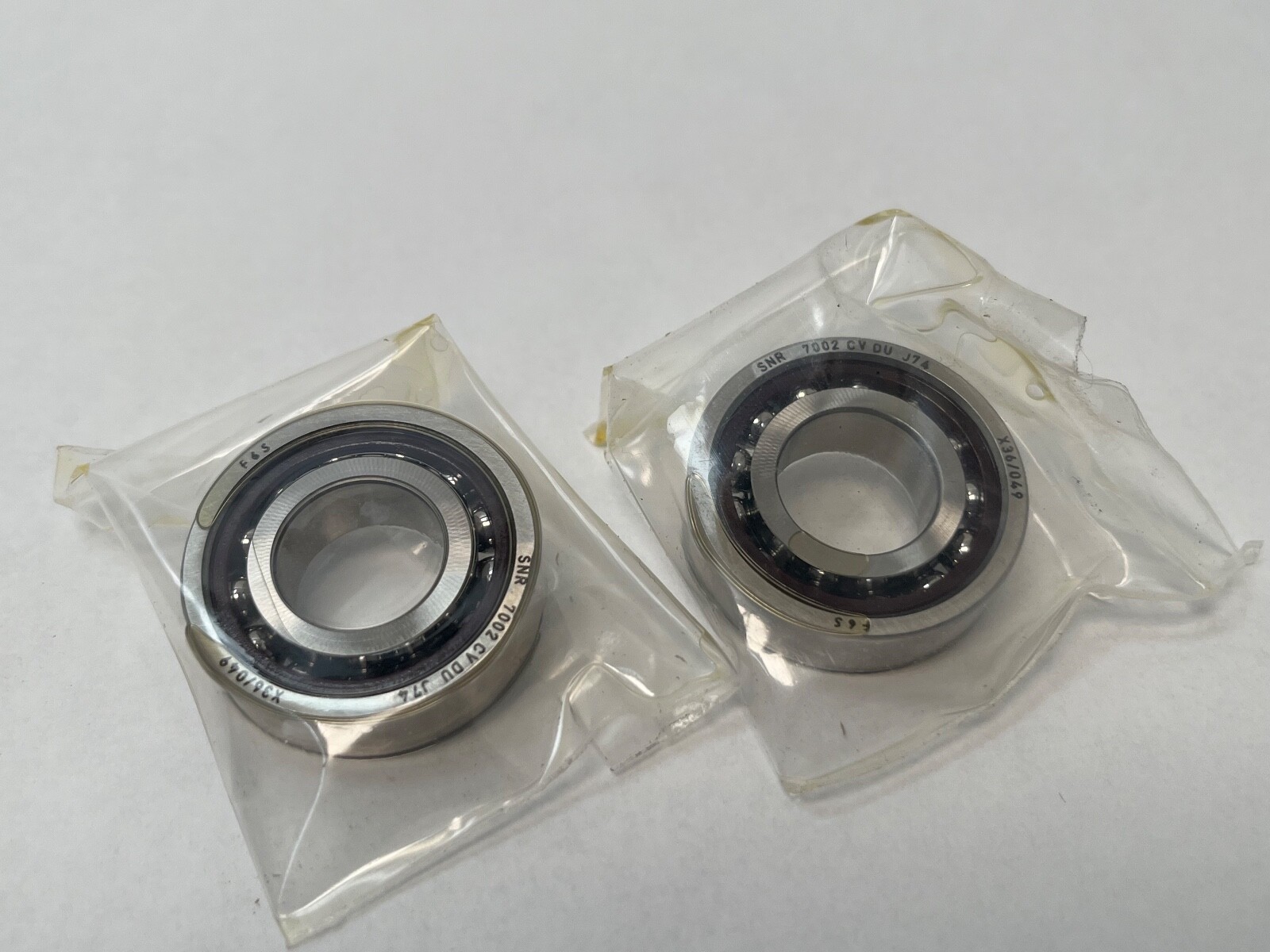

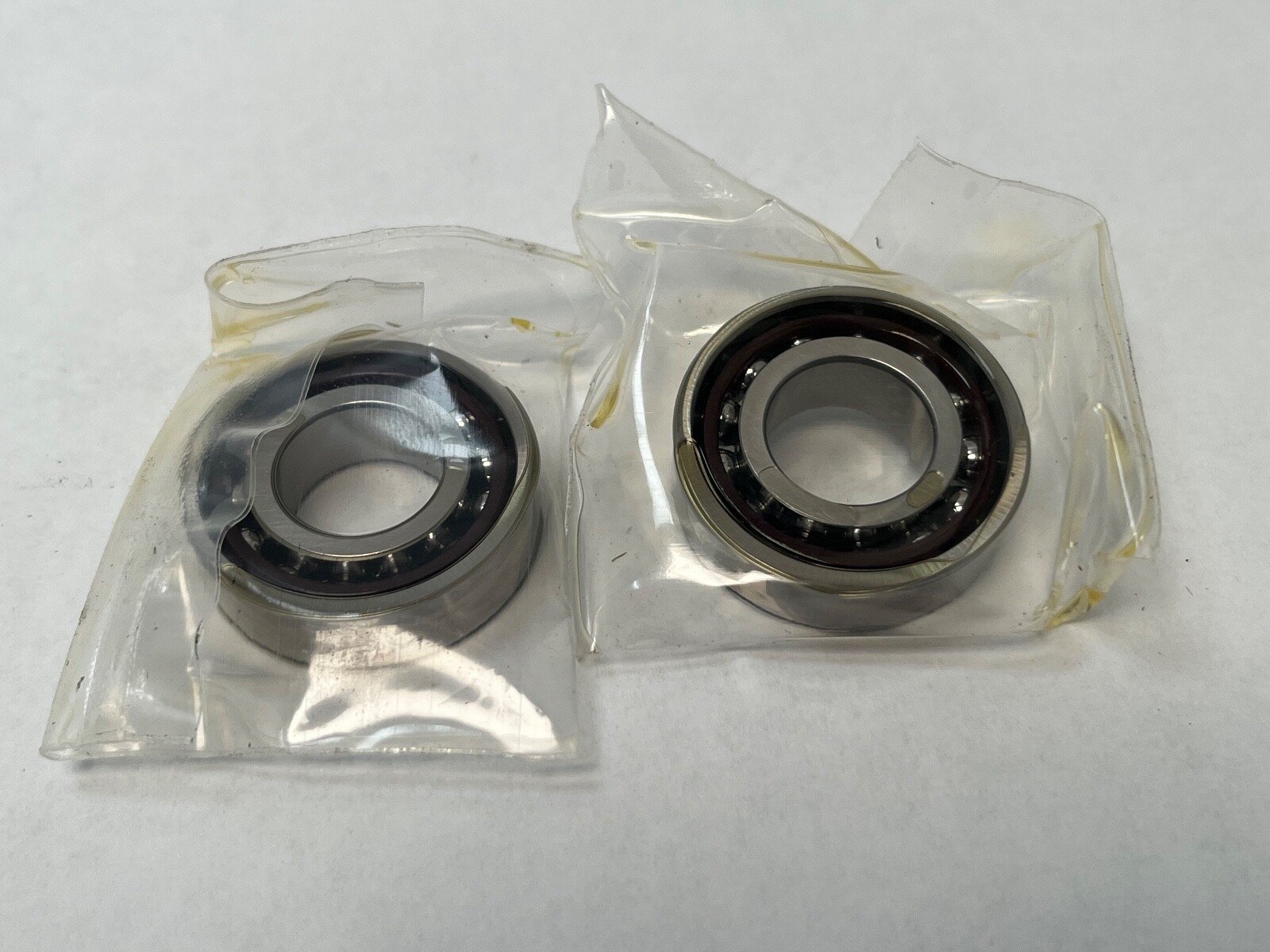

Unit Quantity: 2 Pcs. Arrangement / Configuration: Universal matched pair. Universally ground rings, matchable so the two bearings set together at the stated preload.

Interchange guidance

Cross-Reference 1: SKF 7002 CD/P4ADGA. Cross-Reference 2: FAG B7002-C-T-P4S-DUL. Cross-Reference 3: NSK 7002CTYNDULP4. Cross-Reference 4: Fafnir 2MM9102WI CR DUL. A same-envelope bearing at a different contact angle is a related size rather than a substitution.

Trade data

Harmonization Code: 8482.10.50.68.
