Availability:
1 in stock

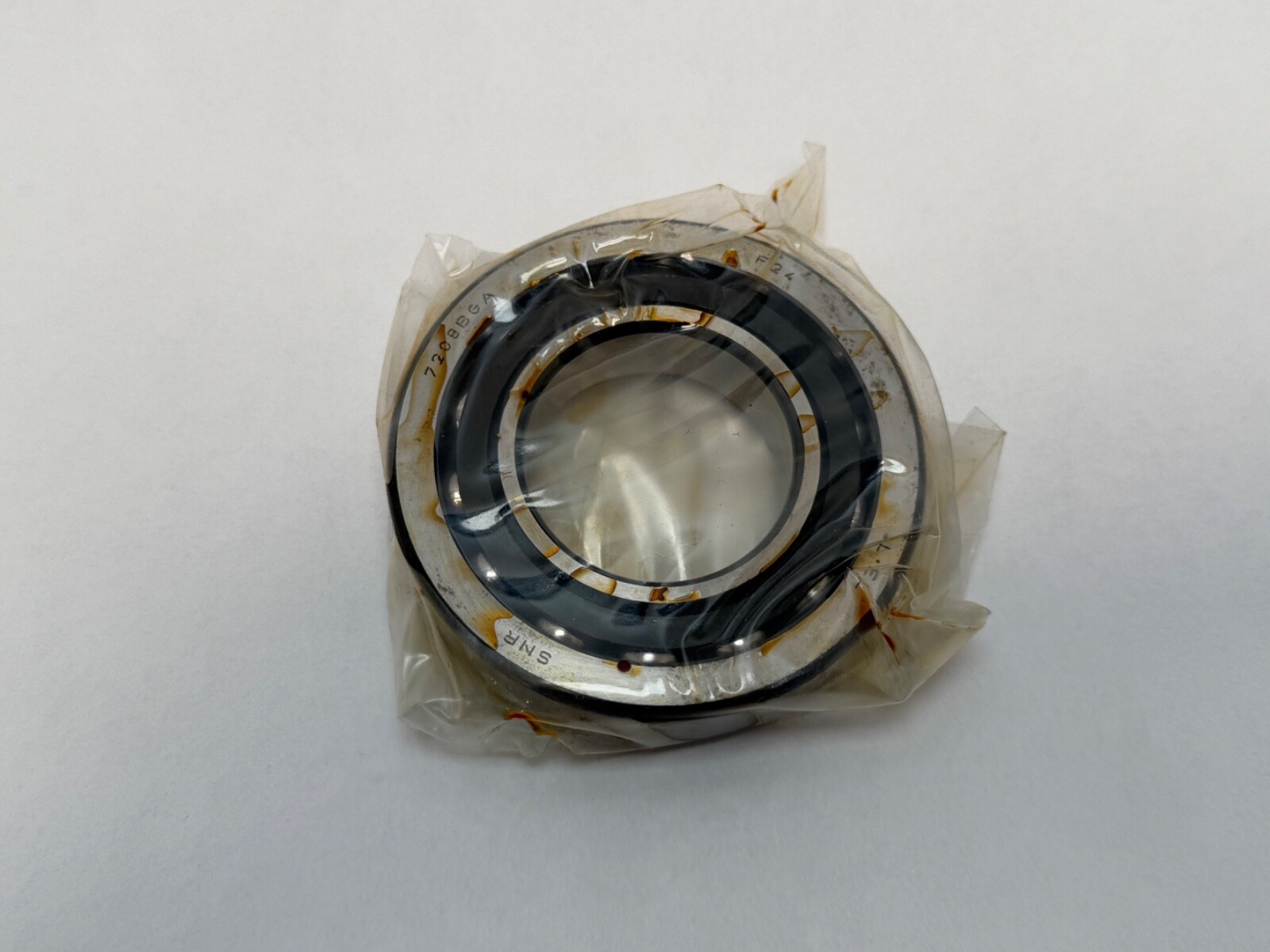

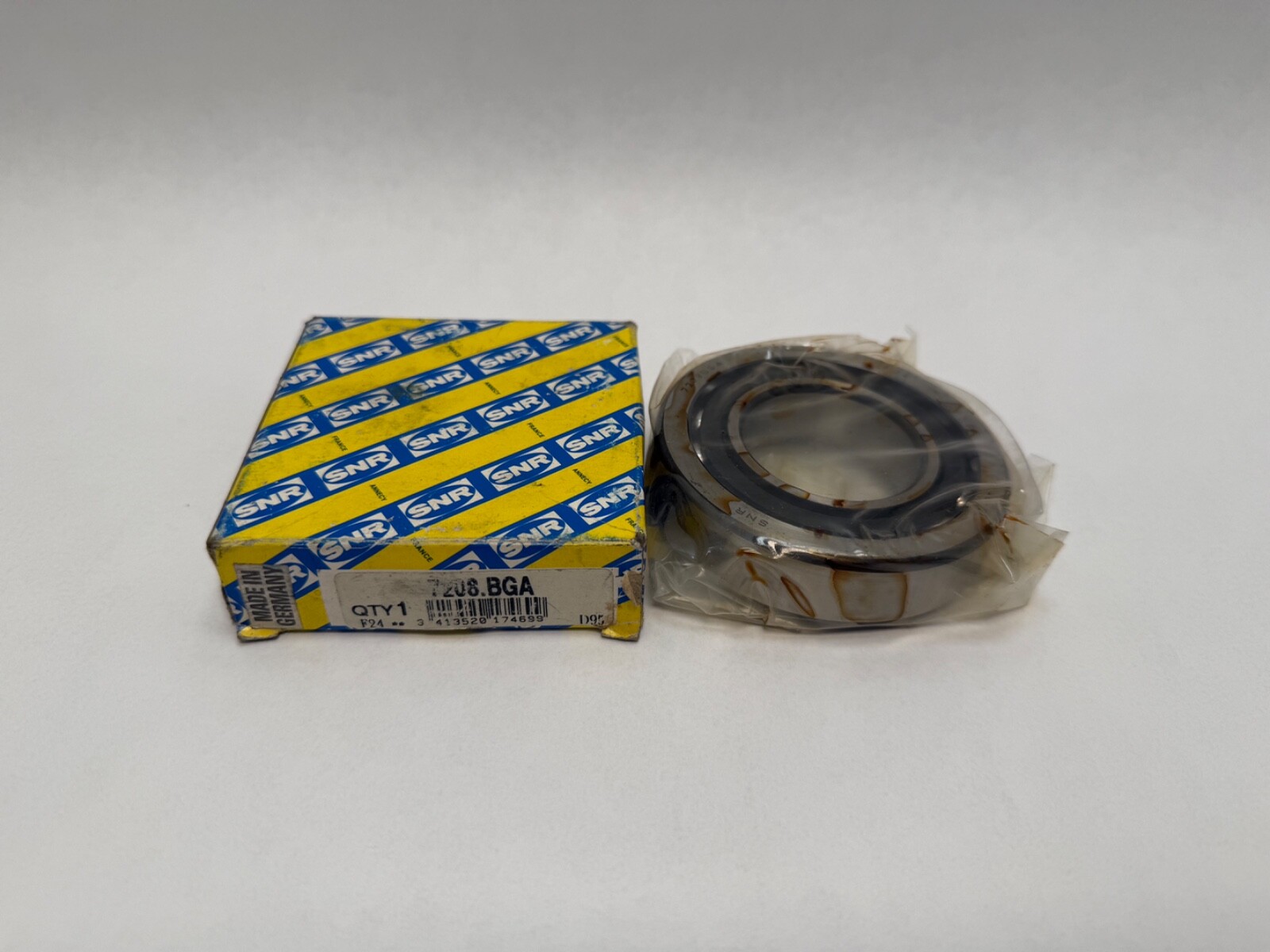

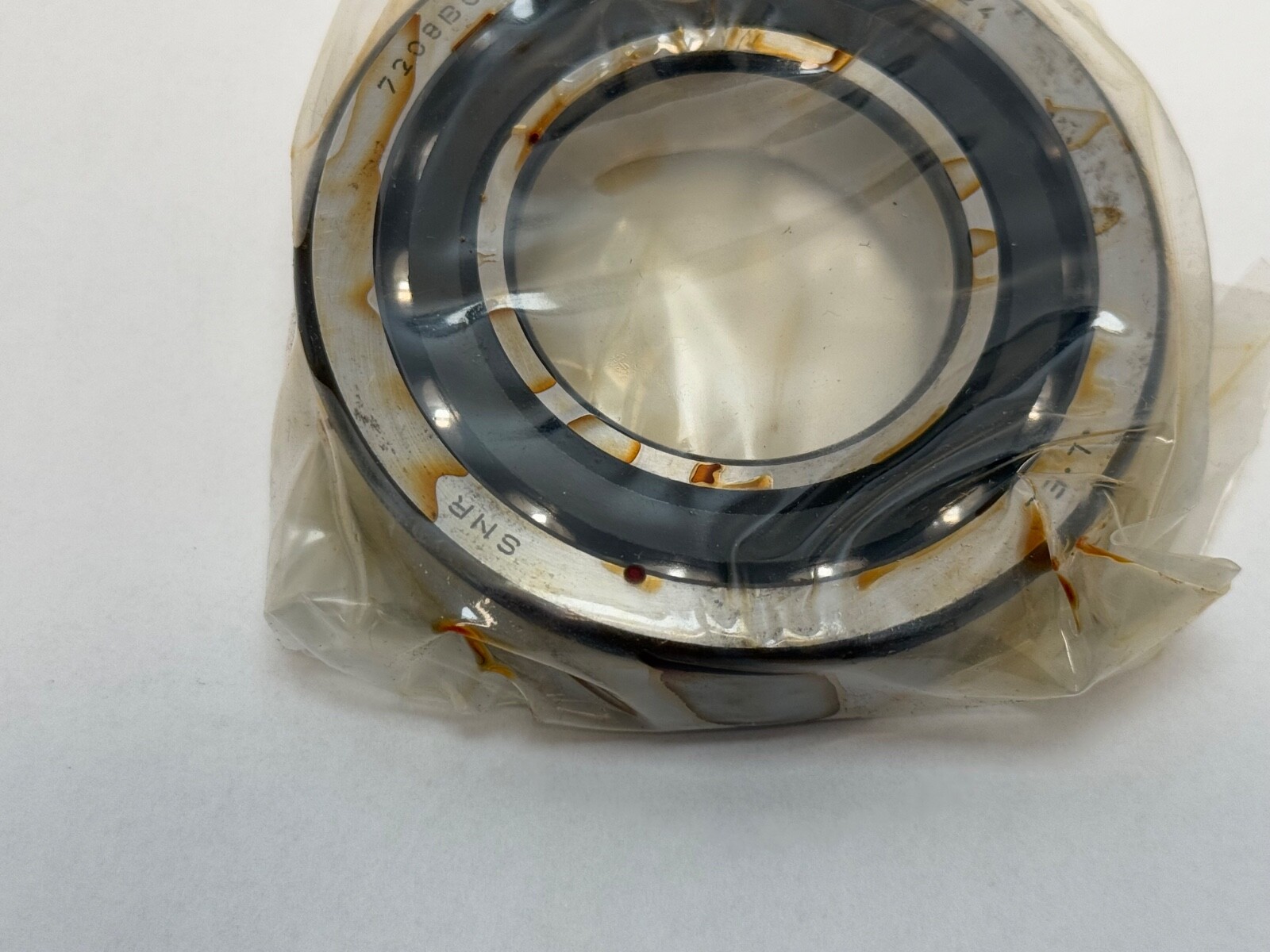

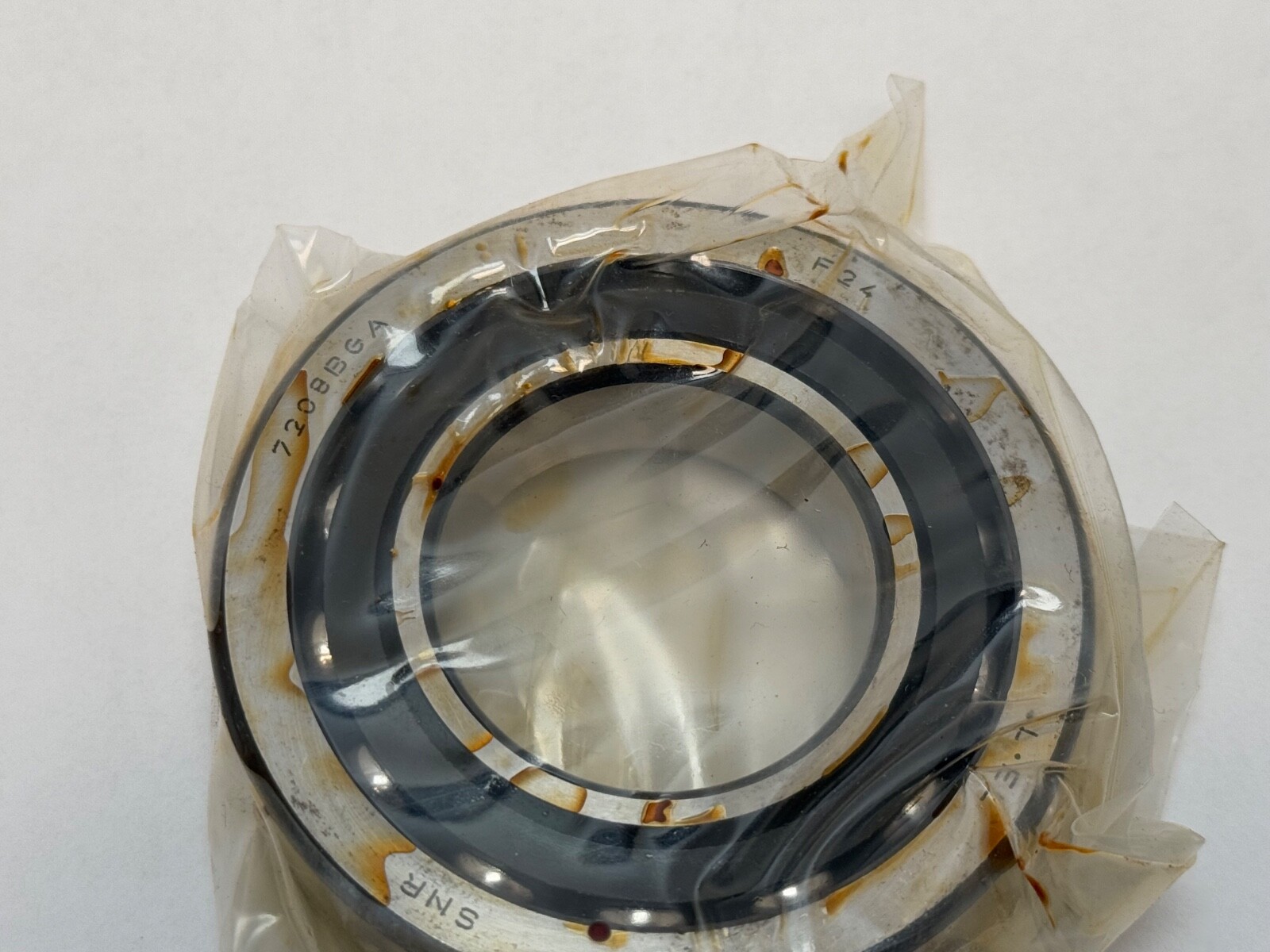

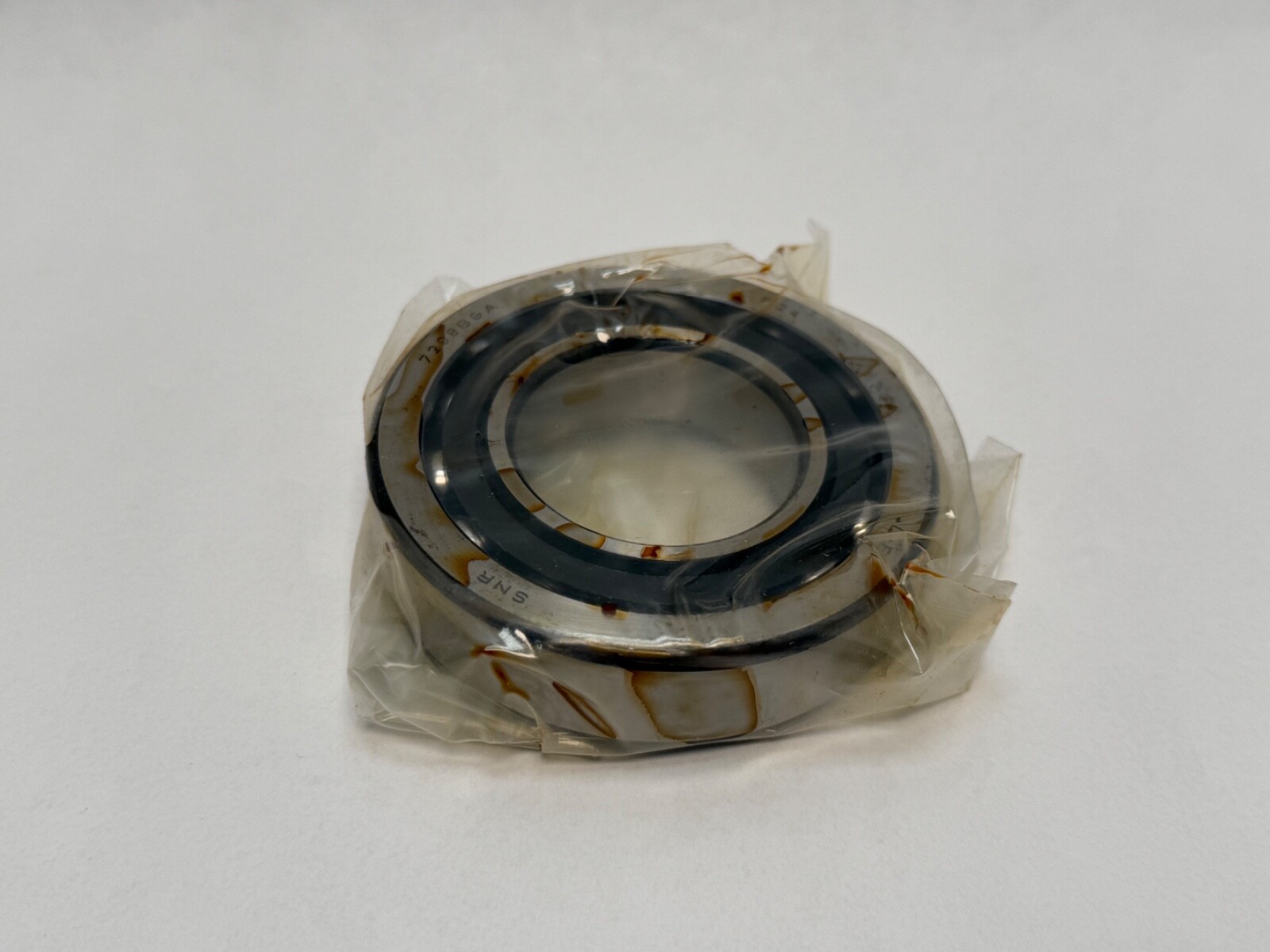

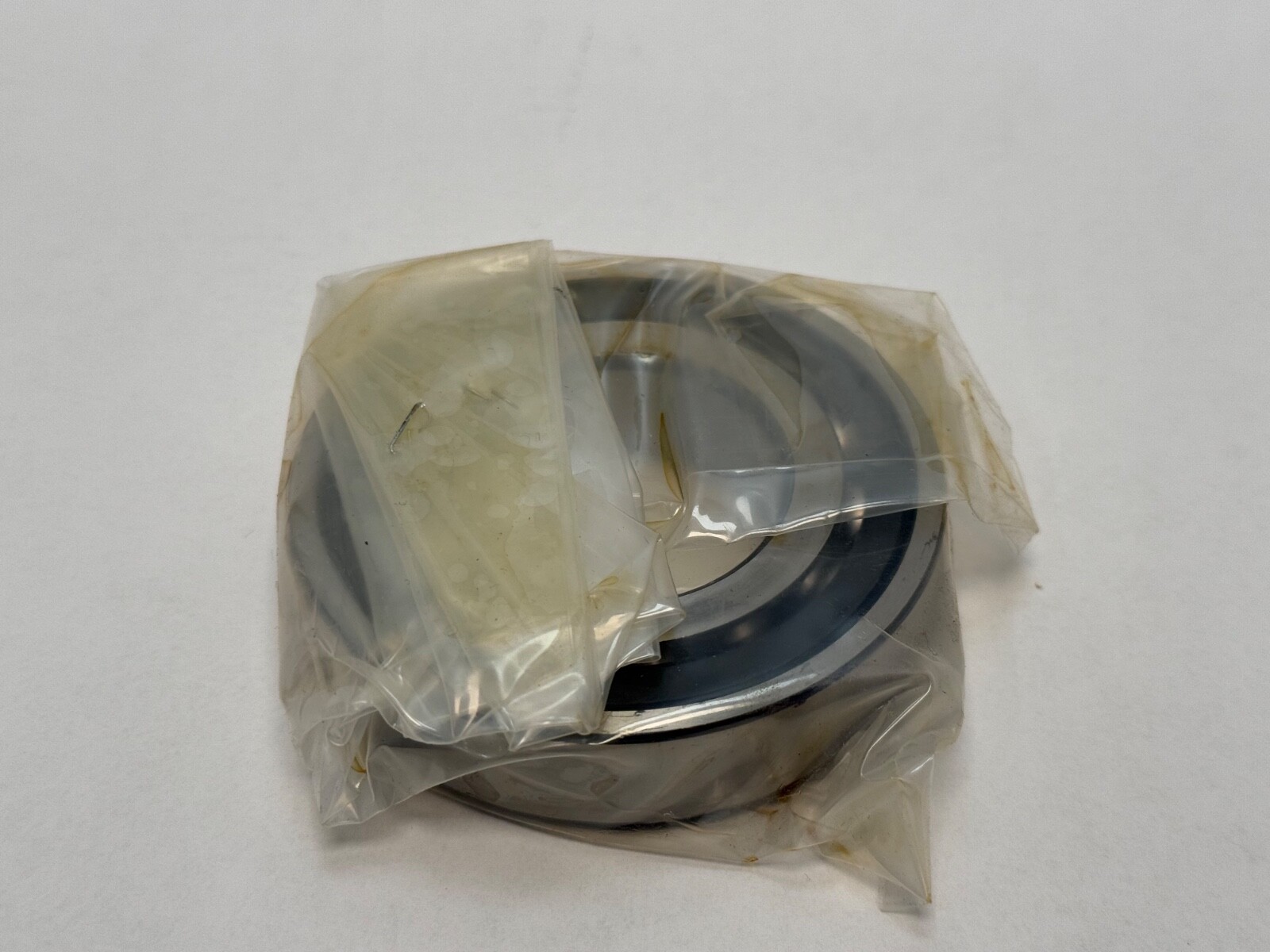

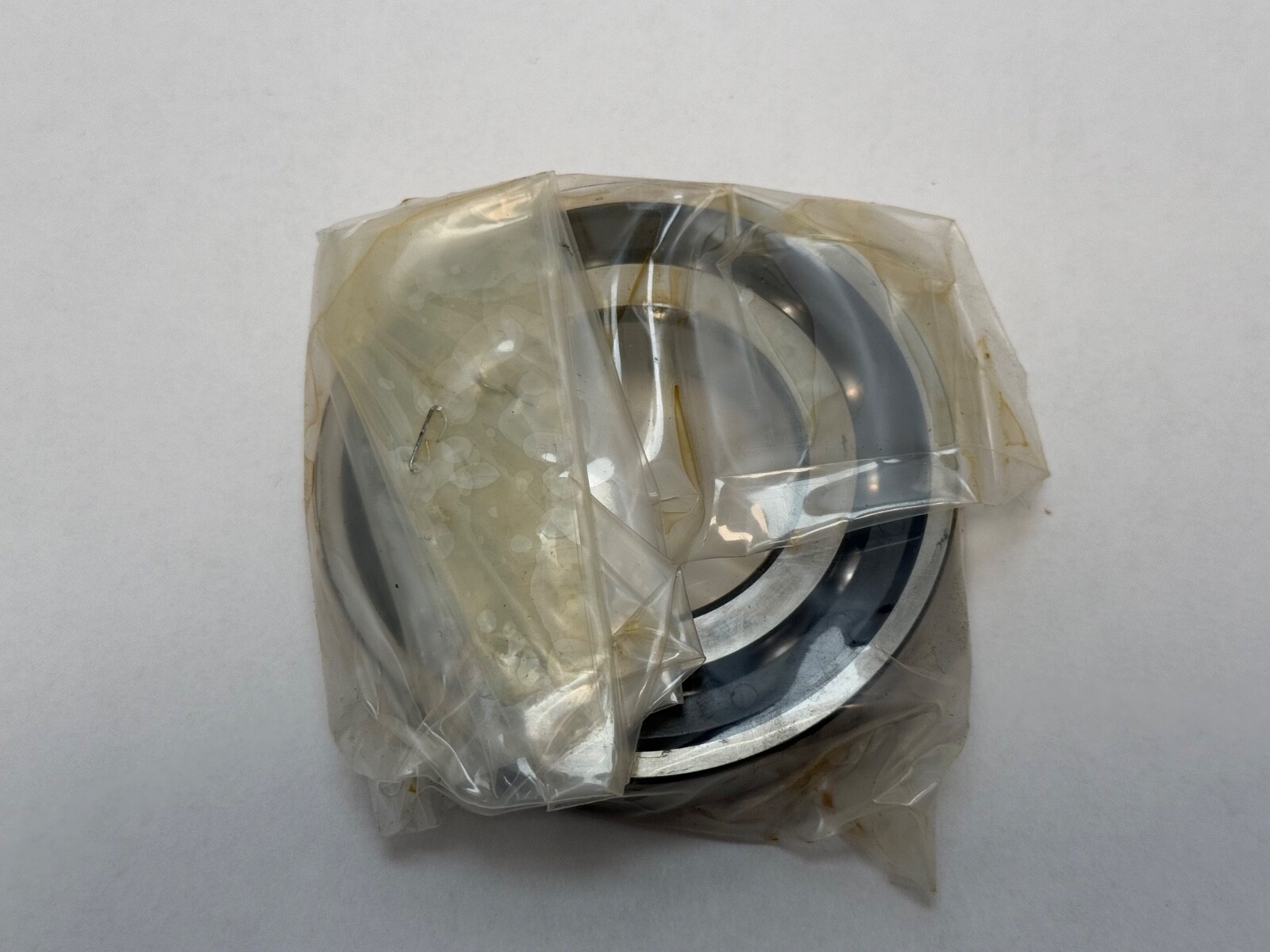

Single-row angular contact ball bearing, 40 mm bore x 80 mm OD x 18 mm wide, 40° contact angle, open. Takes combined radial and one-direction axial load.
List Price
$27.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7208BGA |
| Model | 7208 B G A / 7208BEG / 7208A / 7208BECBM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Series | 7200 |
|---|---|
| Material | Chrome Steel |
| Base Number | 7208 |
| Industry Terms | angular contact ball bearing, 40 degree angular contact, single row angular contact, thrust bearing, 7200 series |
| Common Misspellings | 7208BAG, 7208BG4, 7280BGA, 728BGA |
| Overall Width | 18 mm |
| Mpn Variants | 7208BGA, 7208 BGA, 7208-B-G-A, 7208.B.G.A, 7208BG, 7208B |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Contact Angle | 40° |
| Cross Reference 1 | SKF 7208 BEP |
|---|---|
| Cross Reference 2 | FAG 7208-B-TVP |
| Cross Reference 3 | NSK 7208BW |
| Cross Reference 4 | NTN 7208B |
| Cross Reference 5 | Koyo 7208B |
The SNR 7208BGA is a single-row angular contact ball bearing from the ISO 72 light series with a 40° contact angle. Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Contact Angle: 40°. The raceways are offset so the bearing carries combined radial and axial load, with the axial load in one direction.
72 — single-row angular contact ball bearing, ISO light series 02.
08 — bore code 08: 40 mm bore, 80 mm outside diameter, 18 mm width.
B — SNR 40° contact angle.
Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Contact Angle: 40°. The 40° angle gives the highest axial load capacity of the standard angular contact angles, which suits pump shafts, gearbox shafts and worm drives with heavy thrust. Angular contact bearings are fitted in pairs or against another bearing to locate the shaft in both directions. The open design takes grease or oil lubrication.
Standard 72-series envelope, 40 x 80 x 18 mm. Snap Ring Included: No.
Unit Quantity: 1 Pc. Single bearing.
Same 40 x 80 x 18 mm envelope and 40° contact angle: SKF 7208 BEP, FAG 7208-B-TVP, NSK 7208BW, NTN 7208B, Koyo 7208B. A 7208 with no B, or with an A, AC or C angle code, has a smaller contact angle and is not an equivalent.
