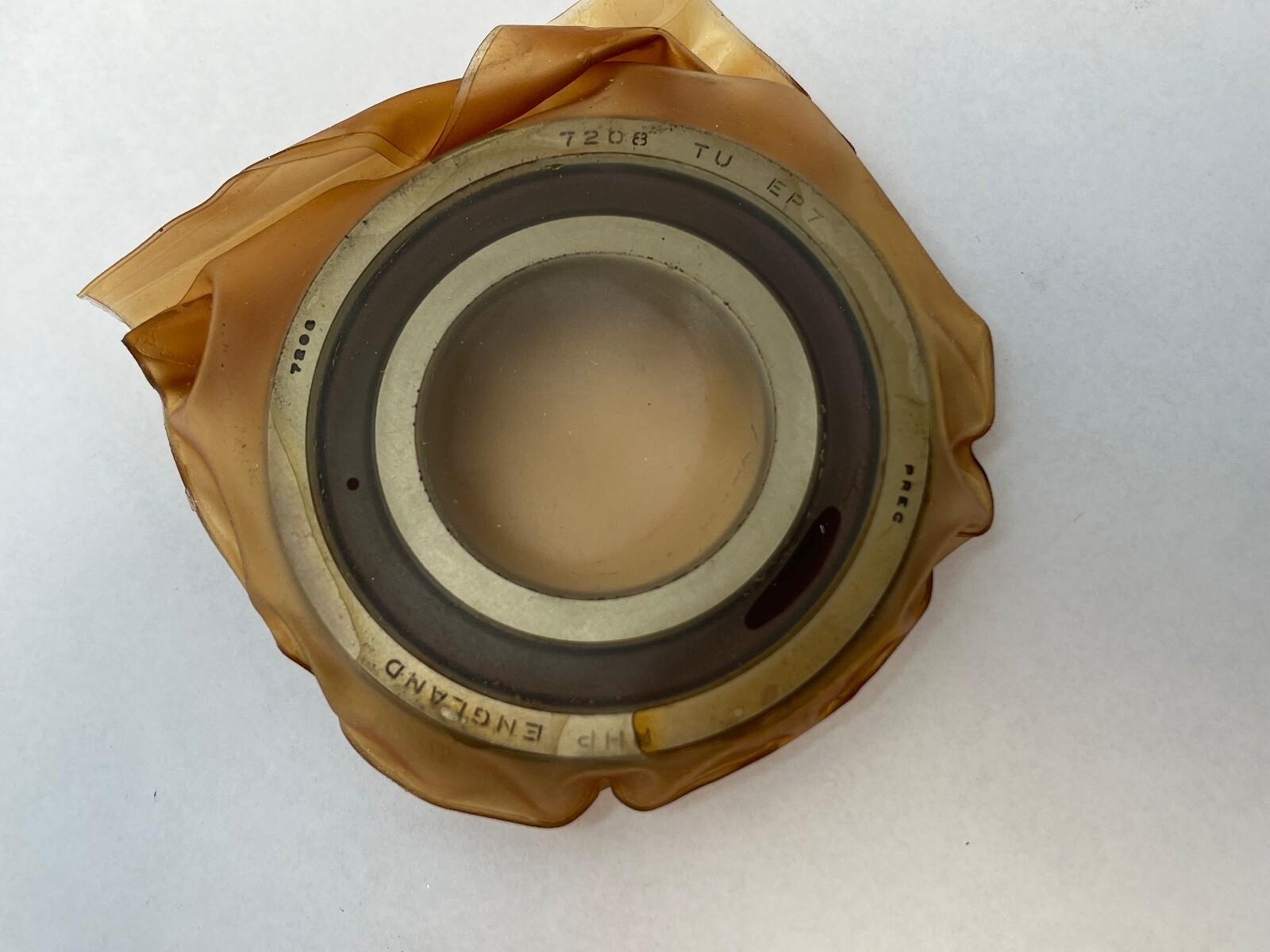

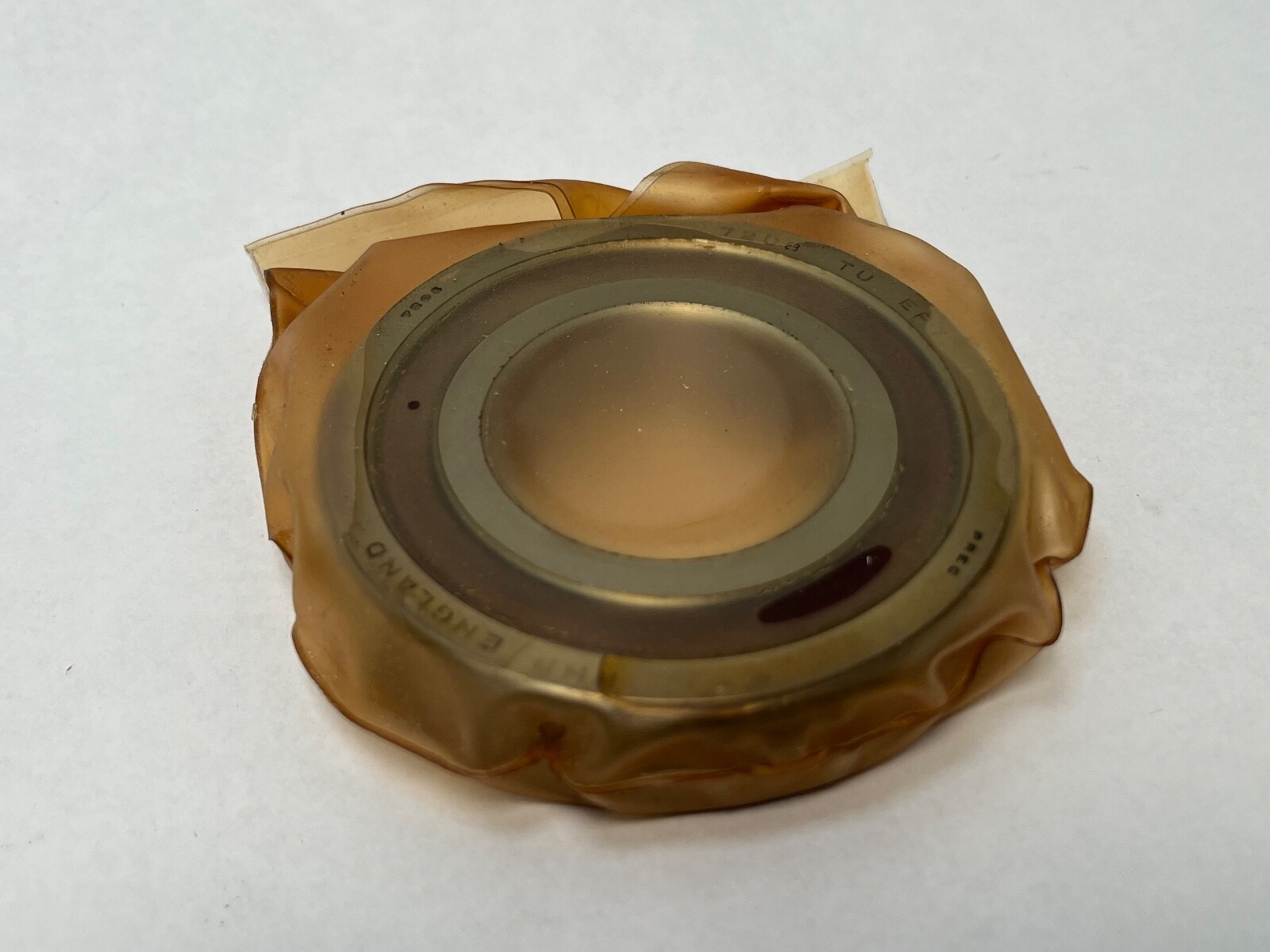

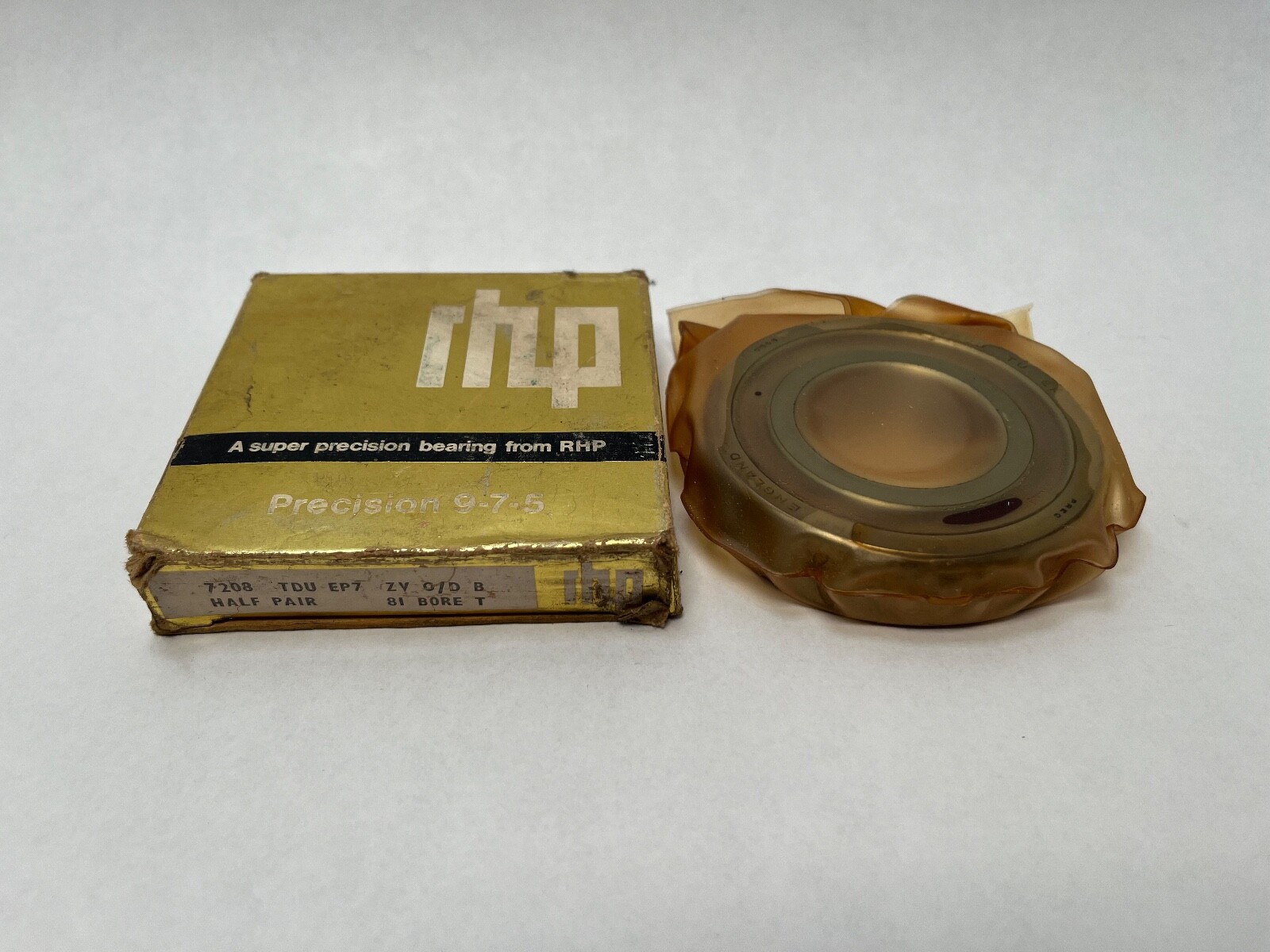

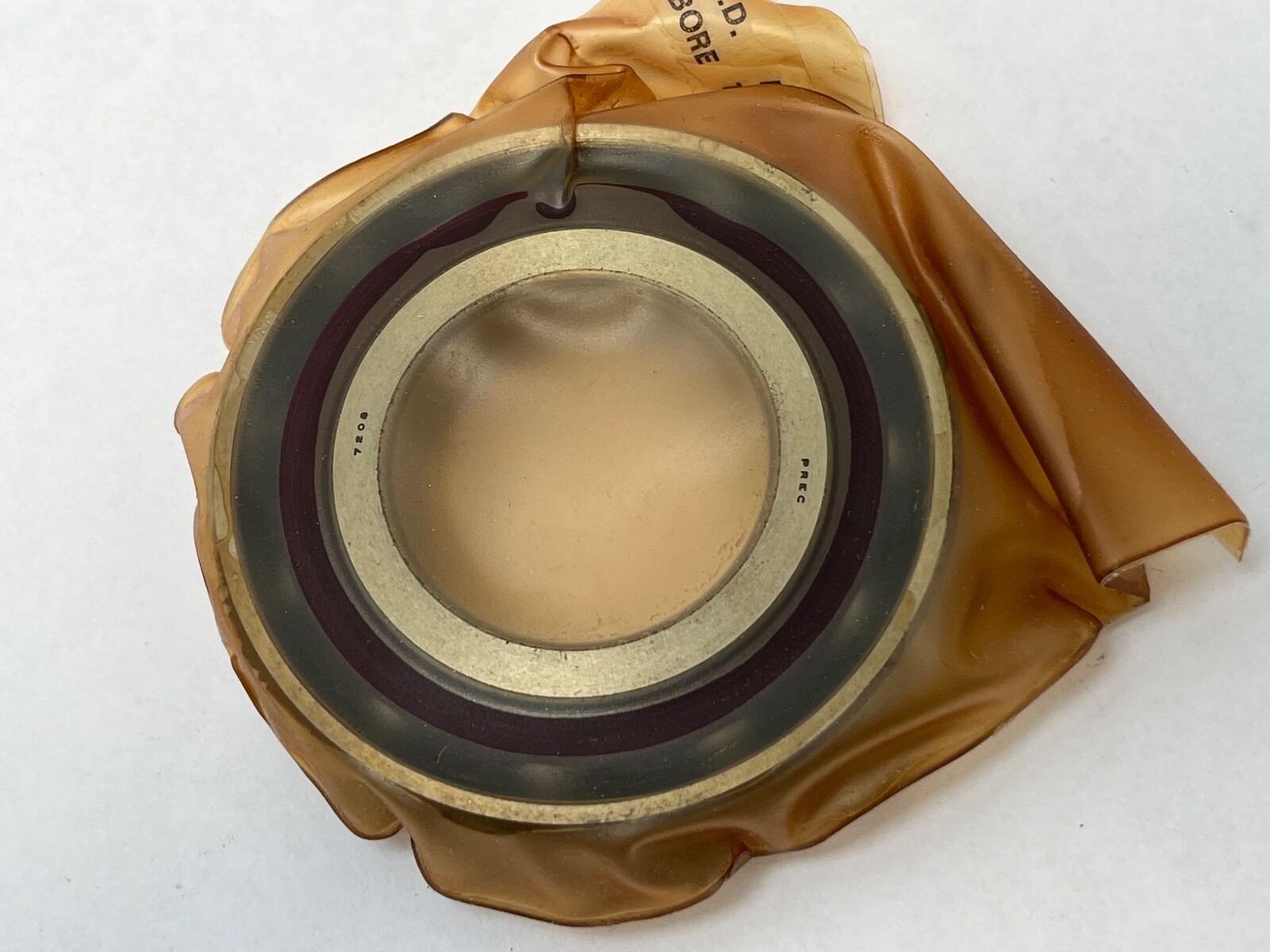

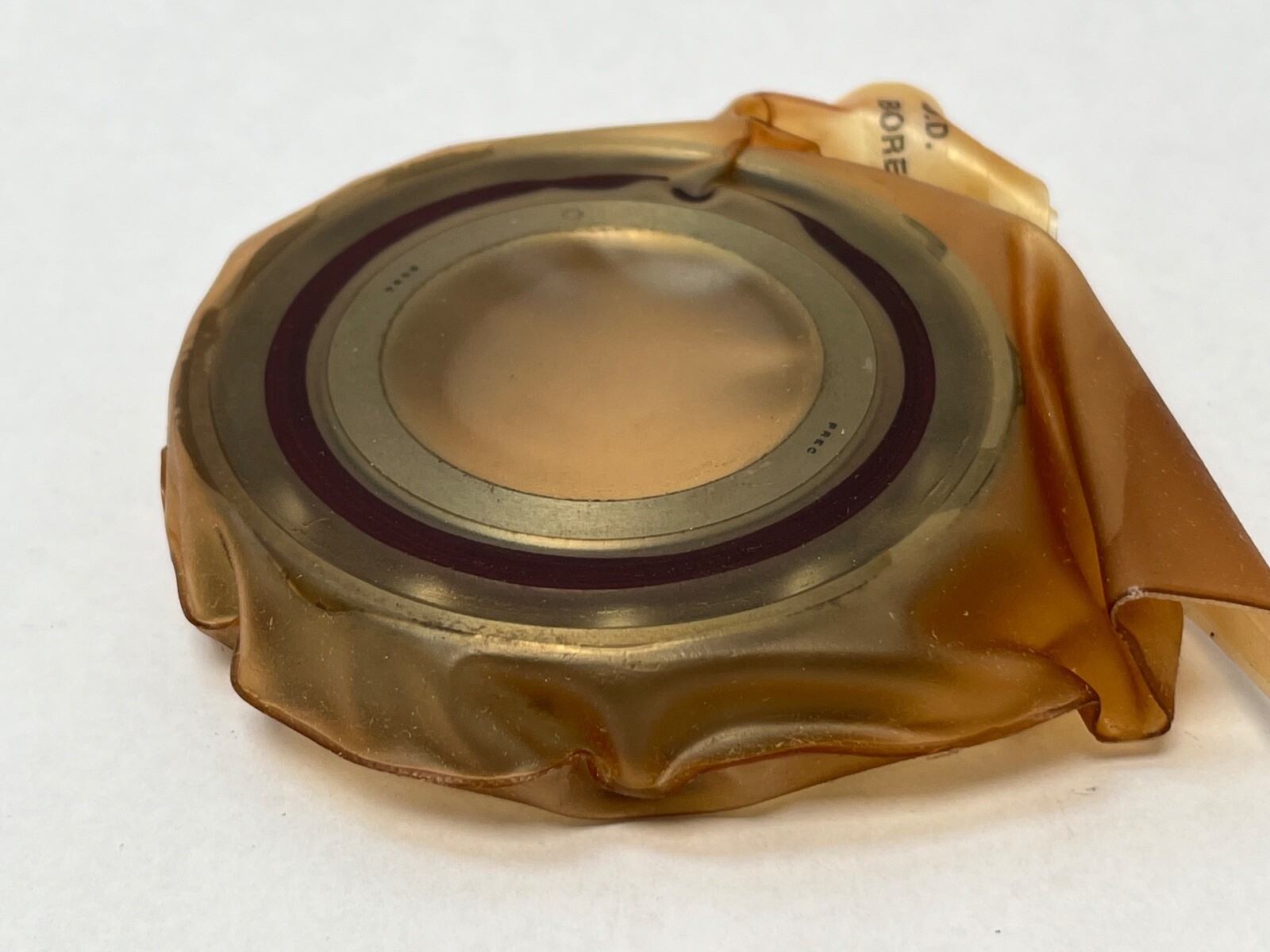

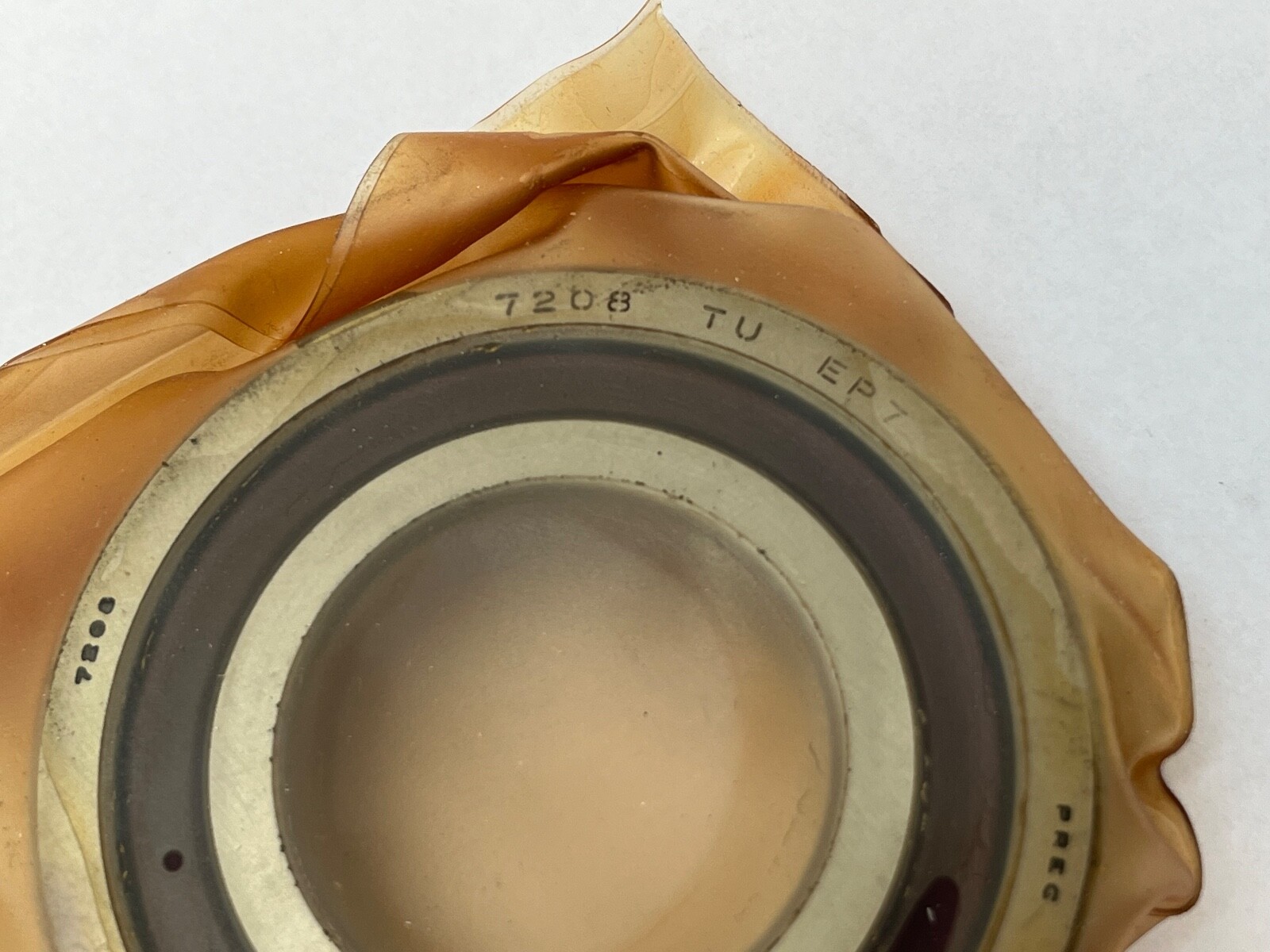

Super-precision angular contact ball bearing, 40 x 80 x 18 mm, 15° contact angle, ABEC 7 / P4, phenolic cage, light preload, open. RHP 7208TASULP4.
List Price
$45.89
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7208TASULP4 |
| Model | 7208-TA-SUL-P4 / 7208-B / MM208 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Light |
| Precision Class | ABEC 7 / P4 |
| Dynamic Load Rating C1 | 36,500 N |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 36,500 N |
| Static Load Rating | 25,200 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 30,600 rpm grease; 18,900 rpm oil-air |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Cross Reference 1 | SKF 7208 CD |
|---|---|
| Cross Reference 2 | FAG B7208-C |
| Cross Reference 3 | NSK 7208C |
| Cross Reference 5 | Timken/Fafnir MM208WI |
RHP 7208TASULP4 super-precision angular contact ball bearing, 40 x 80 x 18 mm, ISO series 02, 15° contact angle. Unit Quantity: 1 Pc. Condition: New, open box.
7208 — RHP’s number for the ISO series 02 size, 40 x 80 x 18 mm.
TA — outer-ring centred, machined phenolic cage.
SU — universal face control, ground for mounting in any combination.
L — light preload.
P4 — RHP precision class, the current form of the legacy EP7 grade, ABEC 7.
Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Preload: Light. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Series: 7200. Dynamic Load Rating: 36,500 N. Static Load Rating: 25,200 N. Limiting Speed: 30,600 rpm grease; 18,900 rpm oil-air. Harmonization Code: 8482.10.50.28.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Straight bore.
SKF 7208 CD. FAG B7208-C. NSK 7208C. Timken/Fafnir MM208WI. Each is a 15° part on the 40 x 80 x 18 mm envelope. Carton designations: 7208B, 7208-TA-SUL-P4, 7208TDUEP7, MM208 WI CR DUL.
Contact Angle: 15°.
Dynamic Load Rating: 36,500 N. Static Load Rating: 25,200 N. Limiting Speed: 30,600 rpm grease; 18,900 rpm oil-air.
Preload: Light. Precision Class: ABEC 7 / P4.
