Availability:
2 in stock
Angular contact ball bearing, 40 x 80 x 18 mm, 40° contact angle, ISO P5 accuracy, universally matchable to zero axial clearance when paired.
List Price
$97.85
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7208B.P5.UO |
| Model | 7208 B P5 UO |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 40 mm |
| OD | 80 mm |
| Width | 18 mm |
| Material | Chrome Steel |
|---|---|
| Series | 72 |
| Base Number | 7208 |
| Bore Shaft Size | 40 mm |
| Mpn Variants | 7208B.P5.UO; 7208-B-P5-UO; 7208 B P5 UO; 7208B; 7208-B |
| Arrangement Configuration | Universally matchable single bearing |
| Precision Class | ISO P5 (ABEC 5) |
| Dynamic Load Rating | 34 kN |
| Static Load Rating | 23.5 kN |
| Precision Rating | ISO P5 (ABEC 5) |
| Rolling Elements | Ball |
| Item Weight | 0.84 lb (0.379 kg) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 40° |
| Preload | Universally matchable, zero axial clearance when paired (UO) |
| Design Units | Metric |
| Bearing Material | Chrome Steel |
| Part Number | 7208-B-P5-UO |
| Cross Reference 1 | FAG 7208-B-TVP-UA - normal tolerance, small axial clearance |
|---|---|
| Cross Reference 2 | FAG 7208-B-TVP-UL - normal tolerance, light preload |
| Cross Reference 3 | FAG 7208-B-XL-TVP-P5-UL - X-life, higher ratings, light preload |

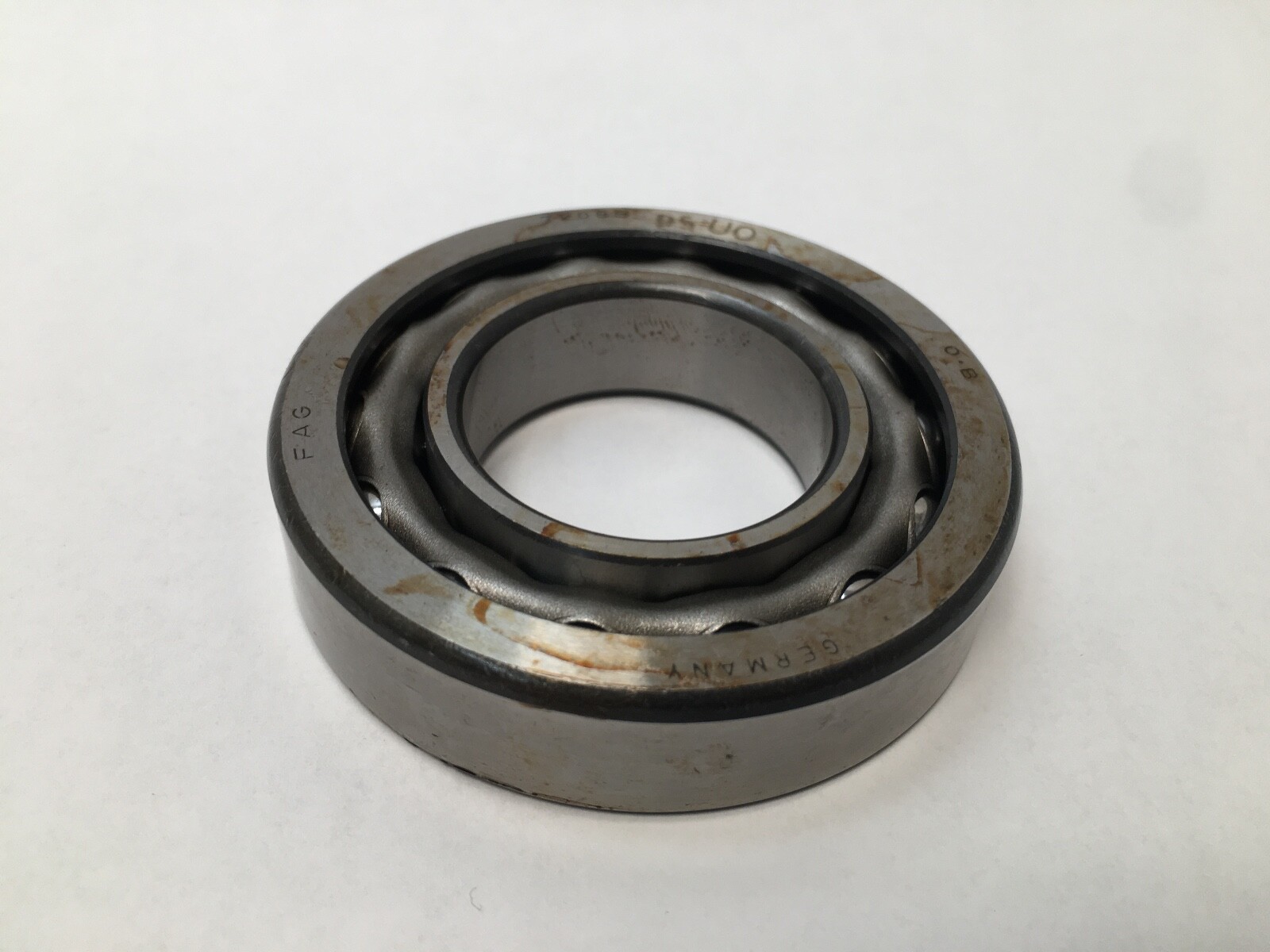

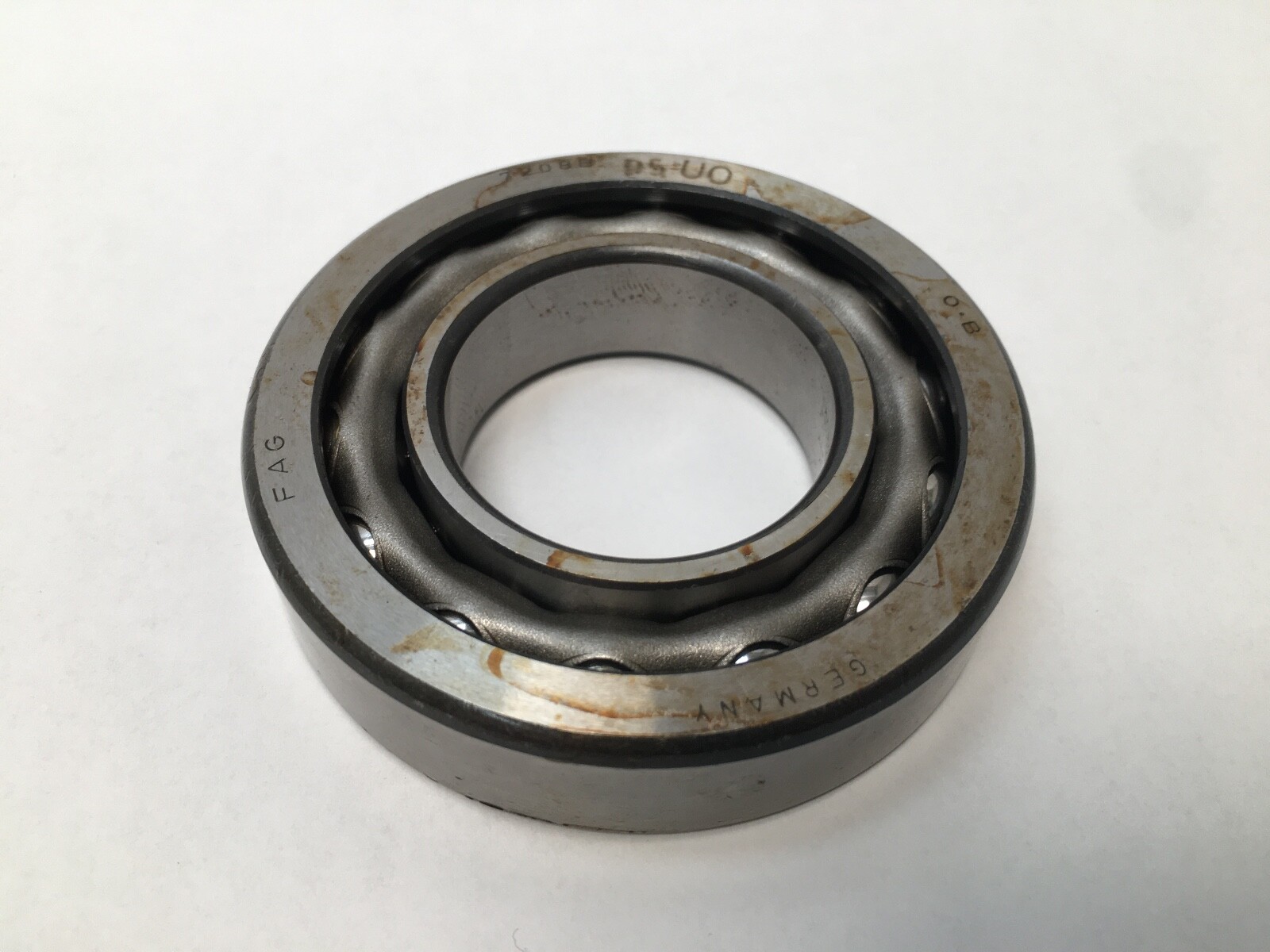

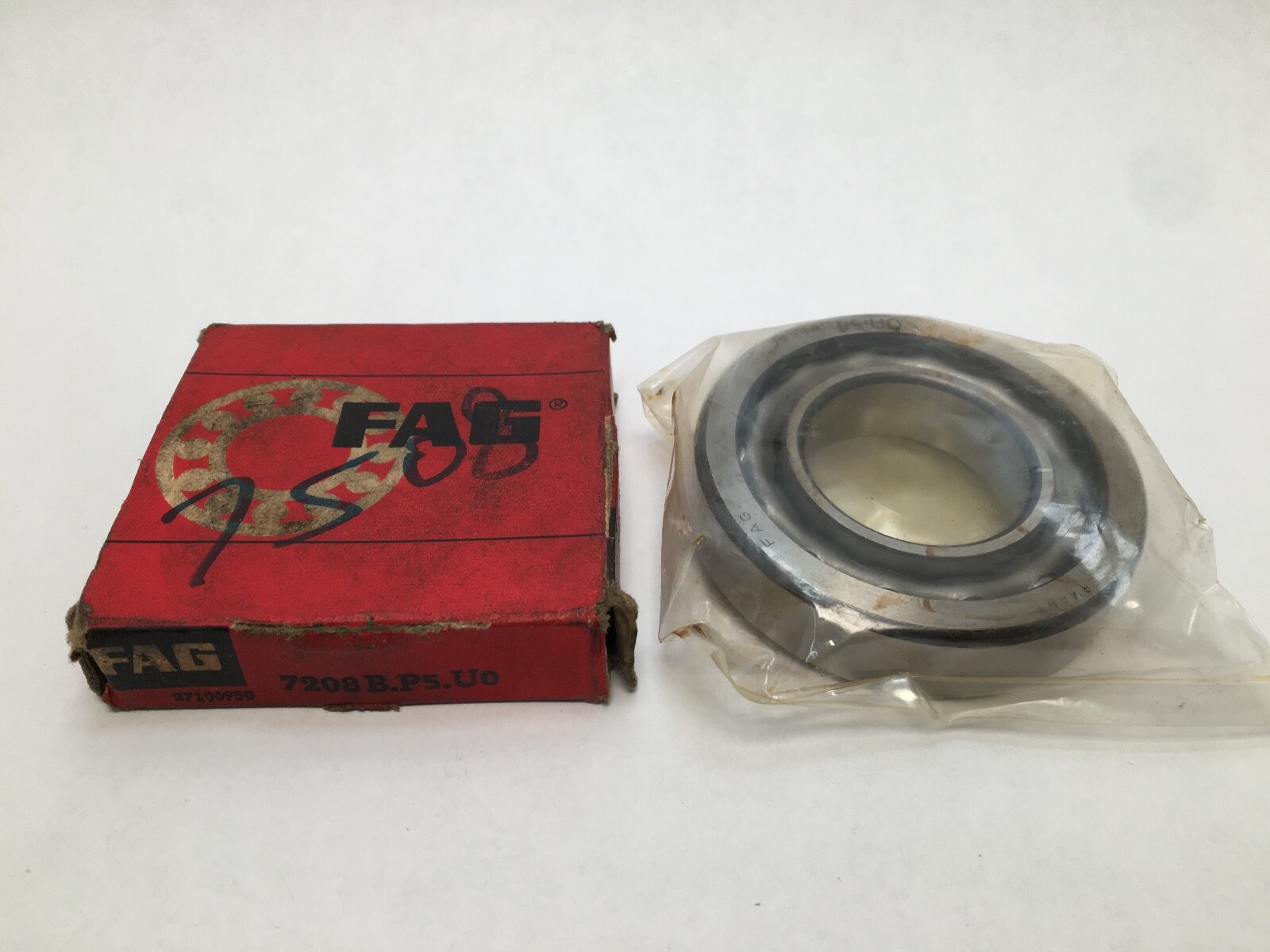

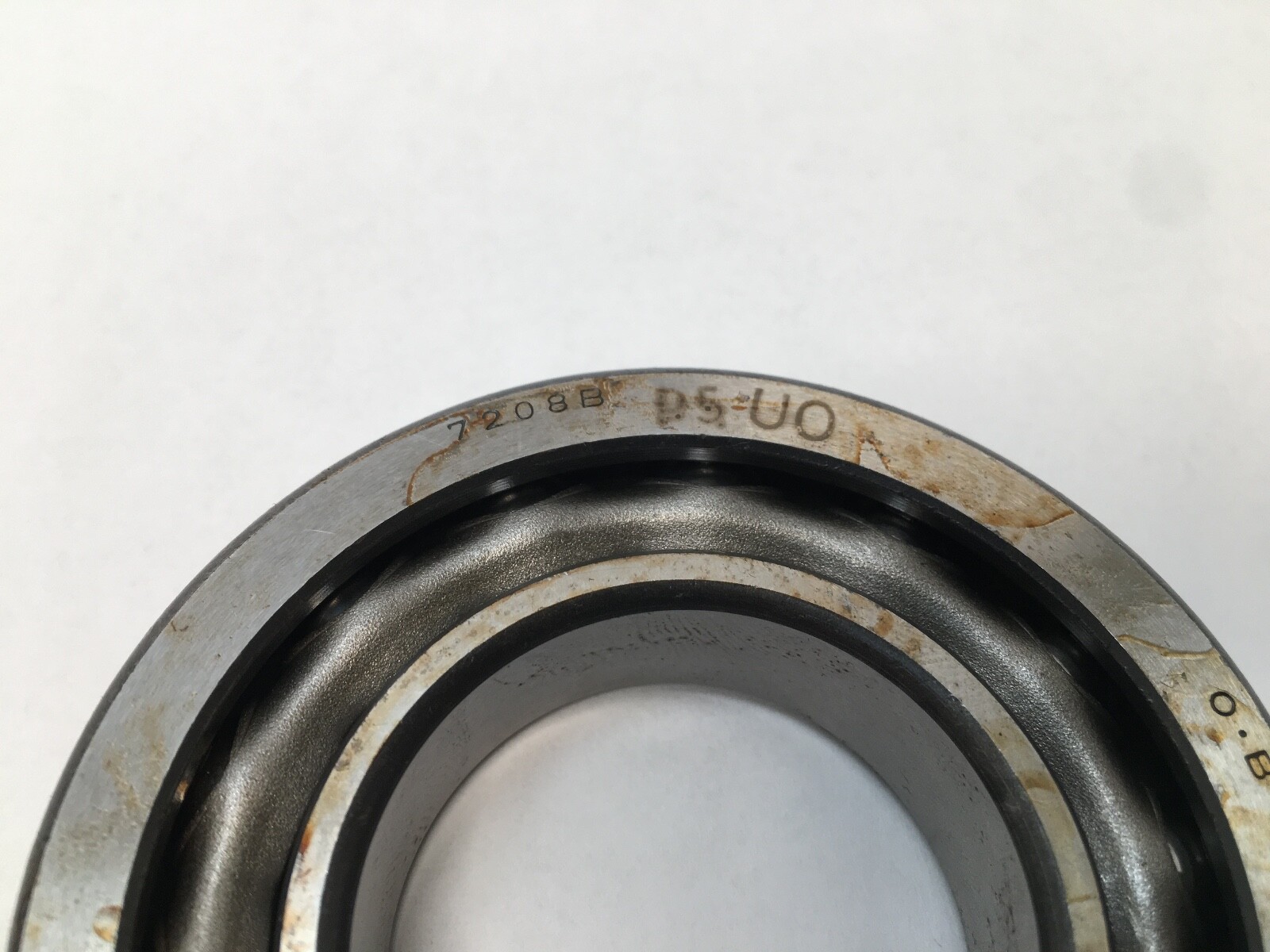

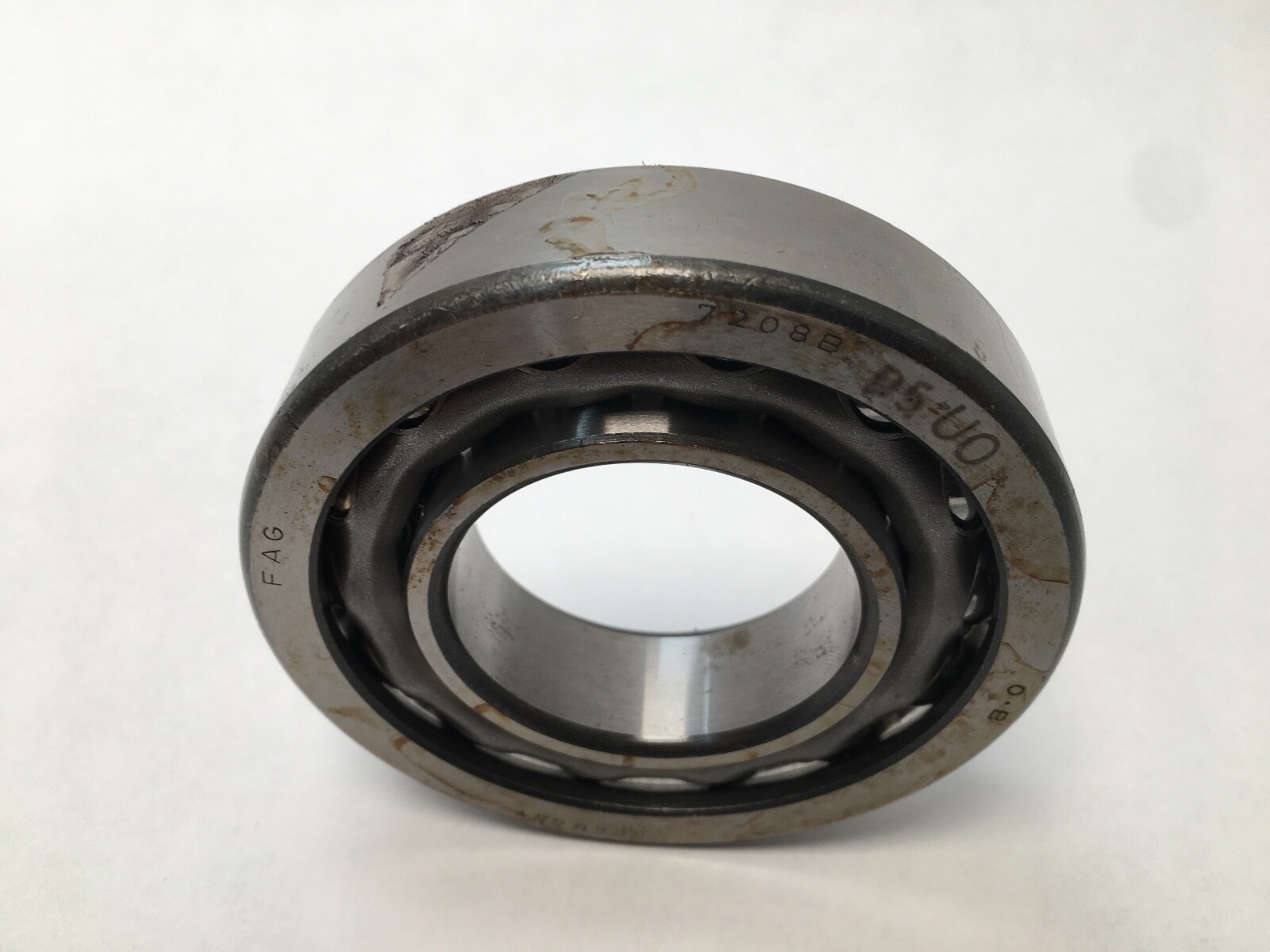

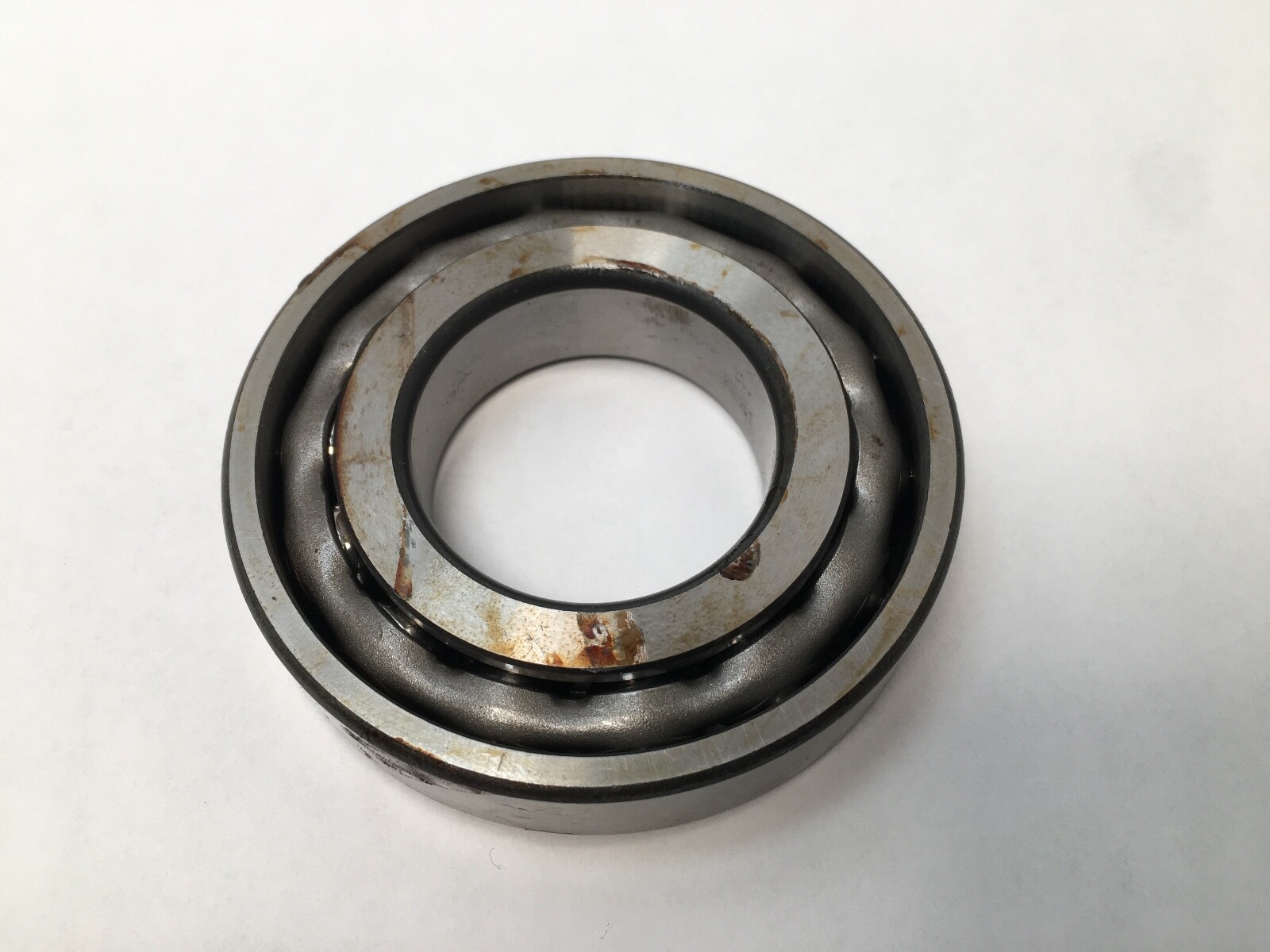

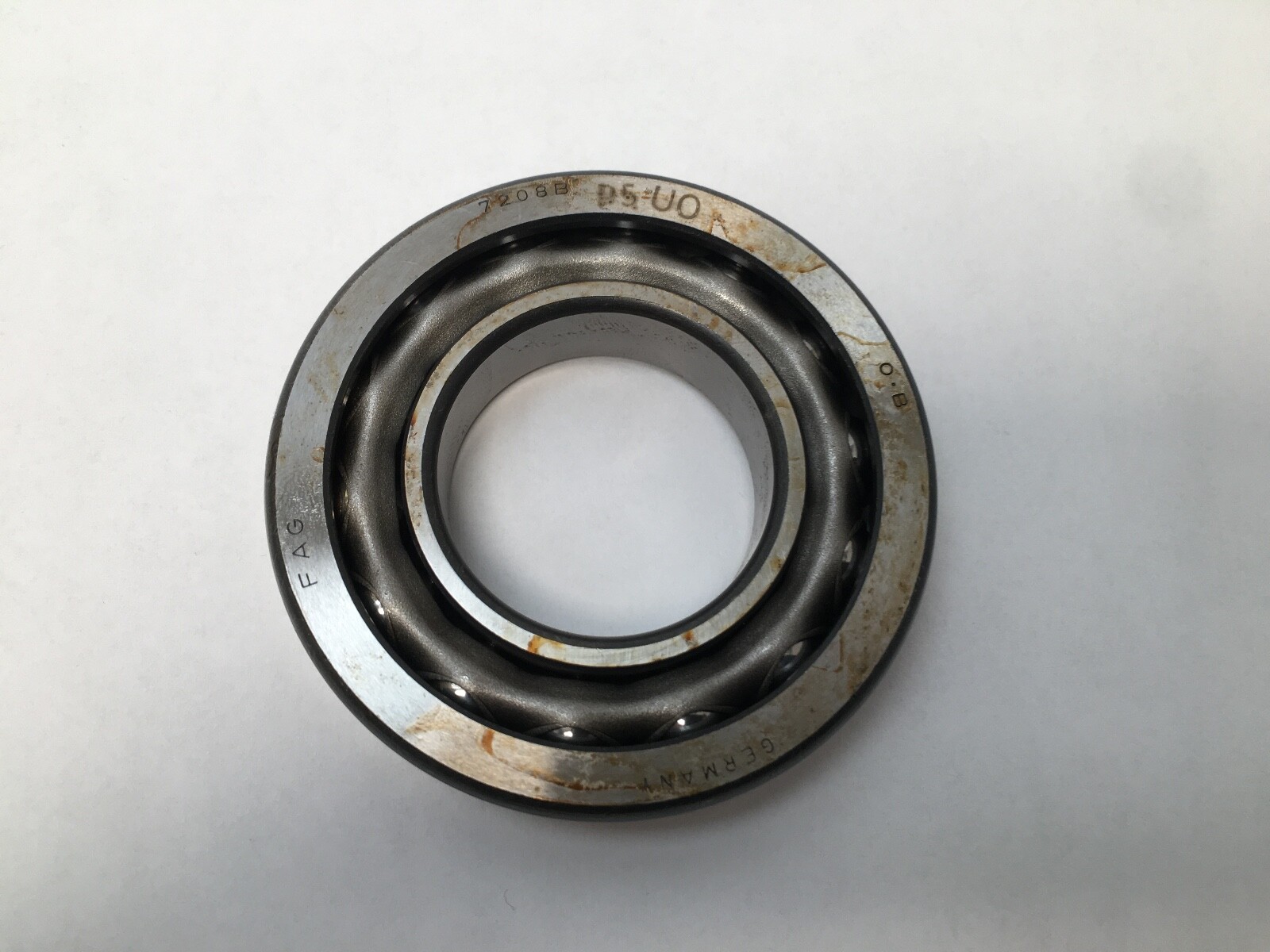

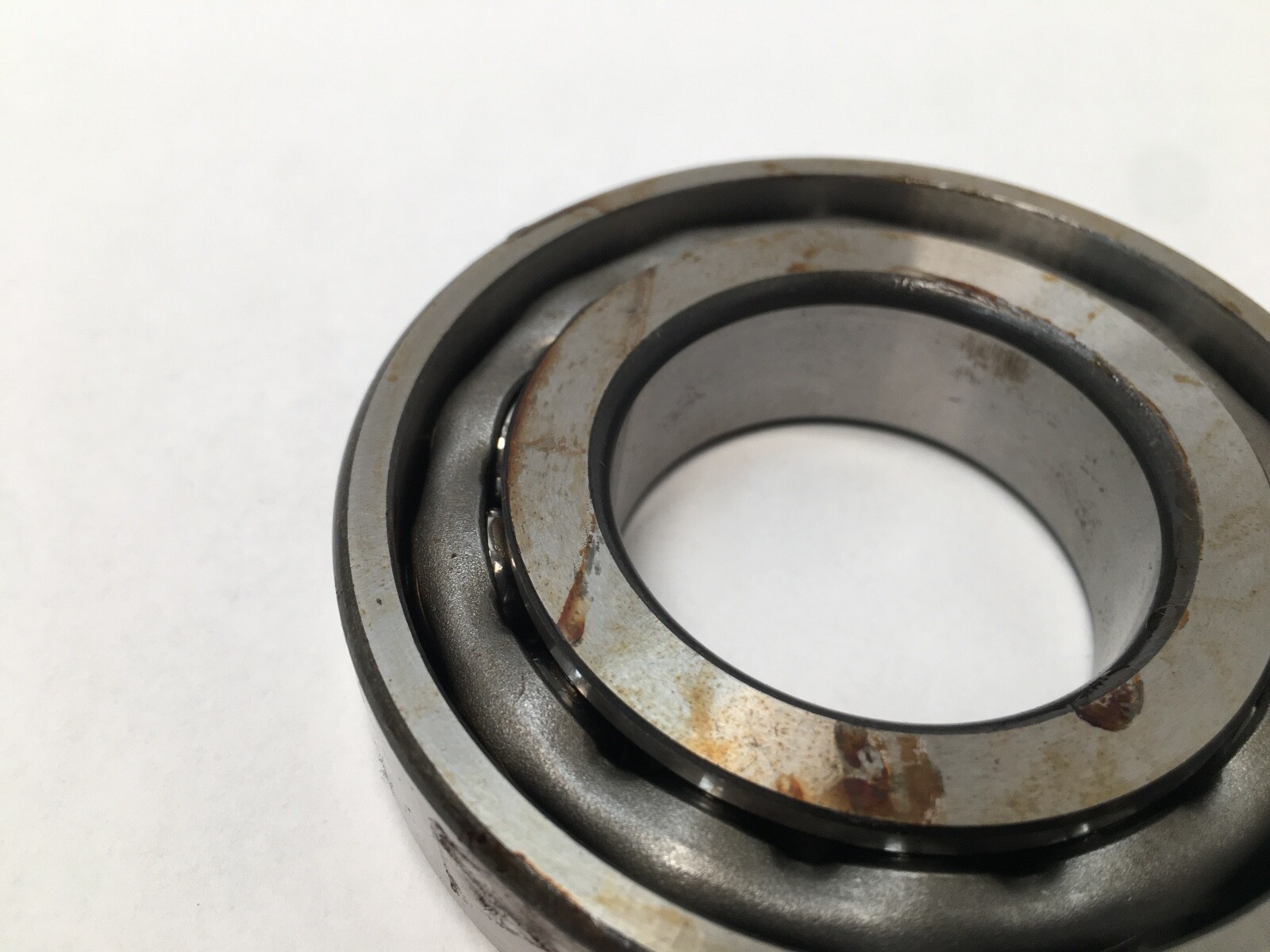

FAG 7208-B-P5-UO single-row angular contact ball bearing, 40 mm bore, 80 mm outside diameter, 18 mm width. Straight bore, open, 40° contact angle, ISO P5 precision, universally matchable. One piece.
7208 — ISO 72 dimension series at a 40 mm bore, giving a 40 x 80 x 18 mm envelope.
B — 40° contact angle on a 72xx series bearing.
P5 — ISO tolerance class 5, equivalent to ABEC 5.
UO — universally matchable, set to zero axial clearance when two bearings are mounted together.
Bore Diameter: 40 mm. Outside Diameter: 80 mm. Overall Width: 18 mm. Contact Angle: 40°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Precision Class: ISO P5 (ABEC 5). Bearing Material: Chrome steel. Dynamic Load Rating: 34 kN. Static Load Rating: 23.5 kN. Item Weight: 0.379 kg (0.84 lb). Unit Quantity: 1 Pc.
Envelope: 40 x 80 x 18 mm. Universal matchability: any two bearings stack back-to-back, face-to-face or in tandem and reach zero axial clearance without shimming or grinding.
FAG 7208-B-TVP-UA — normal tolerance, small axial clearance. FAG 7208-B-TVP-UL — normal tolerance, light preload. FAG 7208-B-XL-TVP-P5-UL — X-life, higher ratings, light preload. All are 40 x 80 x 18 mm. Searchable designation forms: 7208B.P5.UO, 7208-B-P5-UO, 7208 B P5 UO, 7208B, 7208-B.
Bore 40 mm, outside diameter 80 mm, width 18 mm.
Dynamic Load Rating 34 kN and Static Load Rating 23.5 kN.
Universally matchable, with zero axial clearance when two bearings are mounted together.
