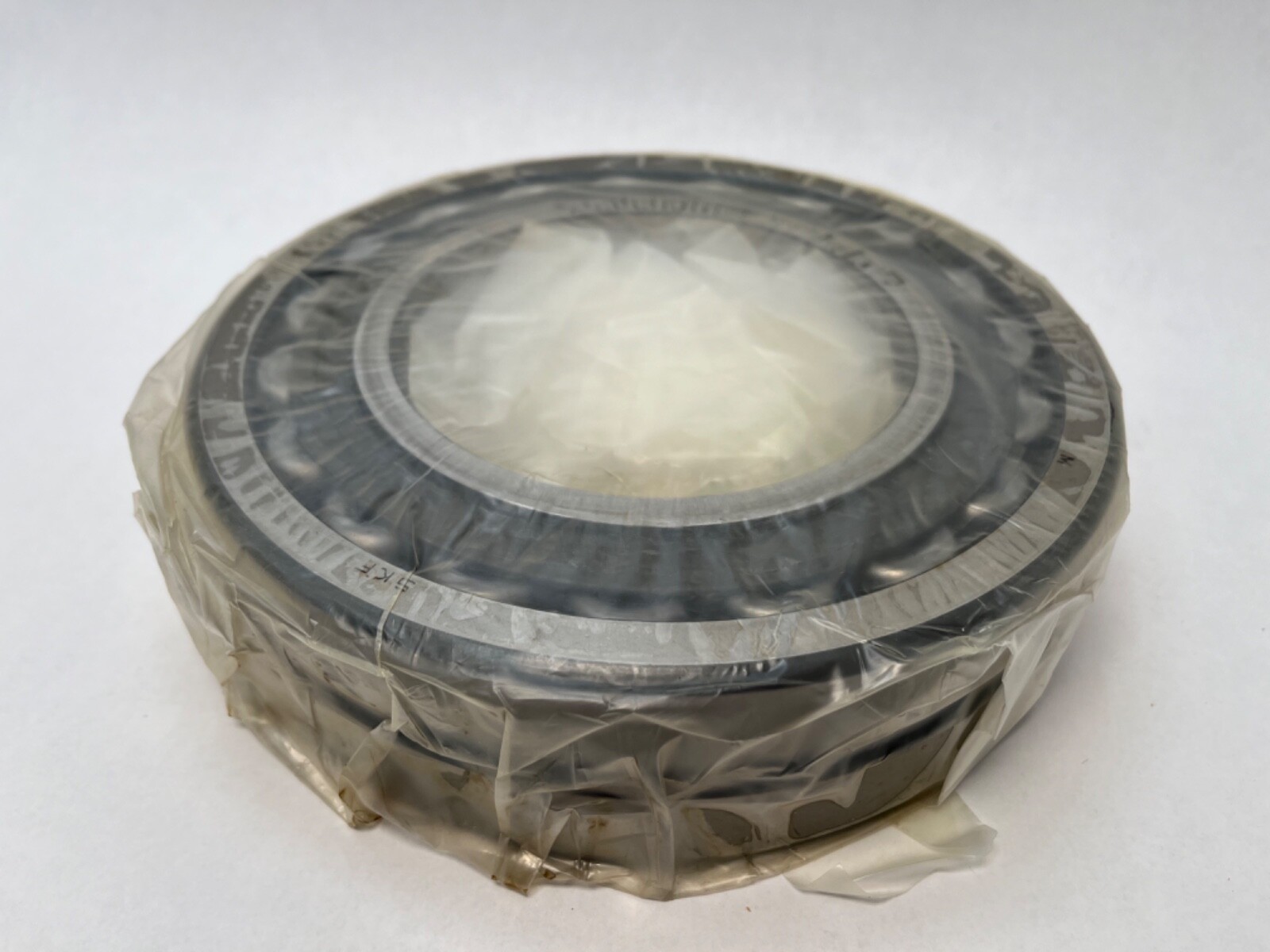

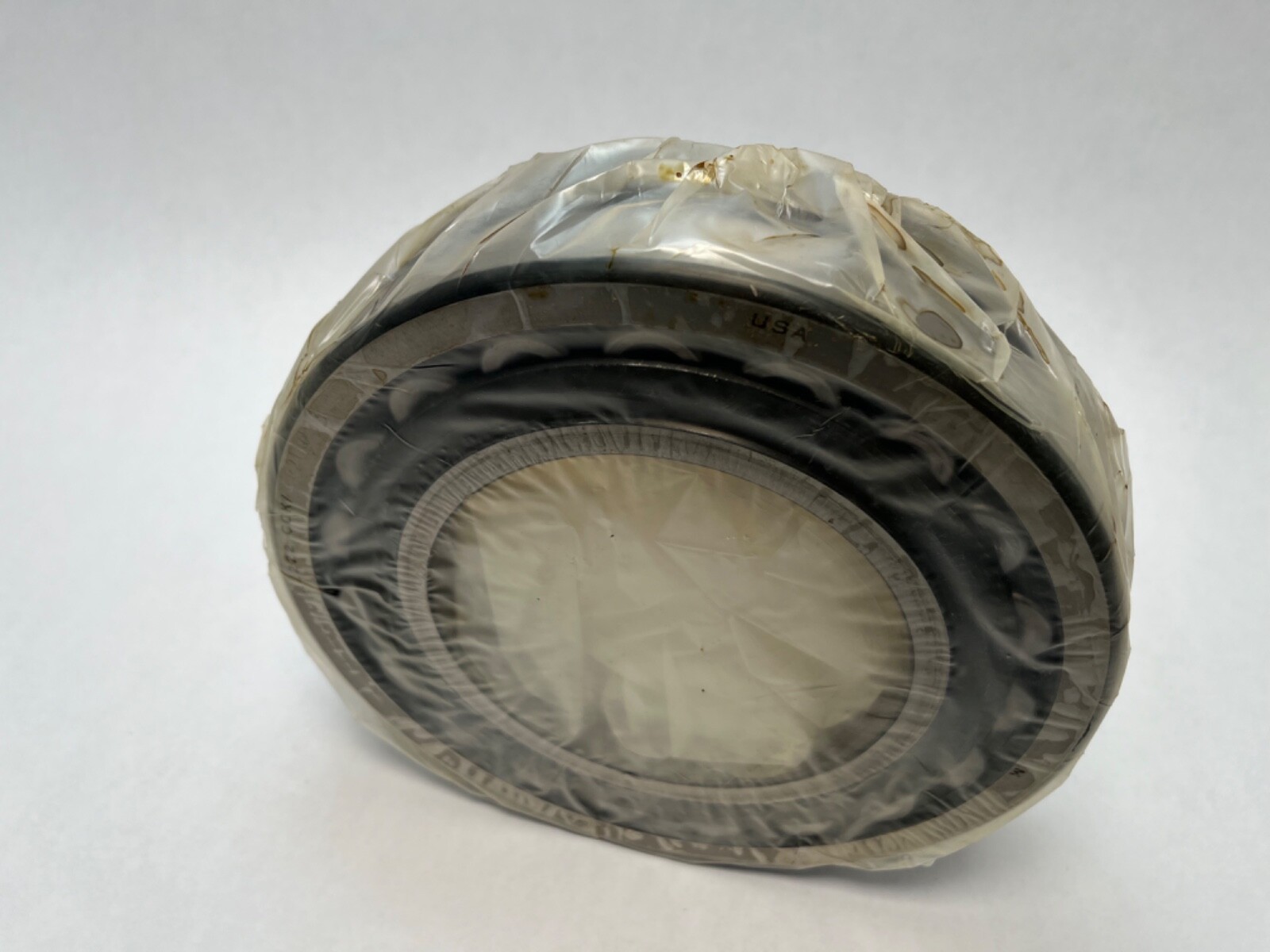

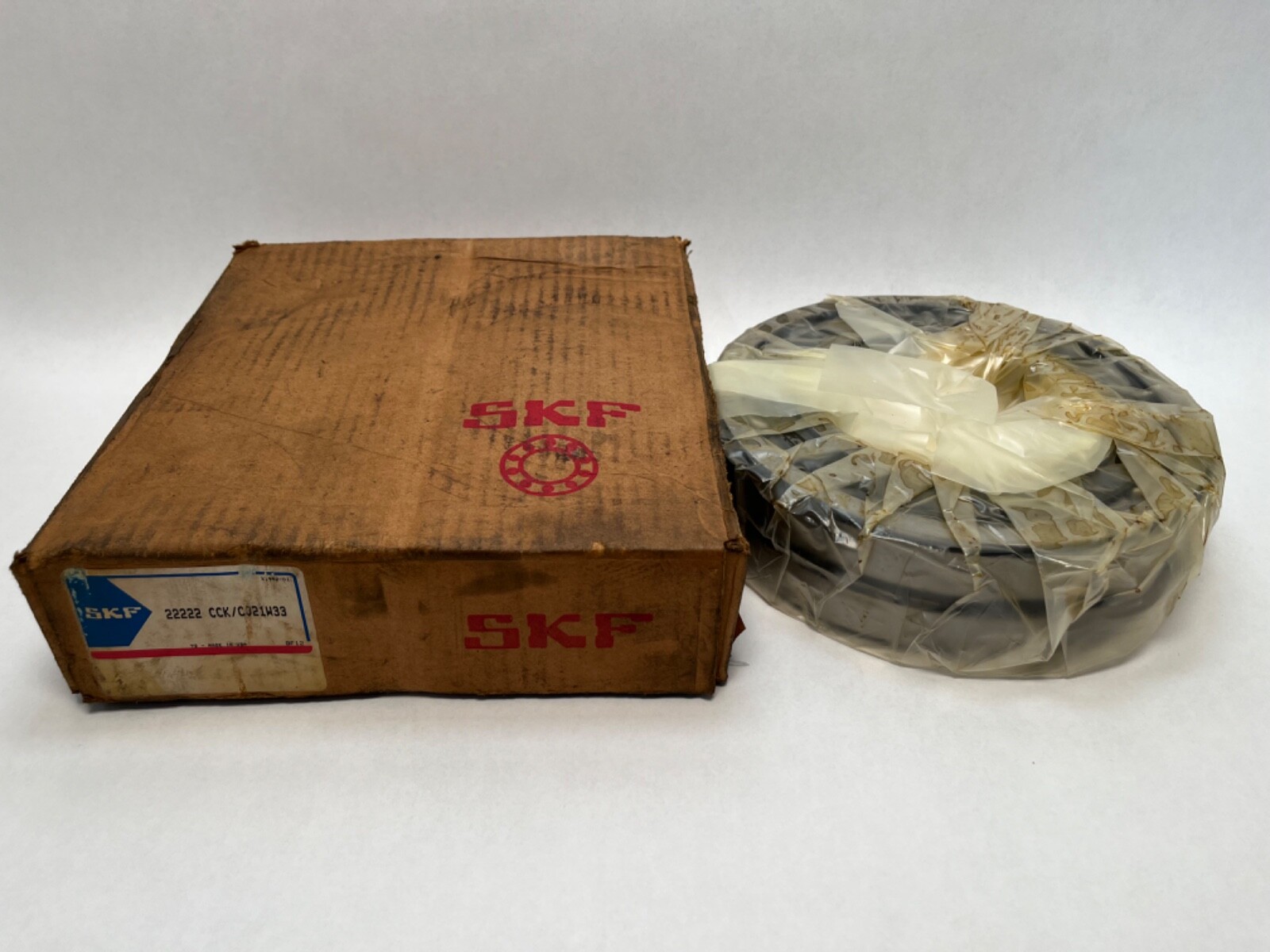

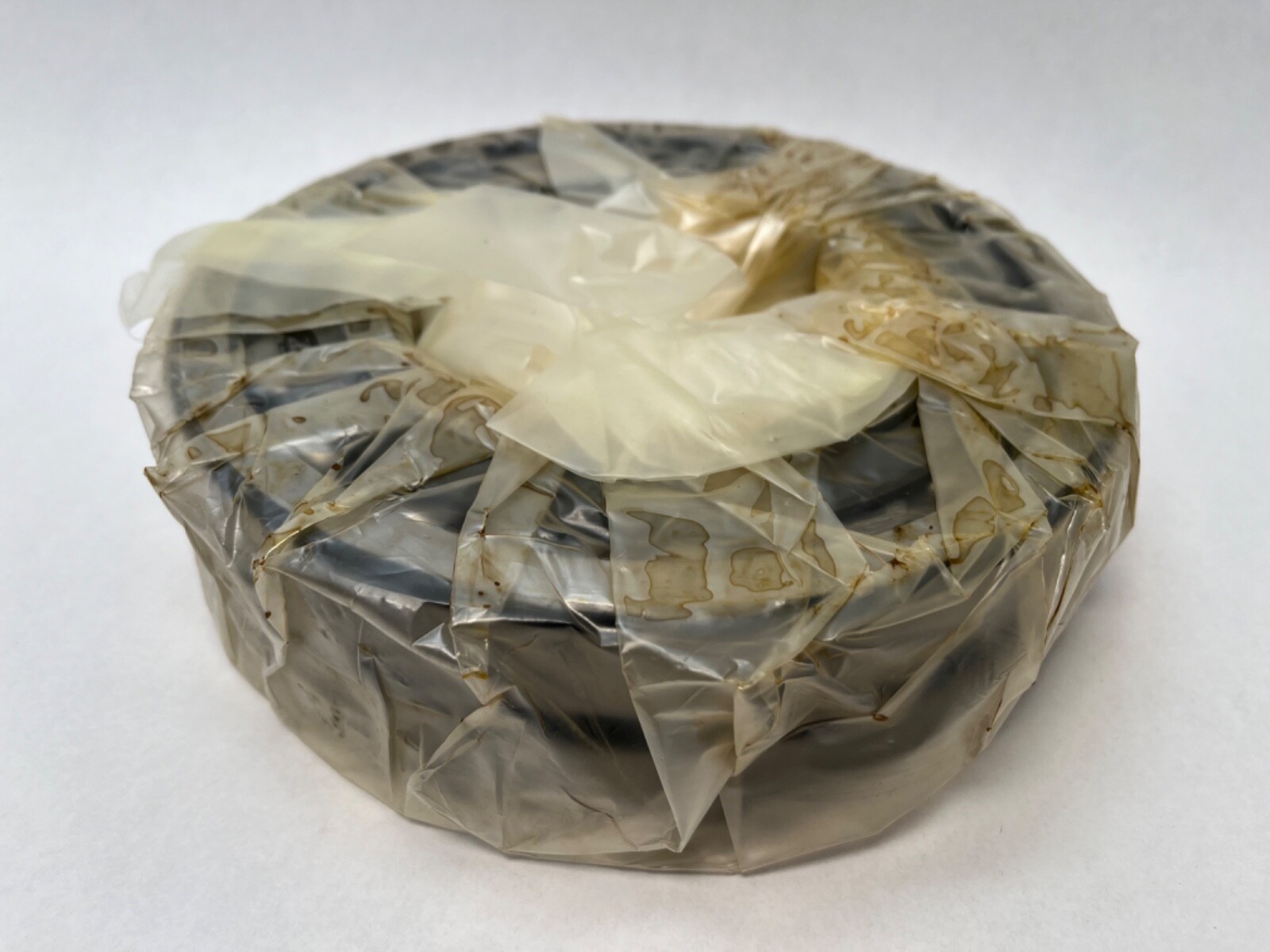

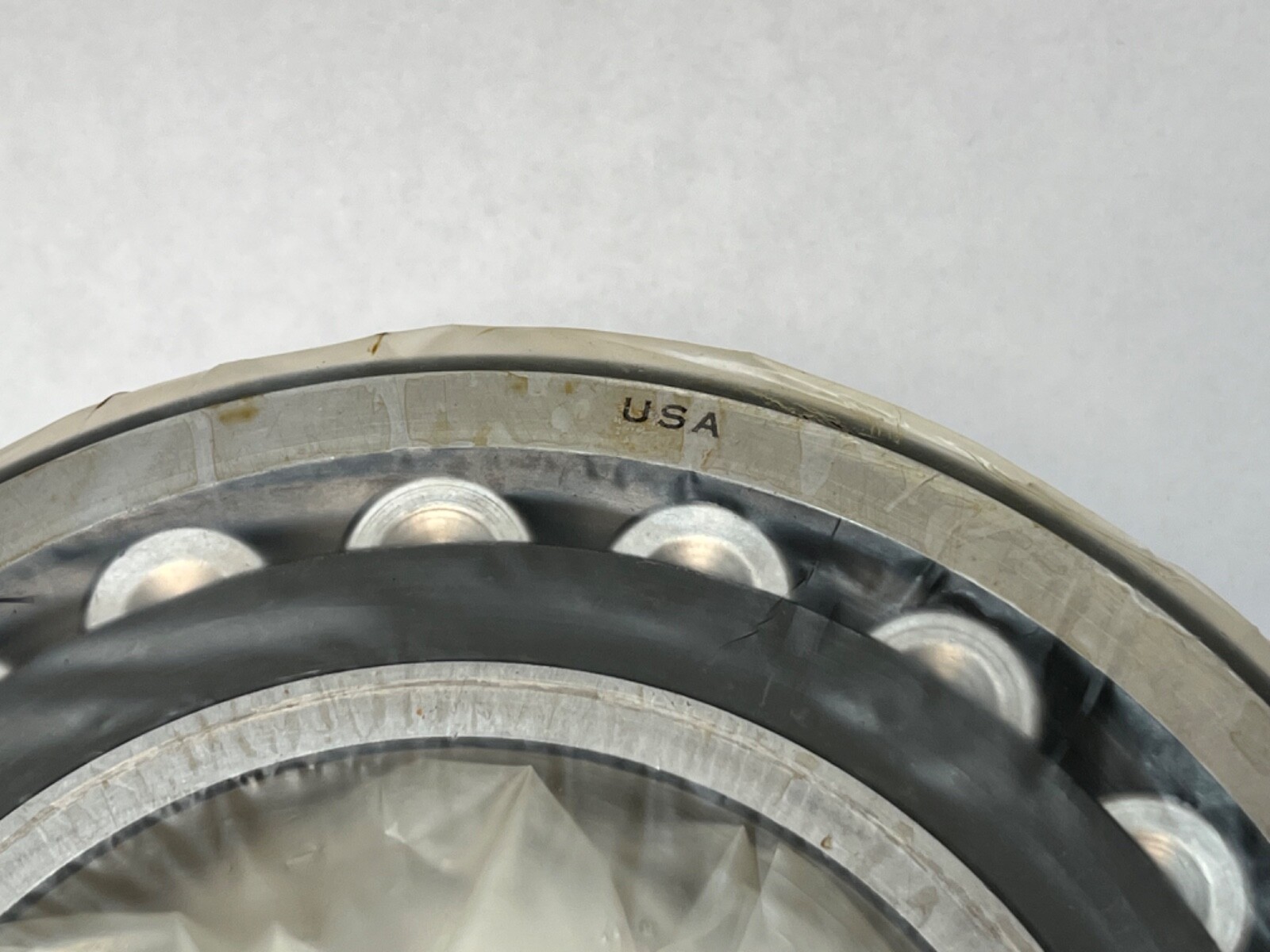

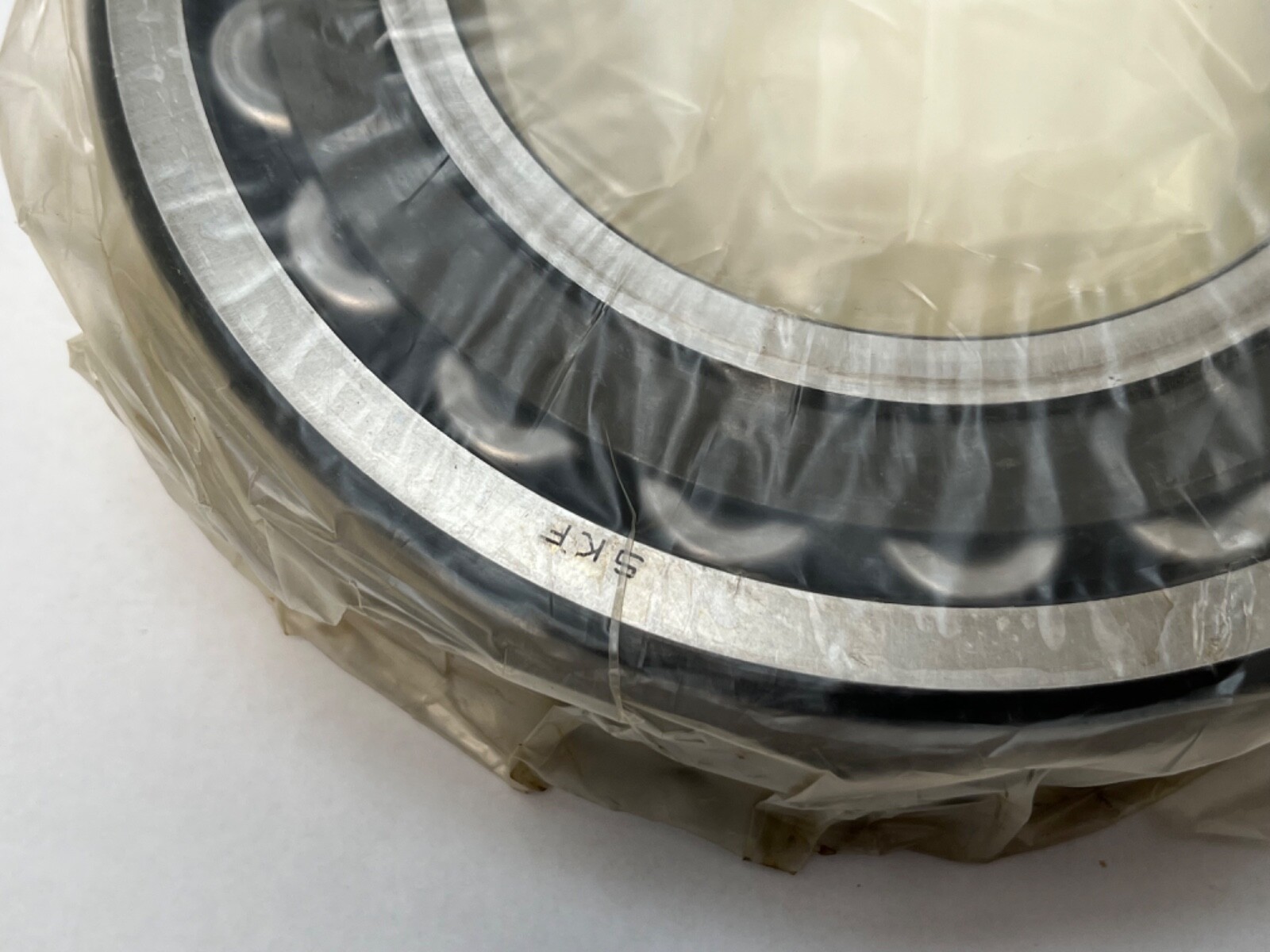

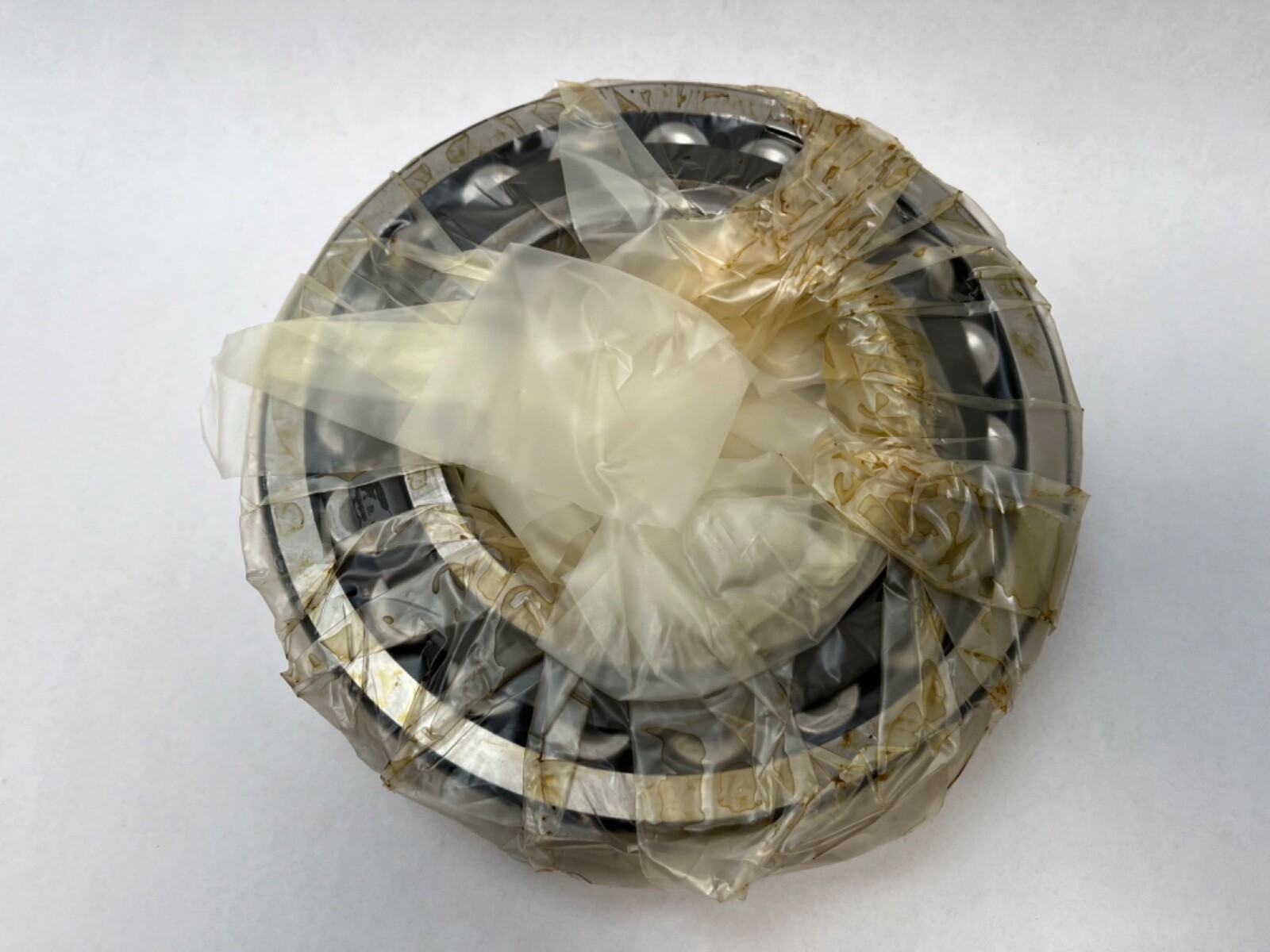

SKF spherical roller bearing, 110 mm tapered bore, 200 mm OD, 53 mm wide, W33 lubrication groove and holes. Mounts on an H322 adapter sleeve, 100 mm shaft.
List Price
$261.21
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22222-CCK/C021W33 |
| Model | 22222 CC K C021 W33 / 22222CK 22222CKJ 22222CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 200 mm |
| Width | 53 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22222 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; tapered bore bearing; adapter sleeve mount; W33 bearing |
| Common Misspellings | 2222CCK; 22222CCKW33; 22222 CCKW33; 222222CCK |
| Application Types | Conveyors; fans; pumps; gearboxes; paper machines; vibrating screens; pillow block housings |
| Overall Width | 53 mm |
| Relubrication | W33 groove and three radial holes in outer ring |
| Mpn Variants | 22222 CCK/C021W33; 22222-CCK/C021W33; 22222CCKC021W33; 22222-CC-K-C021-W33; 22222 CC K C021 W33; 22222 CCK/W33; 22222CK; 22222CKJ; 22222CCKJ; 22222C |
| Additional Attributes | Adapter sleeve: H322 (100 mm shaft); Lock nut: KM22; Lock washer: MB22; Taper: 1:12; Replaced by: SKF 22222 EK |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered, 1:12 |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22222 EK – current E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22222-E1-K – E design, higher ratings |
| Cross Reference 3 | NSK 22222EAKE4 – E design, higher ratings |
| Cross Reference 4 | NTN 22222EAKD1 – E design, higher ratings |
| Cross Reference 5 | Timken 22222KEJW33 – E design, higher ratings |
| Cross Reference 6 | SNR 22222EAKW33 – E design, higher ratings |

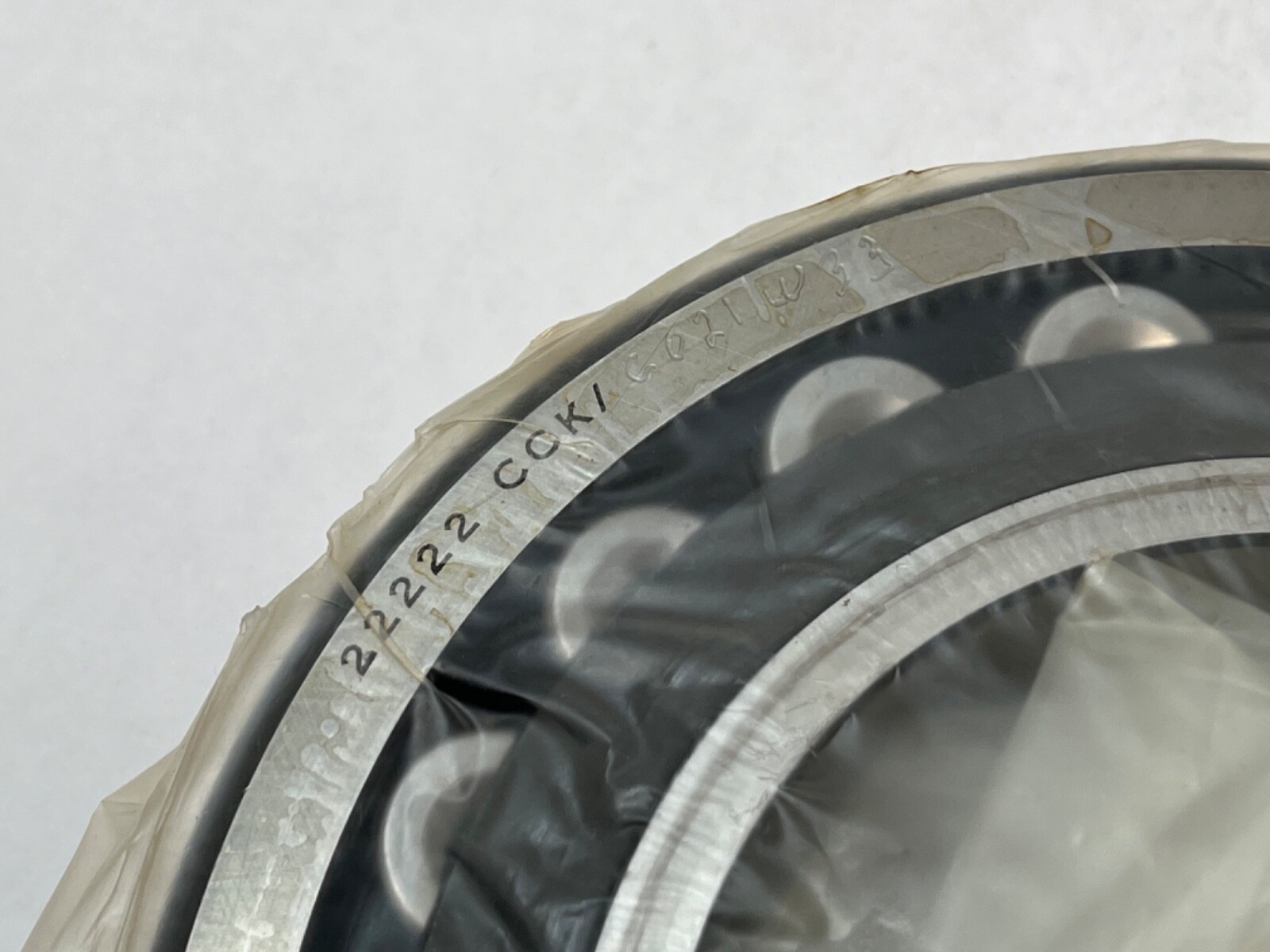

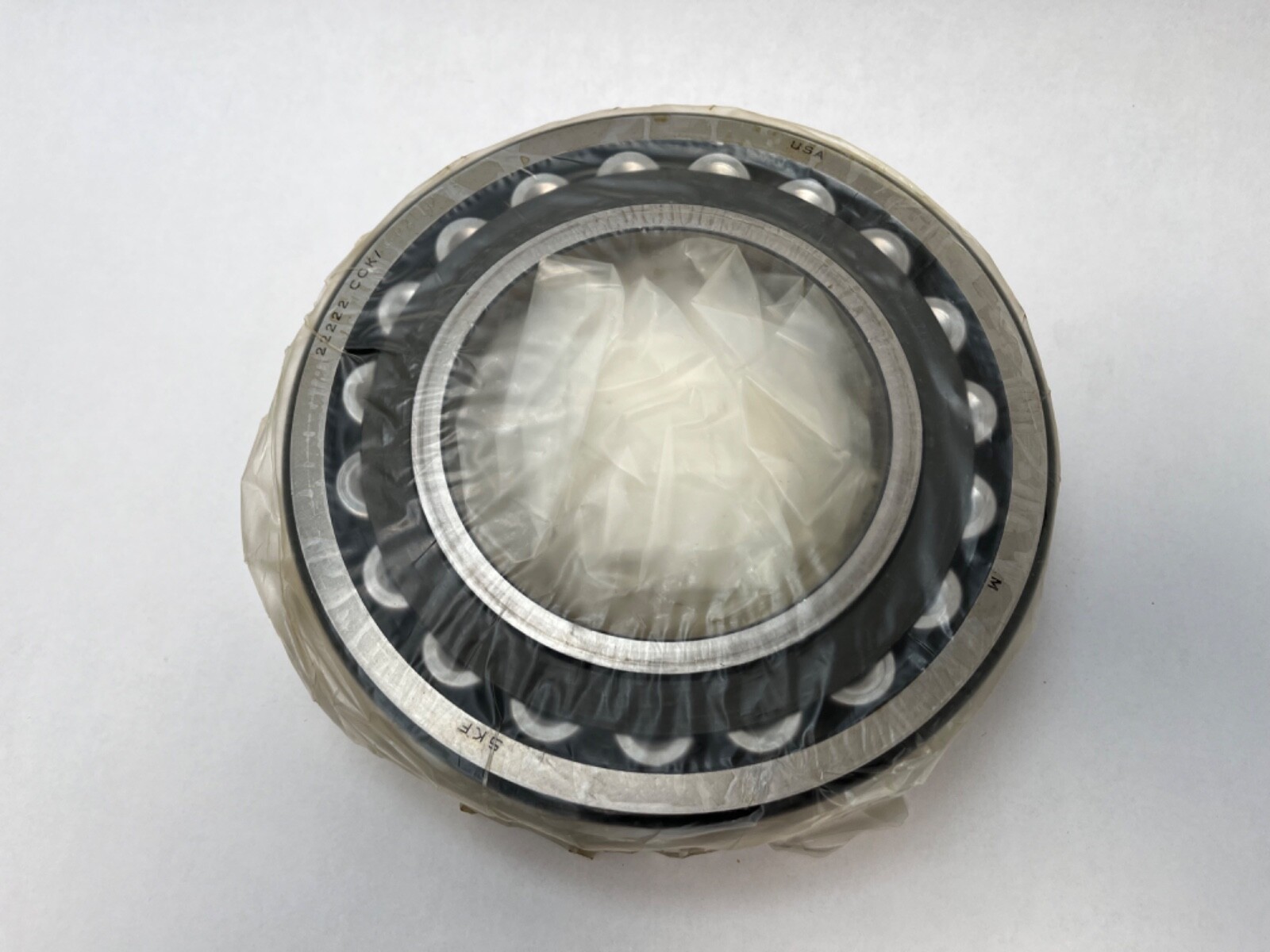

SKF 22222 CCK/C021W33 is a double row spherical roller bearing from the 222 series with a 1:12 tapered bore and an outer-ring lubrication groove with three radial holes. It self-aligns to accommodate shaft misalignment and carries heavy radial loads with axial load in both directions. SKF lists 22222 EK as the current replacement for 22222 CCK/W33.
222 — spherical roller bearing, dimension series 22.
22 — bore code, 22 x 5 = 110 mm bore.
CC — two window-type pressed steel cages with a guide ring.
K — 1:12 tapered bore.
W33 — annular groove and three radial lubrication holes in the outer ring, for grease or oil.
Bore Diameter: 110 mm (large end of taper). Outside Diameter: 200 mm. Overall Width: 53 mm. Bore Type: Tapered, 1:12. Number Of Rows: 2. Cage Material: Pressed steel. Seal type: Open. Closure Type: Open. Lubricant: grease or oil. Relubrication: W33 groove and three holes in outer ring.
Adapter sleeve: H322, for a 100 mm shaft, with KM22 lock nut and MB22 lock washer.
Current E-design parts in the 110 x 200 x 53 mm tapered-bore size: SKF 22222 EK, FAG 22222-E1-K, NSK 22222EAKE4, NTN 22222EAKD1, Timken 22222KEJW33, SNR 22222EAKW33. These E-type designs carry higher load ratings than the CC design.
