Spherical roller bearing, 110 x 200 x 53 mm, 1:12 tapered bore, CN clearance. SKF C design, pressed steel cages, W33 groove and Solid Oil (W64) fill.
List Price
$144.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22222 CKJ/W33W64B |
| Model | 22222 C K J W33 W64B / 22222CK 22222CKJ 22222CCKJ |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 200 mm |
| Width | 53 mm |
| Lube | Solid Oil |
|---|---|
| Material | Bearing Steel |
| Series | 22200 |
| Lubricant | Solid Oil |
| Bore | Taper Bore |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, Solid Oil bearing, W64, tapered bore |
| Mpn Variants | 22222 CKJ/W33W64B, 22222CKJW33W64B, 22222-C-K-J-W33-W64B, 22222CK, 22222CKJ, 22222CCKJ |
| Additional Attributes | Adapter sleeve: H322; lock nut KM22; lock washer MB22 |
| Cage Type | Window-type |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three lubrication holes |
| Harmonization Code | 8482.30.00.80 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22222 EK - E design, no W33 groove or Solid Oil |
|---|---|
| Cross Reference 2 | FAG 22222-E1-K - E1 design, no W33 groove or Solid Oil |
| Cross Reference 3 | NSK 22222EAKE4 - E4 groove, no Solid Oil |
| Cross Reference 4 | Timken 22222KEJW33 - W33 groove, no Solid Oil |
| Cross Reference 5 | NTN 22222EAKD1 - no Solid Oil |

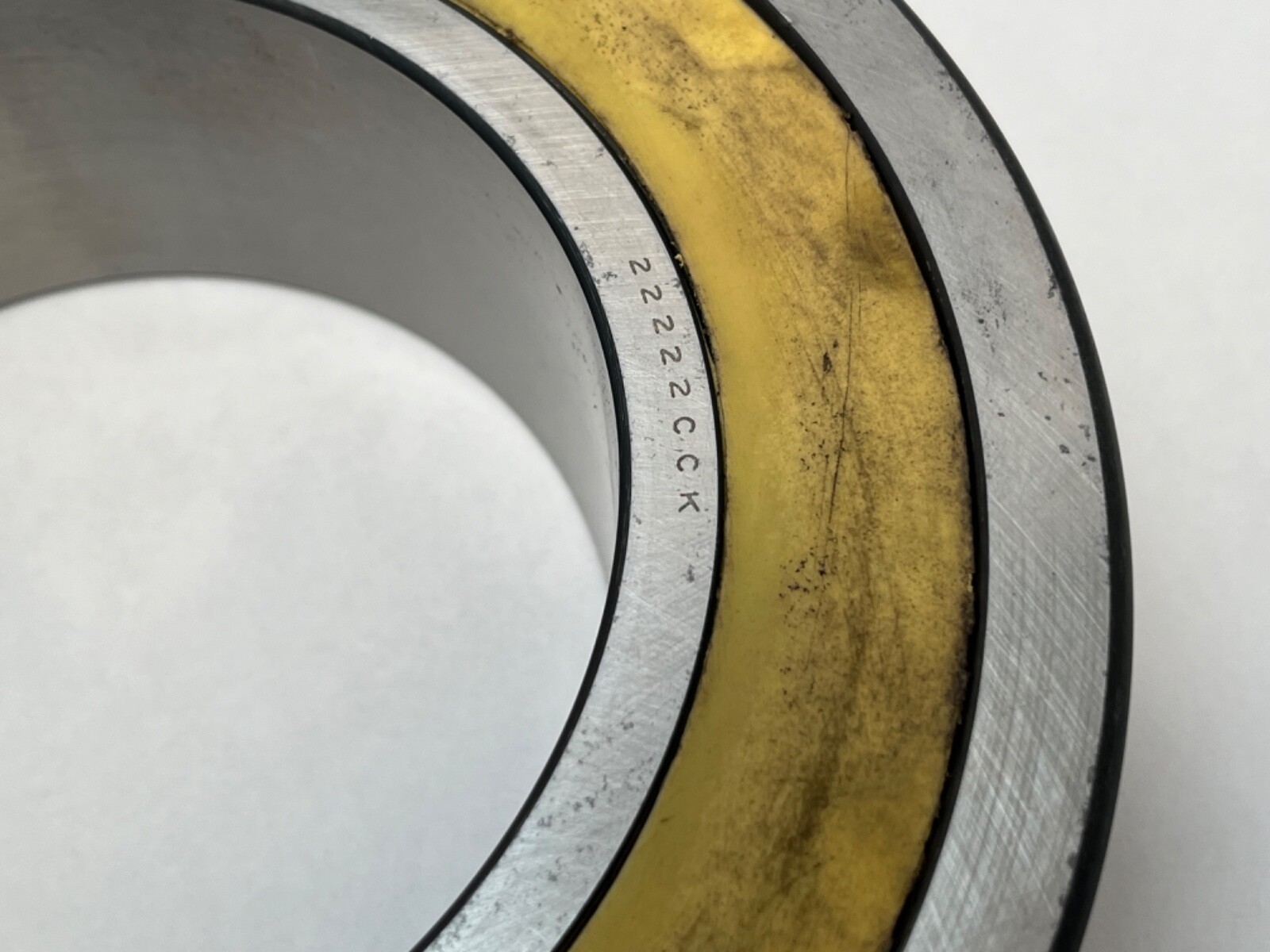

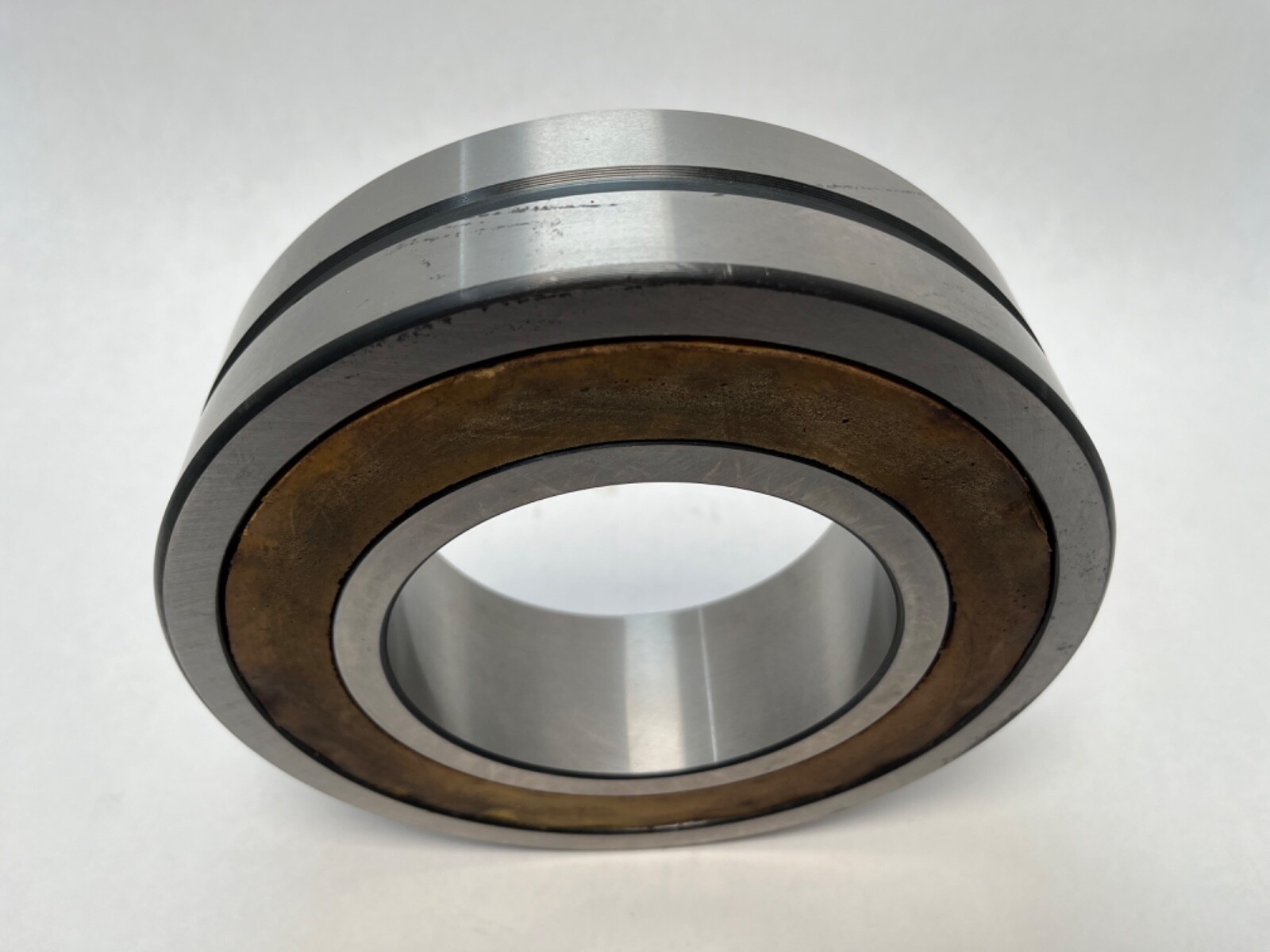

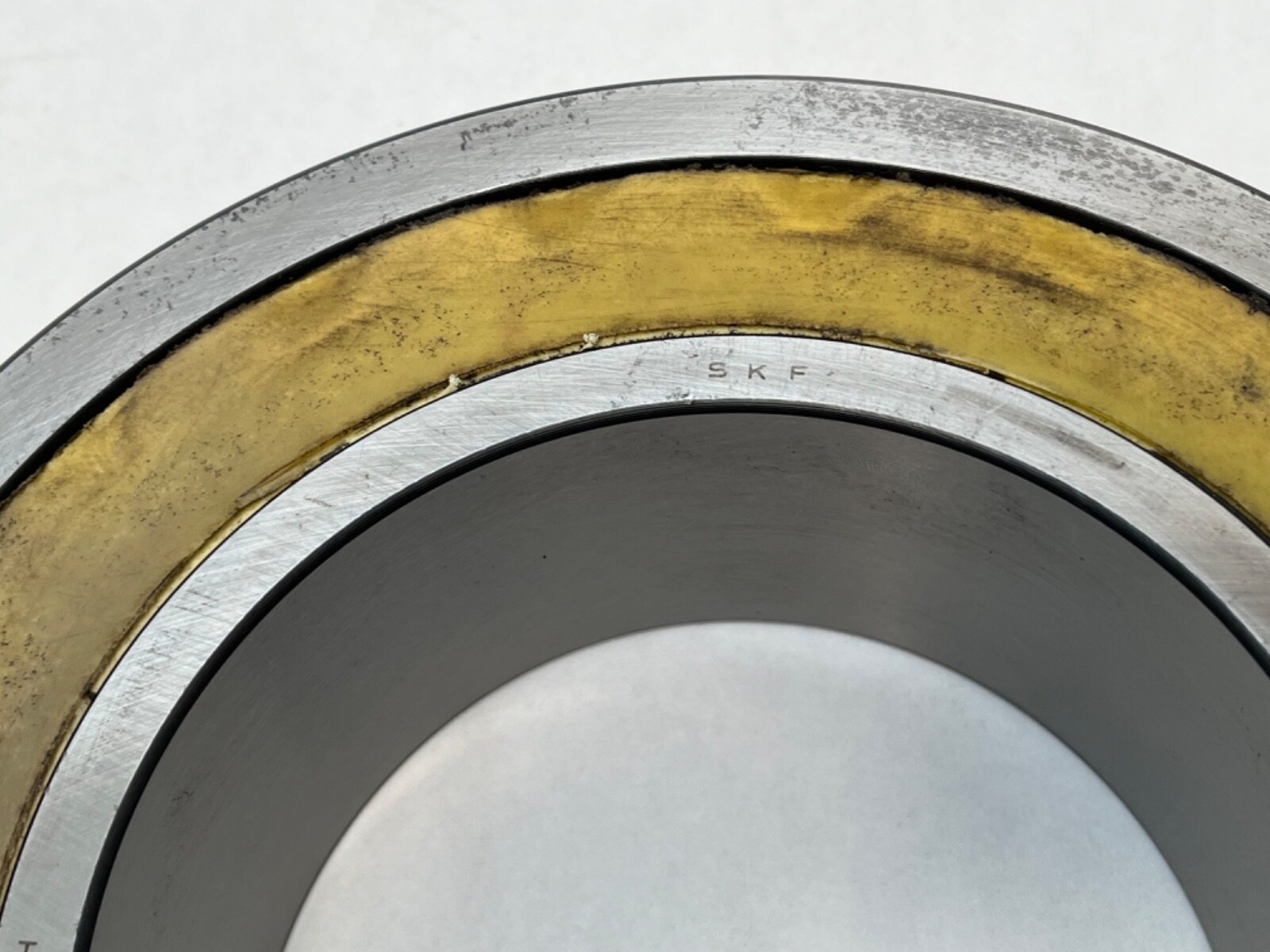

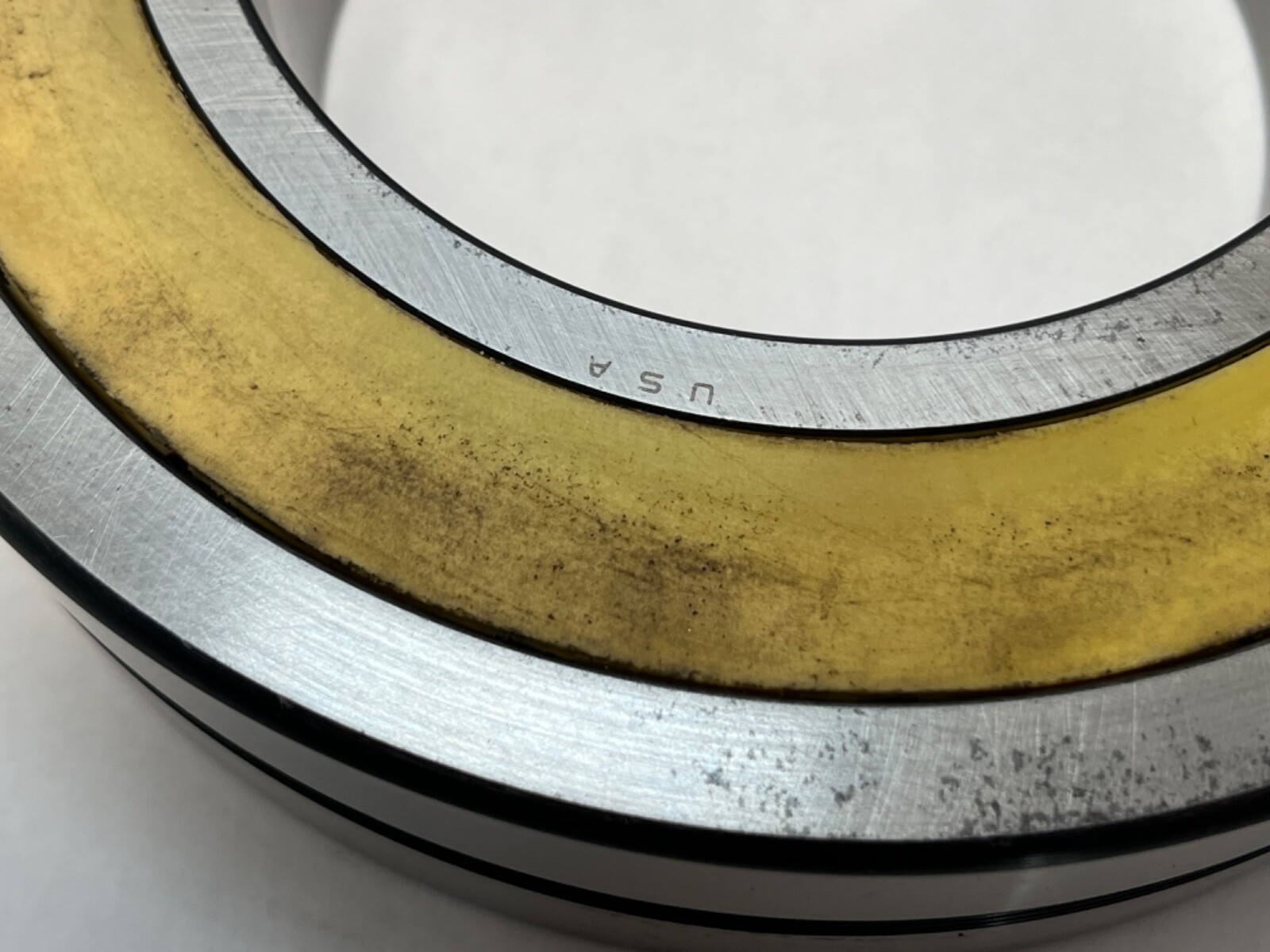

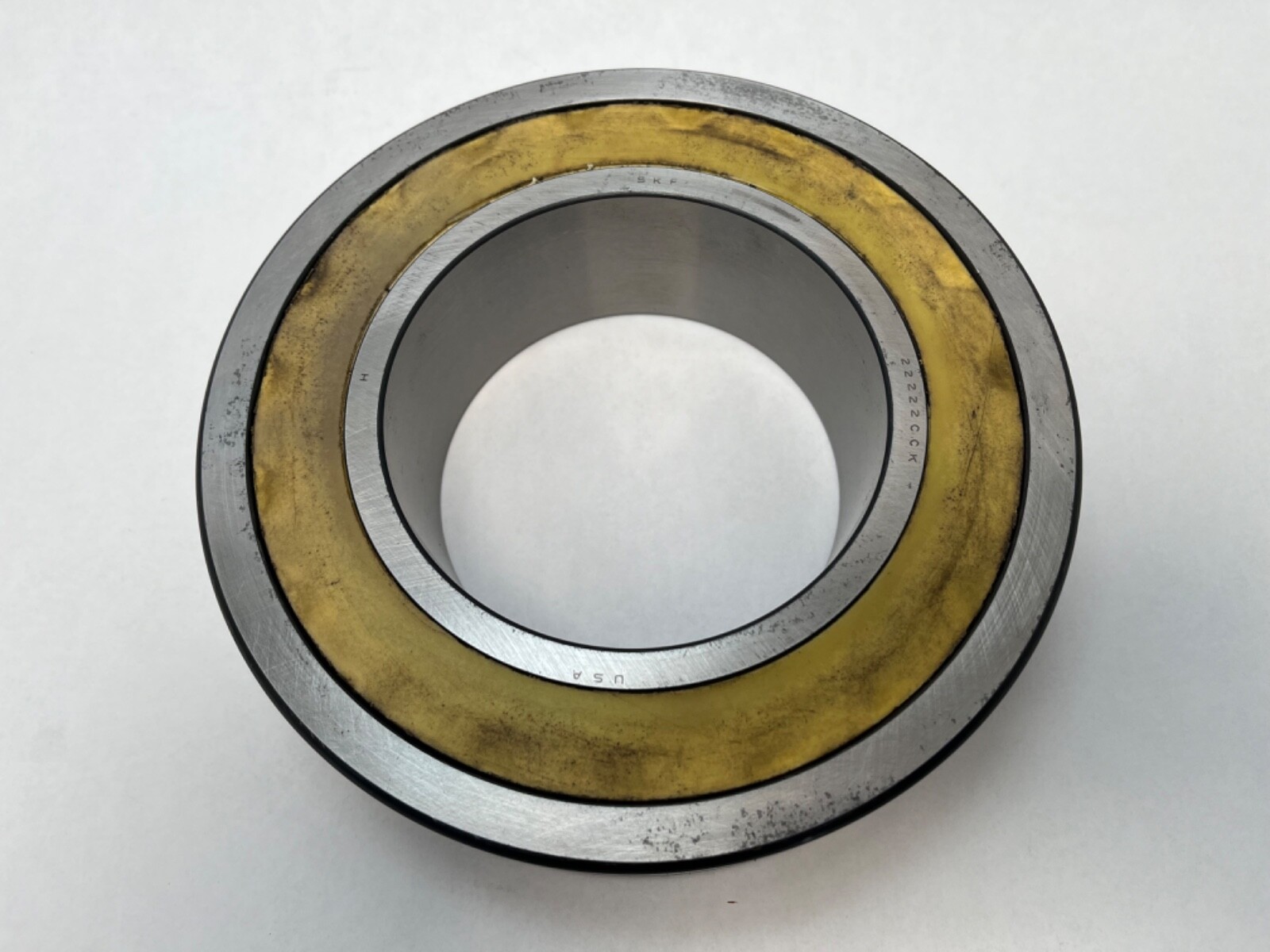

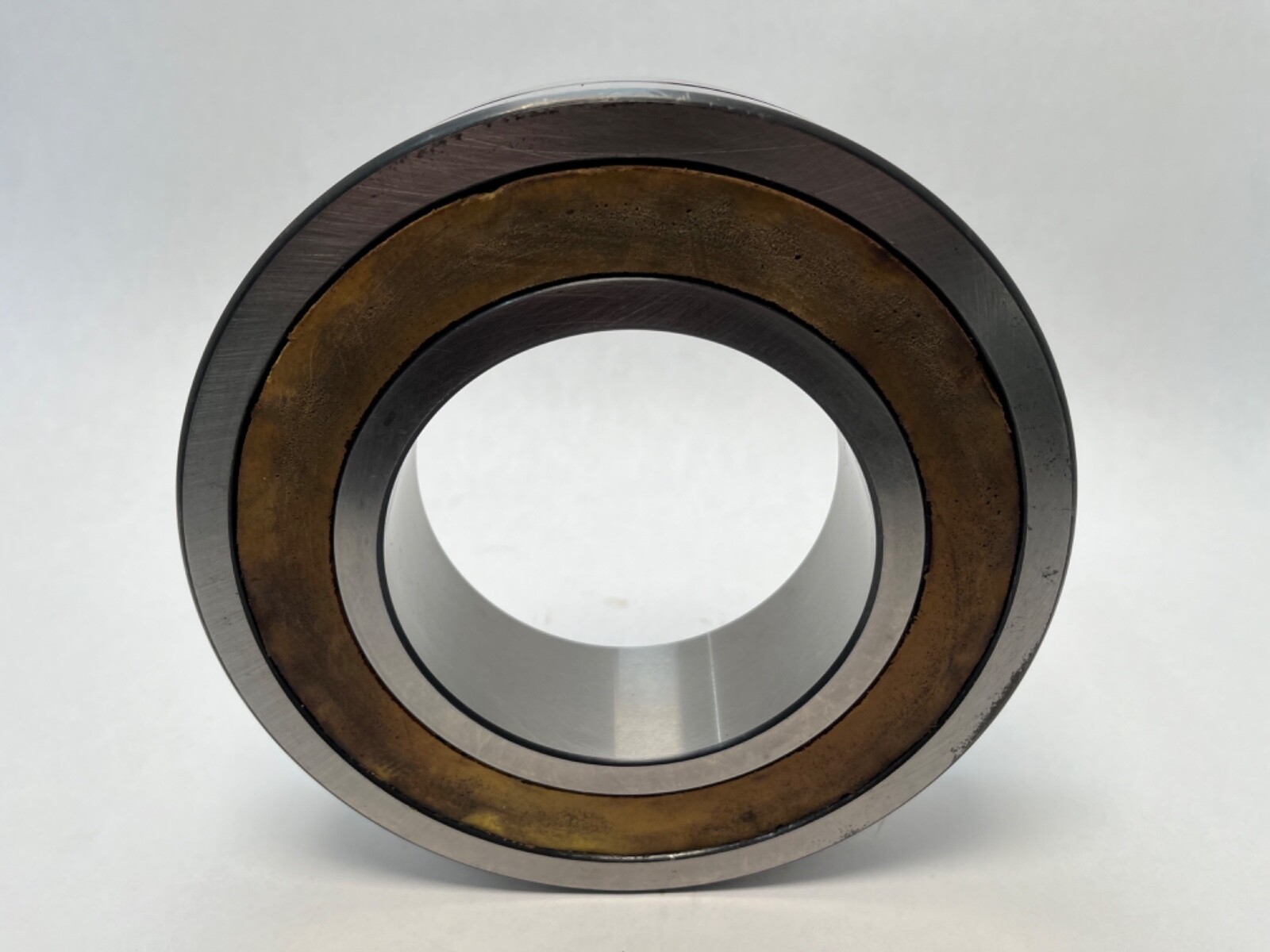

SKF 22222-CKJ-W33W64B is a double-row spherical roller bearing in SKF’s C design with a 1:12 tapered bore, pressed steel cages, a W33 relubrication groove and a Solid Oil fill. Bore Diameter: 110 mm. Outside Diameter: 200 mm. Width: 53 mm.
22222 — ISO 222 series spherical roller bearing, 110 mm bore.
C — SKF C internal design, symmetrical rollers.

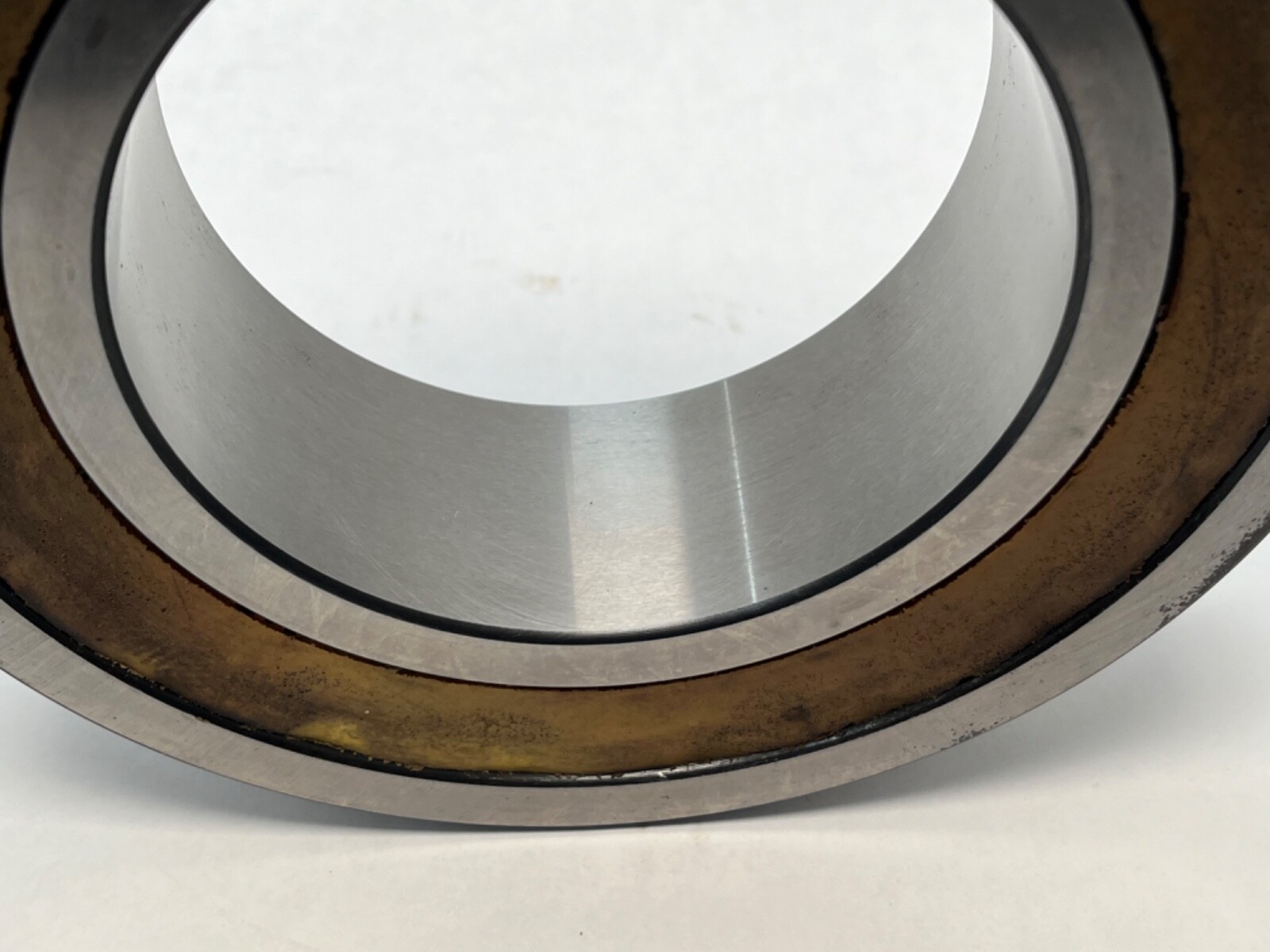

K — tapered bore, taper 1:12.
J — pressed steel window-type cage.

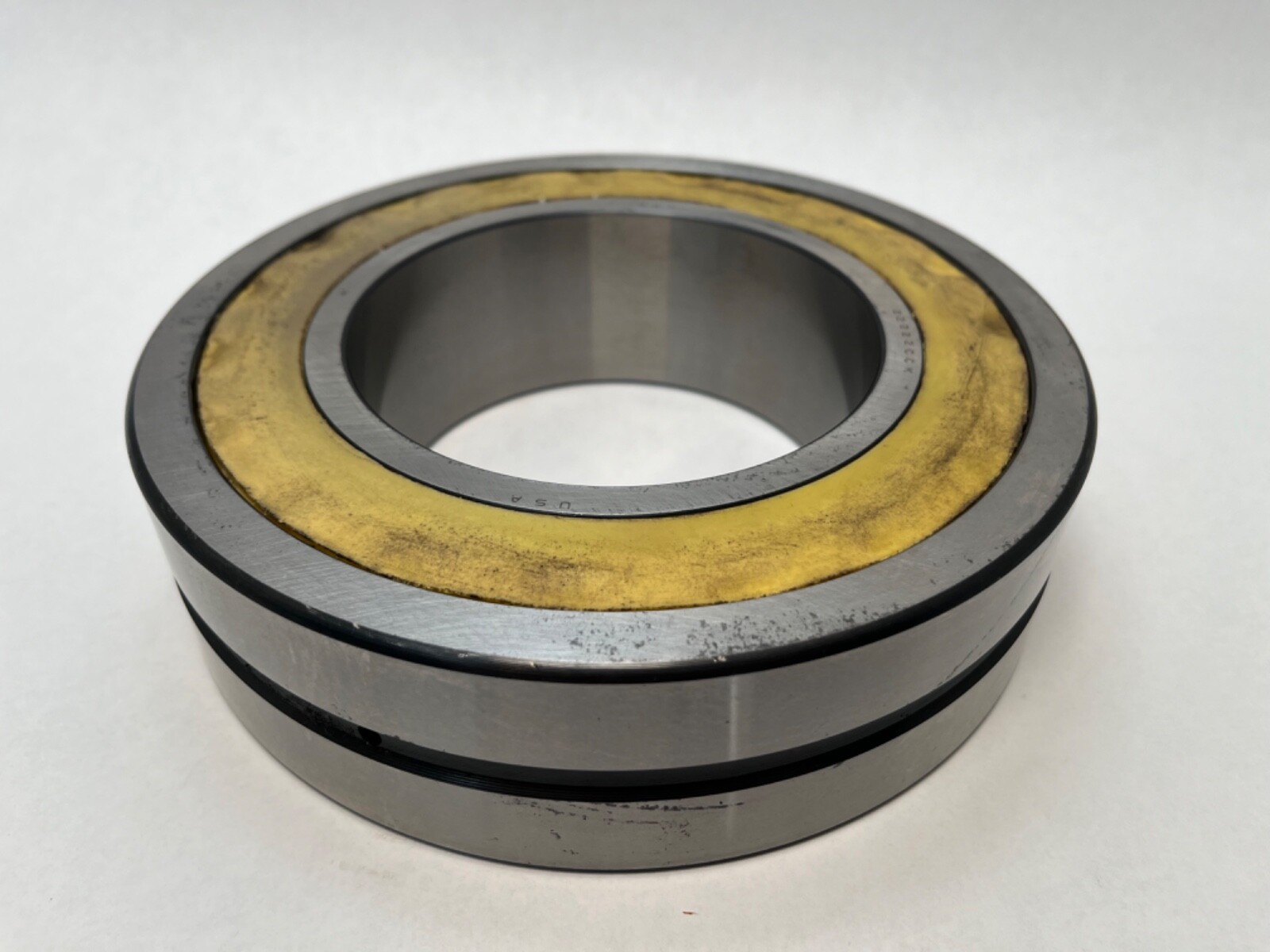

W33 — lubrication groove and three lubrication holes in the outer ring.

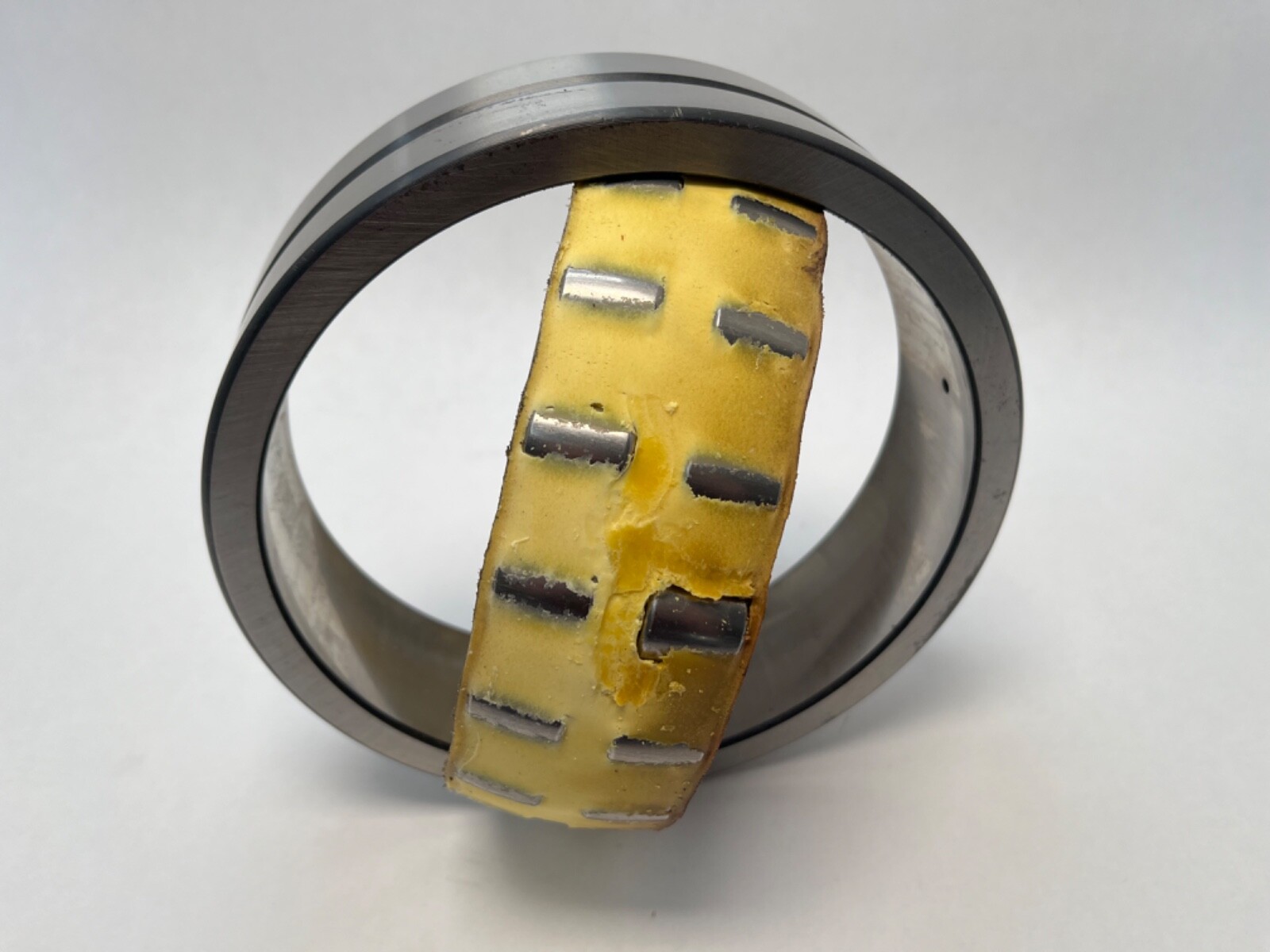

W64 — SKF Solid Oil: the free space is filled with an oil-saturated polymer matrix.
Bore Type: Tapered 1:12. Internal Clearance: CN. Cage Material: Pressed steel. Lubricant: Solid Oil. Relubrication Feature: W33 groove with three lubrication holes.
The tapered bore mounts on an H322 adapter sleeve (100 mm shaft) with a KM22 lock nut and MB22 lock washer, or directly on a 1:12 tapered shaft seat.

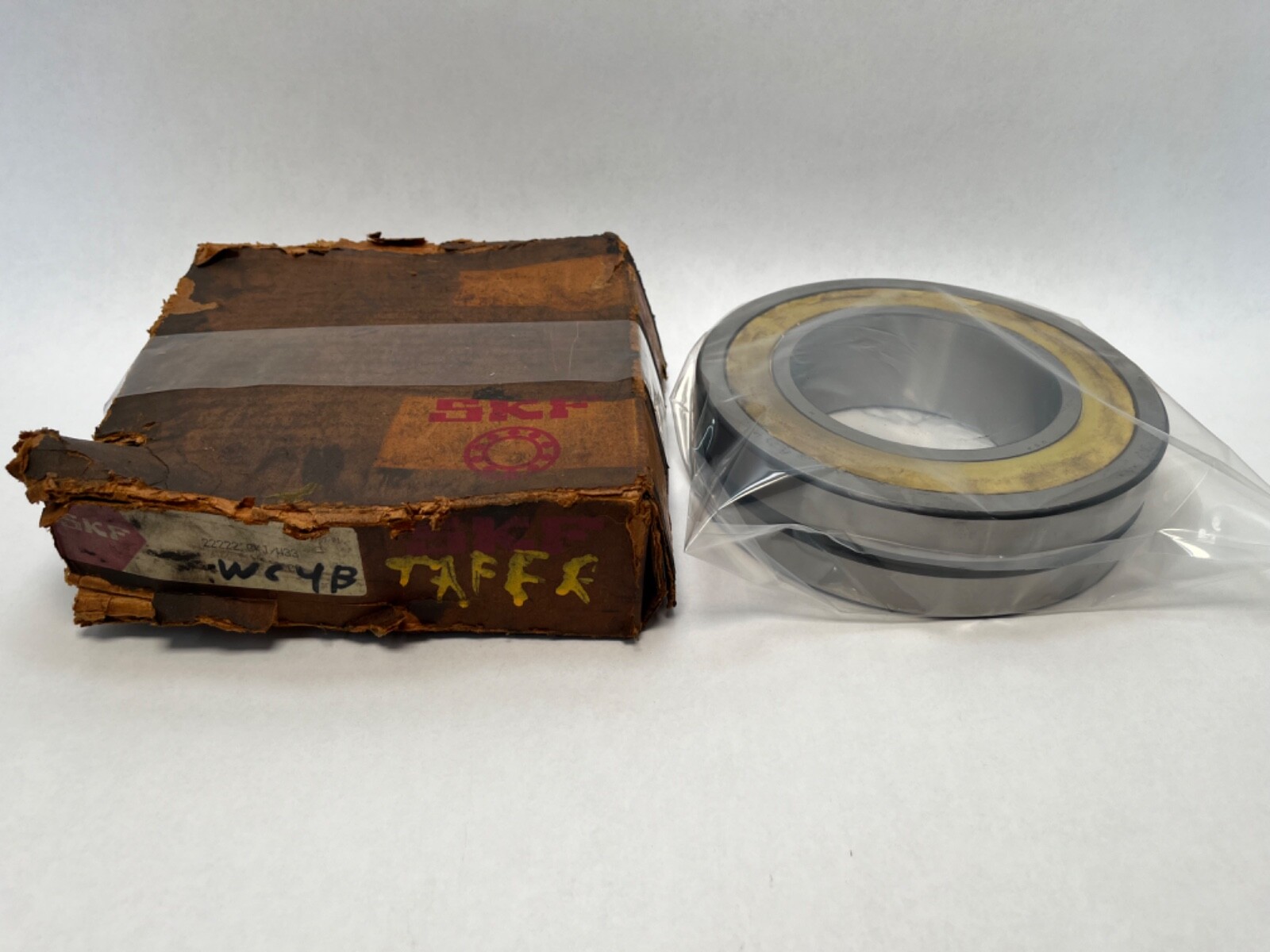

Unit Quantity: 1 Pc. Open bearing, no seals. New old stock.
Other makers’ tapered-bore, normal-clearance 22222 executions in the 110 x 200 x 53 mm size: SKF 22222 EK, FAG 22222-E1-K, NSK 22222EAKE4, Timken 22222KEJW33, NTN 22222EAKD1. These are standard executions without the Solid Oil fill; load ratings differ between designs.
