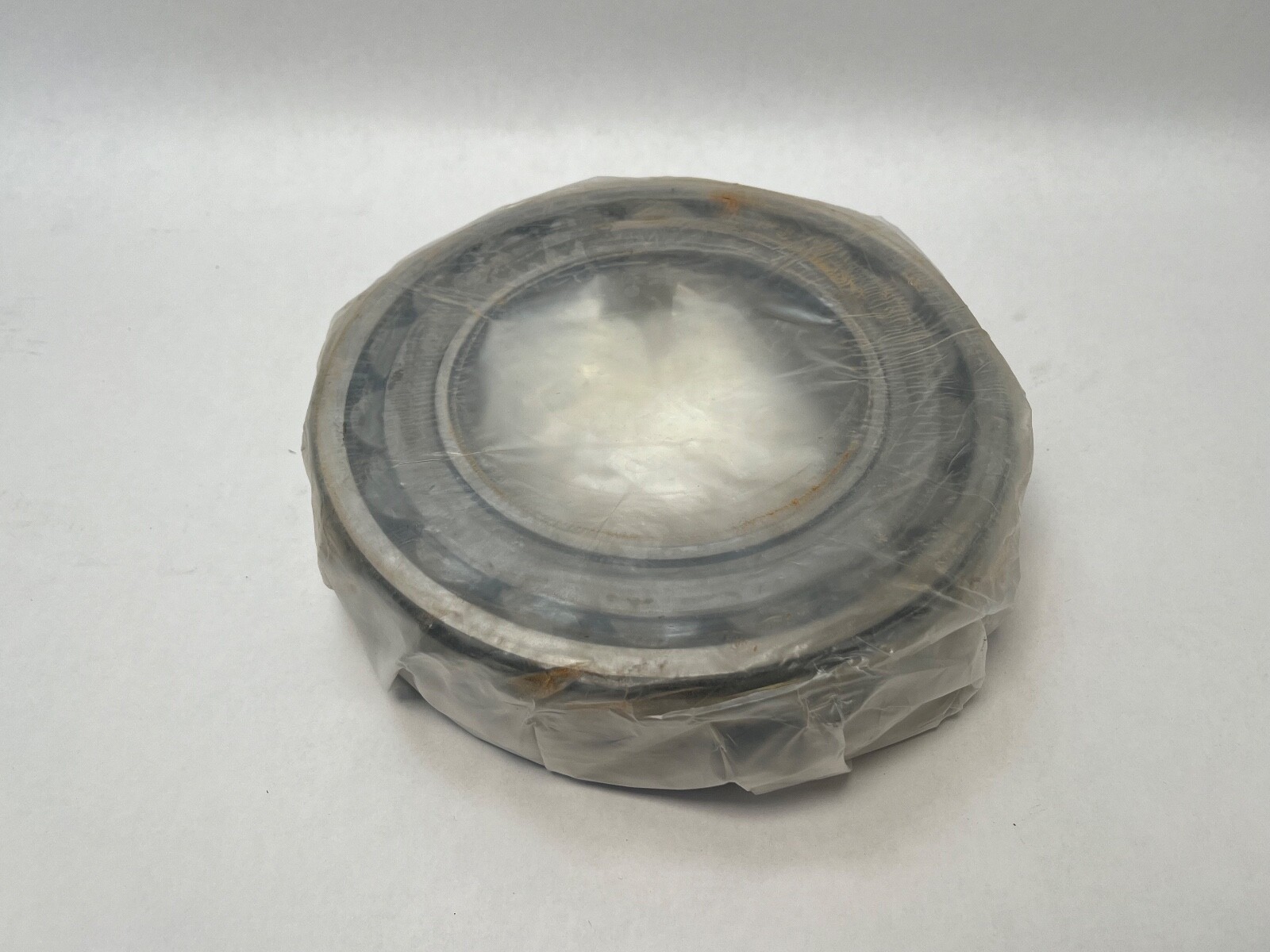

Double-row spherical roller bearing, 120 mm tapered 1:12 bore x 215 mm OD x 58 mm wide, C3 clearance, W33 groove and three holes. Dodge 422013.
List Price
$267.72
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | 422013 |
| Model | 422013 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, SRB, pillow block element |
| Common Misspellings | 422103, 422013, 22224KC3W3, Dodge 422013 22224, spherical rolller bearing |
| Application Types | Conveyor pulleys and drums, plummer blocks, fans and blowers, crushers and screens, gearboxes, pumps |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 422013, 22224KC3W33, 22224 K C3 W33, 22224-K-C3-W33, 22224KC3, Dodge 422013 |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | W33 groove and three holes |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Part Number | 422013 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22224 EK/C3 - E design |
|---|---|
| Cross Reference 2 | FAG 22224-E1-XL-K-C3 - E1 XL design |
| Cross Reference 3 | NSK 22224EAKE4C3 - EA design |
| Cross Reference 4 | Timken 22224EJKW33C3 - EJ design |

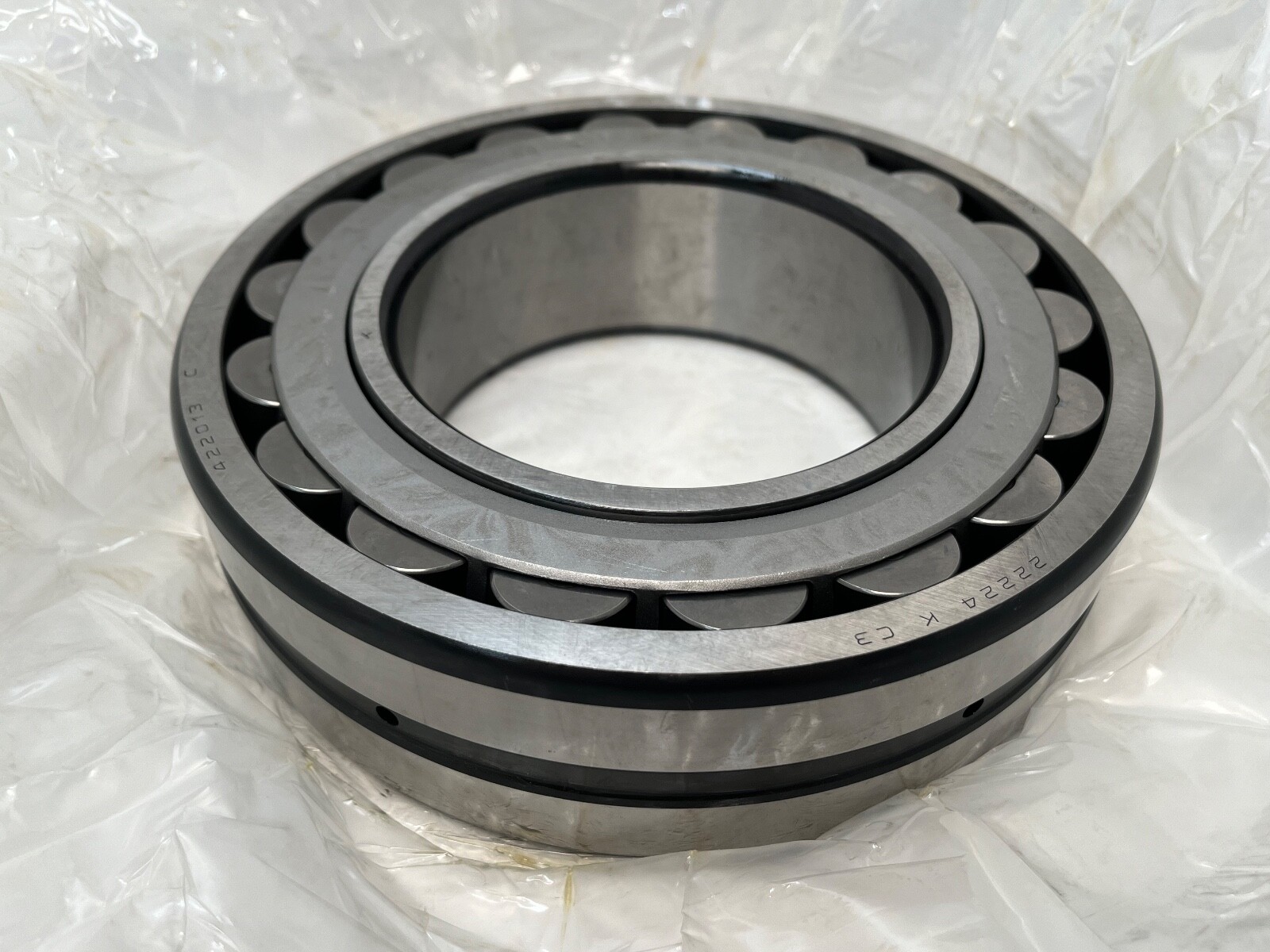

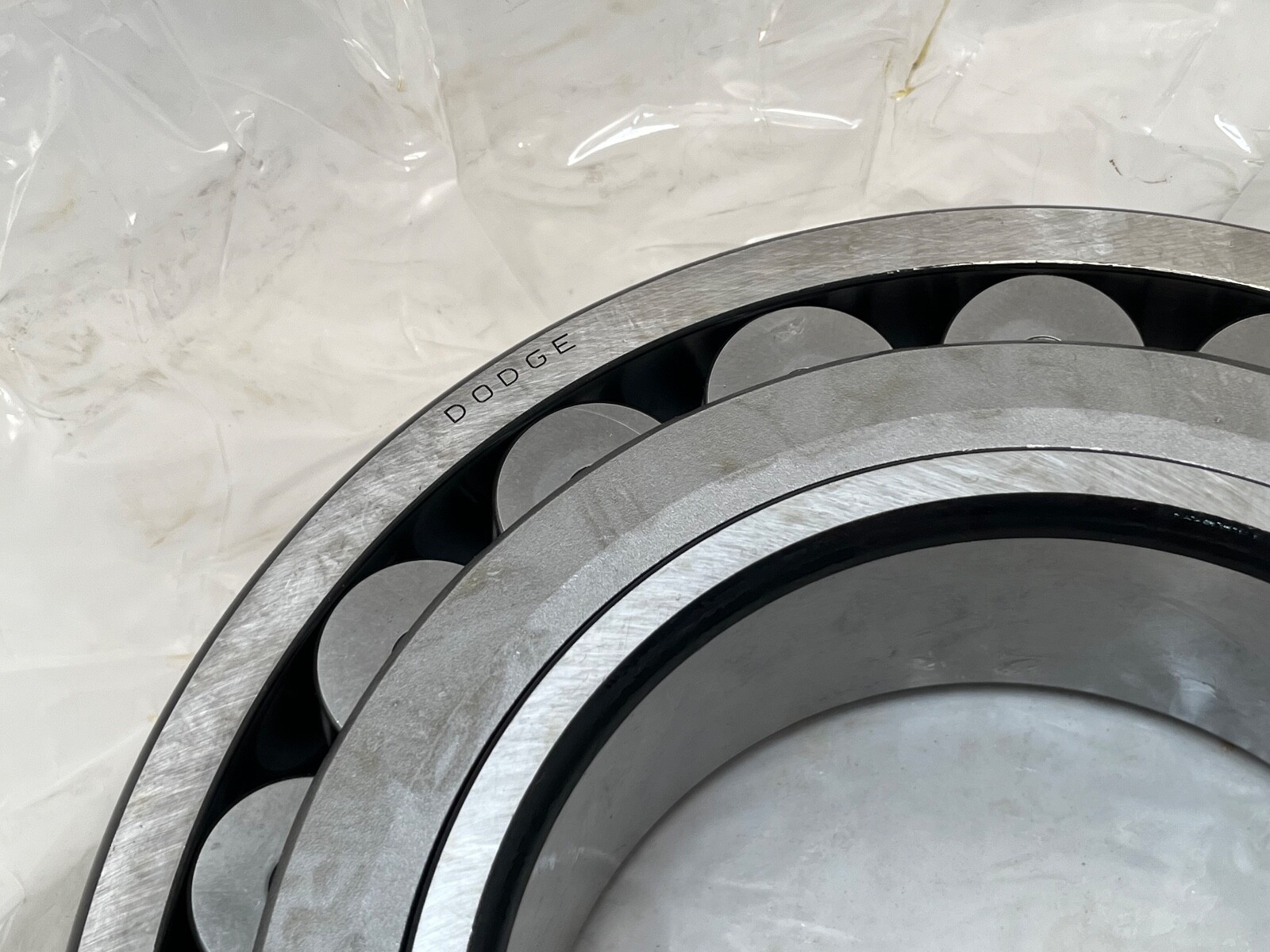

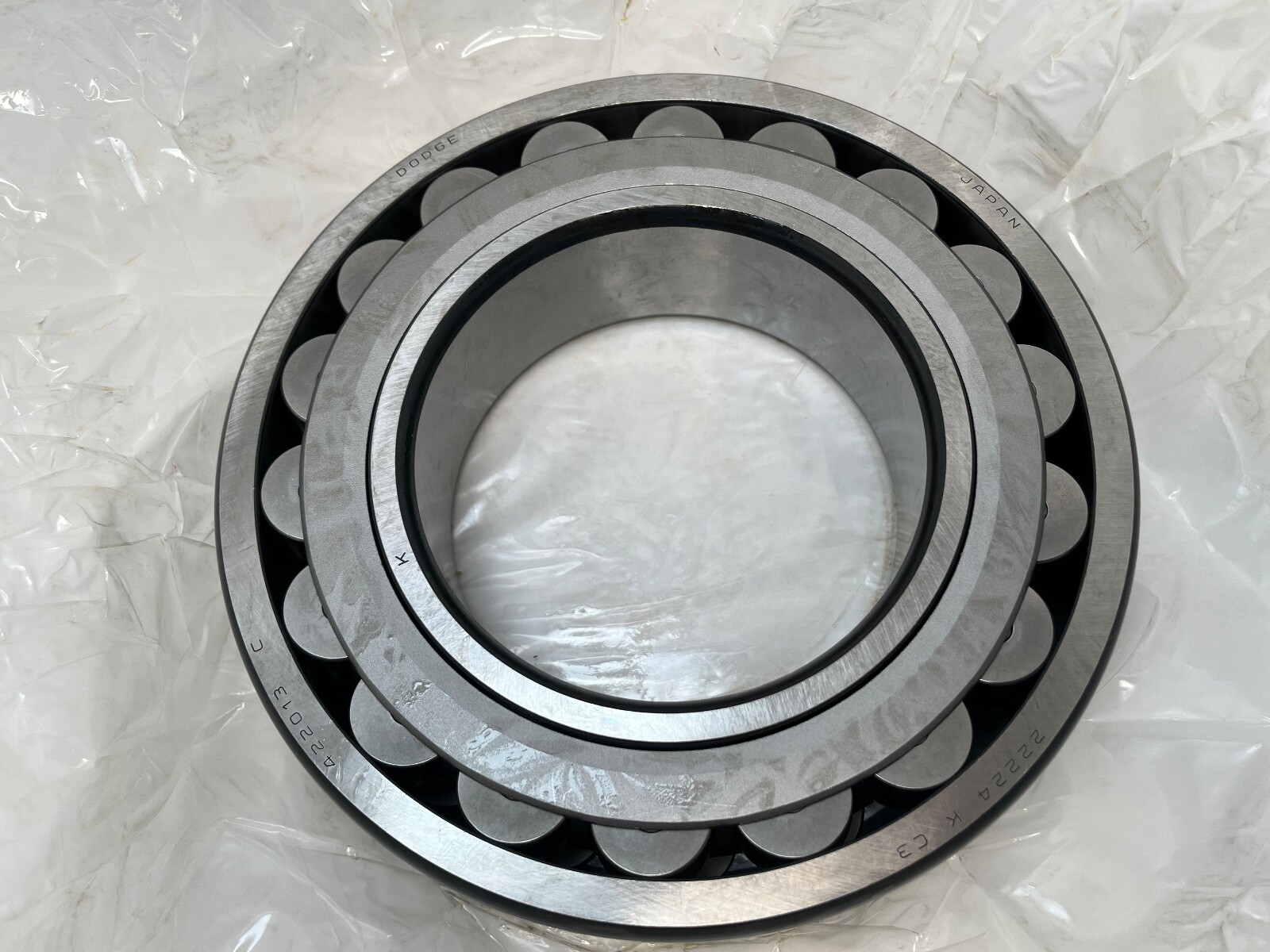

Dodge 422013, a 22224 K C3 W33 double-row spherical roller bearing with a 1:12 tapered bore. Bearing only: 120 mm bore, 215 mm outside diameter, 58 mm width. Two rows of spherical rollers run on a common spherical outer raceway.

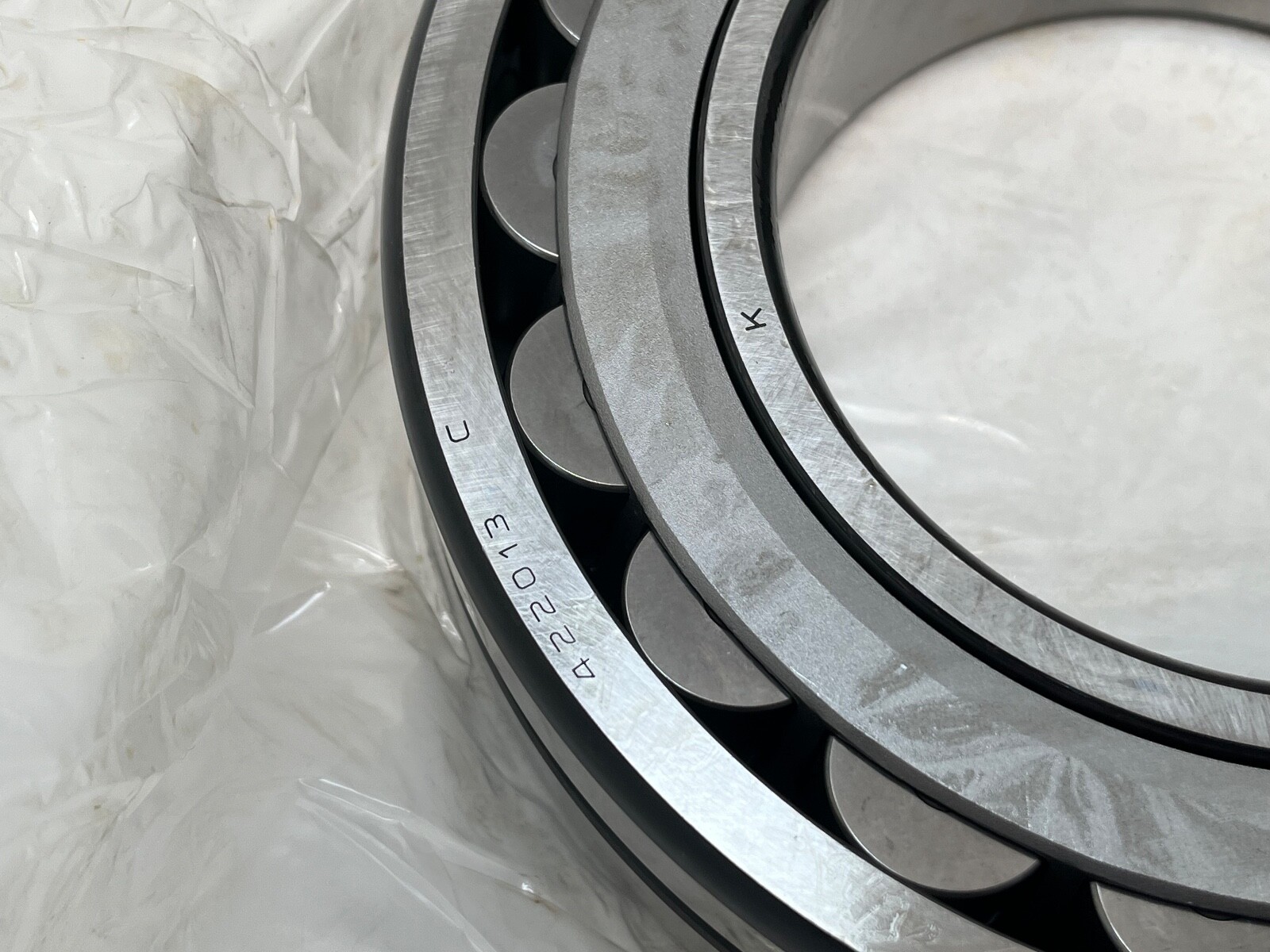

422013 — Dodge stock number for the bearing.

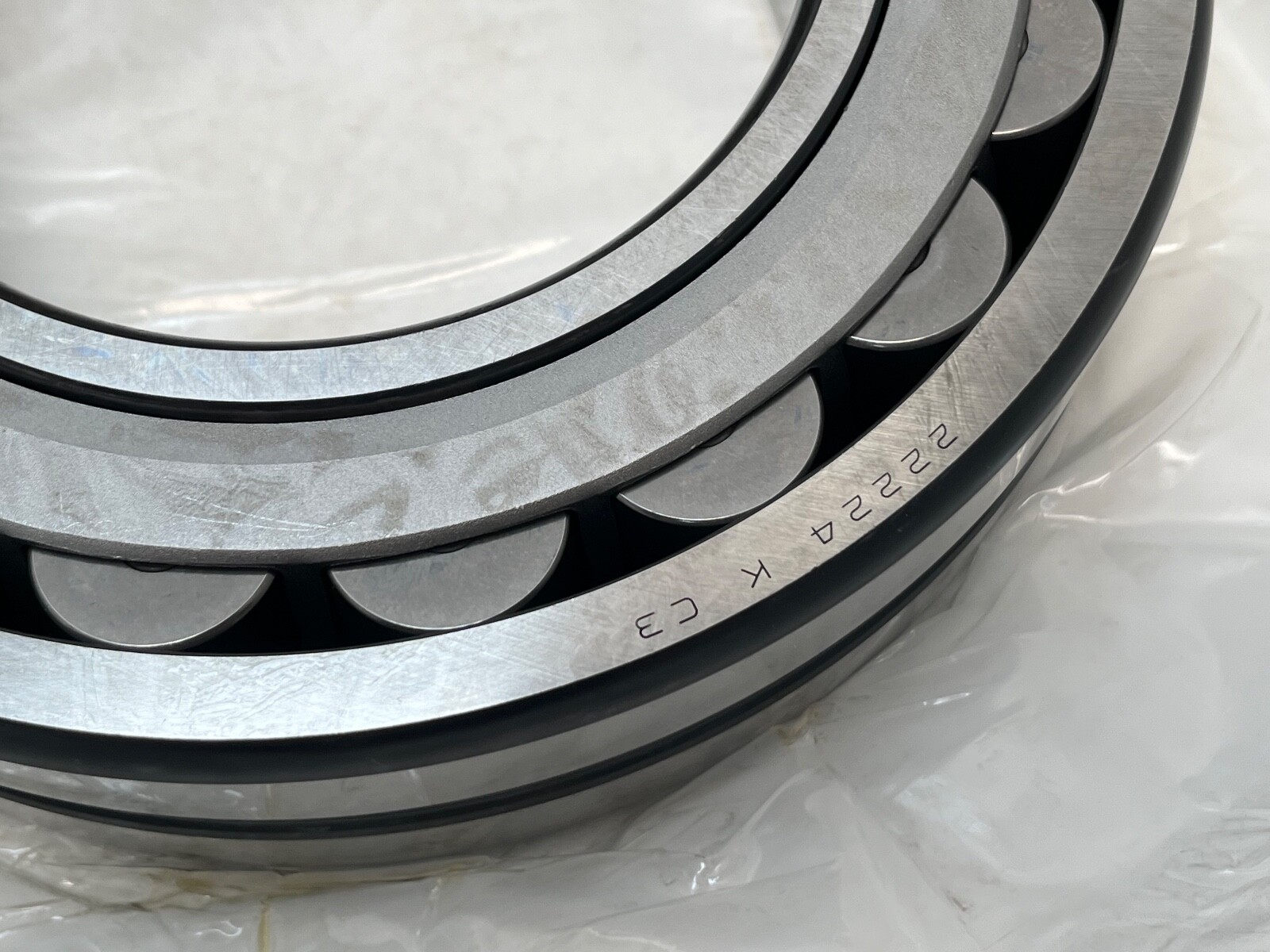

222 — double-row spherical roller bearing, dimension series 22.
24 — bore code; 24 x 5 = 120 mm bore.
K — 1:12 tapered bore.
C3 — radial internal clearance greater than normal.
W33 — lubrication groove in the outer ring with three radial holes.
Bore Diameter: 120 mm (4.7244 in), tapered 1:12. Outside Diameter: 215 mm (8.4646 in). Width: 58 mm (2.2835 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Relubrication Feature: W33 groove and three holes. Lubricant: grease or oil. Unit Quantity: 1 Pc.
Bore Type: Tapered 1:12. Seal Type: Open. Series: 22200, dimension series 22.
Cross-references with tapered bore and C3 clearance: SKF 22224 EK/C3 (E design), FAG 22224-E1-XL-K-C3 (E1 XL design), NSK 22224EAKE4C3 (EA design), Timken 22224EJKW33C3 (EJ design).
120 mm tapered 1:12 bore, 215 mm outside diameter and 58 mm width, double row.
K is a 1:12 tapered bore.
W33 is a lubrication groove in the outer ring with three radial holes.
