Availability:
51 in stock
Spherical roller bearing, 45 mm bore x 85 mm OD x 23 mm wide, straight bore, polyamide cage, lubrication groove and holes. Consolidated (FAG 22209ES.TVPB).
List Price
$44.34
51 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209ES.TVPB |
| Model | 22209ESTVPBW33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Overall Width | 23 mm |
| Mpn Variants | 22209ES.TVPB, 22209-ES-TVPB, 22209ESTVPBW33, 22209 E S TVPB W33, 22209EW33, 22209E, Consolidated 22209ES.TVPB |
| Closure Type | Open |
| Cage Type | Window, glass-fibre reinforced (TVPB) |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33 equivalent) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22209 E - E design |
|---|---|
| Cross Reference 2 | NSK 22209EAE4 - EA design |
| Cross Reference 3 | NTN 22209EAD1 - EA design |
| Cross Reference 4 | Timken 22209EJW33 - EJ design, W33 groove |
| Cross Reference 5 | FAG 22209-E1-XL-TVPB - current FAG design |

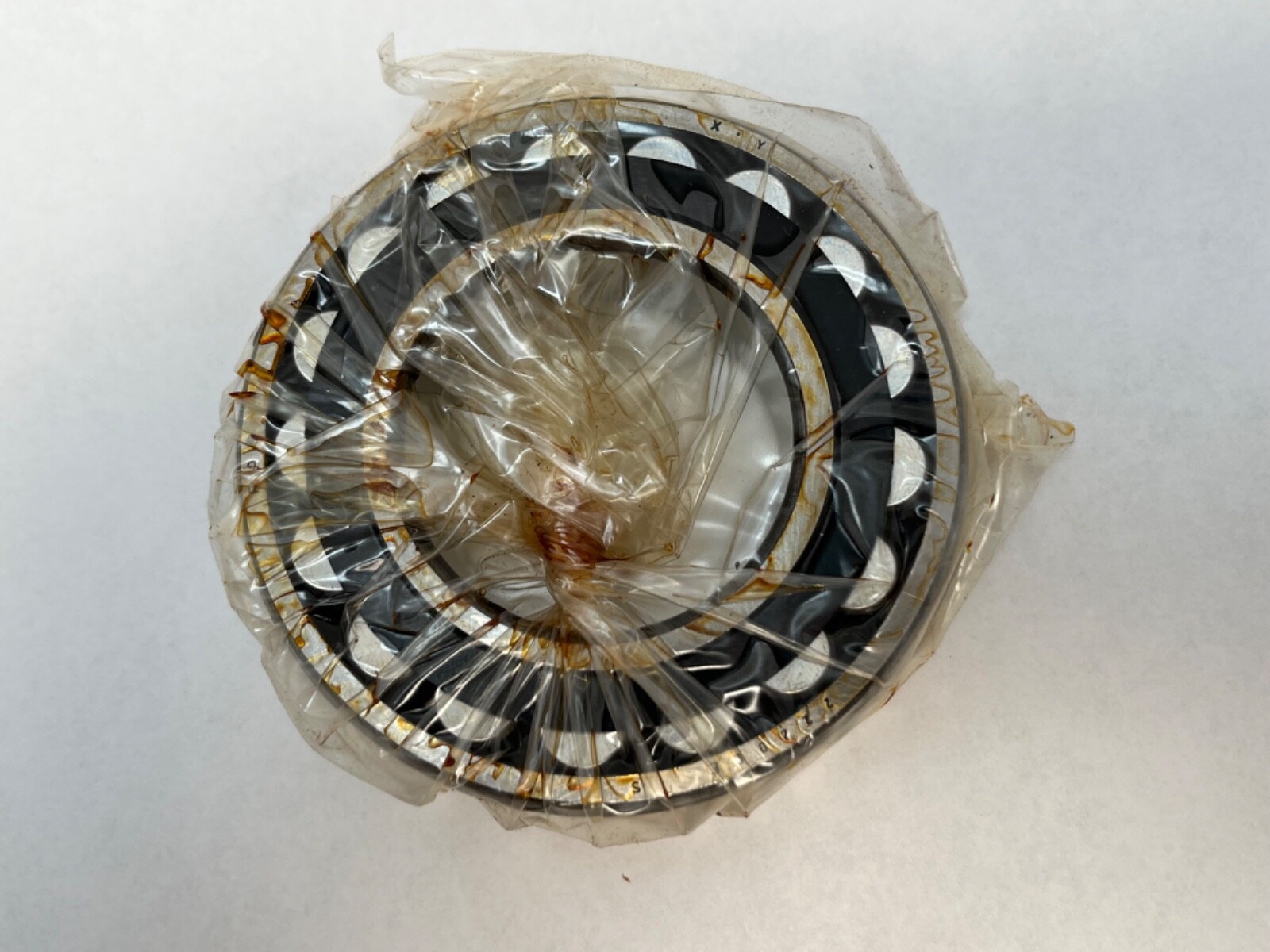

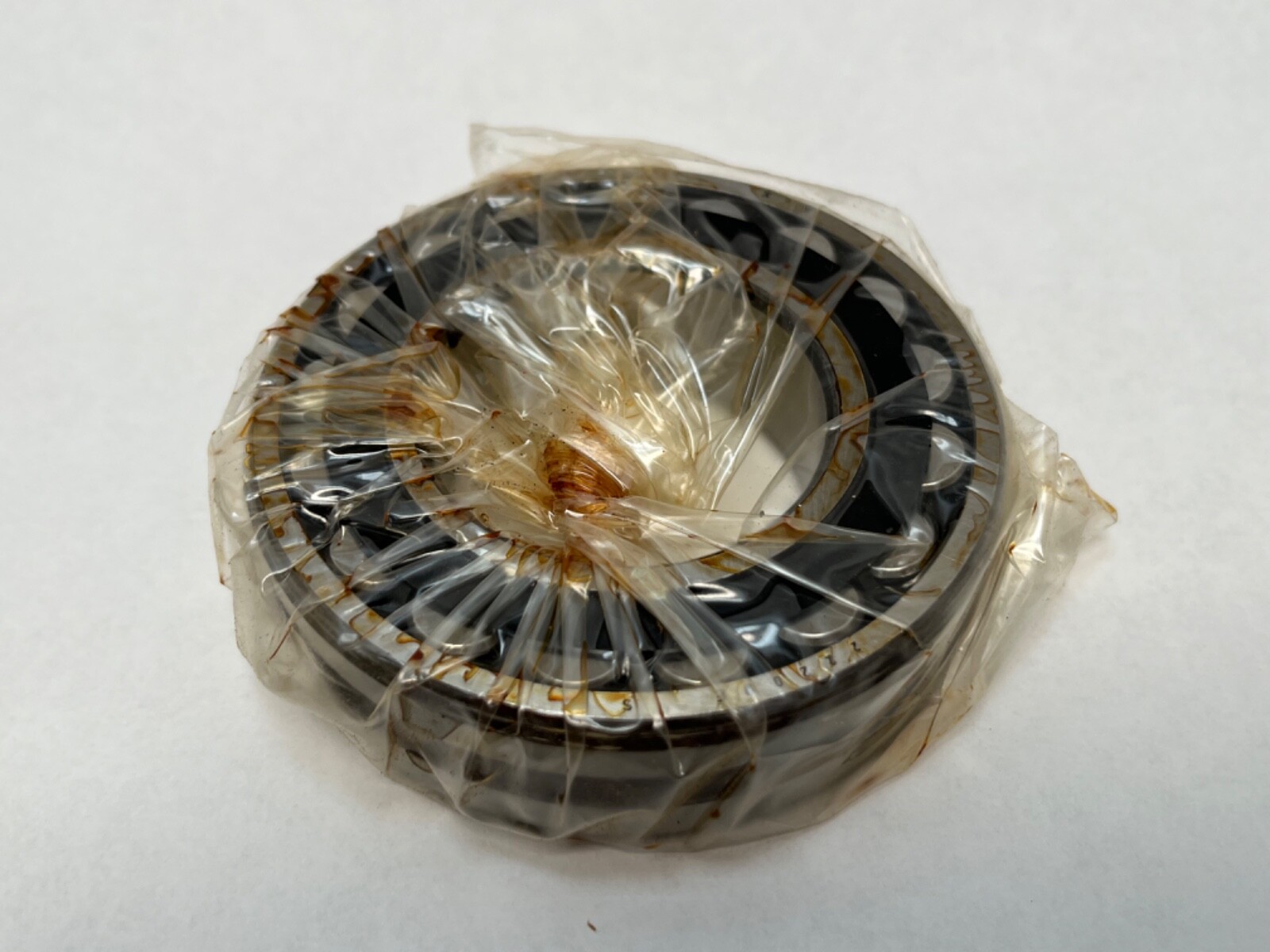

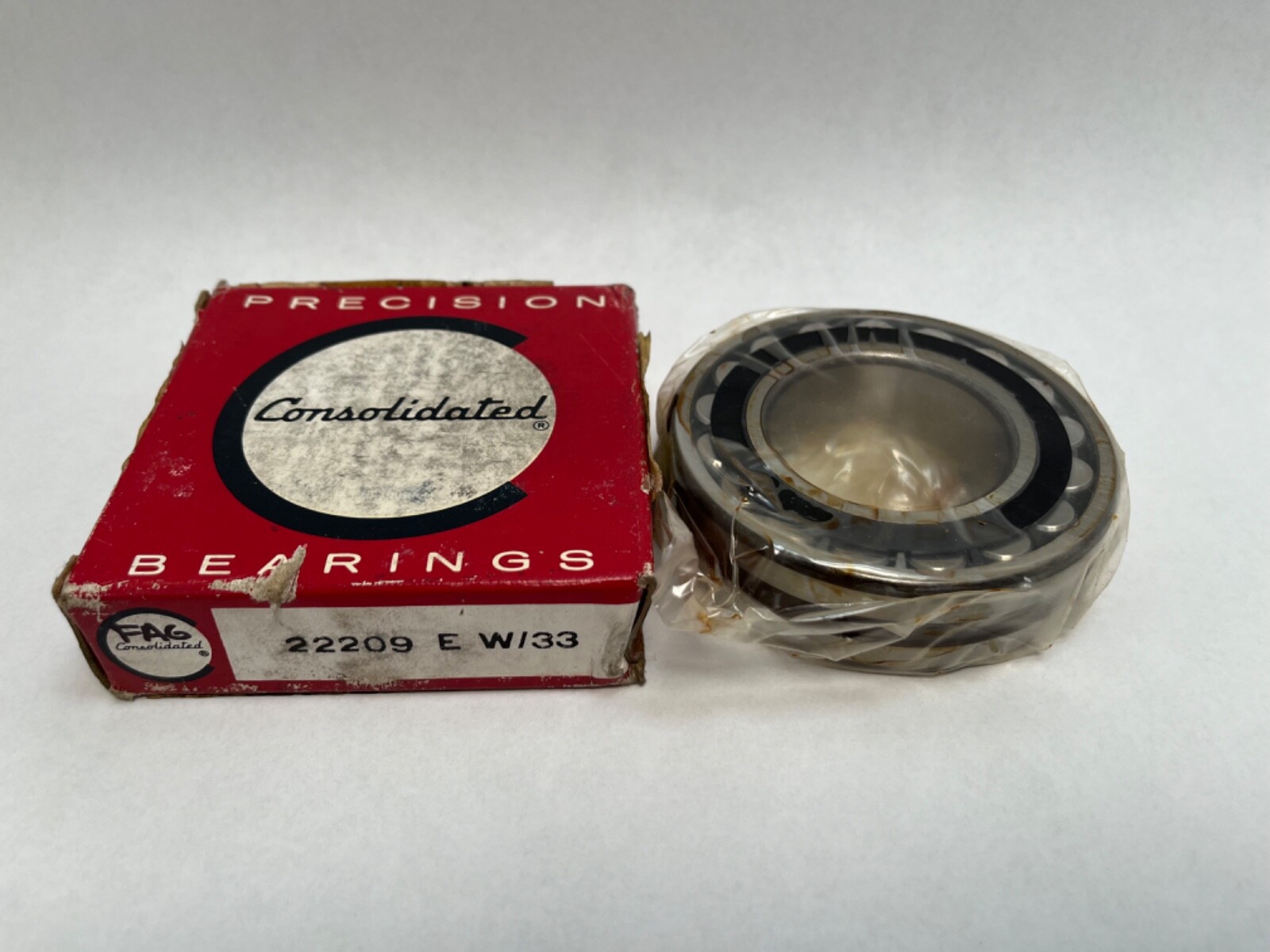

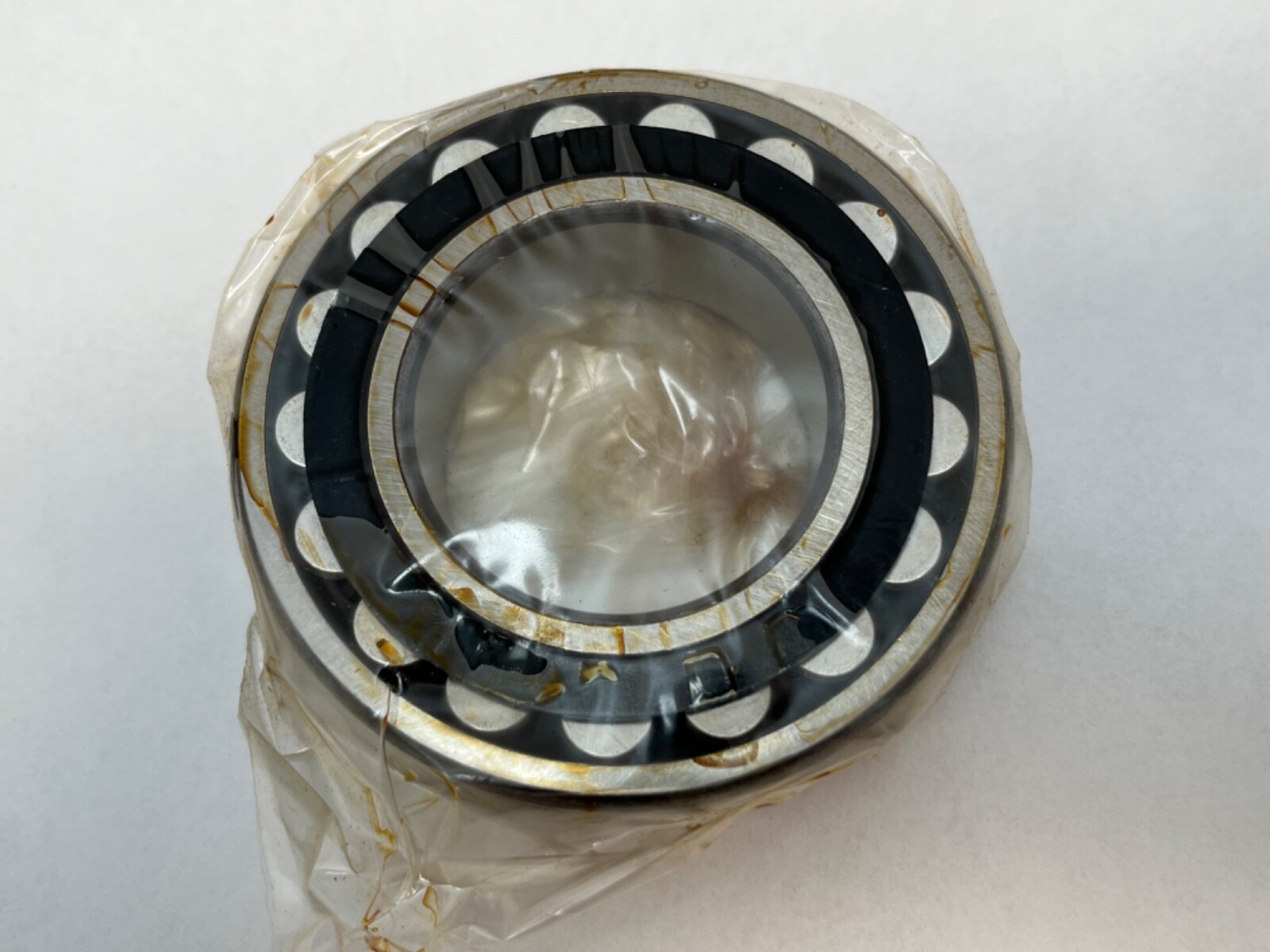

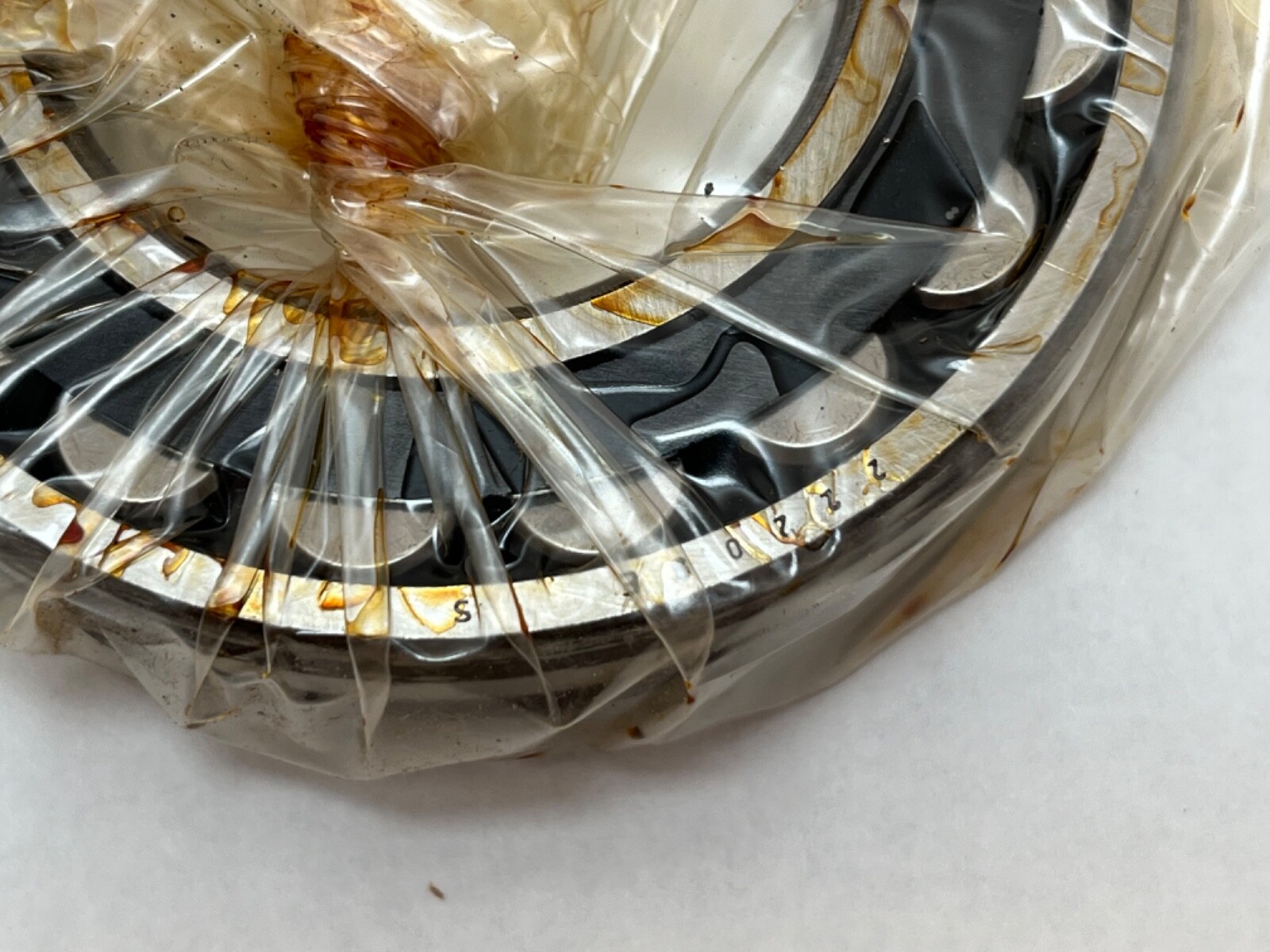

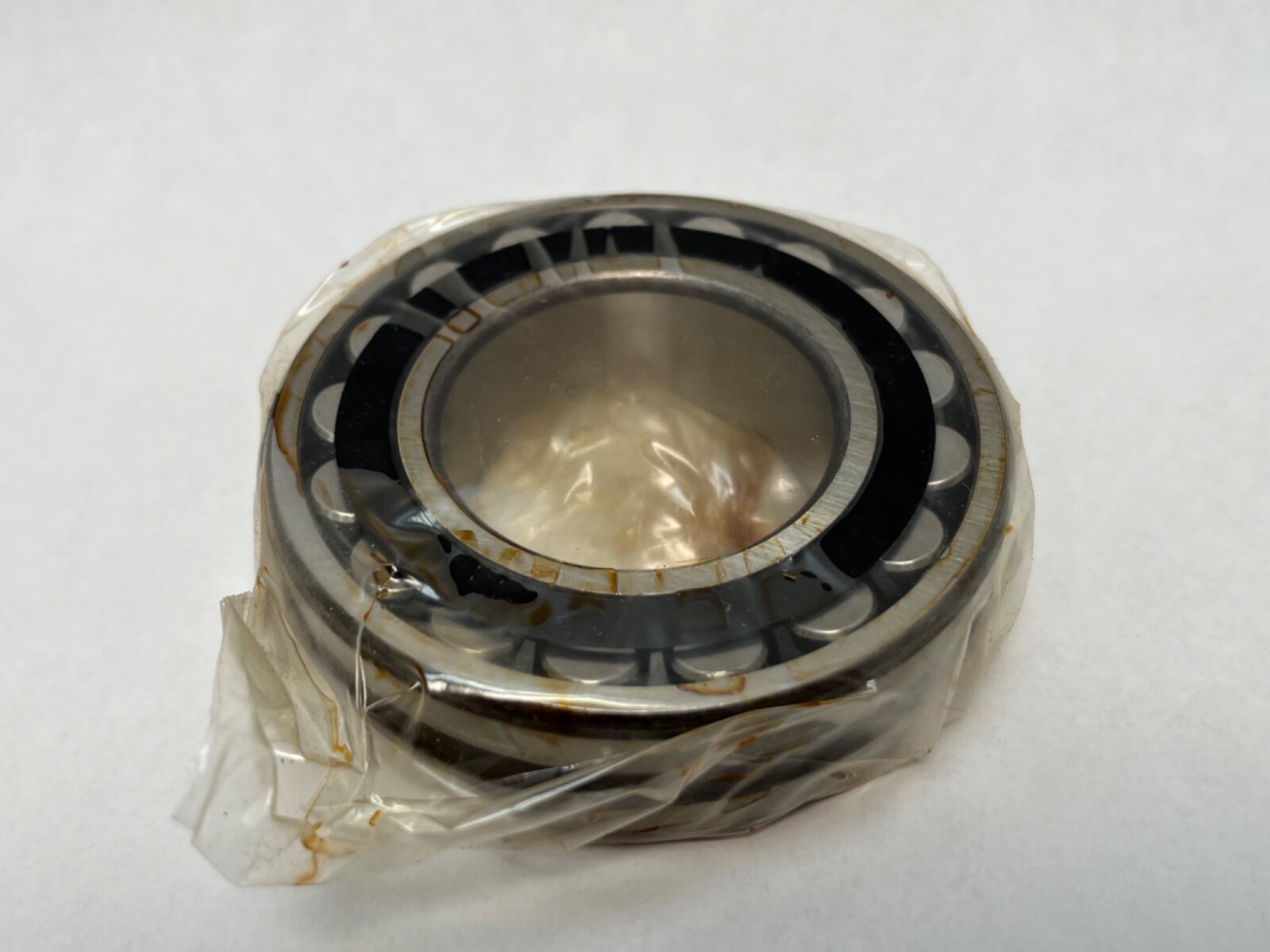

Consolidated 22209ES.TVPB (FAG designation), a double-row spherical roller bearing, 222 series, 45 x 85 x 23 mm, straight bore, open, with a glass-fibre reinforced polyamide cage and a lubrication groove with radial holes in the outer ring. Sale unit is 1 Pc, a single bearing. Country of origin: Germany.
222 — spherical roller bearing, dimension series 22.
09 — bore code, 09 × 5 = 45 mm.
E — reinforced internal design.
S — lubrication groove and radial lubrication holes in the outer ring, equivalent to W33.
TVPB — glass-fibre reinforced polyamide cage.
No clearance suffix — normal internal clearance, CN.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN. Cage Material: Polyamide. Lubricant: grease or oil. Unit Quantity: 1 Pc.
Minimum chamfer dimension: 1.1 mm. Shaft shoulder diameter: 52 mm. Housing shoulder diameter: 78 mm. Maximum recess radius: 1 mm. Lubrication groove width: 4.8 mm. Lubrication hole diameter: 3.2 mm. Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the bearing self-aligns.
Cross-references on the 45 x 85 x 23 mm envelope: SKF 22209 E, NSK 22209EAE4, NTN 22209EAD1, Timken 22209EJW33, FAG 22209-E1-XL-TVPB (current FAG design). Searchable forms include 22209ESTVPBW33, 22209 E S TVPB W33 and 22209E.
45 mm bore, 85 mm outside diameter, 23 mm width, straight bore.
A lubrication groove with radial lubrication holes in the outer ring, equivalent to W33.
A glass-fibre reinforced polyamide cage (TVPB).
