Availability:
26 in stock

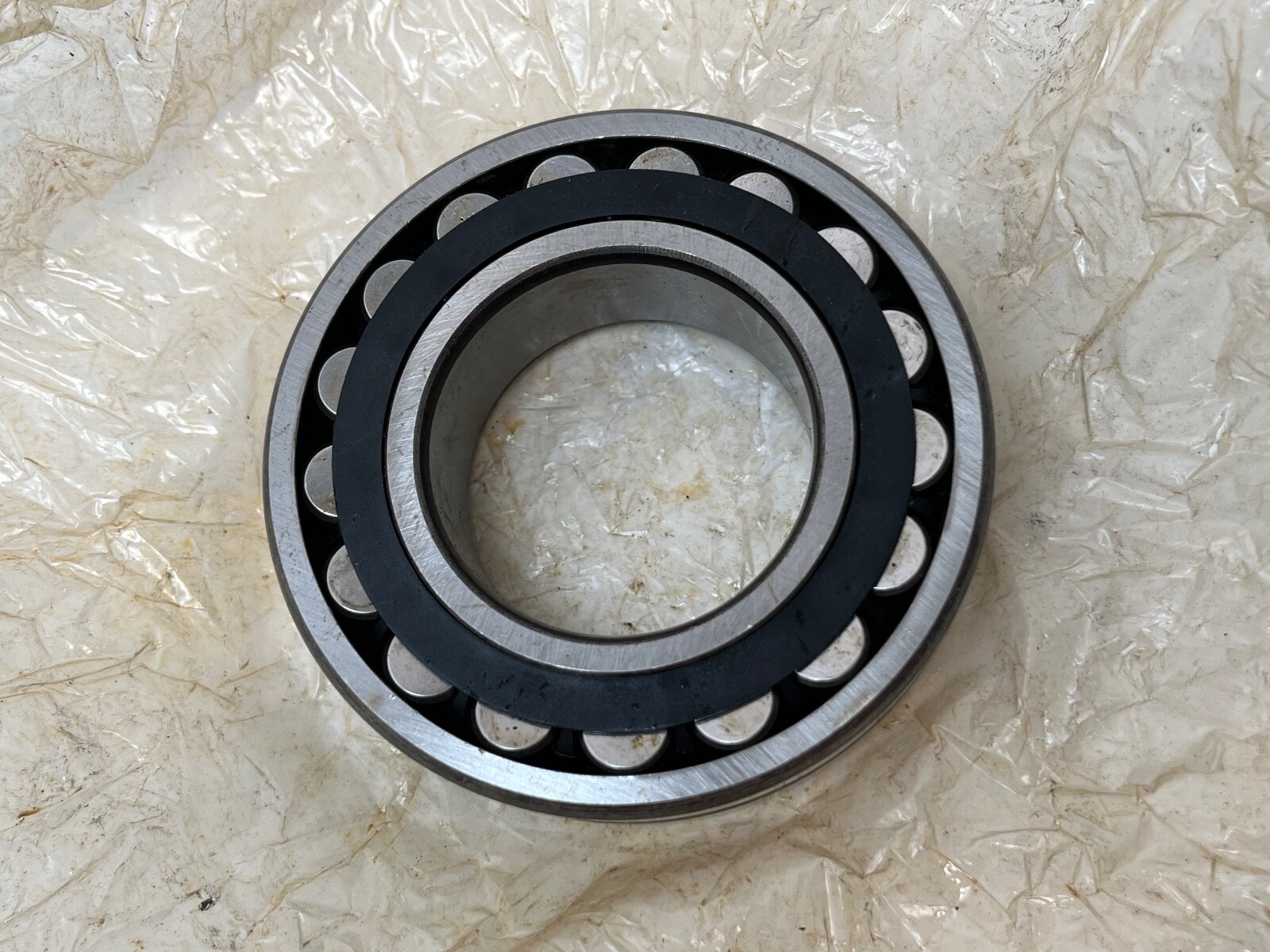

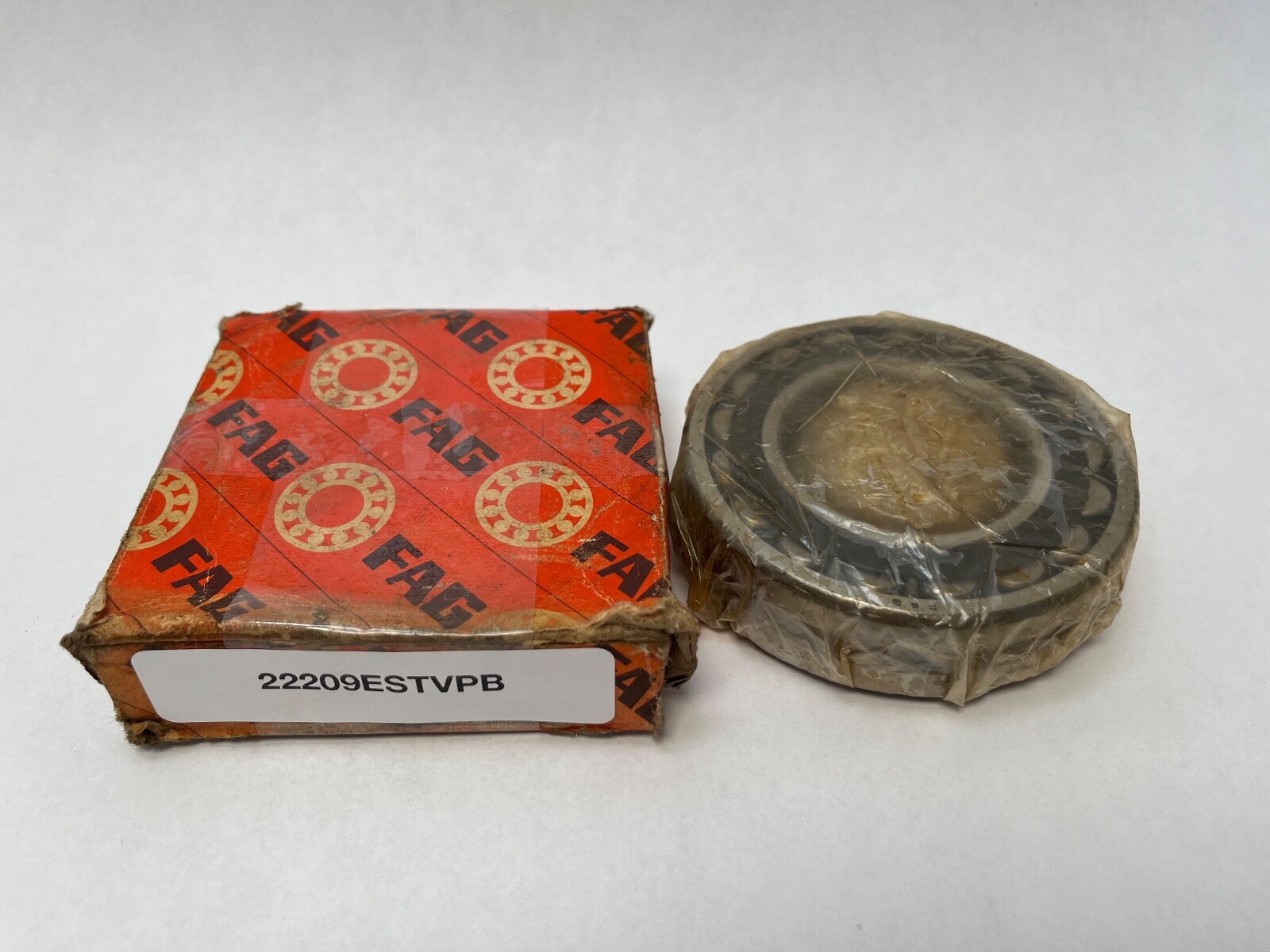

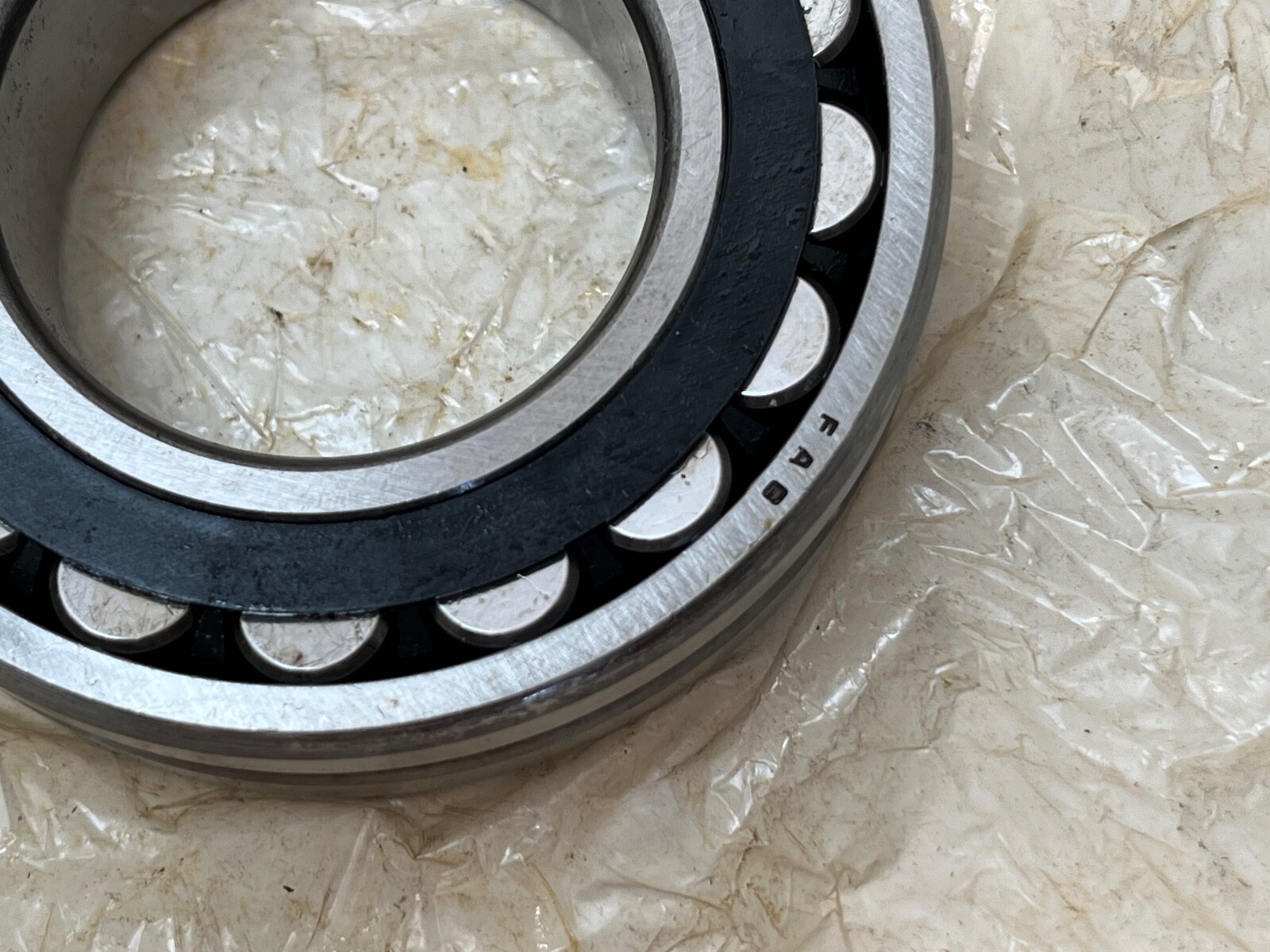

FAG 22209ES.TVPB double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, polyamide cage, W33-type lubrication groove, CN clearance.
List Price
$45.87
26 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209ES.TVPB |
| Model | 22209 E S TVPB W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Lubricant | grease or oil |
| Mpn Variants | 22209ESTVPBW33, 22209ES.TVPB, 22209-ES-TVPB-W33, 22209E, 22209-E-S-TVPB |
| Closure Type | Open |
| Cage Type | Window, roller guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and holes (S) |
| Harmonization Code | 8482.30.00.40 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical roller bearing, W33 spherical roller bearing, 45x85x23 bearing |
| Common Misspellings | FAG 22209 ES TVPB, FAG 22209ES TVPB, FAG 22209E.S.TVPB, FAG 22209ESTVPB, FAG 22209-ES-TVBP |
| Application Types | Industrial gearboxes, pumps, fans, conveyors, general heavy-duty machinery |
| Cross Reference 1 | SKF 22209 E - no W33 groove |
|---|---|
| Cross Reference 2 | NSK 22209EAE4 - pressed steel cage |
| Cross Reference 3 | Timken 22209EJW33 - pressed steel cage |
FAG 22209ES.TVPB is a double-row spherical roller bearing in the 222 series with a straight bore, a lubrication groove with radial holes in the outer ring, and a glass-fibre reinforced polyamide cage. Unit Quantity: 1 Pc.

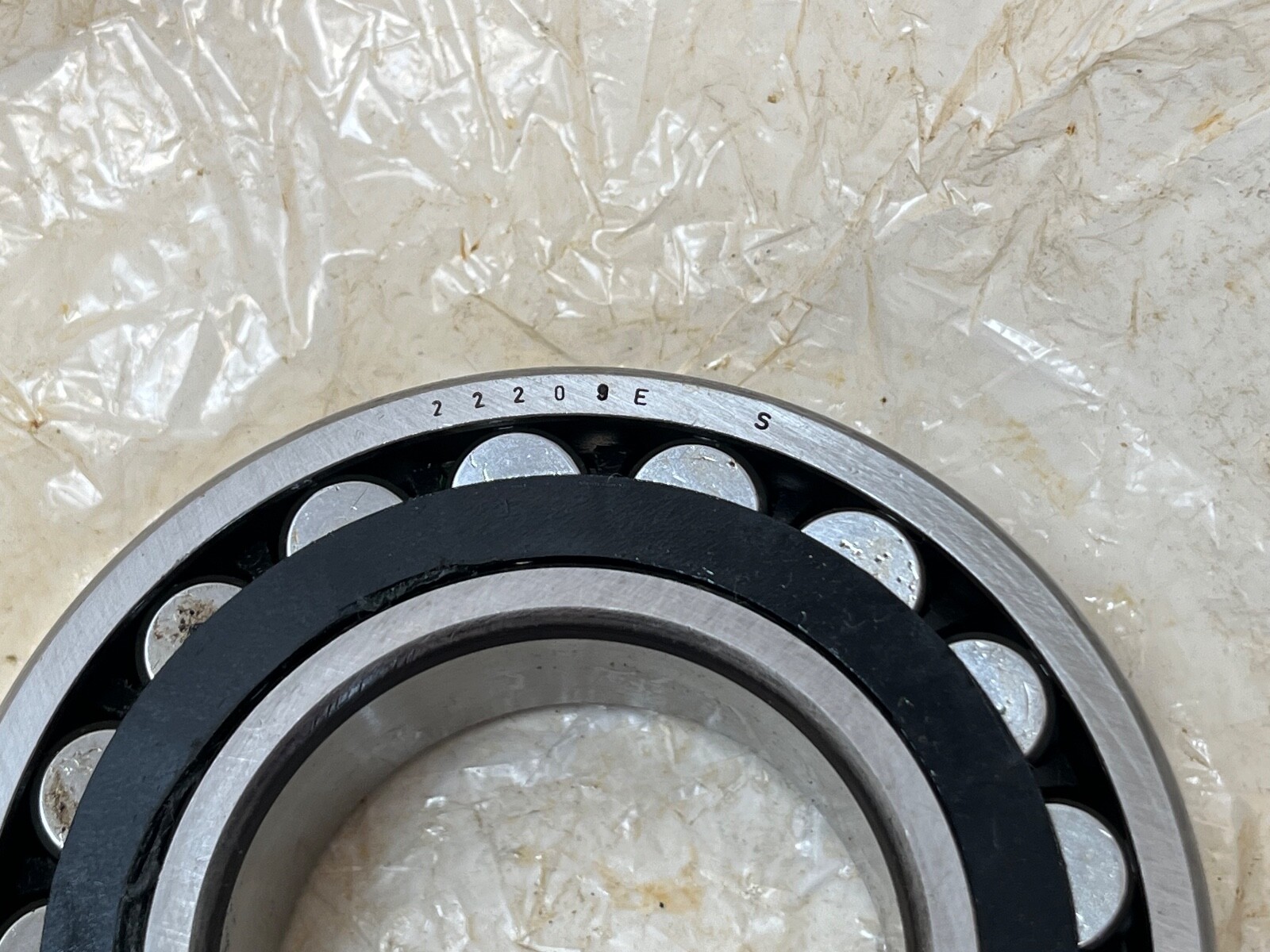

22209 — spherical roller bearing, 222 dimension series, 45 mm bore.
E — FAG reinforced internal design with higher load capacity than the original execution.
S — lubrication groove with three radial holes in the outer ring, the FAG equivalent of W33.
TVPB — glass-fibre reinforced polyamide window cage, roller guided.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Cage Material: Polyamide. Cage Type: Window, roller guided. Internal Clearance: CN. Lubricant: grease or oil. Closure Type: Open. Series: 222.

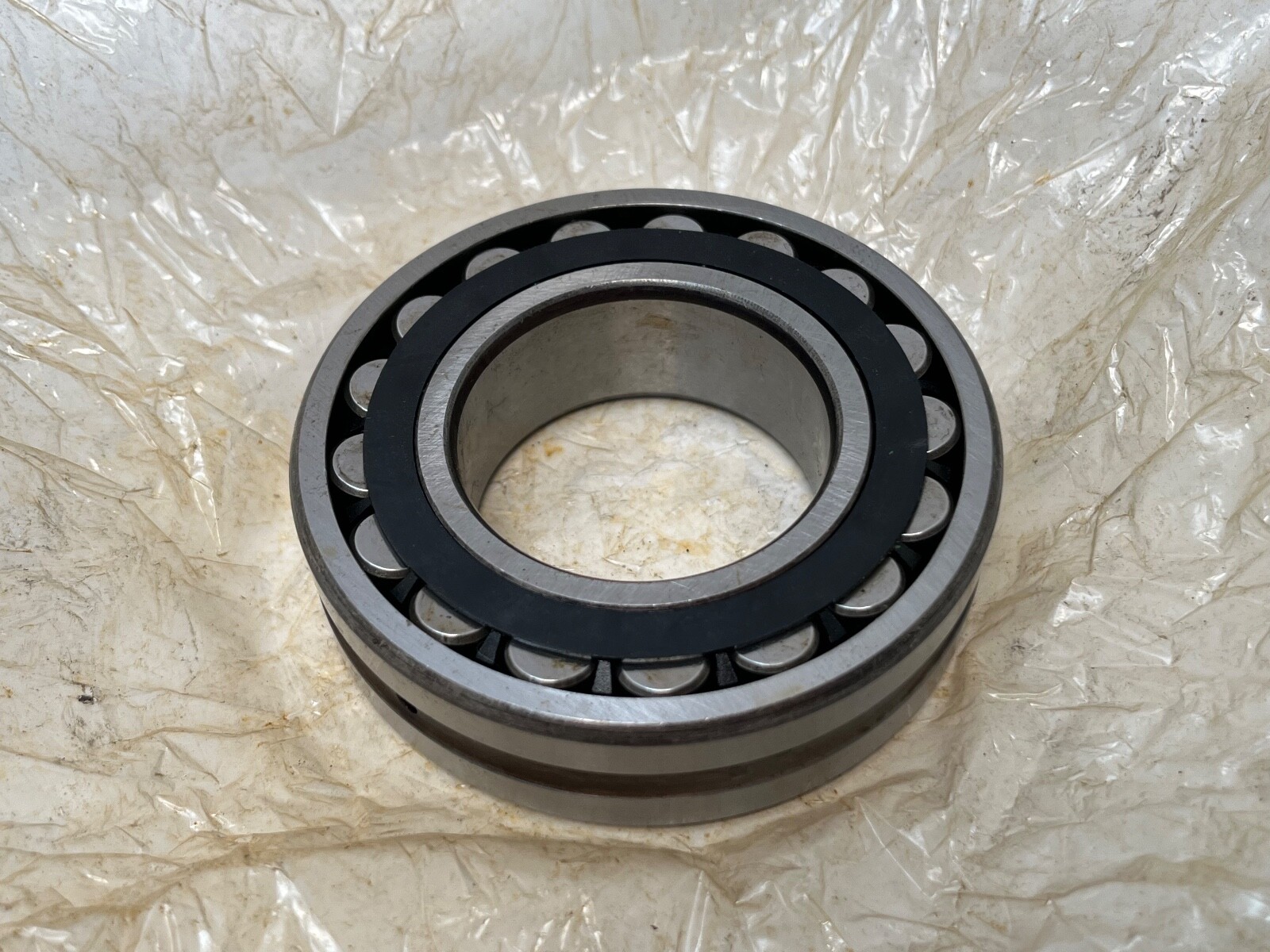

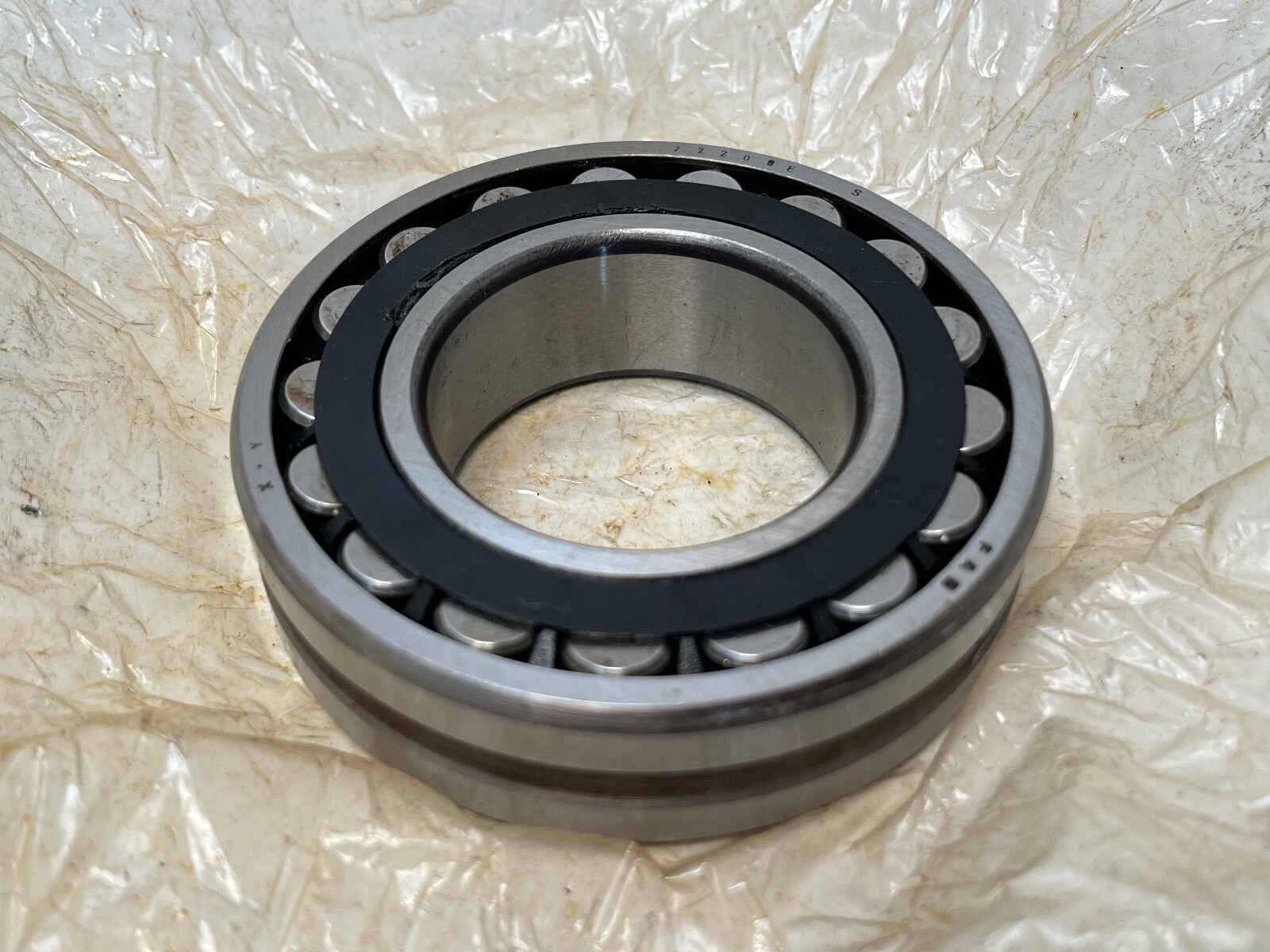

Envelope: 45 x 85 x 23 mm. The spherical outer raceway is self-aligning. The outer ring groove and holes feed grease or oil between the two roller rows.
Cross-references: SKF 22209 E (no W33 groove); NSK 22209EAE4 (pressed steel cage); Timken 22209EJW33 (pressed steel cage). Current Schaeffler range: 22209-E1-XL.
Bore 45 mm, outside diameter 85 mm, width 23 mm, straight bore.
E is the FAG reinforced internal design, S is the outer ring lubrication groove with three radial holes (equivalent to W33), and TVPB is a glass-fibre reinforced polyamide window cage.
Internal Clearance is CN (normal). Lubricant: grease or oil, fed through the outer ring groove and holes.
