A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

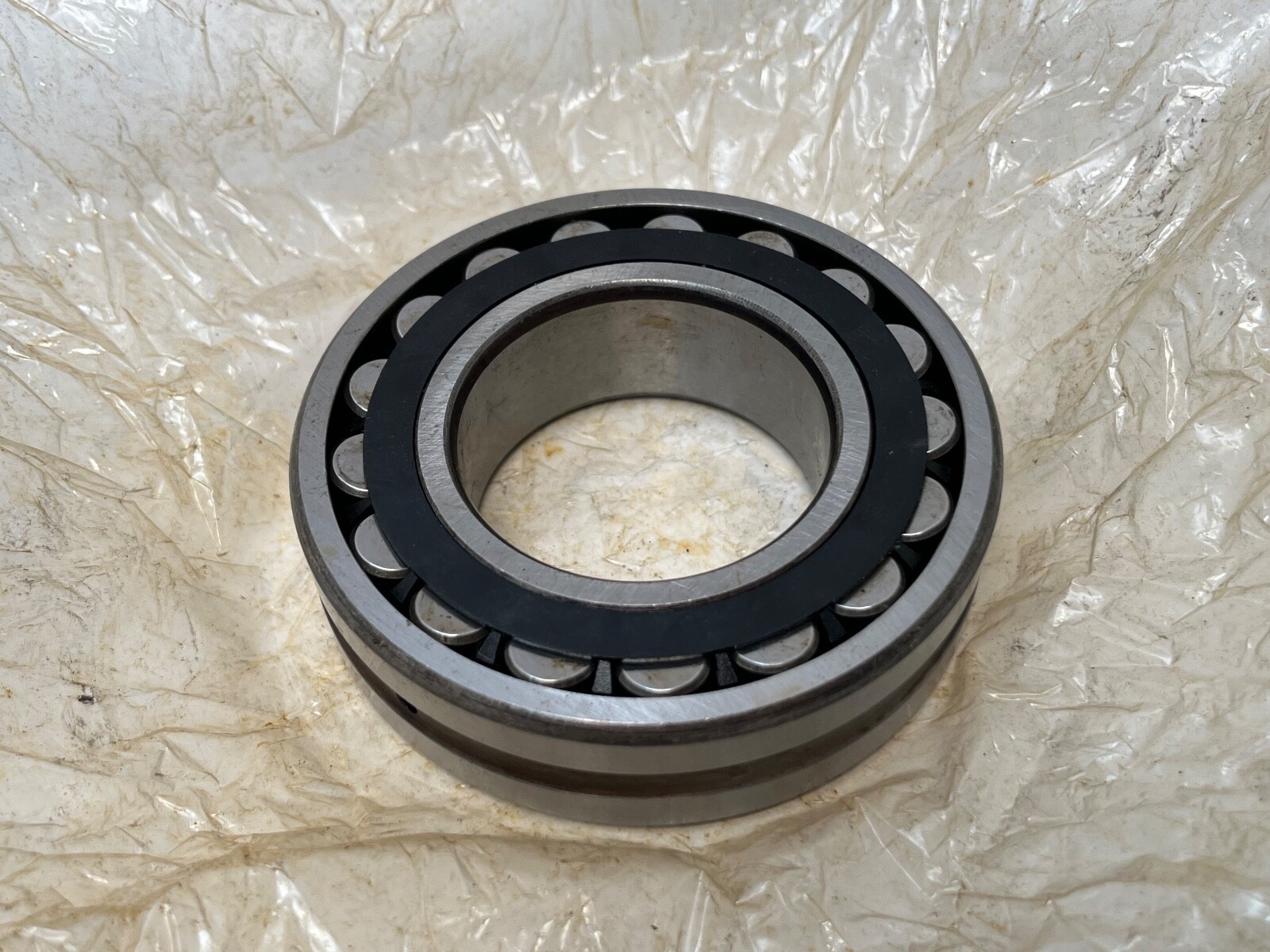

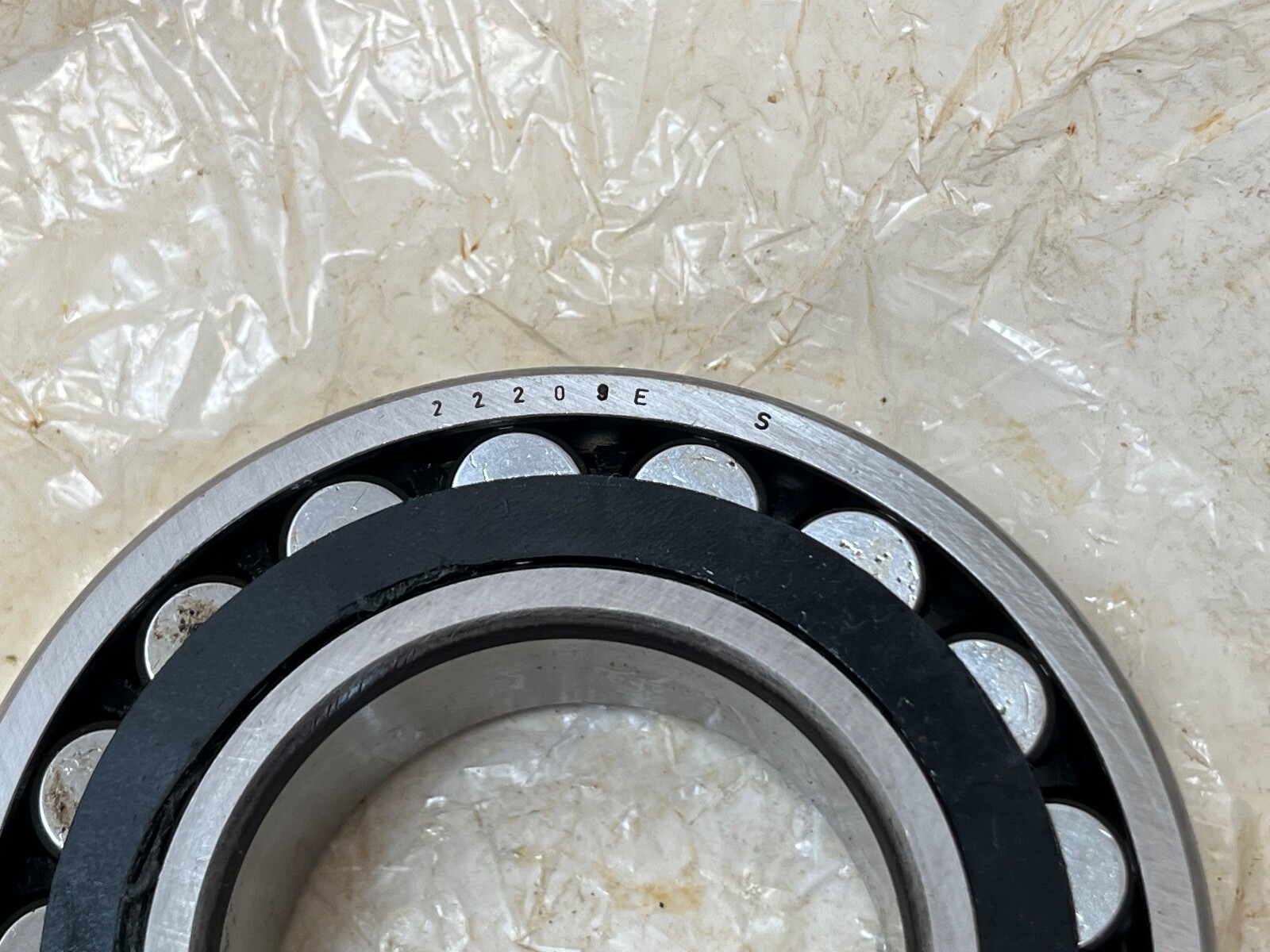

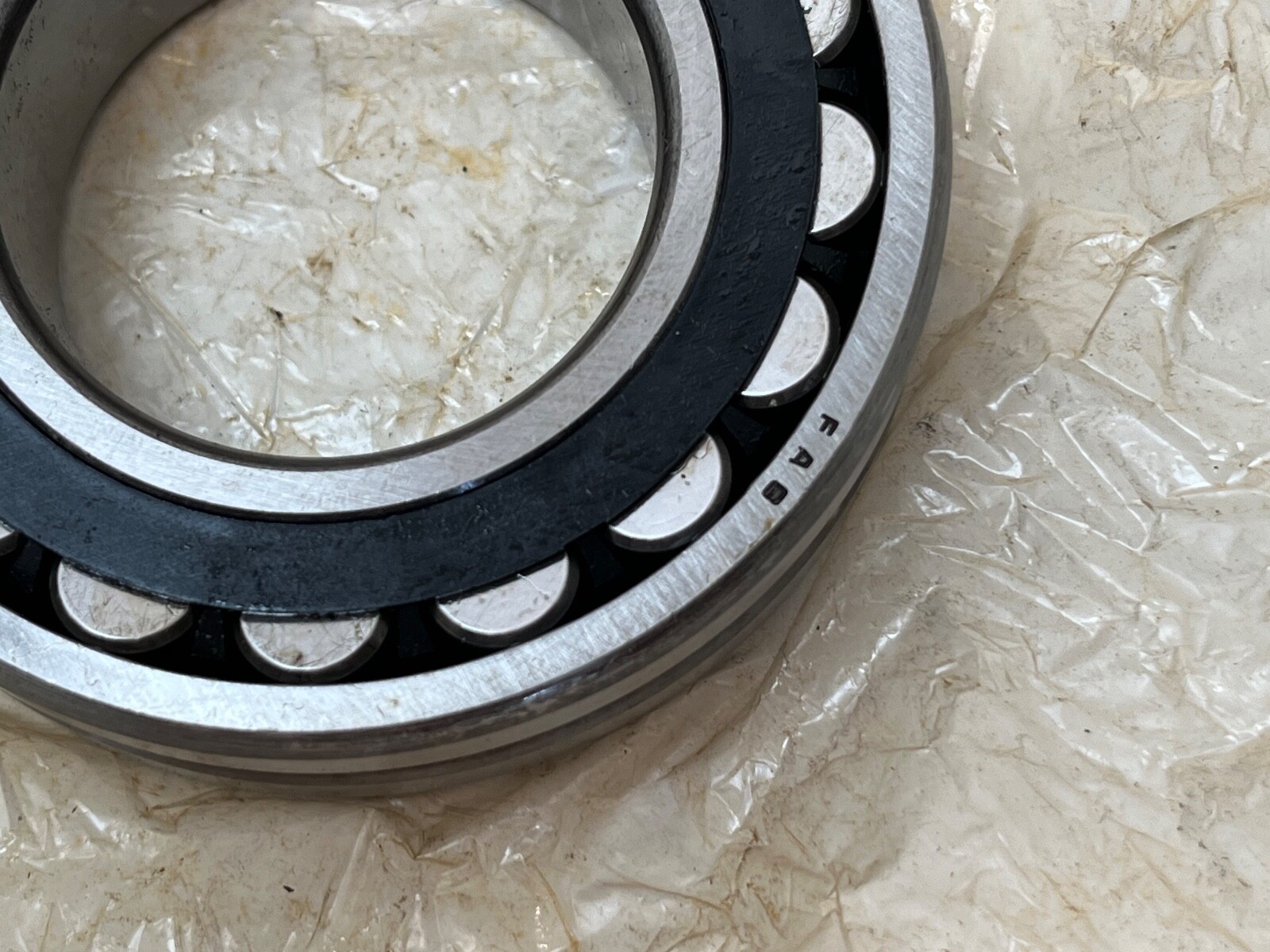

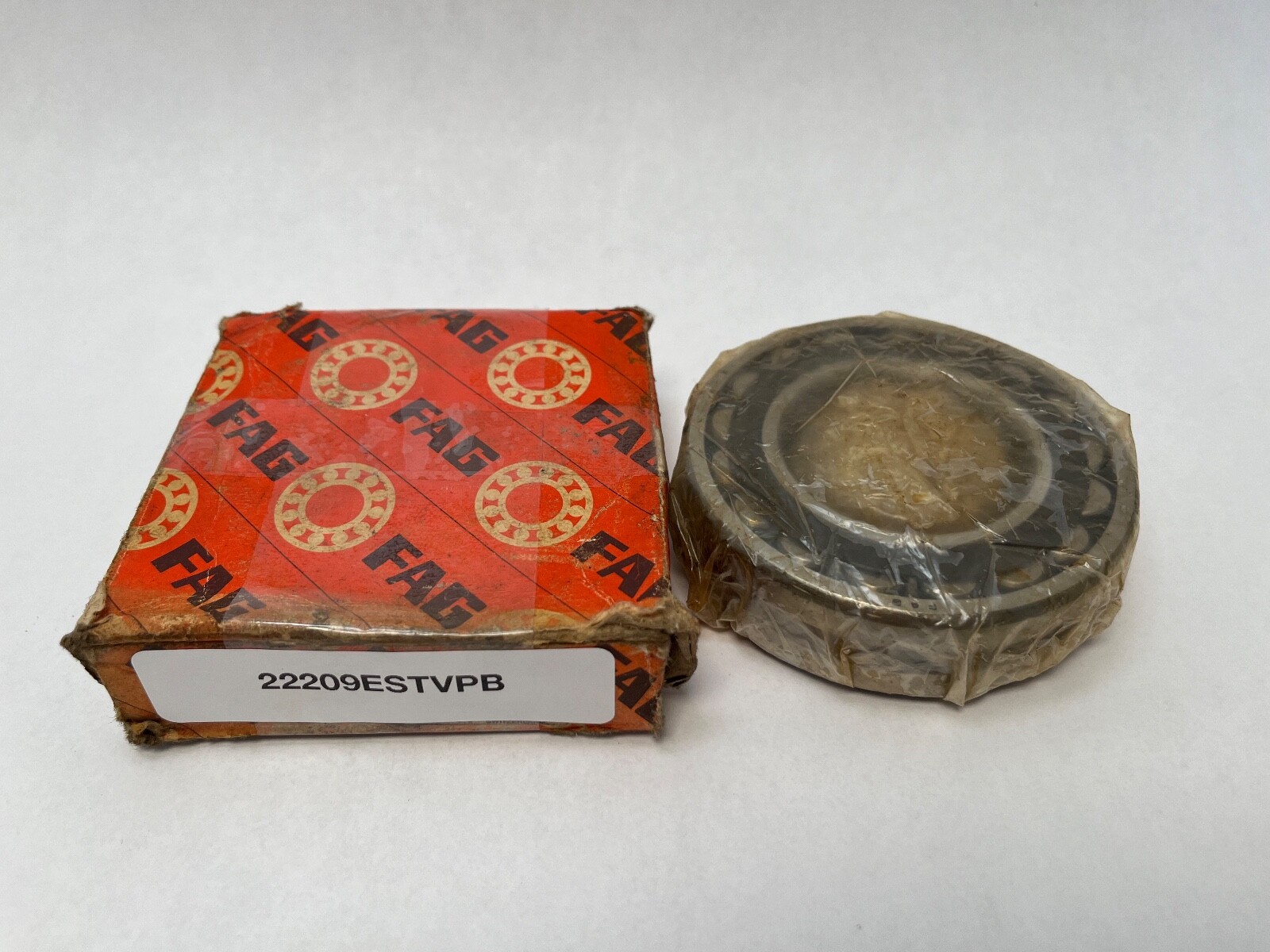

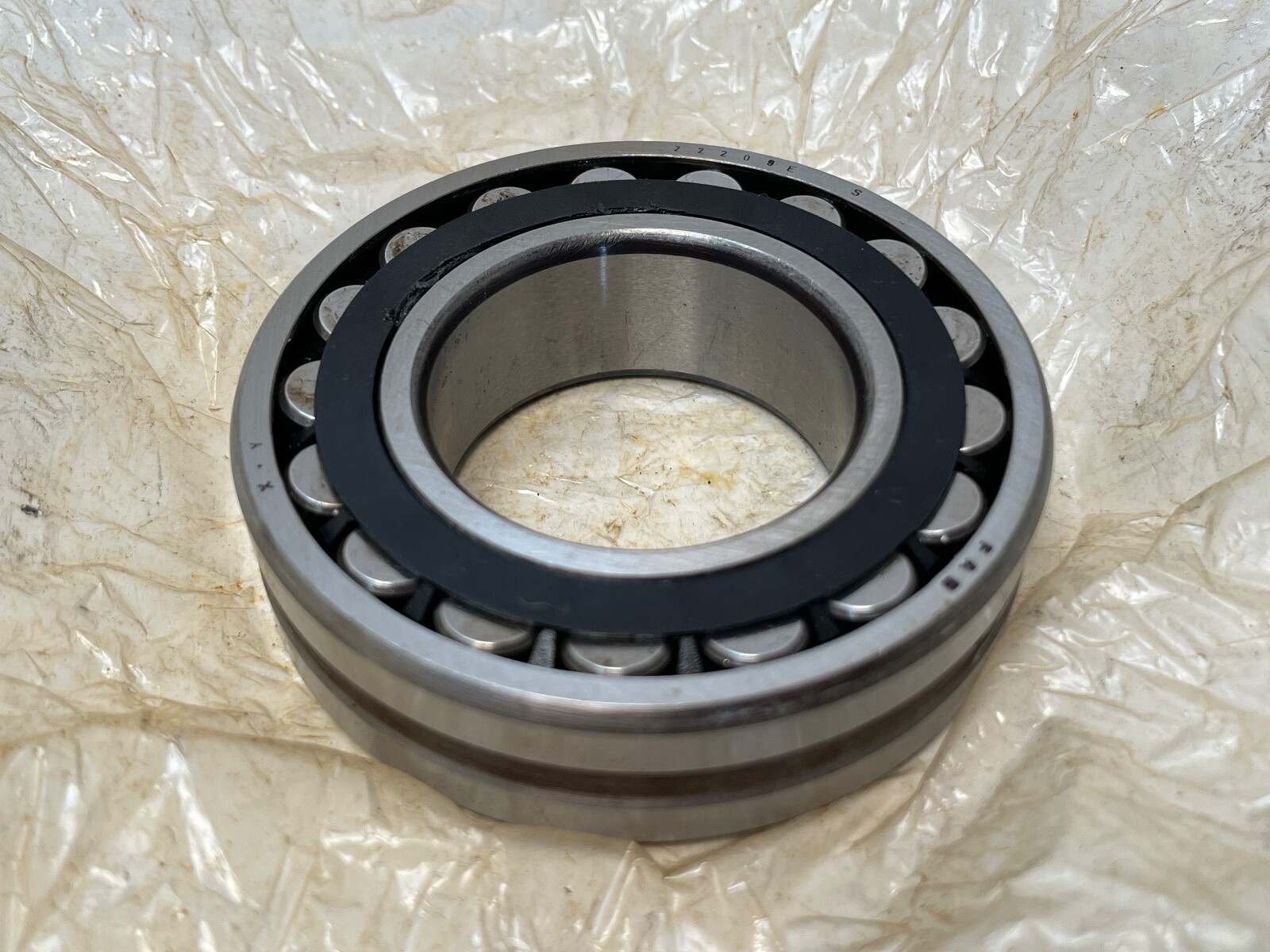

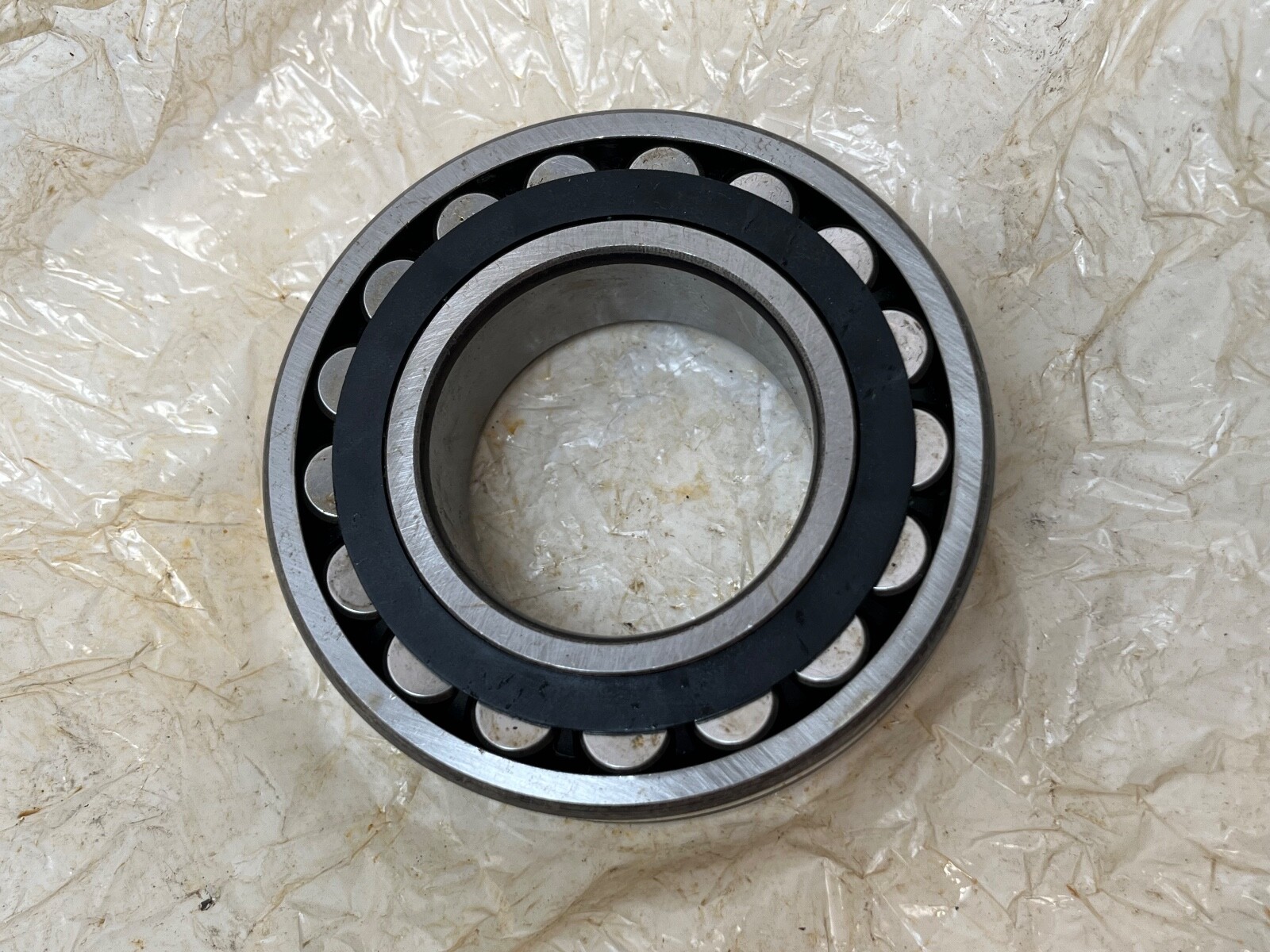

FAG 22209ES.TVPB spherical roller bearing, 45 x 85 x 23 mm, polyamide cage, lubrication groove, cylindrical bore, normal clearance. Successor 22209-E1-XL.
List Price
$49.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209ES.TVPB |
| Model | 22209-ES-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Cage Type | Solid window cage, glass-fibre reinforced |
| Dynamic Load Rating | 104,000 N |
| Static Load Rating | 99,000 N |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 10,100 rpm |
| Relubrication Feature | Lubrication groove and holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, polyamide cage spherical, W33 groove, 22209 E bearing, 45x85x23 spherical |
| Overall Width | 23 mm |
| Mpn Variants | 22209ES.TVPB, 22209-ES-TVPB, 22209ESTVPBW33, 22209 E S TVPB W33, 22209E |
| Compatible With Replaces | Successor: FAG 22209-E1-XL |
| Additional Attributes | Successor 22209-E1-XL data: Dynamic load rating 104,000 N; Static load rating 99,000 N; Limiting speed 10,100 rpm; Reference speed 5,600 rpm; Weight 0.562 kg; r min 1.1 mm; ra max 1 mm; da 52 mm; Da 78 mm |
| Lubricant | Grease or oil |
| Common Misspellings | FAG 22209 ESTVPB; FAG22209ES; Fag 22209 E S TVPB; FAG 22209ES TVB; Schaeffler 22209ES |
| Application Types | Gearboxes; fans and blowers; pumps; conveyors; heavy radial load shafting with misalignment |
| Cross Reference 1 | SKF 22209 E |
|---|---|
| Cross Reference 2 | NTN 22209EAW33 |
| Cross Reference 3 | NSK 22209EAE4 |
| Cross Reference 4 | Timken 22209EJW33 |
| Cross Reference 5 | Koyo 22209RHRW33 |
| Cross Reference 6 | FAG 22209-E1-XL - current successor, XL ratings |
FAG 22209ES.TVPB is a double-row spherical roller bearing of legacy FAG E design with a glass-fibre reinforced polyamide solid window cage, lubrication groove and holes in the outer ring, cylindrical bore and normal clearance. Unit Quantity: 1 Pc.
222 — spherical roller bearing, ISO dimension series 22.
09 — bore code, 45 mm.
E — FAG reinforced internal design.
S — lubrication groove and holes in the outer ring (W33 equivalent).
TVPB — solid window cage of glass-fibre reinforced polyamide.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Cylindrical. Closure Type: Open. Cage Material: Polyamide. Internal Clearance: CN. Lubricant: grease or oil, fed through the outer-ring groove and holes.
Successor 22209-E1-XL data: Dynamic Load Rating: 104,000 N. Static Load Rating: 99,000 N. Limiting Speed: 10,100 rpm. Reference Speed: 5,600 rpm. Item Weight: 0.562 kg (1.24 lb).
Successor 22209-E1-XL data: Chamfer r min: 1.1 mm. Fillet ra max: 1 mm. Shaft Abutment da: 52 mm. Housing Abutment Da: 78 mm. The self-aligning outer raceway accommodates shaft deflection and misalignment under heavy radial load.
Current FAG successor: 22209-E1-XL (replaces 22209-E1 / 22209E1). Normal-clearance 22209 spherical roller bearings at 45 x 85 x 23 mm: SKF 22209 E, NTN 22209EAW33, NSK 22209EAE4, Timken 22209EJW33, Koyo 22209RHRW33.
TVPB: a solid window cage of glass-fibre reinforced polyamide.
Yes. S is a lubrication groove and holes in the outer ring (W33 equivalent); lubricant is grease or oil.
FAG 22209-E1-XL: Dynamic Load Rating 104,000 N, Static Load Rating 99,000 N, Limiting Speed 10,100 rpm.
