Availability:
1 in stock

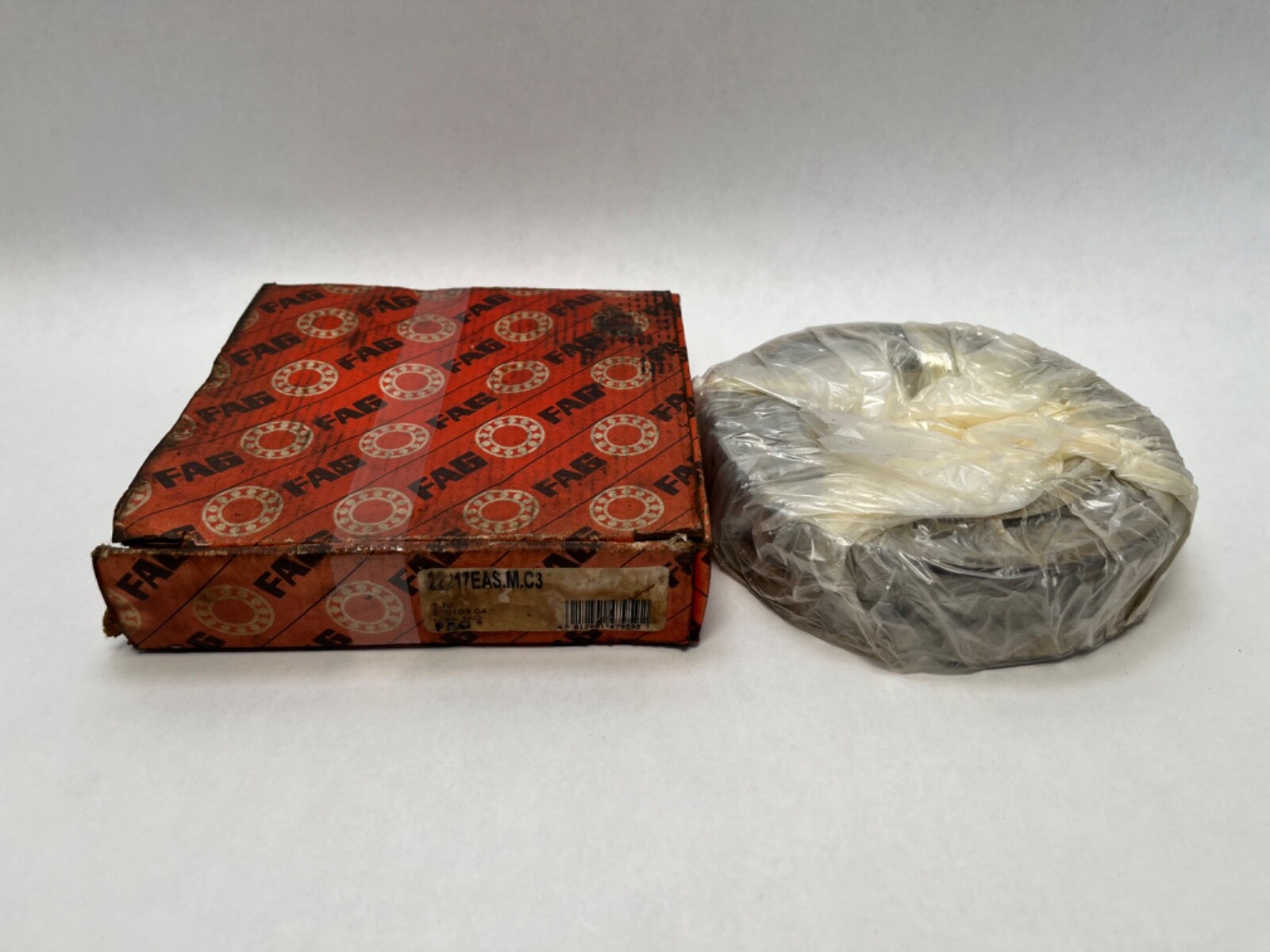

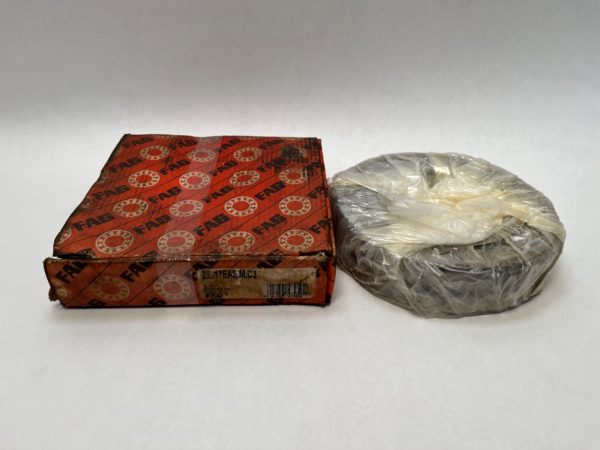

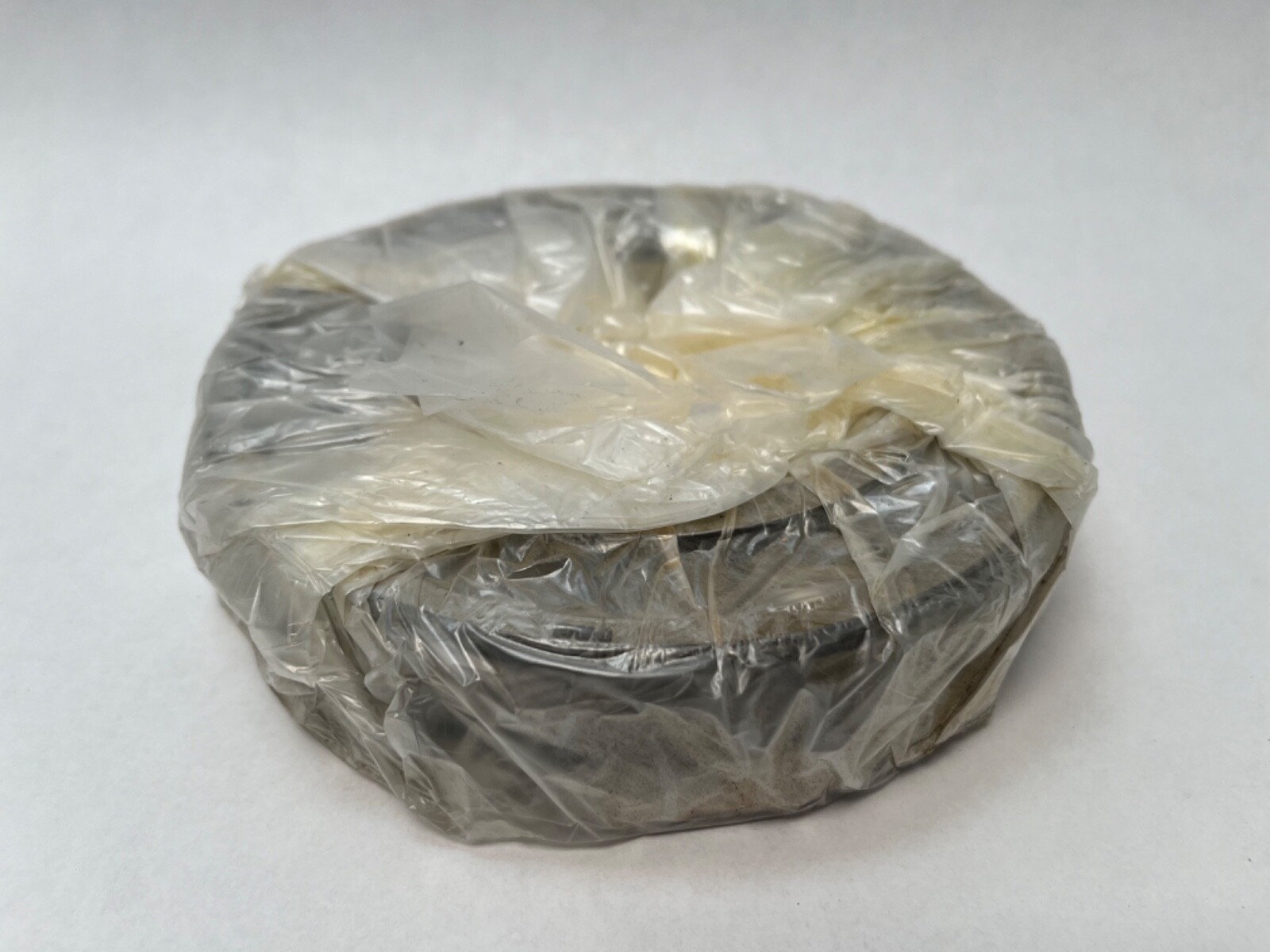

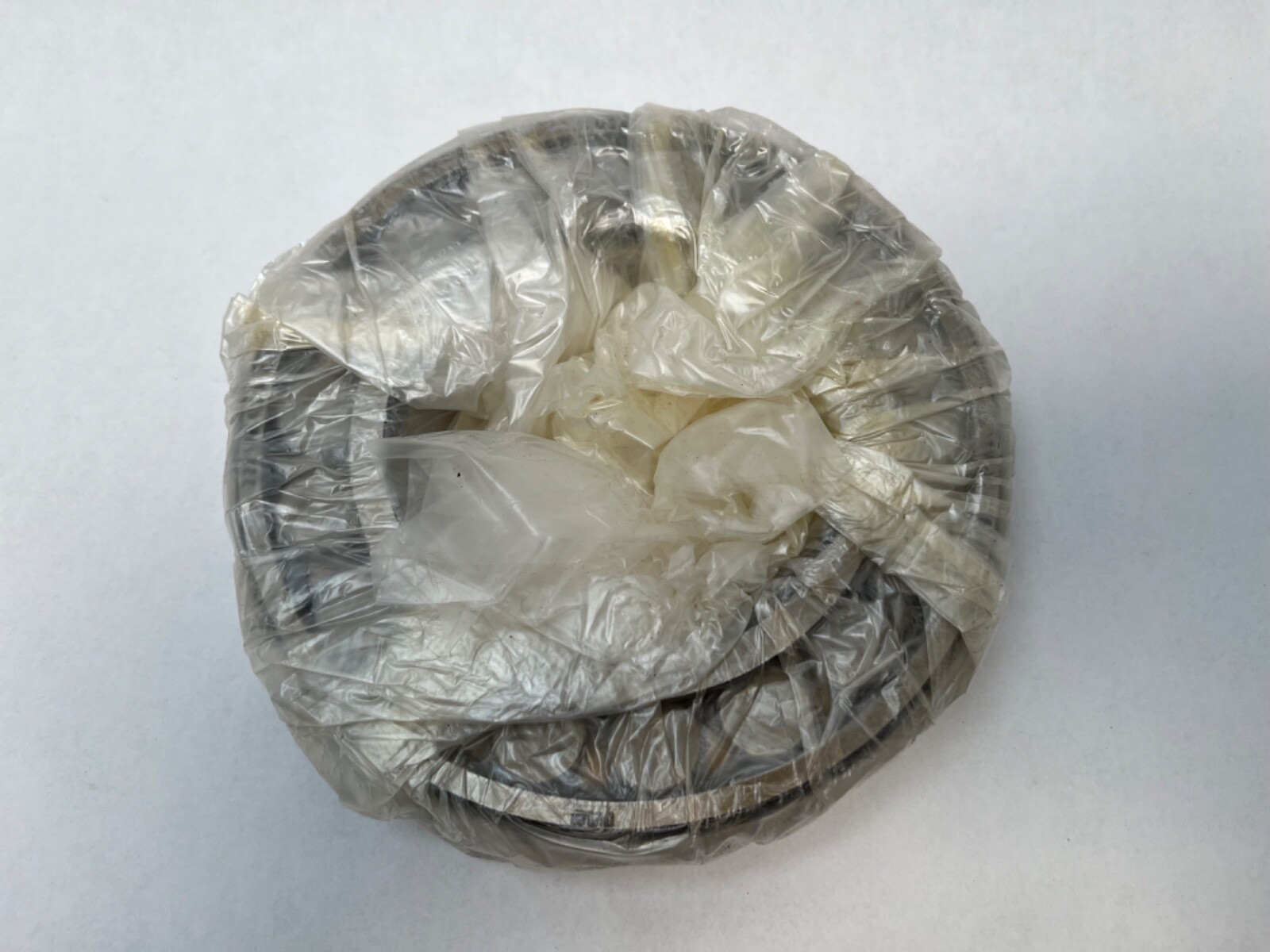

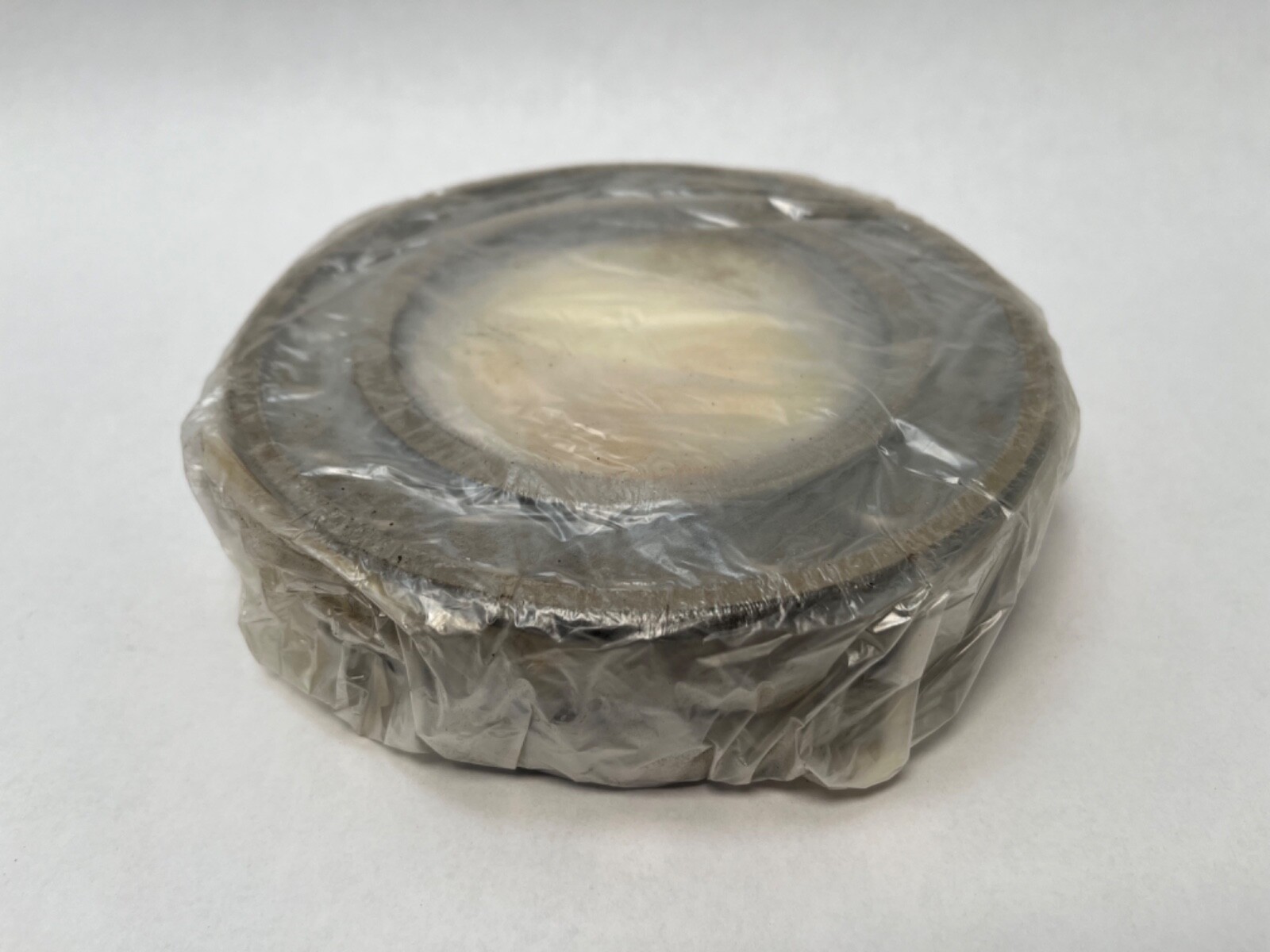

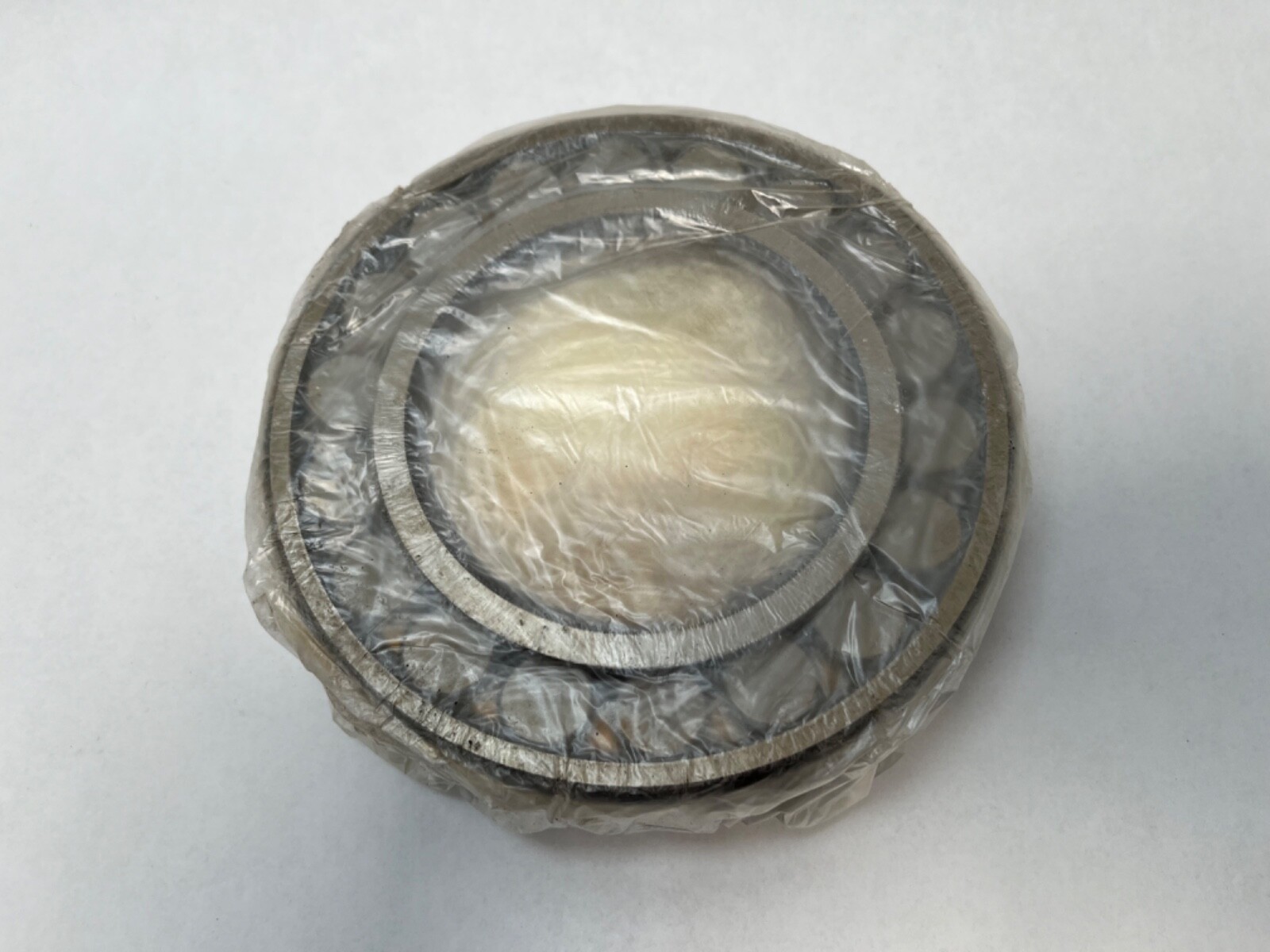

FAG 22217EASM.C3 spherical roller bearing, 85 x 150 x 36 mm, machined brass cage, W33-type lube groove, C3 clearance. Current equivalent 22217-E1A-XL-M-C3.
List Price
$117.62
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22217EASM.C3 |
| Model | 22217-EAS-M-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 85 mm |
| OD | 150 mm |
| Width | 36 mm |
| Series | 222 |
|---|---|
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 305,000 N |
| Static Load Rating | 325,000 N |
| Rolling Elements | Spherical Roller |
| Max Temp | 200 °C |
| Item Weight | 2.61 kg (5.75 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Limiting Speed | 5,700 rpm |
| Base Number | 22217 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row, brass cage, W33, C3 |
| Common Misspellings | 22217 EASM C3, 22217EASM-C3, 2217EASMC3 |
| Application Types | Vibrating screens, crushers, gearboxes, fans, paper machines, conveyor pulleys |
| Overall Width | 36 mm |
| Mpn Variants | 22217-EAS-M-C3, 22217EASM.C3, 22217EASMC3, 22217EASMC3W33, 22217-EAS-M-C3-W33, 22217E |
| Compatible With Replaces | Successor: FAG 22217-E1A-XL-M-C3 |
| Additional Attributes | Successor 22217-E1A-XL-M-C3 data (load ratings, speeds, weight, temperature and mounting rows): Reference Speed 3,450 rpm; min shaft shoulder 96 mm; max shaft shoulder 99 mm; max housing shoulder 139 mm; max fillet radius 2 mm; lubrication hole 3.2 mm; groove width 6.5 mm |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (AS / W33) |
| Closure Type | Open |
| Cross Reference 1 | SKF 22217 E/C3 |
|---|---|
| Cross Reference 2 | Timken 22217EJW33C3 |
| Cross Reference 3 | NSK 22217EAE4C3 |
| Cross Reference 4 | NTN 22217EAD1C3 |
| Cross Reference 5 | Koyo 22217RHRW33C3 |
| Cross Reference 6 | SNR 22217EAW33C3 |

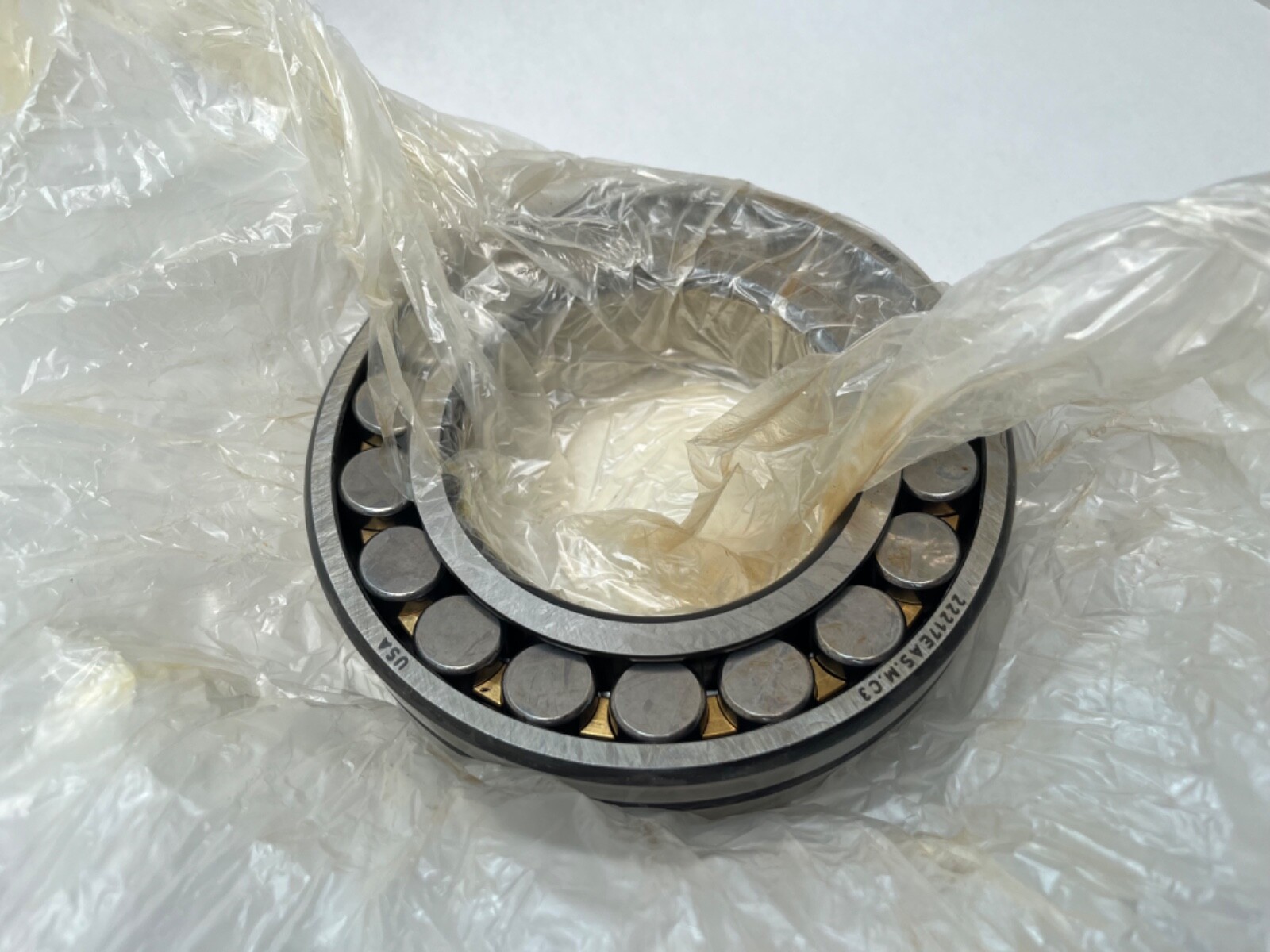

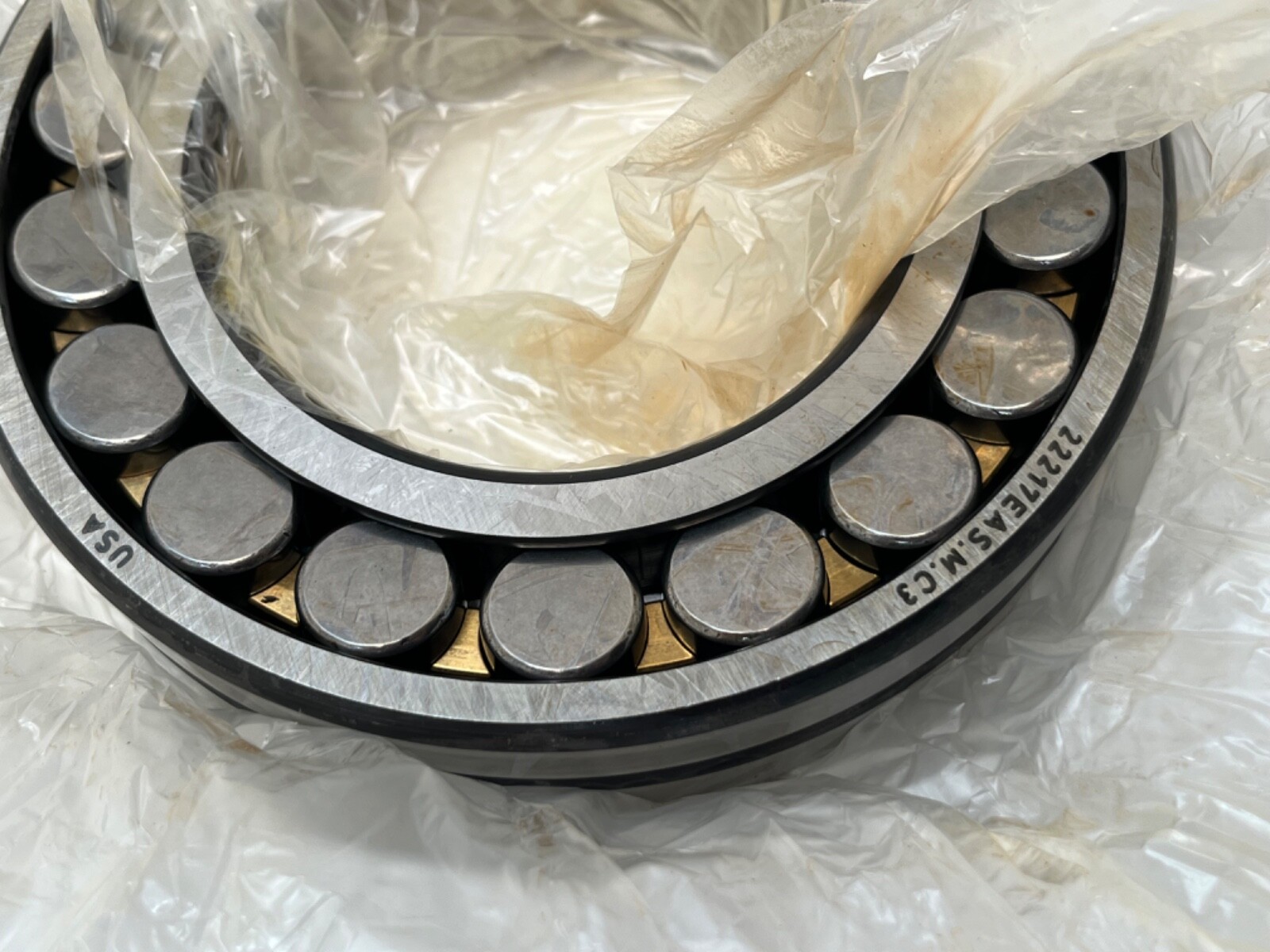

FAG 22217EASM.C3 (22217-EAS-M-C3) double-row spherical roller bearing, 85 x 150 x 36 mm, cylindrical bore, machined brass cage, lubrication groove with holes in the outer ring (W33 type), C3 radial internal clearance. The bearing self-aligns against shaft deflection and misalignment. One bearing.
22217 — spherical roller bearing, dimension series 222, bore code 17 = 85 mm.
E — FAG reinforced internal design with increased load rating.
AS — lubrication groove and lubrication holes in the outer ring, the FAG equivalent of W33.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 36 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Closure Type: Open. Cage Material: Machined brass. Cage Type: Machined. Internal Clearance: C3. Series: 222. Base Number: 22217. Lubricant: grease or oil, fed through the outer-ring groove. Unit Quantity: 1 Pc. Data of the current Schaeffler successor 22217-E1A-XL-M-C3: Dynamic Load Rating: 305,000 N. Static Load Rating: 325,000 N. Limiting Speed: 5,700 rpm. Reference Speed: 3,450 rpm. Item Weight: 2.61 kg (5.75 lb). Operating temperature range: -30 to 200 °C.
Data of the successor 22217-E1A-XL-M-C3: Minimum shaft shoulder diameter: 96 mm. Maximum shaft shoulder diameter: 99 mm. Maximum housing shoulder diameter: 139 mm. Maximum fillet radius: 2 mm. Minimum chamfer: 2 mm. Lubrication hole diameter: 3.2 mm. Lubricating groove width: 6.5 mm.
Cross-Reference 1: SKF 22217 E/C3. Cross-Reference 2: Timken 22217EJW33C3. Cross-Reference 3: NSK 22217EAE4C3. Cross-Reference 4: NTN 22217EAD1C3. Cross-Reference 5: Koyo 22217RHRW33C3. Cross-Reference 6: SNR 22217EAW33C3. Current Schaeffler successor: 22217-E1A-XL-M-C3, 85 x 150 x 36 mm.
Bore Diameter: 85 mm. Outside Diameter: 150 mm. Overall Width: 36 mm. Bore Type: Straight.
AS is the lubrication groove and lubrication holes in the outer ring, the FAG equivalent of W33.
The current Schaeffler successor is 22217-E1A-XL-M-C3 on the same 85 x 150 x 36 mm envelope.
