Double-row spherical roller bearing, 45 mm straight bore, 85 mm OD, 23 mm wide, C3 clearance, polyamide window cage, lubrication groove. FAG 22209ES.TVPB.C3.
List Price
$45.87
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209ES.TVPB.C3 |
| Model | 22209 E S TVPB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 22209 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row barrel roller bearing; SRB; 222 series; W33 spherical roller; nylon cage spherical roller; polyamide cage roller bearing |
| Common Misspellings | 22209ESTVPBC3; 22209 ES.TVPB.C3; 22209ES TVP C3; 22209E.TVPB; 2209ES.TVPB.C3; FAG 22209 ESTVPB |
| Application Types | Gearboxes; conveyor pulleys and idlers; fans and blowers; pumps; mixers and agitators; machine tool auxiliary drives; general industrial plant running below approximately 120 °C |
| Bore Shaft Size | 45 mm |
| Mpn Variants | 22209ES.TVPB.C3; 22209-ES-TVPB-C3; 22209 ES TVPB C3; 22209ESTVPBC3; 22209ESTVPBC3W33; 22209-ES-TVPB-C3-W33; 22209ES.TVPB; 22209E.TVPB.C3; 22209E; 22209 |
| Manufacturer Status | Legacy FAG designation; the current-production straight-bore equivalent is 22209-E1-XL. FAG is a Schaeffler Group brand. |
| Compatible With Replaces | Related size, not a drop-in: 22209K / 22209-E1-K / 22209 EK are the tapered-bore (1:12) versions of the same envelope and need an H309 adapter sleeve. 22209 in Normal (CN) or C4 clearance is the same bearing at a different internal clearance. |
| Cage Type | Window cage, inner-ring guided |
| Rolling Elements | Spherical Rollers |
| Max Temp | 120 °C |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Part Number | 22209ES.TVPB.C3 |
| Overall Width | 23 mm |
| Lubricant | Grease or oil |
| Cross Reference 1 | FAG 22209-E1-XL - current E1 design, XL ratings |
|---|---|
| Cross Reference 2 | FAG 22209EAS.M.C3 - machined brass cage, not polyamide |
| Cross Reference 3 | SKF 22209 E/C3 - E design |
| Cross Reference 4 | NSK 22209EAE4C3 - pressed steel cage |
| Cross Reference 5 | Timken 22209EJW33C3 - pressed steel cage |
| Cross Reference 6 | NTN 22209EAW33 - E design, W33 groove |
| Cross Reference 7 | RHP 22209HLW33 - high-capacity design |

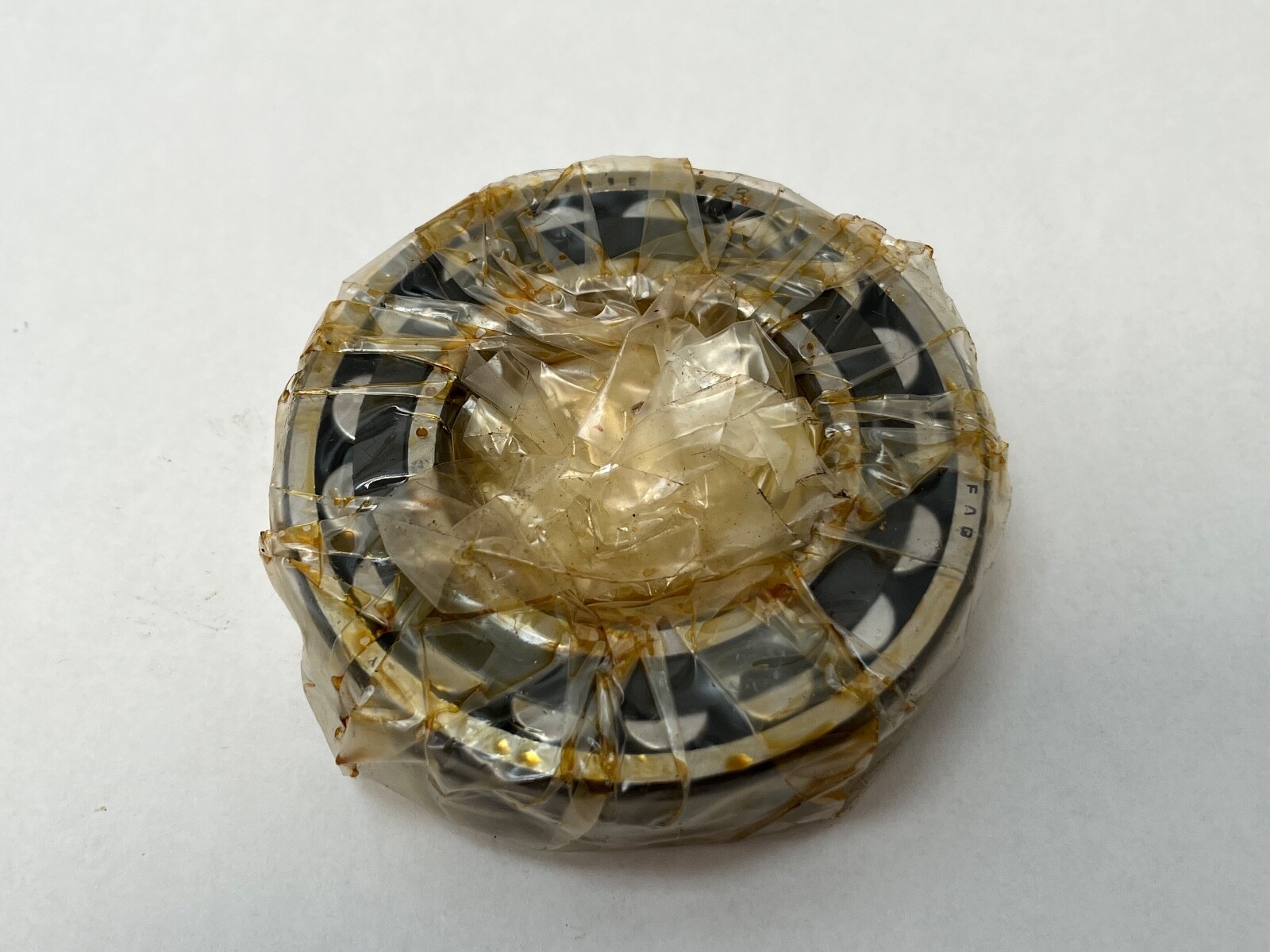

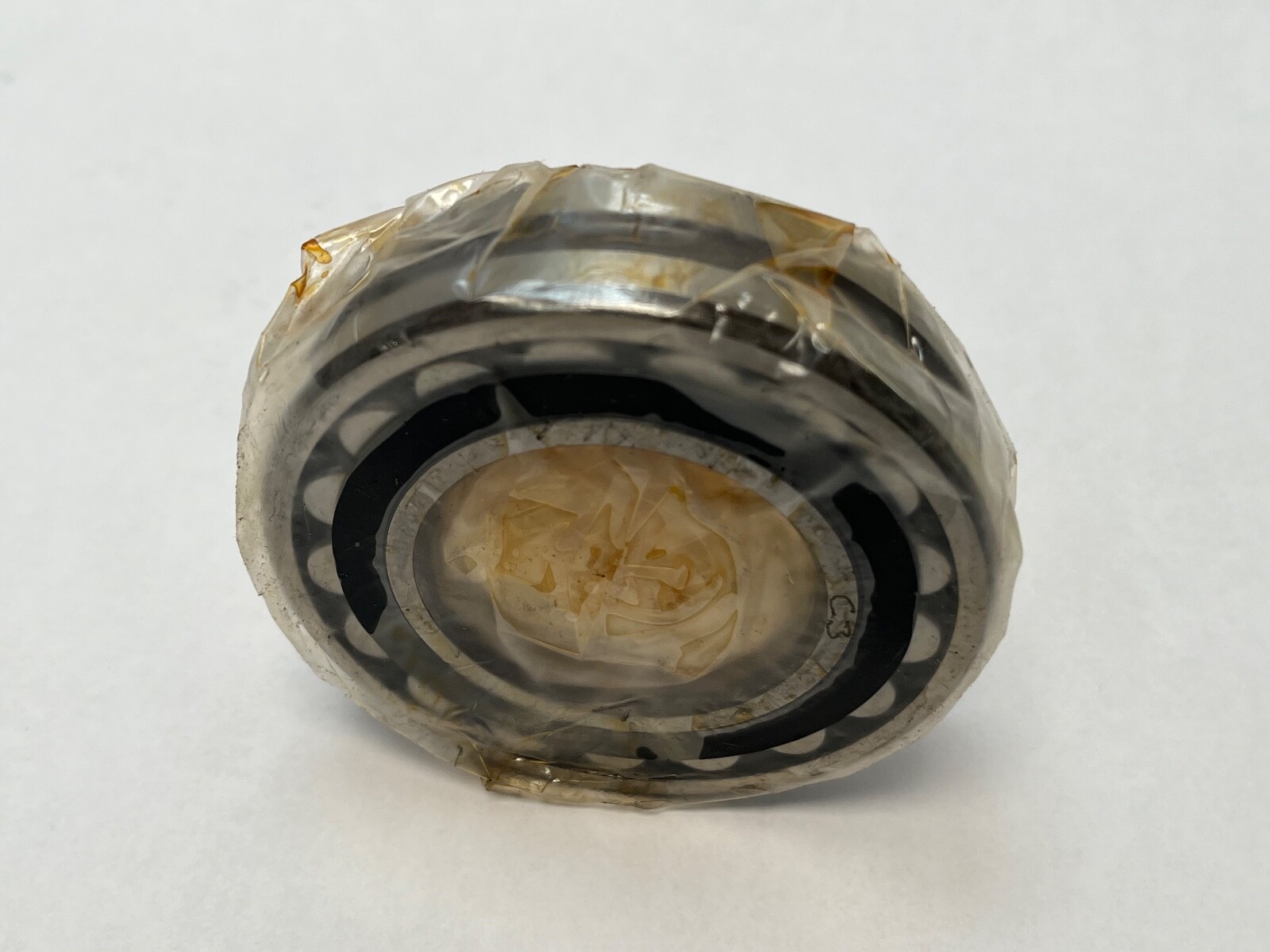

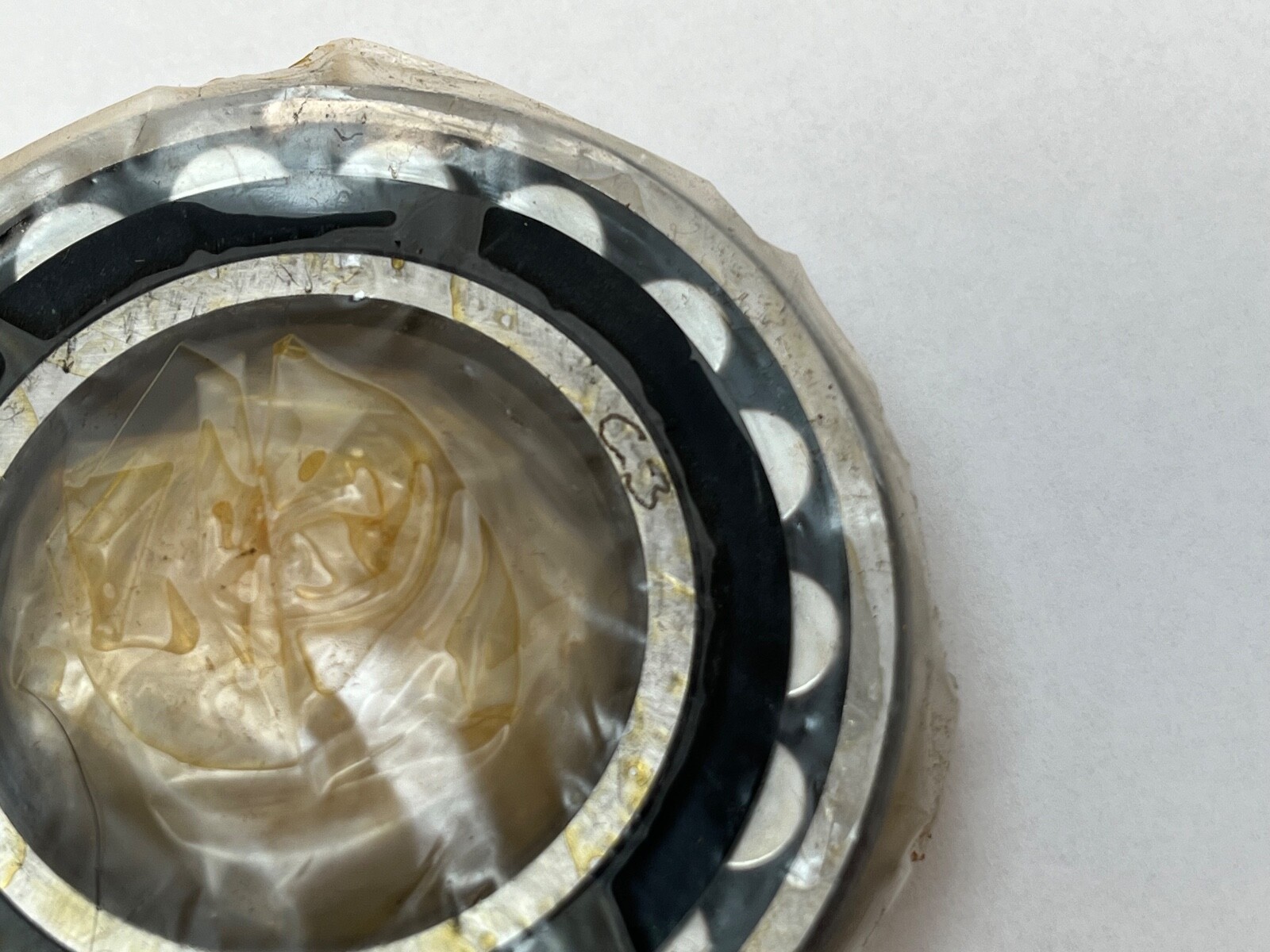

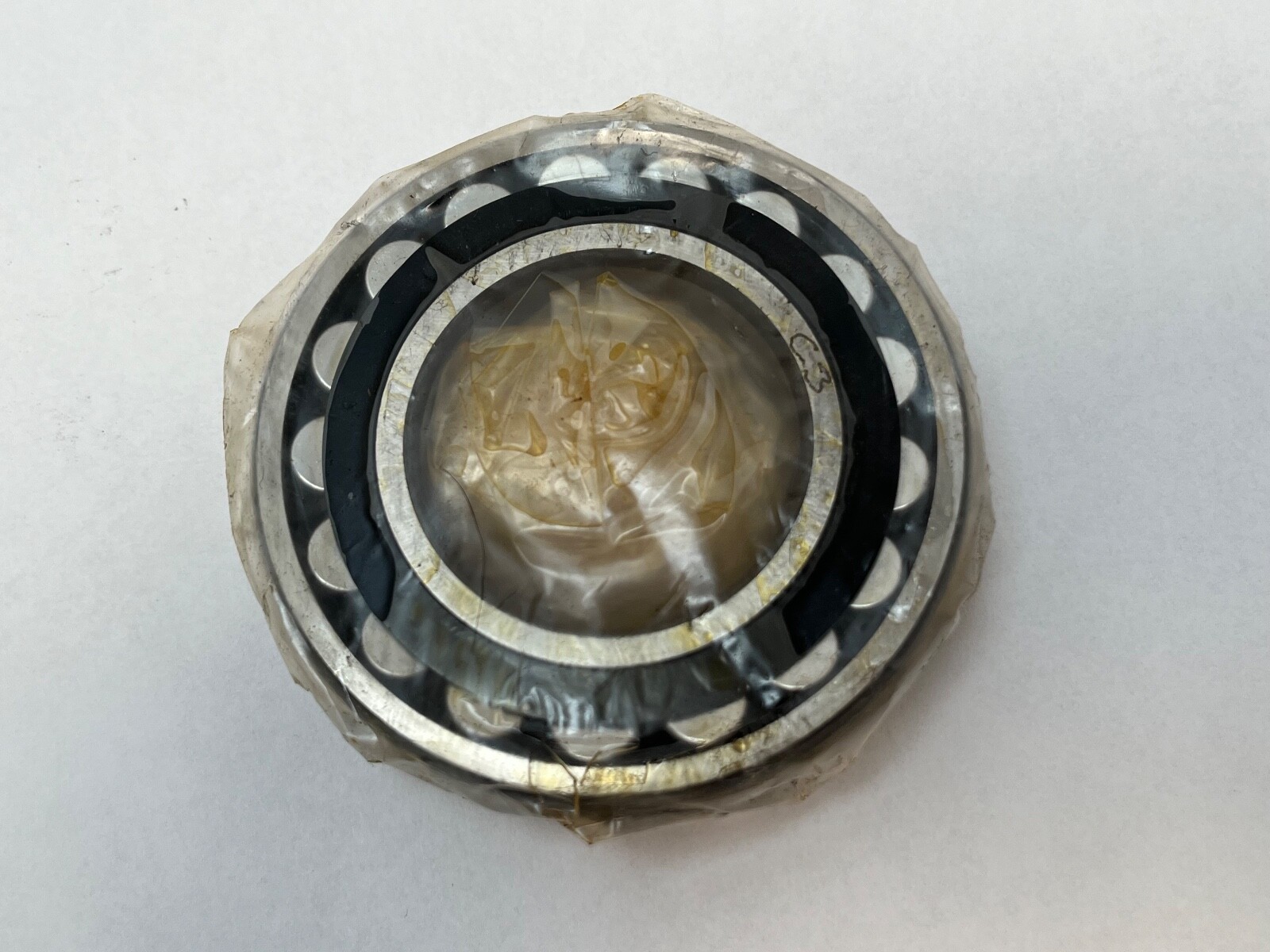

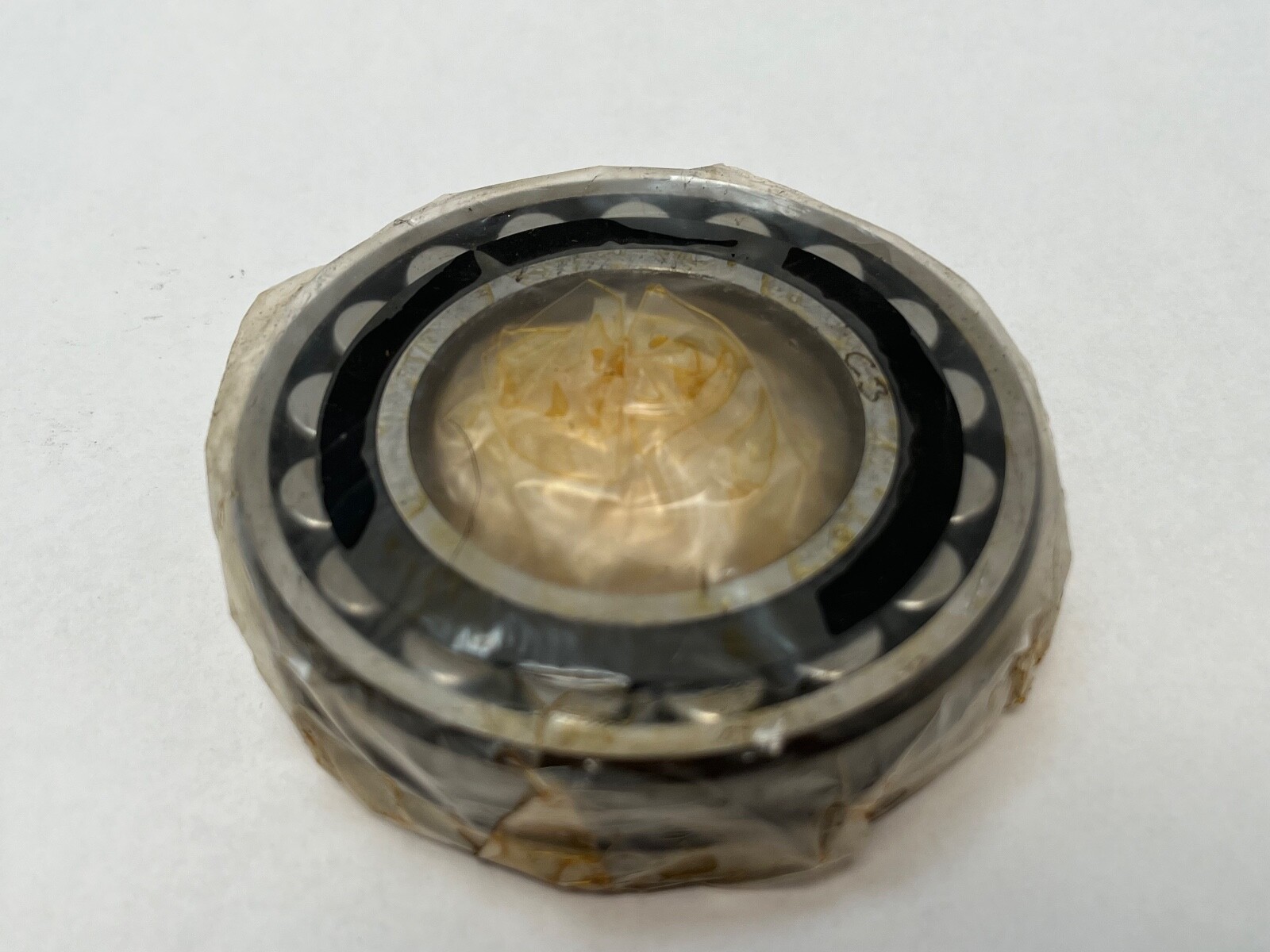

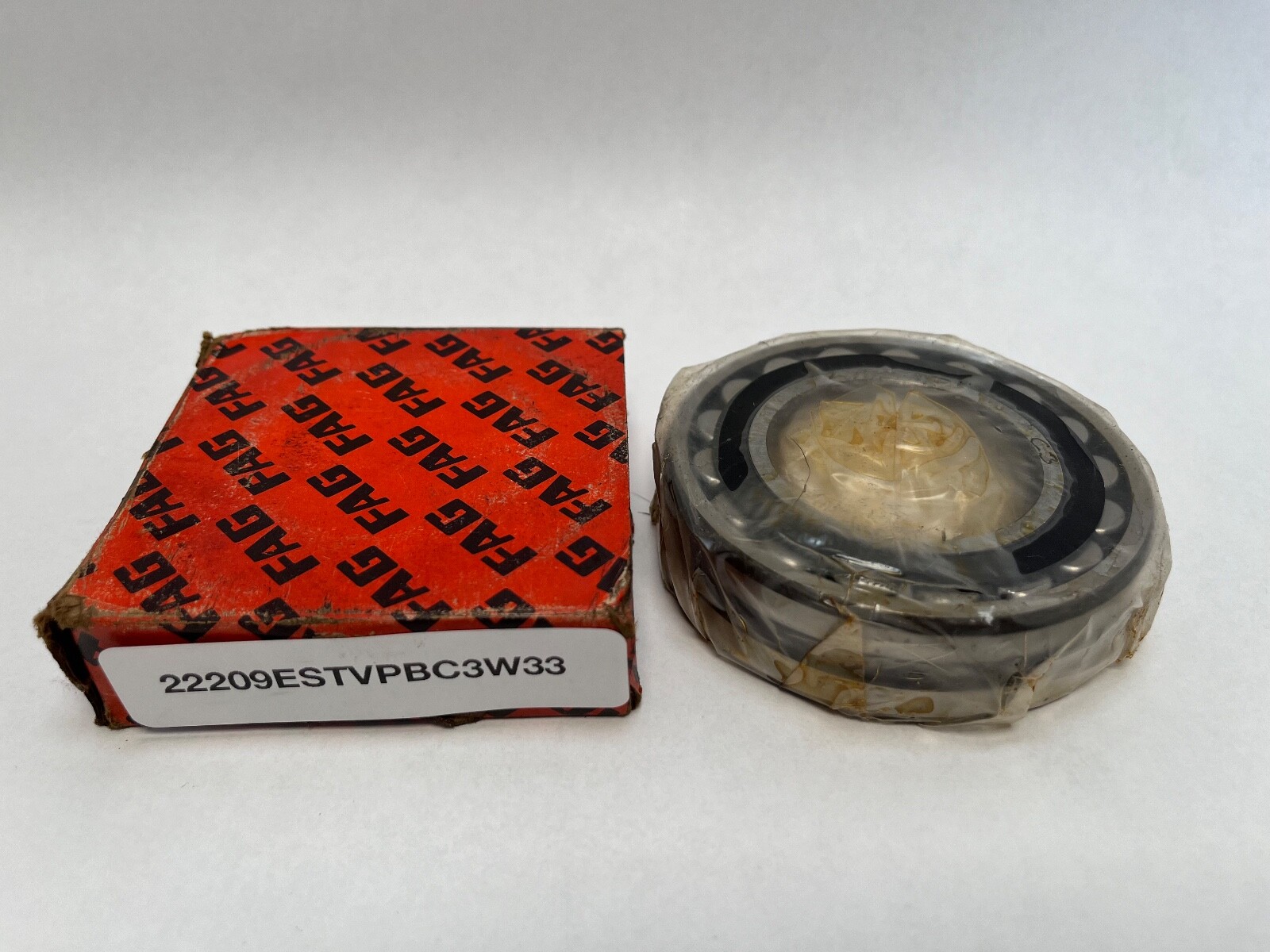

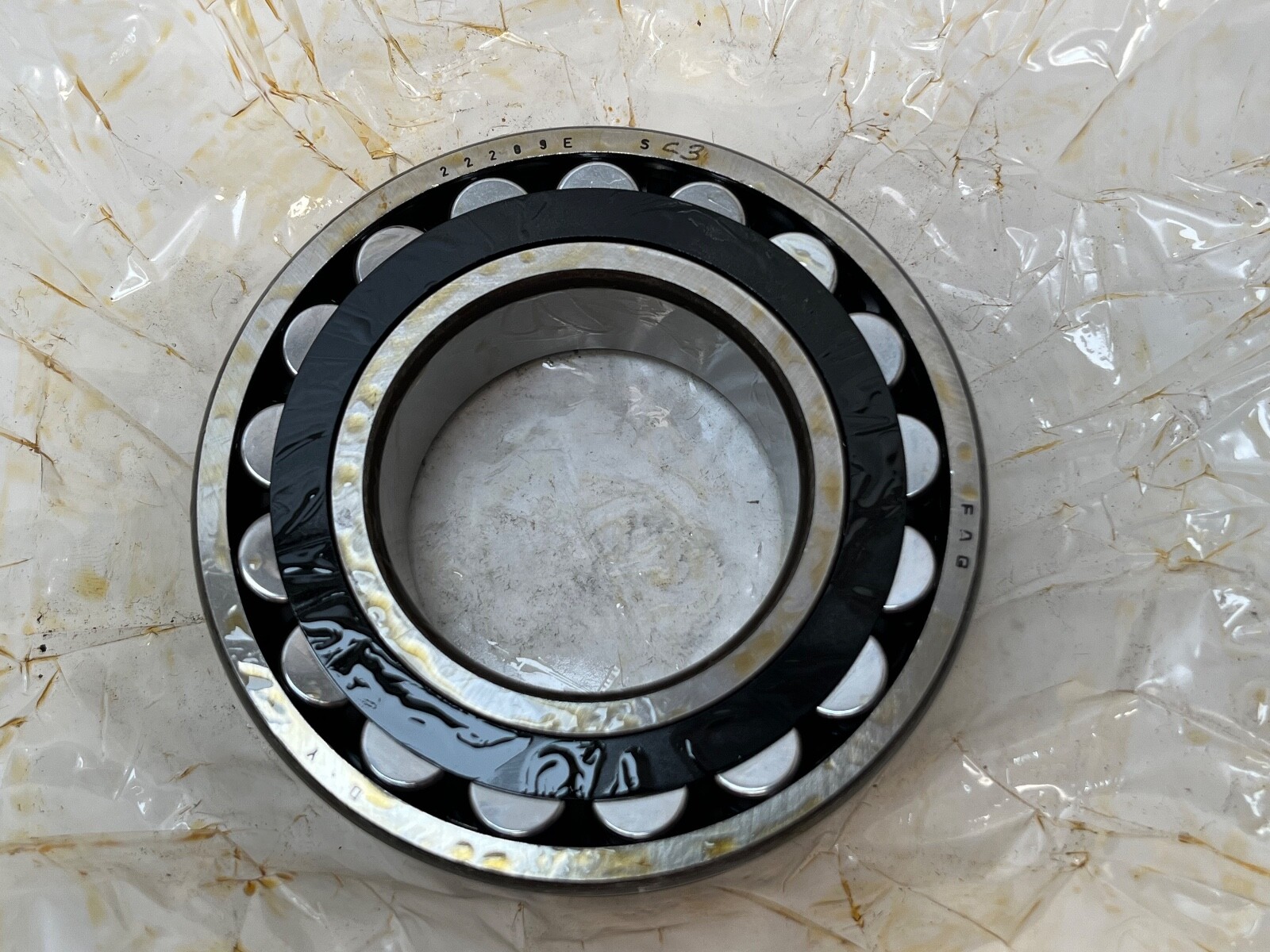

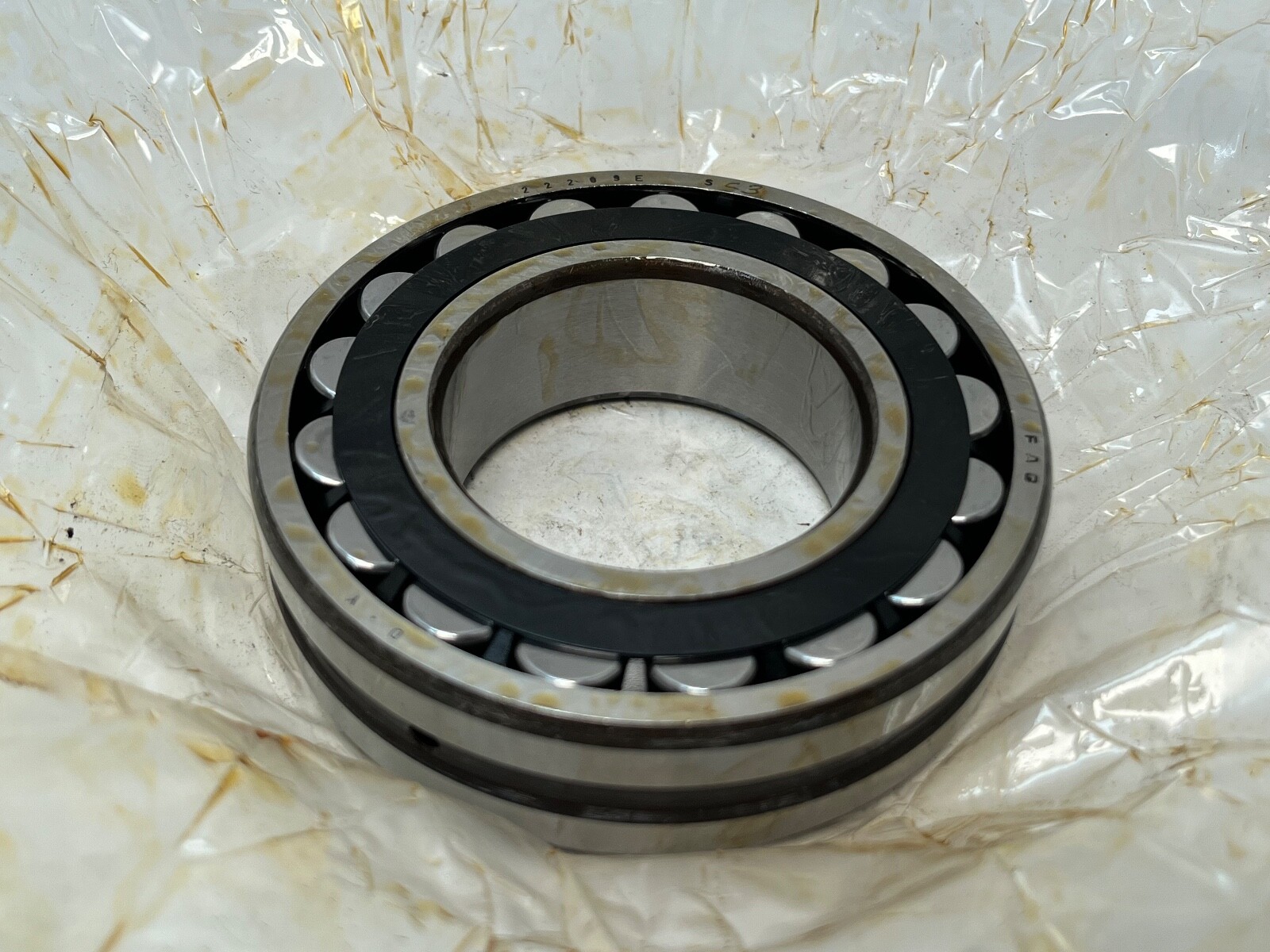

FAG 22209ES.TVPB.C3 double-row spherical roller bearing, 45 mm bore x 85 mm outside diameter x 23 mm wide, ISO 222 dimension series, with a straight cylindrical bore. Glass-fibre reinforced polyamide window cage, C3 internal clearance, annular lubrication groove with lubrication holes in the outer ring. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing, dimension series 22.
09 — bore code for a 45 mm bore.
E — Schaeffler increased-capacity internal design with longer symmetrical barrel rollers and no rigid central rib on the inner ring. The current code for this design family is E1.

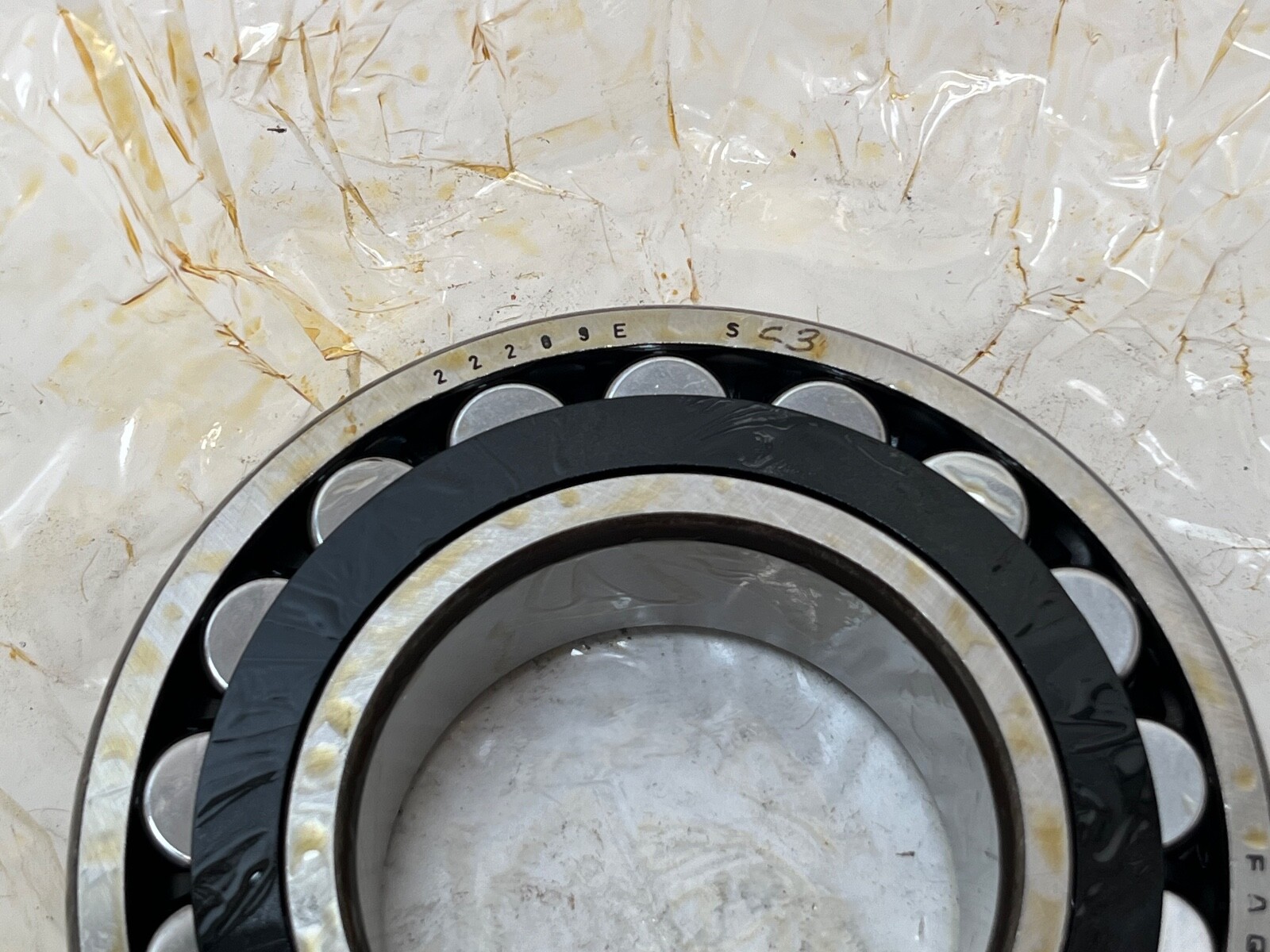

S — annular lubrication groove around the outer ring plus lubrication holes through it; FAG’s code for the feature written W33 by other makers.
TVPB — one-piece moulded window cage in glass-fibre reinforced polyamide, guided on the inner ring.
C3 — radial internal clearance greater than Normal.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Rolling Elements: Spherical roller. Number Of Rows: 2. Bore Type: Straight. Cage Material: Glass-fibre reinforced polyamide. Cage Type: Window cage, inner-ring guided. Closure Type: Open. Internal Clearance: C3. Series: 222. Maximum cage temperature: 120 °C continuous.
The bore is straight and cylindrical; there is no K in the designation, so the bearing seats directly on the shaft with no adapter sleeve. The outer-ring groove and holes carry grease or oil into the roller rows. The bearing is a non-separable assembly: inner ring with both roller rows and cage, plus the outer ring.
Cross-references with the same 45 x 85 x 23 mm straight-bore envelope: FAG 22209-E1-XL (current production), FAG 22209EAS.M.C3 (machined brass cage), SKF 22209 E/C3, NSK 22209EAE4C3, Timken 22209EJW33C3, NTN 22209EAW33, RHP 22209HLW33. The 22209K, 22209-E1-K and 22209 EK are the tapered-bore (1:12) versions of the same envelope and take an H309 adapter sleeve. MPN Variants: 22209ES.TVPB.C3, 22209-ES-TVPB-C3, 22209 ES TVPB C3, 22209ESTVPBC3, 22209ESTVPBC3W33, 22209-ES-TVPB-C3-W33.
45 mm bore, 85 mm outside diameter and 23 mm width.
A one-piece window cage in glass-fibre reinforced polyamide (TVPB), guided on the inner ring, rated to 120 °C continuous.
Straight (cylindrical) bore; the tapered-bore version is designated with a K.
