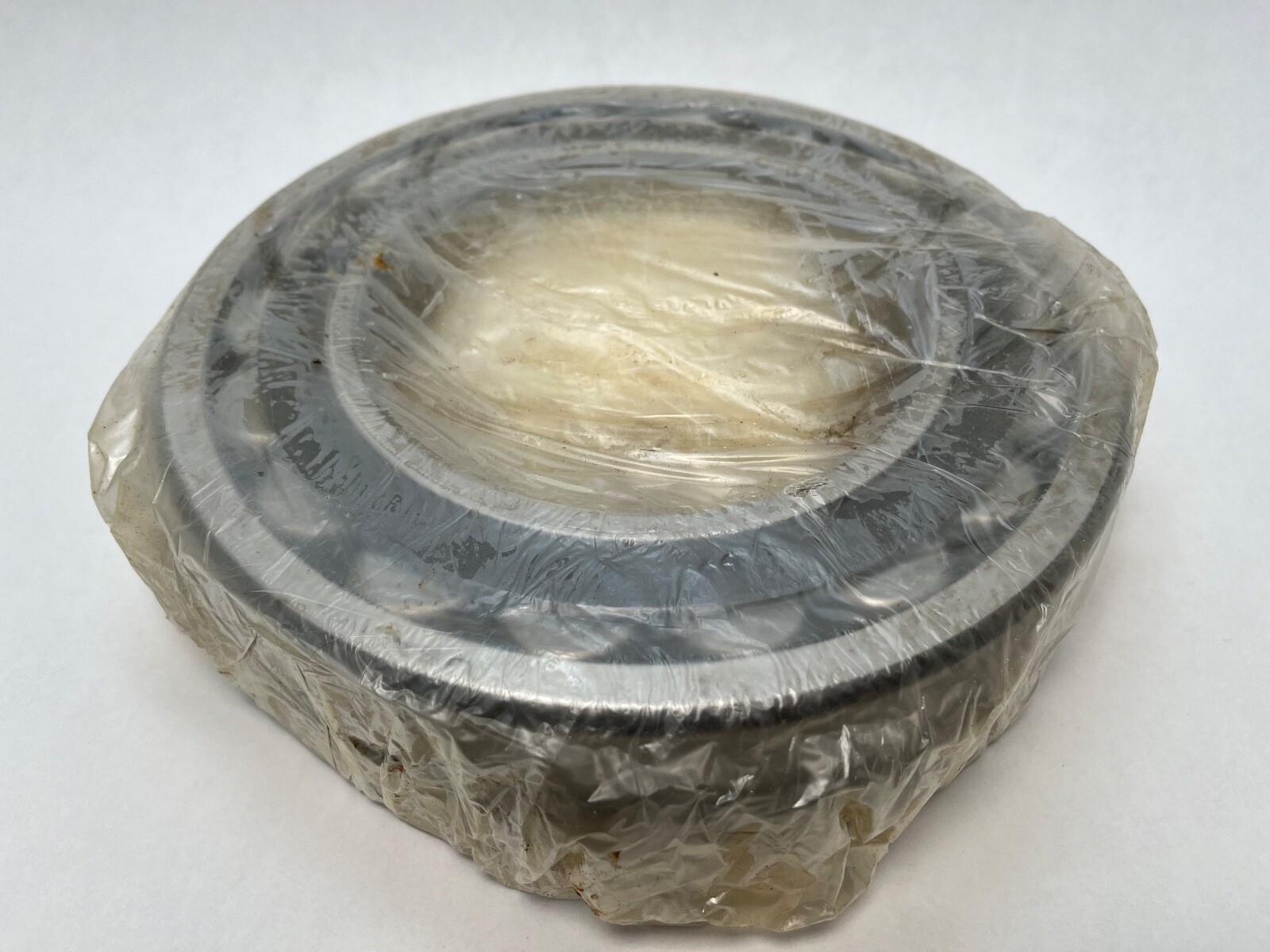

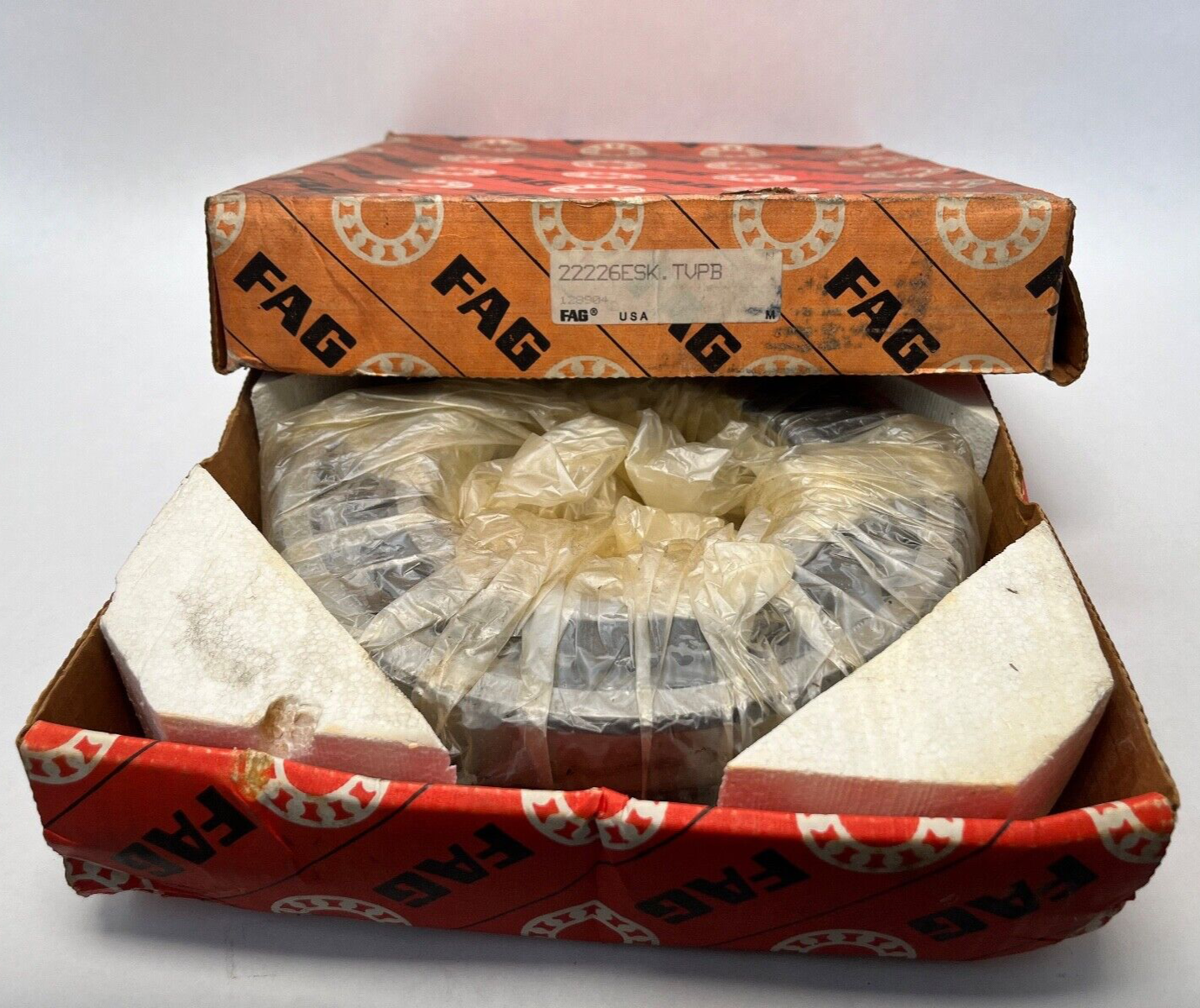

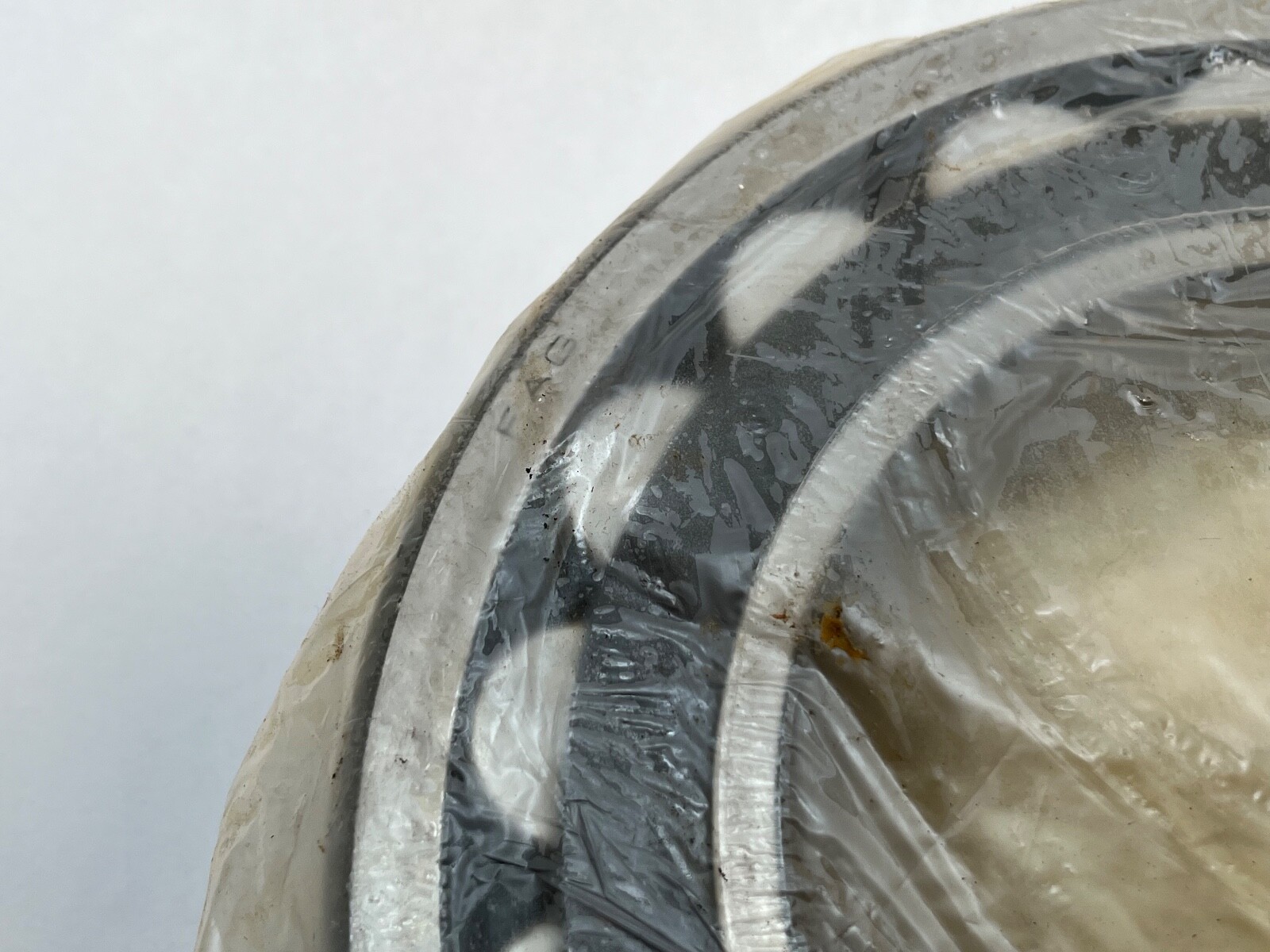

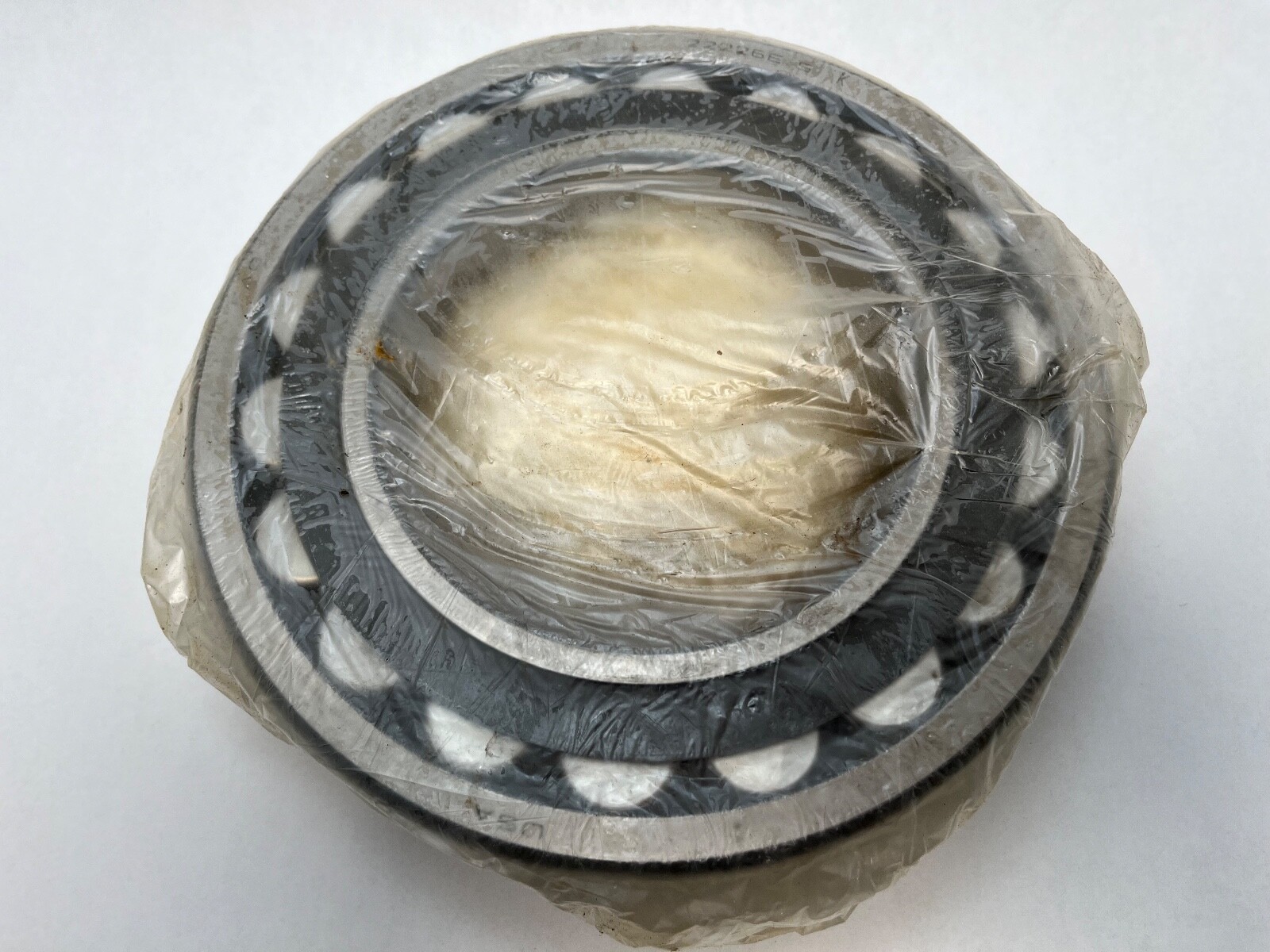

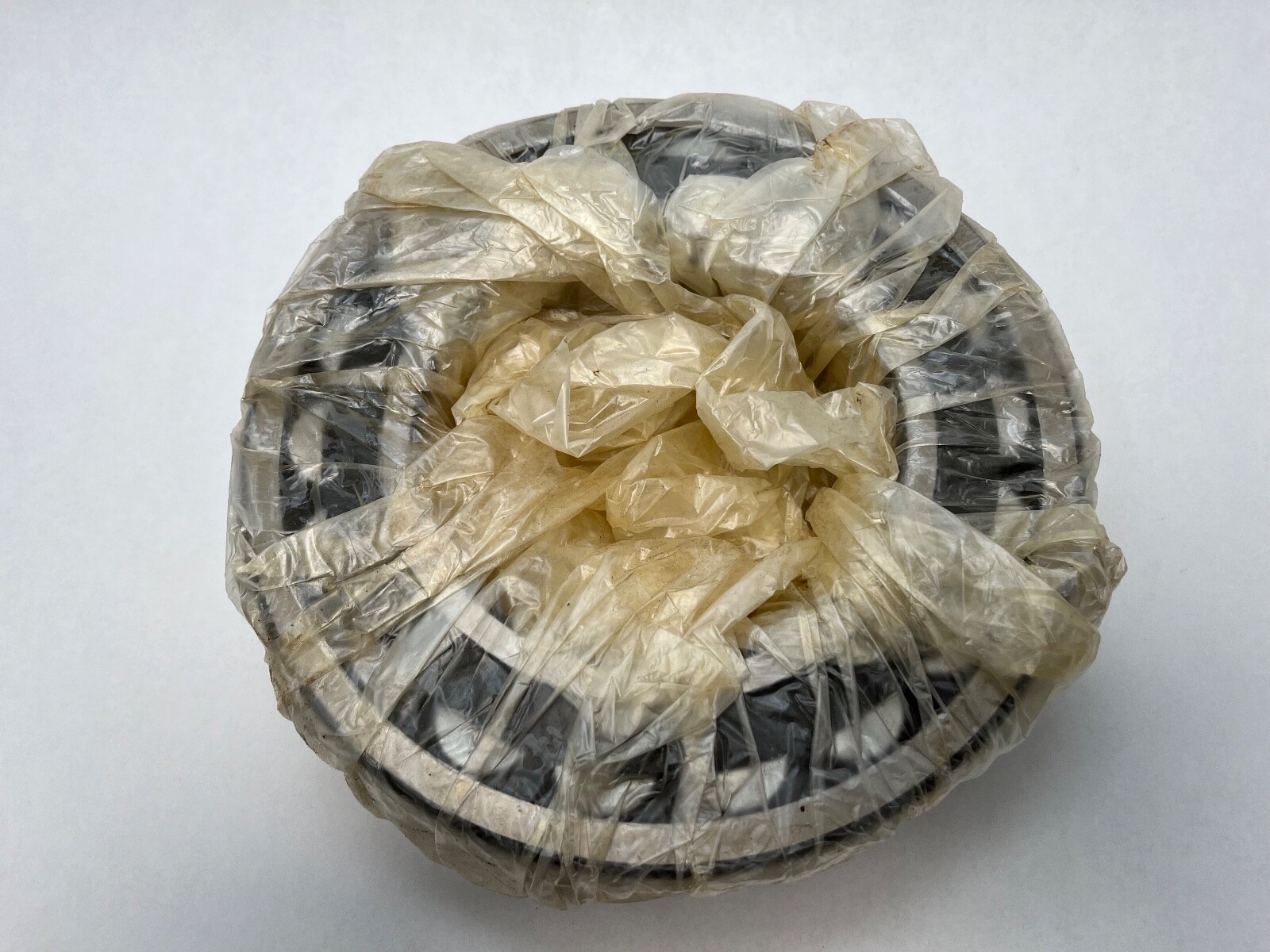

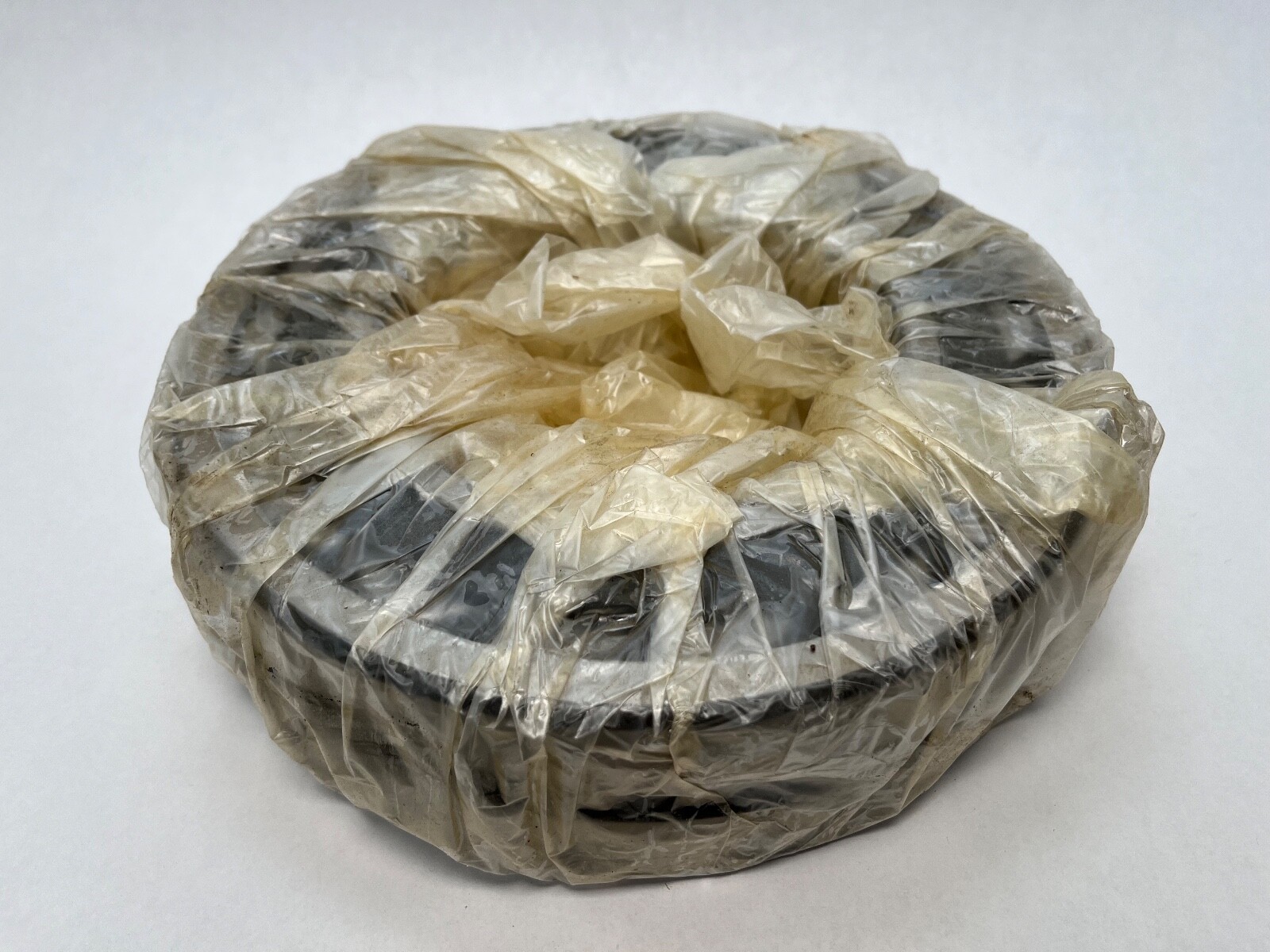

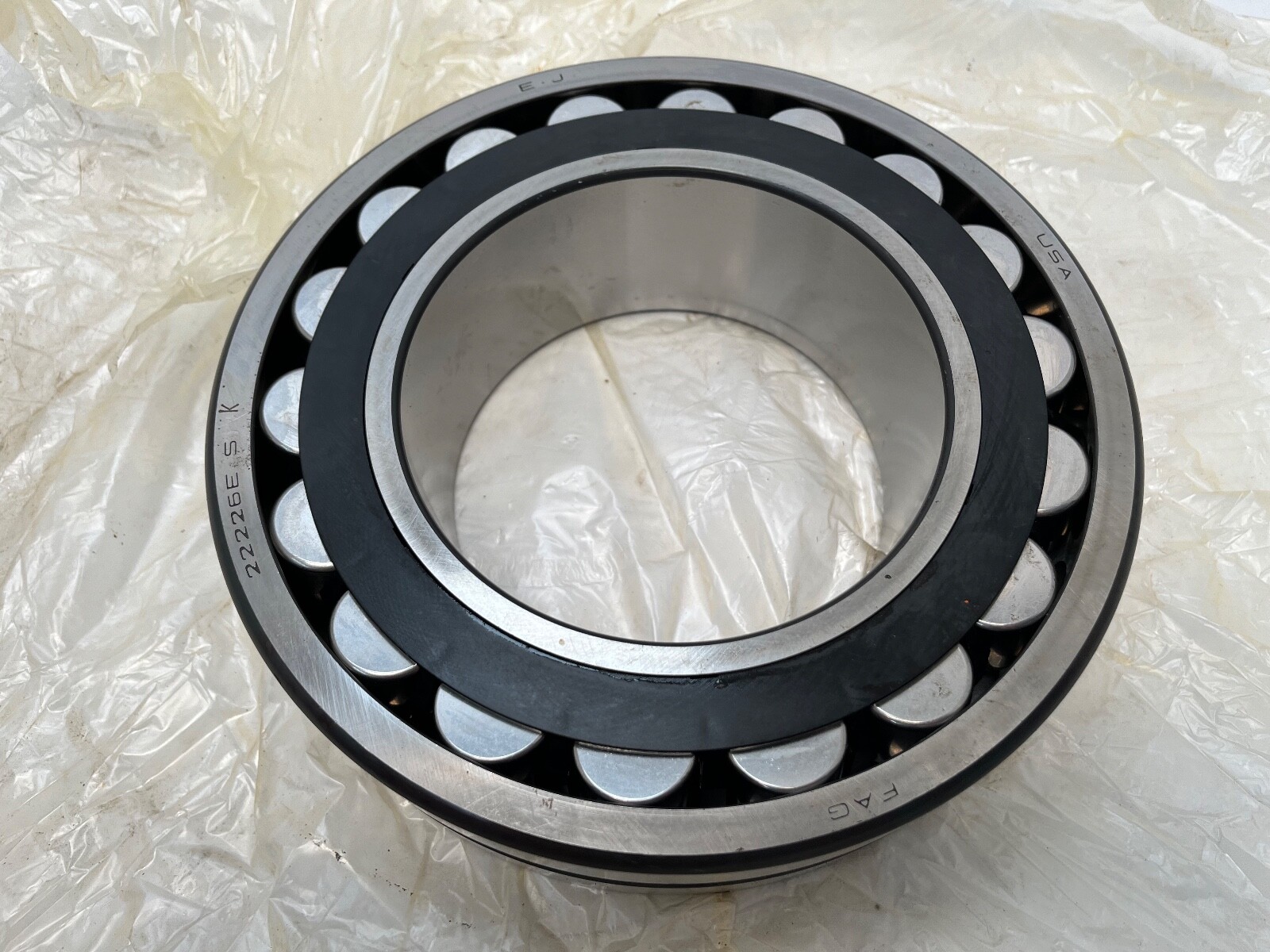

Spherical roller bearing, 130 mm 1:12 tapered bore x 230 mm OD x 64 mm wide, E design, polyamide TVPB cage, W33-type lube groove, H3126 sleeve fit.
List Price
$351.88
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22226ESK.TVPB |
| Model | 22226 ES K TVPB / 22226 CKJ/CCKJ W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Mpn Variants | 22226ESK.TVPB, 22226-ES-K-TVPB, 22226ESKTVPB, 22226E |
| Compatible With Replaces | Mounts on H3126 adapter sleeve |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | Lubrication groove and three holes (S / W33) |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; tapered bore spherical bearing; double row roller bearing; heavy duty bearing |
| Common Misspellings | FAG 22226 ESK TVPB; FAG 22226ESKTVPB; FAG22226ESK.TVPB; FAG 22226-ESK-TVPB |
| Application Types | Gearboxes; industrial fans and blowers; conveyor drives; pumps; crushers and screens |
| Cross Reference 1 | FAG 22226-E1-XL-K - current design |
|---|---|
| Cross Reference 2 | NSK 22226EAKE4 - steel cage |
| Cross Reference 3 | NTN 22226EAKD1 - steel cage |
| Cross Reference 4 | Timken 22226KEJW33 - steel cage |
| Cross Reference 5 | SKF 22226 EK - steel cage, no lube groove |

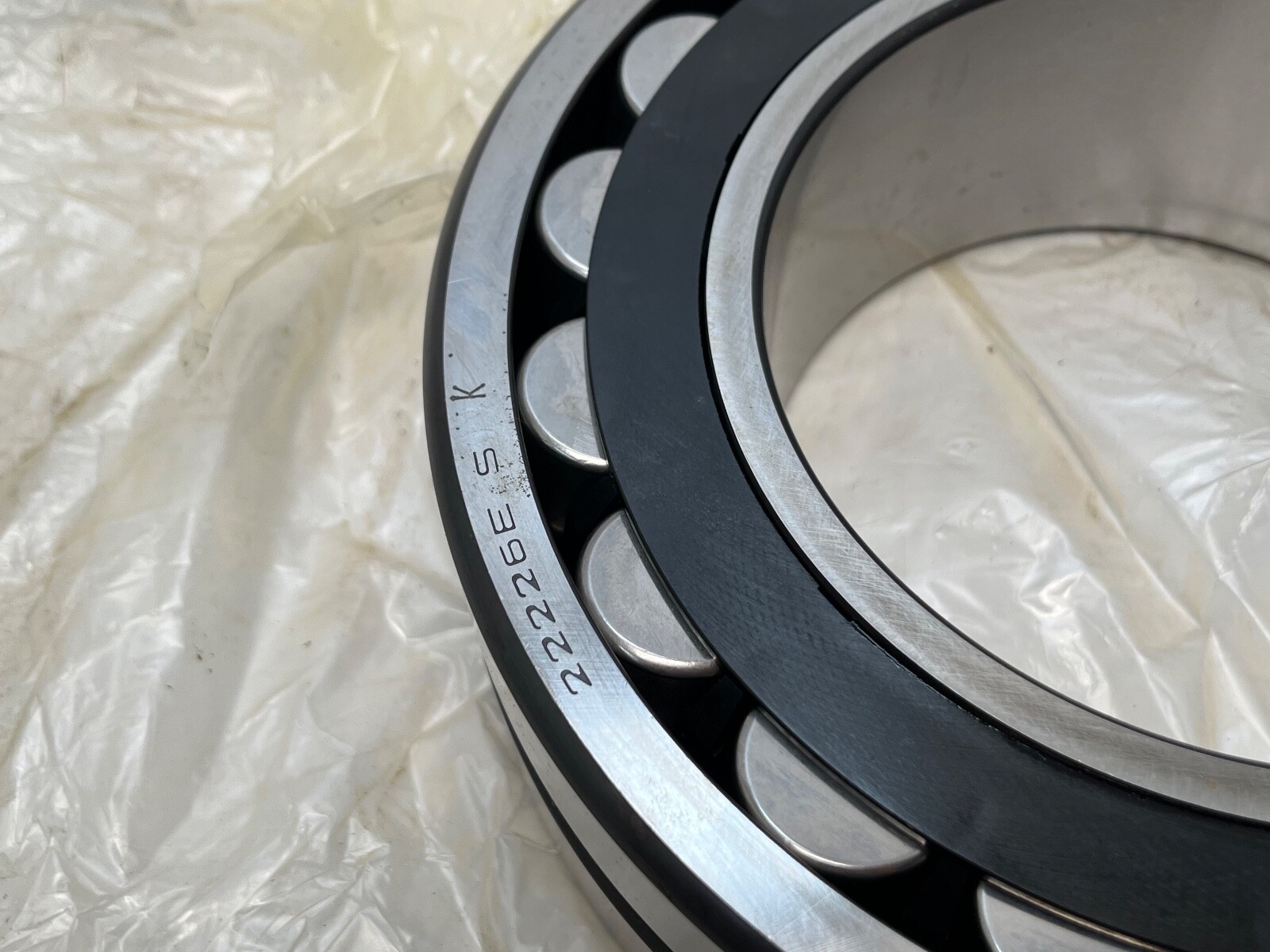

FAG 22226ESK.TVPB is a double-row spherical roller bearing with a 1:12 tapered bore, an outer-ring lubrication groove with three radial holes, and a glass-fibre reinforced polyamide cage. Unit Quantity: 1 Pc. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Width: 64 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Cage Material: Polyamide. Internal Clearance: CN. Seal Type: Open. Country of Origin: United States.

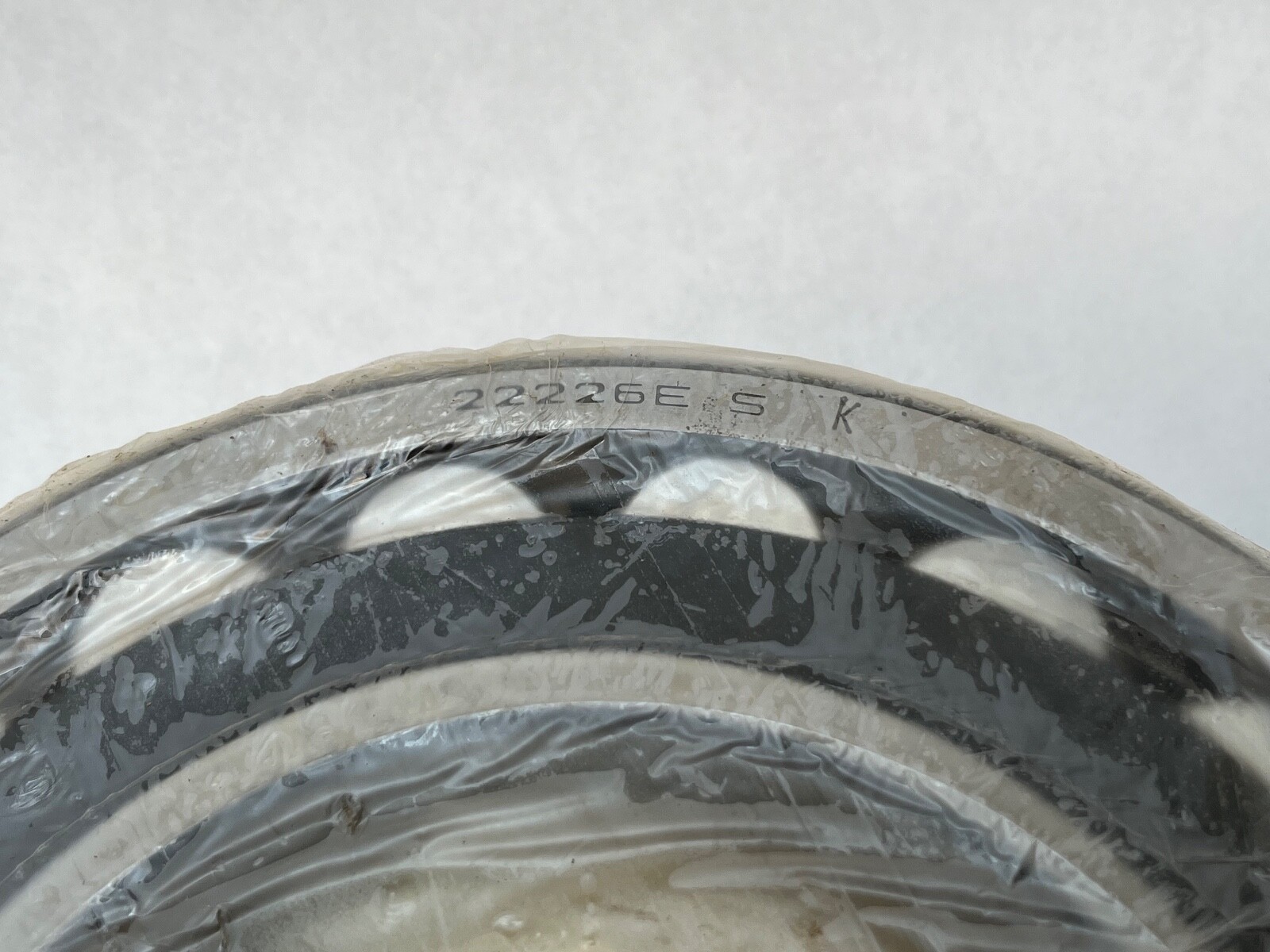

222 — FAG 222 series spherical roller bearing, dimension series 22.
26 — bore code, 26 x 5 = 130 mm bore.
E — FAG reinforced E internal design.
S — lubrication groove and three radial lubrication holes in the outer ring, the FAG equivalent of W33.
K — tapered bore, taper 1:12.
TVPB — glass-fibre reinforced polyamide cage.
No clearance suffix — normal radial internal clearance, CN.
Bore Diameter: 130 mm. Outside Diameter: 230 mm. Width: 64 mm. Series: 22200. Bore Type: Tapered 1:12. Cage Material: Polyamide. Internal Clearance: CN. Lubricant: grease or oil. Relubrication Feature: lubrication groove and three radial holes (S / W33). Harmonization Code: 8482.30.00.
Adapter sleeve: H3126, 115 mm shaft seat, with KM26 locknut and MB26 lock washer.
Cross-references: FAG 22226-E1-XL-K (current design with the same lubrication groove and holes); NSK 22226EAKE4 (steel cage); NTN 22226EAKD1 (steel cage); Timken 22226KEJW33 (steel cage); SKF 22226 EK (steel cage, no lubrication groove).
Bore 130 mm, outside diameter 230 mm, width 64 mm, with a 1:12 tapered bore.
S is a lubrication groove with three radial lubrication holes in the outer ring, the FAG equivalent of W33.
Adapter sleeve H3126 with a 115 mm shaft seat, KM26 locknut and MB26 lock washer.
