Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

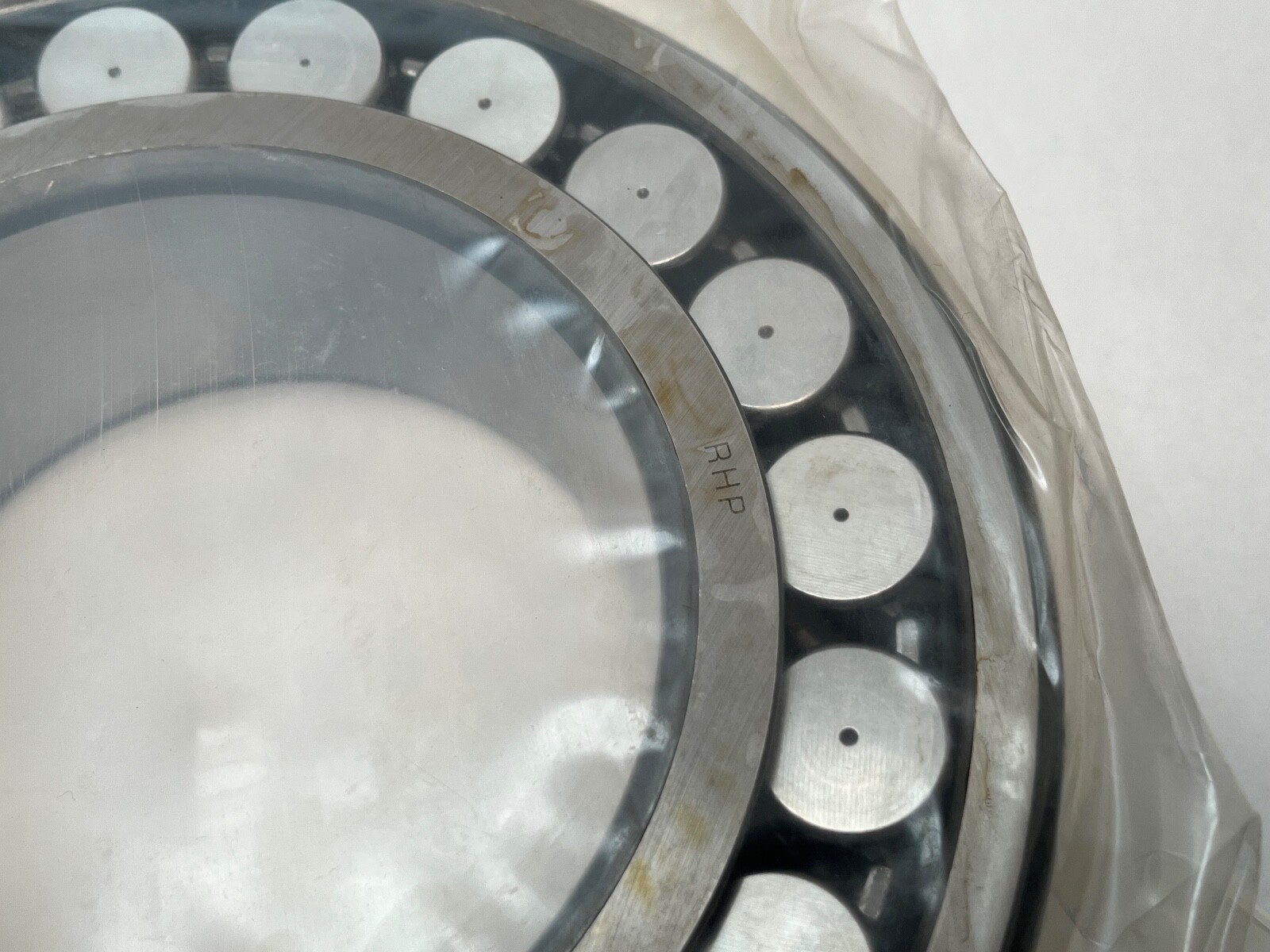

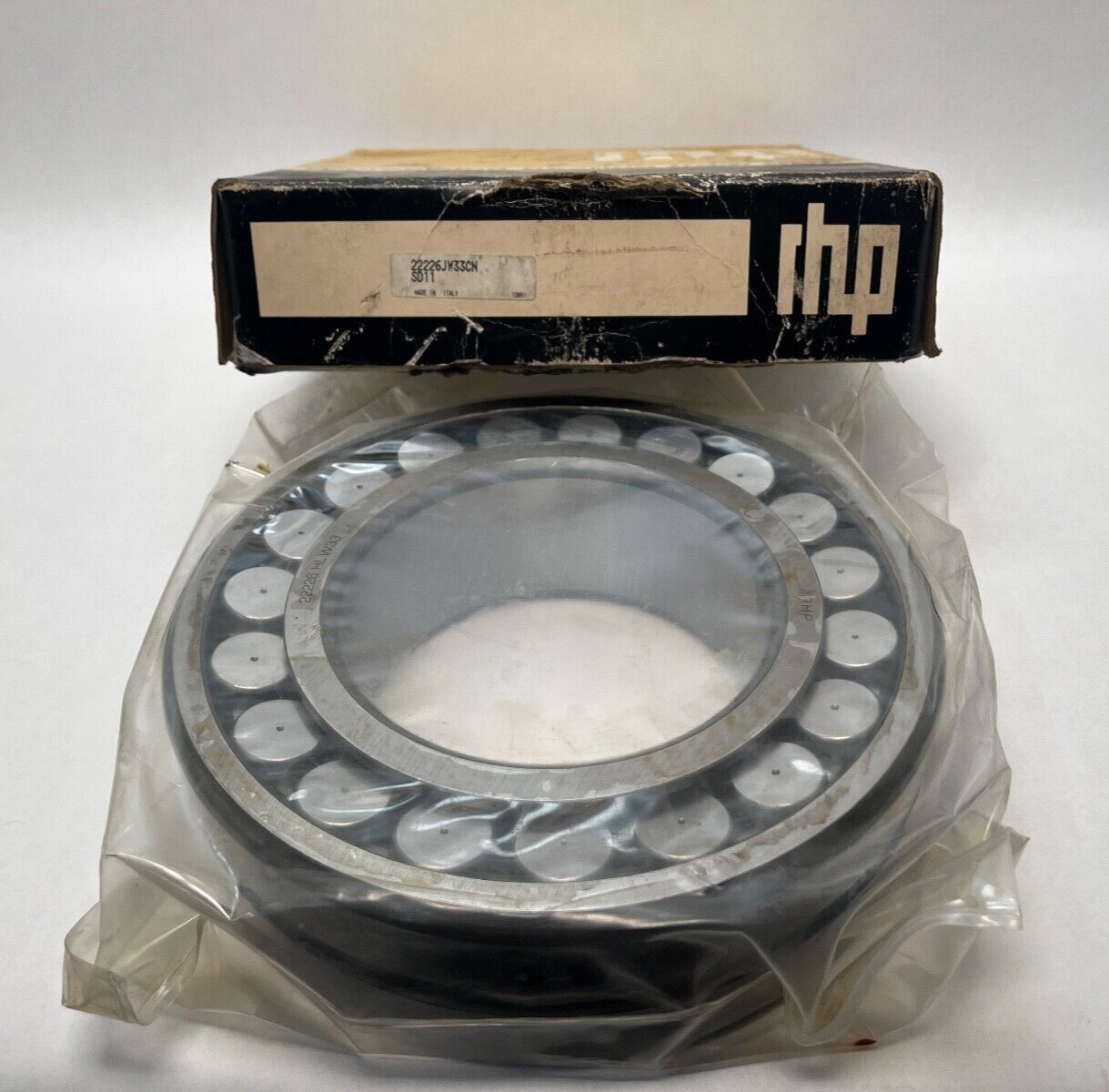

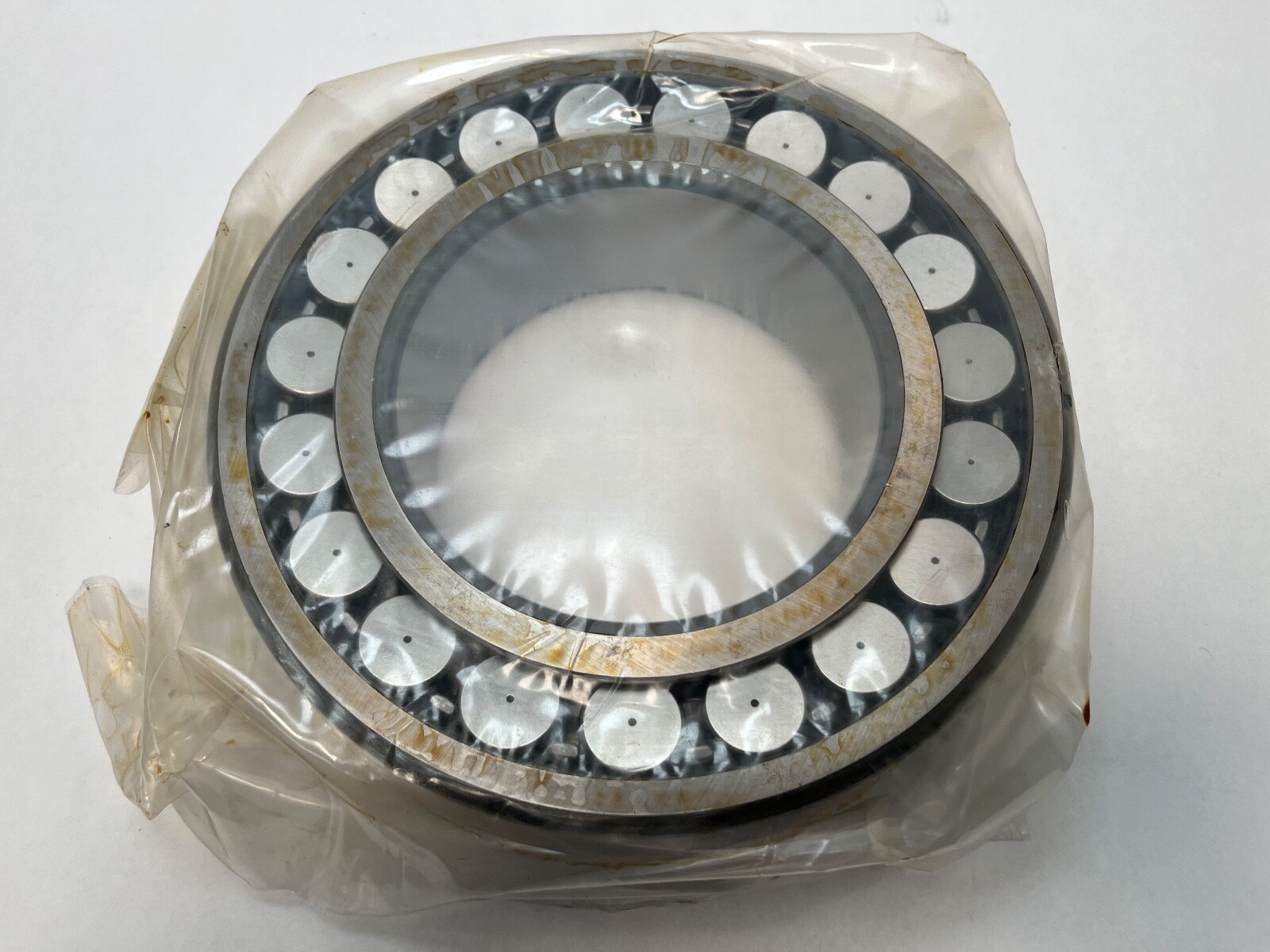

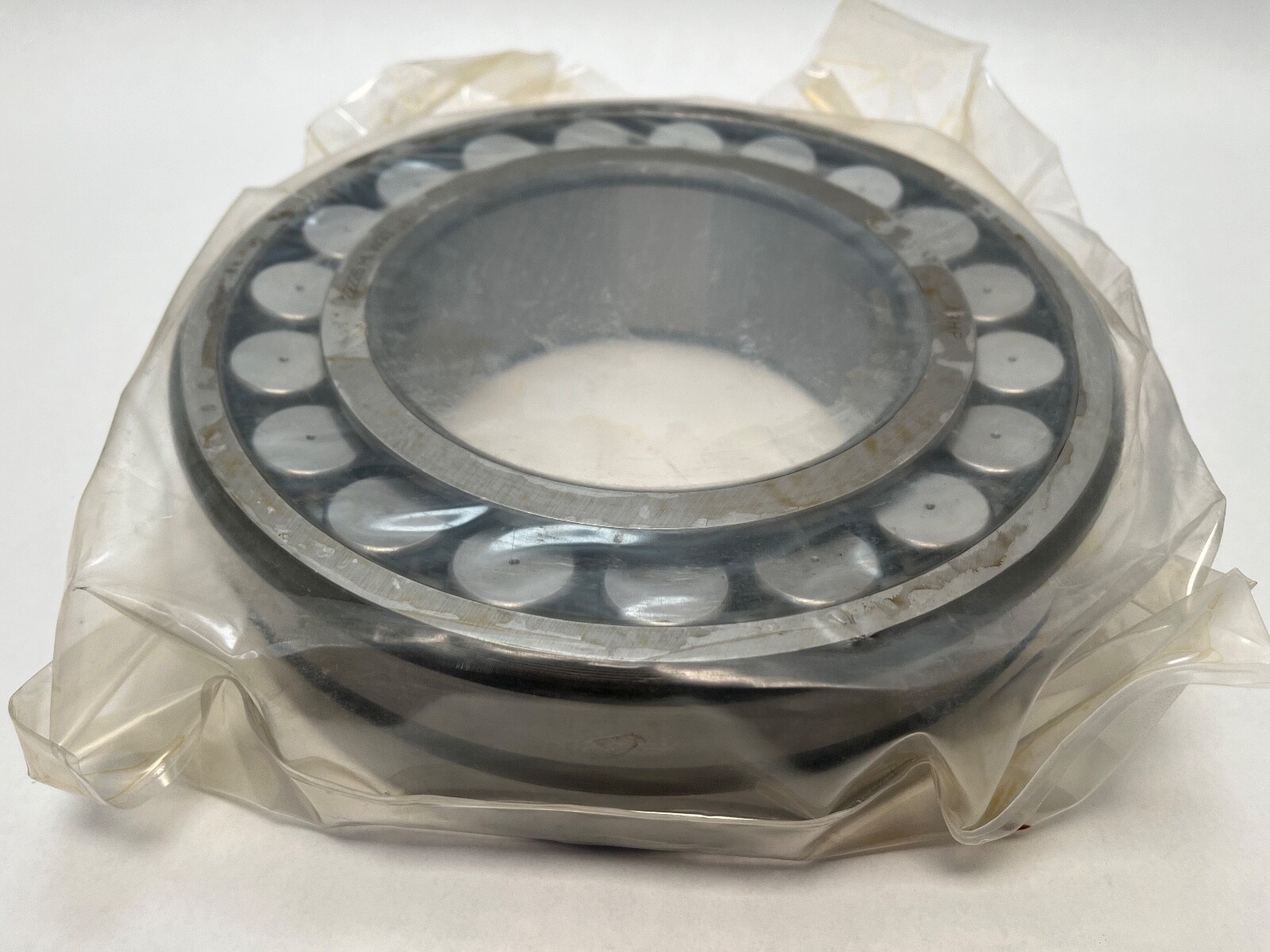

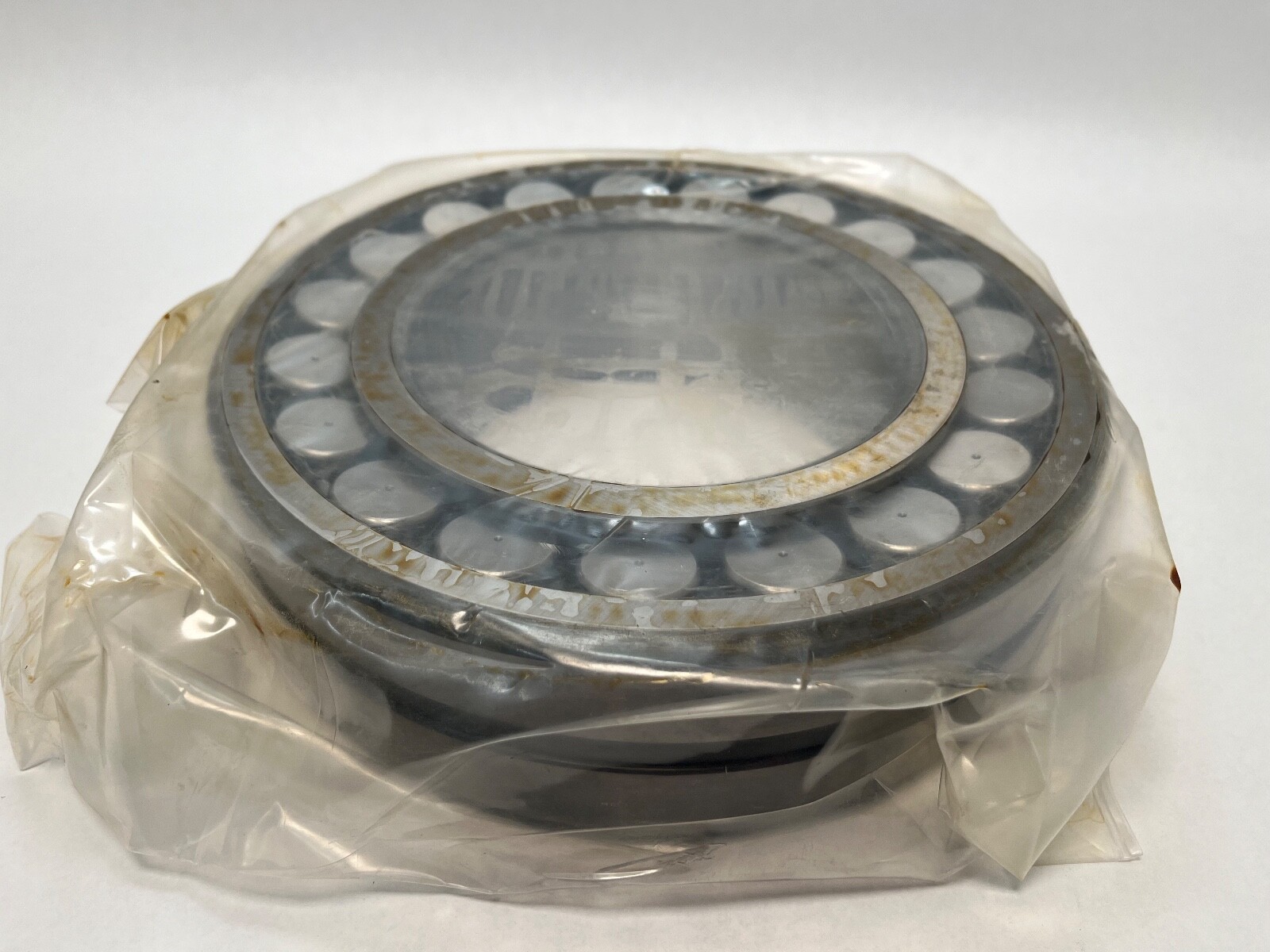

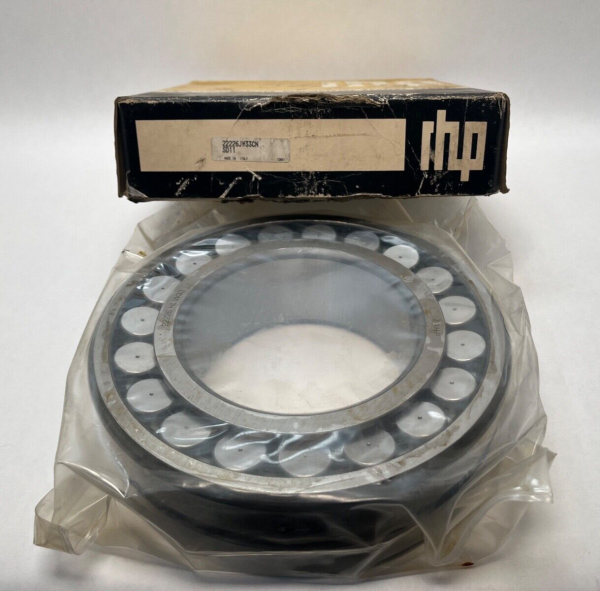

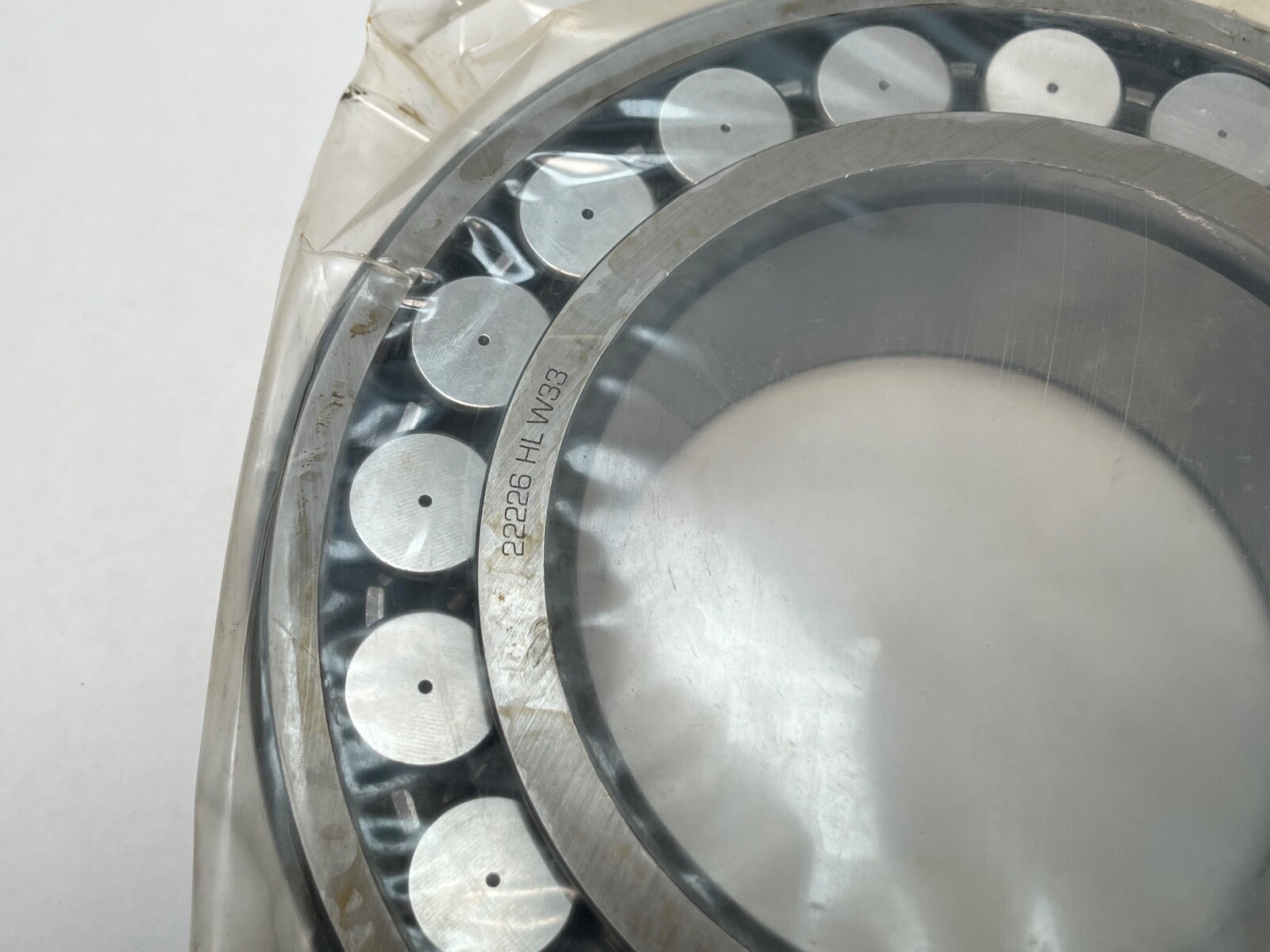

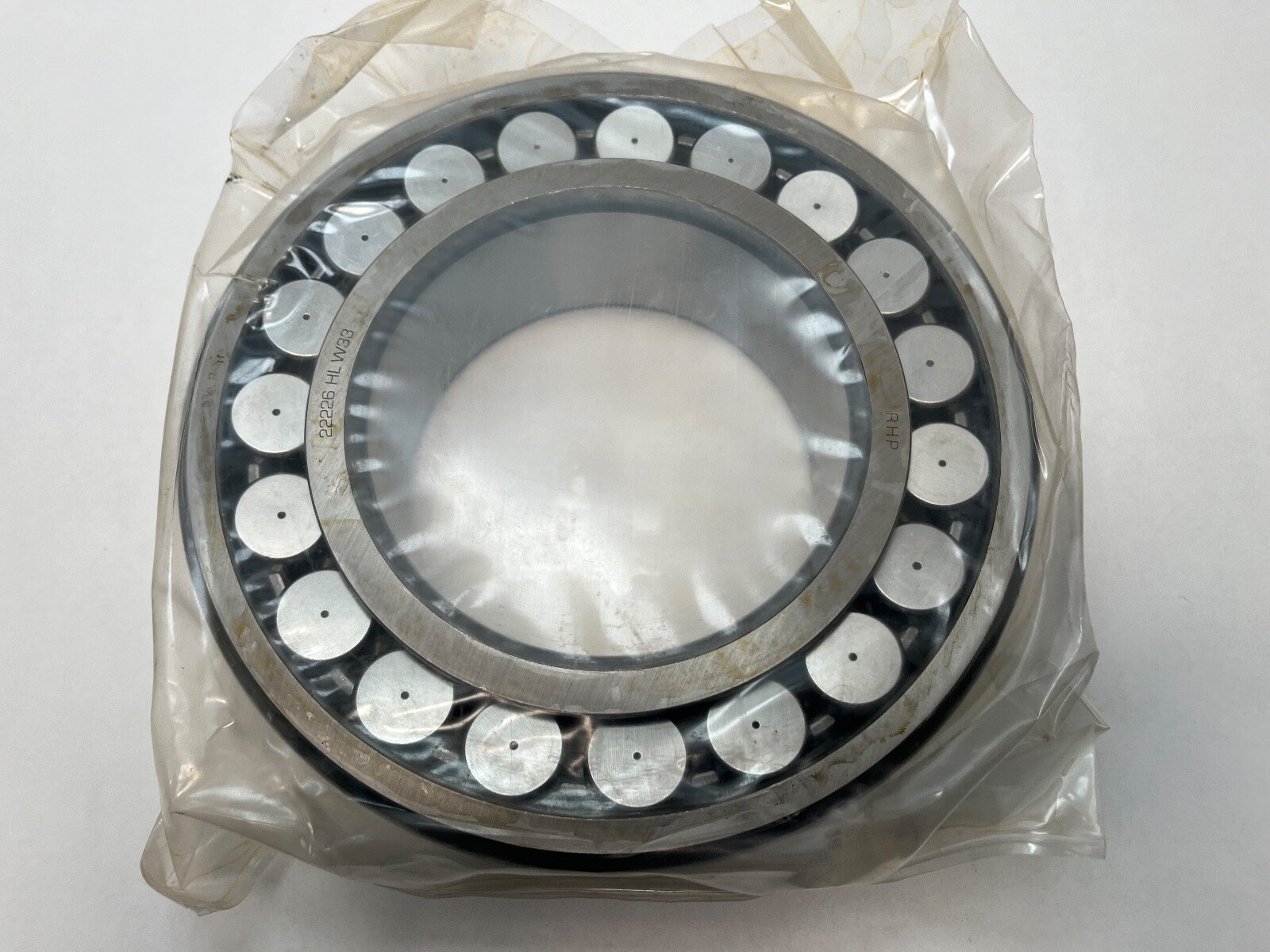

Double-row spherical roller bearing, 130 mm bore, 230 mm OD, 64 mm wide, pressed steel cage, CN internal clearance and the W33 lubrication groove.
List Price
$250.30
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 22226JW33 |
| Model | 22226 J W33 / 22226 CJ/CCJ C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row roller bearing; W33 lubrication groove |
| Common Misspellings | 2226JW33; 22226 JW-33; 22226JW3; 22226 J W 33 |
| Overall Width | 64 mm |
| Mpn Variants | 22226JW33; 22226-J-W33; 22226 J W33; 22226HL; 22226JW33CN; SD11 |
| Additional Attributes | Chamfer r min 3 mm; shaft abutment da 144-152 mm; housing abutment Da 204-216 mm; max fillet radius ra 2.5 mm |
| Dynamic Load Rating | 820,000 N |
| Static Load Rating | 940,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 11 kg (24.25 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Limiting Speed | 2,200 rpm grease; 2,600 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22226 CC/W33 |
|---|---|
| Cross Reference 2 | FAG 22226-E1-XL |
| Cross Reference 3 | NSK 22226EAE4 |
| Cross Reference 4 | NTN 22226EAD1 |
| Cross Reference 5 | Timken 22226EJW33 |
| Cross Reference 6 | Koyo 22226RHRW33 |
| Cross Reference 7 | SNR 22226EAW33 |
RHP 22226JW33 double-row spherical roller bearing on a straight bore. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open.
22226 — ISO 222 dimension series, bore code 26. Bore 130 mm, outside diameter 230 mm, width 64 mm.
J — pressed steel cage. Cage Material: Pressed steel.
W33 — an annular groove machined around the outside diameter with three radial holes drilled through to the raceway. The groove distributes lubricant around the outer ring and the three holes carry it inward to the rollers. Lubricant: grease or oil.
CN — normal radial internal clearance, marked explicitly on the carton. Internal Clearance: CN.
Two rows of barrel rollers run on a single spherical raceway ground into the outer ring. The inner ring, rollers and cage swivel as one assembly inside that raceway, so misalignment between shaft and housing is absorbed within the bearing. Dynamic Load Rating: 820,000 N. Static Load Rating: 940,000 N. Limiting Speed: 2,200 rpm grease; 2,600 rpm oil. Series: 22200. Item Weight: 11 kg (24.25 lb).
Straight bore, mounted directly on the shaft seat with no adapter sleeve. Chamfer dimension r min: 3 mm. Shaft abutment diameter da: 144 mm min, 152 mm max. Housing abutment diameter Da: 204 mm min, 216 mm max. Maximum fillet radius on the shaft or housing ra: 2.5 mm.
Same 130 x 230 x 64 mm envelope, same ISO 222-series geometry and the same W33 lubrication feature: SKF 22226 CC/W33, FAG 22226-E1-XL, NSK 22226EAE4, NTN 22226EAD1, Timken 22226EJW33, Koyo 22226RHRW33, SNR 22226EAW33.
