Torrington 22226W33 spherical roller bearing, brass cage, 130 mm bore x 230 mm OD x 64 mm wide, straight bore, W33 lube groove. Successor: Timken 22226EMW33.
List Price
$244.51
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22226W33 |
| Model | 22226-BR-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Dynamic Load Rating | 757,000 N (Successor 22226EMW33 data) |
| Static Load Rating | 945,000 N (Successor 22226EMW33 data) |
| Rolling Elements | Spherical Roller |
| Item Weight | 11.3 kg (24.9 lb) (Successor 22226EMW33 data) |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Mpn Variants | 22226W33, 22226-BR-W33, 22226BRW33, 22226W33BR, 22226MB, 22226M, 130SD22 W33 |
| Compatible With Replaces | Timken 22226EMW33 (current successor design, brass cage) |
| Additional Attributes | Successor 22226EMW33 data: e factor 0.26; Y0 2.56; Y1 2.62; Y2 3.9; shaft backing shoulder 155 mm; housing backing shoulder 210 mm; max fillet radius 2.5 mm |
| Internal Clearance | CN |
| Design Units | Metric |
| Closure Type | Open |
| Cross Reference 1 | Timken 22226EMW33 |
|---|---|
| Cross Reference 2 | NSK 22226CAME4 |
| Cross Reference 3 | SKF 22226 E (steel cage) |
| Cross Reference 4 | FAG 22226-E1-XL (steel cage) |

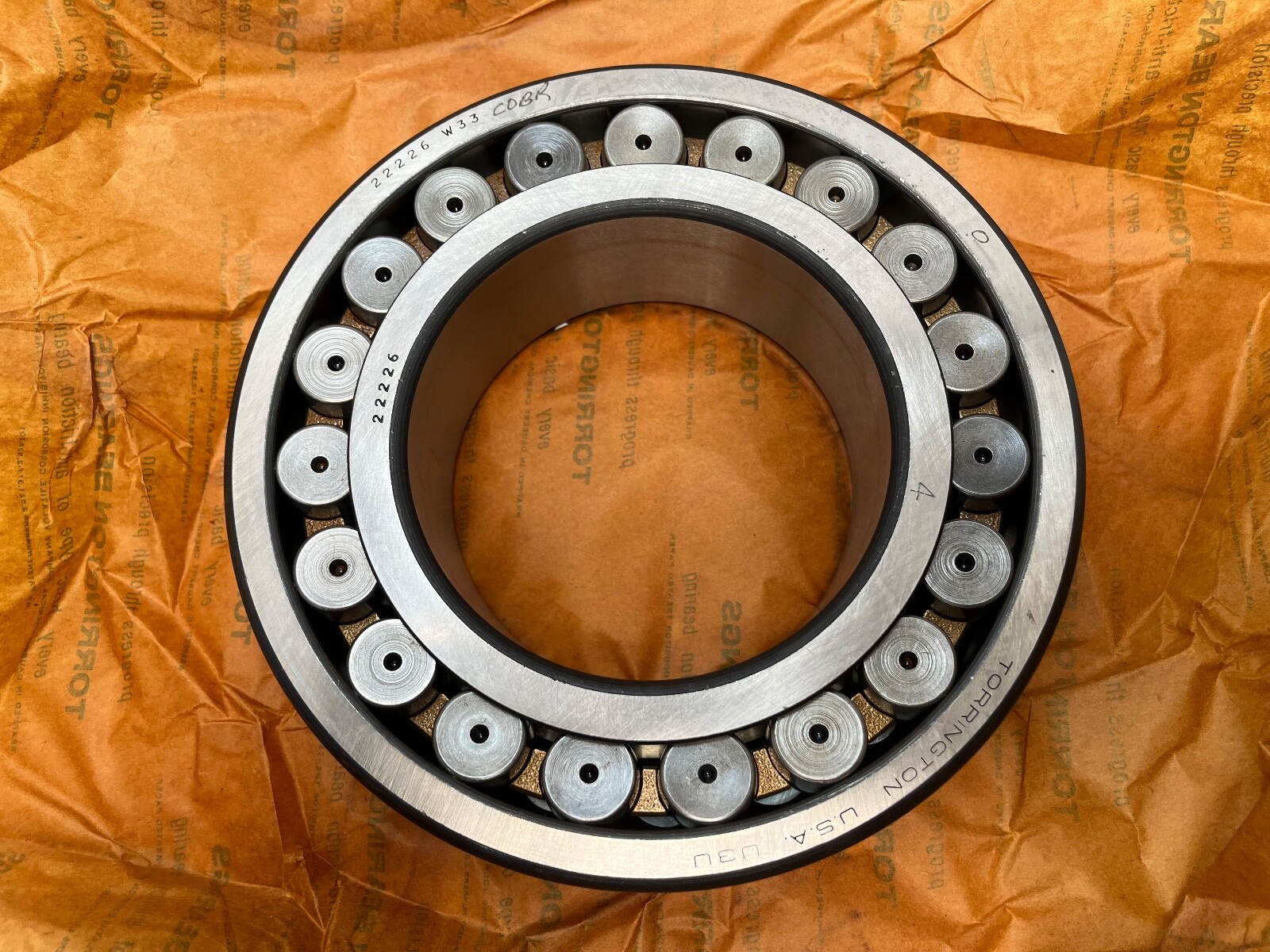

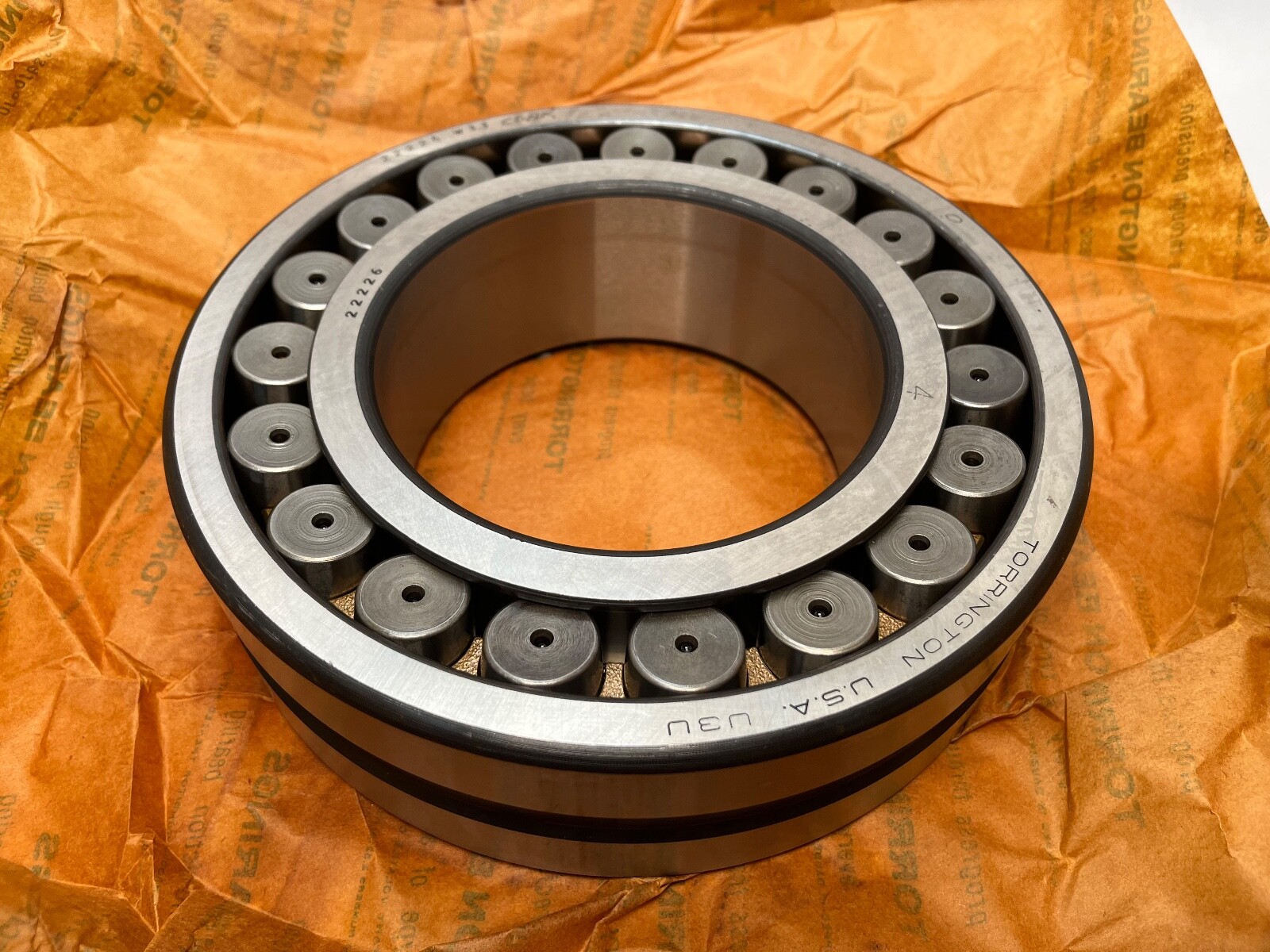

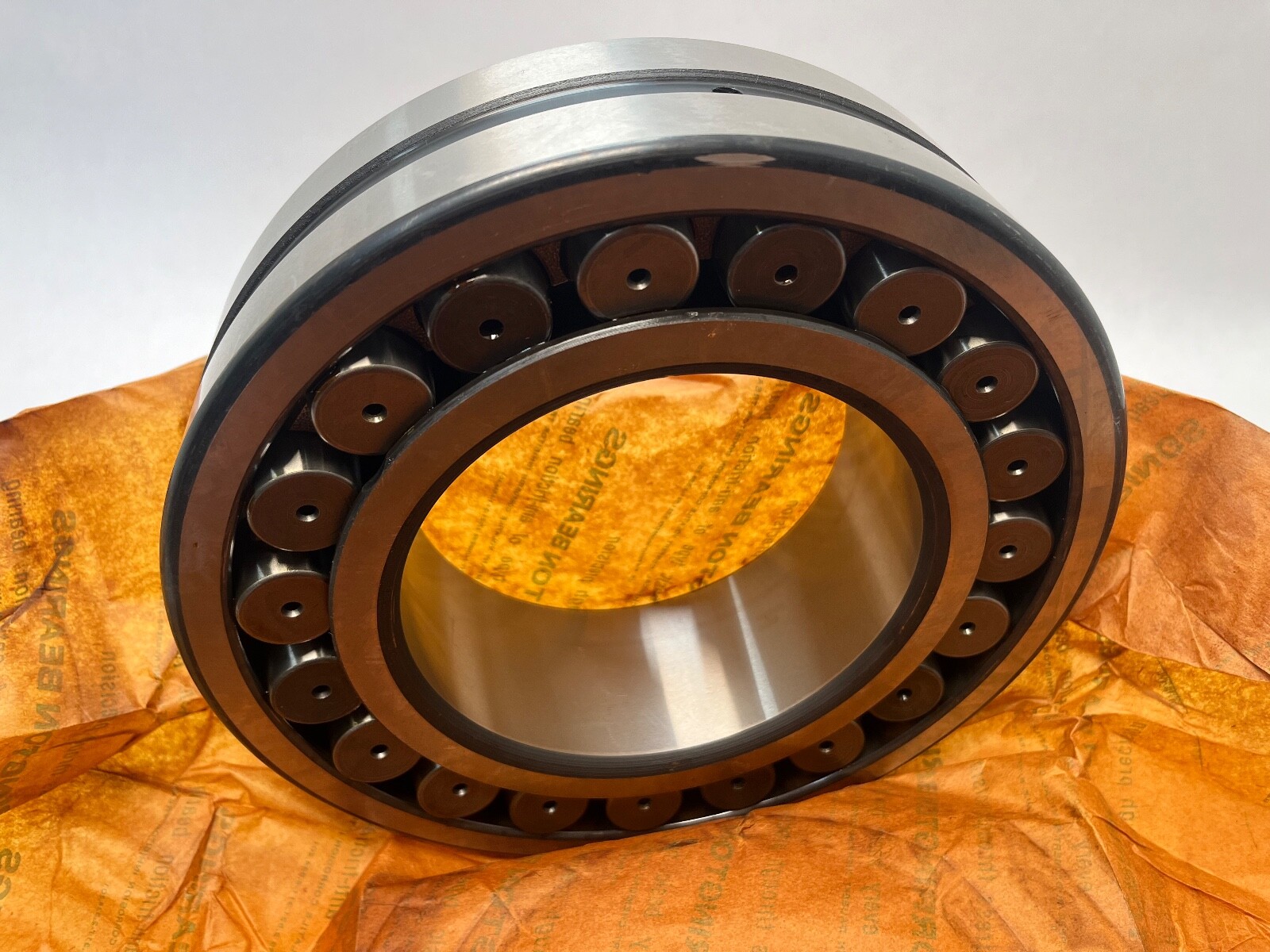

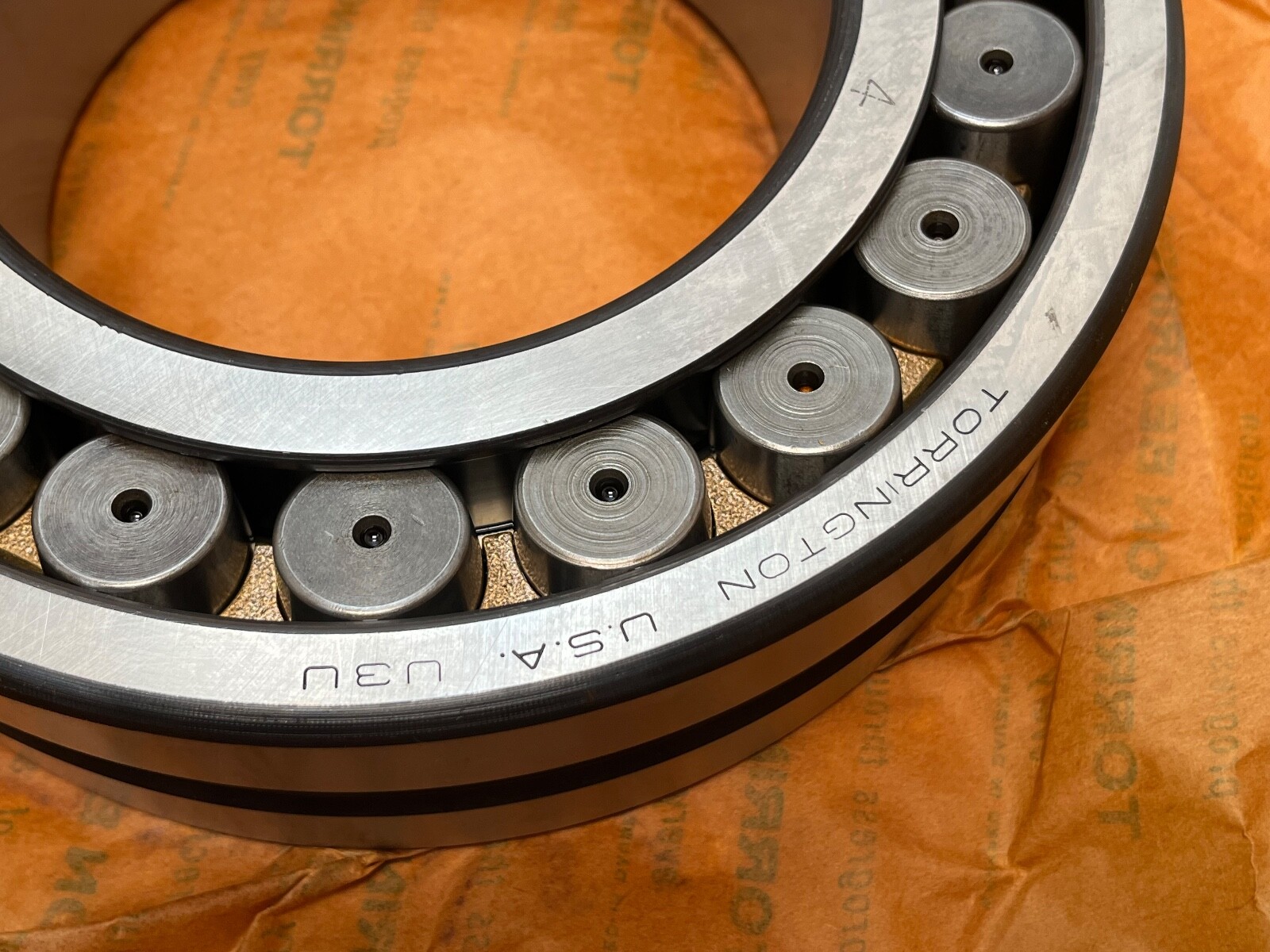

Torrington 22226W33 double-row spherical roller bearing with brass cage (22226-BR-W33): 130 mm straight bore, 230 mm outside diameter, 64 mm width, W33 lubrication groove, normal clearance. Sold as 1 Pc, complete bearing. Torrington is a Timken brand; the current Timken brass-cage design is 22226EMW33.

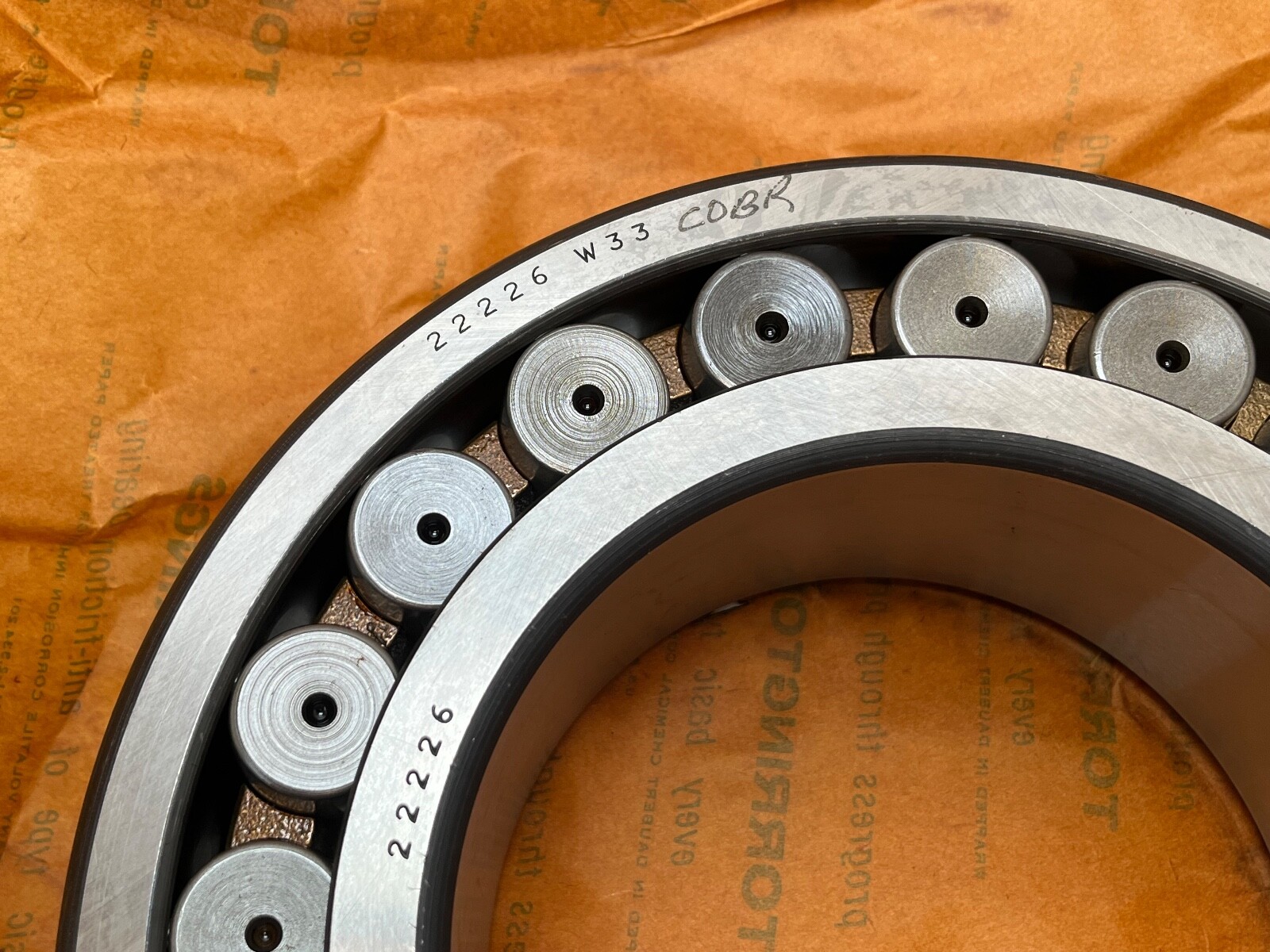

222 — spherical roller bearing, ISO dimension series 22.
26 — bore code. 26 × 5 = 130 mm bore.
BR — brass cage.

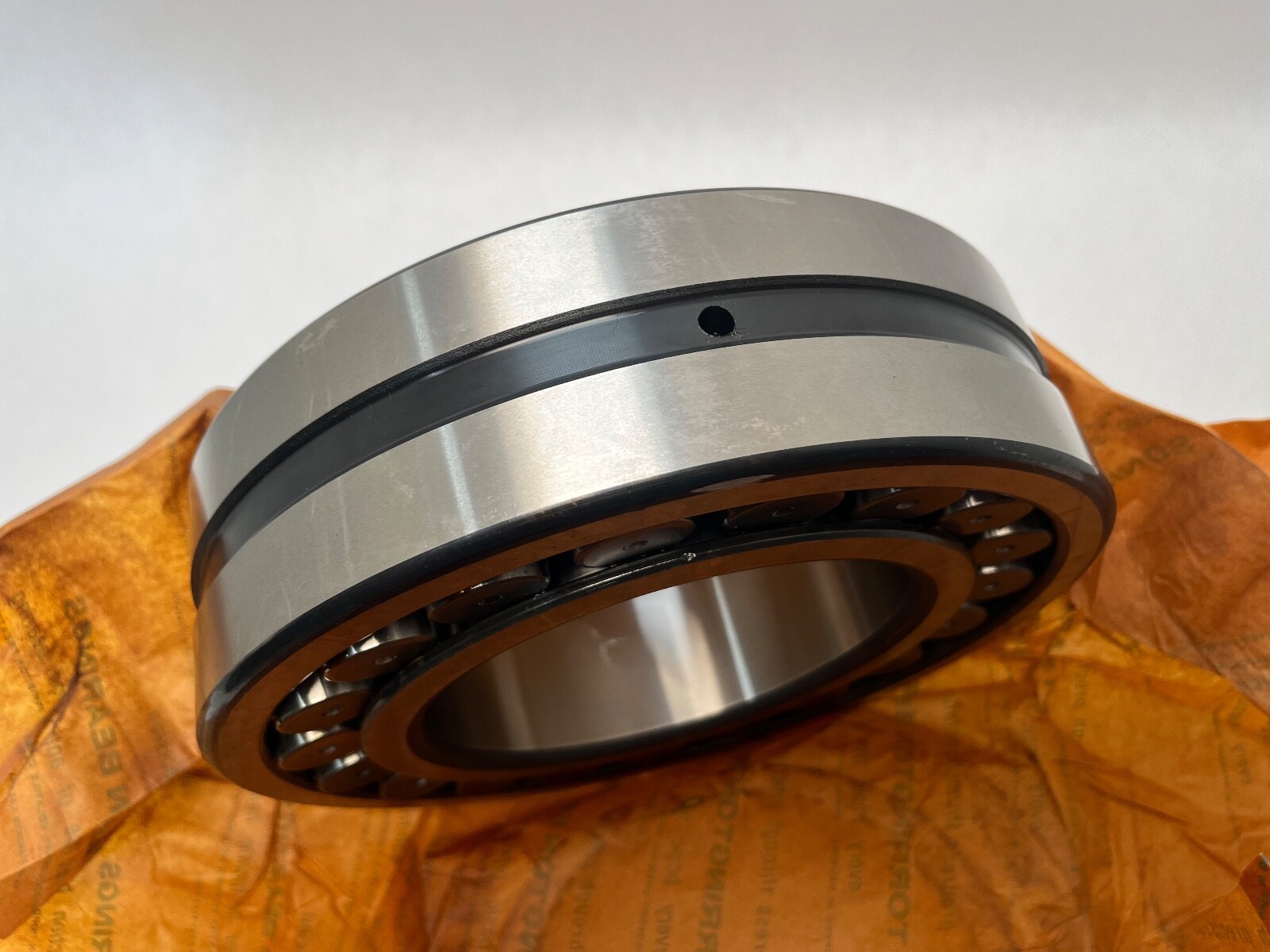

W33 — lubrication groove with three radial holes in the outer ring.
130SD22 — Torrington SD-system designation for the same 130 mm bore, series 22 spherical roller bearing.
Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Brass. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Successor 22226EMW33 data: Dynamic Load Rating: 757,000 N. Static Load Rating: 945,000 N. Reference Speed: 2,400 rpm grease; 2,900 rpm oil. Item Weight: 11.3 kg (24.9 lb). e factor: 0.26. Y1: 2.62. Y2: 3.9. Y0: 2.56.
Successor 22226EMW33 data: Shaft Backing Shoulder Diameter: 155 mm. Housing Backing Shoulder Diameter: 210 mm. Maximum Fillet Radius: 2.5 mm. The W33 groove feeds grease or oil to the centre of both roller rows.
Cross-references with the same 130 x 230 x 64 mm straight-bore envelope. Brass cage: Timken 22226EMW33, NSK 22226CAME4. Steel cage: SKF 22226 E, FAG 22226-E1-XL, Timken 22226EJW33.
130 mm straight bore, 230 mm outside diameter and 64 mm width.
A brass cage; BR is the brass cage code.
W33 is a lubrication groove with three radial holes in the outer ring.
