Torrington 22226W33C3 spherical roller bearing, 130 mm straight bore x 230 mm OD x 64 mm wide, W33 lube groove, C3 clearance. Successor: Timken 22226EJW33C3.
List Price
$244.51
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22226W33C3 |
| Model | 22226W33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Dynamic Load Rating | 757,000 N (Successor 22226EJW33C3 data) |
| Static Load Rating | 945,000 N (Successor 22226EJW33C3 data) |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Base Number | 22226 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; SD series roller bearing; W33 roller bearing |
| Common Misspellings | 22226W33C3 bearing; 2226W33C3; 22226 WC3; 130SD-22; Torington 22226; sperical roller bearing |
| Application Types | Conveyor head and tail shafts; gearboxes and reducers; crushers and vibrating screens; fans and blowers; pump and mill shafts |
| Bore Shaft Size | 130 mm (5.1181 in) |
| Mpn Variants | 22226W33C3, 22226-W33-C3, 130SD22 W33 F3, 130SD22 |
| Compatible With Replaces | Timken 22226EJW33C3 (current successor design) |
| Additional Attributes | Successor 22226EJW33C3 data: e factor 0.26; Y0 2.56; Y1 2.62; Y2 3.9; shaft backing shoulder 155 mm; housing backing shoulder 210 mm; max fillet radius 2.5 mm |
| Design Units | Metric |
| Part Number | 22226W33C3 |
| Closure Type | Open |
| Cross Reference 1 | Timken 22226EJW33C3 – current Timken successor design |
|---|---|
| Cross Reference 2 | SKF 22226 E/C3 – C3, lube groove standard on E design |
| Cross Reference 3 | FAG 22226-E1-XL-C3 – C3, lube groove standard |
| Cross Reference 4 | NSK 22226EAE4C3 – C3, E4 lube groove and holes |
| Cross Reference 5 | NTN 22226EAD1C3 – C3, D1 lube groove and holes |

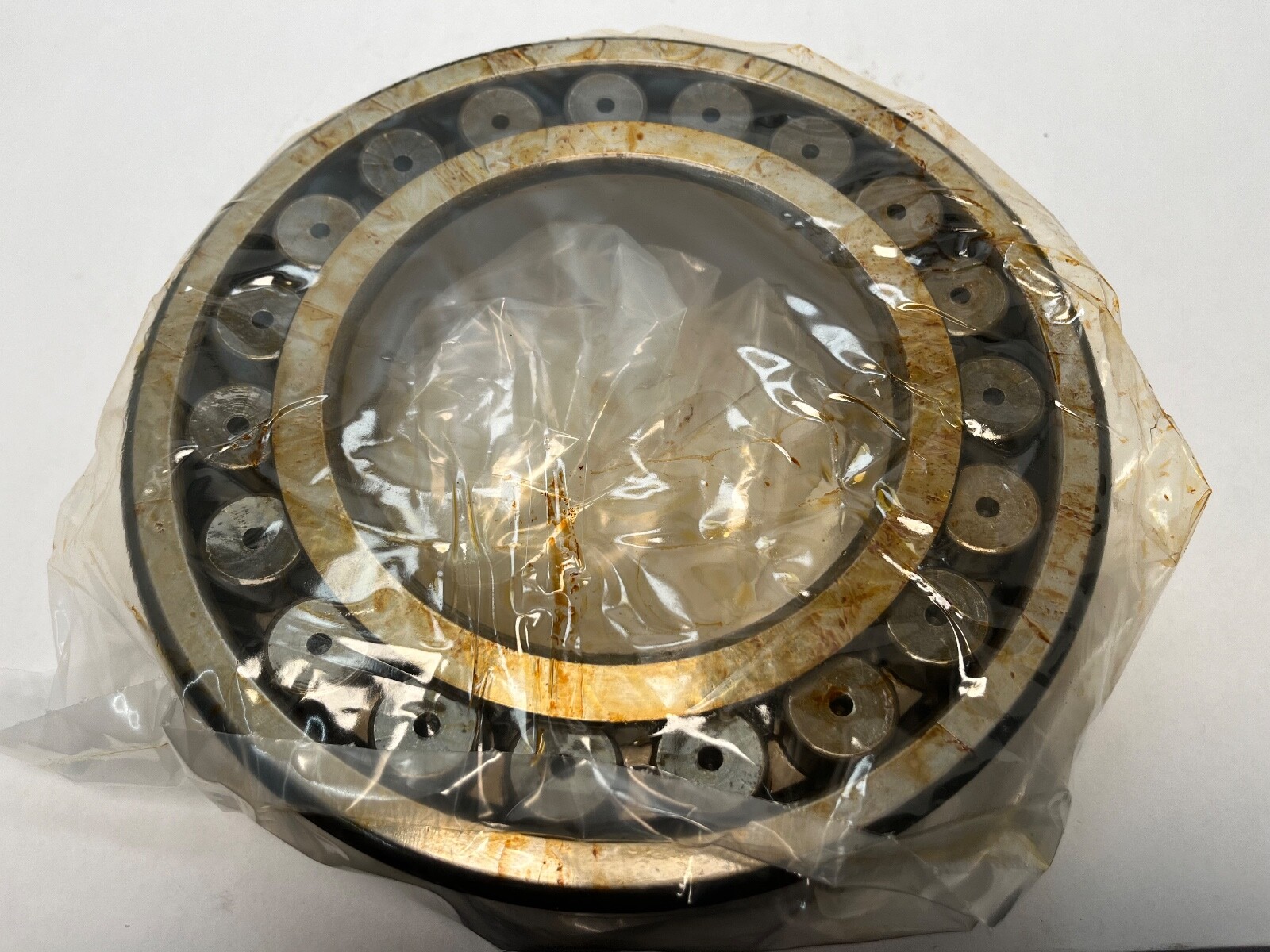

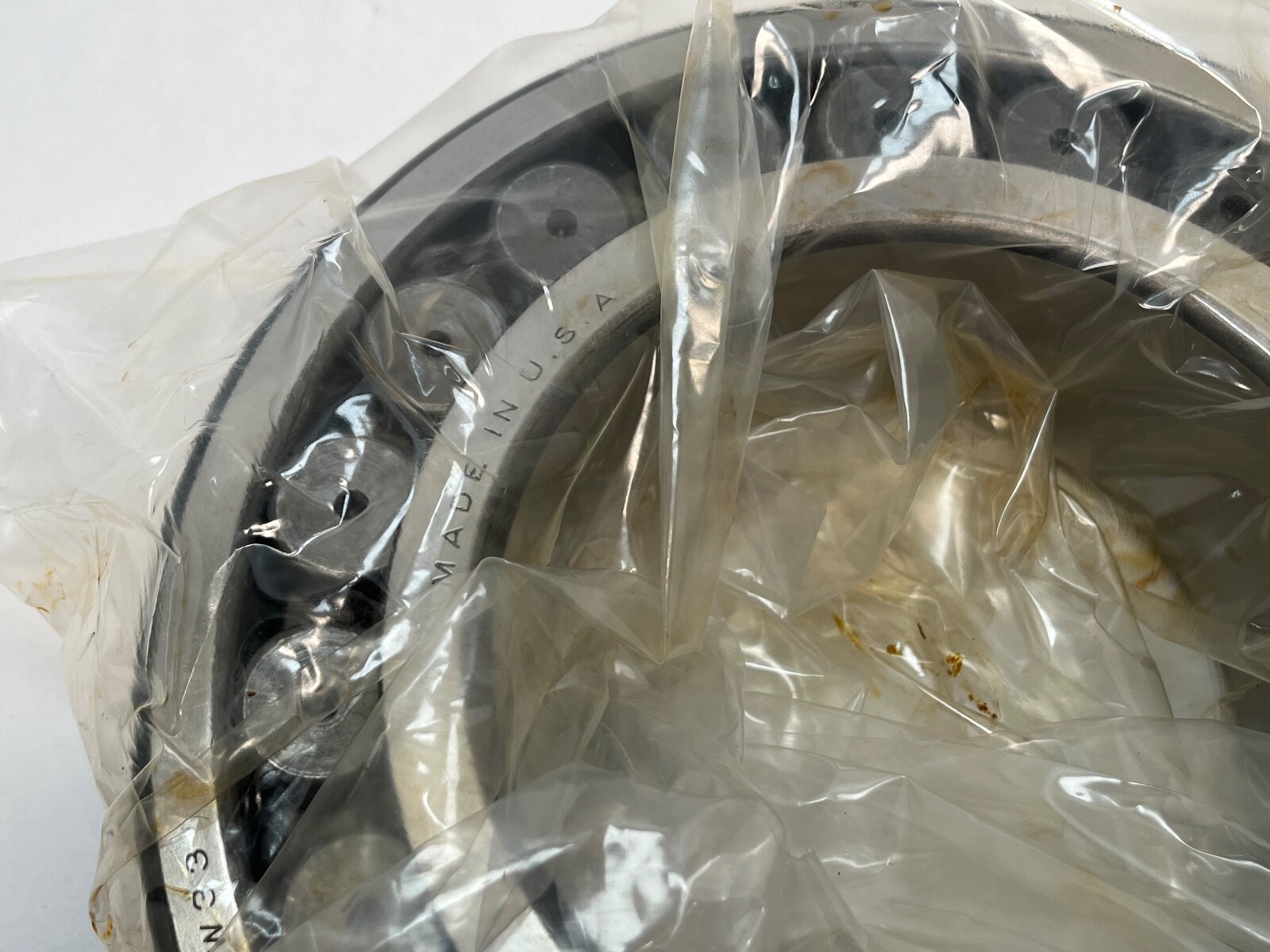

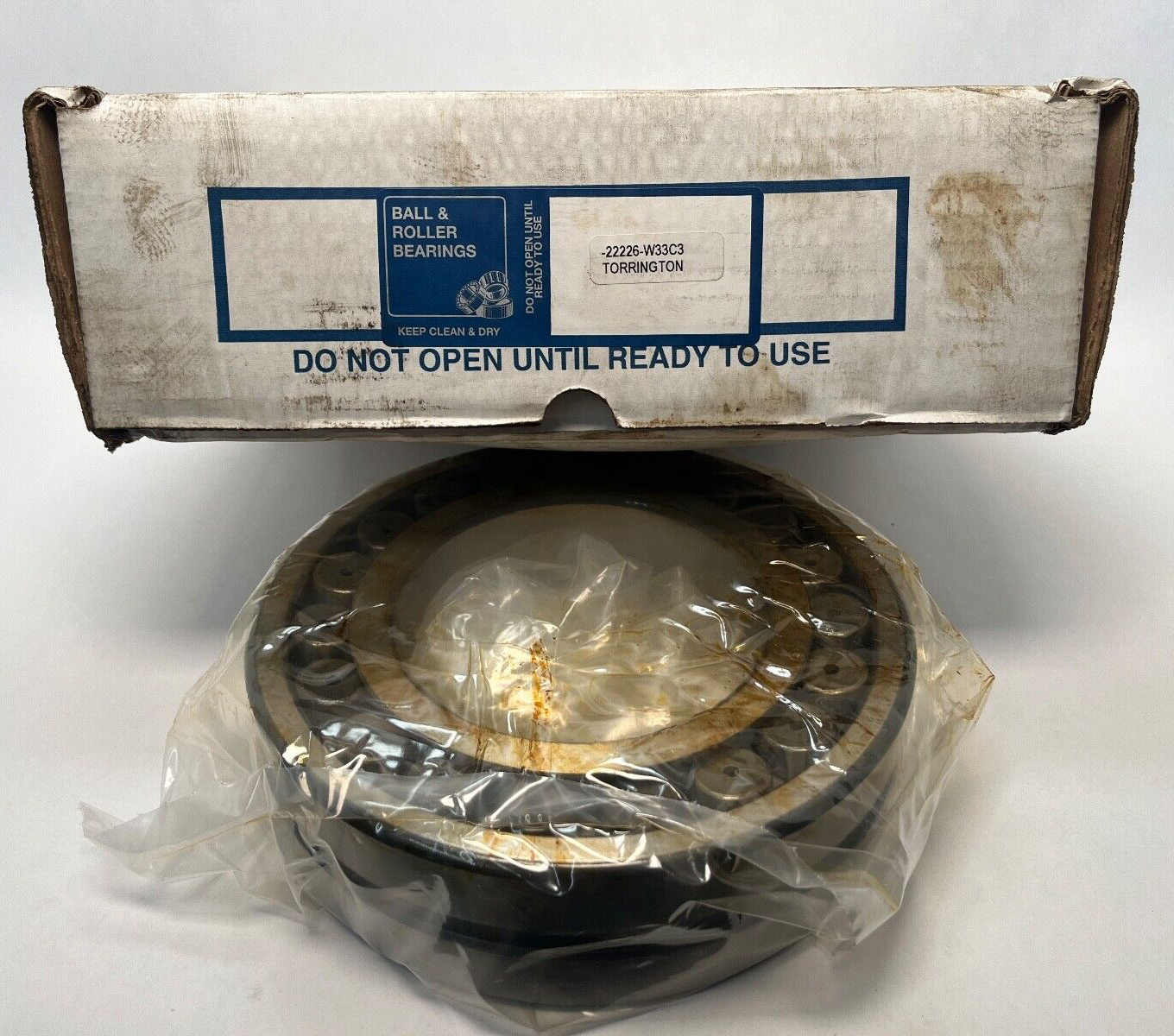

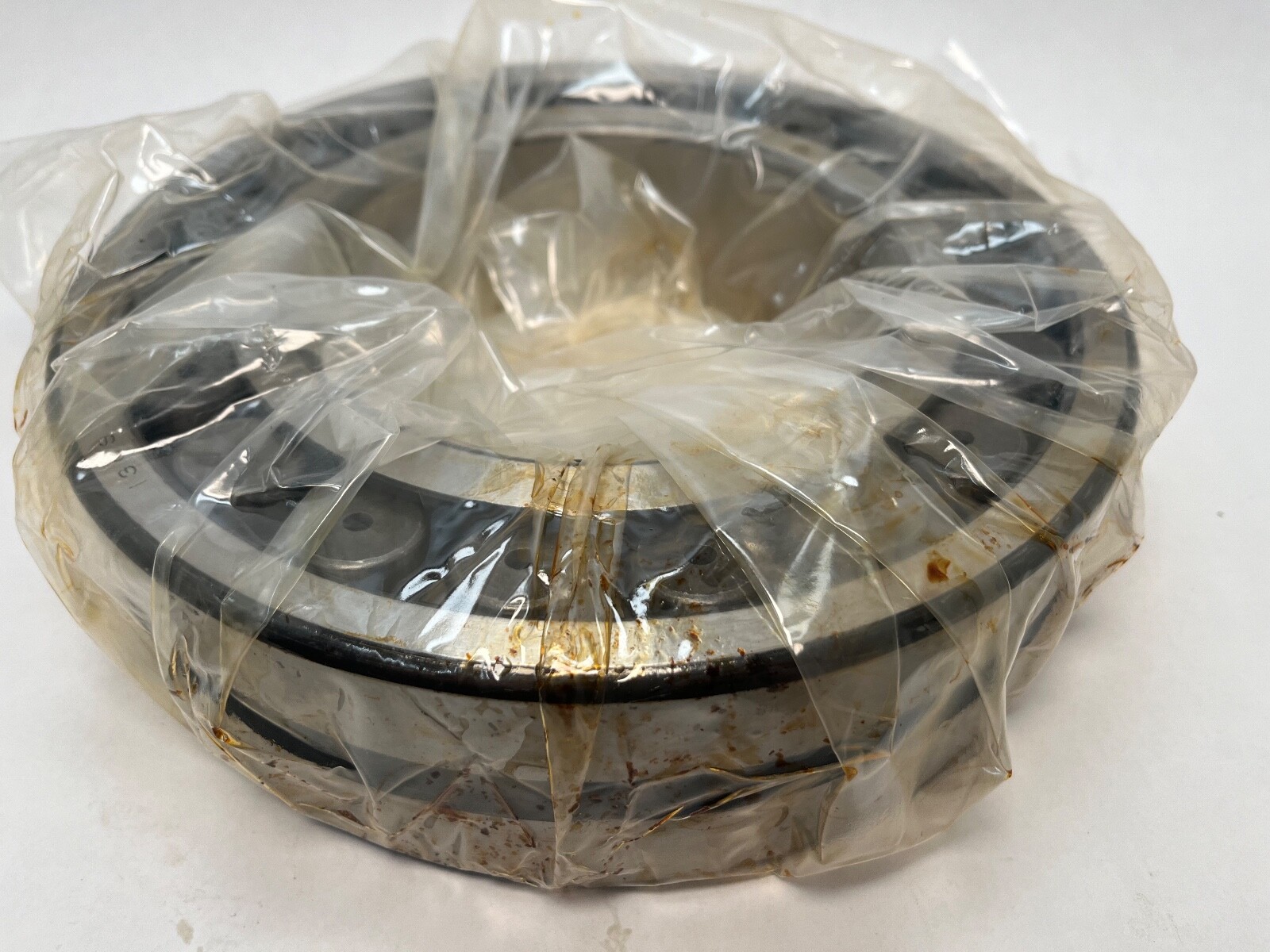

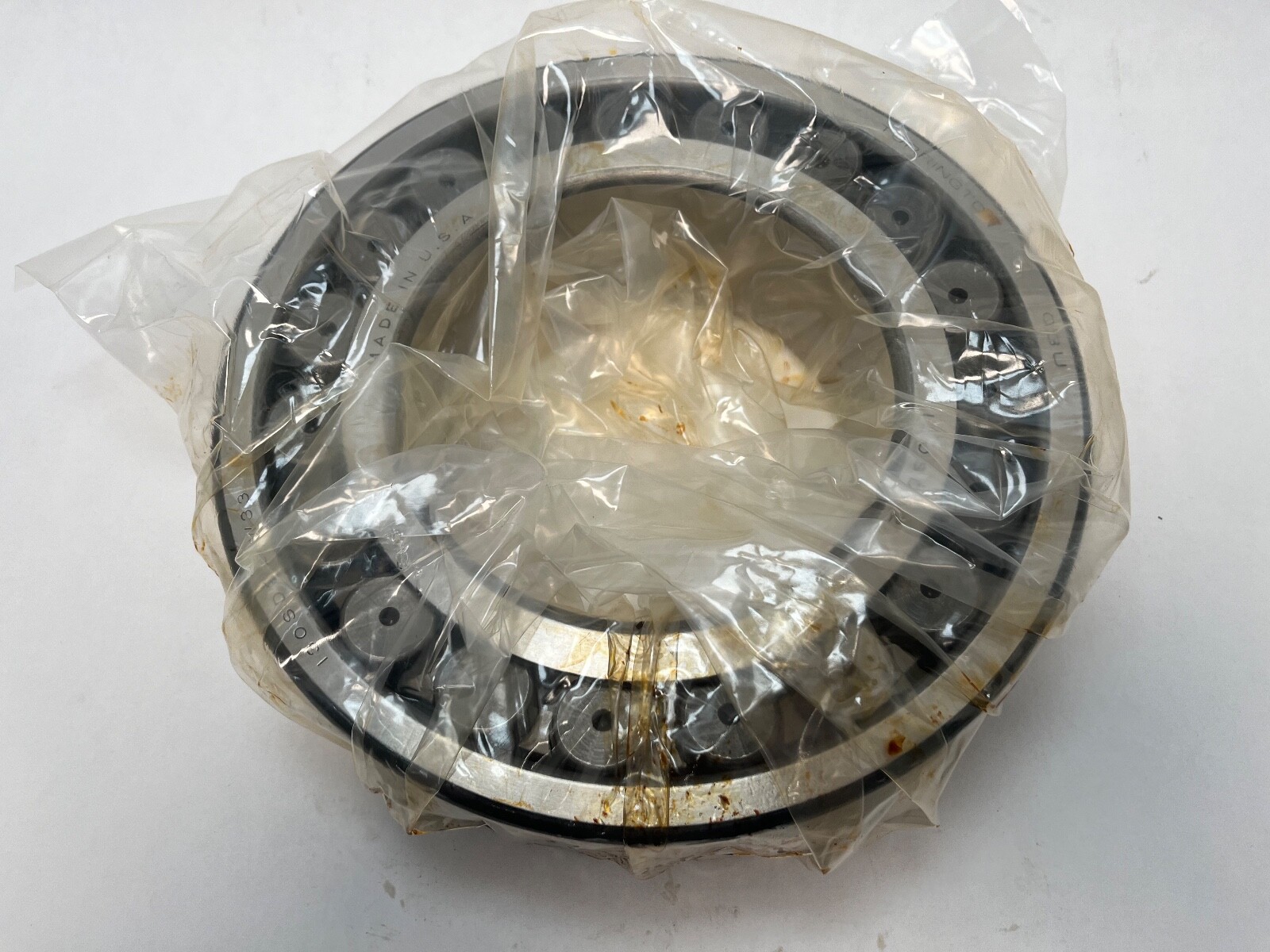

Torrington 22226W33C3 double-row spherical roller bearing: 130 mm straight bore, 230 mm outside diameter, 64 mm width, open, W33 lubrication groove, C3 clearance. Sold as 1 Pc, complete bearing. Torrington is a Timken brand; the current Timken design is 22226EJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
26 — bore code. 26 × 5 = 130 mm bore.

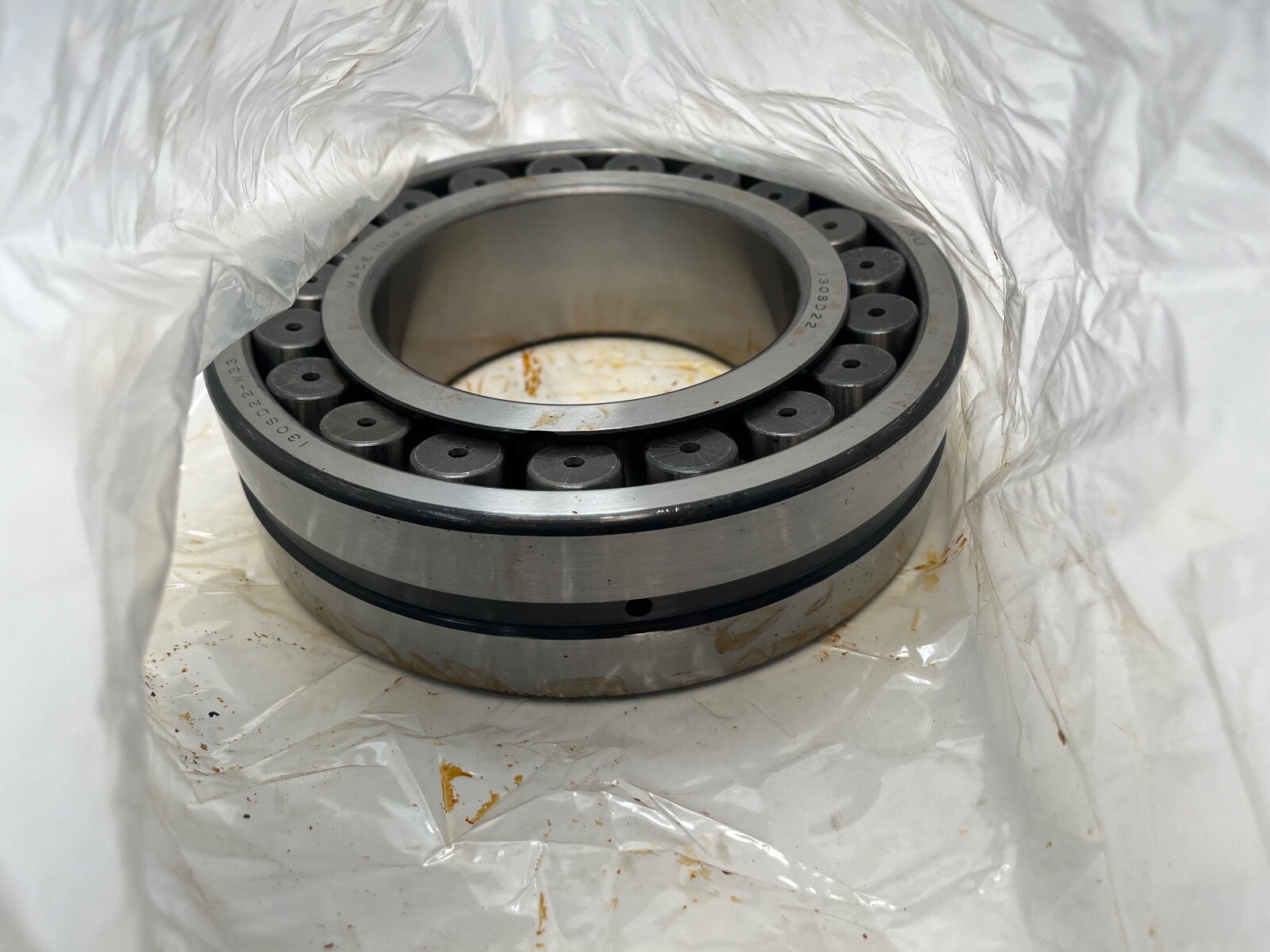

W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.

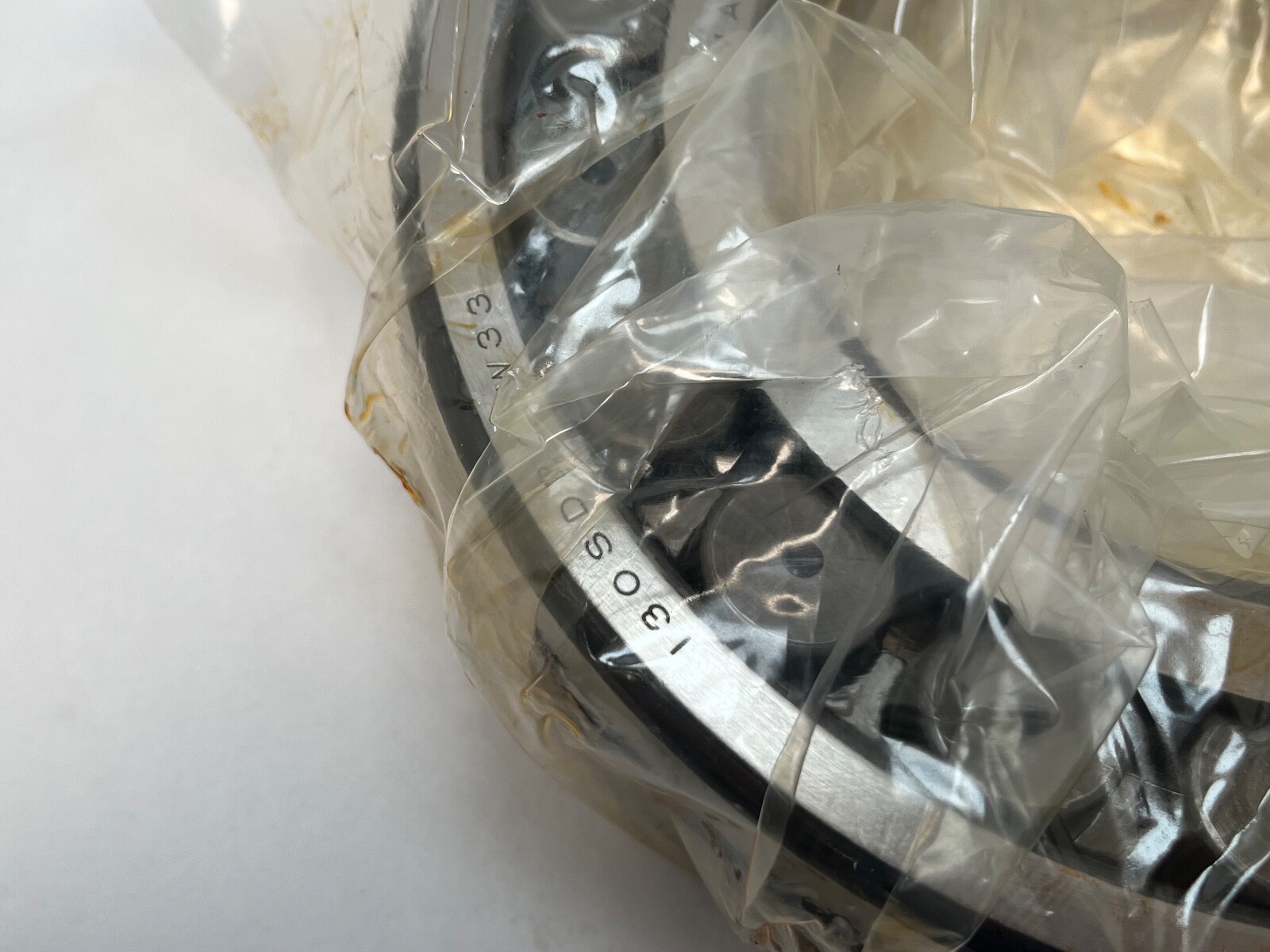

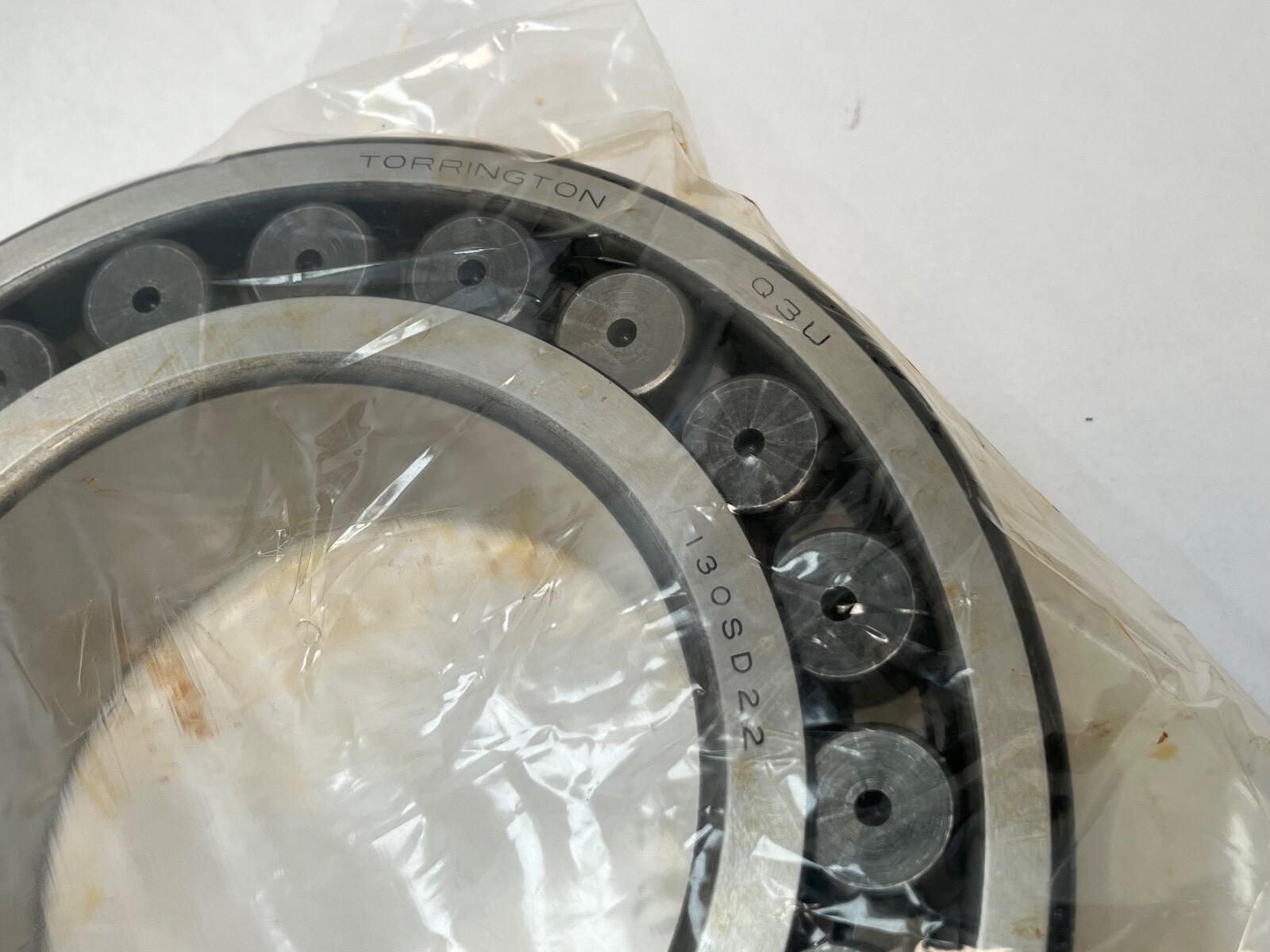

130SD22 — Torrington SD-system designation for the same 130 mm bore, series 22 spherical roller bearing.
Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 22226EJW33C3 data: Dynamic Load Rating: 757,000 N. Static Load Rating: 945,000 N. Reference Speed: 2,400 rpm grease; 2,900 rpm oil. e factor: 0.26. Y1: 2.62. Y2: 3.9. Y0: 2.56.
Successor 22226EJW33C3 data: Shaft Backing Shoulder Diameter: 155 mm. Housing Backing Shoulder Diameter: 210 mm. Maximum Fillet Radius: 2.5 mm. Straight cylindrical bore.
Cross-references with the same 130 x 230 x 64 mm straight-bore C3 envelope: Timken 22226EJW33C3 (current successor design), SKF 22226 E/C3, FAG 22226-E1-XL-C3, NSK 22226EAE4C3, NTN 22226EAD1C3. The tapered-bore 22226 K version takes an H326 adapter sleeve. C2 and C4 clearance versions share the envelope.
130 mm straight bore, 230 mm outside diameter and 64 mm width.
W33 is a lubrication groove with three radial holes in the outer ring.
The current Timken design is 22226EJW33C3.
