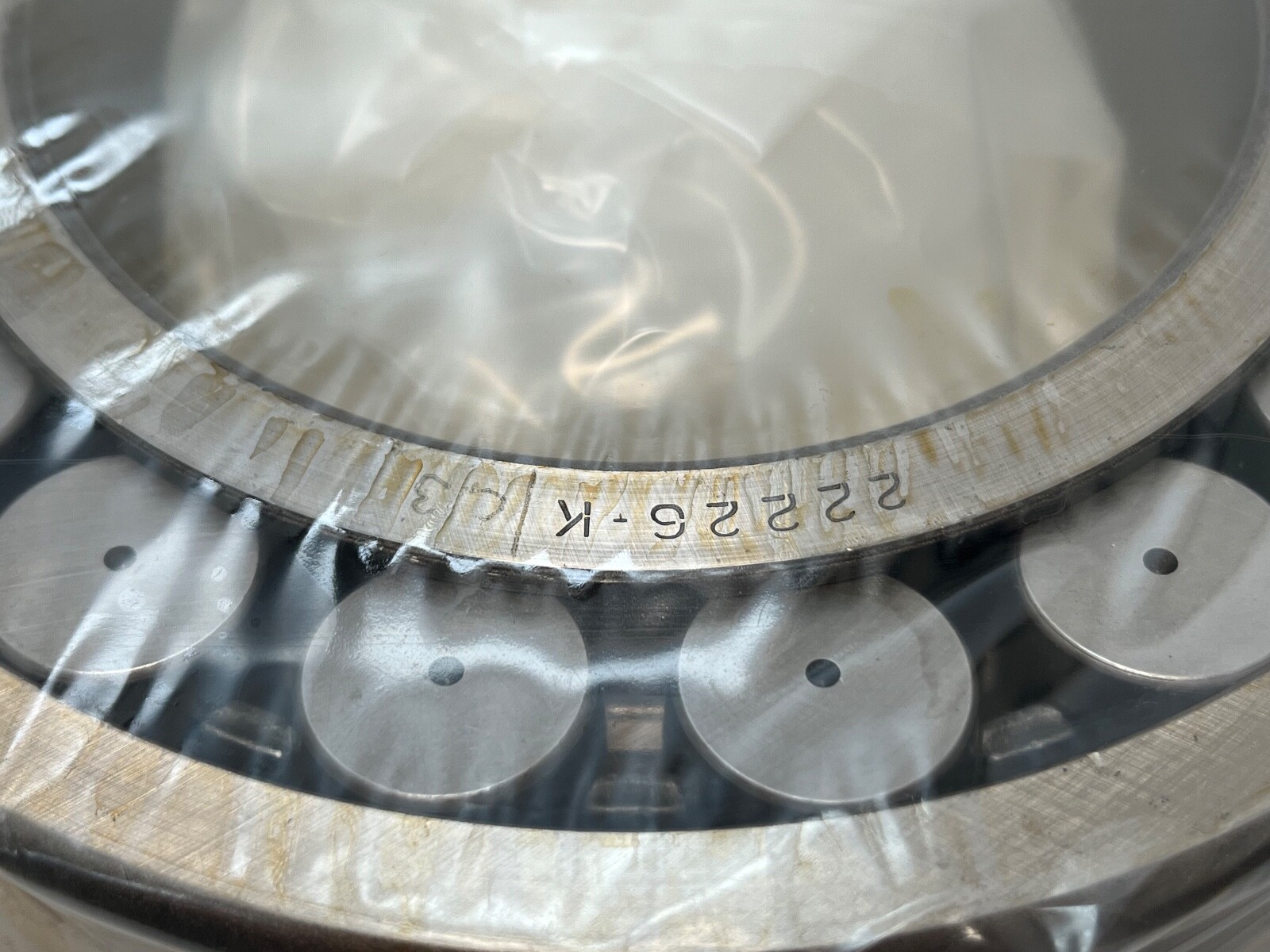

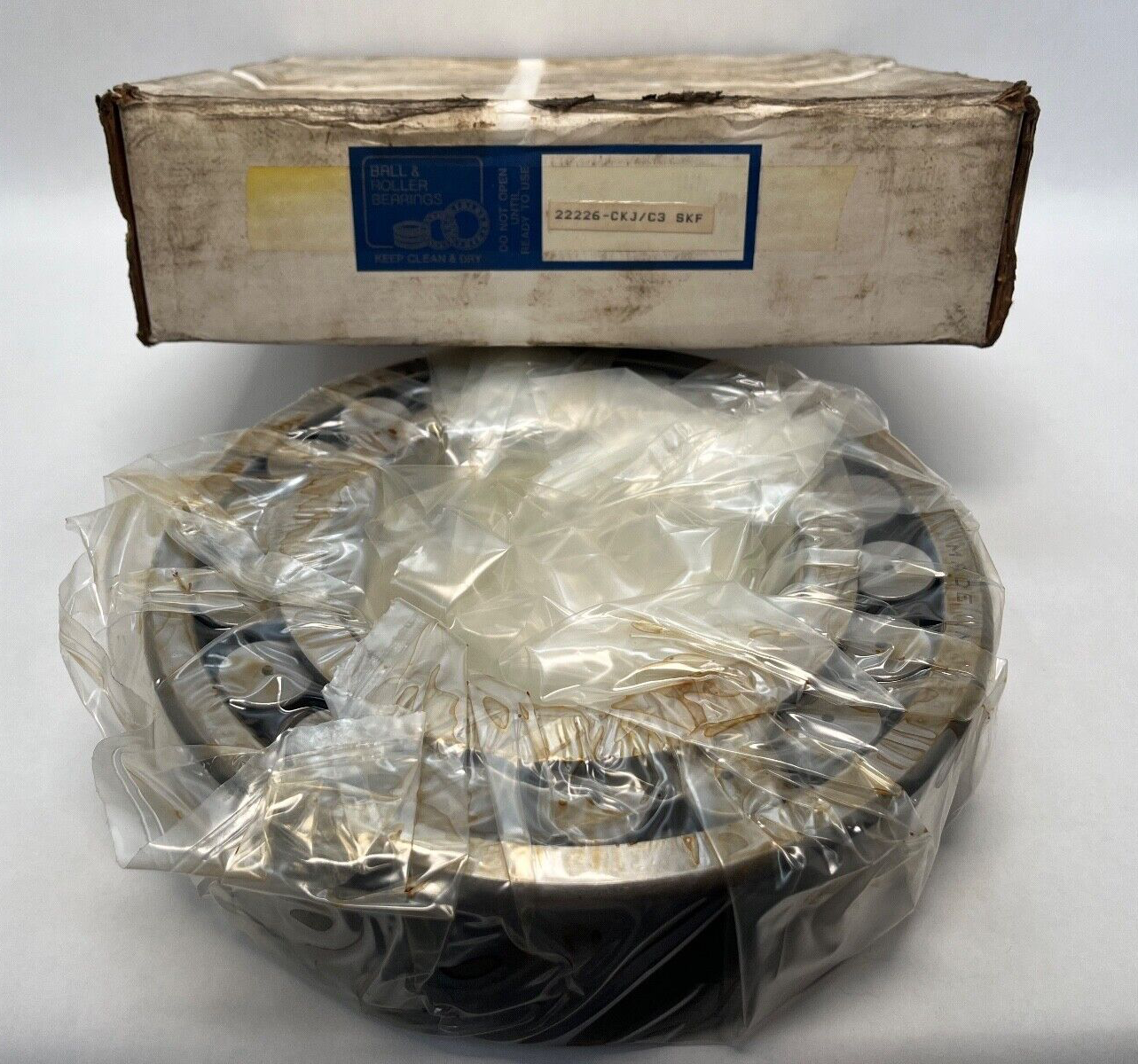

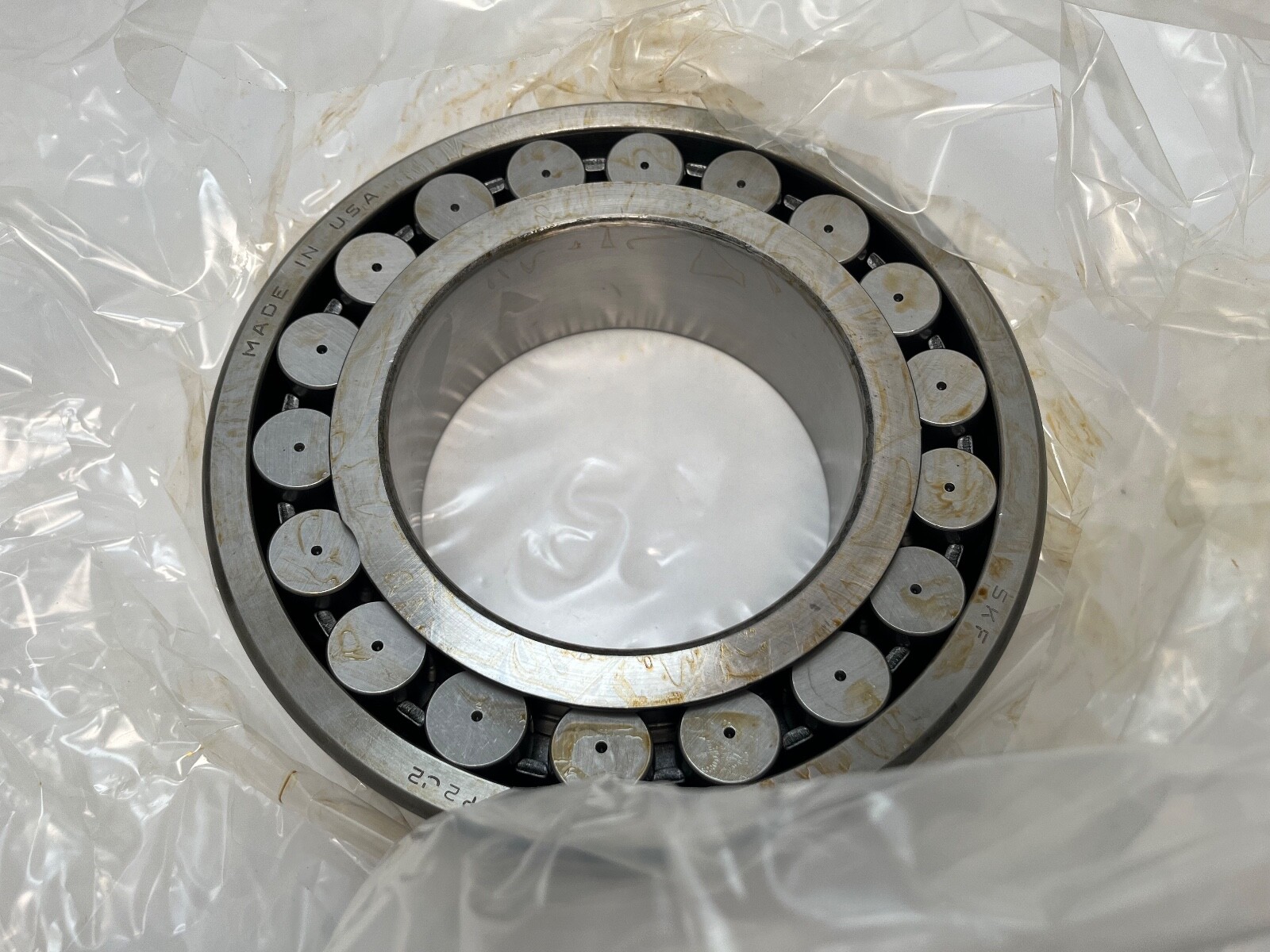

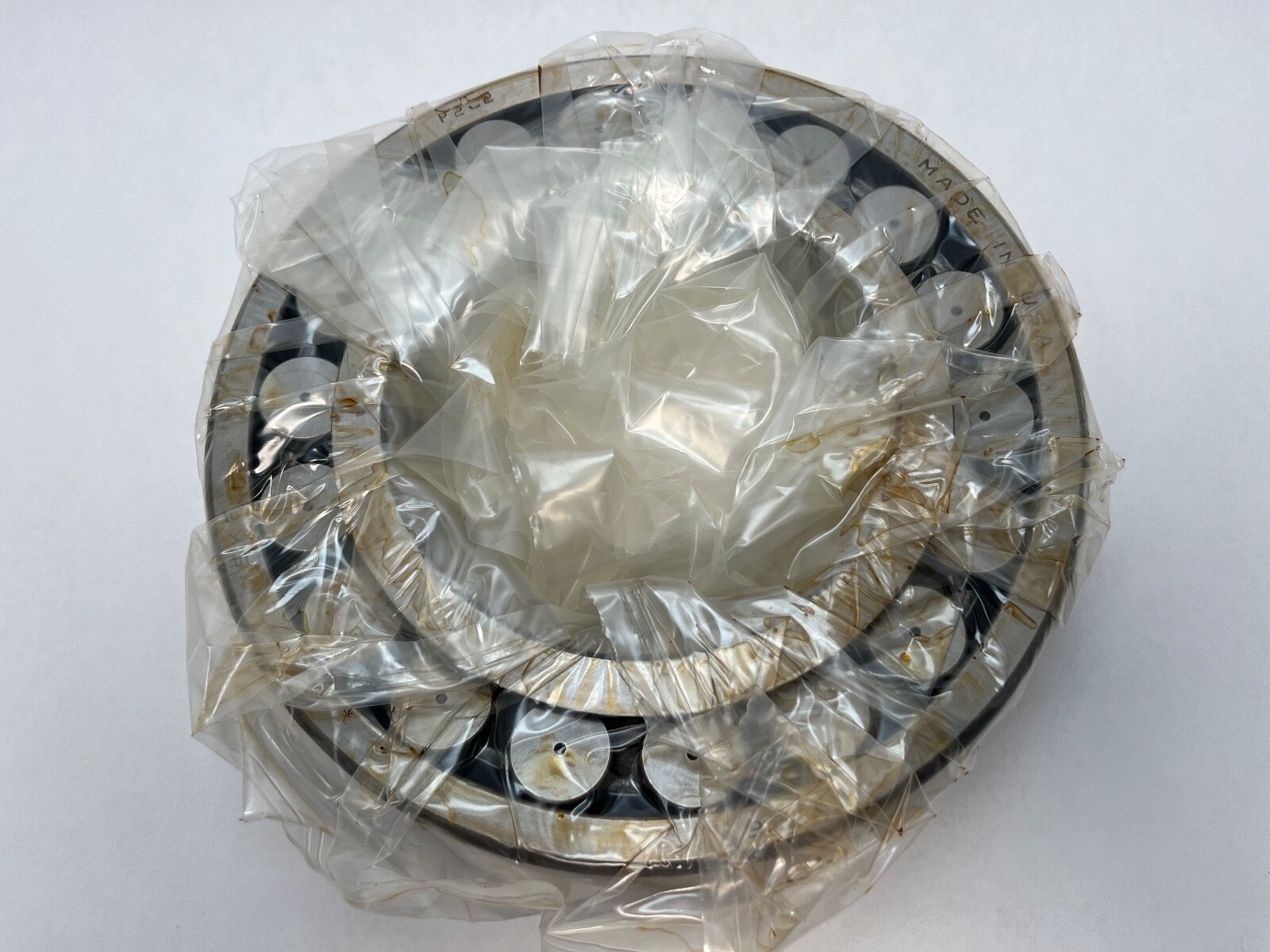

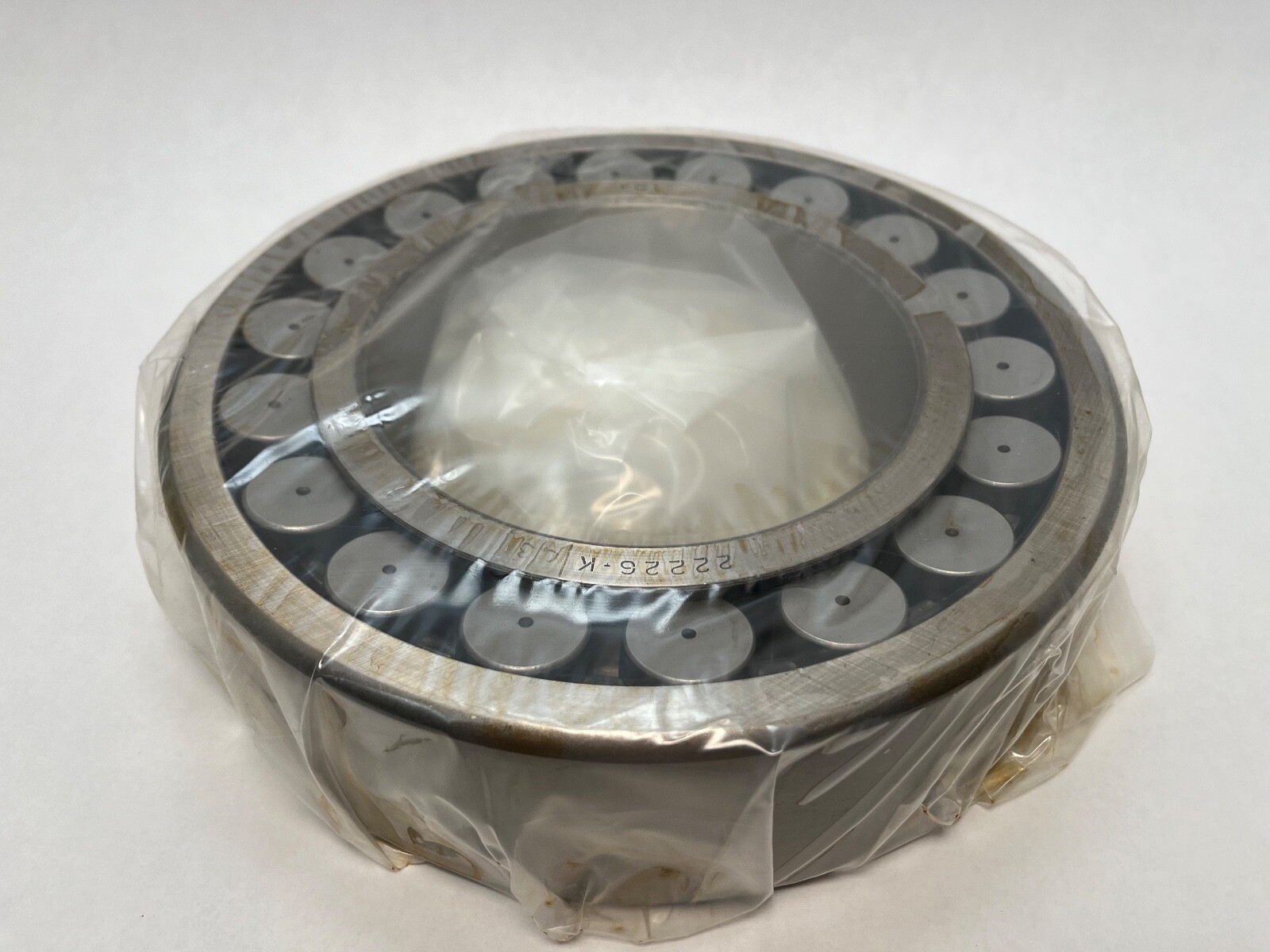

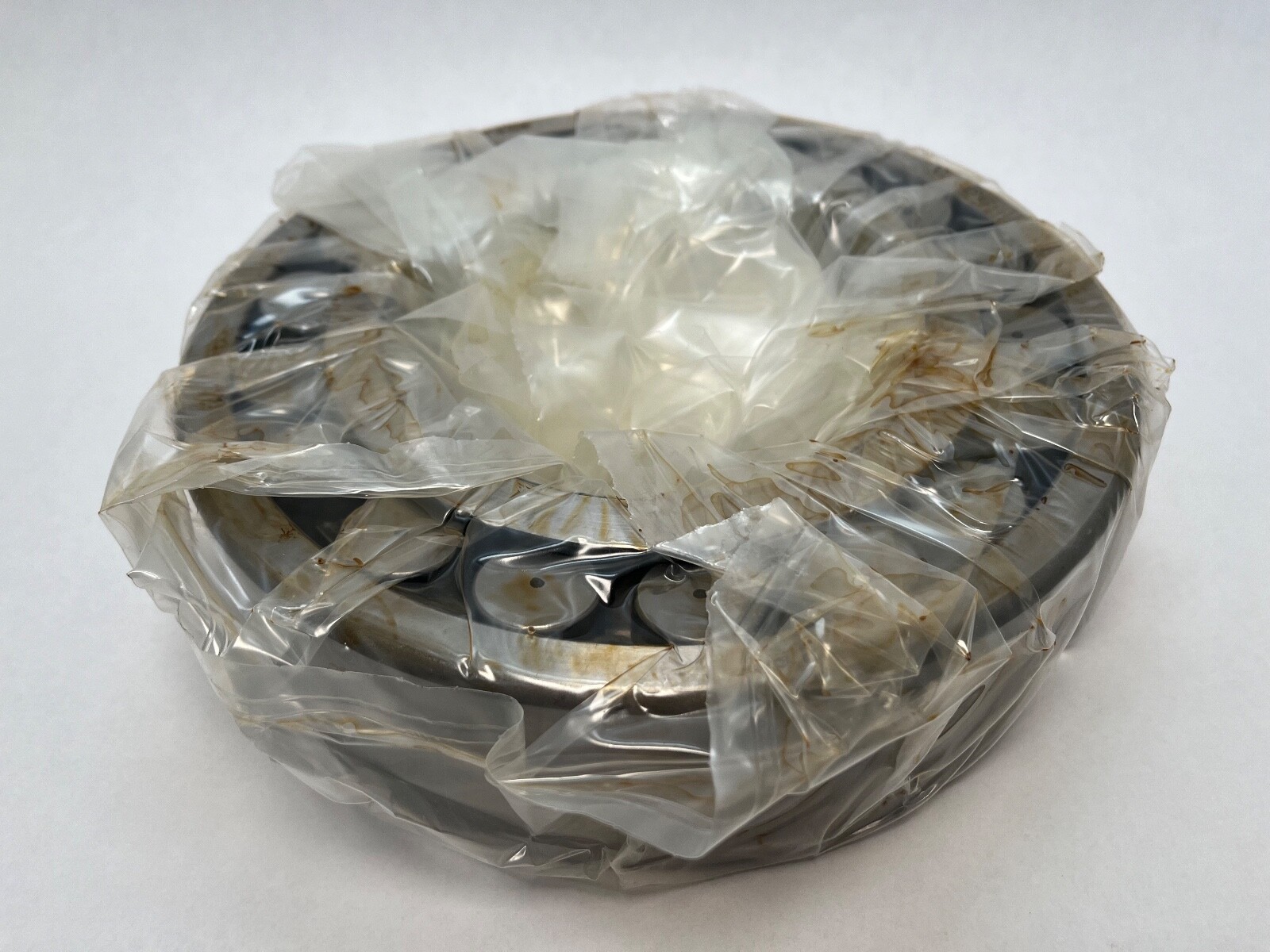

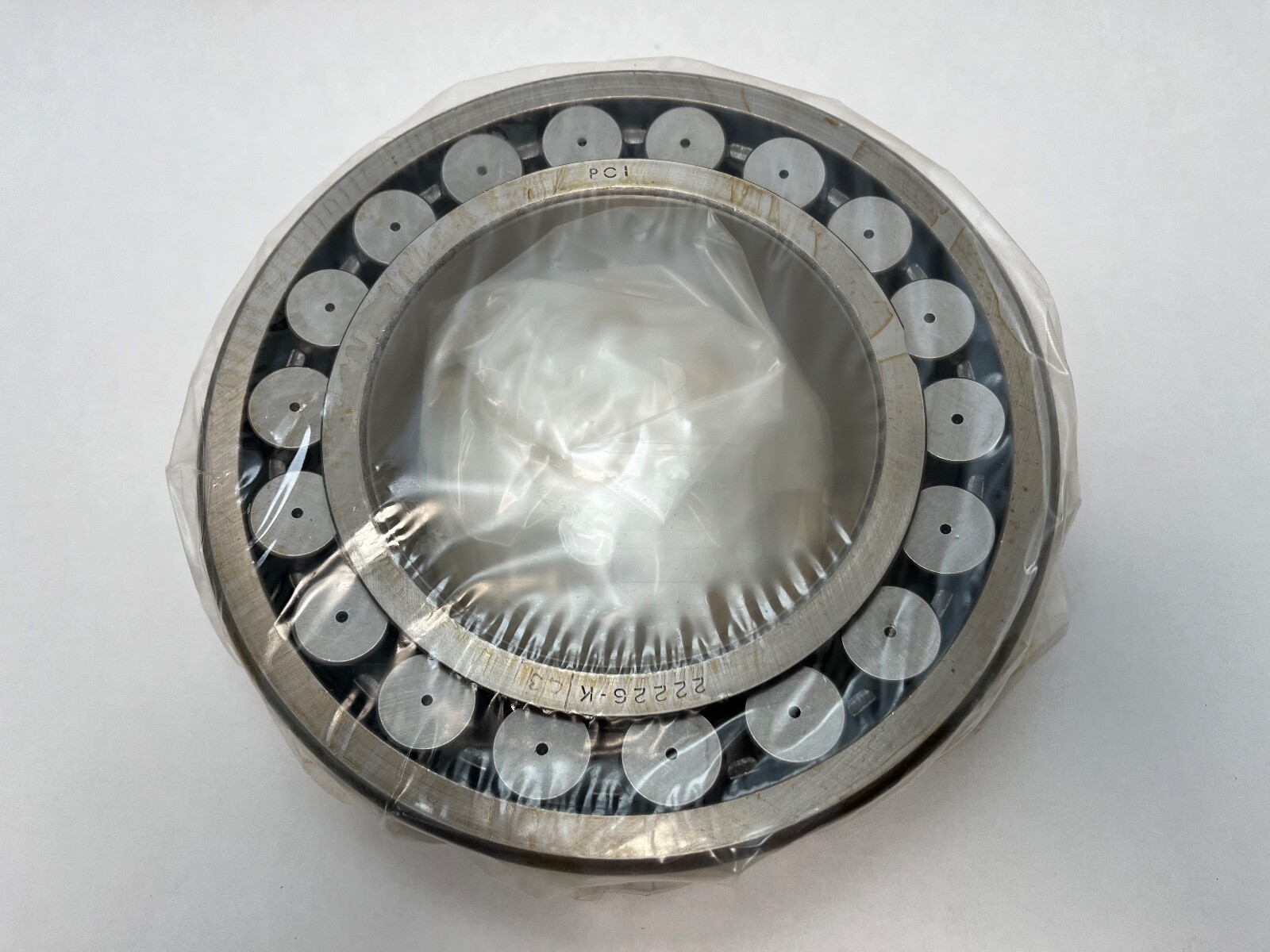

SKF 22226 CKJ/C3 spherical roller bearing, 130 x 230 x 64 mm, 1:12 tapered bore, C3 clearance, pressed steel cage. Mounts on an H326 adapter sleeve.
List Price
$328.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22226 CKJ/C3 |
| Model | 22226 C K J C3 / 22226E / 22226 CC K J C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil/Grease |
| Base Number | 22226 |
| Industry Terms | spherical roller bearing, tapered bore spherical, self-aligning roller bearing, 222 series bearing |
| Common Misspellings | 22226CKJ C3, 22226 CKJC3, 2226 CKJ/C3, 22226KC3 |
| Application Types | adapter sleeve mounting, pillow block housings, conveyors, fans, gearboxes |
| Overall Width | 64 mm |
| Mpn Variants | 22226 CKJ/C3, 22226-CKJ-C3, 22226-C-K-J-C3, 22226CKJC3, 22226 C K J C3, 22226CCKJ |
| Additional Attributes | Adapter sleeve: H326; Locknut: KM; Lock washer: MB; Internal design: SKF C |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Closure Type | Open |
| Cross Reference 1 | SKF 22226 EK/C3 – E design, same envelope, K, C3 |
|---|---|
| Cross Reference 2 | FAG 22226-E1-K-C3 – E1 design, same envelope, K, C3 |
| Cross Reference 3 | Timken 22226KEJW33C3 – EJ design, W33 groove, K, C3 |
| Cross Reference 4 | NSK 22226CDKE4C3 – CD design, same envelope, K, C3 |
SKF 22226 CKJ/C3 is a double-row spherical roller bearing with a 1:12 tapered bore, 130 mm bore by 230 mm outside diameter by 64 mm wide. It has a pressed steel cage and C3 internal clearance. Unit Quantity: 1 Pc.
22226 — spherical roller bearing, dimension series 222, bore code 26 giving a 130 mm bore.
C — SKF C internal design.
K — tapered bore, taper 1:12.
J — pressed steel cage.
C3 — radial internal clearance greater than normal.
Series: 22200. Base Number: 22226. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Closure Type: Open.
Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Tapered 1:12. Adapter sleeve: SKF H326 (115 mm shaft seat) with KM locknut and MB lock washer.
Same 130 x 230 x 64 mm envelope, 1:12 tapered bore and C3 clearance, in other internal designs: SKF 22226 EK/C3 (E design), FAG 22226-E1-K-C3 (E1 design), Timken 22226KEJW33C3 (EJ design, W33 groove) and NSK 22226CDKE4C3 (CD design). MPN Variants: 22226 CKJ/C3, 22226-CKJ-C3, 22226-C-K-J-C3, 22226CKJC3, 22226 C K J C3, 22226CCKJ.
Bore 130 mm, outside diameter 230 mm, width 64 mm, with a 1:12 tapered bore.
C is the SKF C internal design, K is the 1:12 tapered bore and J is a pressed steel cage.
The SKF H326 adapter sleeve (115 mm shaft seat) with KM locknut and MB lock washer.
