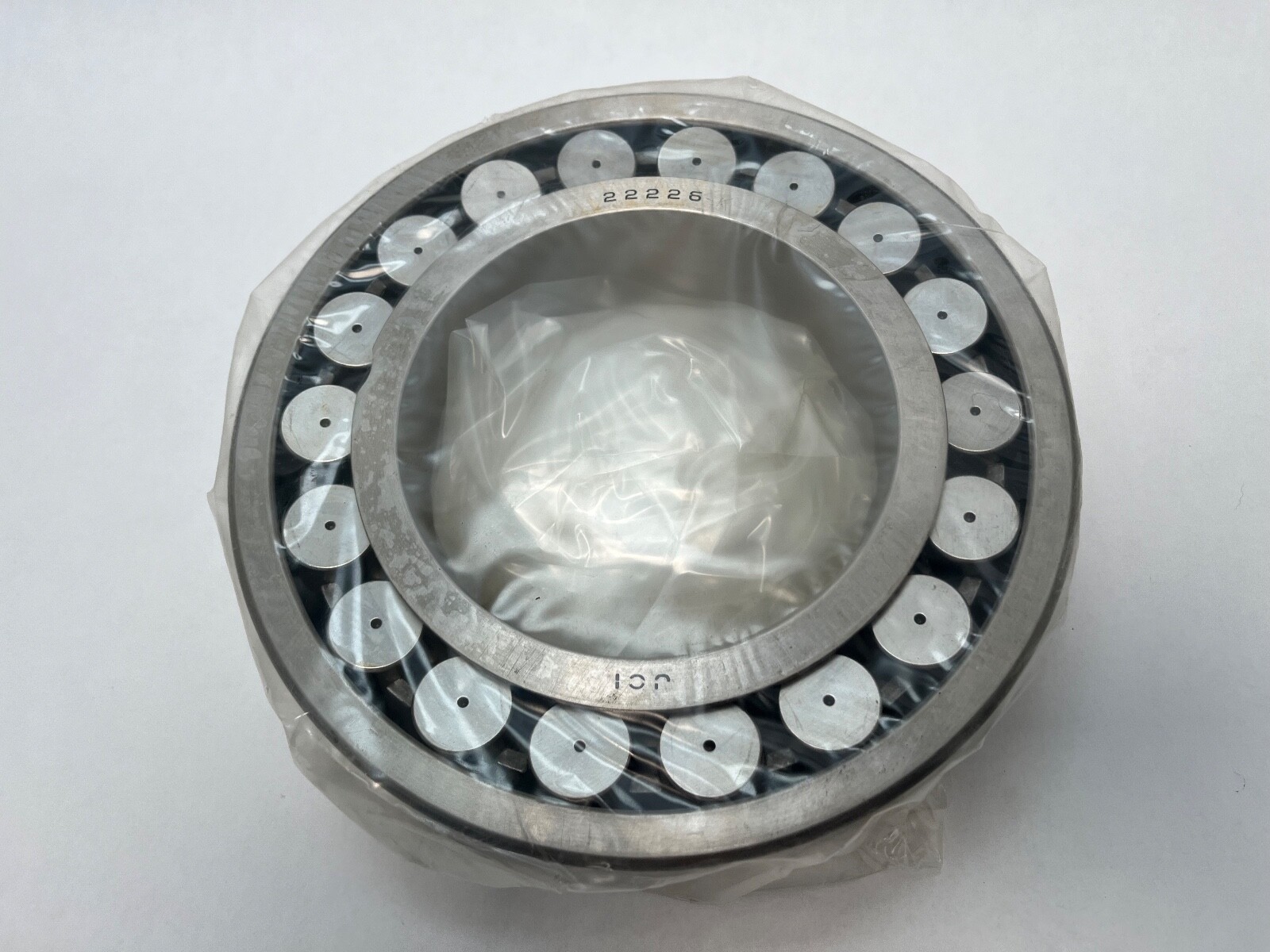

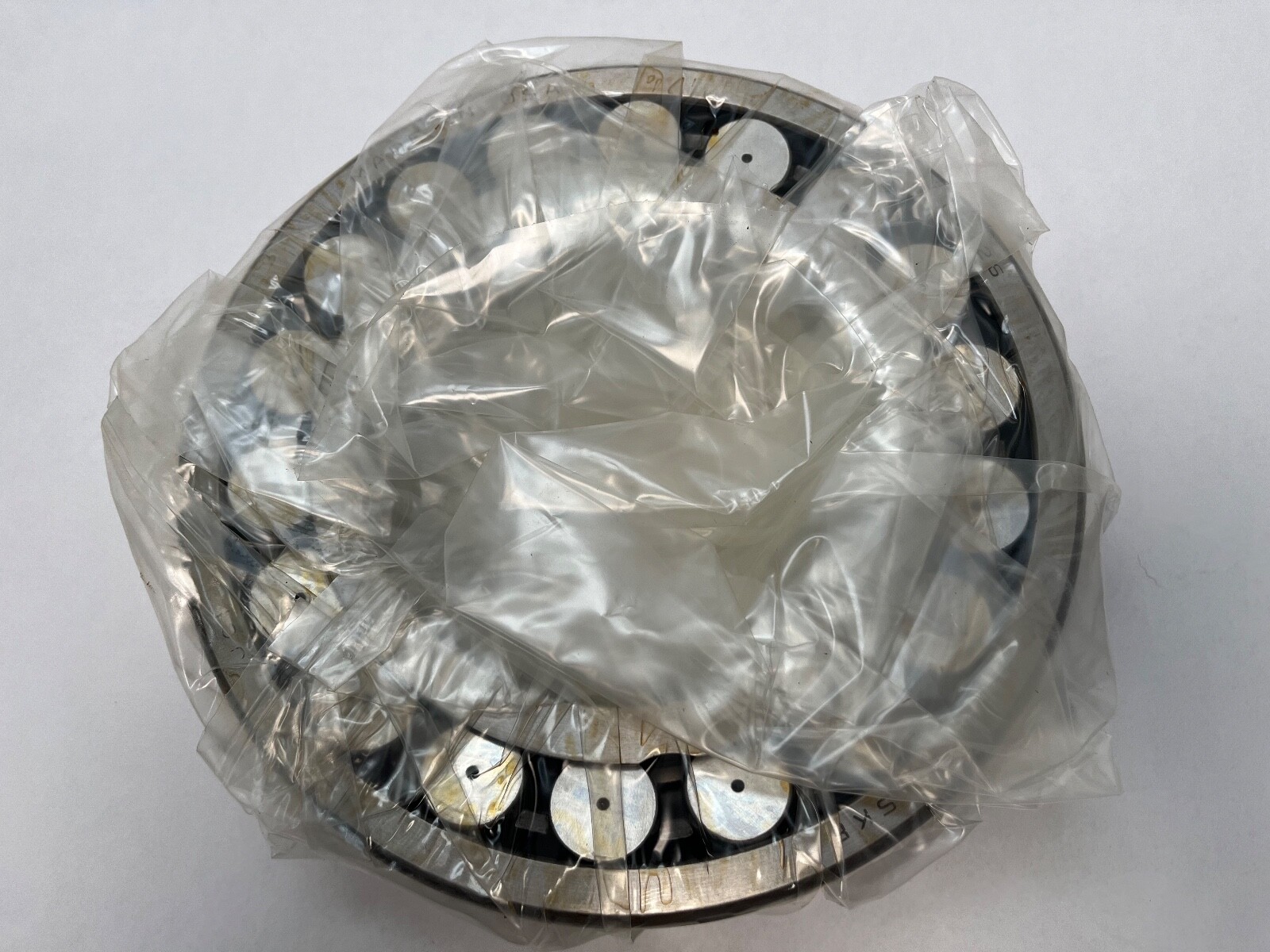

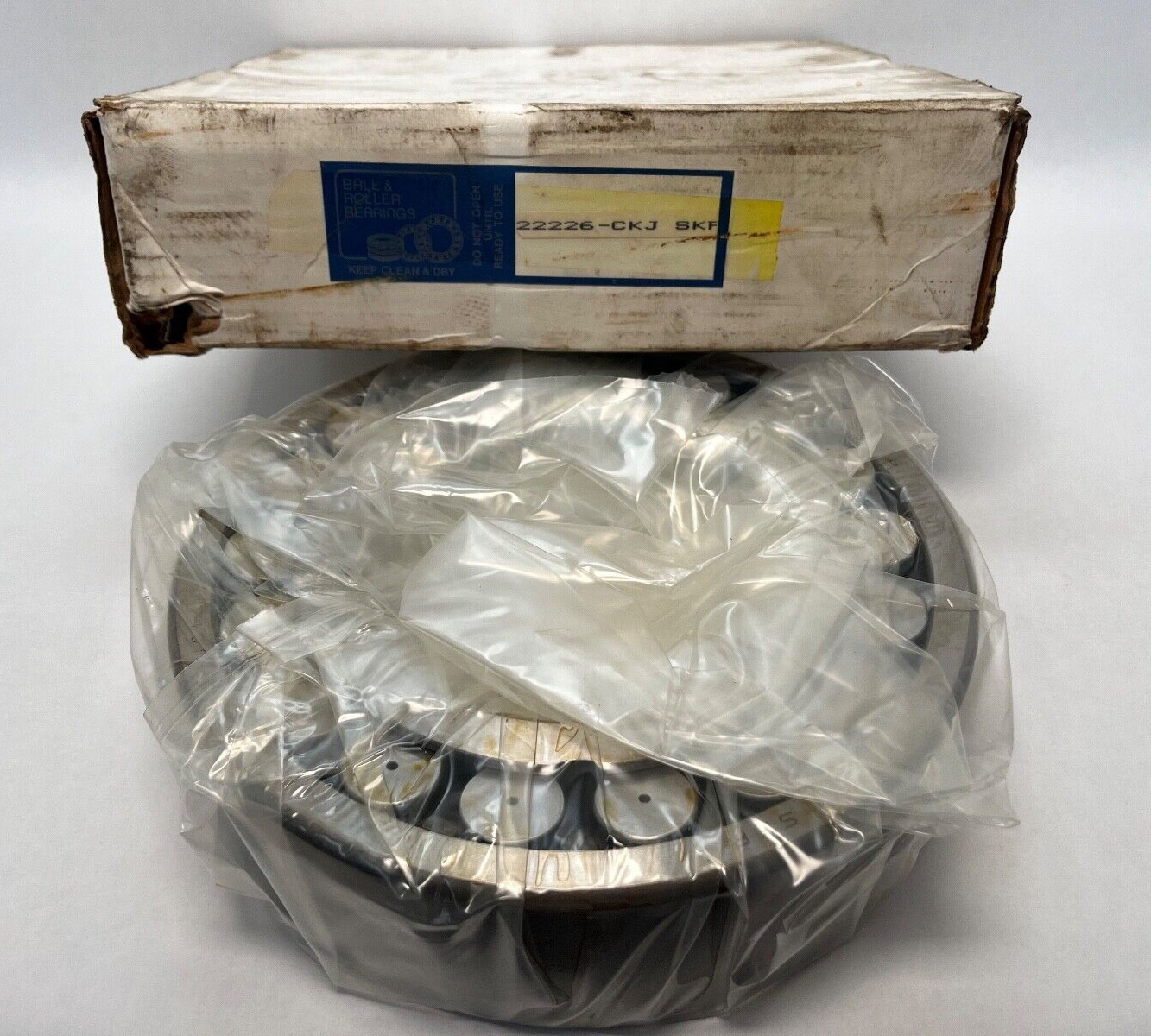

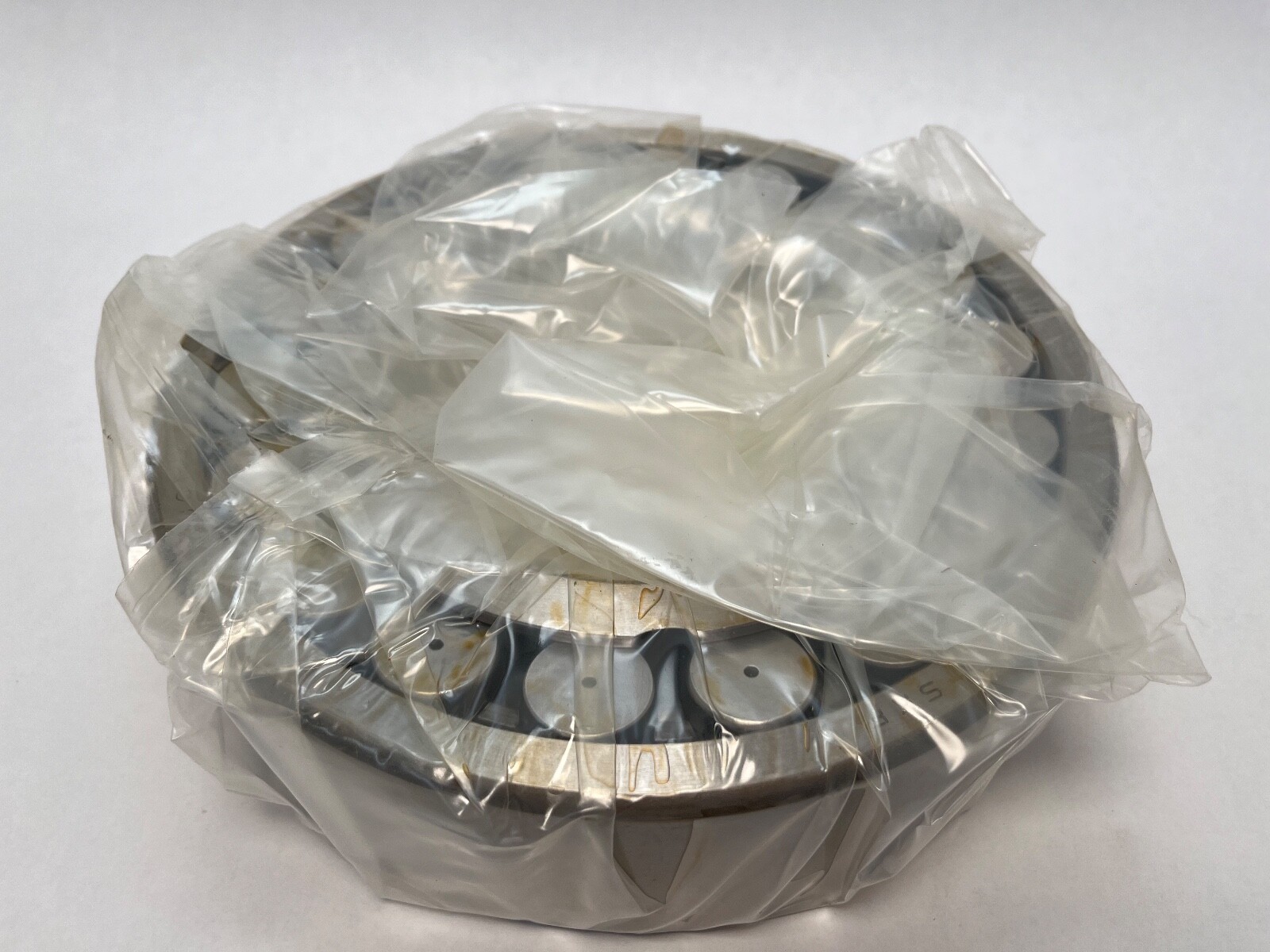

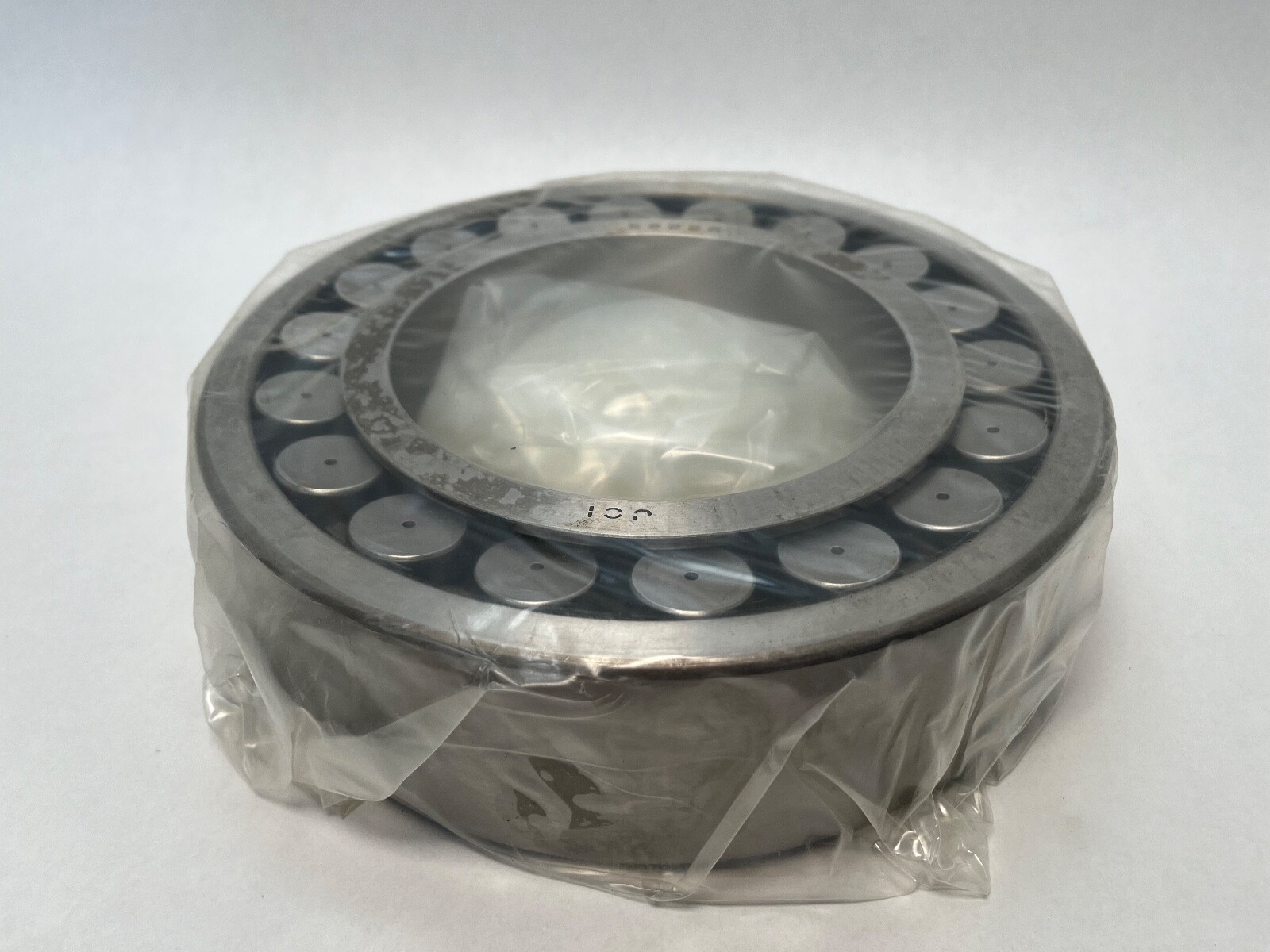

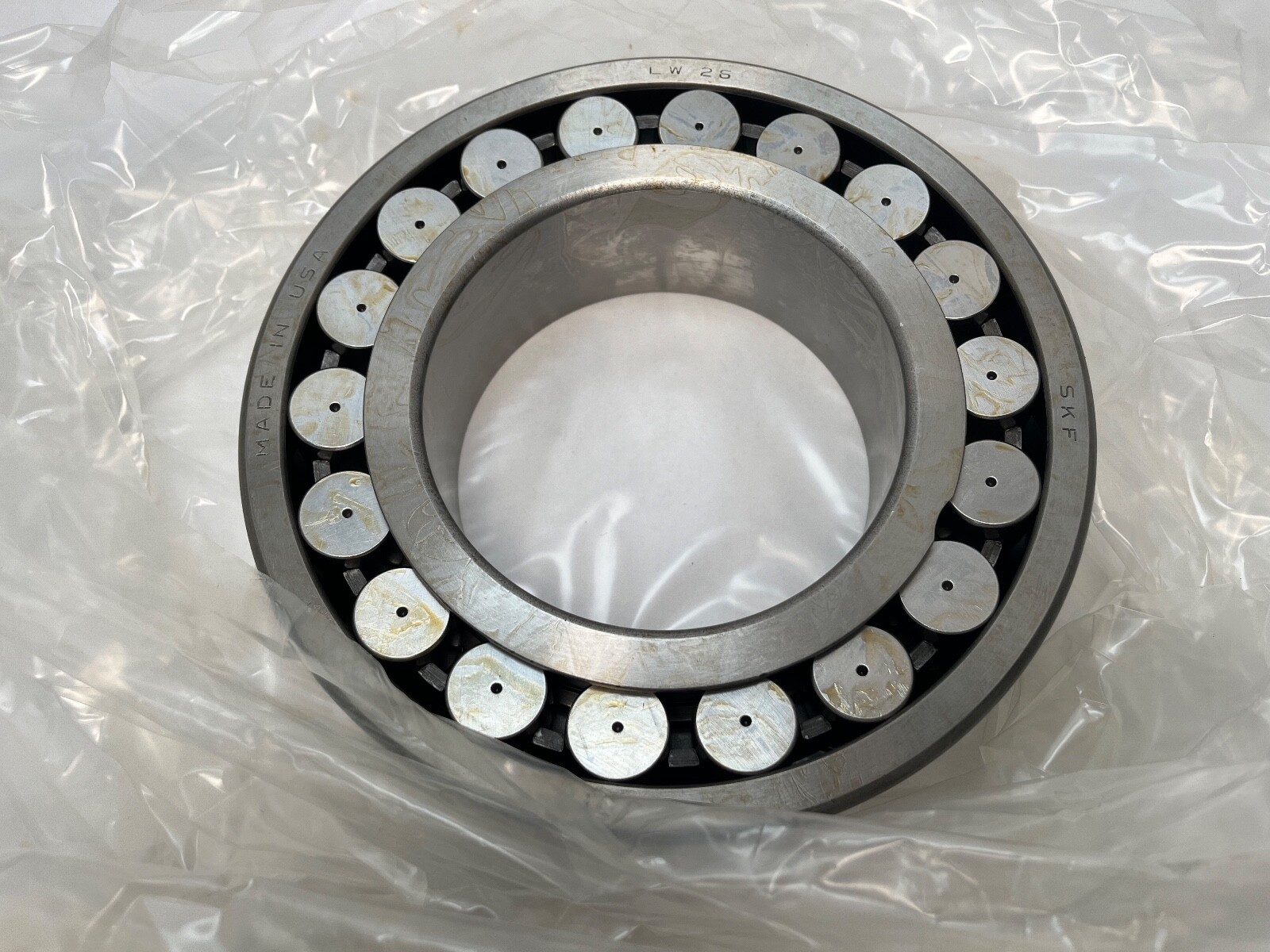

SKF 22226-CKJ spherical roller bearing, 130 x 230 x 64 mm, 1:12 tapered bore, pressed steel cage, CN clearance. Mounts on an H326 adapter sleeve.
List Price
$328.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22226 CKJ |
| Model | 22226 C K J 22226E 22226 CC K J |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22226 |
| Mpn Variants | 22226-CKJ; 22226 CKJ; 22226CKJ; 22226-C-K-J; 22226 C K J; 22226CCKJ |
| Additional Attributes | Internal design: SKF C; Adapter sleeve: H326; Current SKF execution: 22226 EK |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered, 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.30.00 |
| Industry Terms | spherical roller bearing; tapered bore spherical roller bearing; self-aligning roller bearing; 222 series bearing; adapter sleeve bearing |
| Common Misspellings | 22226CKJ C3; 2226 CKJ; SKF 22226 CKJ; 22226 CJK |
| Application Types | adapter sleeve mounting; pillow block housings; conveyors; fans; gearboxes |
| Closure Type | Open |
| Cross Reference 1 | SKF 22226 EK – current E design, higher ratings |
|---|---|
| Cross Reference 2 | FAG 22226-E1-K – E1 design, same envelope |
| Cross Reference 3 | NSK 22226EAKE4 – EA design, same envelope |
| Cross Reference 4 | NTN 22226BK – B design, same envelope |
| Cross Reference 5 | Timken 22226KEJW33 – EJ design, W33 groove |
| Cross Reference 6 | Koyo 22226RHK – RH design, same envelope |
SKF 22226-CKJ is a double-row spherical roller bearing with a 1:12 tapered bore, 130 mm bore by 230 mm outside diameter by 64 mm wide. It has a pressed steel cage and CN (normal) internal clearance. Unit Quantity: 1 Pc.

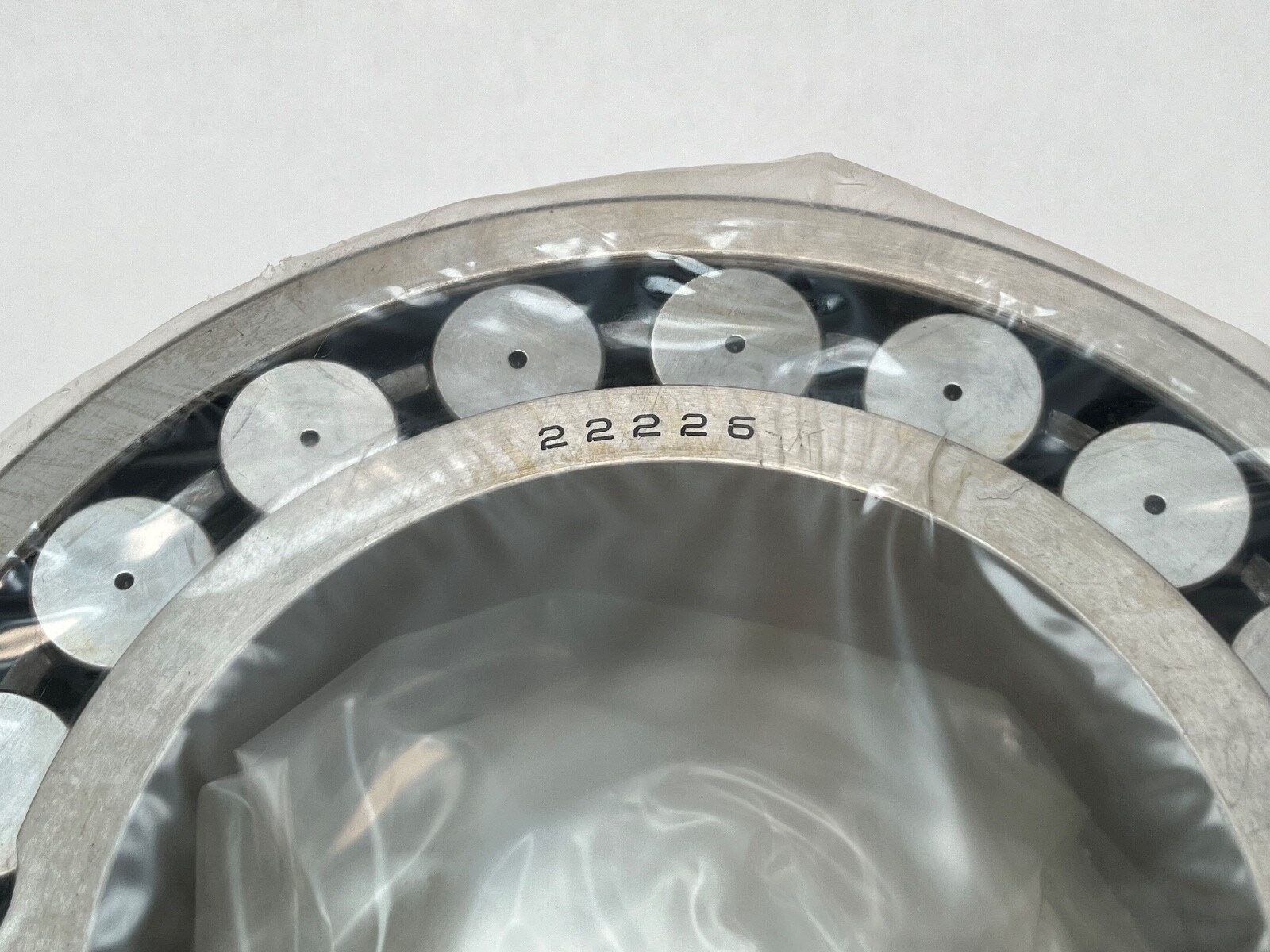

22226 — spherical roller bearing, dimension series 222, bore code 26 giving a 130 mm bore.
C — SKF C internal design.
K — tapered bore, taper 1:12.
J — pressed steel cage.
Series: 22200. Base Number: 22226. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Tapered 1:12. Internal Clearance: CN. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Closure Type: Open.
Bore Diameter: 130 mm. Outside Diameter: 230 mm. Overall Width: 64 mm. Bore Type: Tapered 1:12. Adapter sleeve: SKF H326 (115 mm shaft seat) with KM locknut and MB lock washer.
SKF lists 22226 EK as the current tapered-bore execution on this 130 x 230 x 64 mm envelope; the E design carries higher load ratings than the C design. Same-envelope tapered-bore spherical roller bearings: FAG 22226-E1-K (E1 design), NSK 22226EAKE4 (EA design), NTN 22226BK (B design), Timken 22226KEJW33 (EJ design, W33 groove) and Koyo 22226RHK (RH design). MPN Variants: 22226-CKJ; 22226 CKJ; 22226CKJ; 22226-C-K-J; 22226 C K J; 22226CCKJ.
Bore 130 mm, outside diameter 230 mm, width 64 mm, with a 1:12 tapered bore.
C is the SKF C internal design, K is the 1:12 tapered bore and J is a pressed steel cage.
The SKF H326 adapter sleeve (115 mm shaft seat) with KM locknut and MB lock washer.
