SKF22232 CKJ/W33Spherical Roller Bearing — 160 mm ID, 290 mm OD, 80 mm Width, 1:12 Tapered Bore, W33 Groove, Pressed Steel Cage

Product Description

What this part is:

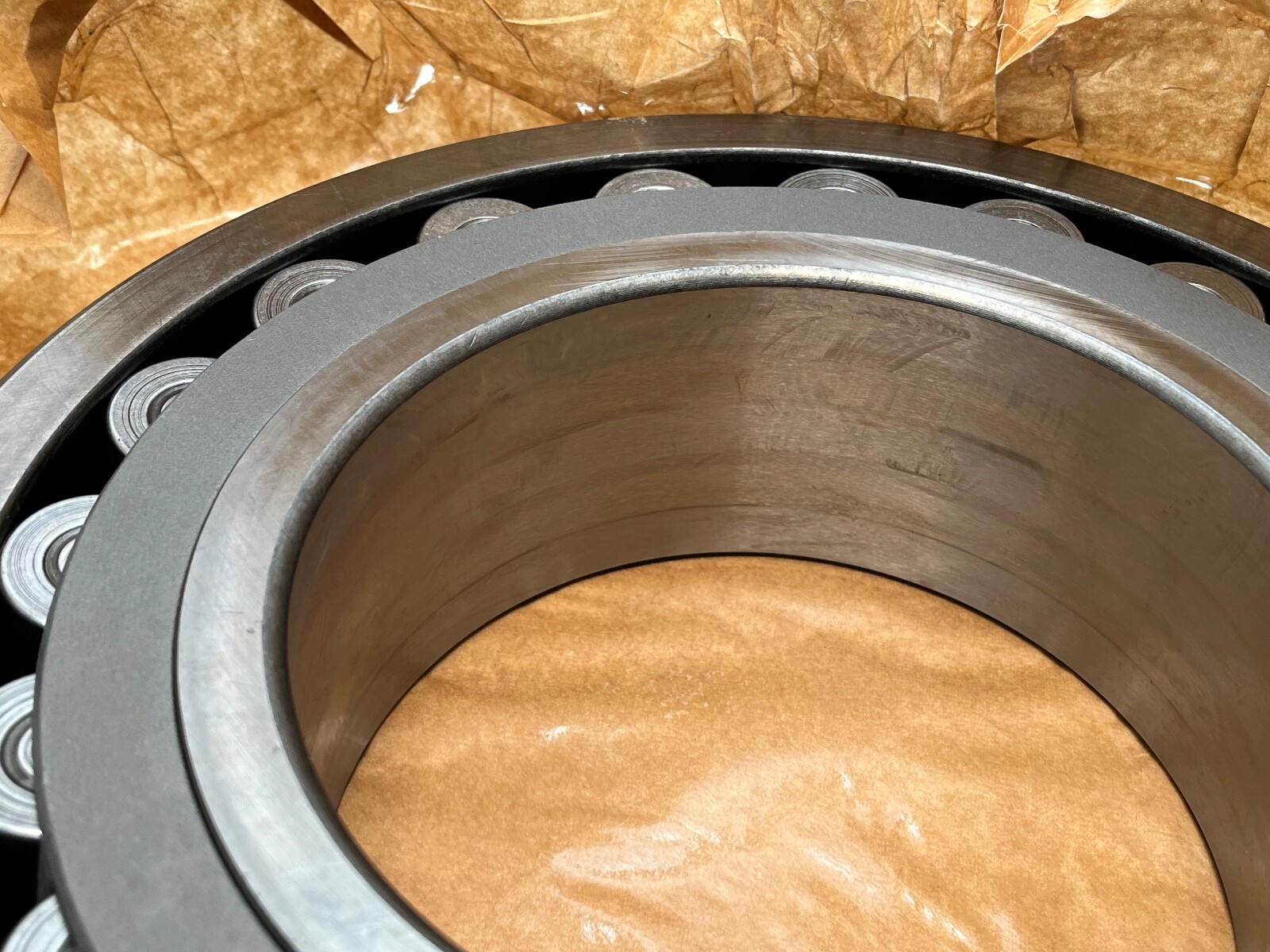

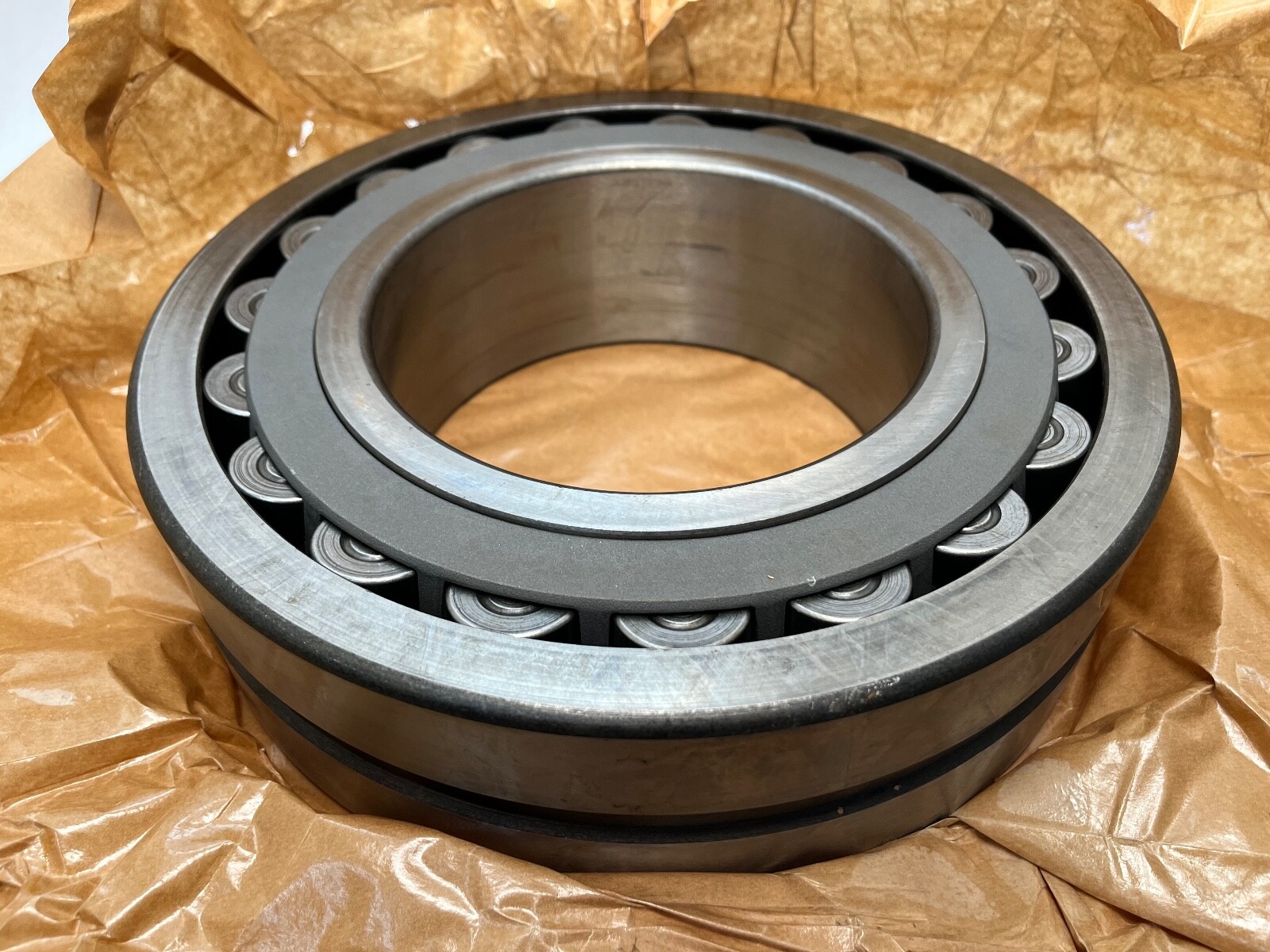

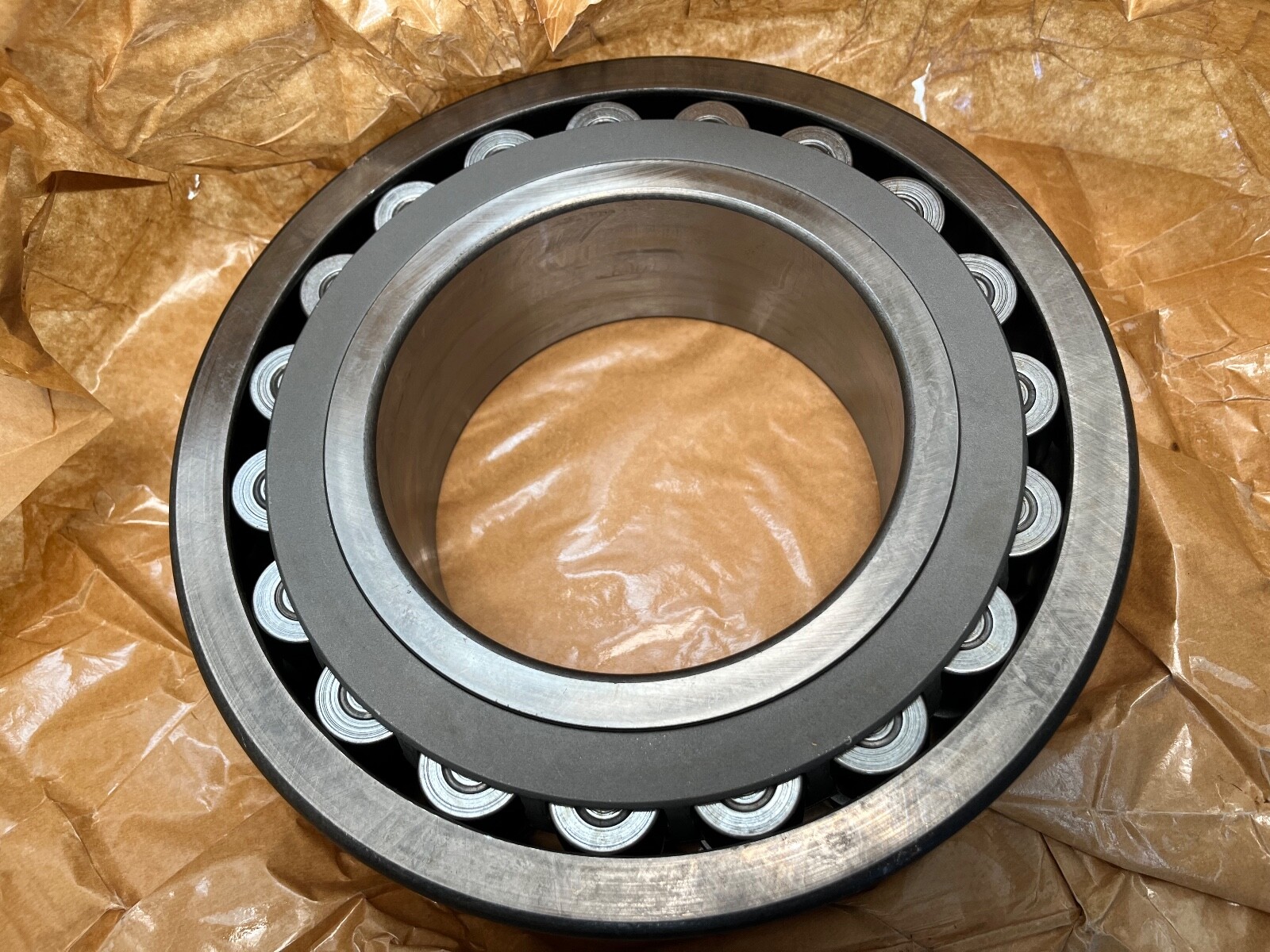

SKF 22232 CKJ/W33 is a double row spherical roller bearing, 160 x 290 x 80 mm, with a 1:12 tapered bore, pressed steel cages and a lubrication groove with three holes in the outer ring. Unit Quantity: 1 Pc, bearing only. Series: 222. Number Of Rows: 2. Rolling Elements: Spherical Roller. Closure Type: Open. Harmonization Code: 8482.30.00.80.

Decoding the designation:

222 — spherical roller bearing, dimension series 22.

32 — bore code, 32 x 5 = 160 mm bore.

C — SKF C internal design.

K — tapered bore, taper 1:12.

J — pressed steel cage.

W33 — annular groove and three lubrication holes in the outer ring.

Specifications:

Bore Diameter: 160 mm. Outside Diameter: 290 mm. Overall Width: 80 mm. Bore Type: Tapered 1:12. Number Of Rows: 2. Cage Type: Pressed. Cage Material: Pressed steel. Internal Clearance: CN. Relubrication Feature: W33 groove and three holes. Lubricant: grease or oil. Bearing Material: Bearing steel.

Dimensions and mounting:

Adapter sleeve: H 3132 (140 mm shaft). The 1:12 tapered bore also fits a 1:12 tapered shaft seat directly.

Compatibility and replacement:

Cross-references with the same 160 x 290 x 80 mm envelope and tapered bore: SKF 22232 CCK/W33 (current SKF design); FAG 22232-E1-K (no lubrication groove); NSK 22232CAKE4; Timken 22232KEJW33. MPN variants: 22232 CKJ/W33, 22232-CKJ-W33, 22232-C-K-J-W33, 22232CKJW33.

Frequently asked questions:

What are the dimensions of the SKF 22232 CKJ/W33?

Bore 160 mm tapered 1:12, outside diameter 290 mm, width 80 mm.

What does W33 mean?

W33 is an annular groove with three lubrication holes in the outer ring; lubricant is grease or oil.

Which adapter sleeve fits this bearing?

Adapter sleeve H 3132, for a 140 mm shaft.
