Double-row spherical roller bearing, 160 mm bore x 290 mm OD x 80 mm wide, straight bore, W33-type lubrication groove, C3 clearance. SNR 22232VB33J30.
List Price
$609.95
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 22232VB33J30 |
| GTIN | 3413520196264 |
| Model | 22232 V W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 160 mm |
| OD | 290 mm |
| Width | 80 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22232 |
| Industry Terms | spherical roller bearing; self aligning roller bearing; SRB; barrel roller bearing; double row spherical; straight bore spherical; 22232 |
| Application Types | Conveyor head and tail shafts; fans and blowers; crushers and screens; mill drives; long shafts subject to deflection; split or separately machined housings |
| Bore Shaft Size | 160 mm, straight bore |
| Mpn Variants | 22232VB33J30; 22232 VB33 J30; 22232-VB33-J30; 22232VB33; 22232 V B33 J30; 22232 |
| Additional Attributes | Outer ring lubrication groove (B33) with three radial holes; ISO 222 series; double row |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C3 |
| Relubrication Feature | Outer ring groove with 3 radial holes |
| Harmonization Code | 8482.30.00 |
| Part Number | 22232VB33J30 |
| Common Misspellings | SNR 22232 VB33J30; 22232VB33J3O; SNR22232; NTN SNR 22232VB33 |
| Cross Reference 1 | SNR 22232EAW33 - E design, same groove |
|---|

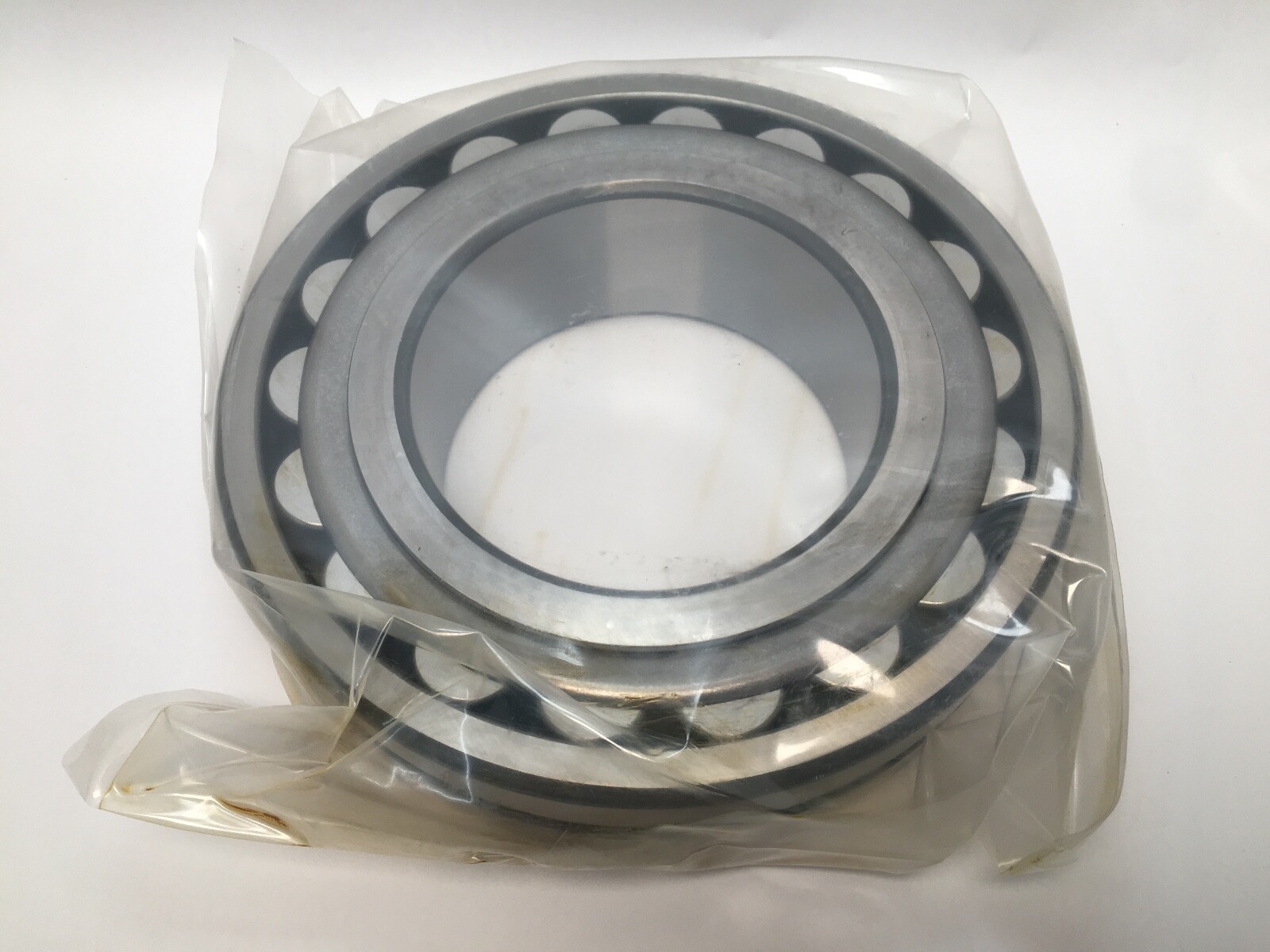

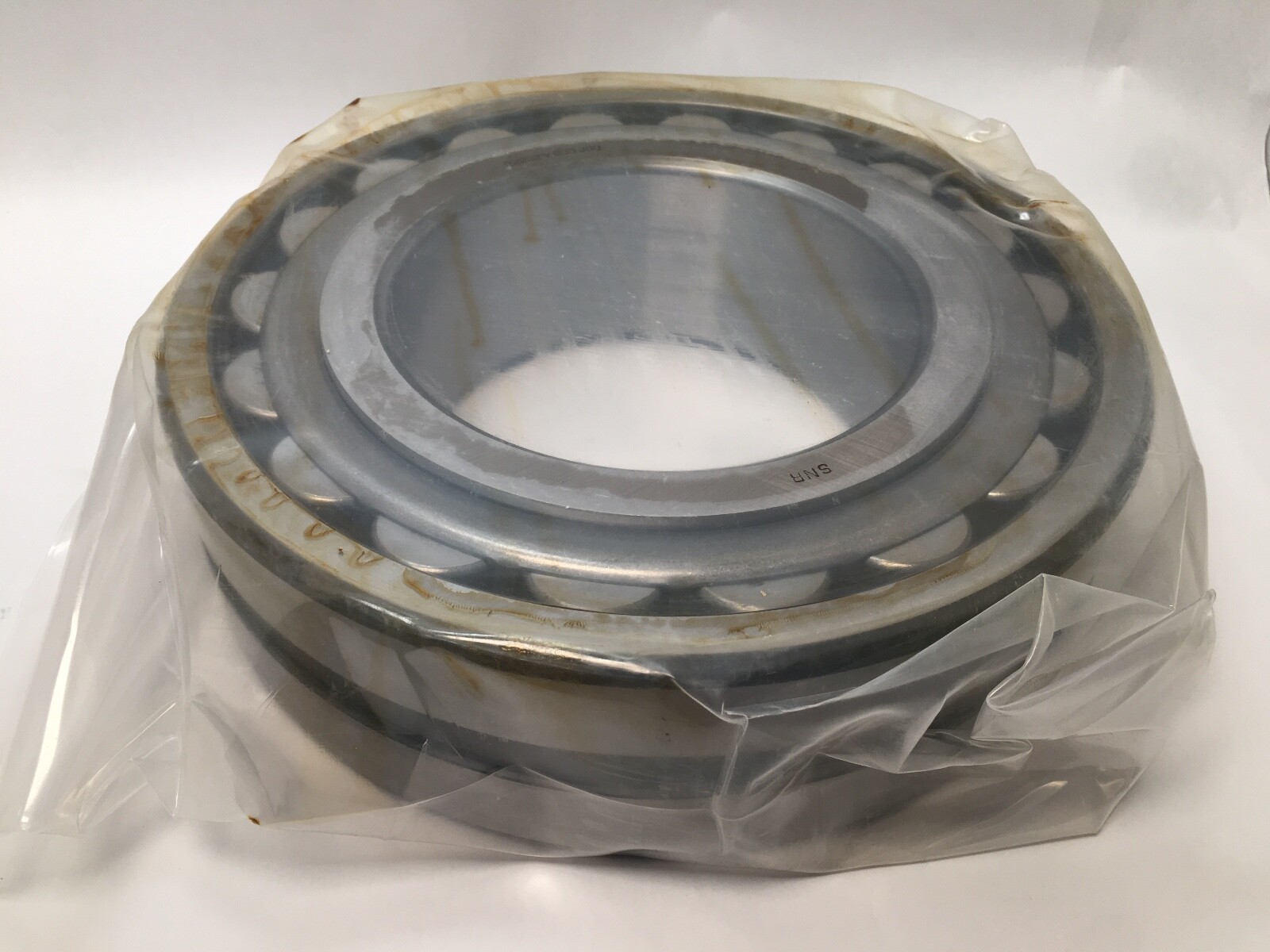

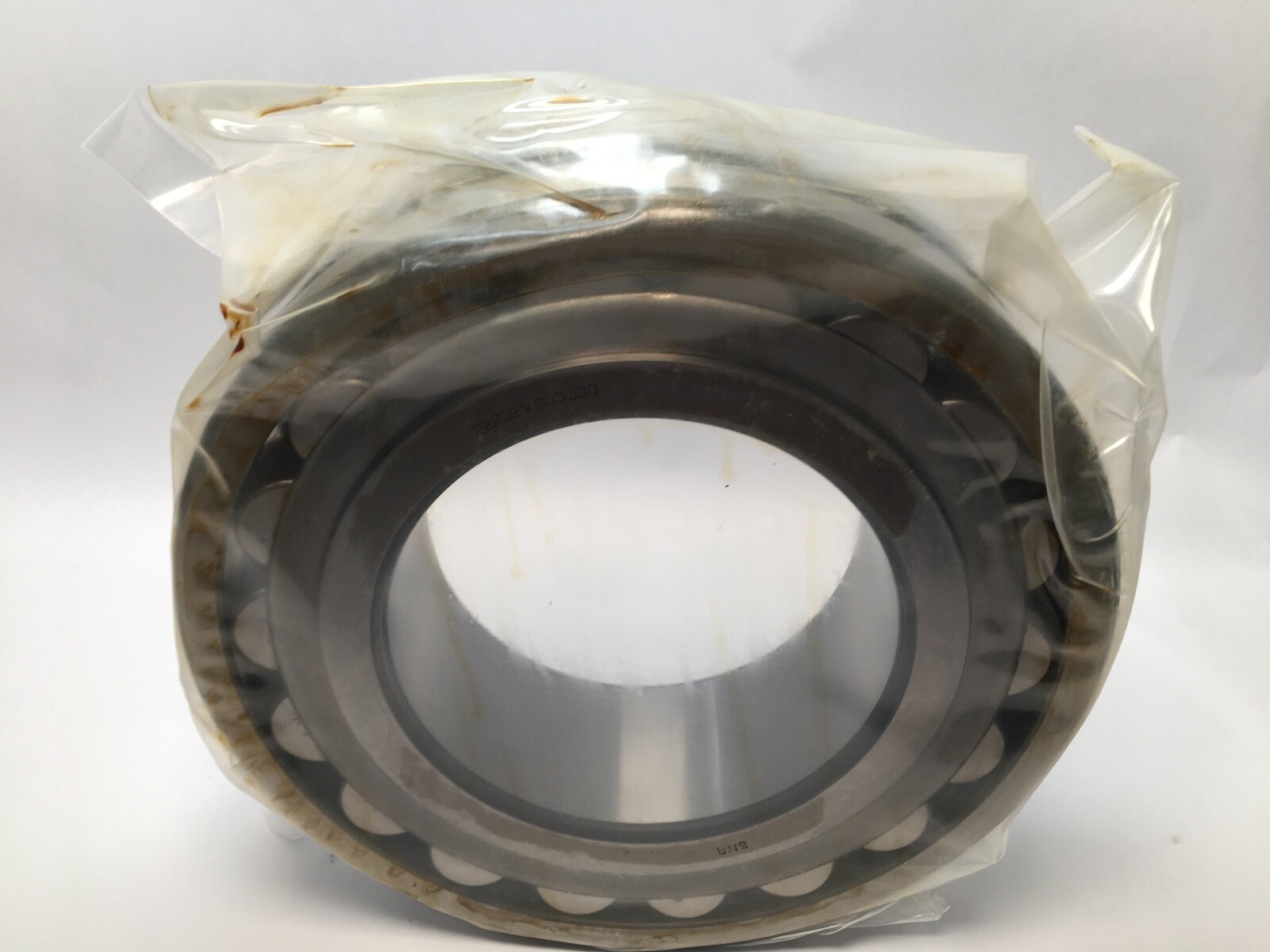

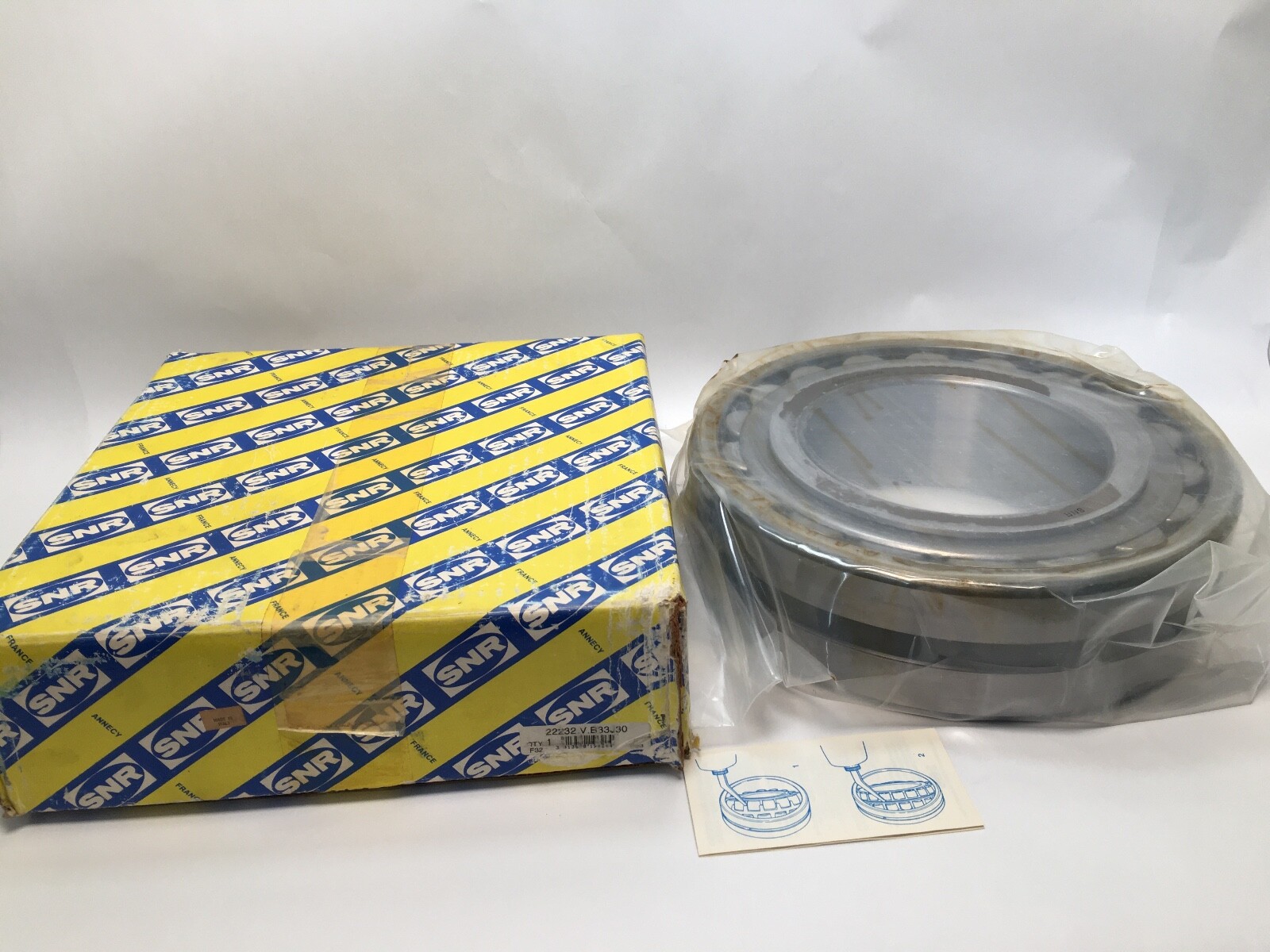

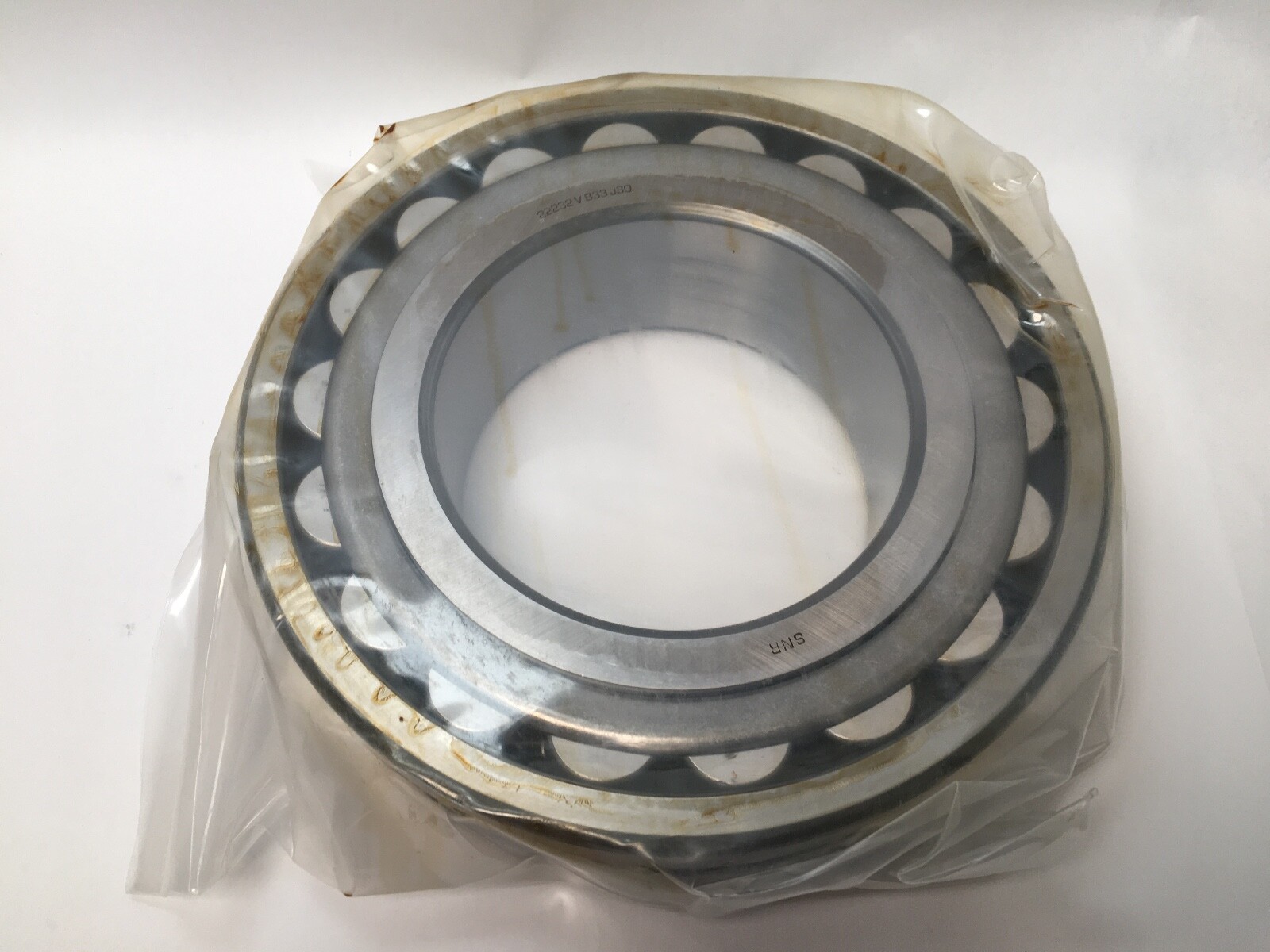

SNR (NTN-SNR) 22232VB33J30 double-row spherical roller bearing, straight bore, with a lubrication groove and three radial holes in the outer ring and C3 internal clearance. Unit Quantity: 1 Pc.

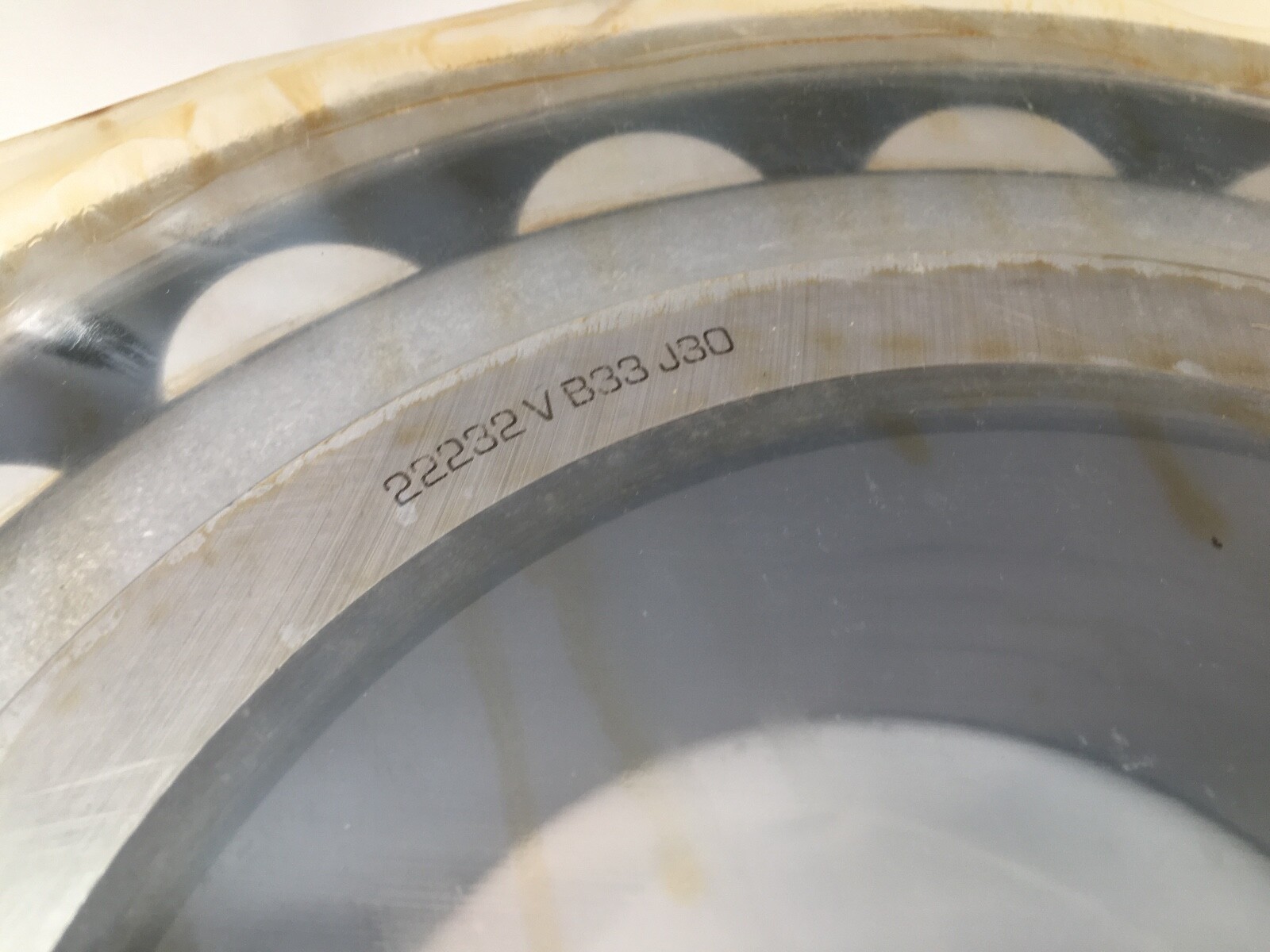

222 — ISO 222 dimension series.
32 — ISO bore code 32, 160 mm bore.
V — SNR internal design modification code.

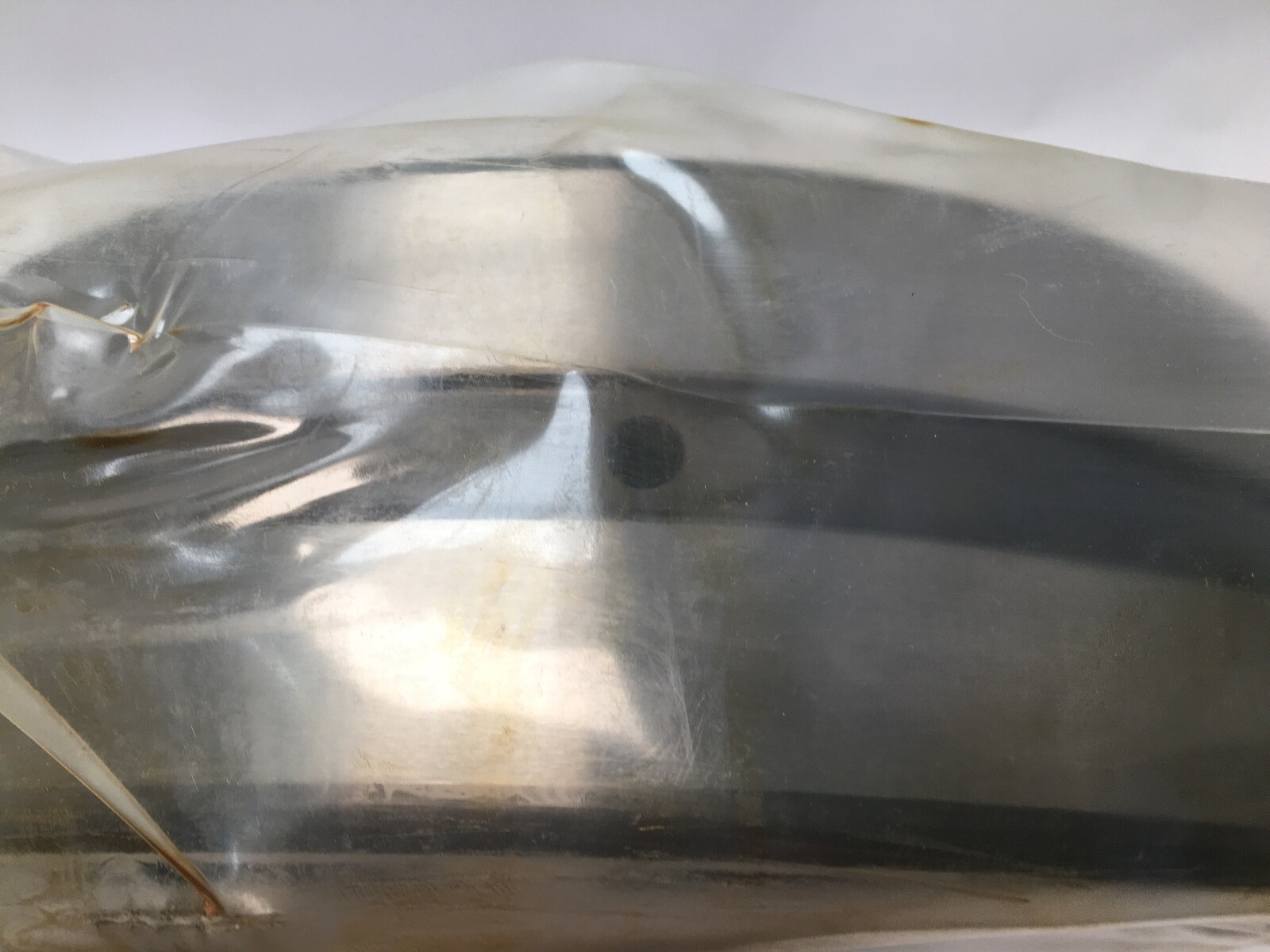

B33 — annular groove in the outer ring outside diameter with three radial feed holes (W33-type), which take grease or oil to the rolling elements.
J30 — C3 internal clearance, greater than normal.
No K suffix — straight (parallel) bore.
Bore Diameter: 160 mm. Outside Diameter: 290 mm. Width: 80 mm. Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Straight. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Series: ISO 222. GTIN: 3413520196264.

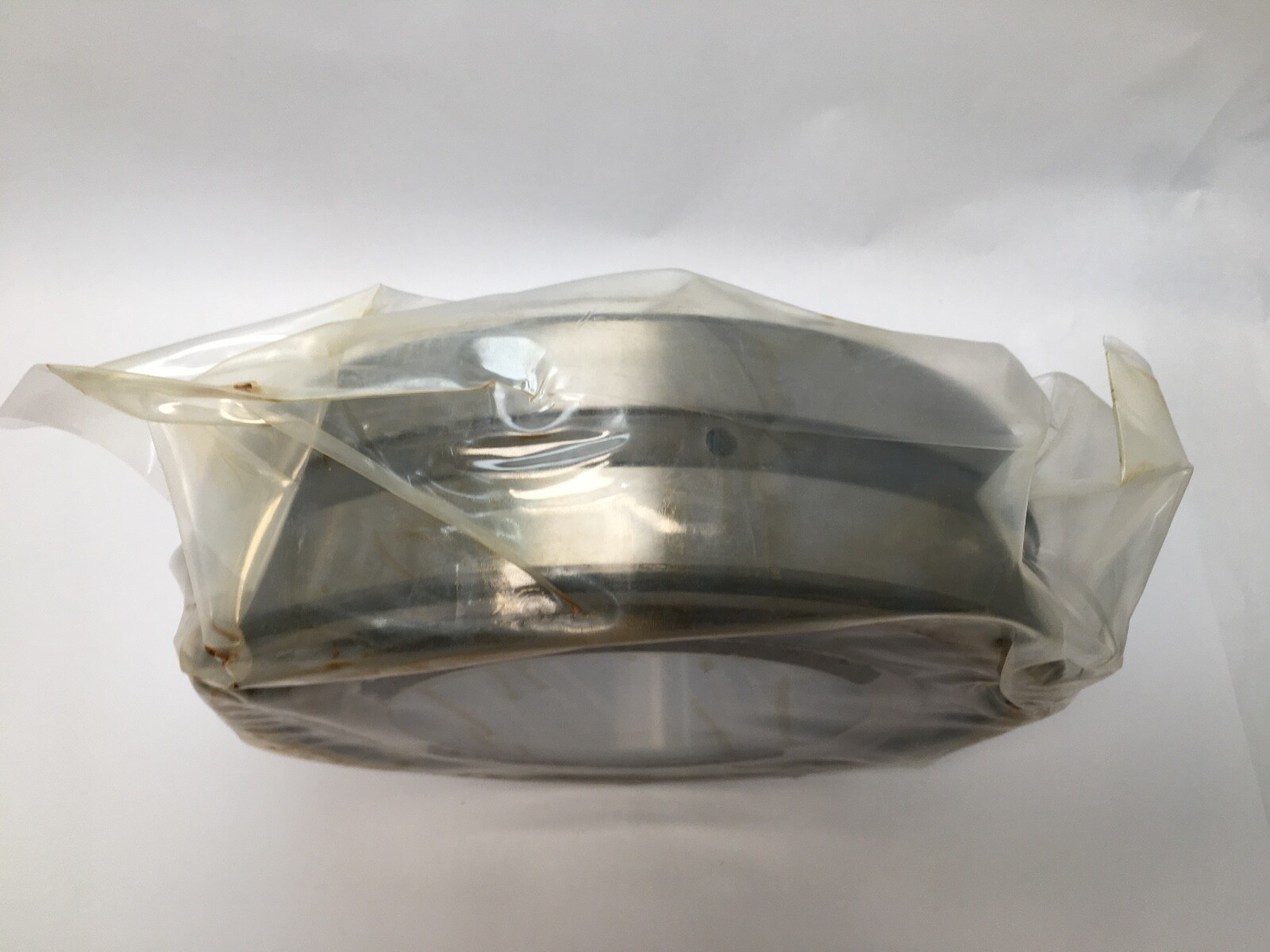

Envelope: 160 x 290 x 80 mm. Outer ring: lubrication groove in the outside diameter with three radial holes. Inner ring: straight bore, no taper.
ISO base number 22232. SNR 22232EAW33 is the current NTN-SNR straight-bore E design with the same groove and holes. Sibling SNR 22232 in the same envelope with variant code VKF107 is listed under SKU B-EB6#T9WLQR.
160 mm bore, 290 mm outside diameter and 80 mm width, double-row spherical roller bearing.
B33 is an outer ring groove with three radial lubrication holes. J30 is C3 internal clearance.
Straight. The designation has no K suffix, so the bore is parallel.
