Spherical roller bearing, 150 x 270 x 73 mm, 1:12 tapered bore, polyamide cage, W33-type lubrication groove. FAG E design, normal clearance; sleeve H3130.
List Price
$367.17
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22230-ES-K-TVPB |
| Model | 22230ESK.TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Chrome Steel |
|---|---|
| Series | 222 |
| Lubricant | Grease or oil |
| Mpn Variants | 22230-ES-K-TVPB, 22230ESK.TVPB, 22230ESKTVPB, 22230-ES-K-TVPB-W33, 22230E |
| Compatible With Replaces | Adapter sleeve H3130; withdrawal sleeve AHX3130G |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | CN |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33) |
| Harmonization Code | 8482.30.00.80 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | SKF 22230 CCK/W33 |
|---|

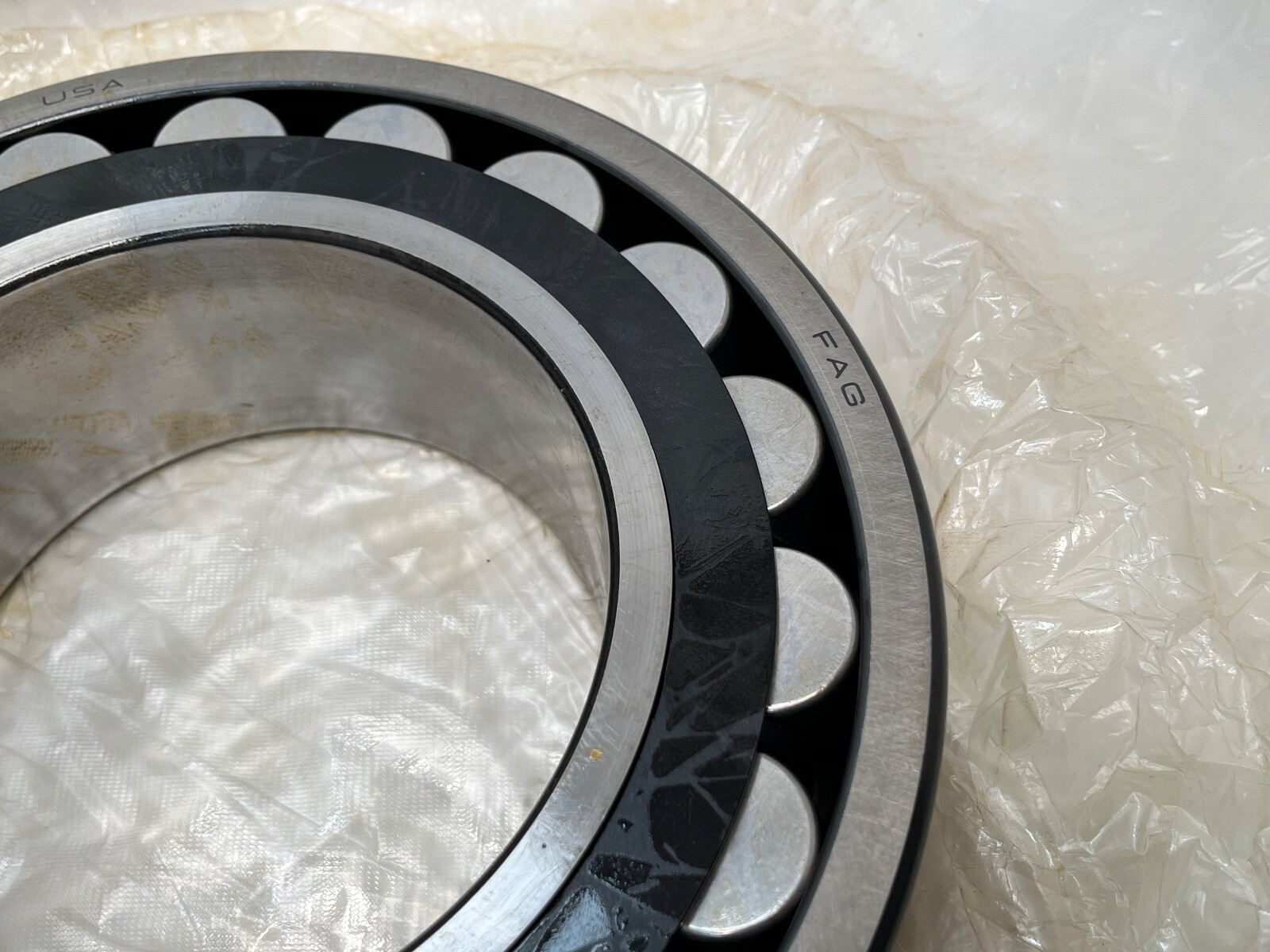

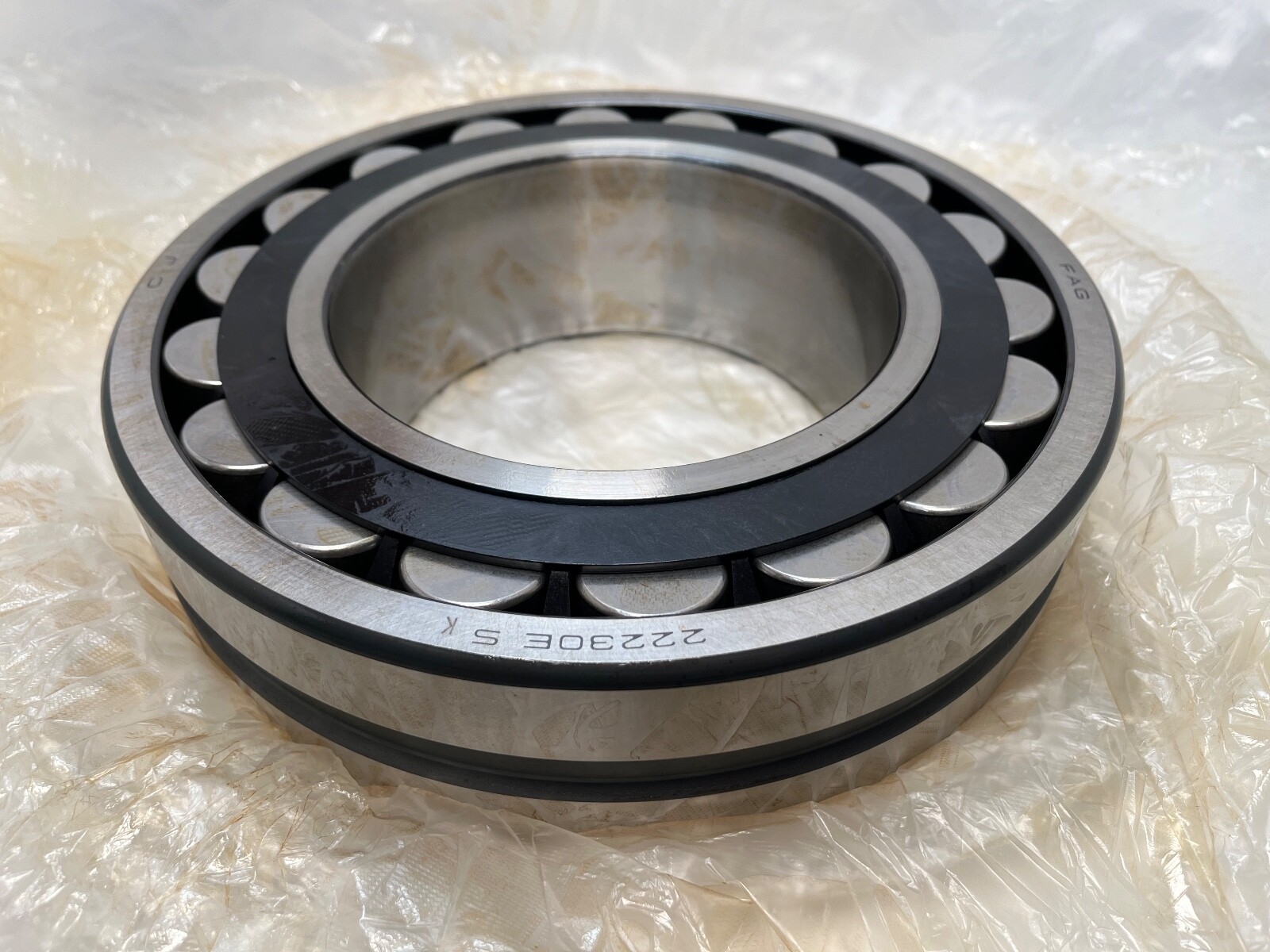

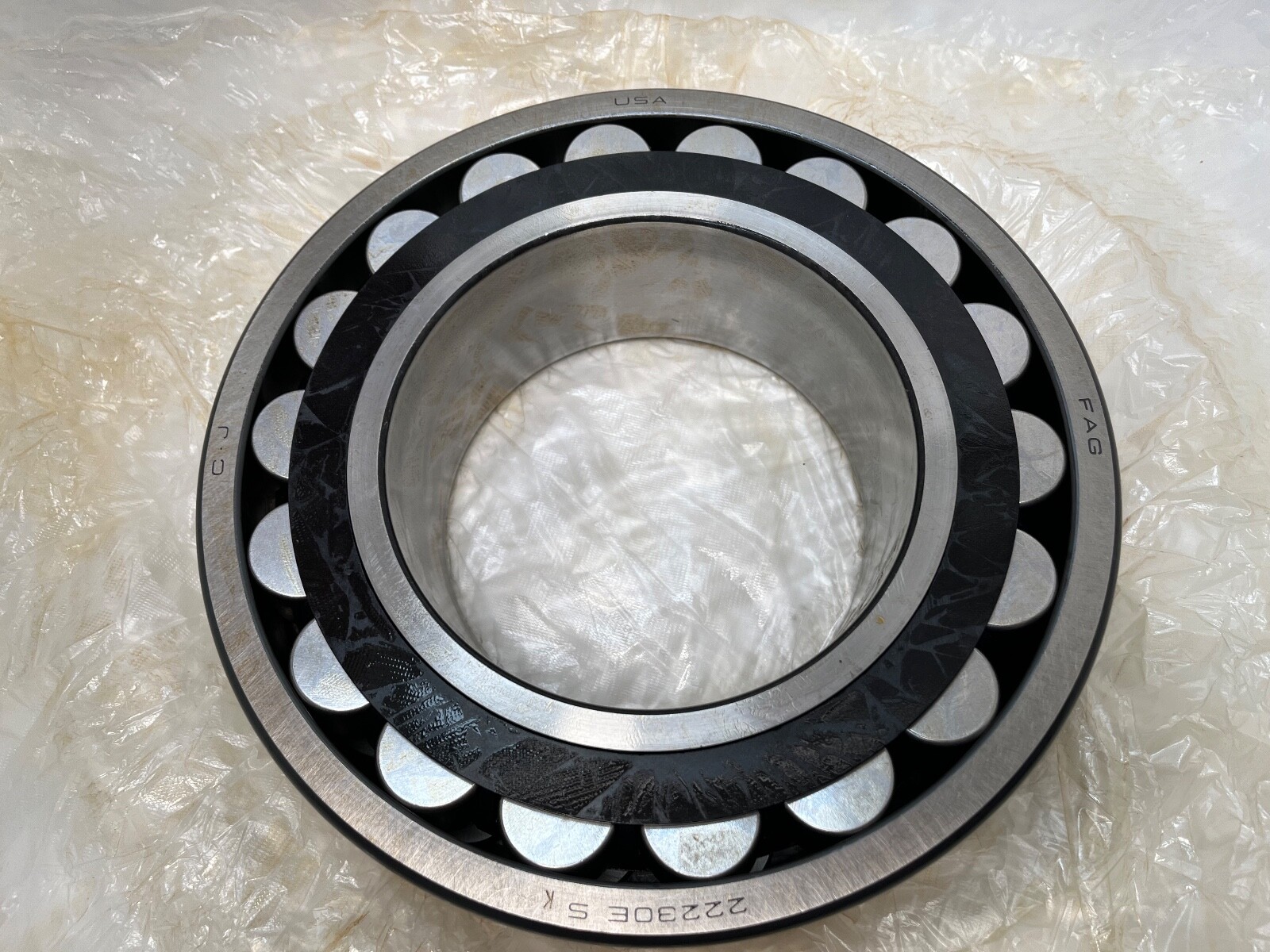

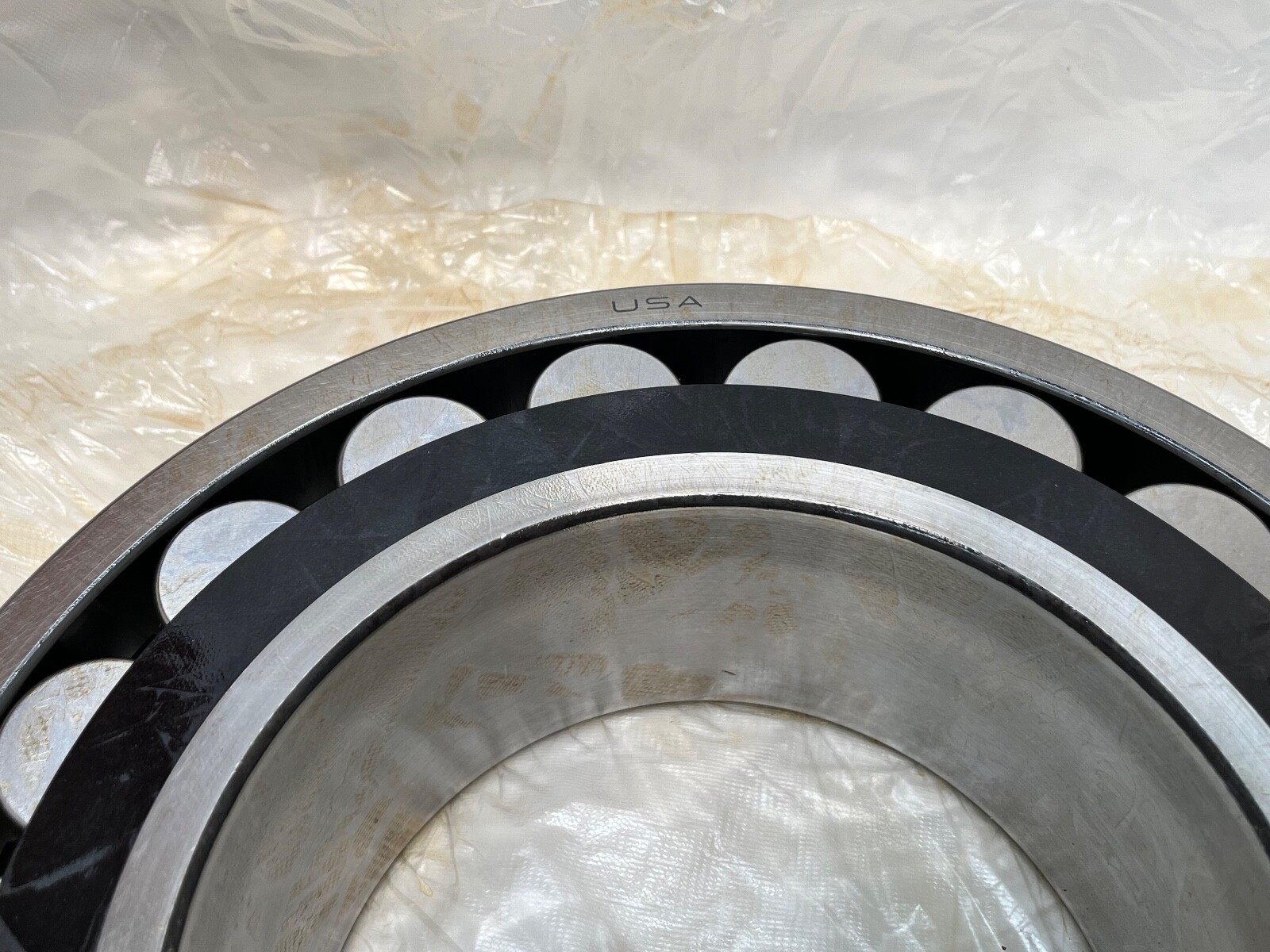

FAG 22230-ES-K-TVPB is a double-row spherical roller bearing in the 222 series with a 1:12 tapered bore. Bore Diameter: 150 mm (small end of taper). Outside Diameter: 270 mm. Overall Width: 73 mm. Bore Type: Tapered 1:12. Internal Clearance: CN. Rolling Elements: Spherical Roller.

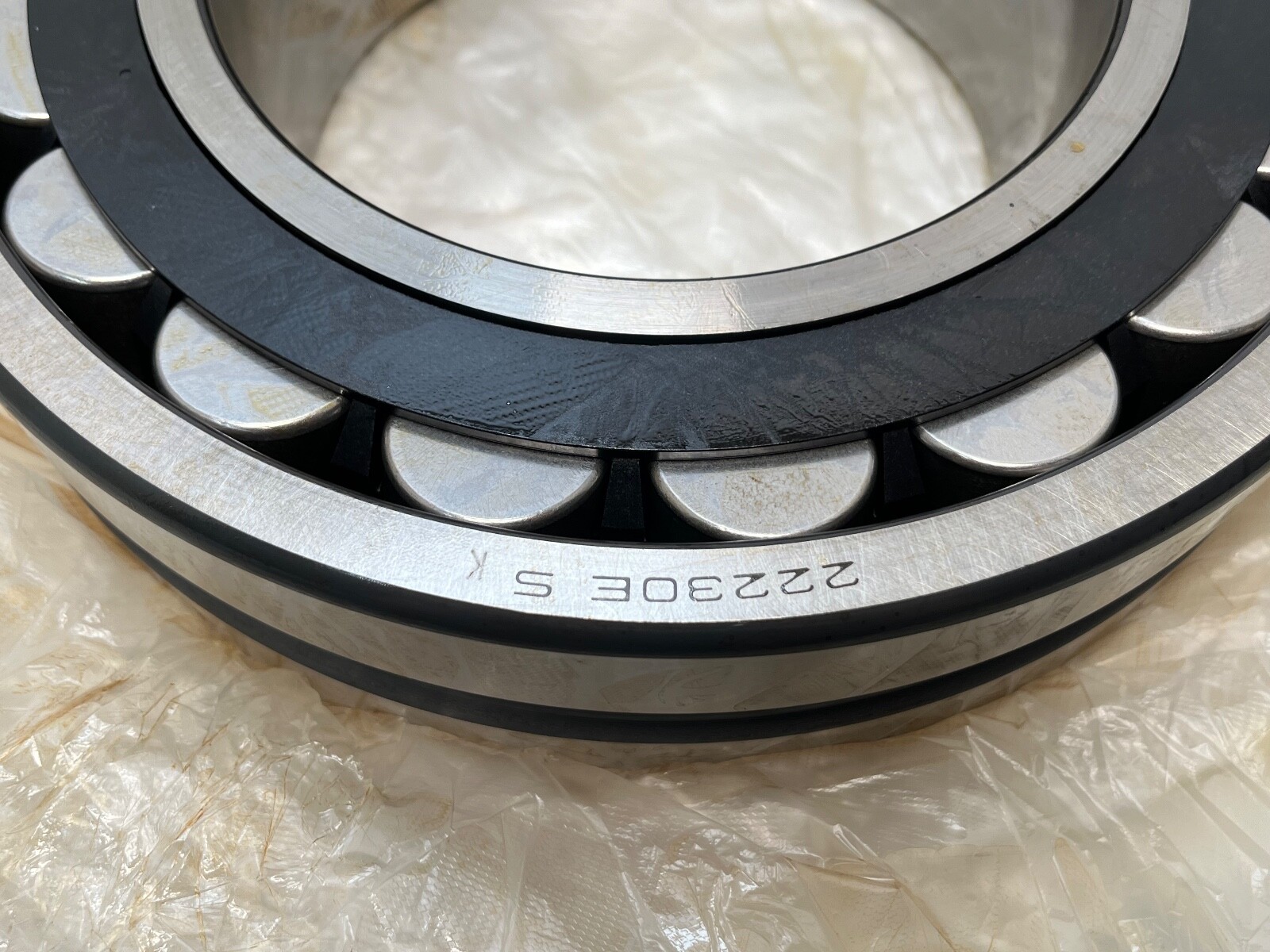

22230 — spherical roller bearing, 222 series; bore code 30 = 150 mm.
E — FAG increased-capacity internal design.
S — lubrication groove with radial holes in the outer ring (W33 equivalent).
K — tapered bore, taper 1:12.
TVPB — glass-fibre reinforced polyamide cage.
Cage Material: Polyamide. Lubricant: grease or oil, fed through the outer-ring groove and holes. Internal Clearance: CN. The tapered bore mounts on an adapter or withdrawal sleeve.
Adapter sleeve: H3130. Withdrawal sleeve: AHX3130G.
Same envelope and tapered-bore configuration as FAG 22230-E1-XL-K and SKF 22230 CCK/W33.
