Double-row spherical roller bearing, 160 x 290 x 80 mm, straight bore, machined brass cage, C4 extra-loose clearance, W33 relubrication groove.
List Price
$640.21
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22232-M-C4-W33 |
| GTIN | 4026677866875 |
| Model | 22232 E1 M M C4 W33 / 22232 M C4 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 160 mm |
| OD | 290 mm |
| Width | 80 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Base Number | 22232 |
| Industry Terms | Spherical roller bearing, self-aligning roller bearing, double row roller bearing, brass cage roller bearing, C4 clearance bearing, W33 lubrication groove |
| Application Types | Vibrating screens, crushers, kiln and dryer fans, conveyor pulleys, gearboxes, paper machinery, plummer block housings |
| Bore Shaft Size | 160 mm |
| Mpn Variants | 22232 M C4 W33, 22232MC4W33, 22232-M-C4-W33, 22232 E1 M M C4 W33, 22232E1A.M.C4, 22232-E1A-XL-M-C4, 22232E |
| Cage Type | Machined, window |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | C4 |
| Harmonization Code | 8482.30.00.80 |
| Part Number | 22232MC4W33 |
| Relubrication Feature | Yes |
| Lubricant | grease or oil |
| Cross Reference 1 | FAG 22232-E1A-XL-M-C4 (current designation) |
|---|---|
| Cross Reference 2 | SKF 22232 CC/C4W33 |
| Cross Reference 3 | NSK 22232EAE4 C4 |
| Cross Reference 4 | NTN 22232E C4 |
| Cross Reference 5 | Timken 22232EM C4 W33 |
| Cross Reference 6 | SNR 22232E C4 |
| Cross Reference 7 | FAG 22232-E1-XL - CN clearance, sheet steel cage |
| Cross Reference 8 | FAG 22232-E1-K - 1:12 tapered bore |

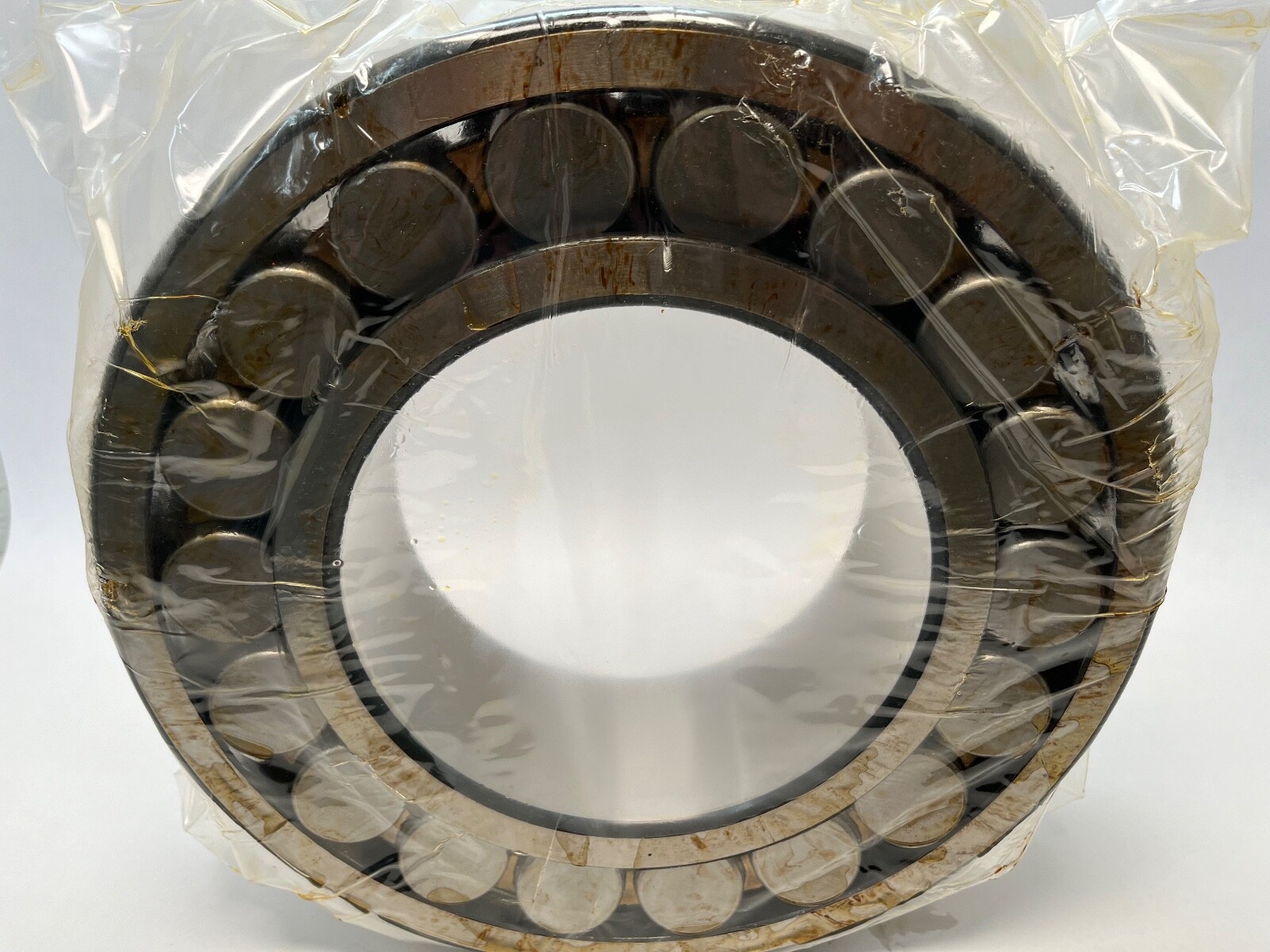

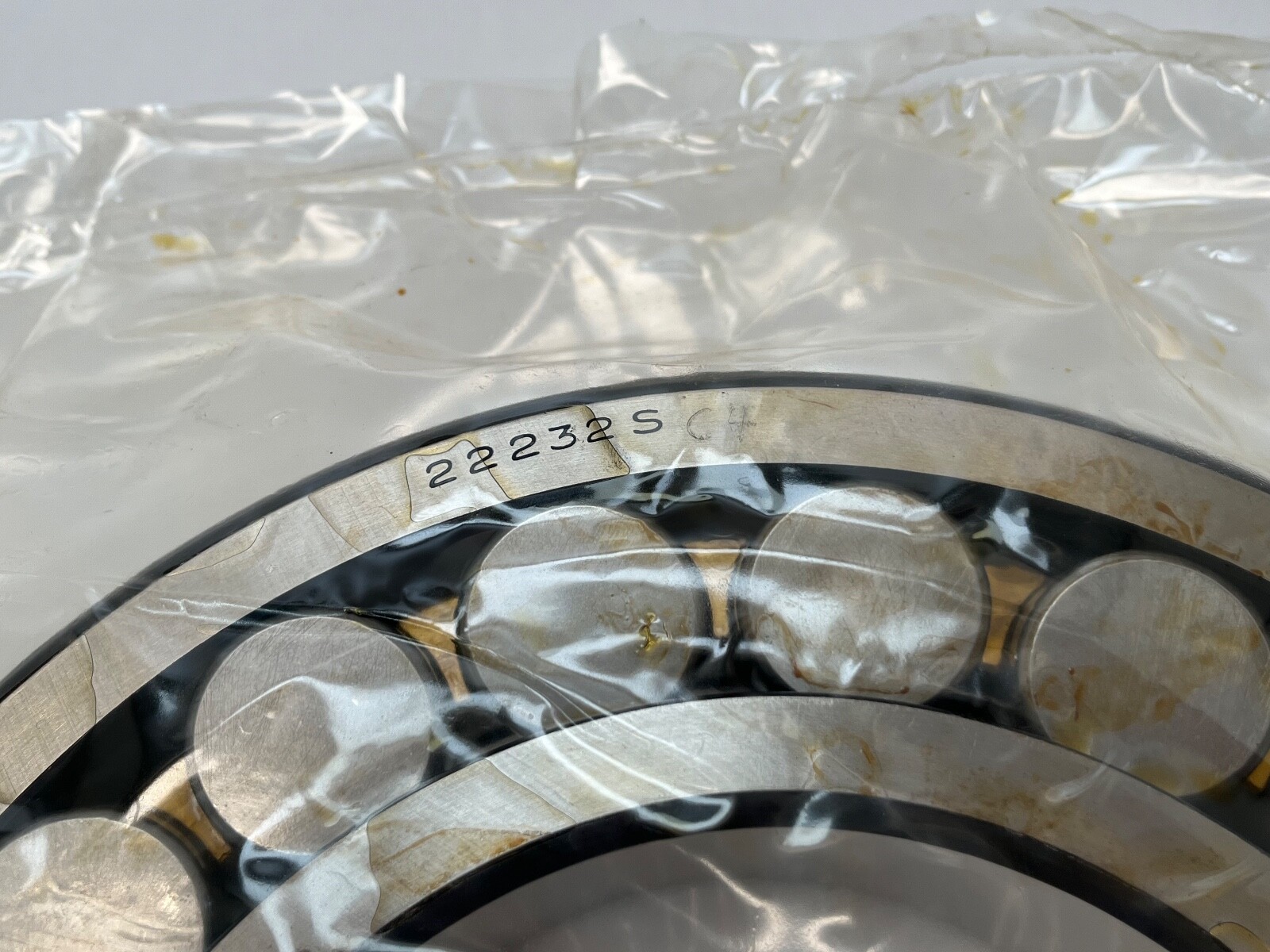

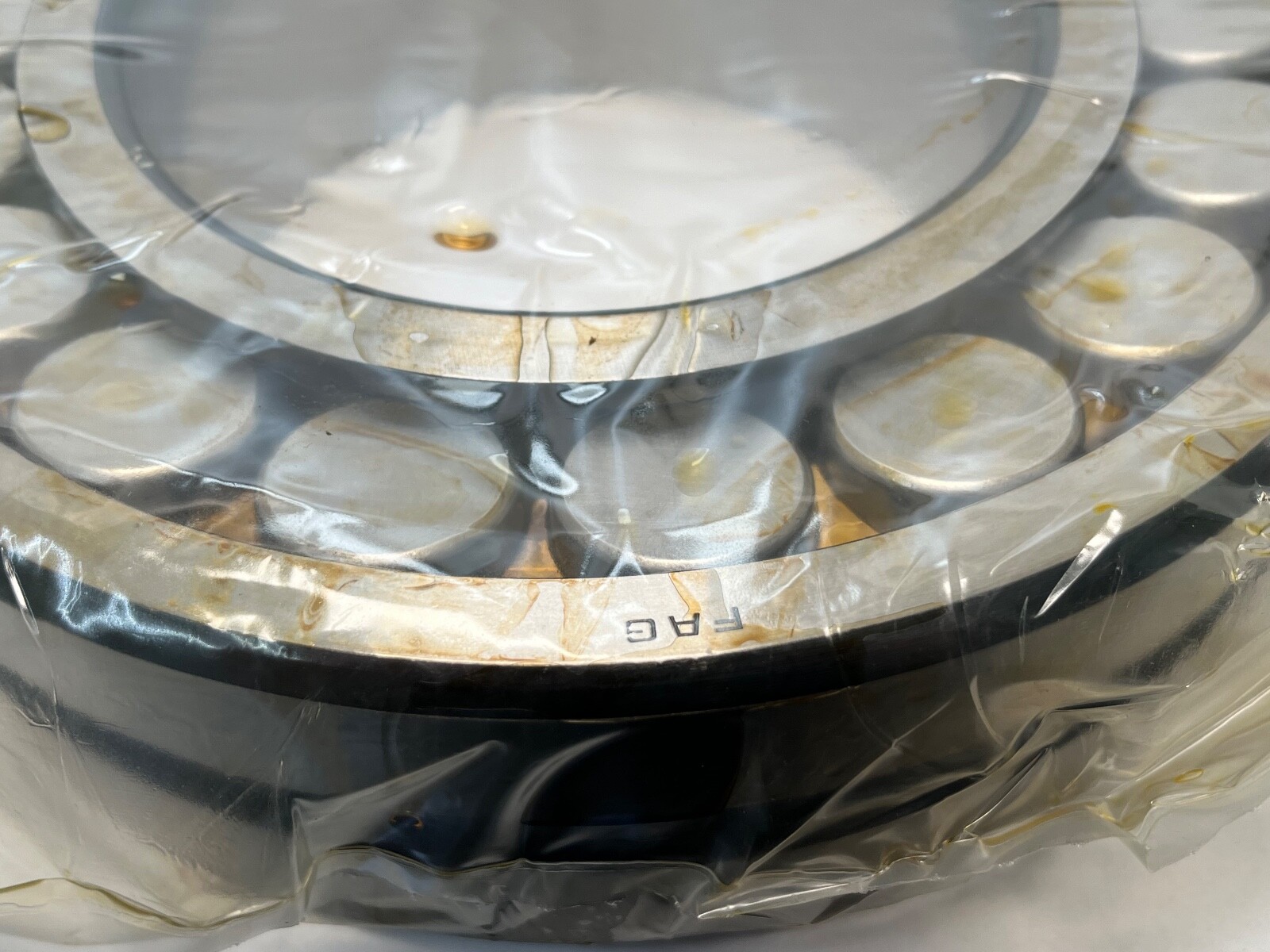

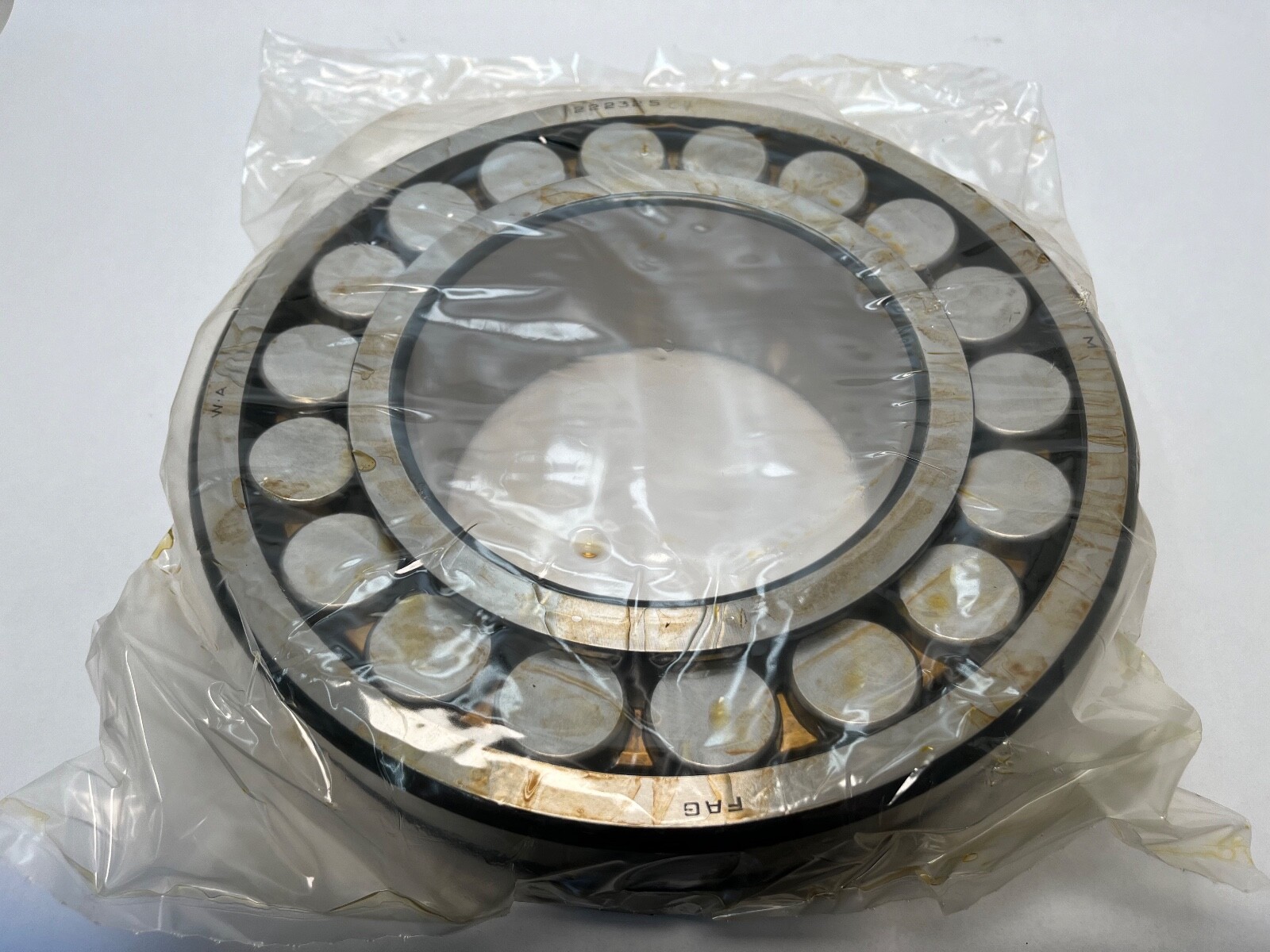

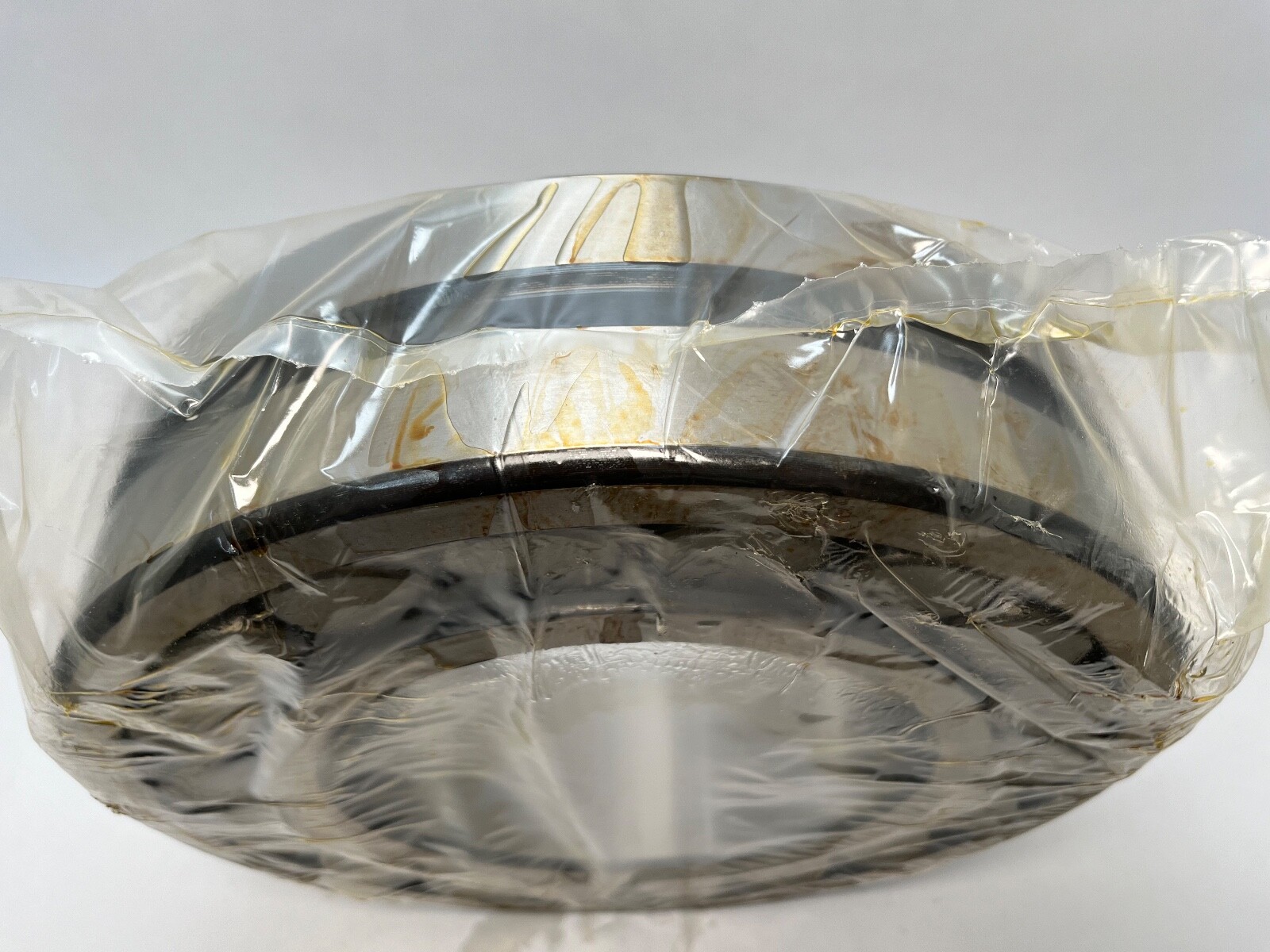

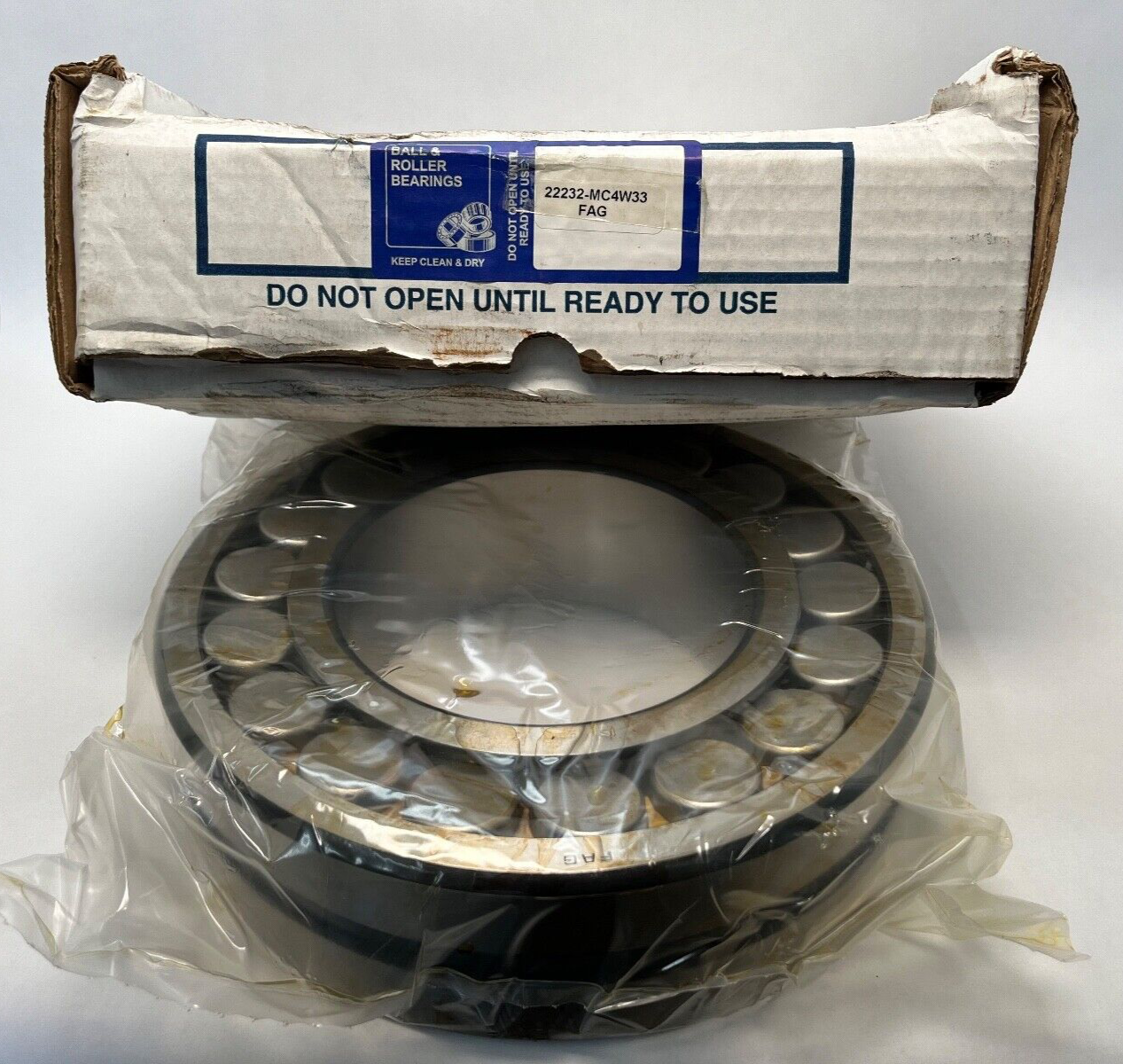

FAG 22232MC4W33 is a double-row spherical roller bearing, series 222, with a straight bore, machined brass cage, C4 internal clearance and a W33 lubrication groove. Bore: 160 mm. Outside Diameter: 290 mm. Width: 80 mm. Open on both faces. Unit Quantity: 1 Pc.
22232 — double-row spherical roller, 222 series, 160 mm bore.
M — machined brass cage.
C4 — radial internal clearance greater than C3.
W33 — annular lubrication groove in the outer ring with three radial holes.
No K suffix — straight bore.
22232E1A.M.C4 — Schaeffler manufacturer item number for this execution (current designation 22232-E1A-XL-M-C4).
Bore Diameter: 160 mm. Outside Diameter: 290 mm. Width: 80 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Machined brass. Cage Type: Machined, window. Internal Clearance: C4. Closure Type: Open. Lubricant: grease or oil. Relubrication Feature: Yes, W33 groove with three radial holes. Series: 222. GTIN: 4026677866875. Unit Quantity: 1 Pc.
Straight 160 mm bore, 290 mm outside diameter, 80 mm width. Lubrication groove in the outer ring with three radial holes (W33). Harmonization Code: 8482.30.00.80.
Cross-references: FAG 22232-E1A-XL-M-C4 (current Schaeffler designation); SKF 22232 CC/C4W33; NSK 22232EAE4 C4; NTN 22232E C4; Timken 22232EM C4 W33; SNR 22232E C4. Related: FAG 22232-E1-XL (CN clearance, sheet steel cage); FAG 22232-E1-K (1:12 tapered bore).
Bore 160 mm, outside diameter 290 mm, width 80 mm, straight bore.
W33 is an annular lubrication groove in the outer ring with three radial holes.
C4 radial internal clearance and a machined brass cage (M).
