Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

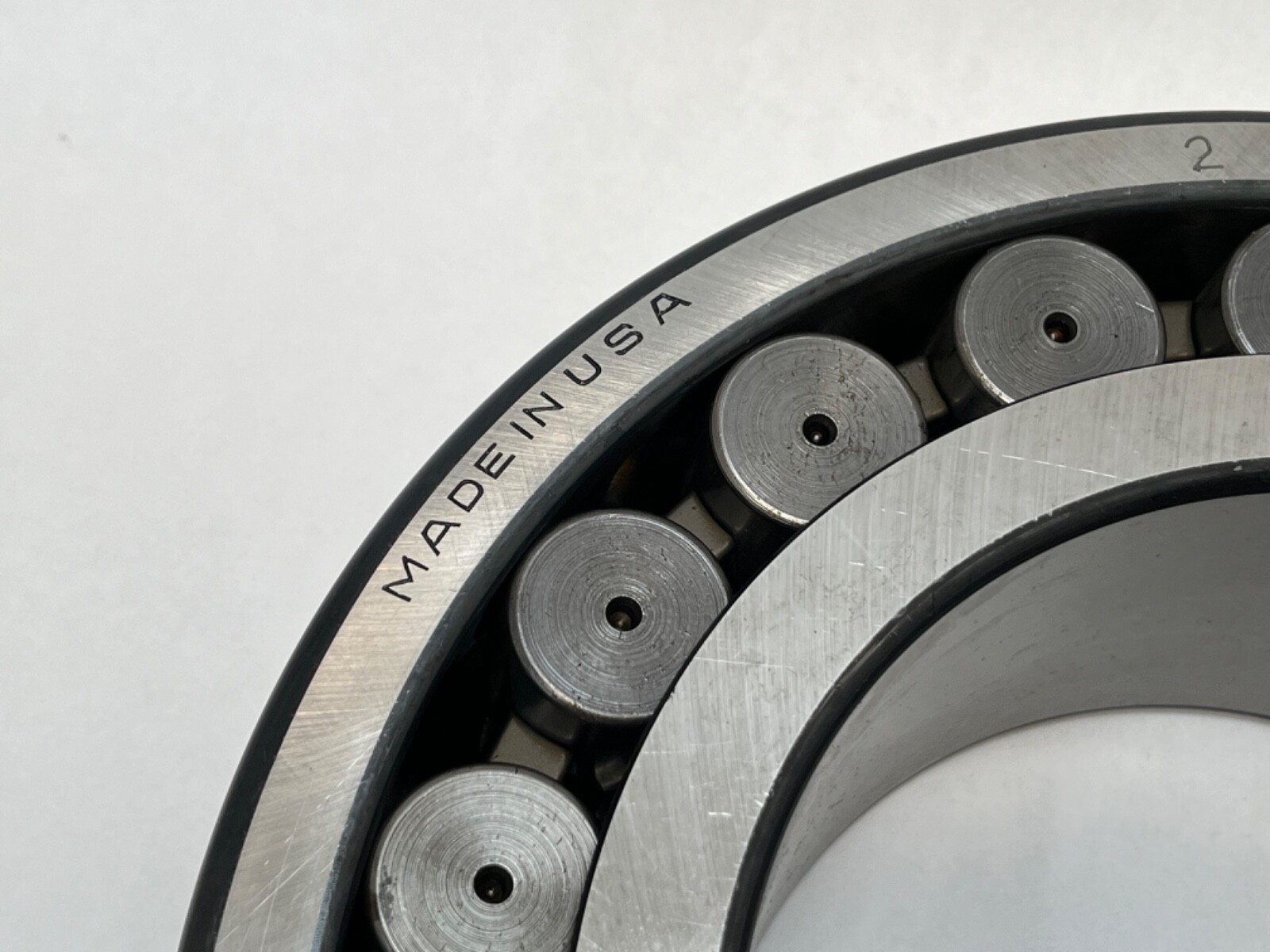

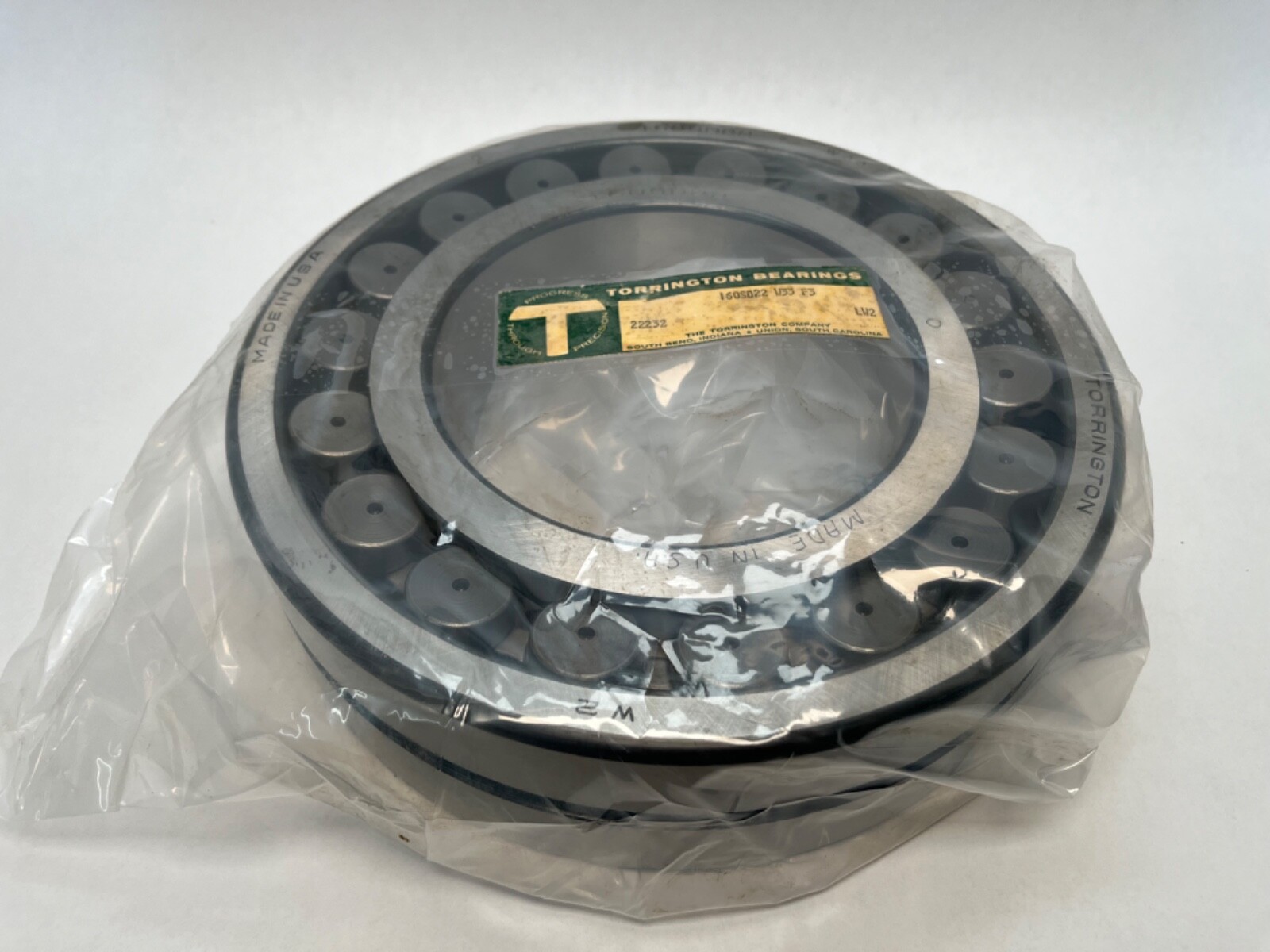

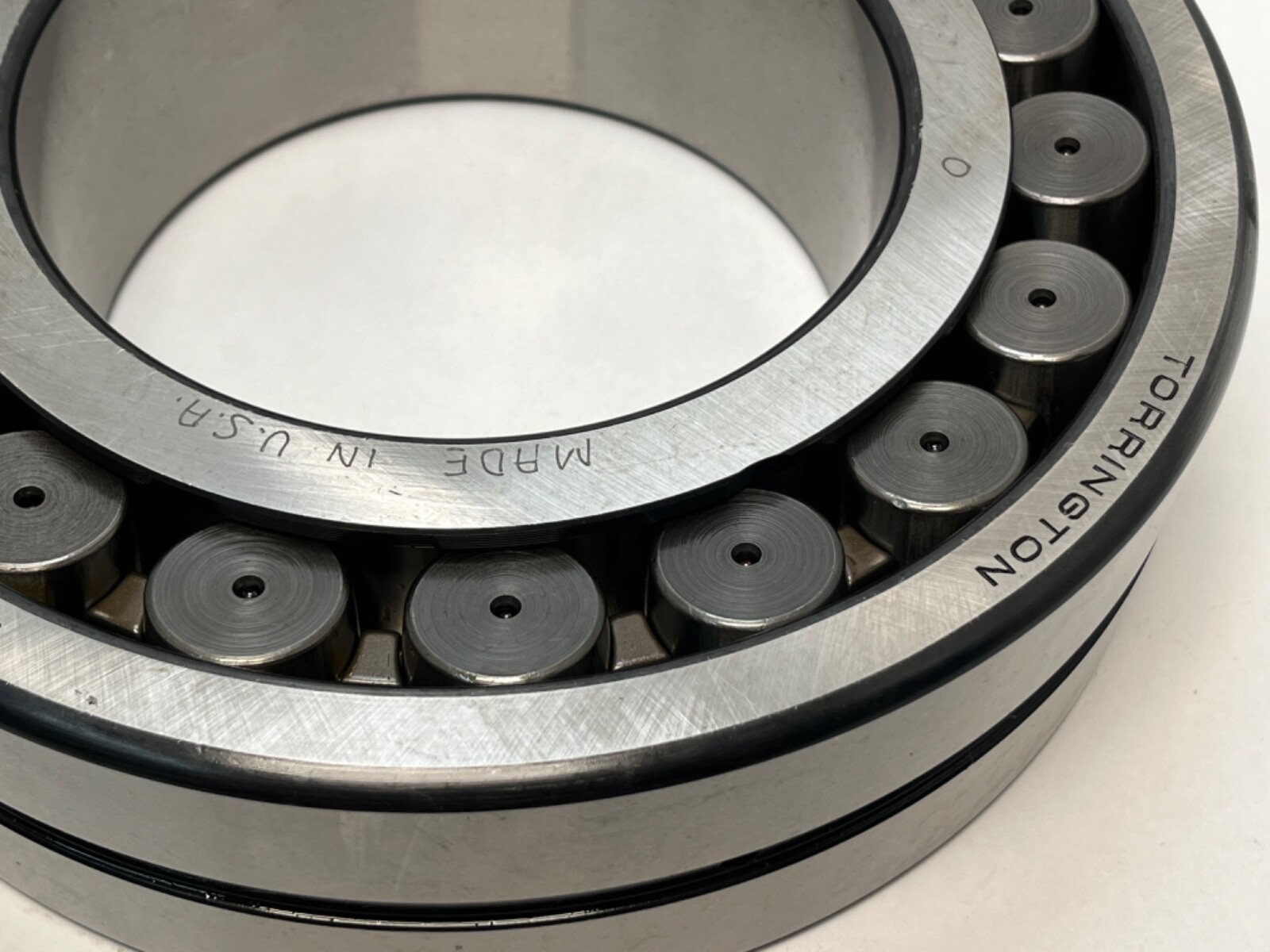

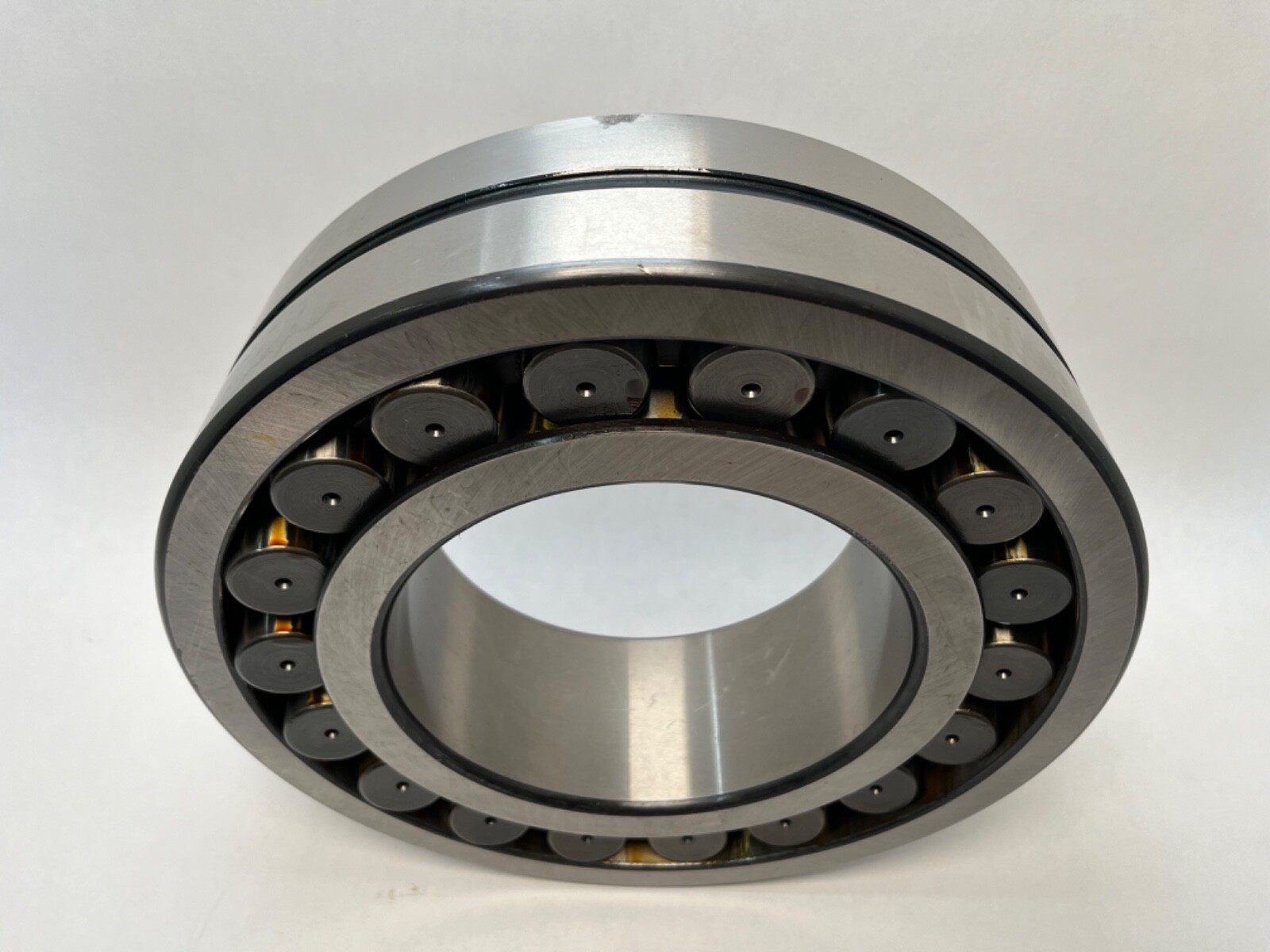

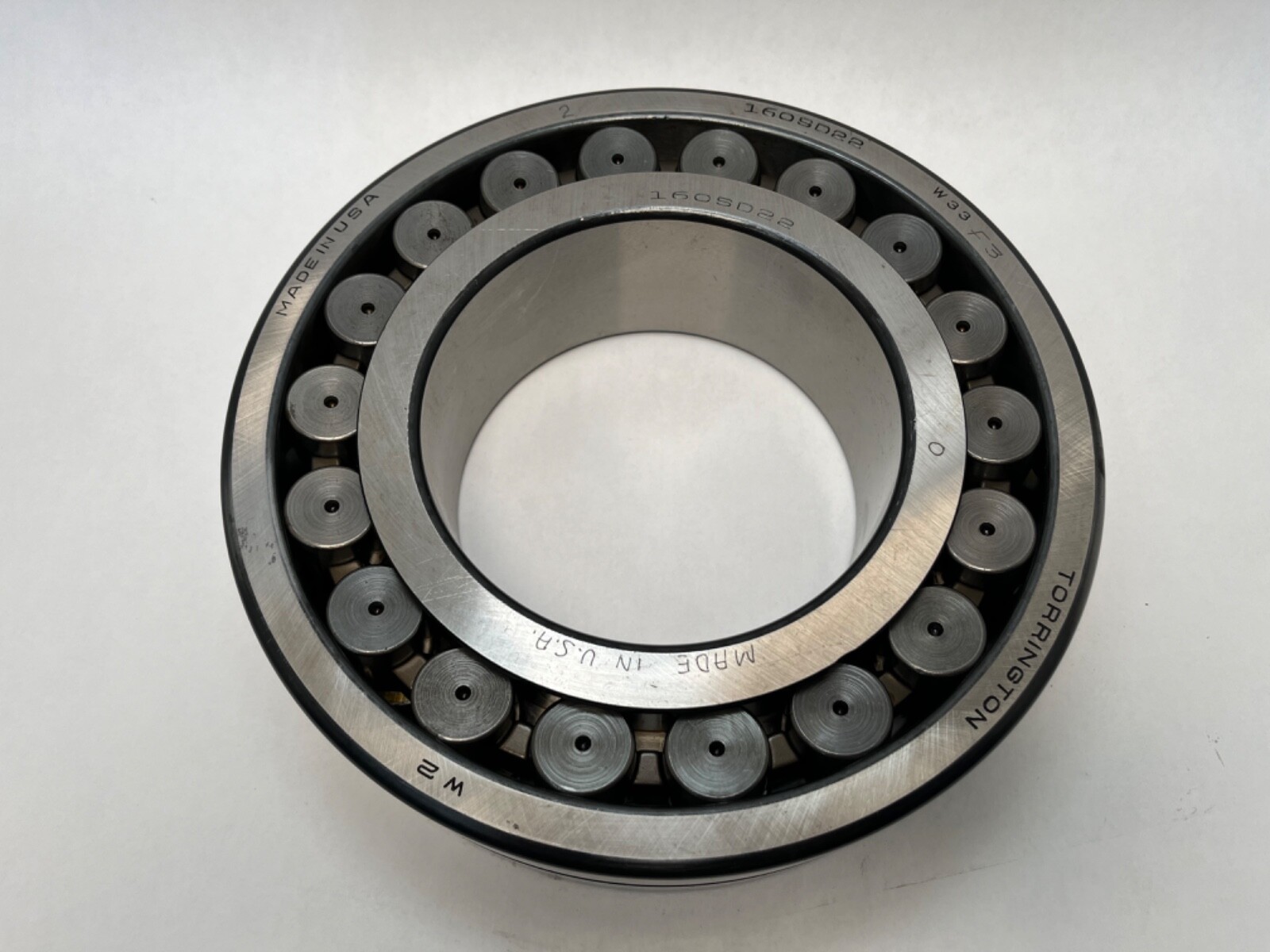

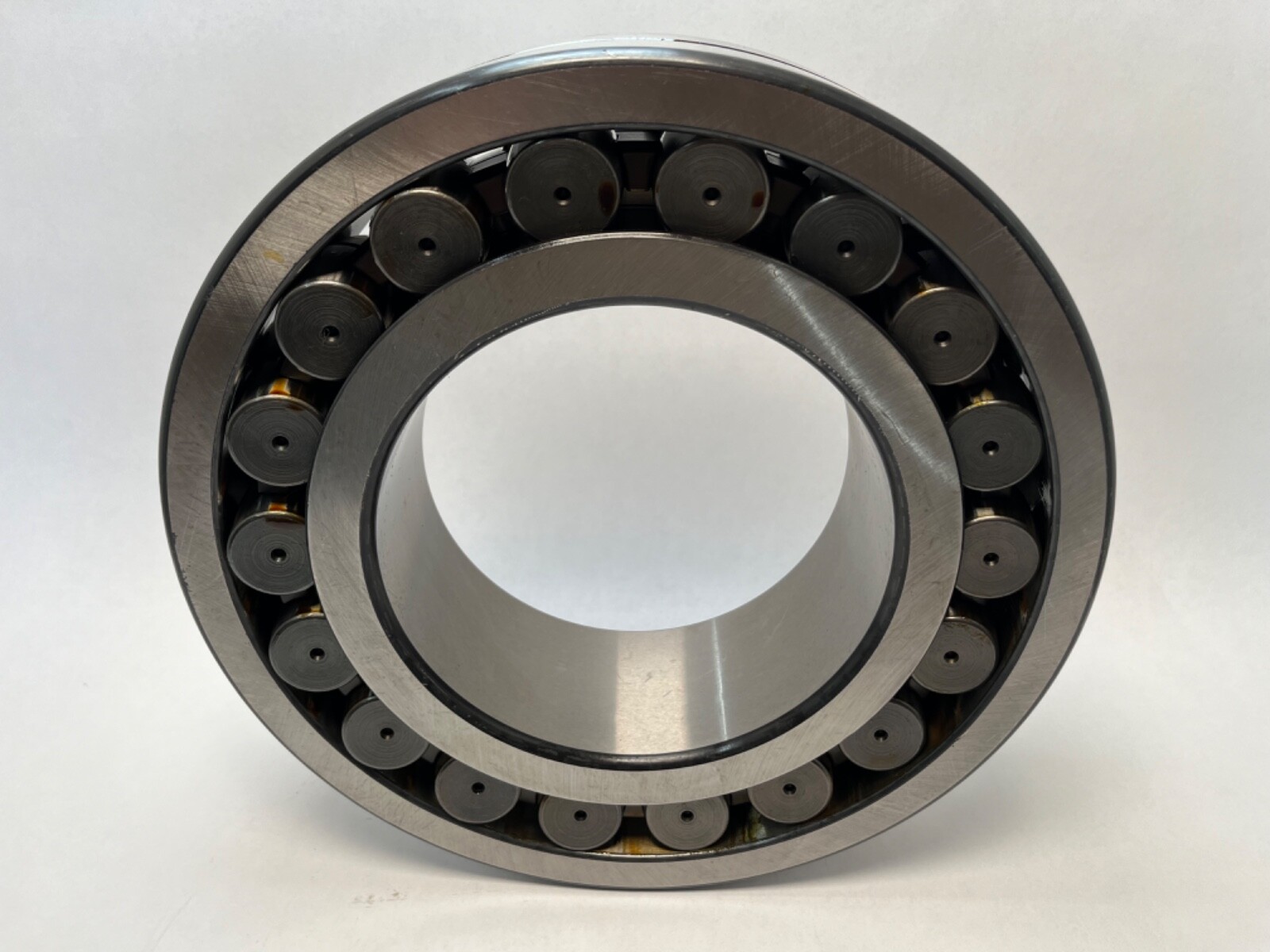

Torrington 22232W33 spherical roller bearing, 160 mm bore x 290 mm OD x 80 mm wide, straight bore, W33 lube groove, normal clearance. Successor: Timken 22232EJW33.
List Price
$584.16
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22232W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 160 mm |
| OD | 290 mm |
| Width | 80 mm |
| Series | 22200 |
|---|---|
| Lubricant | Oil/Grease |
| Dynamic Load Rating | 1,120,000 N (Successor 22232EJW33 data) |
| Static Load Rating | 1,370,000 N (Successor 22232EJW33 data) |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Mpn Variants | 22232W33, 22232-W33, 160SD22-F3, 160SD22 W33 F3, 160SD22 |
| Compatible With Replaces | Timken 22232EJW33 (current successor design) |
| Additional Attributes | Successor 22232EJW33 data: e factor 0.26; Y0 2.57; Y1 2.62; Y2 3.91; shaft backing shoulder 192 mm; housing backing shoulder 264 mm; max fillet radius 2.5 mm |
| Design Units | Metric |
| Cross Reference 1 | Timken 22232EJW33 |
|---|---|
| Cross Reference 2 | SKF 22232 CC/W33 |
| Cross Reference 3 | FAG 22232-E1 |
Torrington 22232W33 double-row spherical roller bearing: 160 mm straight bore, 290 mm outside diameter, 80 mm width, W33 lubrication groove, normal clearance. Torrington is a Timken brand; the current Timken design is 22232EJW33.
222 — spherical roller bearing, ISO dimension series 22.
32 — bore code. 32 × 5 = 160 mm bore.

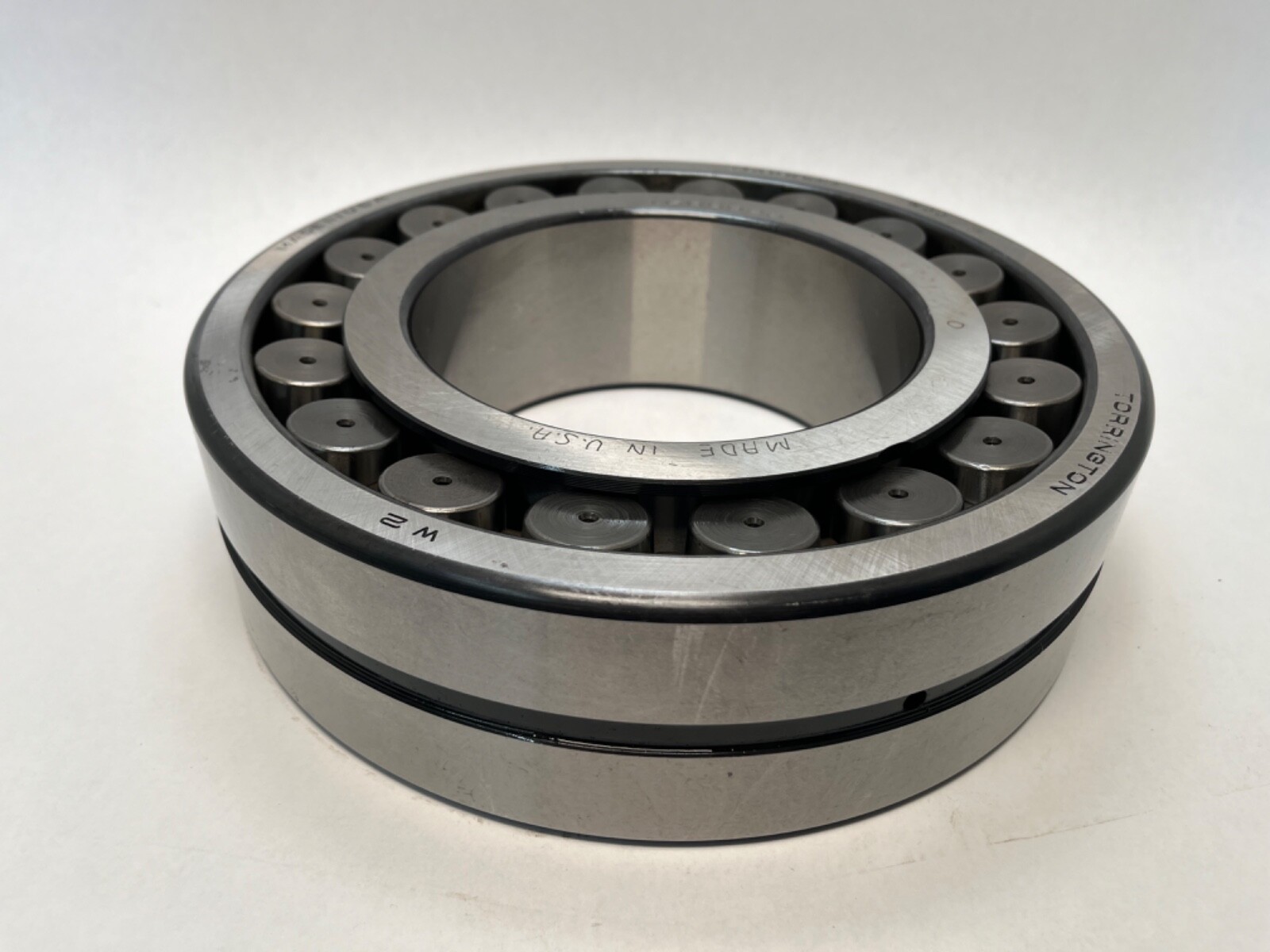

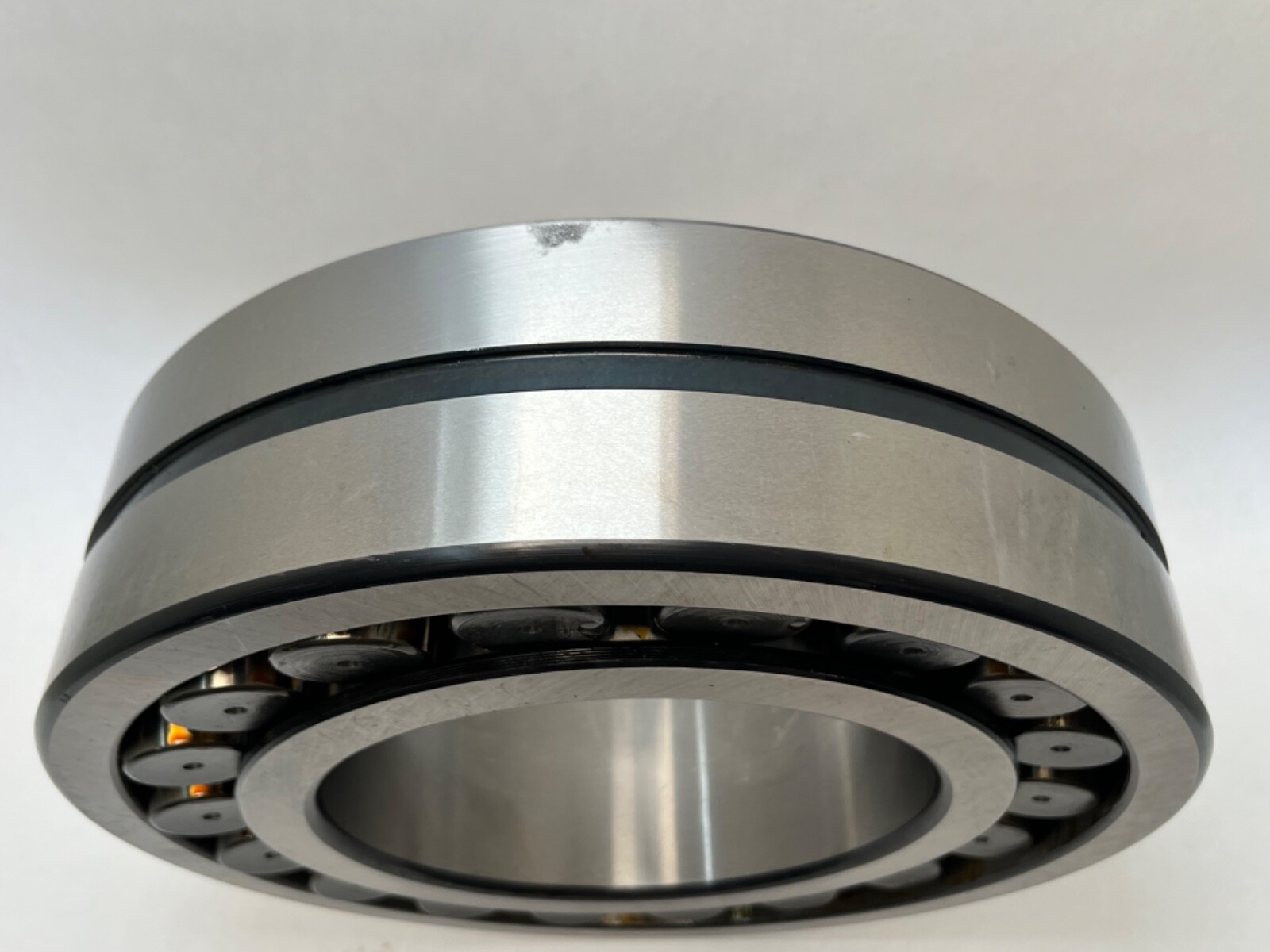

W33 — lubrication groove with three radial holes in the outer ring.

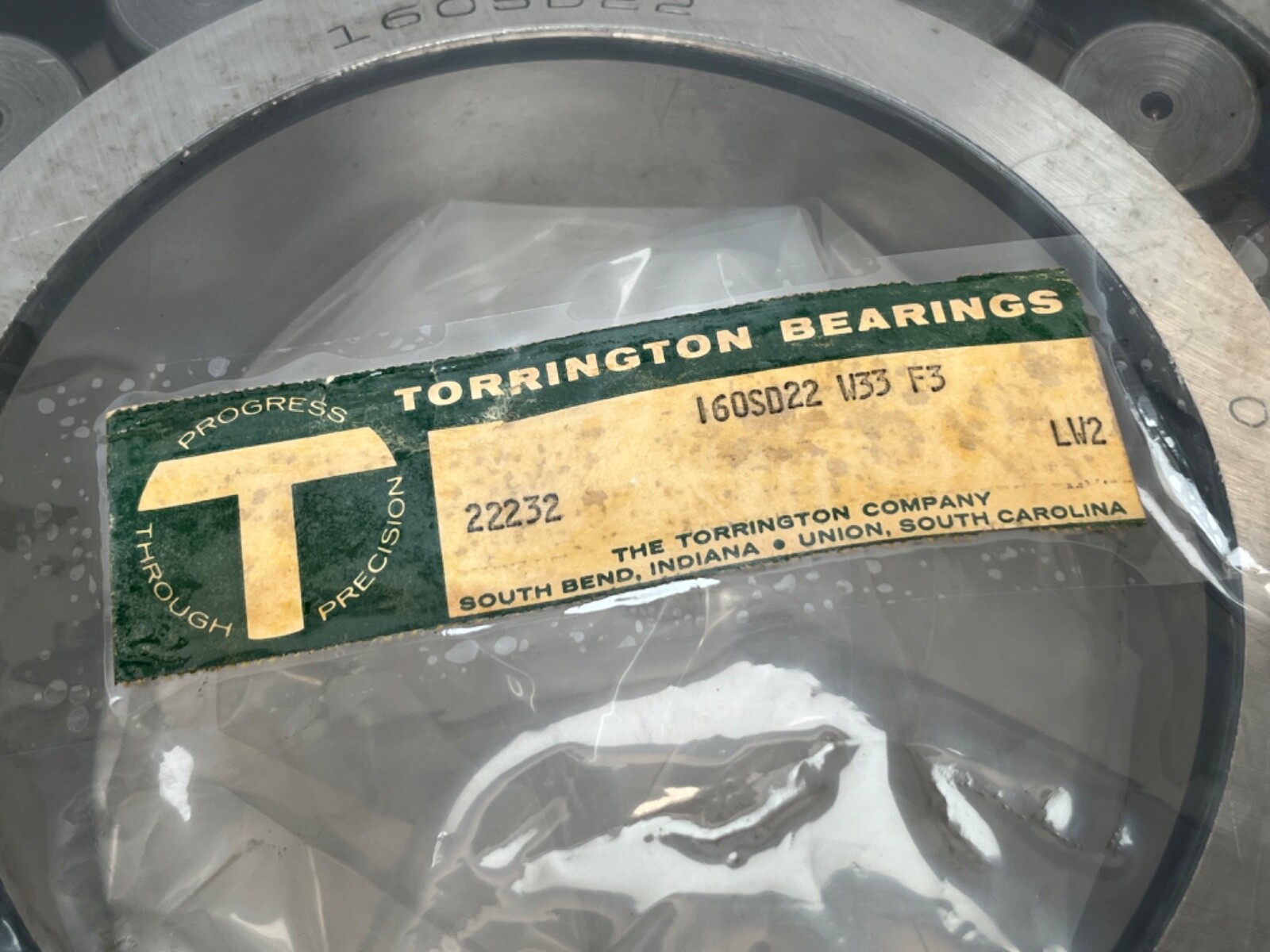

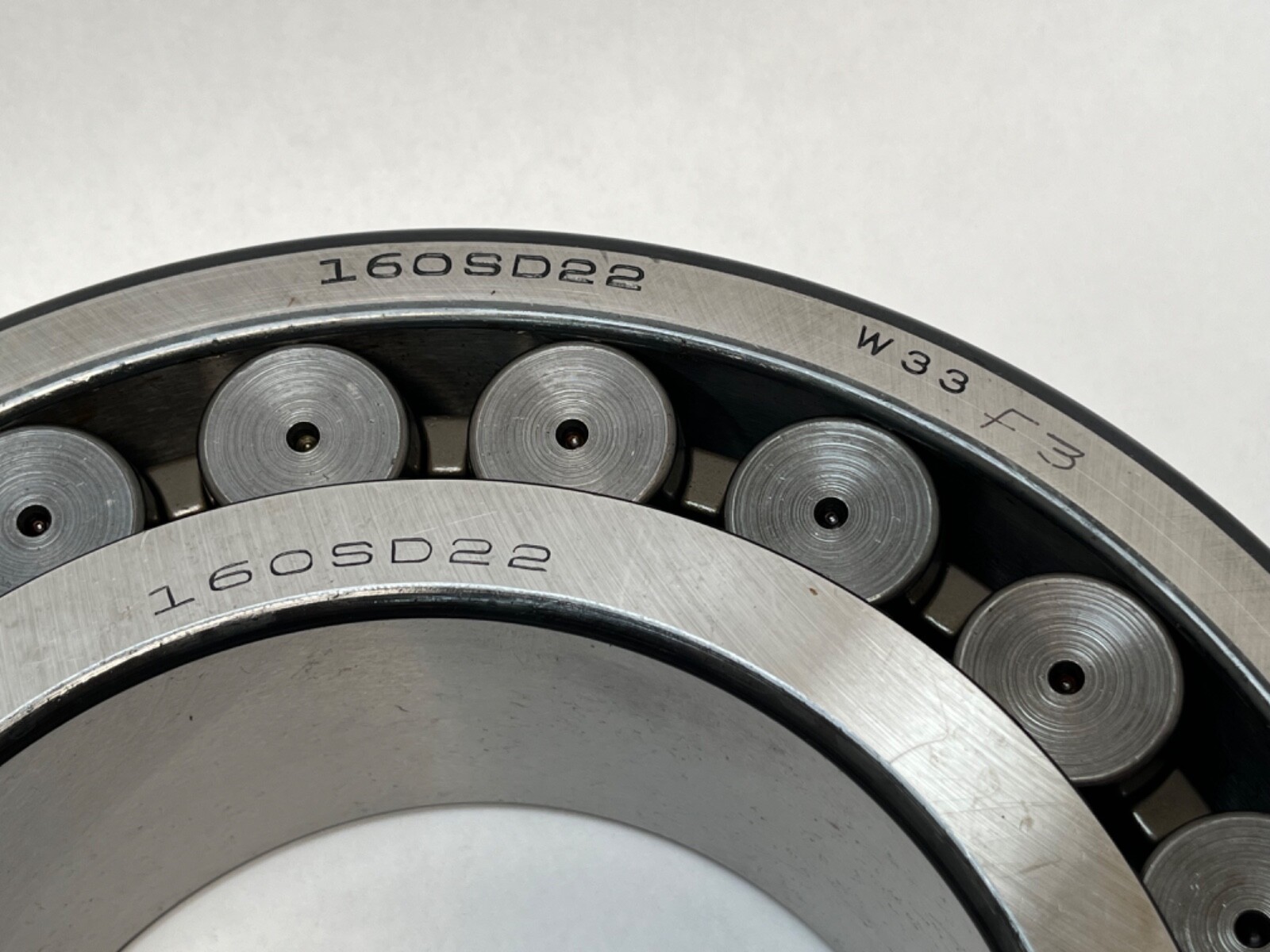

160SD22 — Torrington SD-system designation for the same 160 mm bore, series 22 spherical roller bearing.
Bore Diameter: 160 mm. Outside Diameter: 290 mm. Overall Width: 80 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil.
Successor 22232EJW33 data: Dynamic Load Rating: 1,120,000 N. Static Load Rating: 1,370,000 N. Reference Speed: 1,900 rpm grease; 2,300 rpm oil. e factor: 0.26. Y1: 2.62. Y2: 3.91. Y0: 2.57.

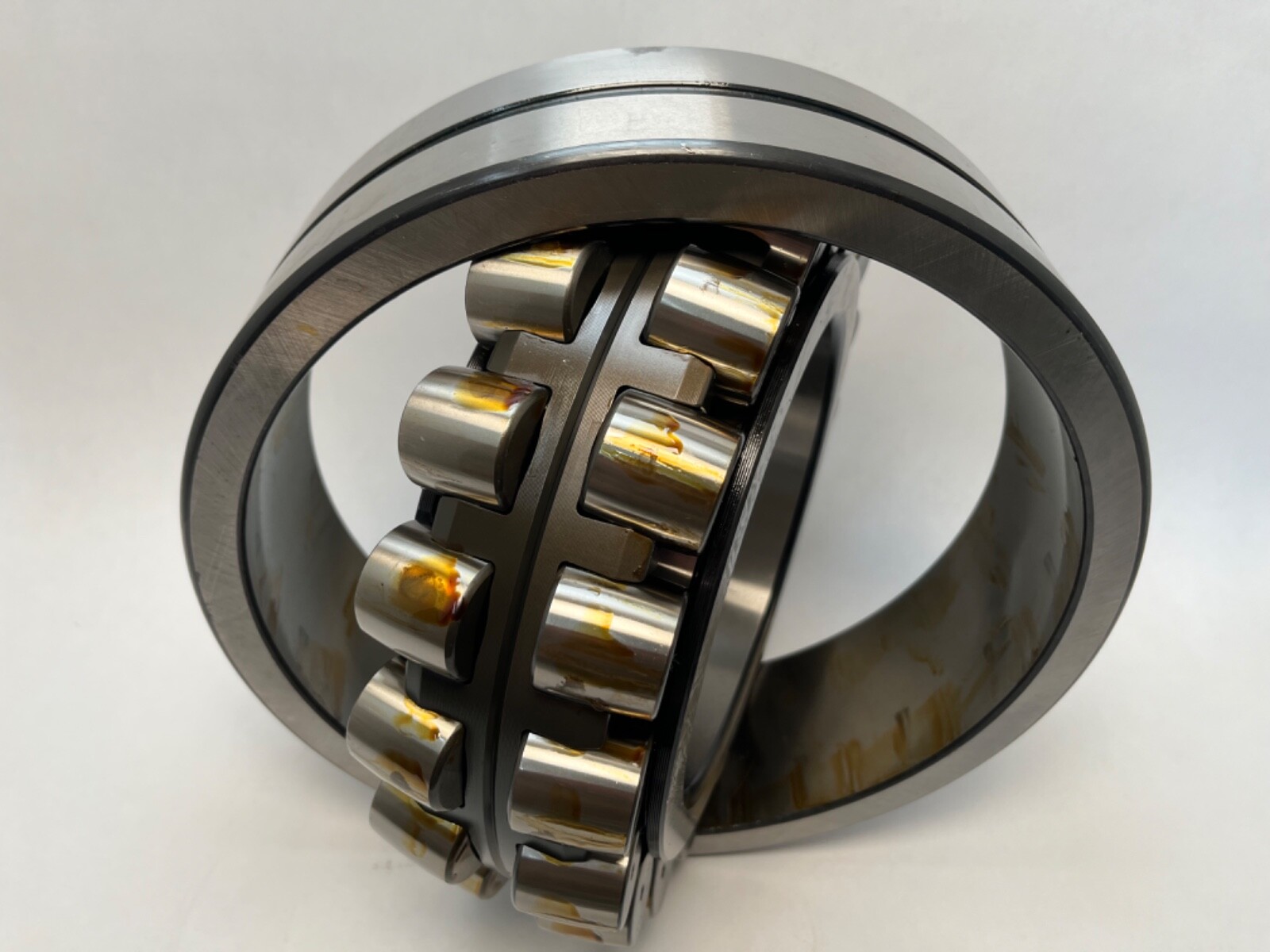

The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22232EJW33 data: Shaft Backing Shoulder Diameter: 192 mm. Housing Backing Shoulder Diameter: 264 mm. Maximum Fillet Radius: 2.5 mm.
Unit Quantity: 1 Pc. One complete bearing.
Same 160 × 290 × 80 mm straight-bore, normal-clearance envelope: Timken 22232EJW33, SKF 22232 CC/W33, FAG 22232-E1.
