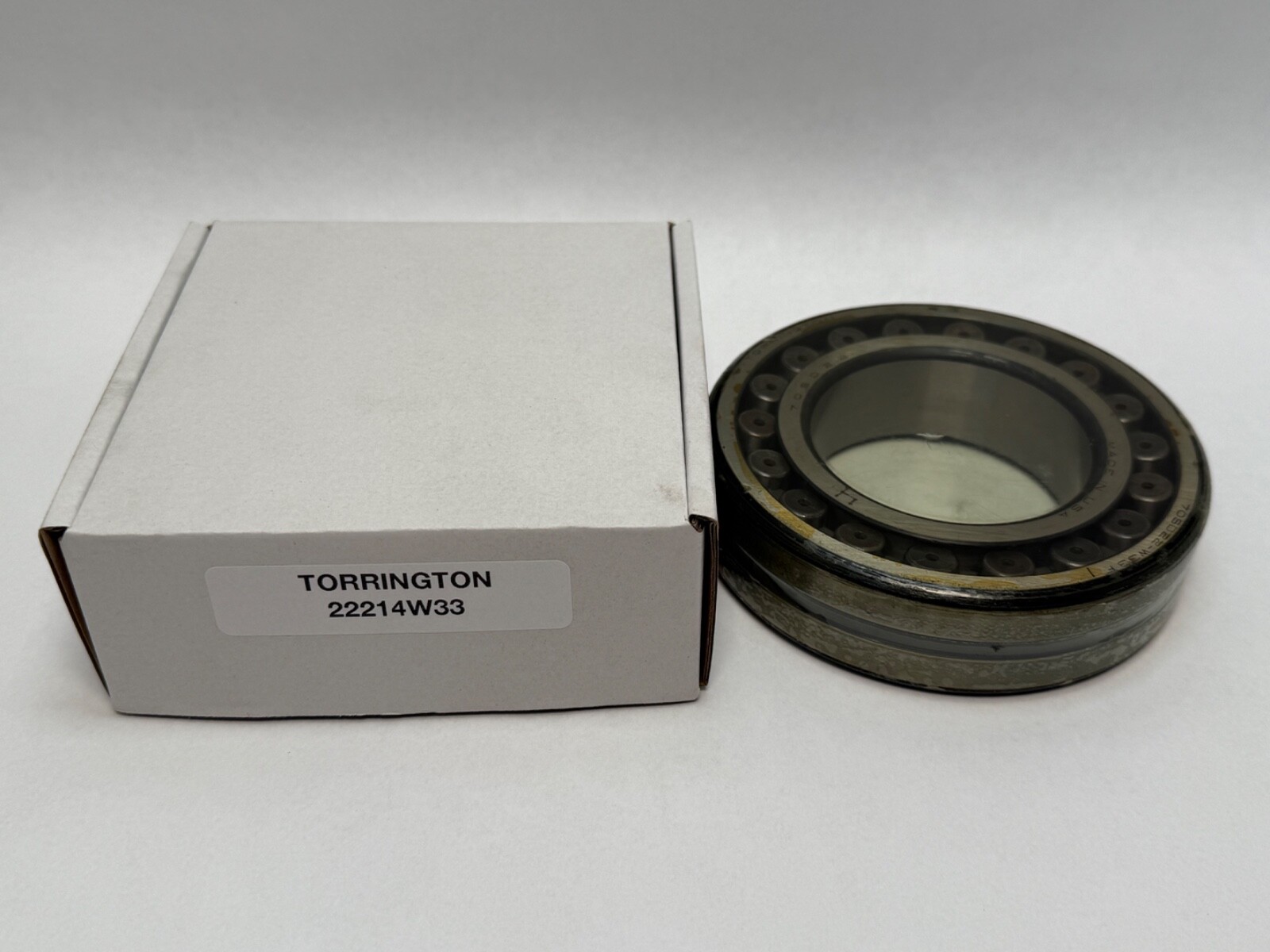

Double-row spherical roller bearing, 70 mm straight bore, 125 mm OD, 31 mm wide, open, with a W33 annular groove and three lubrication holes in the outer ring. Sold as one bearing. For heavy radial and shock loads on a plain cylindrical shaft seat where misalignment has to be absorbed.
List Price
$62.87
2 in stock
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | TORRINGTON |
|---|---|
| MPN | 22214W33 |
| Model | 22214 W33 / 70SD22 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 31 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Oil |
| Relubrication | W33 - annular outer-ring groove with three lubrication holes |
| Unspsc | 31171504 |
| Base Number | 22214 |
| Industry Terms | self-aligning roller bearing, barrel roller bearing, double row spherical roller, plummer block bearing, SD series Torrington |
| Application Types | Fans and blowers, conveyors, crushers, vibrating screens, gearboxes, pumps, paper machinery, mining and aggregate equipment |
| Bore Shaft Size | 70 mm, cylindrical |
| Mpn Variants | 22214W33, 22214-W33, 22214 W33, 22214W-33, 70SD22, 70 SD 22, 22214 |
| Manufacturer Status | Torrington brand discontinued; absorbed into The Timken Company |
| Compatible With Replaces | Any straight-bore 22214 W33 spherical roller bearing position |
| Additional Attributes | Misalignment capacity approximately 1.5 degrees static; obsolescence trail Torrington to Timken |
| Min Temp | -30°C |
| Cage Type | Pressed |
| Dynamic Load Rating | 223 kN |
| Static Load Rating | 236 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Roller |
| Max Temp | 200°C |
| Item Weight | 3.35 lbs |
| Cage Material | Steel |
| Limiting Speed | approx. 3000 |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.0000 |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 22214W33 |
| Maximum Permissible Misalignment | 1.5° |
| Cross Reference 1 | Timken 22214EJW33 |
|---|---|
| Cross Reference 2 | Timken 22214KEJW33 |
| Cross Reference 3 | SKF 22214 E / 22214 CC/W33 |
| Cross Reference 4 | FAG 22214-E1-TVPB |
| Cross Reference 6 | NTN 22214BD1 |
| Cross Reference 7 | SNR 22214VB33 |
| Cross Reference 8 | Koyo 22214RHRW33 |
| Cross Reference 9 | 22214K W33 - tapered bore, dimensional cross-reference only |

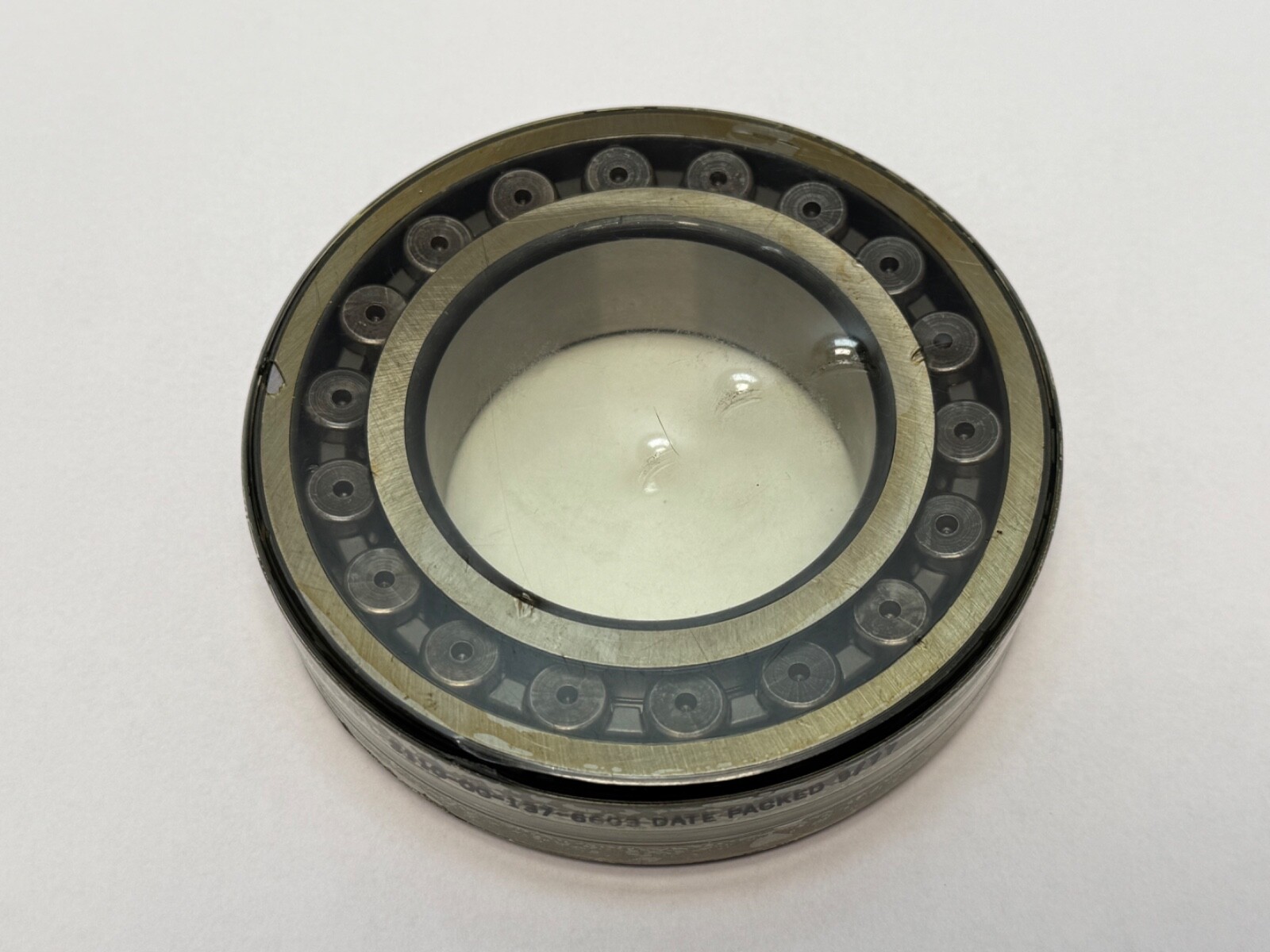

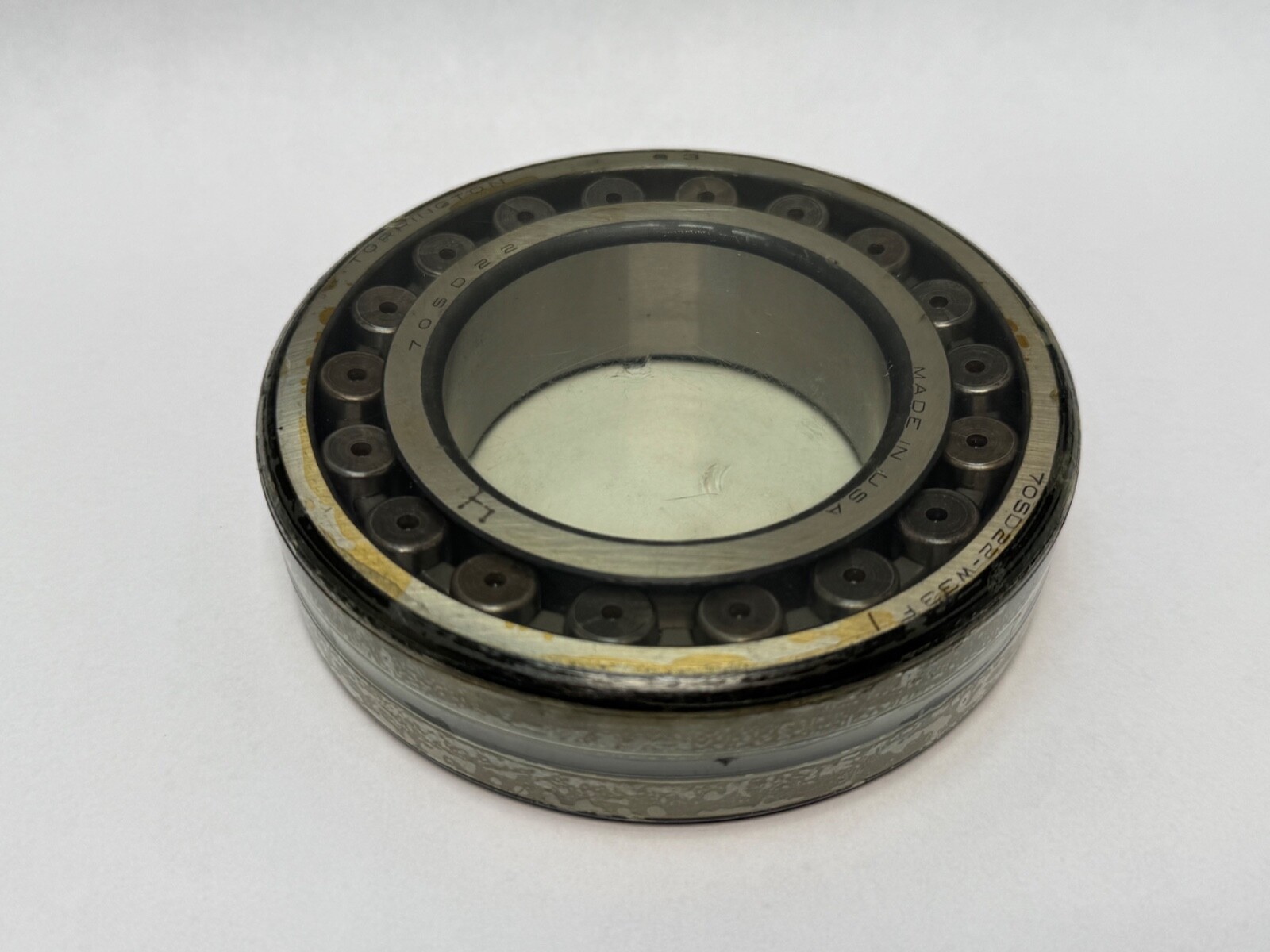

A double-row spherical roller bearing on the 22214 envelope — 70 mm bore, 125 mm outside diameter, 31 mm width, straight bore, open. Two rows of barrel rollers share one spherical raceway ground into the outer ring, which lets the inner ring and roller assembly tilt inside the outer ring. The result is a bearing that carries very heavy radial load and moderate axial load in both directions while forgiving shaft deflection and non-coaxial housing bores.
222 – ISO dimension series for spherical roller bearings.
14 – bore reference number; 14 × 5 = 70 mm bore.
W33 – annular lubrication groove around the outer ring with three radial holes through to the raceway.
No K in the designation, so the bore is cylindrical rather than 1:12 tapered.

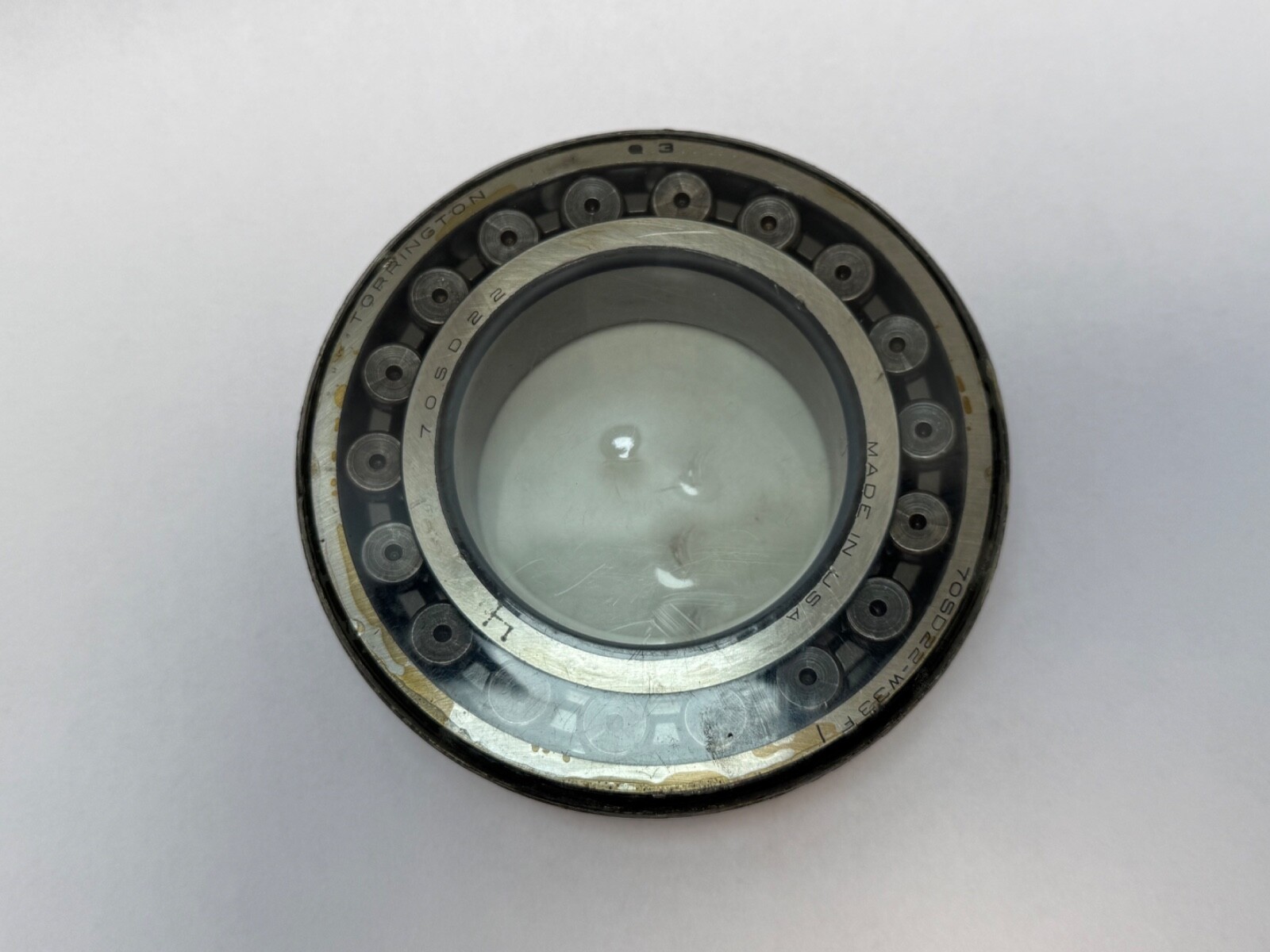

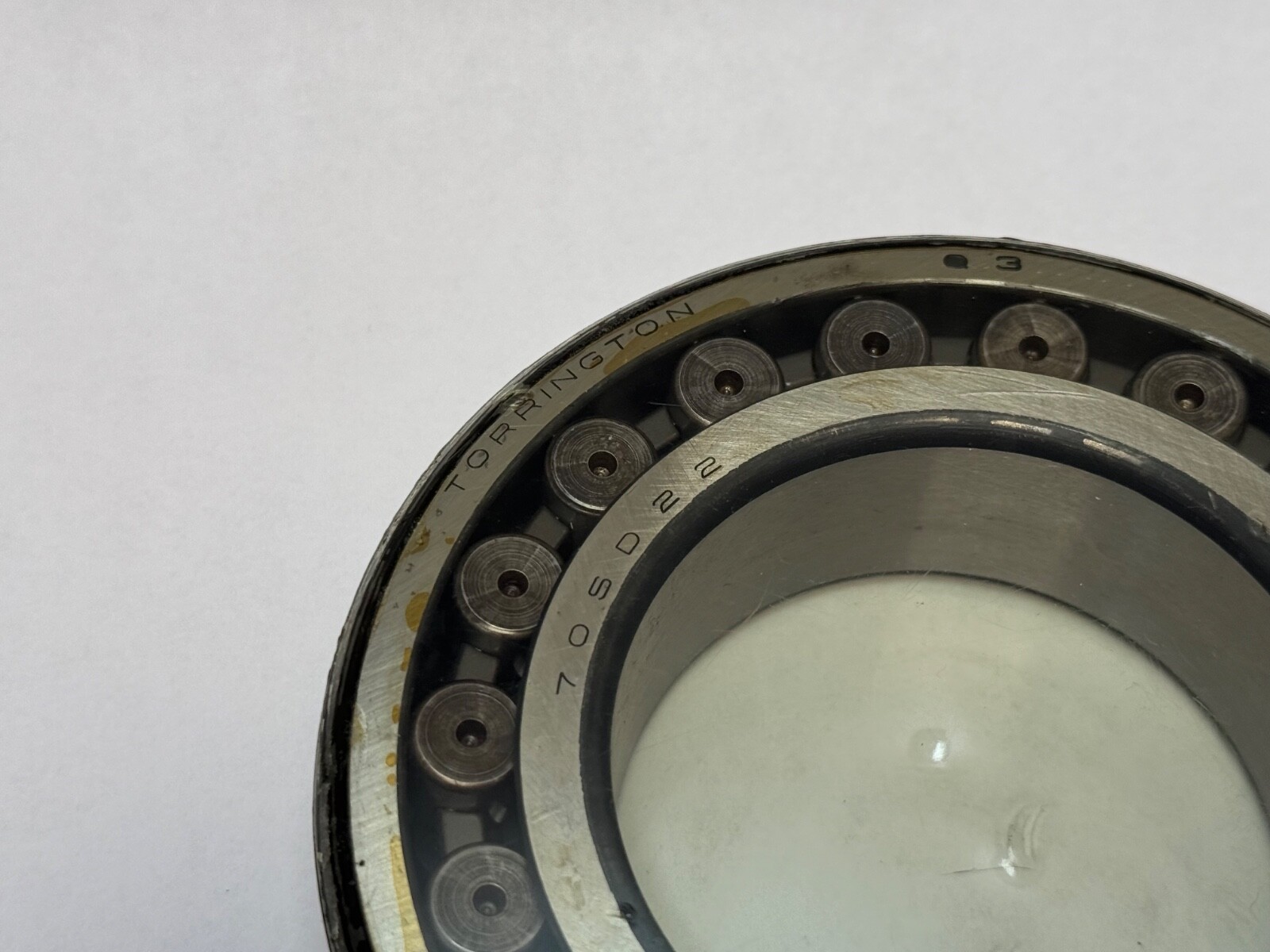

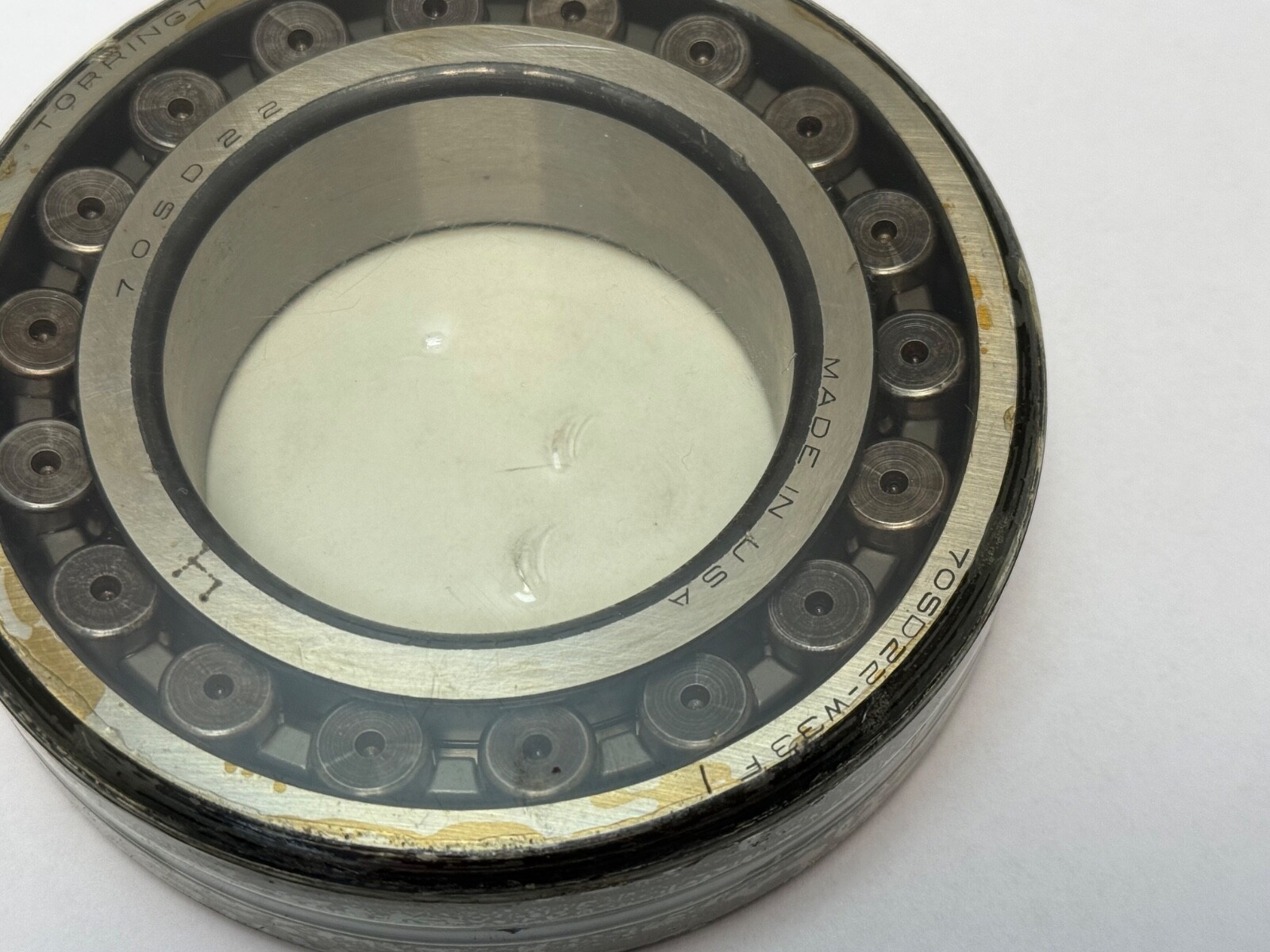

70SD22 – Torrington’s own in-house catalogue number for the same bearing, carried on much of the older stock and on shop drawings from that era. 70 is the bore in millimetres and SD is Torrington’s spherical double-row family code.
Straight bore means this fits directly on a plain 70 mm shaft seat with an interference fit, with no adapter sleeve and no drive-up procedure — simpler to install than the tapered-bore K version and the right choice unless your shaft is actually tapered.

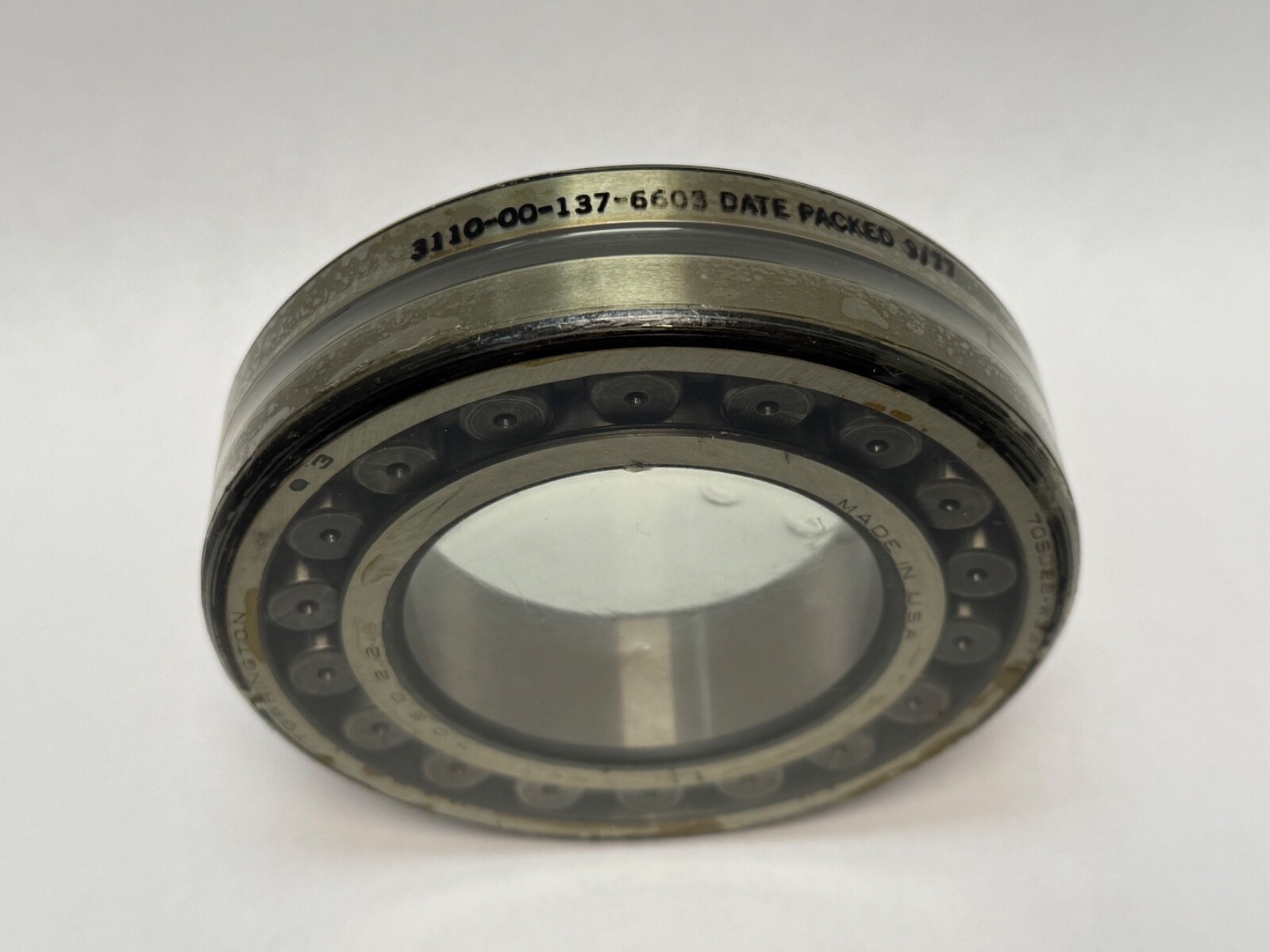

The W33 feature is worth understanding before you buy. It is a groove machined around the outside of the outer ring with three holes drilled inward to the raceway, so lubricant introduced through the housing arrives directly between the two roller rows rather than having to migrate in from the ends. That is how a spherical roller bearing gets relubricated on a schedule without dismantling the housing. It only functions if the housing has a lube port lined up on the groove, which split plummer blocks generally do and plain machined bores generally do not. A W33 bearing in a plain bore is not harmed, it simply loses the feature.
Bore: 70 mm, cylindrical
Outside diameter: 125 mm
Width: 31 mm
Rows: 2, barrel rollers
Basic dynamic radial load rating: approximately 161 kN for the 22214 envelope
Reference limiting speed: approximately 3000 rpm
Closure: open
Relubrication: W33 groove with three holes
Priced and supplied as one bearing.
Torrington was absorbed into The Timken Company, so Timken 22214EJW33 and 22214KEJW33 are the current-production route to this bearing and the Torrington catalogue number 70SD22 cross-references to it directly. Also dimensionally interchangeable: SKF 22214 E and 22214 CC/W33, FAG 22214-E1, NSK 22214EAE4, NTN 22214BD1, SNR 22214VB33, Koyo 22214RHRW33, Steyr 22214-C-MB-W33. Tapered-bore 22214 K variants share the outside diameter and width but have a 1:12 bore, so they are carried as a dimensional cross-reference and are not a mounting substitute on a straight shaft. If a clearance class is specified on your drawing, check it — the base designation here carries no clearance suffix and is therefore the normal group.
