Availability:
76 in stock

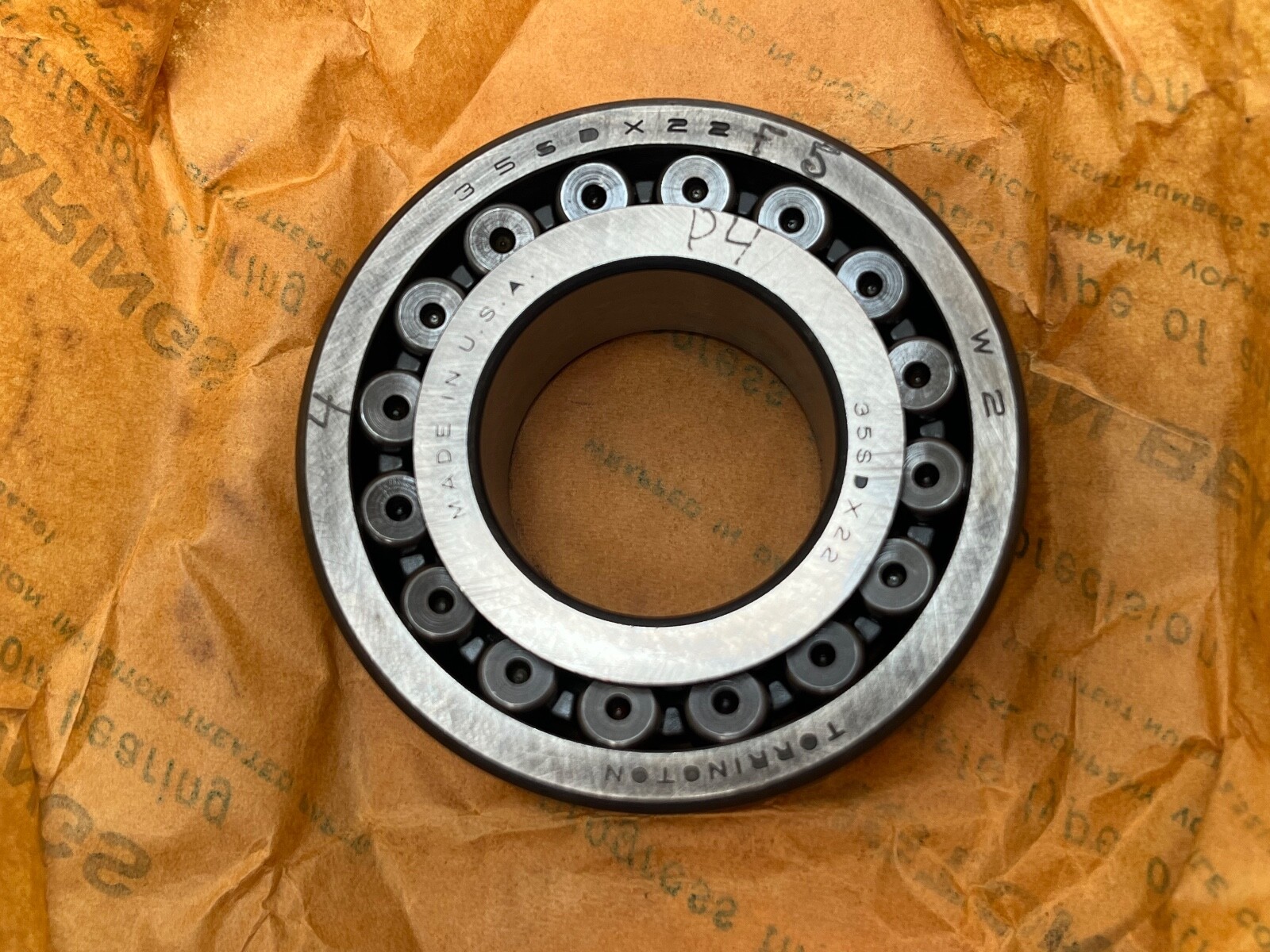

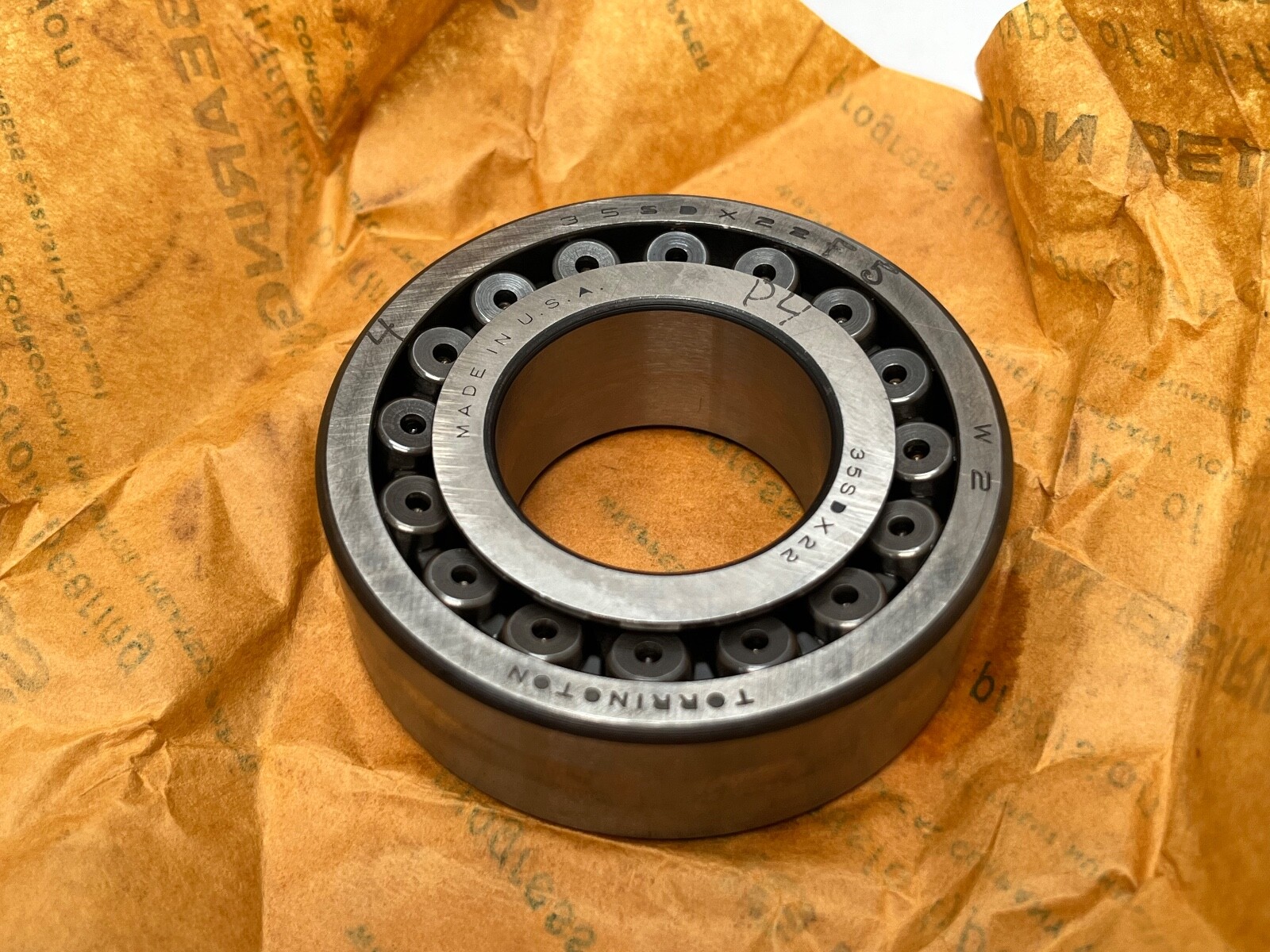

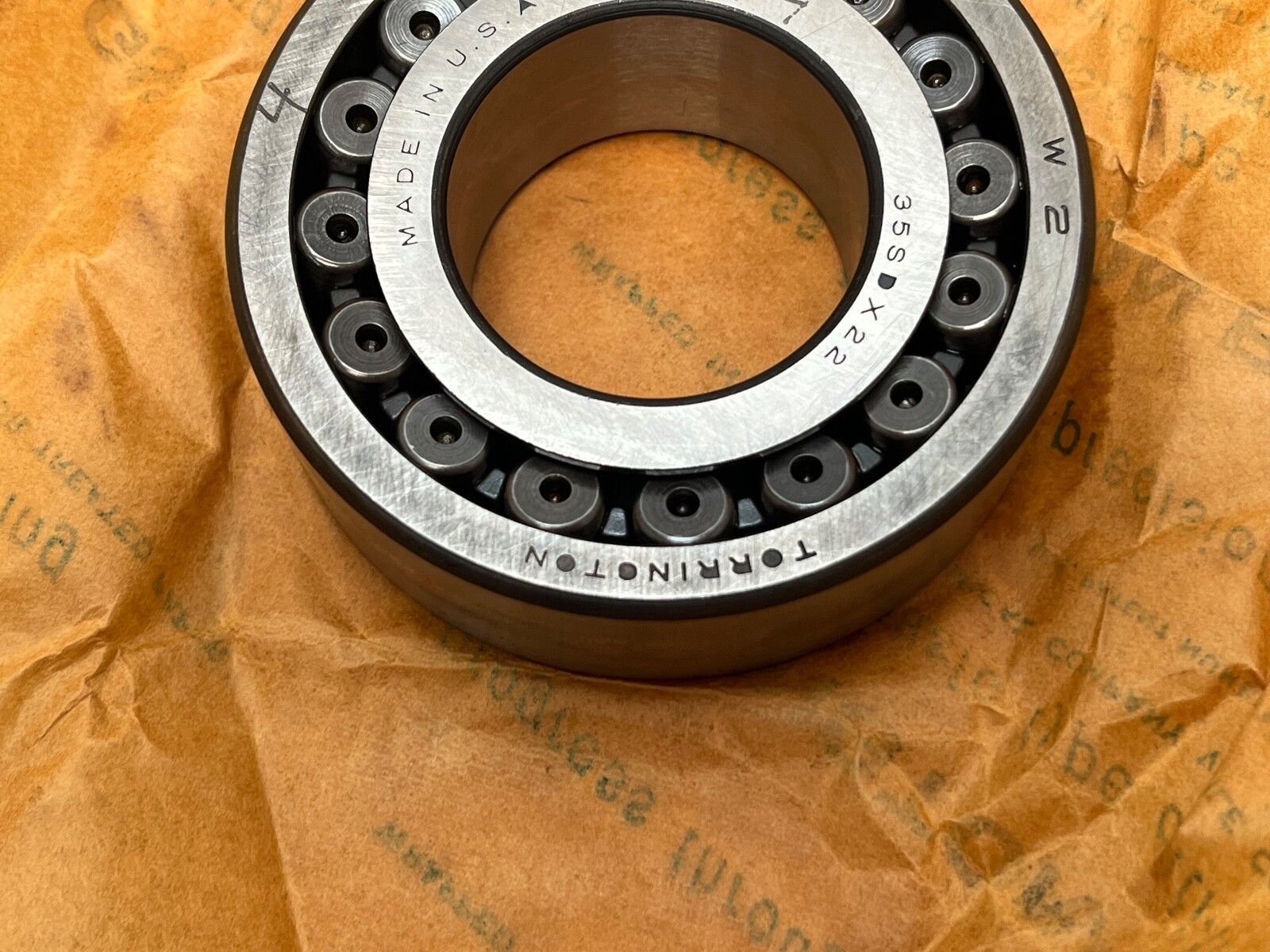

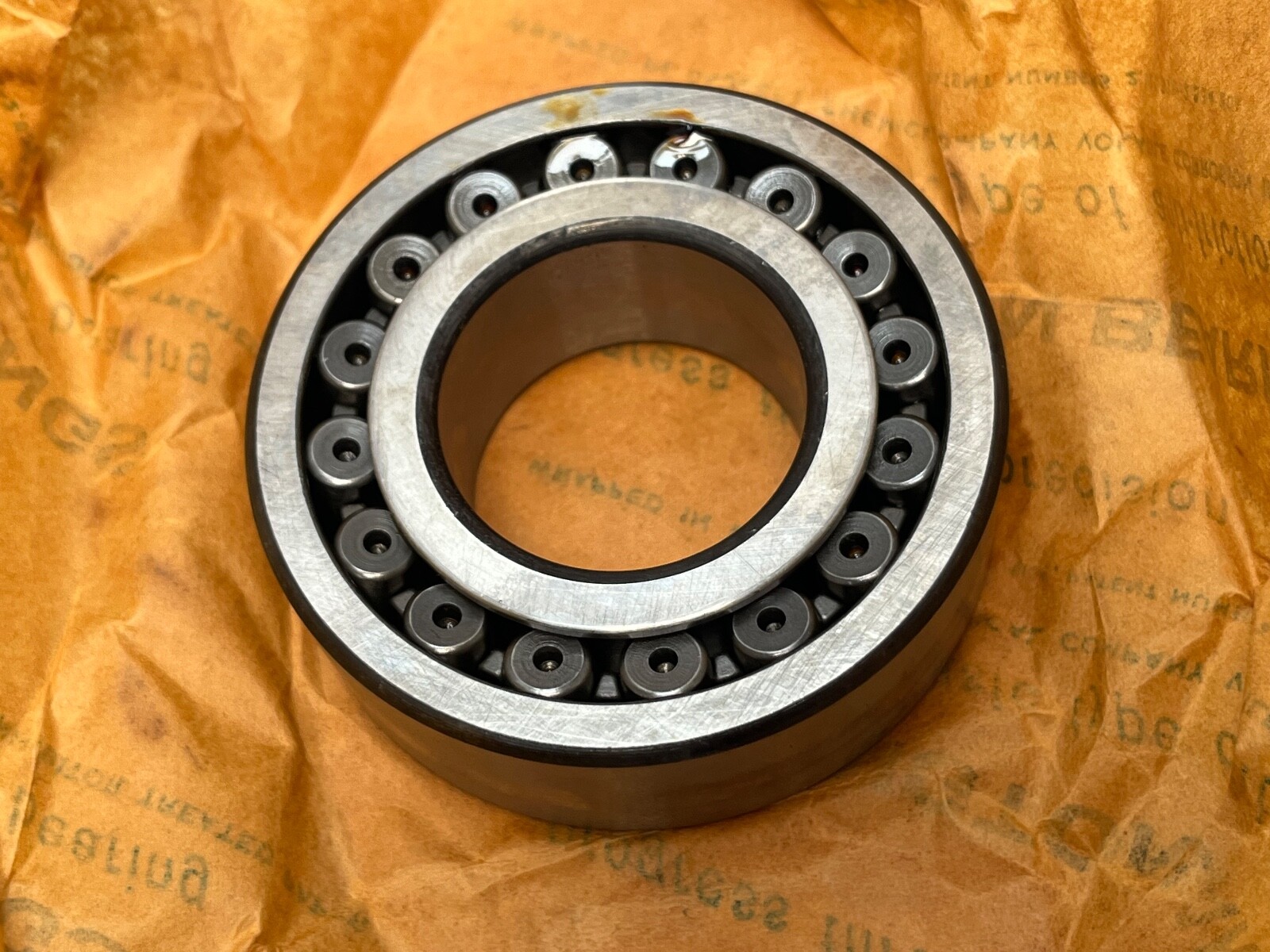

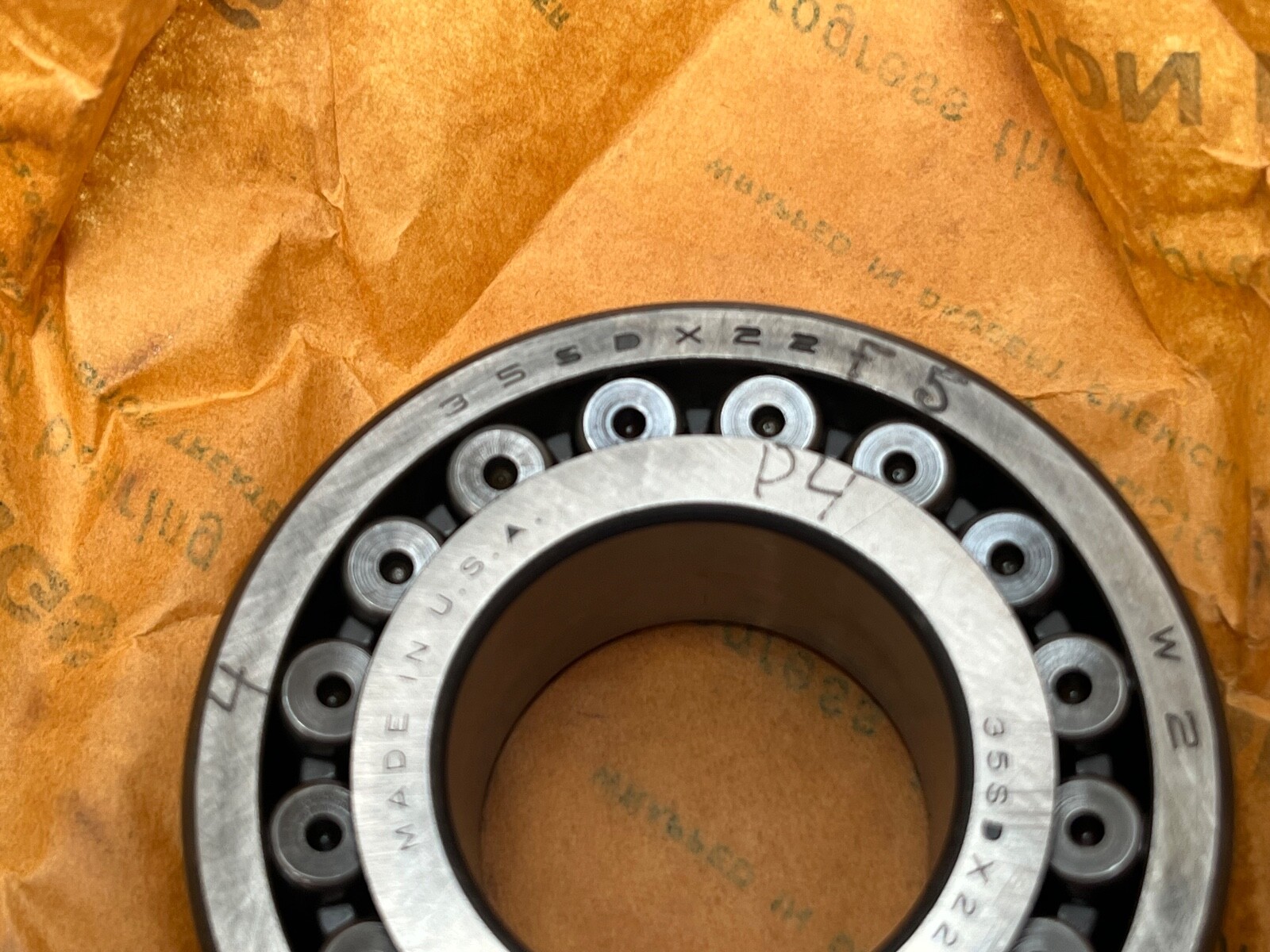

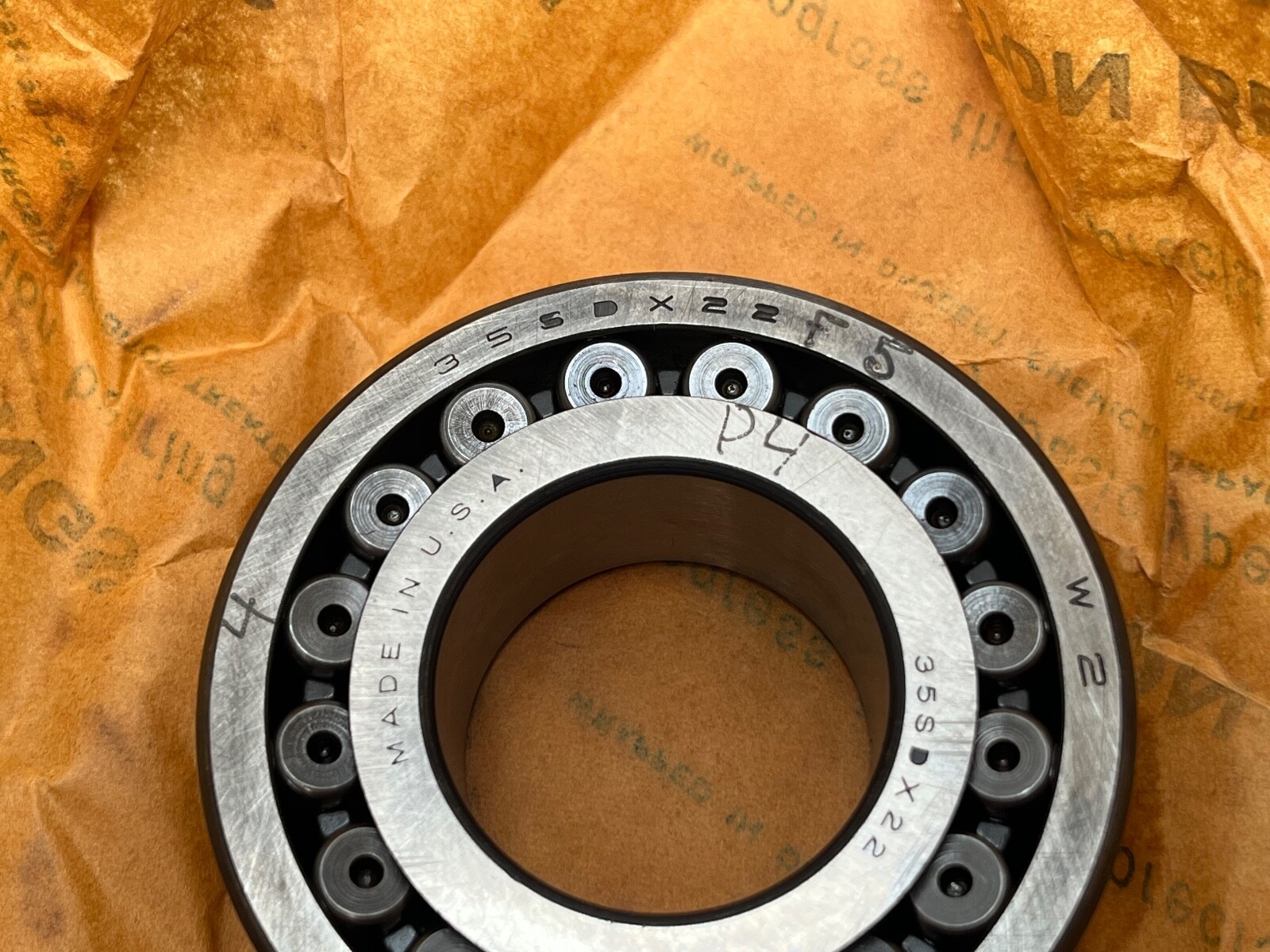

Torrington 22207 spherical roller bearing, 35 mm bore x 72 mm OD x 23 mm wide, straight bore, open, normal clearance. Current Timken design: 22207EJW33.
List Price
$32.12
76 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22207F5 35SDX22F5 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 35 mm |
| OD | 72 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Closure Type | Open |
| Dynamic Load Rating | 90,500 N (Successor 22207EJW33 data) |
| Static Load Rating | 87,700 N (Successor 22207EJW33 data) |
| Rolling Elements | Spherical Roller |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Mpn Variants | 22207, 22207 F5, 35SDX22-F5, 35SDX22F5, 22207F5 |
| Compatible With Replaces | Timken 22207EJW33 (current successor design) |
| Additional Attributes | Successor 22207EJW33 data: e factor 0.31; Y0 2.16; Y1 2.21; Y2 3.29; shaft backing shoulder 45 mm; housing backing shoulder 65 mm; max fillet radius 1 mm |
| Number Of Rows | 2 |
| Design Units | Metric |
| Cross Reference 1 | Timken 22207EJW33 |
|---|---|
| Cross Reference 2 | SKF 22207 E |
| Cross Reference 3 | FAG 22207-E1-XL |
| Cross Reference 4 | NSK 22207EAE4 |
Torrington 22207 double-row spherical roller bearing: 35 mm bore, 72 mm outside diameter, 23 mm width, straight bore, open. Torrington is a Timken brand, and the current Timken design for this size is 22207EJW33.
222 — spherical roller bearing, ISO dimension series 22.
07 — bore code. 07 × 5 = 35 mm bore.
Bore Diameter: 35 mm. Outside Diameter: 72 mm. Overall Width: 23 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN.
Successor 22207EJW33 data: Dynamic Load Rating: 90,500 N. Static Load Rating: 87,700 N. Reference Speed: 7,000 rpm grease; 8,700 rpm oil. e factor: 0.31. Y1: 2.21. Y2: 3.29. Y0: 2.16.
Two roller rows run in a common spherical outer raceway, so the bearing self-aligns under shaft deflection and carries heavy radial load with axial load in both directions.
Successor 22207EJW33 data: Shaft Backing Shoulder Diameter: 45 mm. Housing Backing Shoulder Diameter: 65 mm. Maximum Fillet Radius: 1 mm.
Unit Quantity: 1 Pc. One complete bearing: inner ring, outer ring, two rows of rollers and cage.
Same 35 × 72 × 23 mm straight-bore envelope: Timken 22207EJW33, SKF 22207 E, FAG 22207-E1-XL, NSK 22207EAE4, NTN 22207EAW33.
