Availability:
1 in stock
Double-row spherical roller bearing, 65 mm cylindrical bore, 120 mm OD, 31 mm wide, C3 clearance, W33 lubrication groove. Older Torrington size 65SD22. Successor: Timken 22213EJW33C3.
List Price
$67.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22213MC3W33 |
| Model | 22213MC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Relubrication | W33 groove and three holes in outer ring |
| Lubricant | grease or oil |
| Base Number | 22213 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical |
| Common Misspellings | 22213MW33C3, 22213 M W33 C3, 22213MC3 W33 |
| Application Types | gearboxes, fans, pumps, conveyors, vibrating screens |
| Overall Width | 31 mm |
| Mpn Variants | 22213MC3W33, 22213-M-C3-W33, 22213 M C3 W33, 65SD22 W33 F4 BR, 65SD22 |
| Compatible With Replaces | Successor: Timken 22213EJW33C3 |
| Additional Attributes | Successor 22213EJW33C3 data: Thermal Reference Speed Grease: 4,200 rpm; Thermal Reference Speed Oil: 5,200 rpm; Cage: 2-piece steel, window type; e Factor: 0.24; Y0: 2.73; Y (Fa/Fre): 4.15; Geometry Factor Cg: 0.0511; Shaft Backing Shoulder Dia: 78.0 mm; Housing Backing Shoulder Dia: 109 mm; Max Fillet Radius: 1.5 mm |
| Dynamic Load Rating | Successor 22213EJW33C3: 206,000 N |
| Static Load Rating | Successor 22213EJW33C3: 216,000 N |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Timken 22213EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22213 E/C3 |
| Cross Reference 3 | FAG 22213-E1-C3 |
| Cross Reference 4 | NSK 22213EAE4C3 |
| Cross Reference 5 | NTN 22213EAW33C3 |

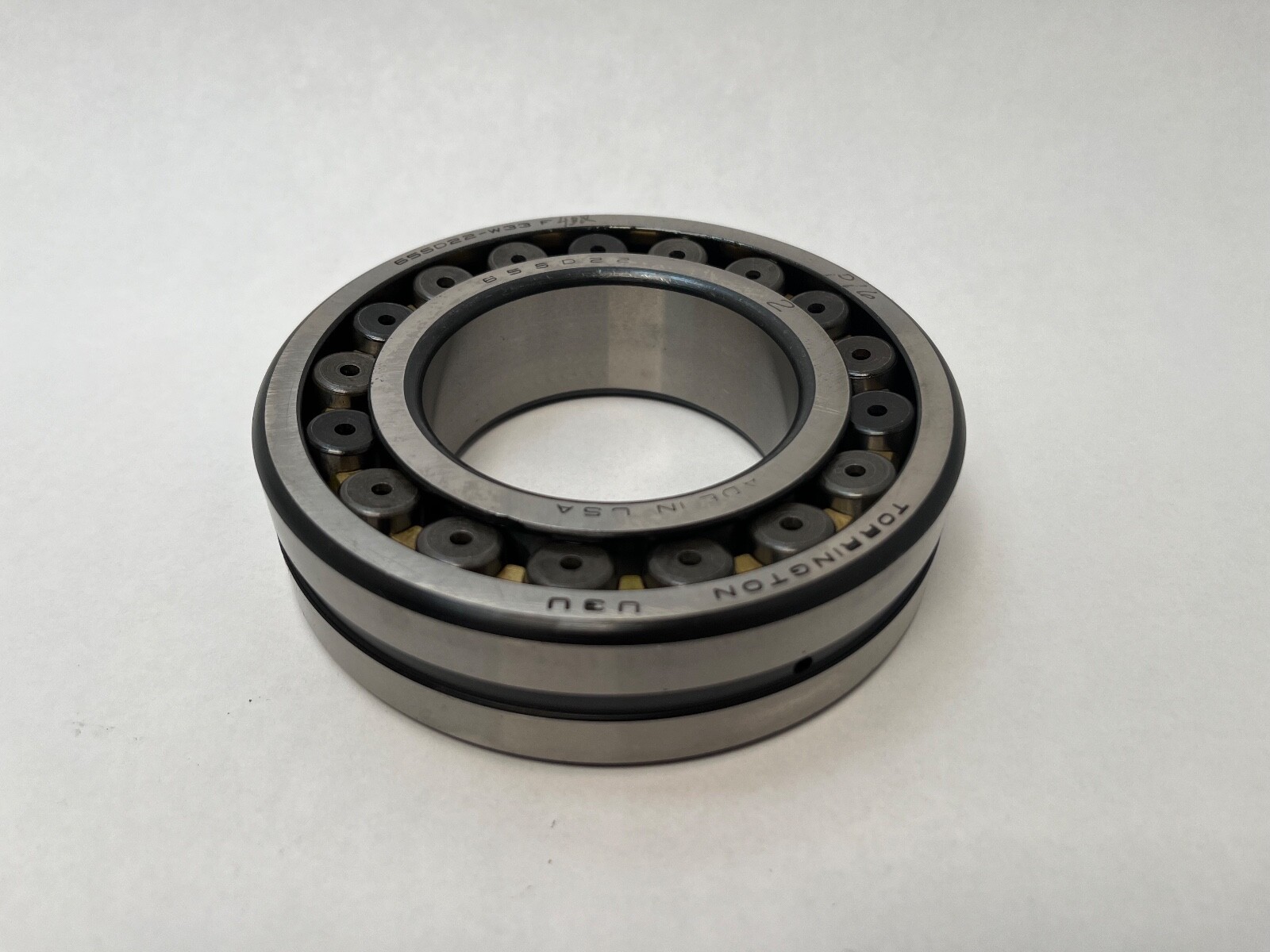

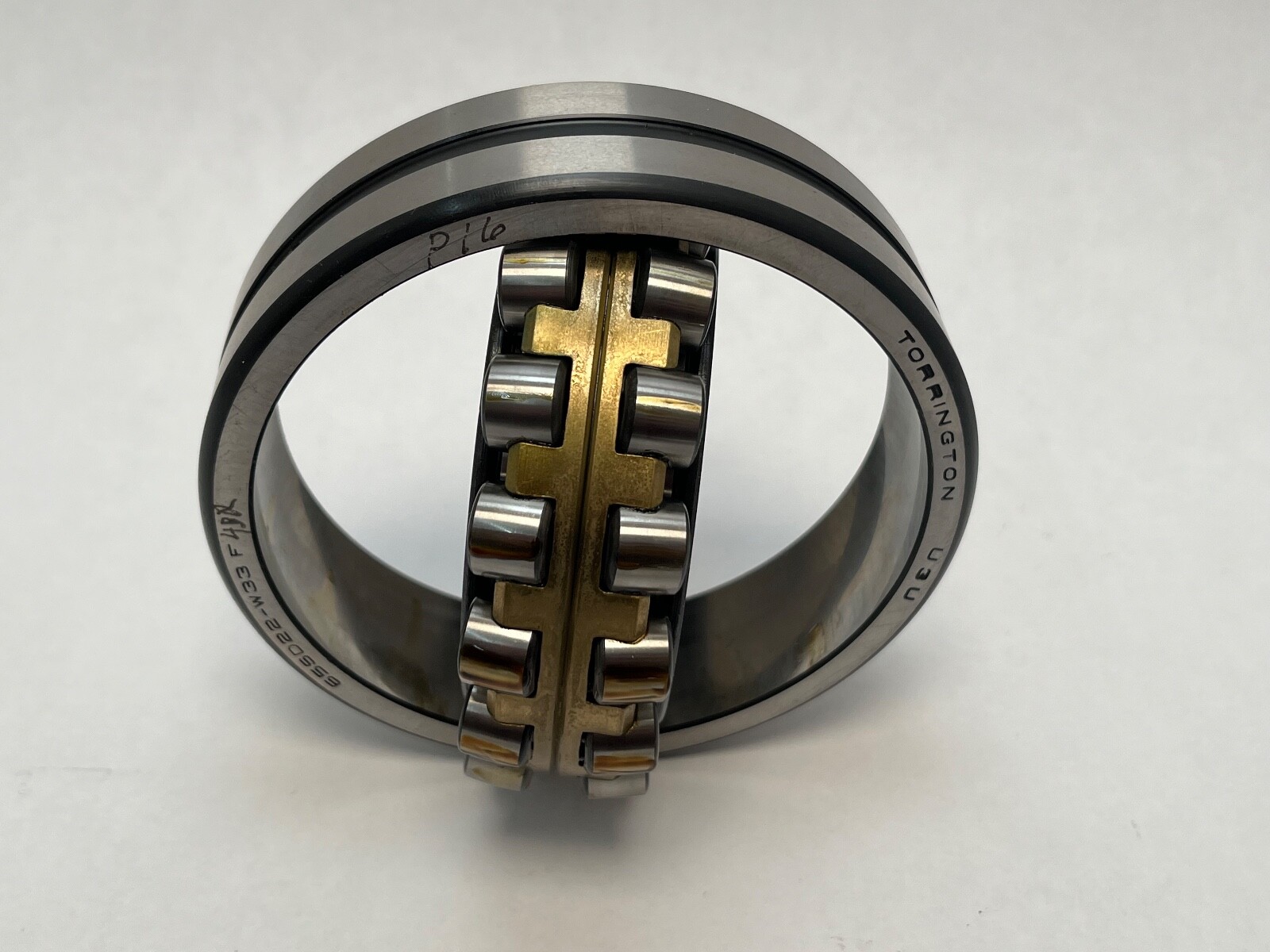

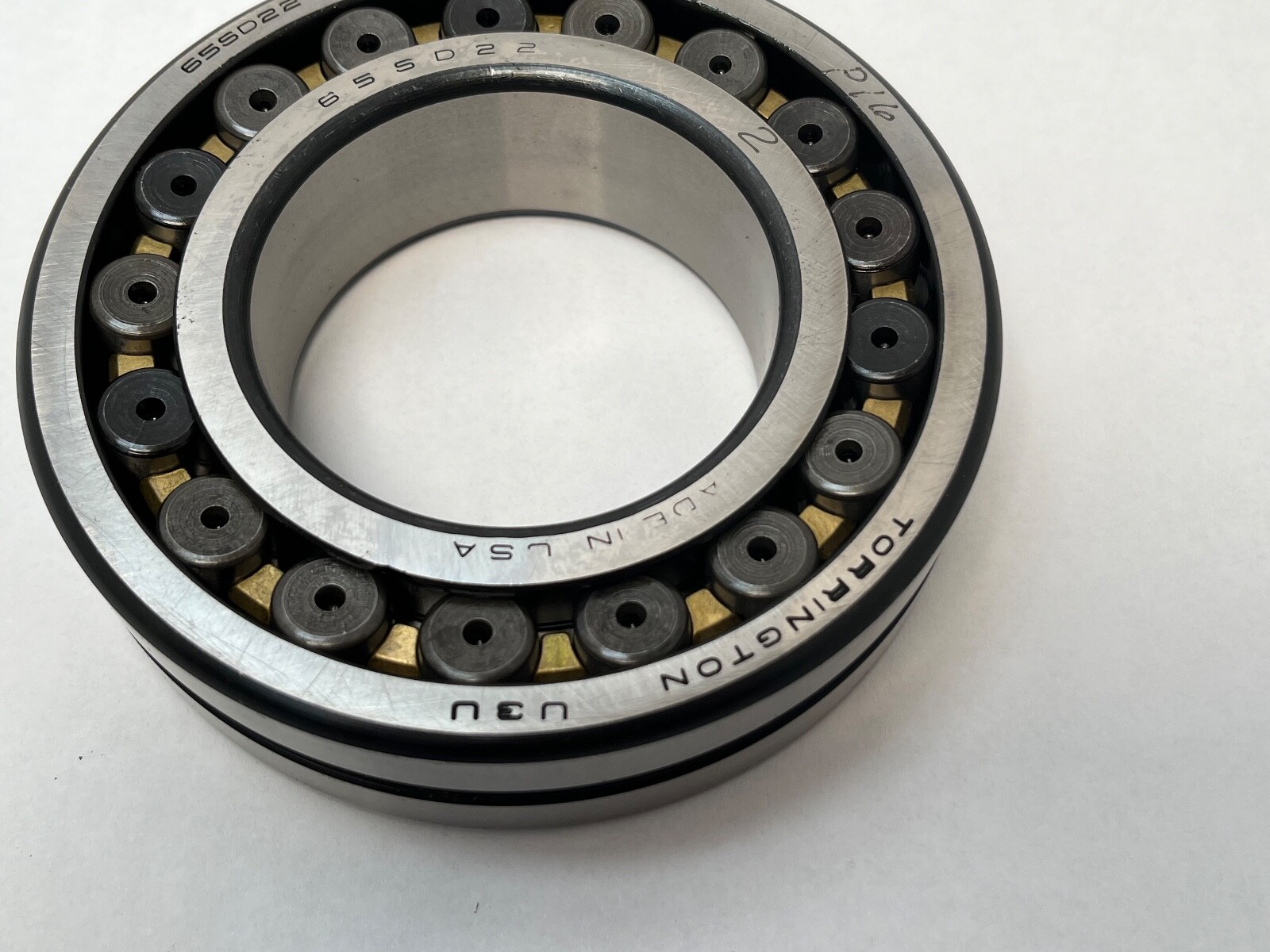

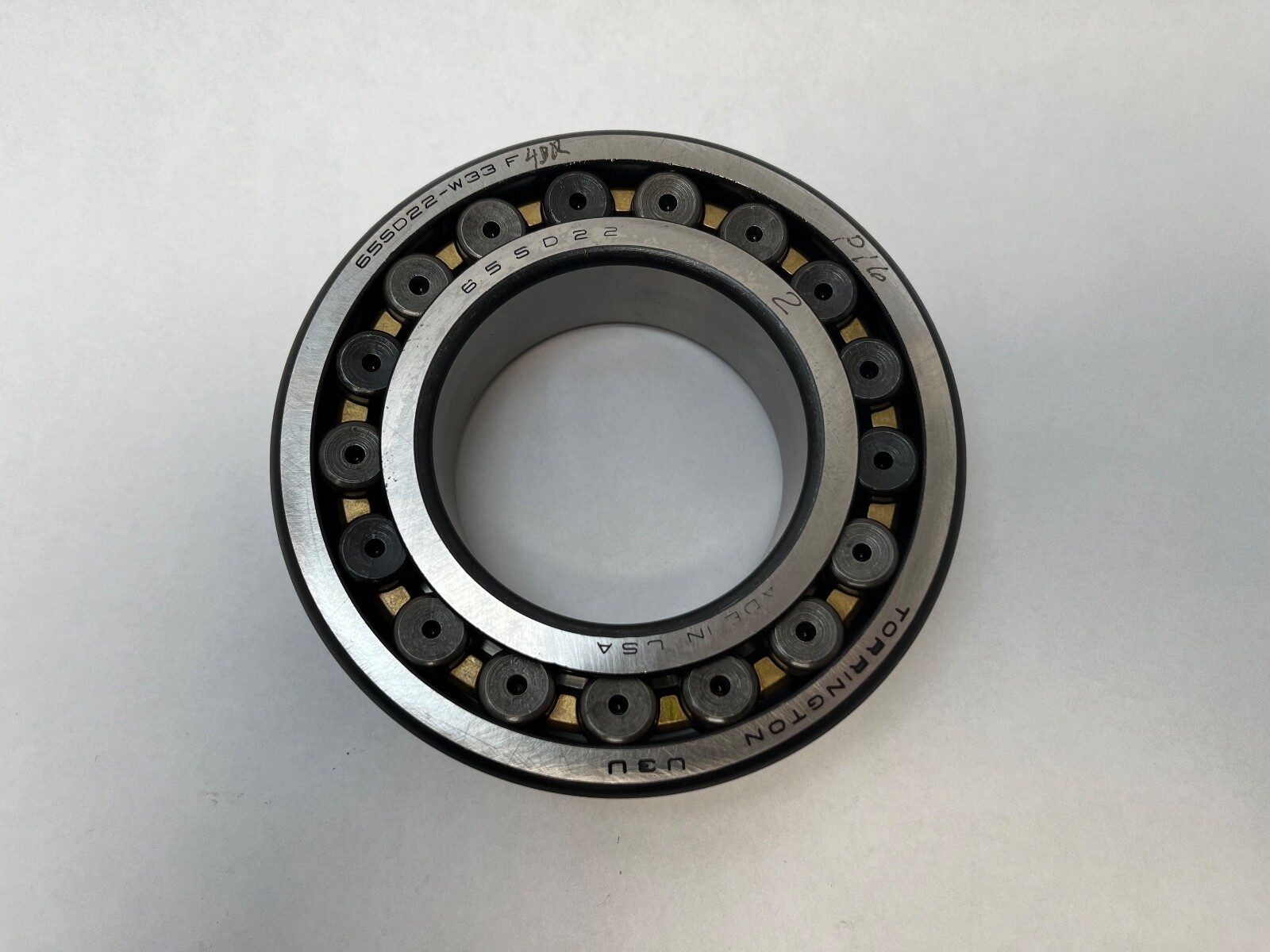

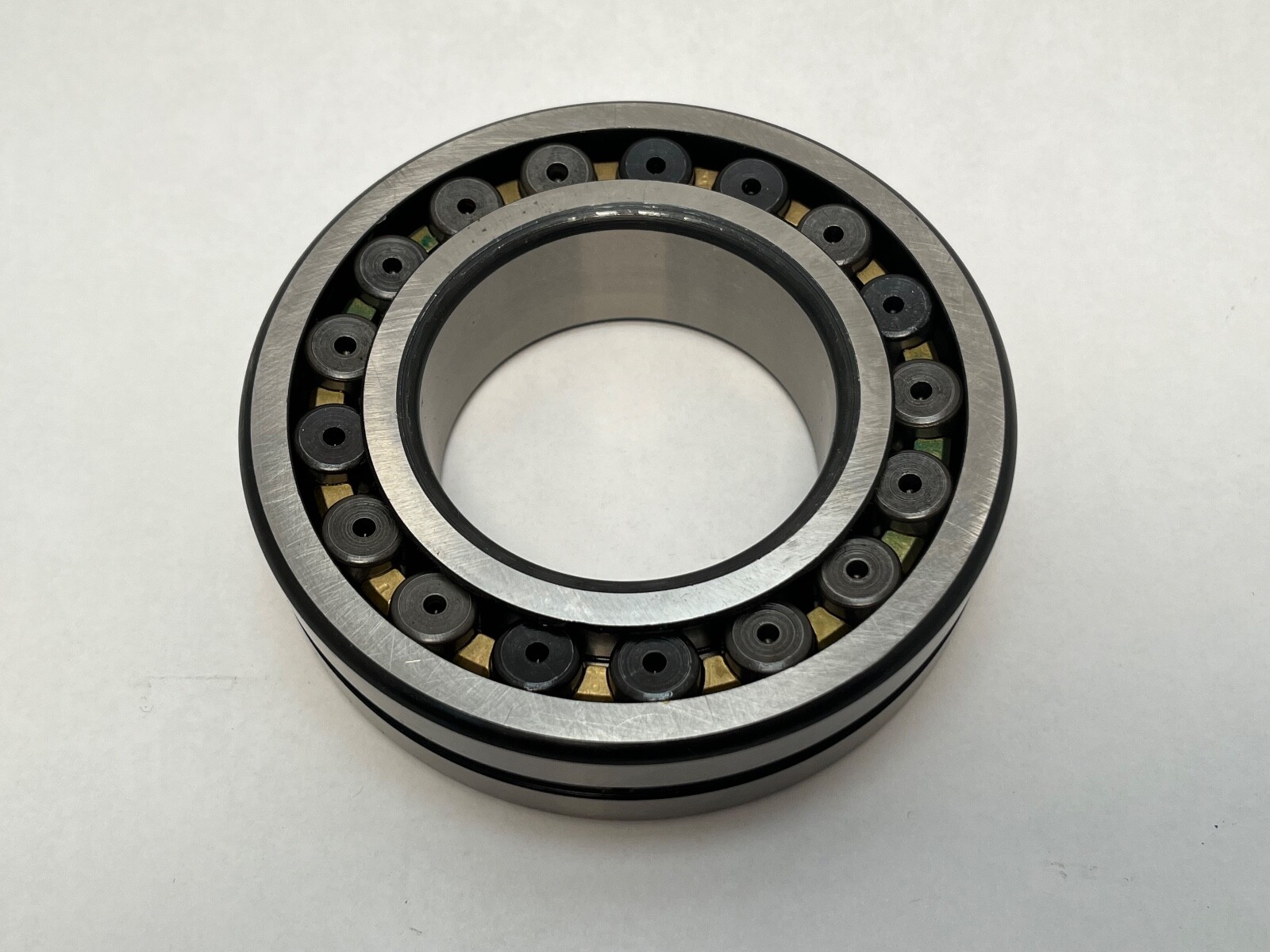

A Torrington 22213MC3W33 double-row spherical roller bearing, now part of the Timken range. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Bore Type: Cylindrical. Internal Clearance: C3. Closure Type: Open. Number Of Rows: 2. The bearing is self-aligning and carries heavy radial load with axial load in both directions.
22213 — ISO 222 series spherical roller bearing, bore code 13 = 65 mm, 65 x 120 x 31 mm.
C3 — radial internal clearance greater than normal.

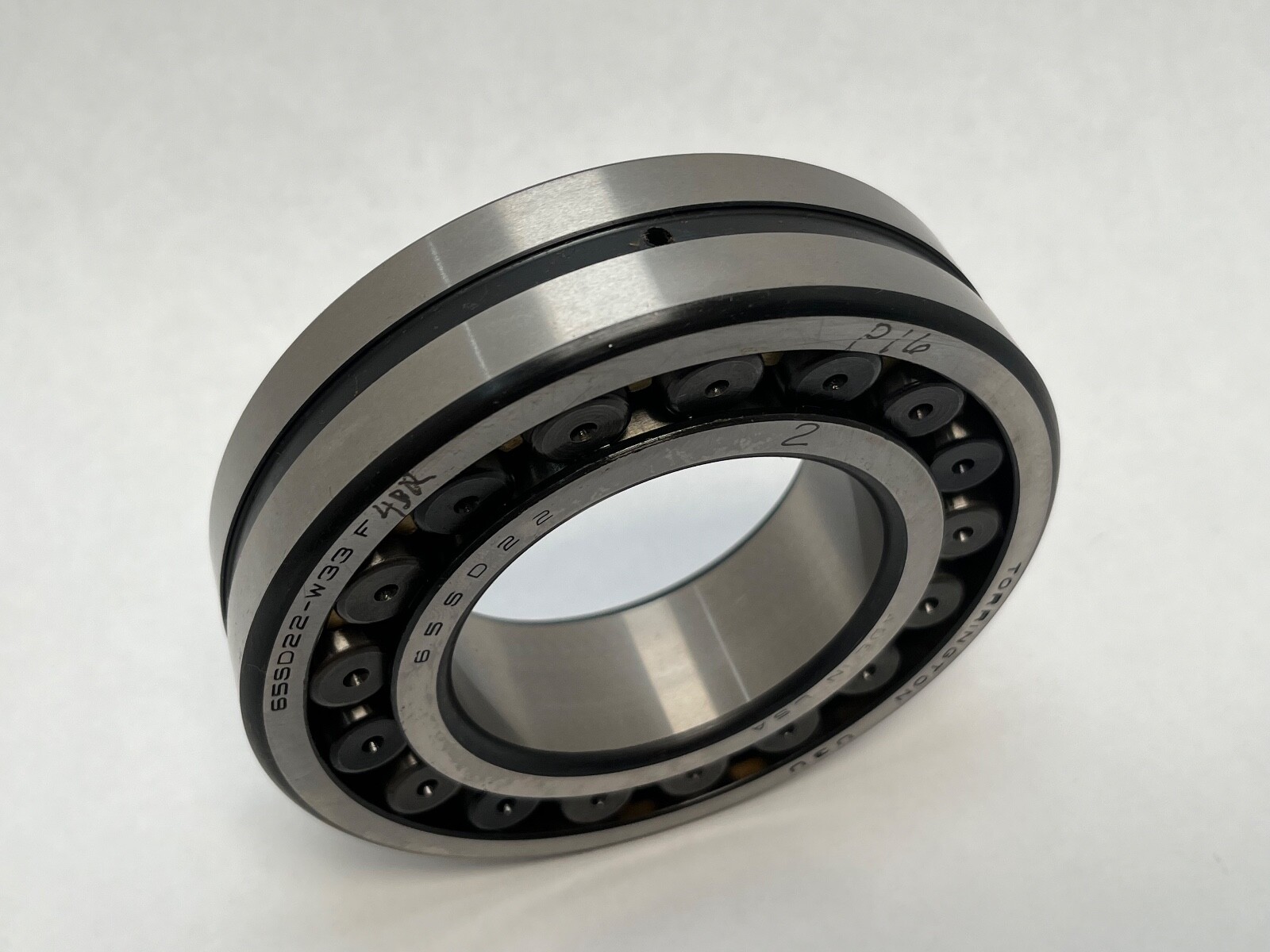

W33 — lubrication groove and three holes in the outer ring for grease or oil feed.

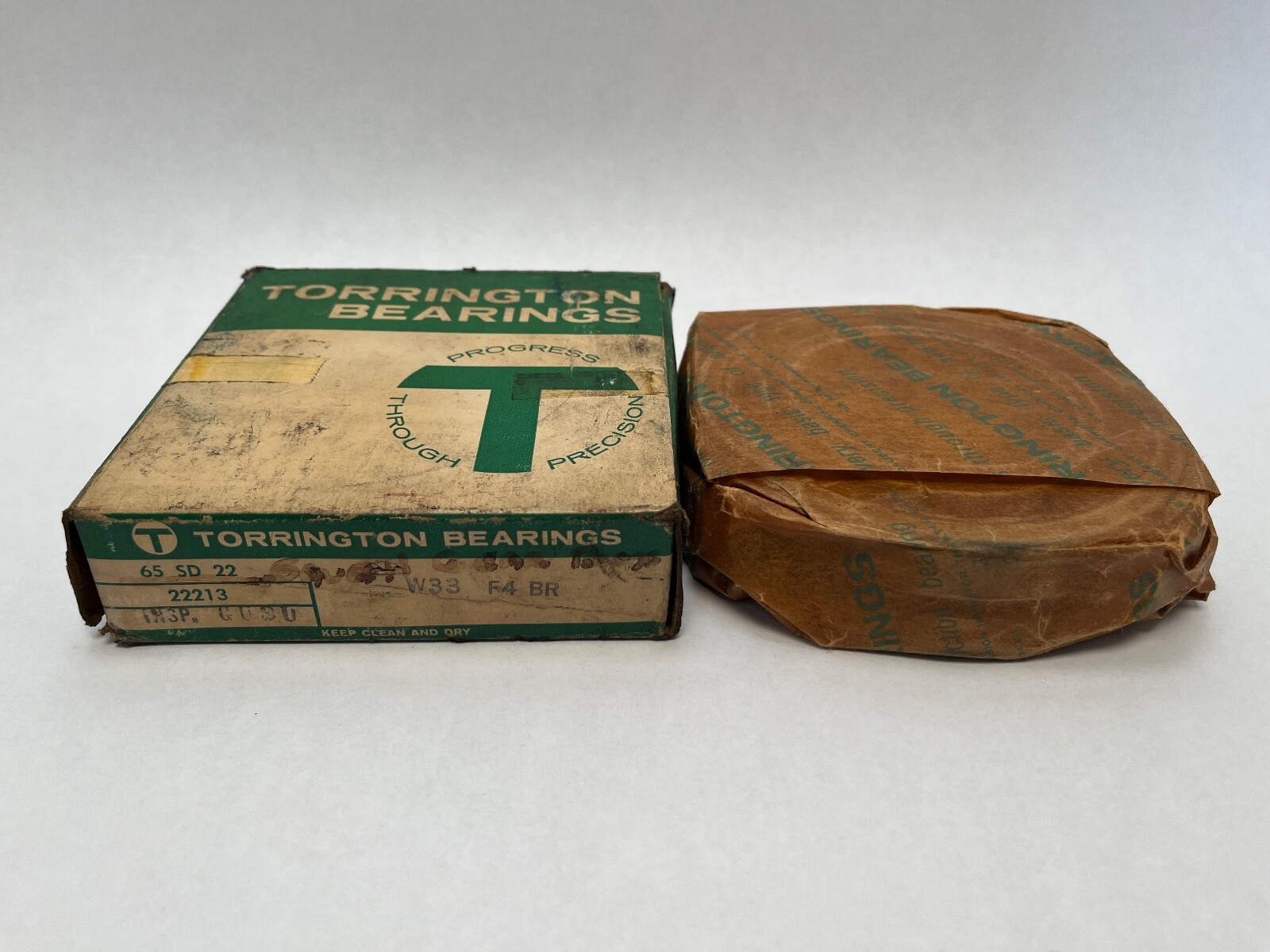

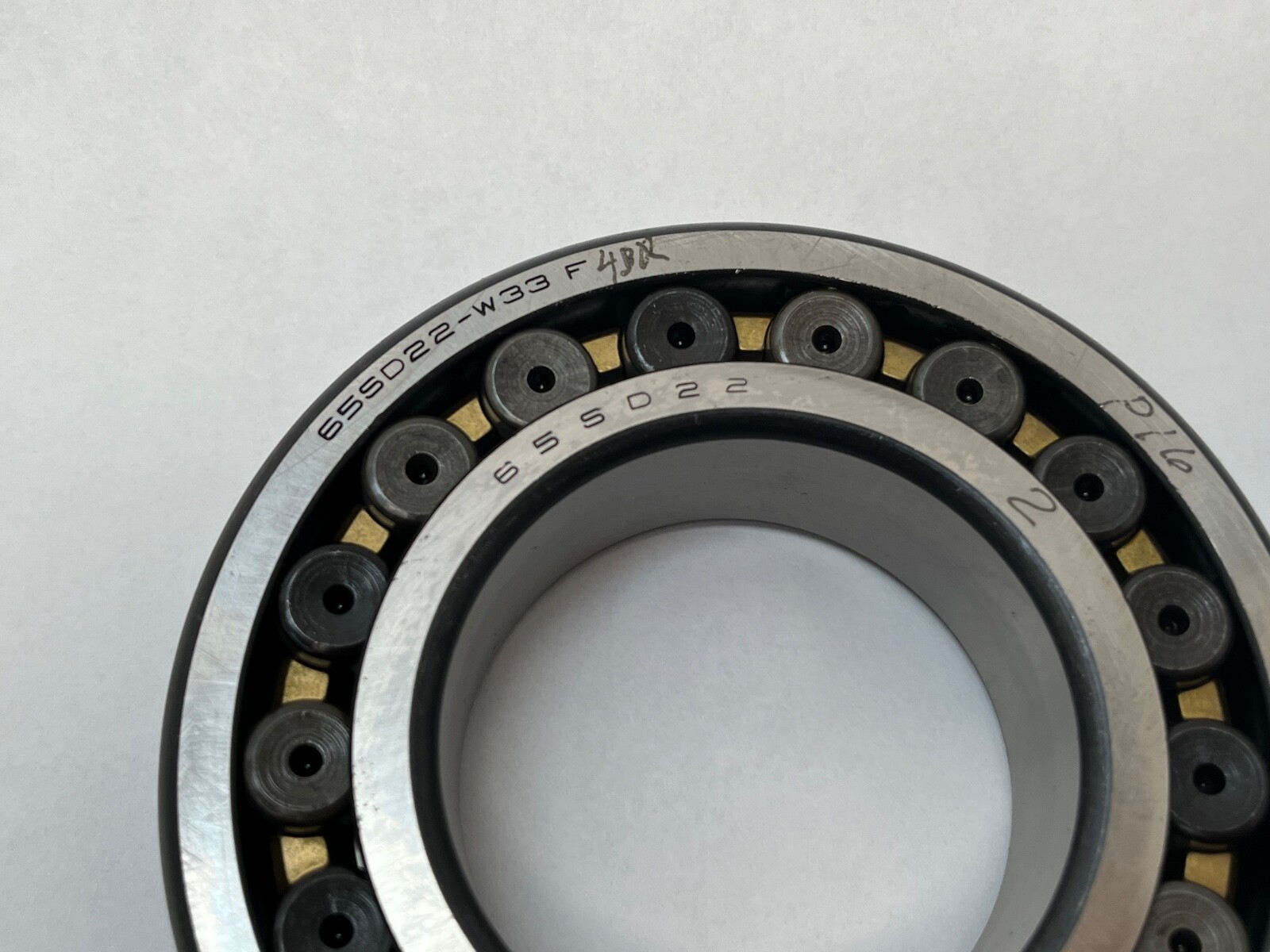

65SD22 — Torrington’s older designation for the same 65 mm bore, 222 series spherical roller size.
Successor 22213EJW33C3 data (Timken): Dynamic Load Rating: 206,000 N (46,400 lbf). Static Load Rating: 216,000 N (48,600 lbf). Thermal Reference Speed: 4,200 rpm grease; 5,200 rpm oil. Successor cage: 2-piece steel, window type. e factor 0.24; Y0 2.73; Y (Fa/Fr≤e) 2.79; Y (Fa/Fr>e) 4.15; geometry factor Cg 0.0511. Lubricant: grease or oil.
Successor 22213EJW33C3 data (Timken): Shaft Backing Shoulder Diameter: 78.0 mm (3.100 in). Housing Backing Shoulder Diameter: 109 mm (4.300 in). Maximum Fillet Radius: 1.5 mm (0.06 in).
Current Timken equivalent: 22213EJW33C3, same envelope, cylindrical bore, C3 clearance, W33 groove. Same-envelope equivalents: SKF 22213 E/C3, FAG 22213-E1-C3, NSK 22213EAE4C3, NTN 22213EAW33C3.
$44.35
1 in stock
$44.35
1 in stock
