Double-row spherical roller bearing, 65 mm tapered bore (1:12), 120 mm OD, 31 mm wide, C3 clearance, W33 lubrication groove. Mounts on an H313 adapter sleeve.
List Price
$67.30
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22213KW33C3 |
| Model | 22213-K-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Relubrication | W33 groove and three holes in outer ring |
| Lubricant | grease or oil |
| Base Number | 22213 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, tapered bore spherical |
| Common Misspellings | 22213KW33 C3, 22213 K W33C3, 22213KC3W33 |
| Application Types | gearboxes, fans, pumps, conveyors, pillow block housings |
| Overall Width | 31 mm |
| Mpn Variants | 22213KW33C3, 22213-K-W33-C3, 22213-K-W33-C4, 22213 K W33 C4, 65SD22 K W33 F4, 65SD22 |
| Compatible With Replaces | Successor: Timken 22213KEJW33C3; adapter sleeve H313 |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Closure Type | Open |
| Cross Reference 1 | Timken 22213KEJW33C3 - E design, higher ratings |
|---|---|
| Cross Reference 2 | SKF 22213 EK/C3 - E design, higher ratings |
| Cross Reference 3 | FAG 22213-E1-K-C3 - E1 design |
| Cross Reference 4 | NSK 22213EAKE4C3 - EA design |
| Cross Reference 5 | NTN 22213EAKW33C3 - EA design |

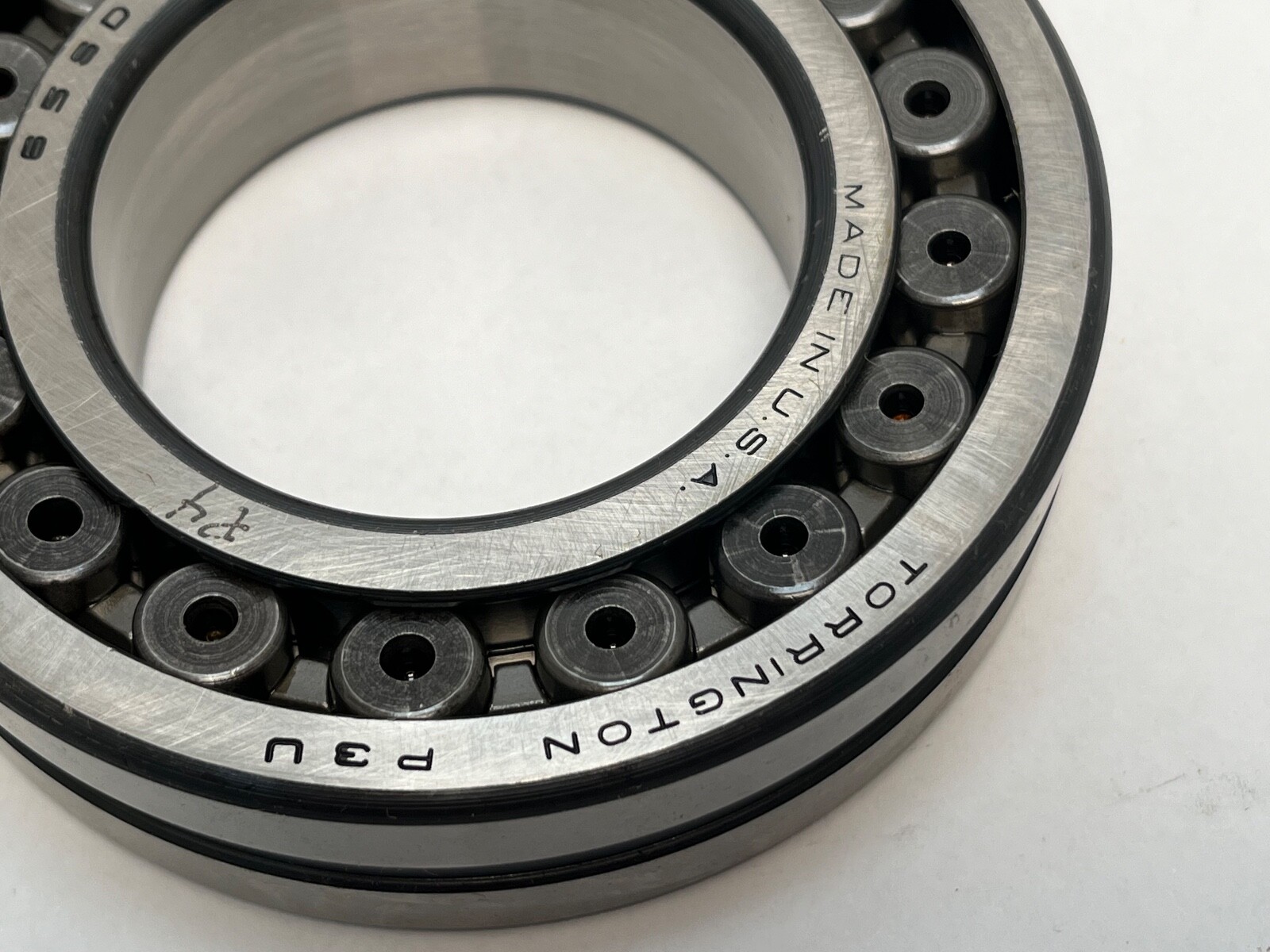

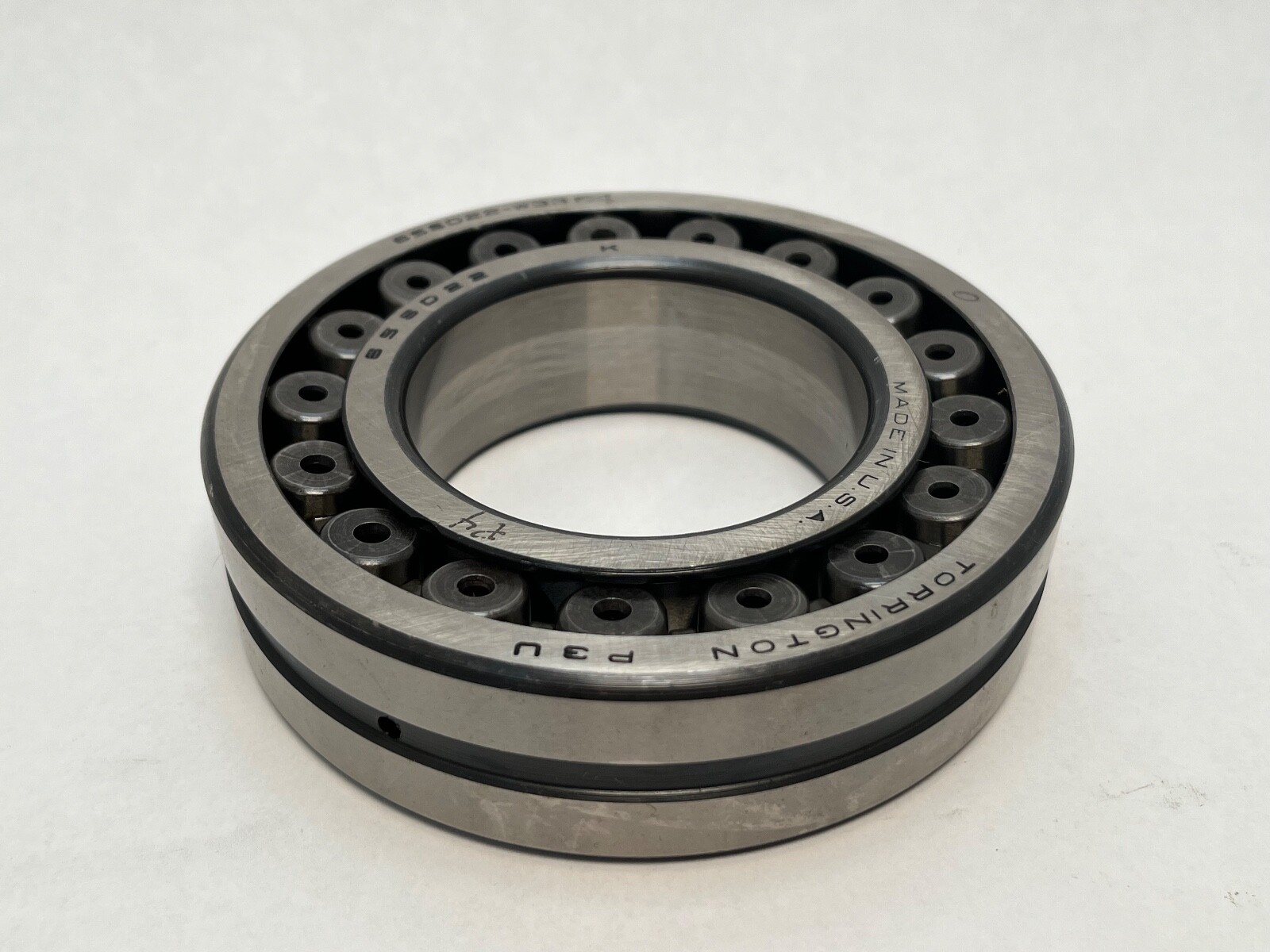

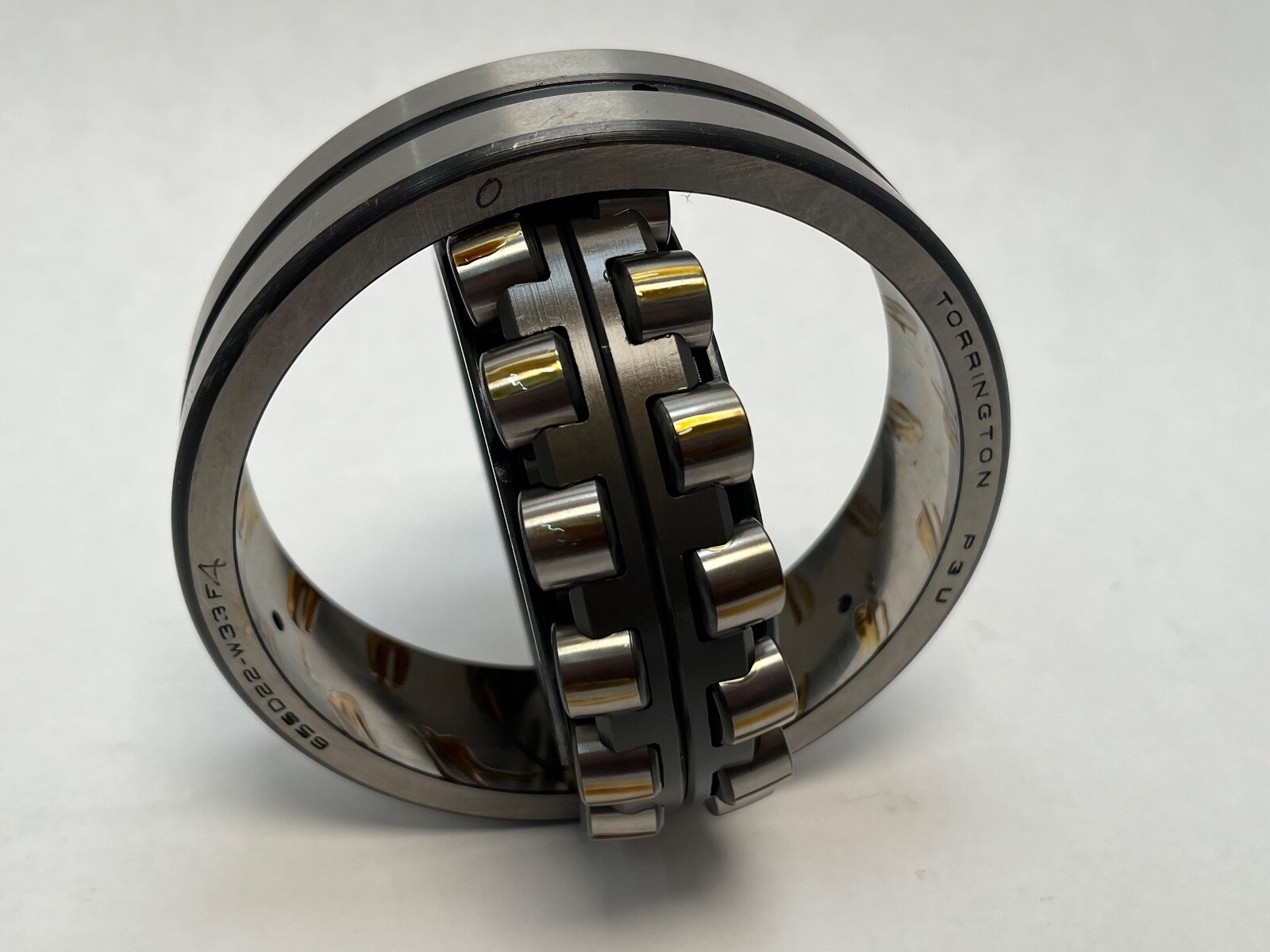

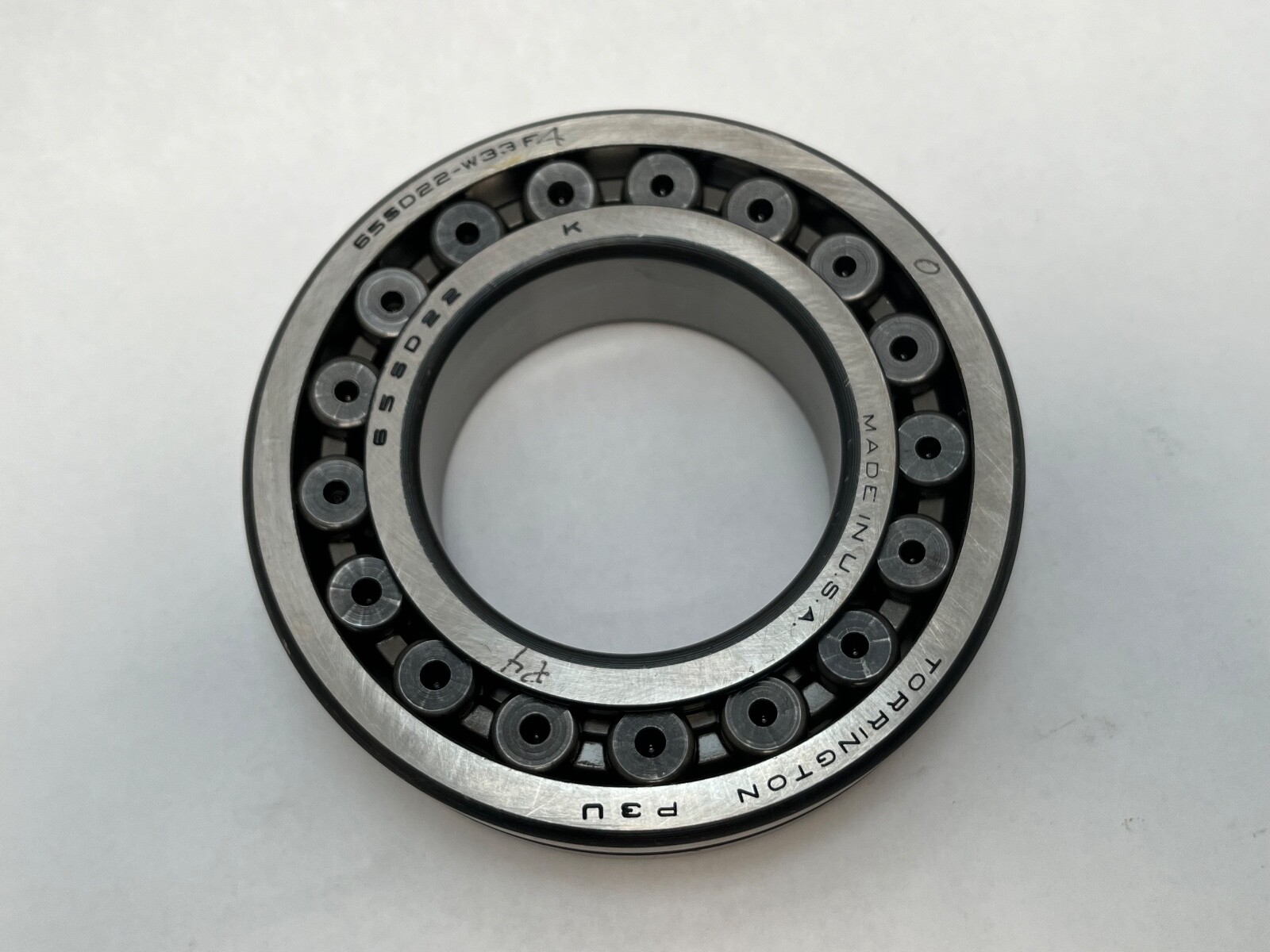

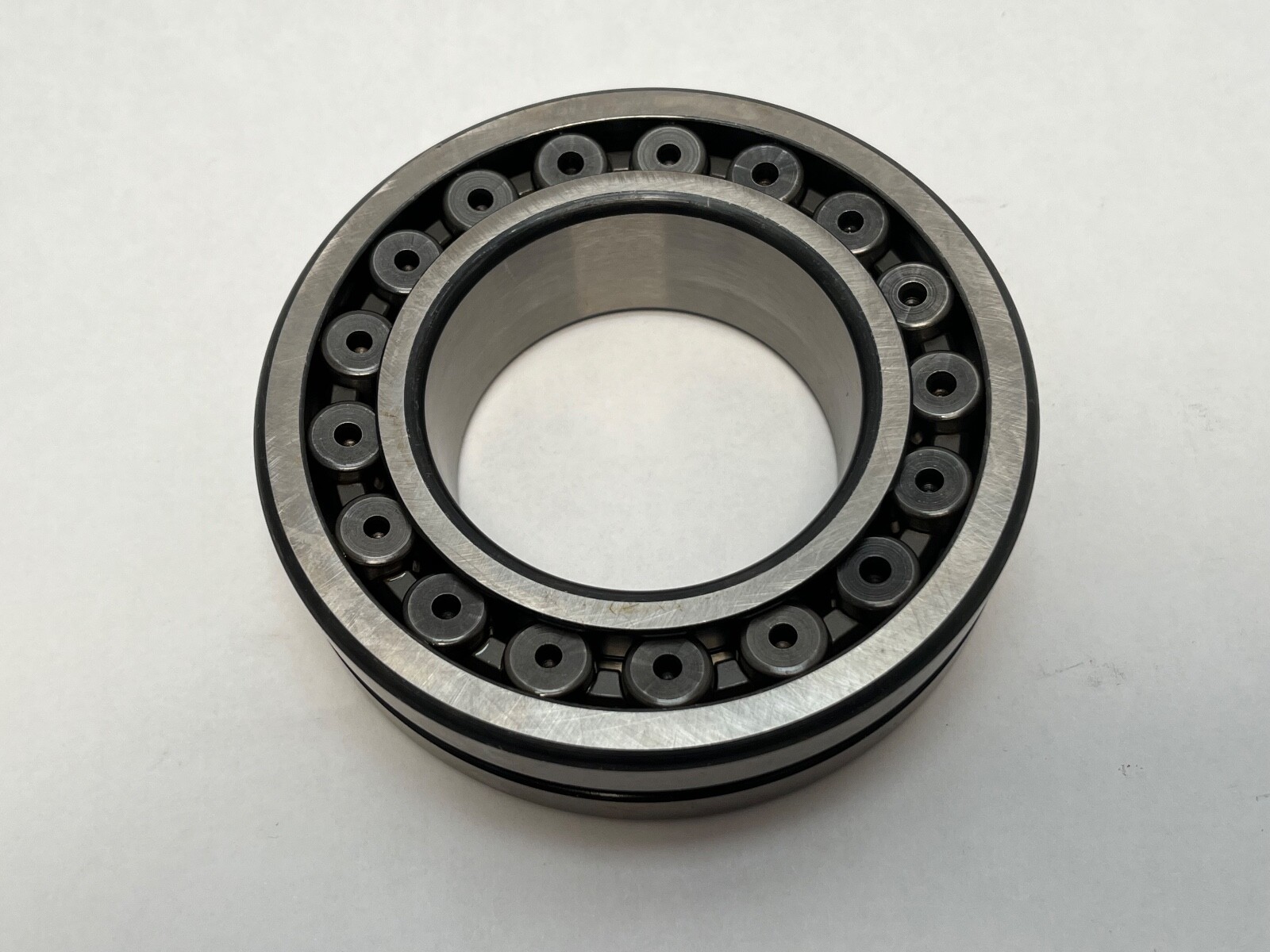

Torrington 22213KW33C3 double-row spherical roller bearing, now part of the Timken range. Bore Diameter: 65 mm, tapered 1:12. Outside Diameter: 120 mm. Overall Width: 31 mm. Internal Clearance: C3. The bearing is self-aligning and carries heavy radial load with axial load in both directions. Unit Quantity: 1 Pc.
22213 — ISO 222 series spherical roller bearing, bore code 13 = 65 mm, 65 x 120 x 31 mm.
K — 1:12 tapered bore, for mounting on an adapter sleeve or tapered journal.

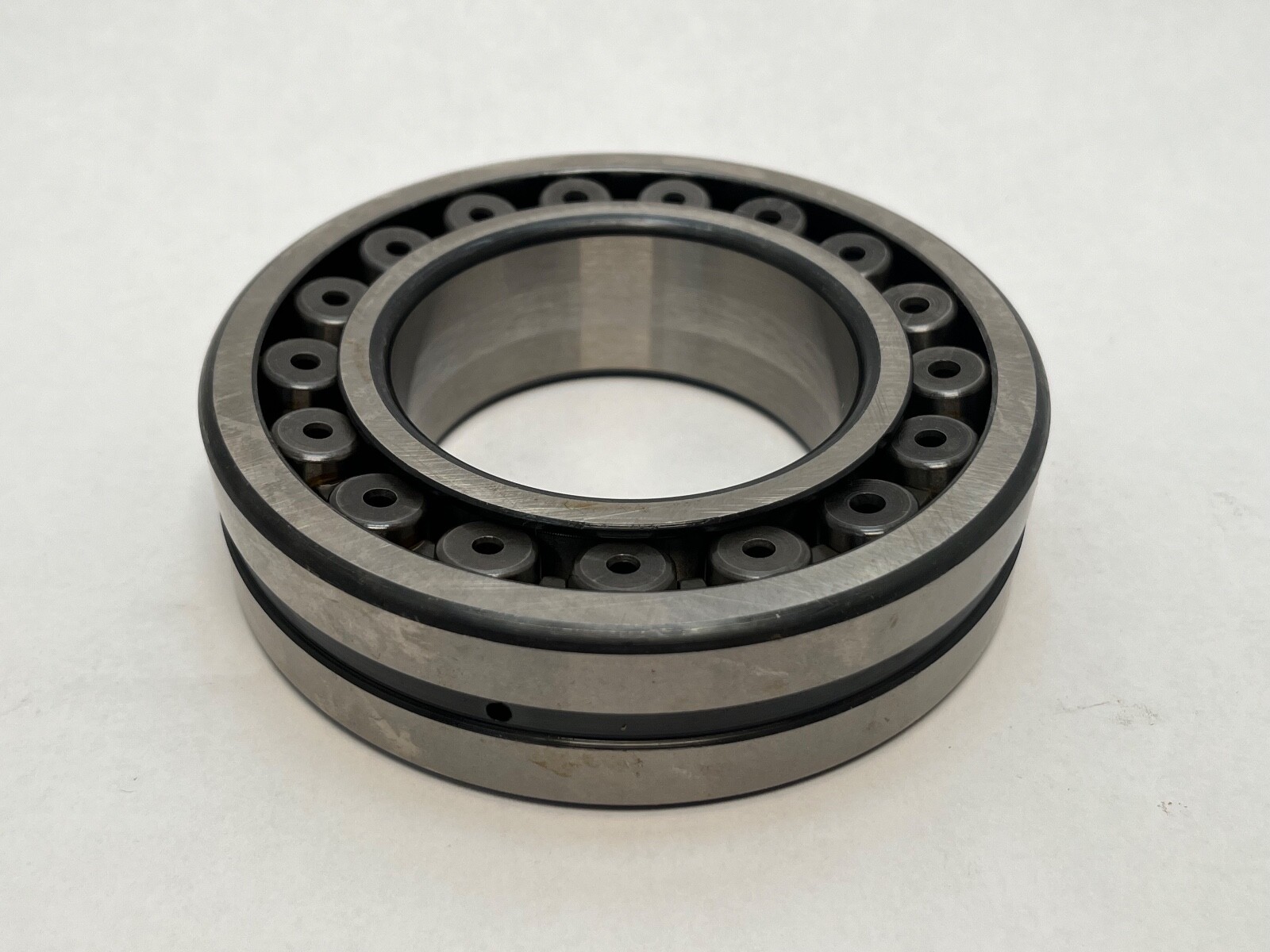

W33 — lubrication groove and three holes in the outer ring for grease or oil feed.
C3 — radial internal clearance greater than normal.

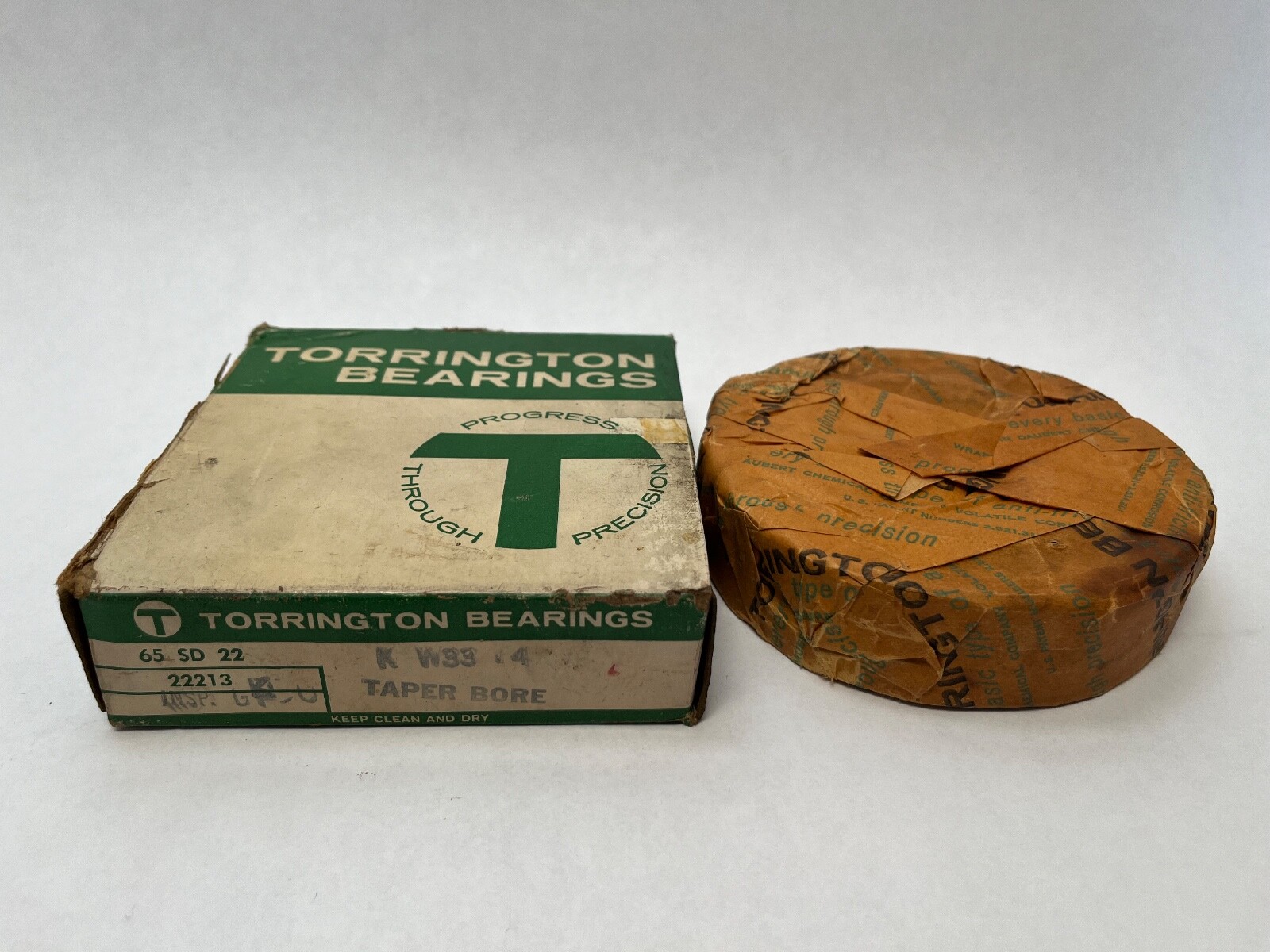

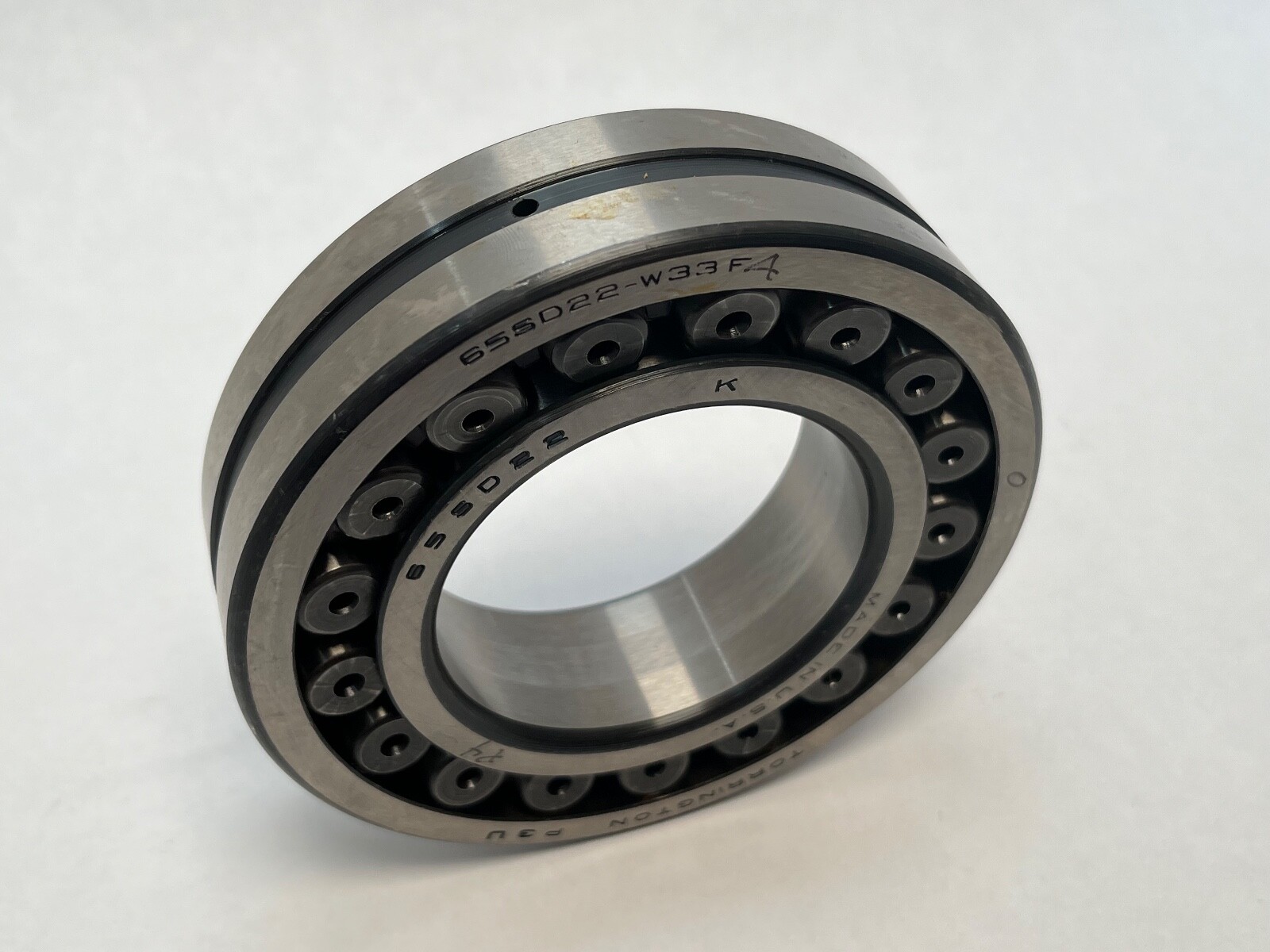

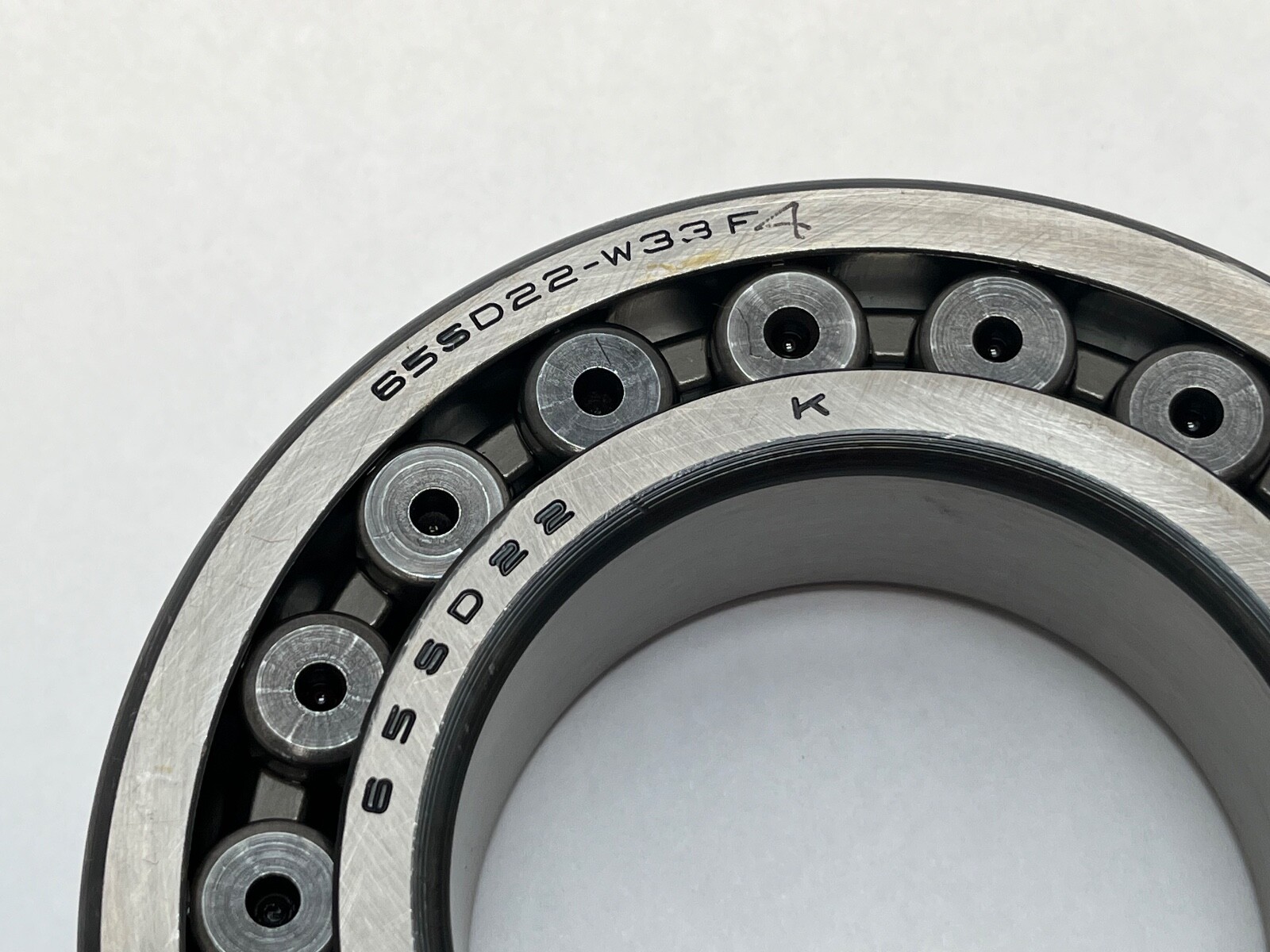

65SD22 — Torrington’s older designation for the same 65 mm bore, 222 series spherical roller size.
Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered 1:12. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 22200.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Adapter Sleeve: H313, 60 mm shaft seat, with KM13 locknut and MB13 washer.
Current Timken part: 22213KEJW33C3, E design with higher ratings, 1:12 tapered bore, C3 clearance, W33 groove. Related C3 tapered-bore designs in the 65 x 120 x 31 mm size: SKF 22213 EK/C3 (E design), FAG 22213-E1-K-C3 (E1 design), NSK 22213EAKE4C3 (EA design), NTN 22213EAKW33C3 (EA design). MPN variants: 22213KW33C3, 22213-K-W33-C3, 22213-K-W33-C4, 22213 K W33 C4, 65SD22 K W33 F4, 65SD22.
Bore Diameter: 65 mm, tapered 1:12. Outside Diameter: 120 mm. Overall Width: 31 mm.
H313, 60 mm shaft seat, with KM13 locknut and MB13 washer.
Timken 22213KEJW33C3, an E design with higher ratings, 1:12 tapered bore, C3 clearance and W33 groove.
