Availability:
1 in stock

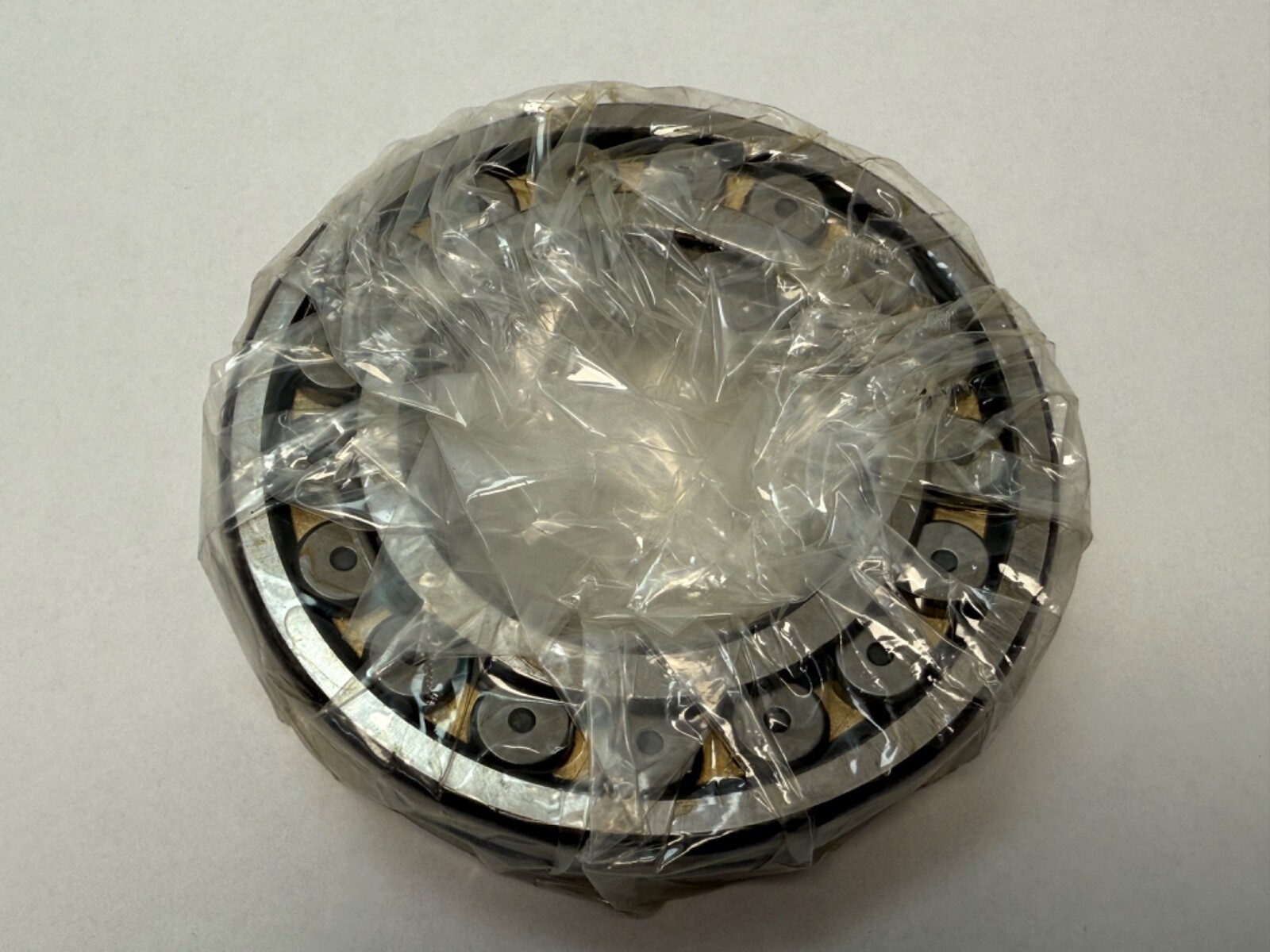

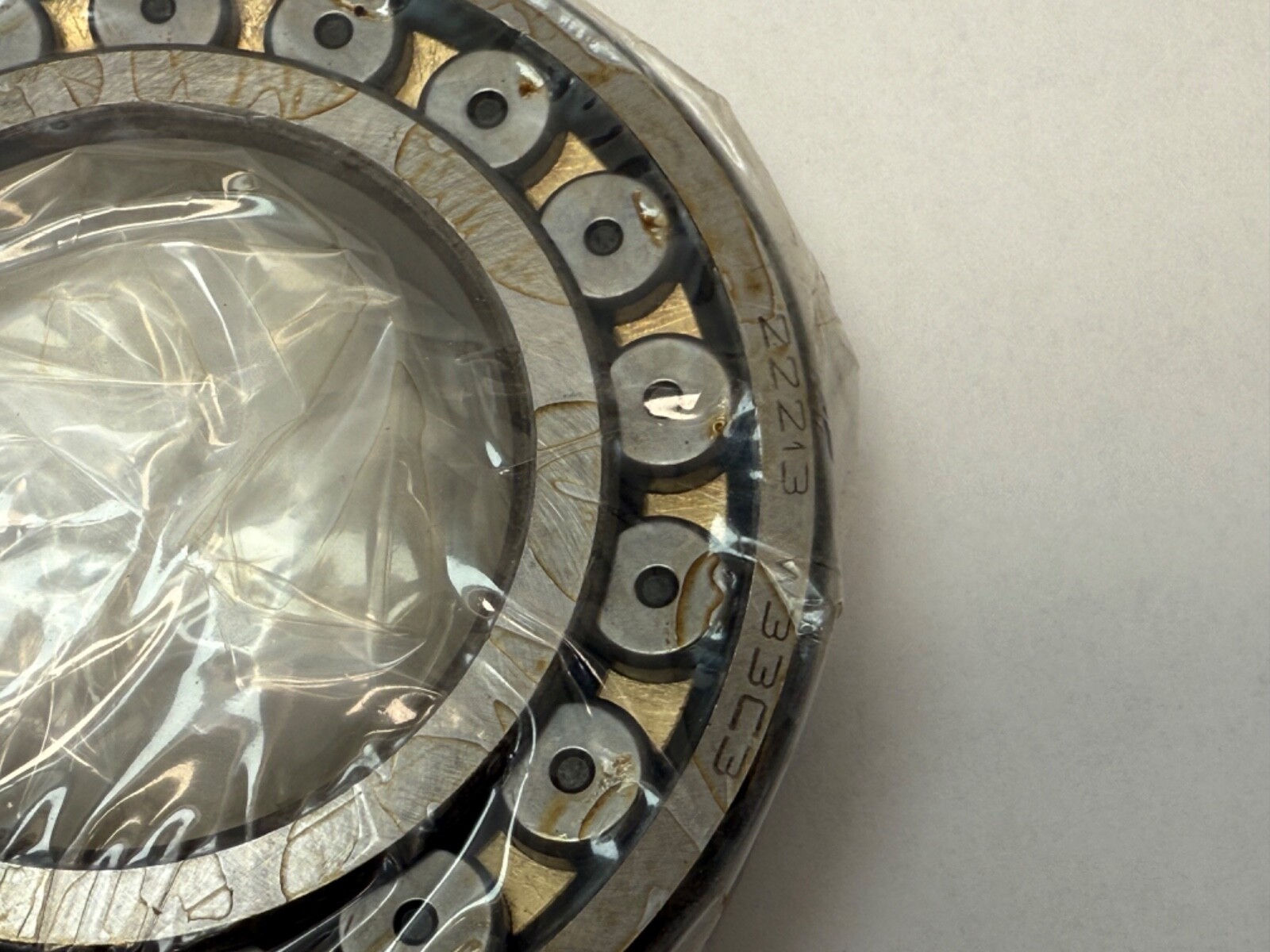

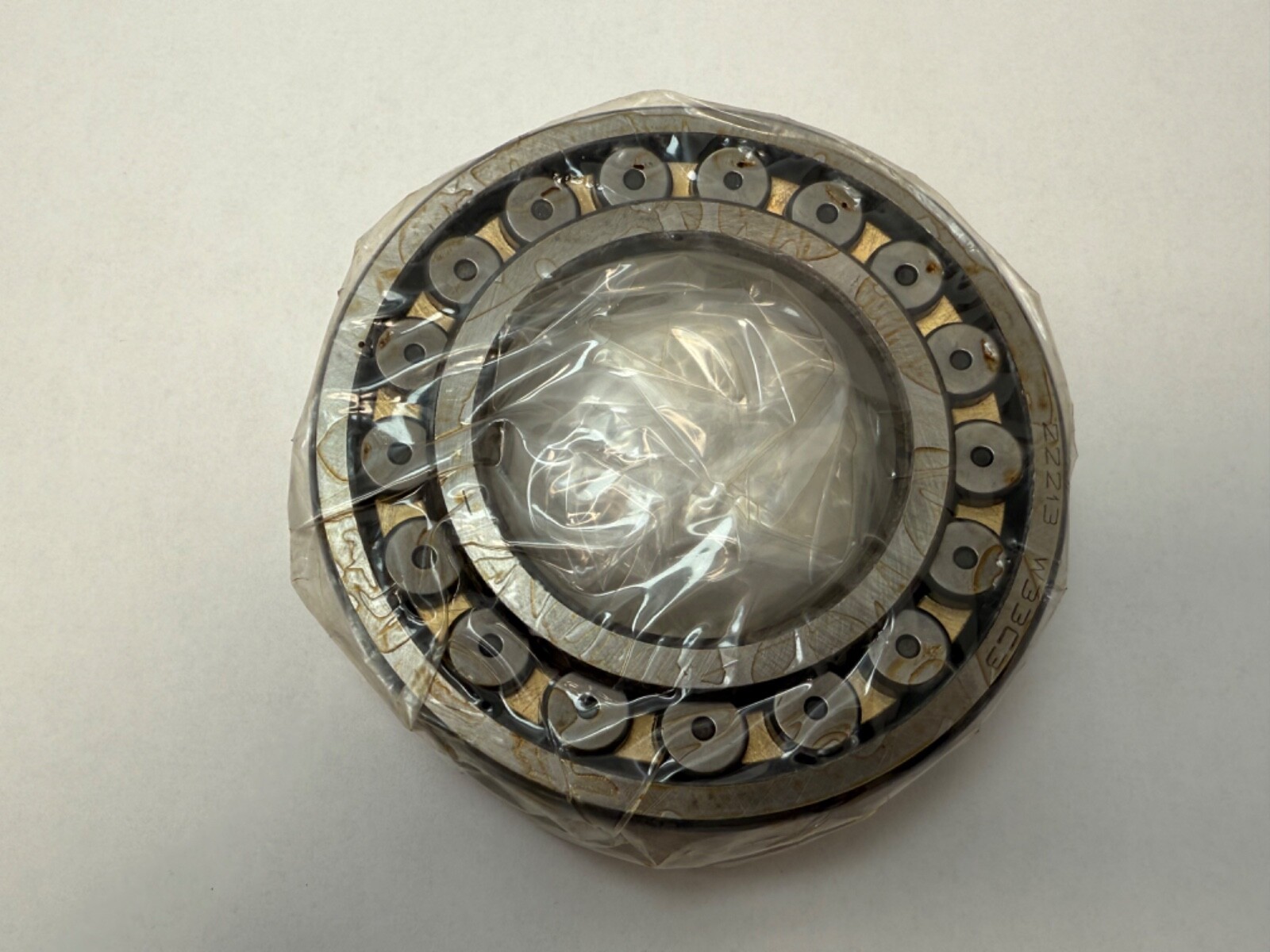

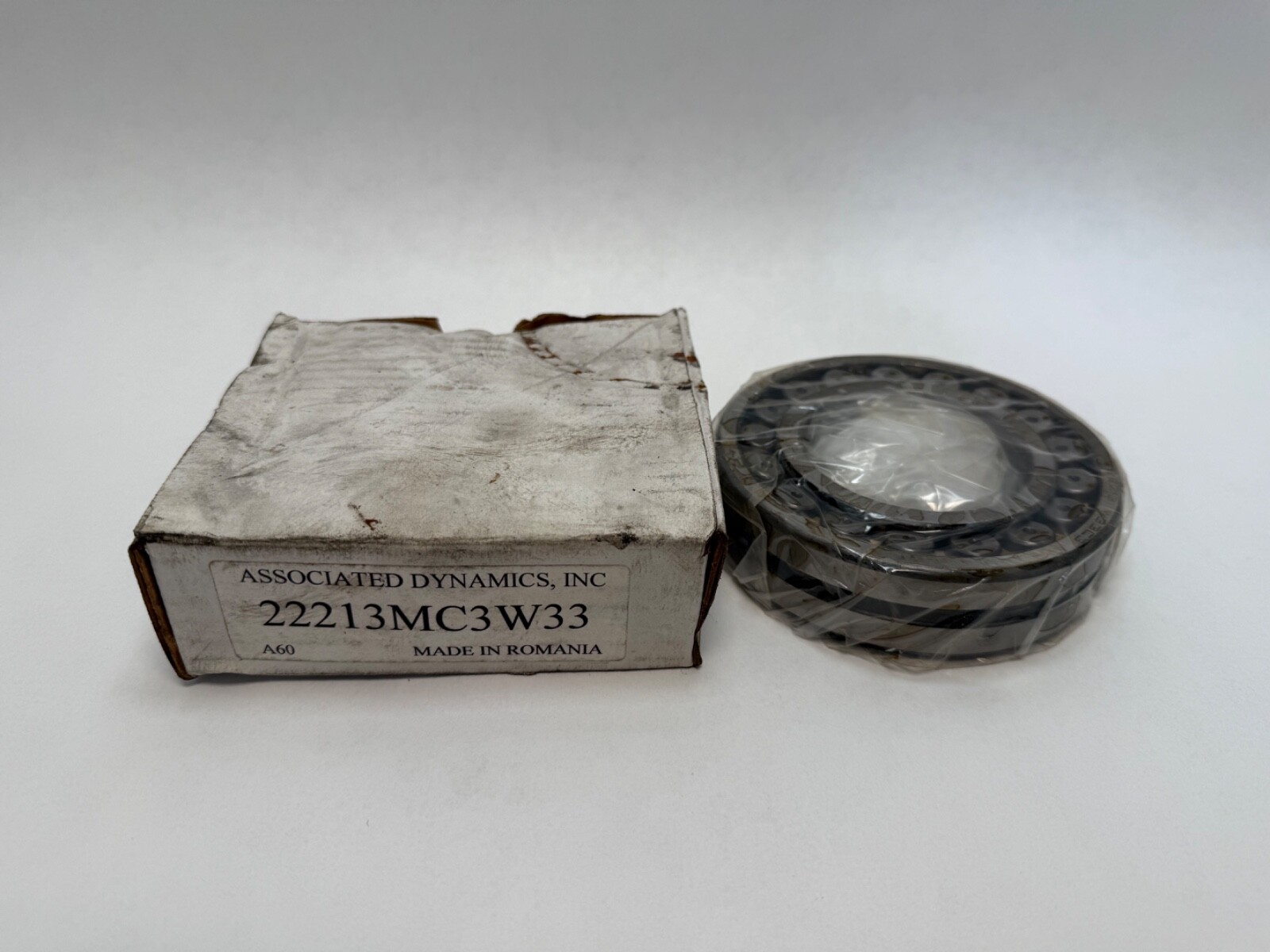

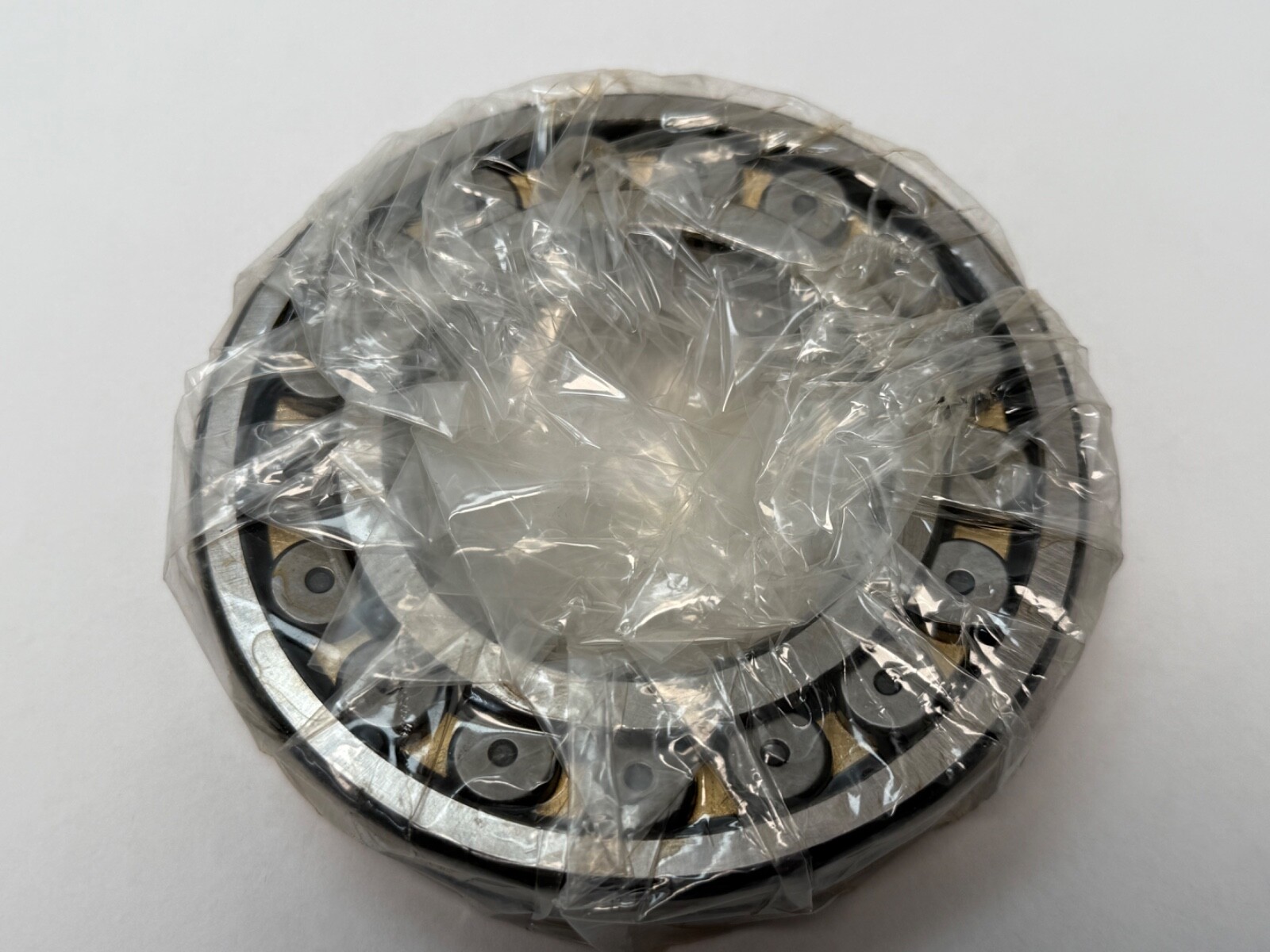

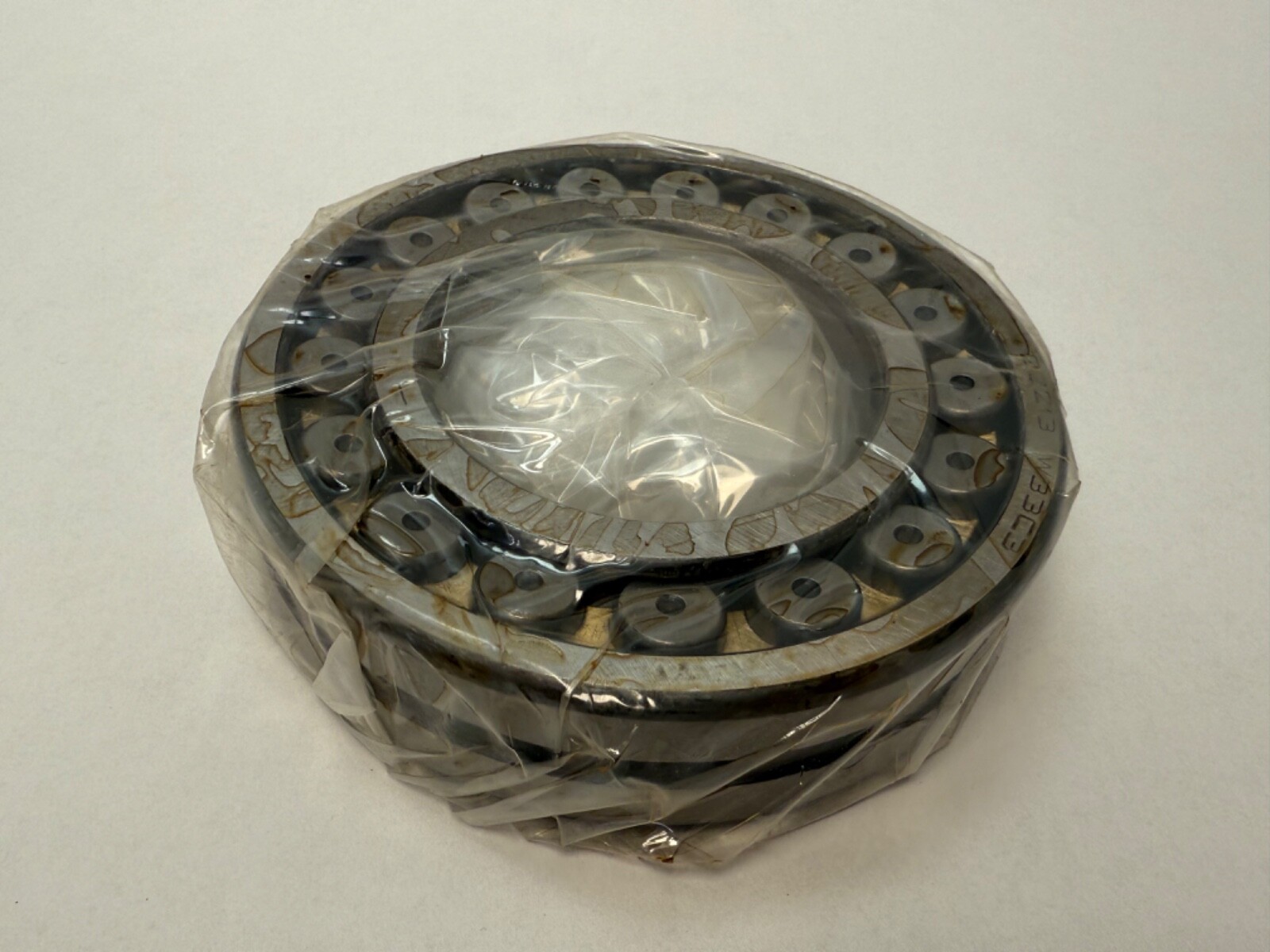

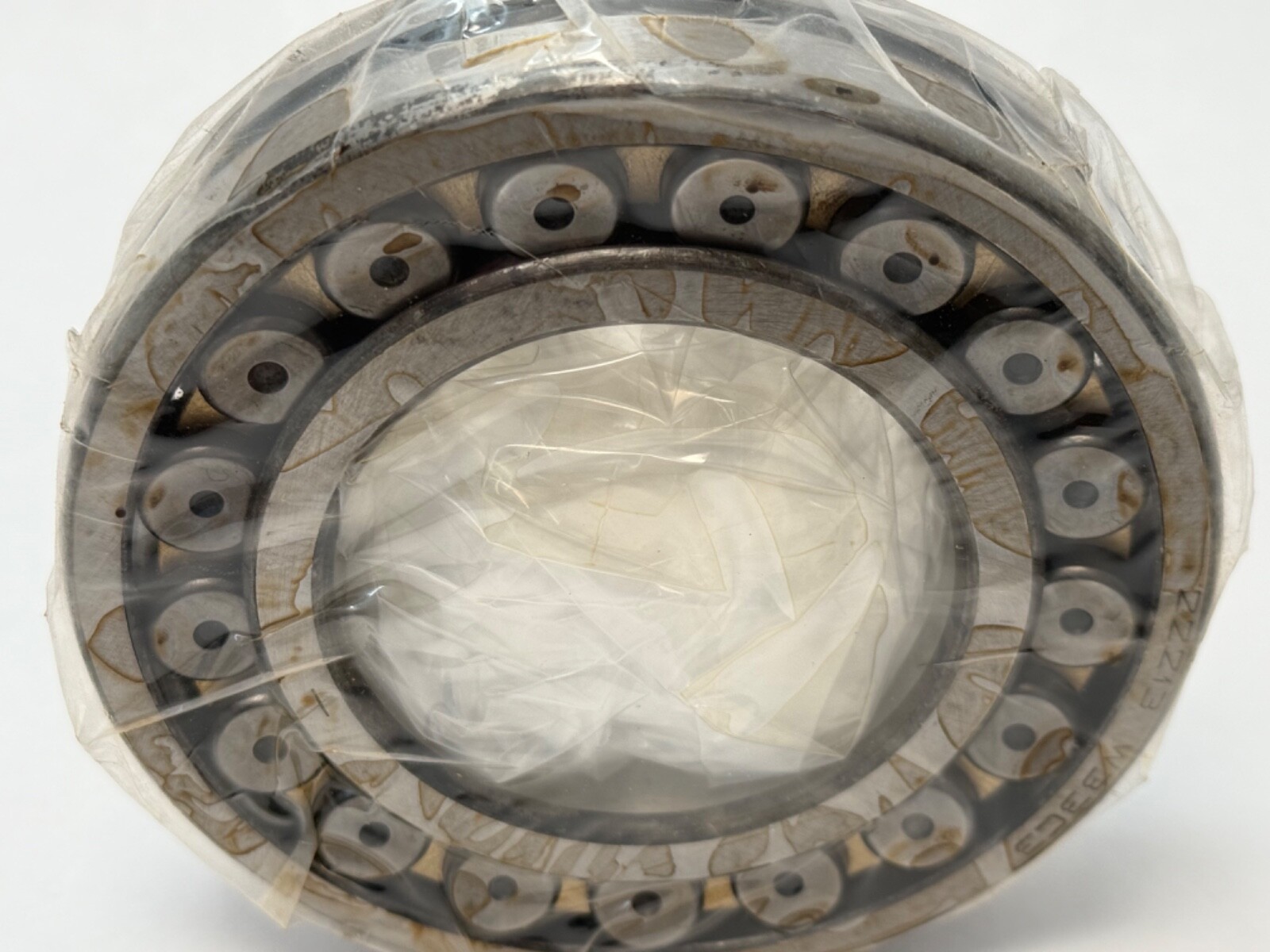

IMP 22213MC3W33 spherical roller bearing, 65 mm straight bore, 120 mm OD, 31 mm wide, machined brass cage, C3 clearance, W33 lubrication groove.
List Price
$44.35
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IMP |
|---|---|
| MPN | 22213MC3W33 |
| Model | 22213 M C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Bore | Straight |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Relubrication Feature | W33 groove with three radial holes |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Base Number | 22213 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical bearing |
| Overall Width | 31 mm |
| Mpn Variants | 22213MC3W33, 22213 M C3 W33, 22213-M-C3-W33, 22213MBW33C3, 22213MB, 22213BR |
| Lubricant | grease or oil |
| Common Misspellings | IMP 22213 MC3 W33; IMP 22213MC3-W33; 22213MC3W33 IMP; IMP 22213MBC3W33 |
| Application Types | Gearboxes; pumps; industrial fans; conveyors; vibrating screens; general industrial machinery |
| Cross Reference 1 | Timken 22213EMBW33C3 |
|---|---|
| Cross Reference 2 | NSK 22213CAME4C3 |
| Cross Reference 3 | FAG 22213-E1A-M-C3 - no W33 groove |
The IMP 22213MC3W33 is a double-row spherical roller bearing in the ISO 22213 envelope: 65 mm straight bore, 120 mm outside diameter, 31 mm width. Two rows of barrel-shaped rollers run in a common spherical outer raceway, so the bearing self-aligns to shaft deflection and misalignment while carrying heavy radial load and moderate axial load in both directions. Unit Quantity: 1 Pc.
22213 — 222 series spherical roller bearing, 13 bore code, 65 mm bore, 120 x 31 mm section.
M — machined brass cage, also marked MB.
C3 — internal radial clearance greater than normal.
W33 — lubrication groove with three radial holes in the outer ring, for grease or oil feed.
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Machined brass. Internal Clearance: C3. Lubricant: grease or oil. Closure Type: Open. Series: 22200.
The straight 65 mm bore mounts directly on a 65 mm shaft seat. The 120 mm outer ring is the standard 22213 size.
Cross-references on the 65 x 120 x 31 mm size: Timken 22213EMBW33C3, NSK 22213CAME4C3, FAG 22213-E1A-M-C3 (no W33 groove). Also written 22213 M C3 W33, 22213MB and 22213BR. Harmonization Code: 8482.30.00.
65 mm bore, 120 mm outside diameter and 31 mm width.
A lubrication groove with three radial holes in the outer ring, feeding grease or oil to the rollers.
Timken 22213EMBW33C3, NSK 22213CAME4C3 and FAG 22213-E1A-M-C3 (no W33 groove).
