Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

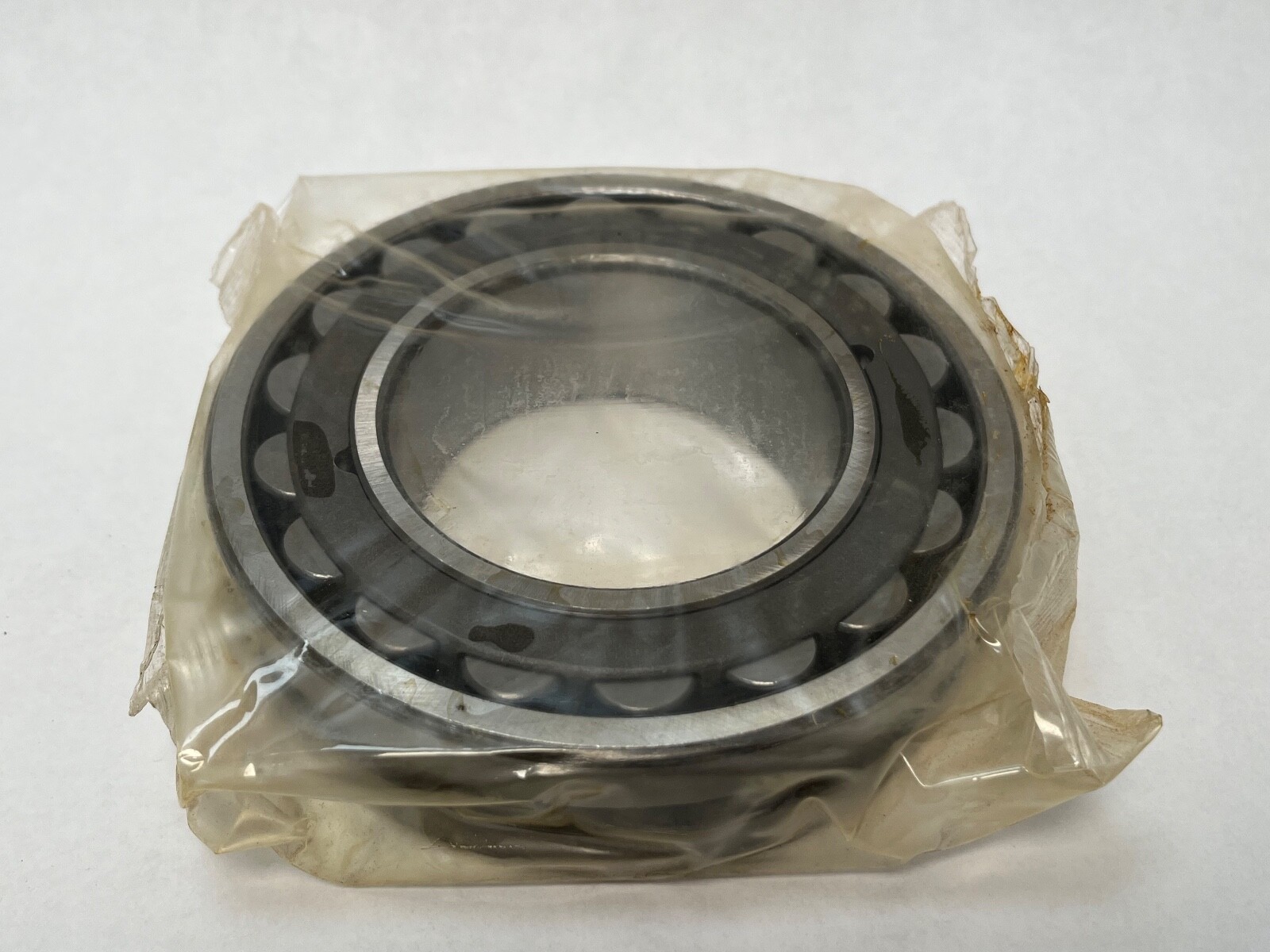

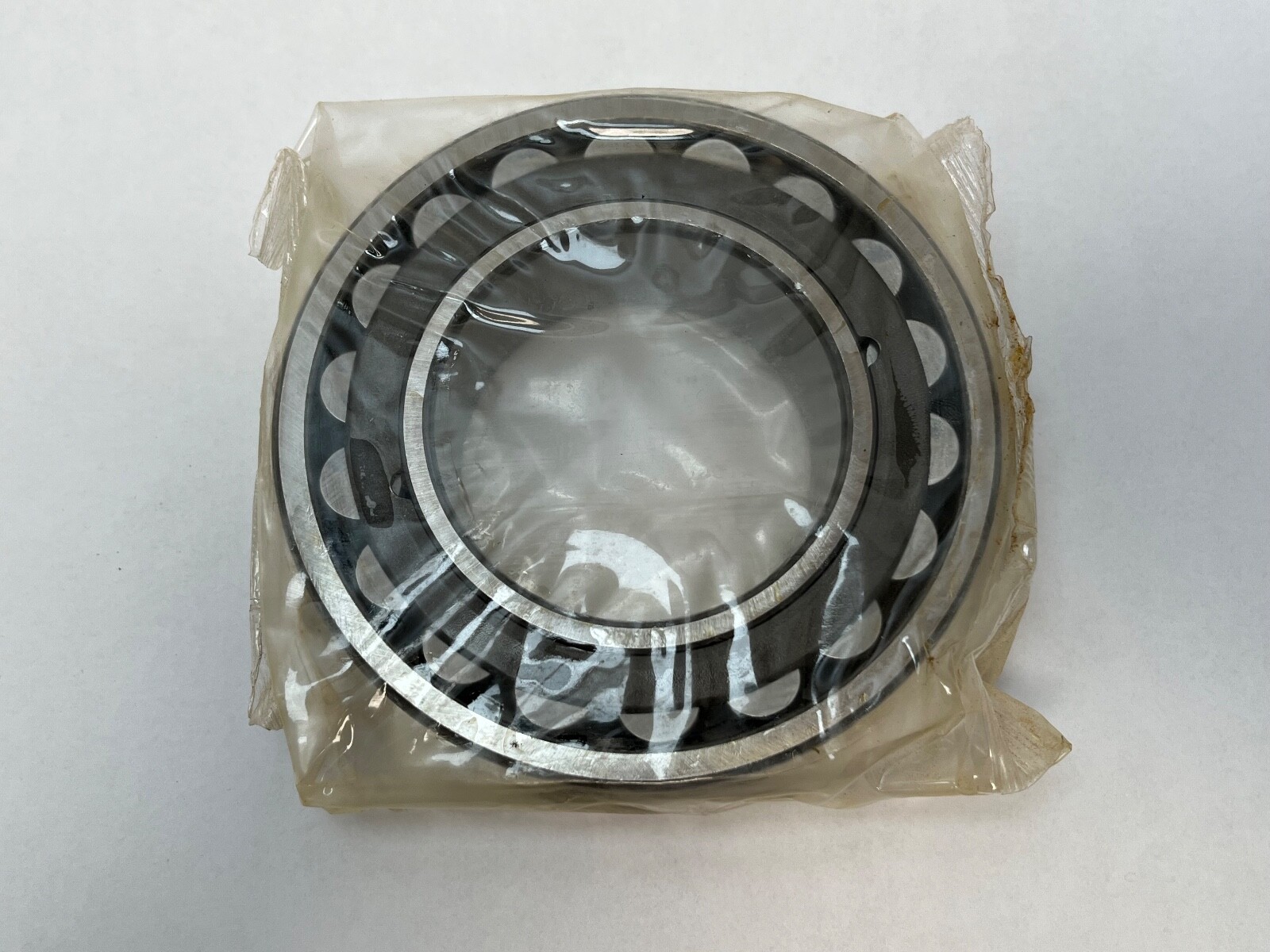

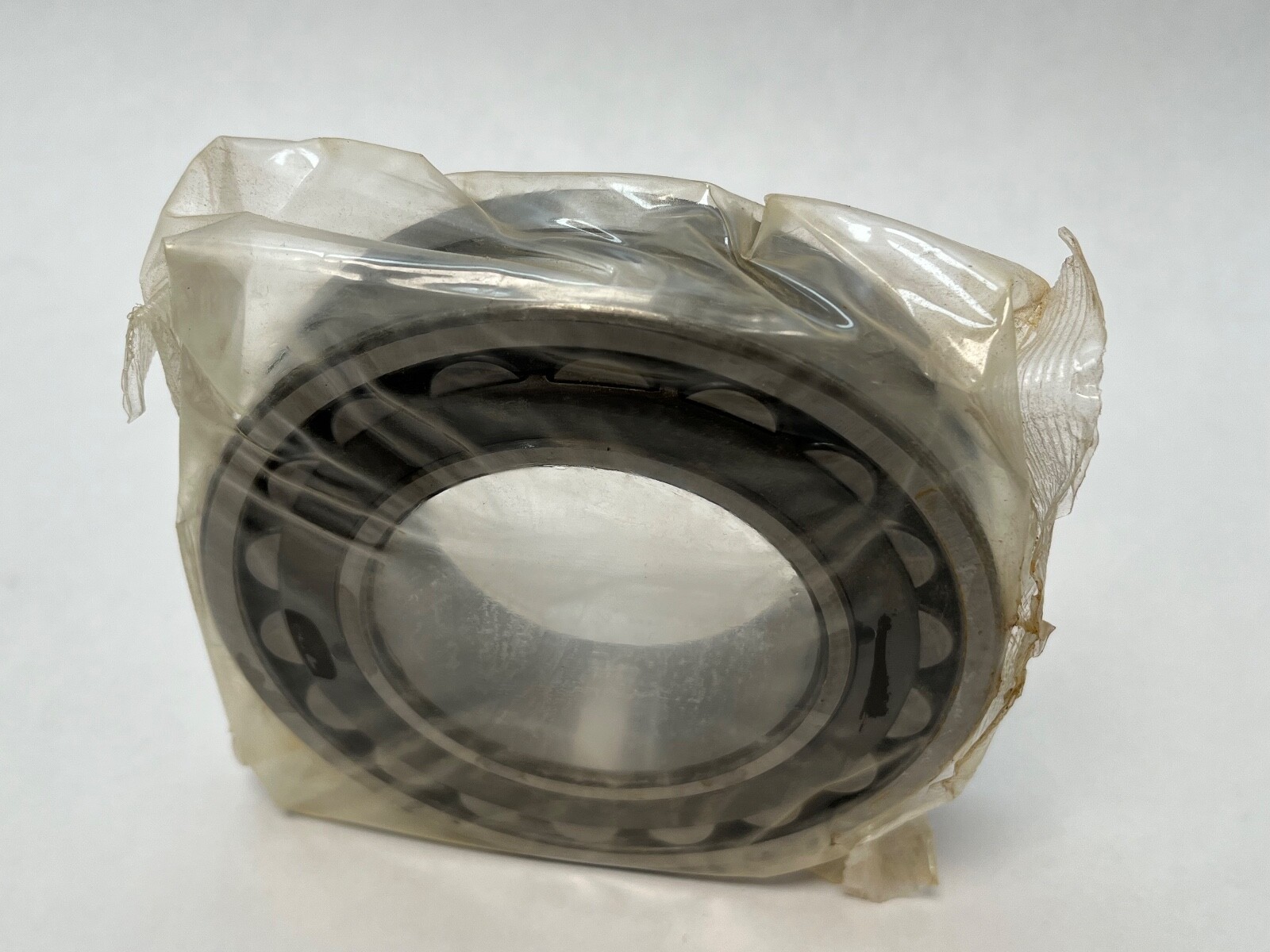

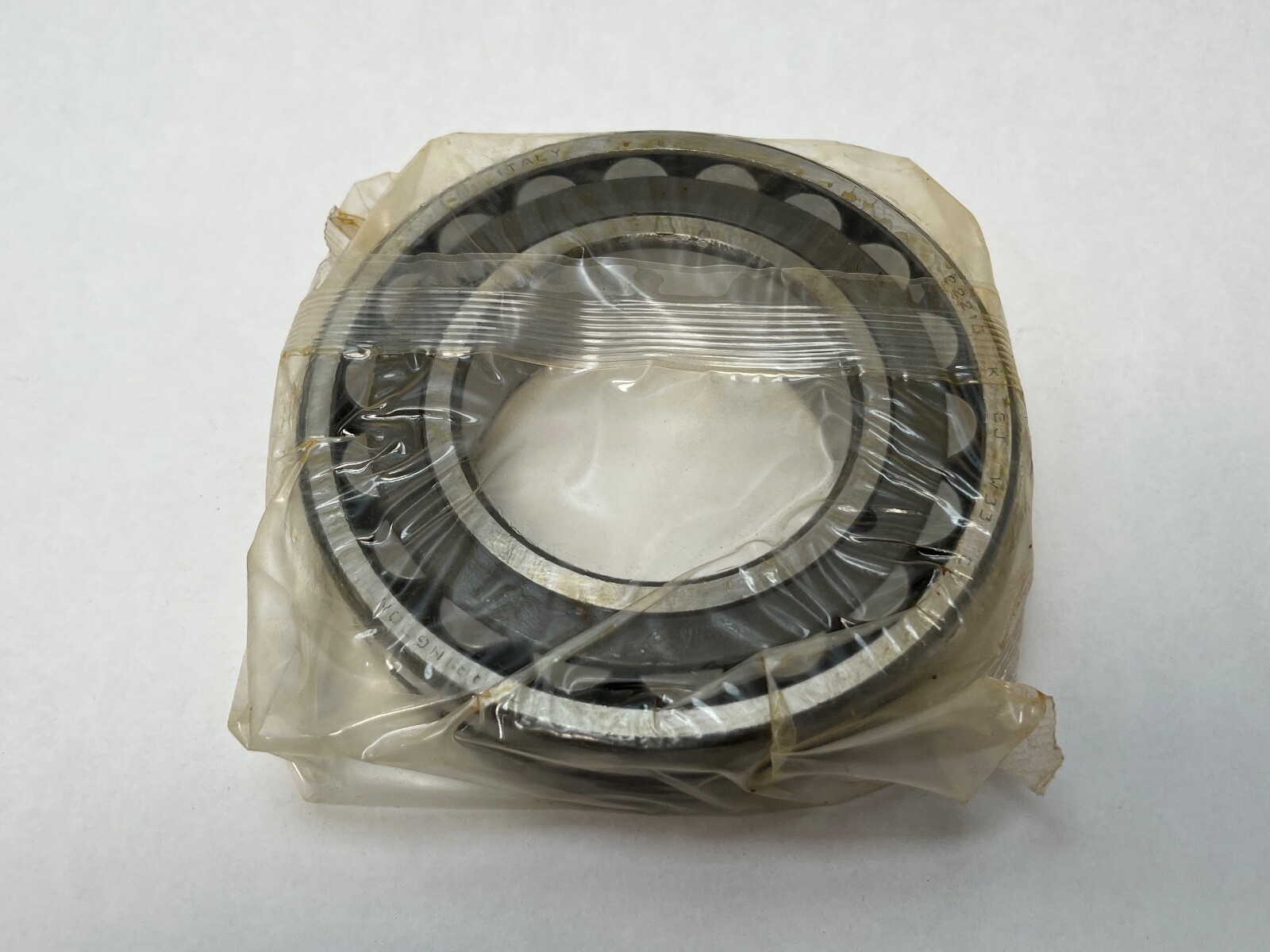

Double-row spherical roller bearing, 65 mm tapered bore (1:12), 120 mm OD, 31 mm wide, C3 clearance, W33 lubrication groove. Mounts on an H313 adapter sleeve.
List Price
$67.30
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22213KCJW33C3 |
| Model | 22213KCJW33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Relubrication | W33 groove and three holes in outer ring |
| Lubricant | grease or oil |
| Base Number | 22213 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, tapered bore spherical |
| Common Misspellings | 22213KCJW33 C3, 22213 KCJ W33C3, 22213CJKW33C3 |
| Application Types | gearboxes, fans, pumps, conveyors, pillow block housings |
| Overall Width | 31 mm |
| Mpn Variants | 22213KCJW33C3, 22213-K-C-J-W33-C3, 22213 KCJ W33 C3 |
| Compatible With Replaces | Successor: Timken 22213KEJW33C3; adapter sleeve H313 |
| Additional Attributes | Successor 22213KEJW33C3 data: Thermal Reference Speed Grease: 4,200 rpm; Thermal Reference Speed Oil: 5,200 rpm; Cage: 2-piece steel, window type; e Factor: 0.24; Y0: 2.73; Y (Fa/Fre): 4.15; Geometry Factor Cg: 0.0511; Shaft Backing Shoulder Dia: 78.0 mm; Housing Backing Shoulder Dia: 109 mm; Max Fillet Radius: 1.5 mm |
| Dynamic Load Rating | Successor 22213KEJW33C3: 206,000 N |
| Static Load Rating | Successor 22213KEJW33C3: 216,000 N |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Timken 22213KEJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22213 EK/C3 |
| Cross Reference 3 | FAG 22213-E1-K-C3 |
| Cross Reference 4 | NSK 22213EAKE4C3 |
| Cross Reference 5 | NTN 22213EAKW33C3 |

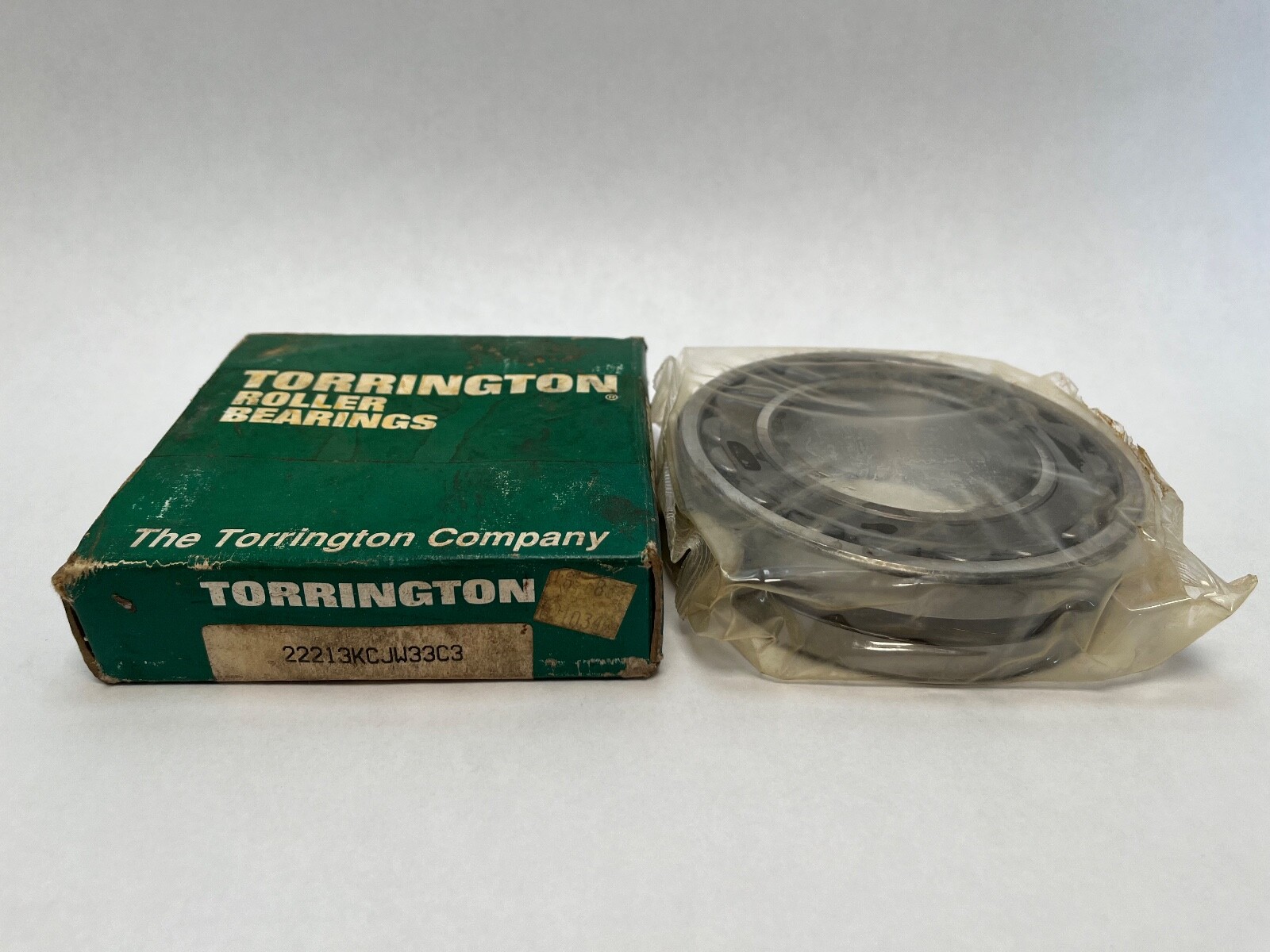

A Torrington 22213KCJW33C3 double-row spherical roller bearing, now part of the Timken range. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Overall Width: 31 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Closure Type: Open. Number Of Rows: 2. The bearing is self-aligning and carries heavy radial load with axial load in both directions.
22213 — ISO 222 series spherical roller bearing, bore code 13 = 65 mm, 65 x 120 x 31 mm.
K — 1:12 tapered bore, for mounting on an adapter sleeve or tapered journal.

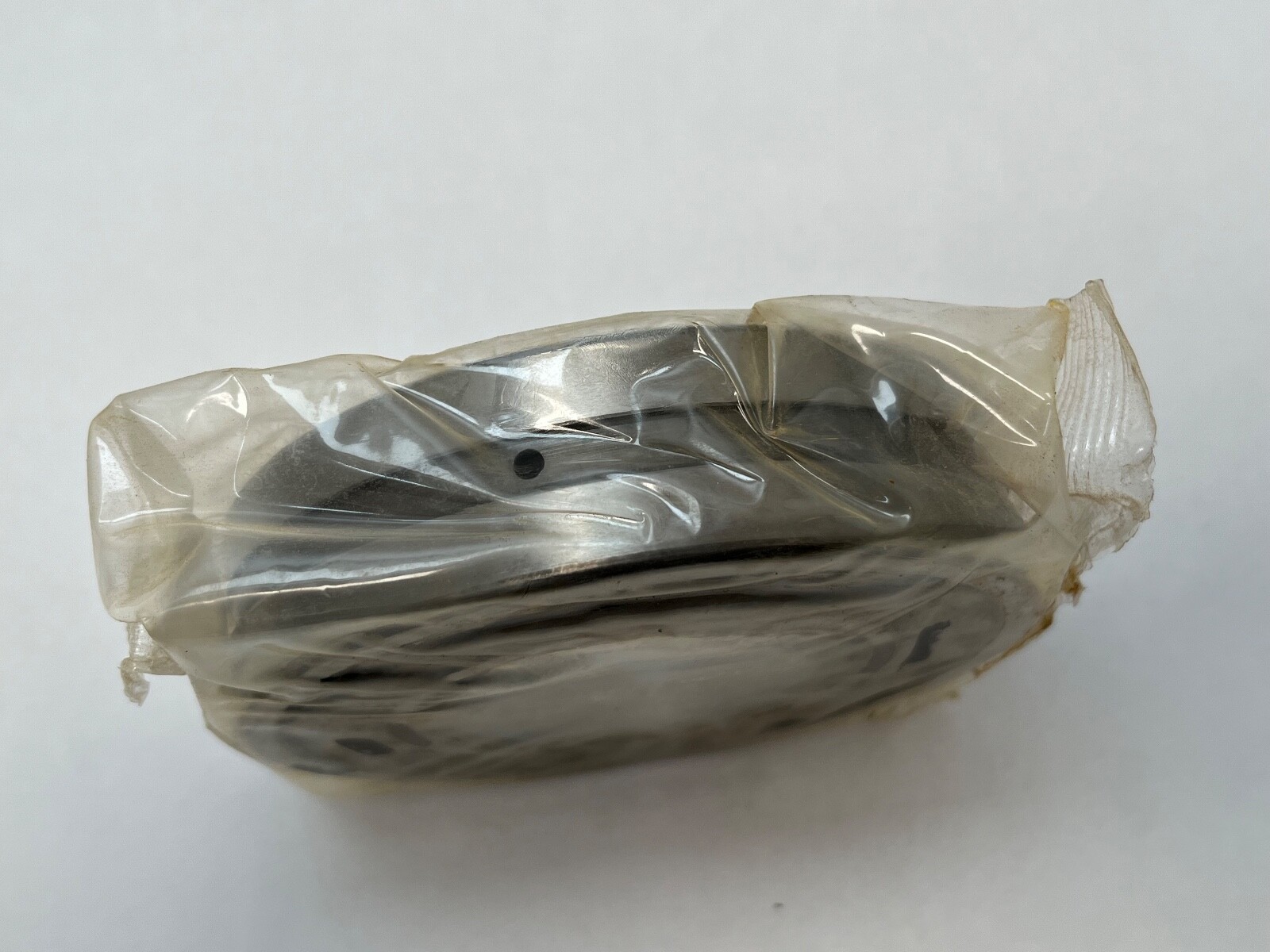

W33 — lubrication groove and three holes in the outer ring for grease or oil feed.
C3 — radial internal clearance greater than normal.
Successor 22213KEJW33C3 data (Timken): Dynamic Load Rating: 206,000 N (46,400 lbf). Static Load Rating: 216,000 N (48,600 lbf). Thermal Reference Speed: 4,200 rpm grease; 5,200 rpm oil. Cage Material: Steel, 2-piece window type. e factor 0.24; Y0 2.73; Y (Fa/Fr≤e) 2.79; Y (Fa/Fr>e) 4.15; geometry factor Cg 0.0511. Lubricant: grease or oil.
Successor 22213KEJW33C3 data (Timken): Shaft Backing Shoulder Diameter: 78.0 mm (3.100 in). Housing Backing Shoulder Diameter: 109 mm (4.300 in). Maximum Fillet Radius: 1.5 mm (0.06 in). Mounts on an H313 adapter sleeve (60 mm shaft seat) with KM13 locknut and MB13 washer.
Current Timken equivalent: 22213KEJW33C3, same envelope, 1:12 tapered bore, C3 clearance, W33 groove. Same-envelope equivalents: SKF 22213 EK/C3, FAG 22213-E1-K-C3, NSK 22213EAKE4C3, NTN 22213EAKW33C3.
