Availability:
1 in stock

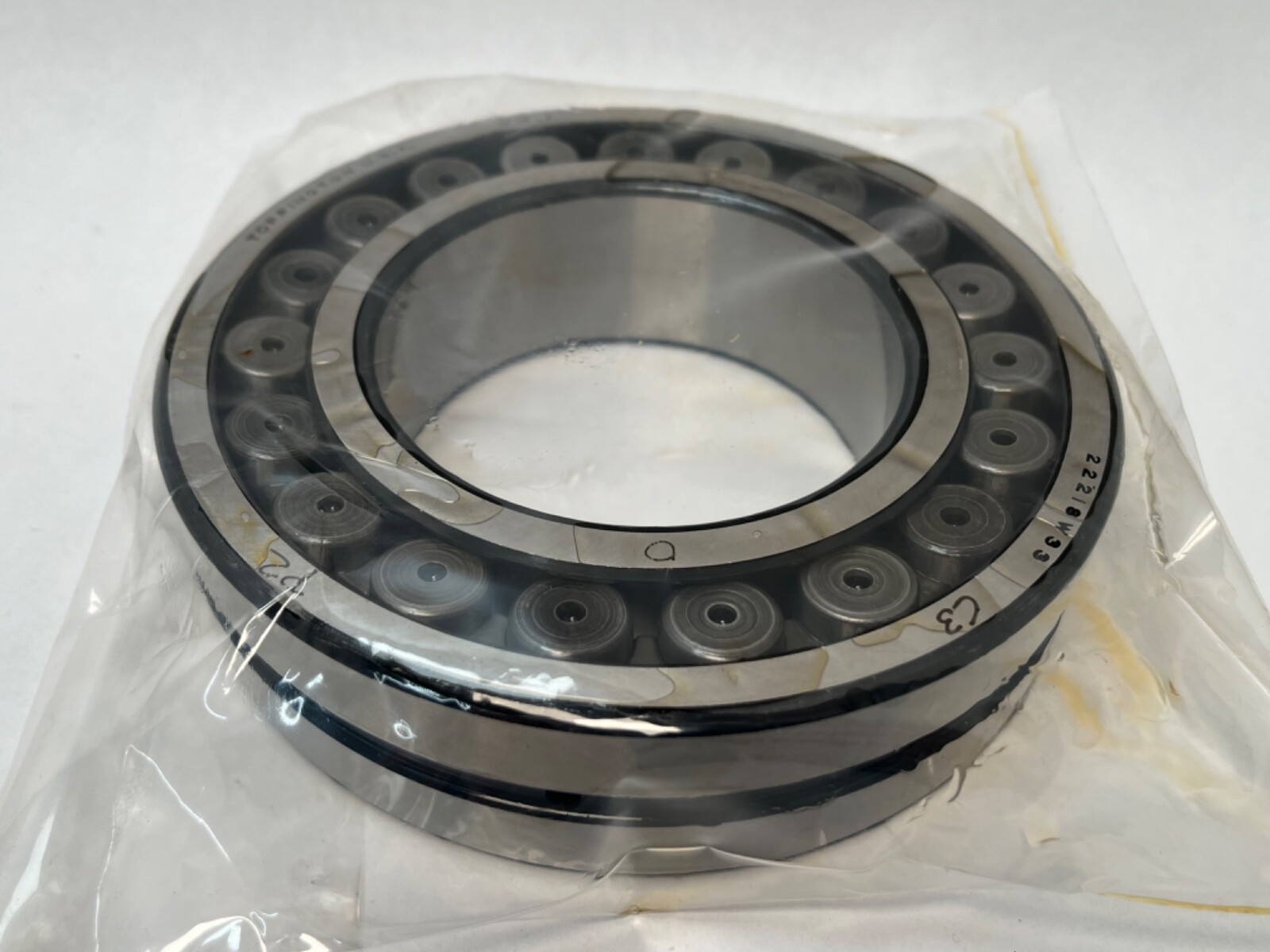

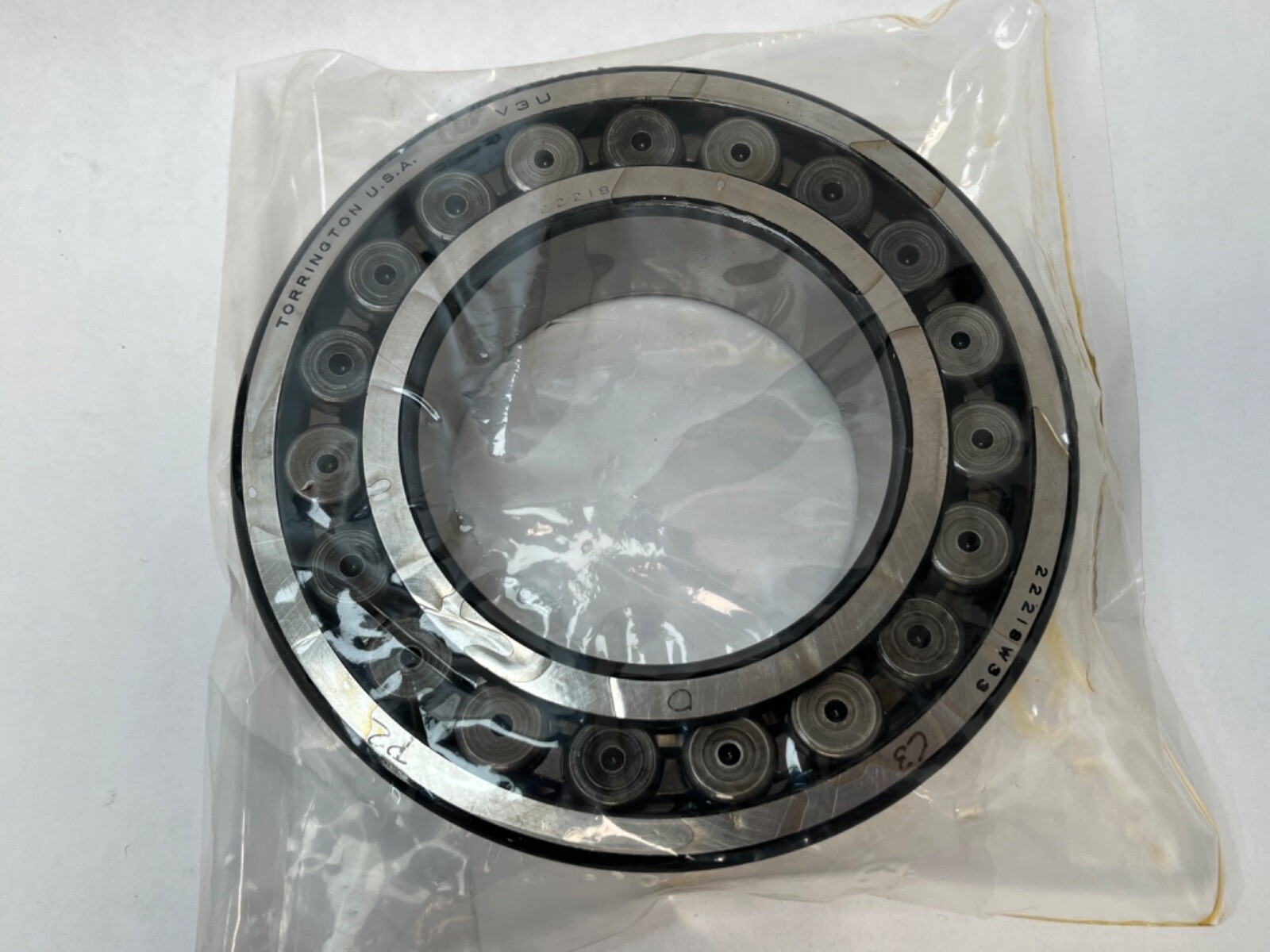

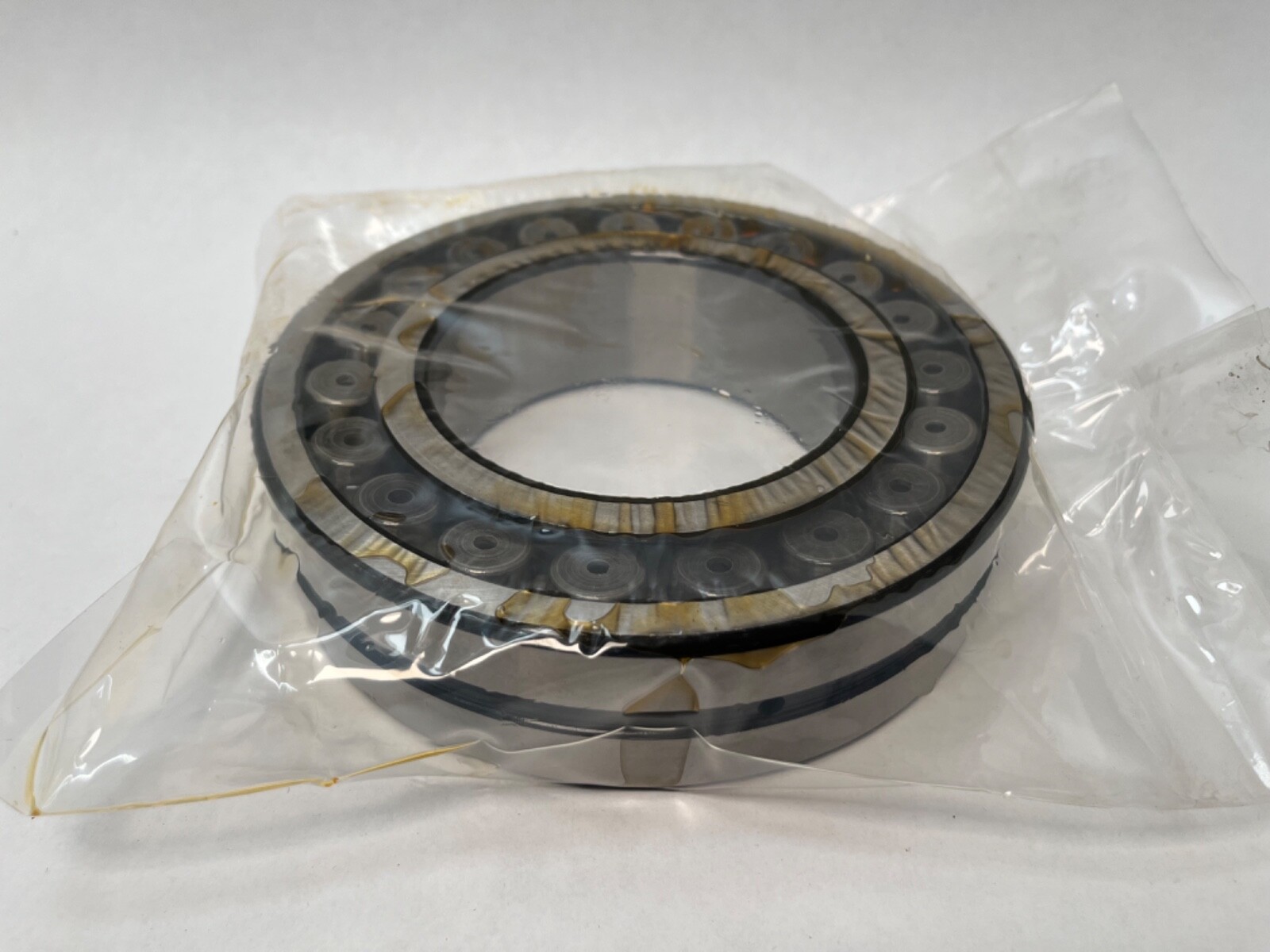

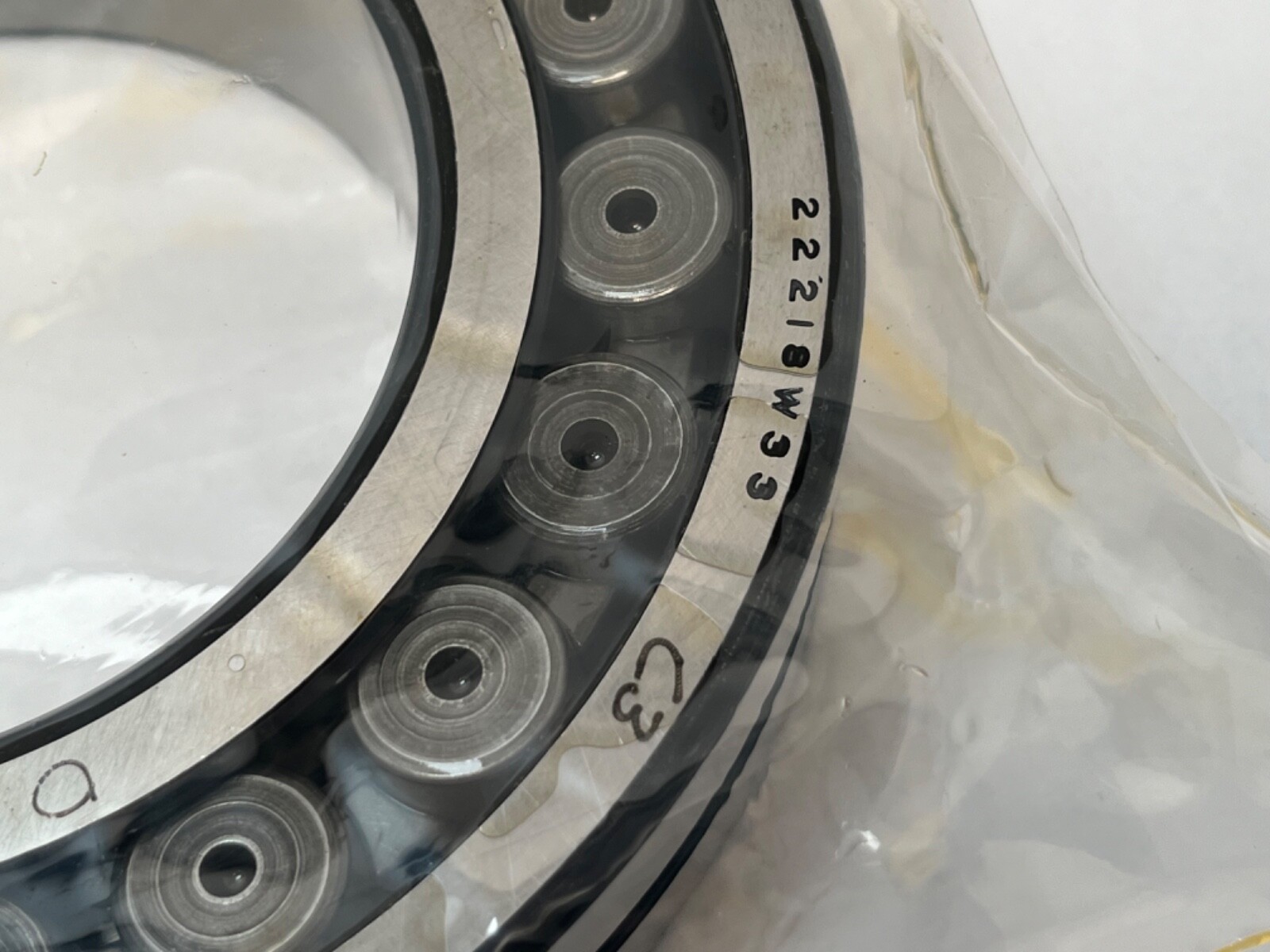

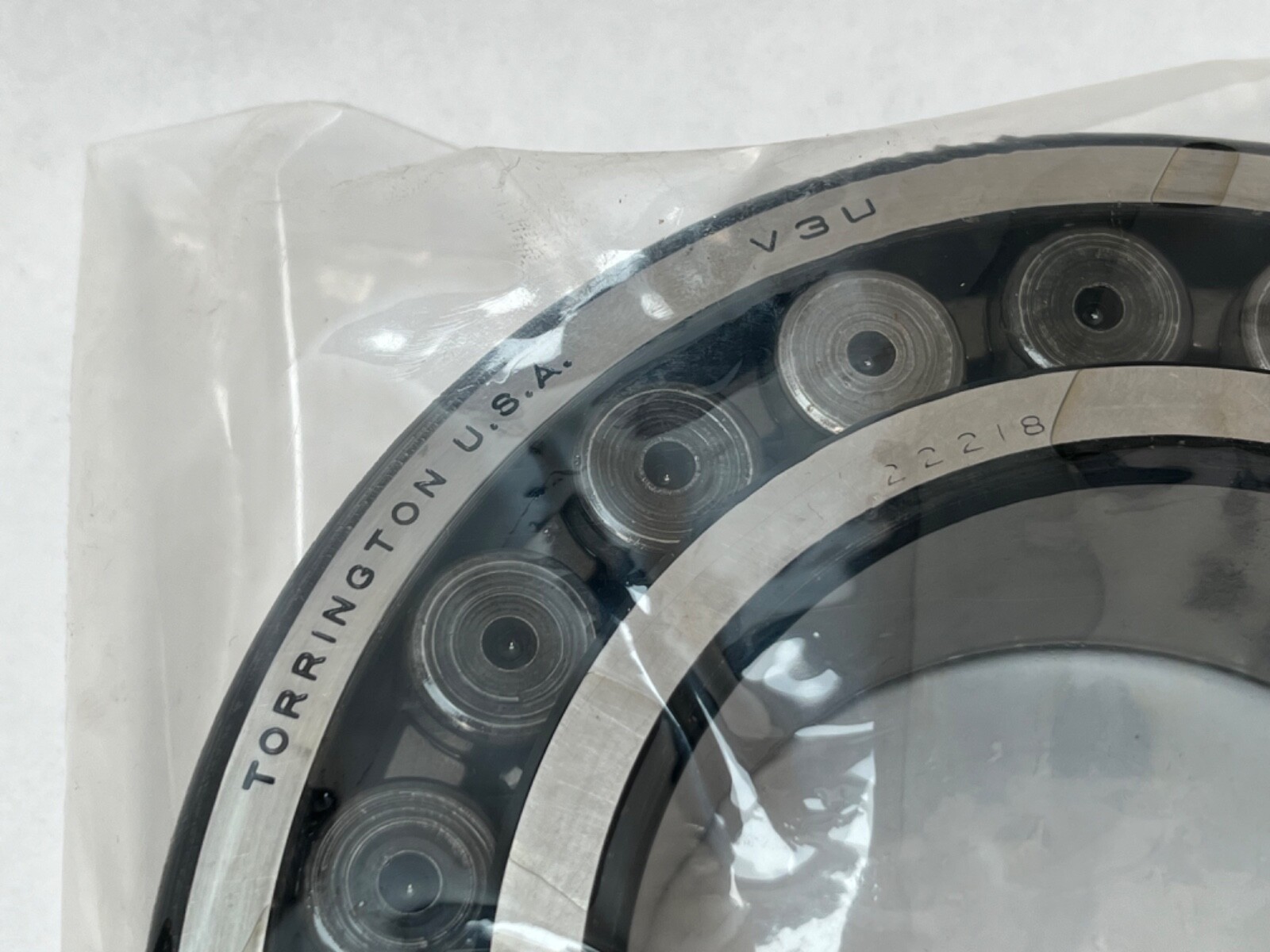

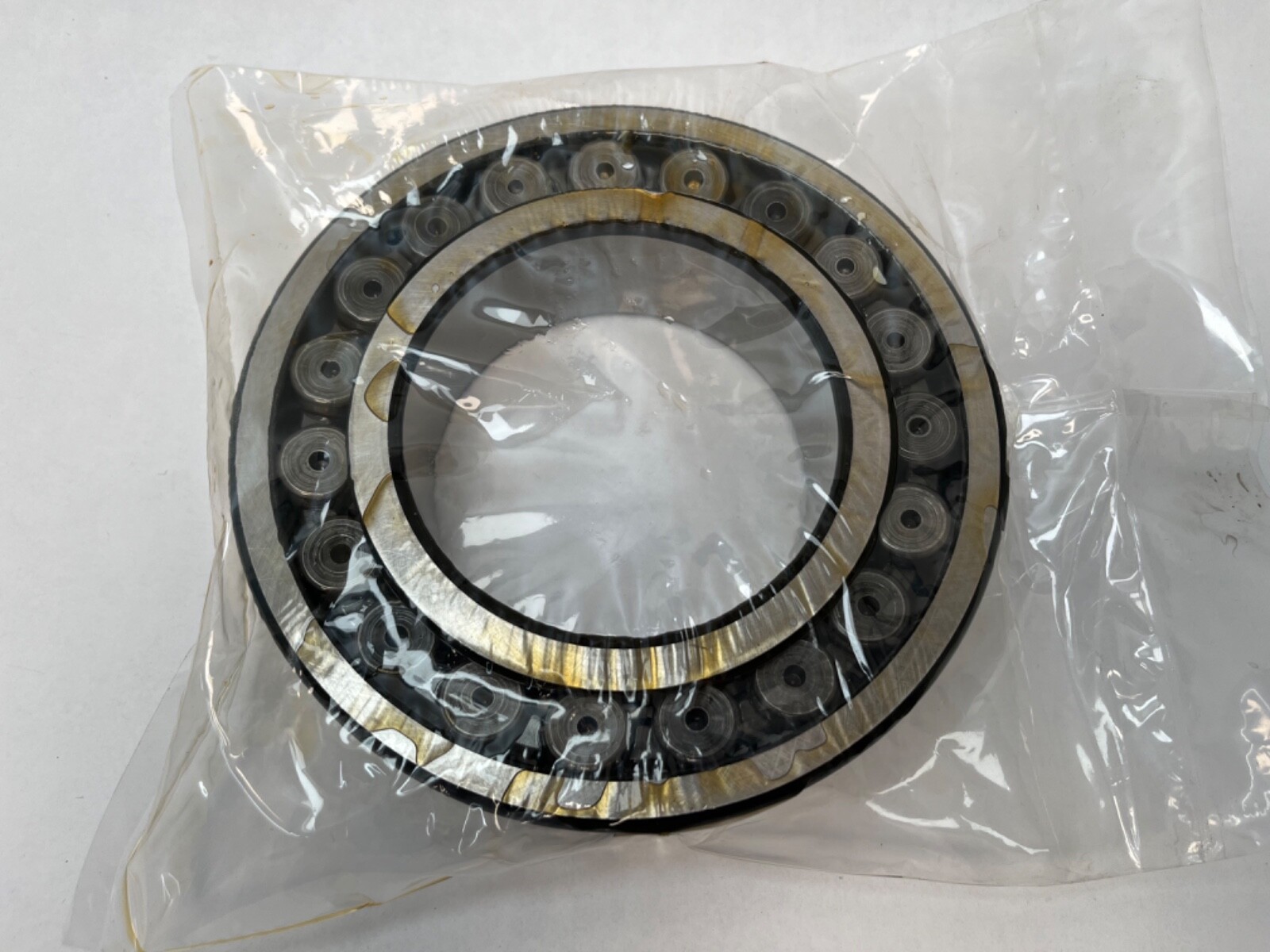

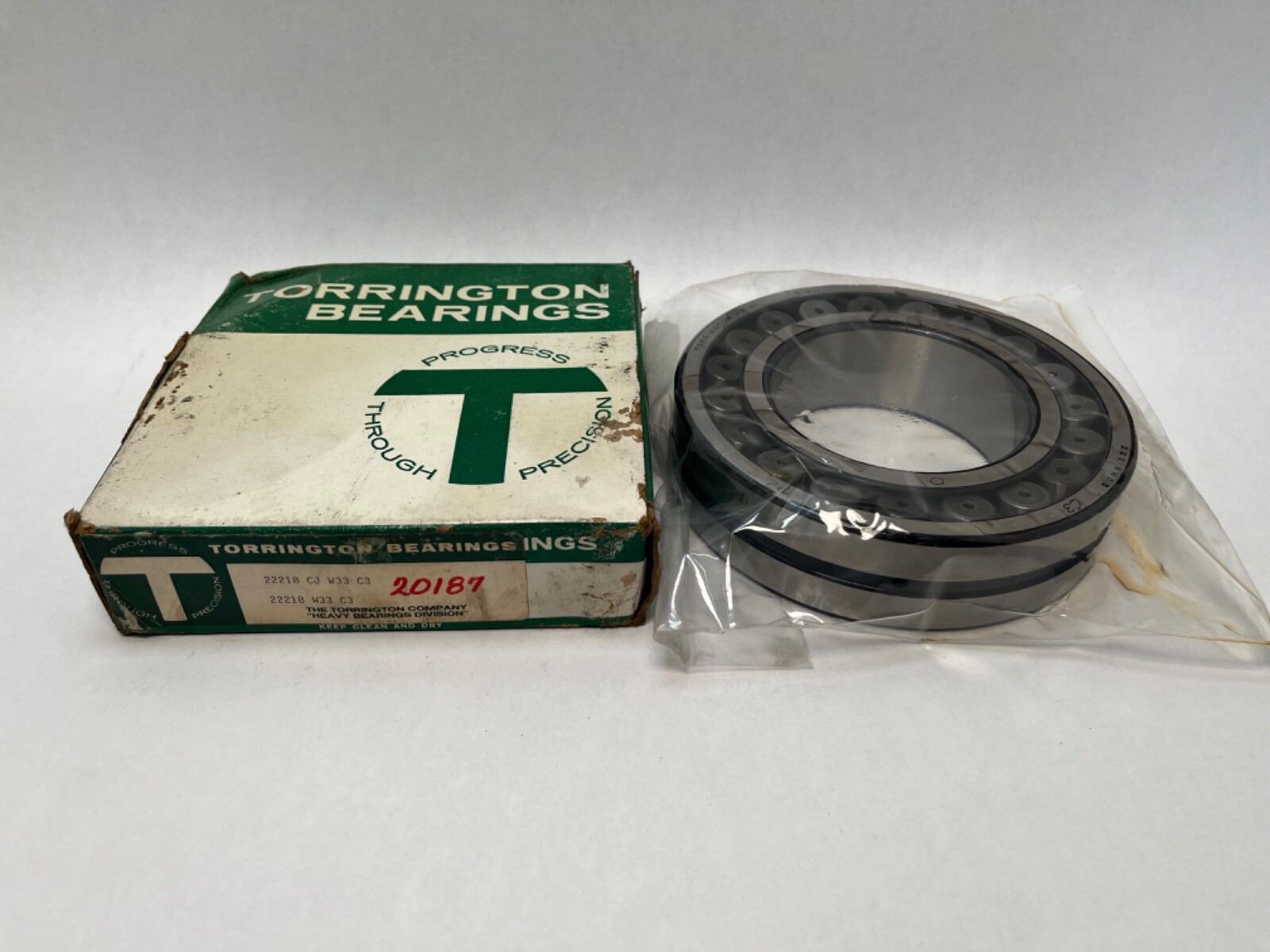

Torrington 22218CJW33C3 spherical roller bearing, 90 mm bore x 160 mm OD x 40 mm wide, steel cage, W33 lube groove, C3 clearance. Successor: Timken 22218EJW33C3.
List Price
$102.79
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22218CJW33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 90 mm |
| OD | 160 mm |
| Width | 40 mm |
| Series | 22200 |
|---|---|
| Dynamic Load Rating | 355,000 N (Successor 22218EJW33 data) |
| Static Load Rating | 388,000 N (Successor 22218EJW33 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Mpn Variants | 22218CJW33C3, 22218-CJ-W33-C3, 22218 CJ W33 C3, 22218CCJW33C3 |
| Compatible With Replaces | Timken 22218EJW33C3 (current successor design) |
| Additional Attributes | Successor 22218EJW33 data: e factor 0.23; Y0 2.83; Y1 2.9; Y2 4.31; shaft backing shoulder 105 mm; housing backing shoulder 146 mm; max fillet radius 2 mm |
| Design Units | Metric |
| Cross Reference 1 | Timken 22218EJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22218 E/C3 |
| Cross Reference 3 | FAG 22218-E1-C3 |
| Cross Reference 4 | NSK 22218EAE4C3 |
Torrington 22218CJW33C3 double-row spherical roller bearing: 90 mm straight bore, 160 mm outside diameter, 40 mm width, steel cage, W33 lubrication groove, C3 clearance. Torrington is a Timken brand; the current Timken design is 22218EJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
18 — bore code. 18 × 5 = 90 mm bore.
CJ — Torrington internal design with steel cage.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Bore Type: Straight. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 22218EJW33 data: Dynamic Load Rating: 355,000 N. Static Load Rating: 388,000 N. Reference Speed: 3,400 rpm grease; 4,100 rpm oil. e factor: 0.23. Y1: 2.9. Y2: 4.31. Y0: 2.83.
The spherical outer raceway lets the bearing self-align under shaft deflection while carrying heavy radial load and axial load in both directions. C3 clearance suits interference fits and shafts running warmer than their housings.
Successor 22218EJW33 data: Shaft Backing Shoulder Diameter: 105 mm. Housing Backing Shoulder Diameter: 146 mm. Maximum Fillet Radius: 2 mm.
Unit Quantity: 1 Pc. One complete bearing.
Same 90 × 160 × 40 mm straight-bore C3 envelope: Timken 22218EJW33C3, SKF 22218 E/C3, FAG 22218-E1-C3, NSK 22218EAE4C3, NTN 22218EAW33C3.
