Availability:
1 in stock

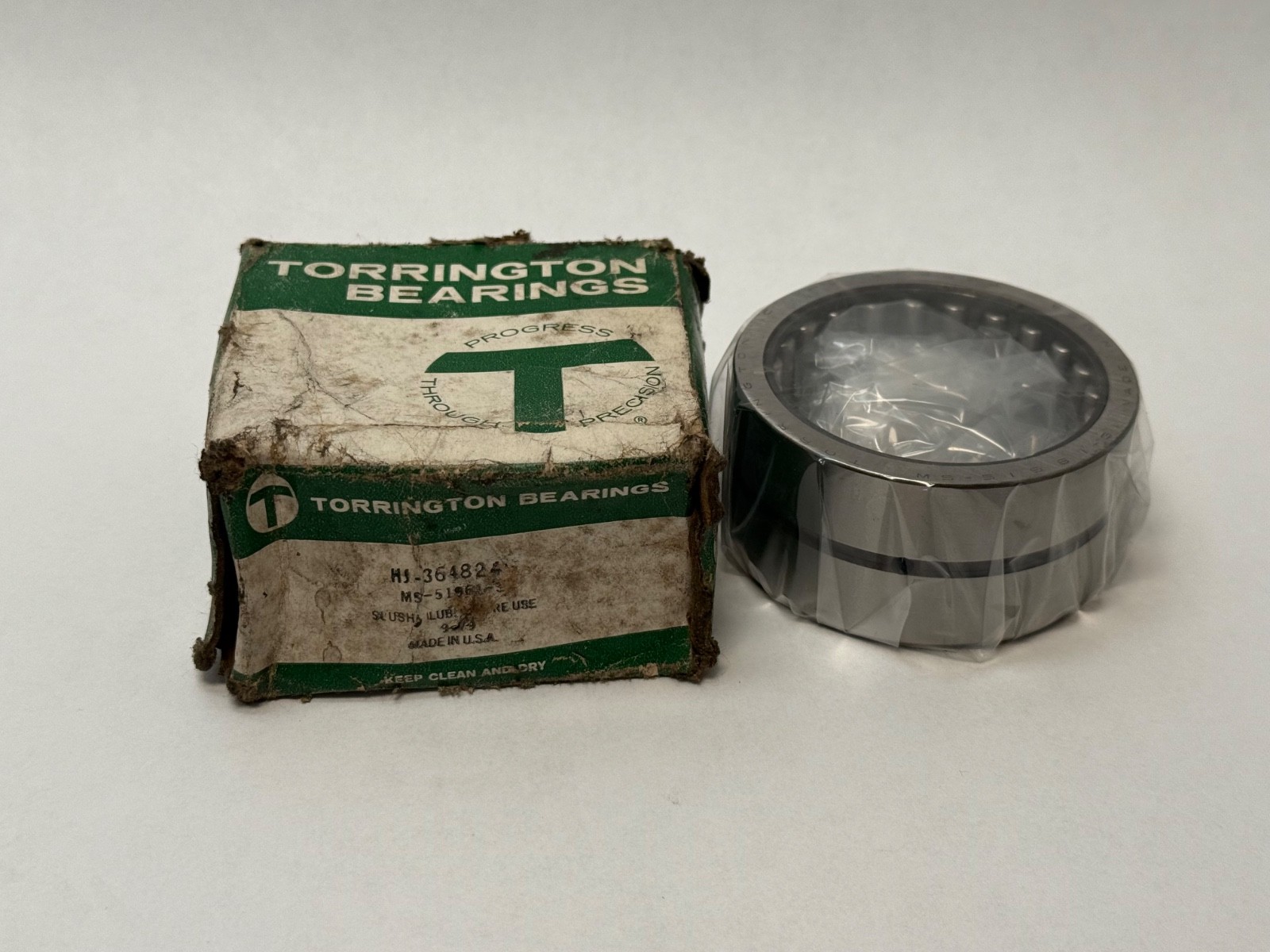

Torrington HJ-364824 heavy duty needle roller bearing, 2.250 in roller bore, 3.000 in OD, 1.500 in wide, 88,500 N dynamic rating. Machined outer ring, steel cage.
List Price
$36.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | HJ-364824 |
| Model | HJ-364824 |
| Bearing Type | Needle Roller Bearing |
| ID | 2.2500 in (57.150 mm) |
| OD | 3.0000 in (76.200 mm) |
| Width | 1.500 in (38.10 mm) |
| Condition Note | Made In USA, New Old Stock |
|---|---|
| Condition | New – Open box |
| Base Number | HJ-364824 |
| Industry Terms | heavy duty needle bearing, machined ring needle roller bearing, HJ needle bearing |
| Mpn Variants | HJ-364824, HJ364824, HJ 364824 |
| Additional Attributes | Roller complement bore Fw 2.2500 in; housing fillet ra max 1.5 mm; housing shoulder 68.3 mm; matching inner ring IR-283624; lubrication groove and hole in outer ring OD; meets MS 51961 |
| Dynamic Load Rating | 88,500 N |
| Static Load Rating | 161,000 N |
| Series | HJ |
| Rolling Elements | Needle Roller |
| Cage Material | Steel |
| Number Of Rows | 1 |
| Limiting Speed | 7,600 rpm |
| Cross Reference 1 | Koyo HJ-364824 |
|---|---|
| Cross Reference 2 | Timken HJ-364824 |

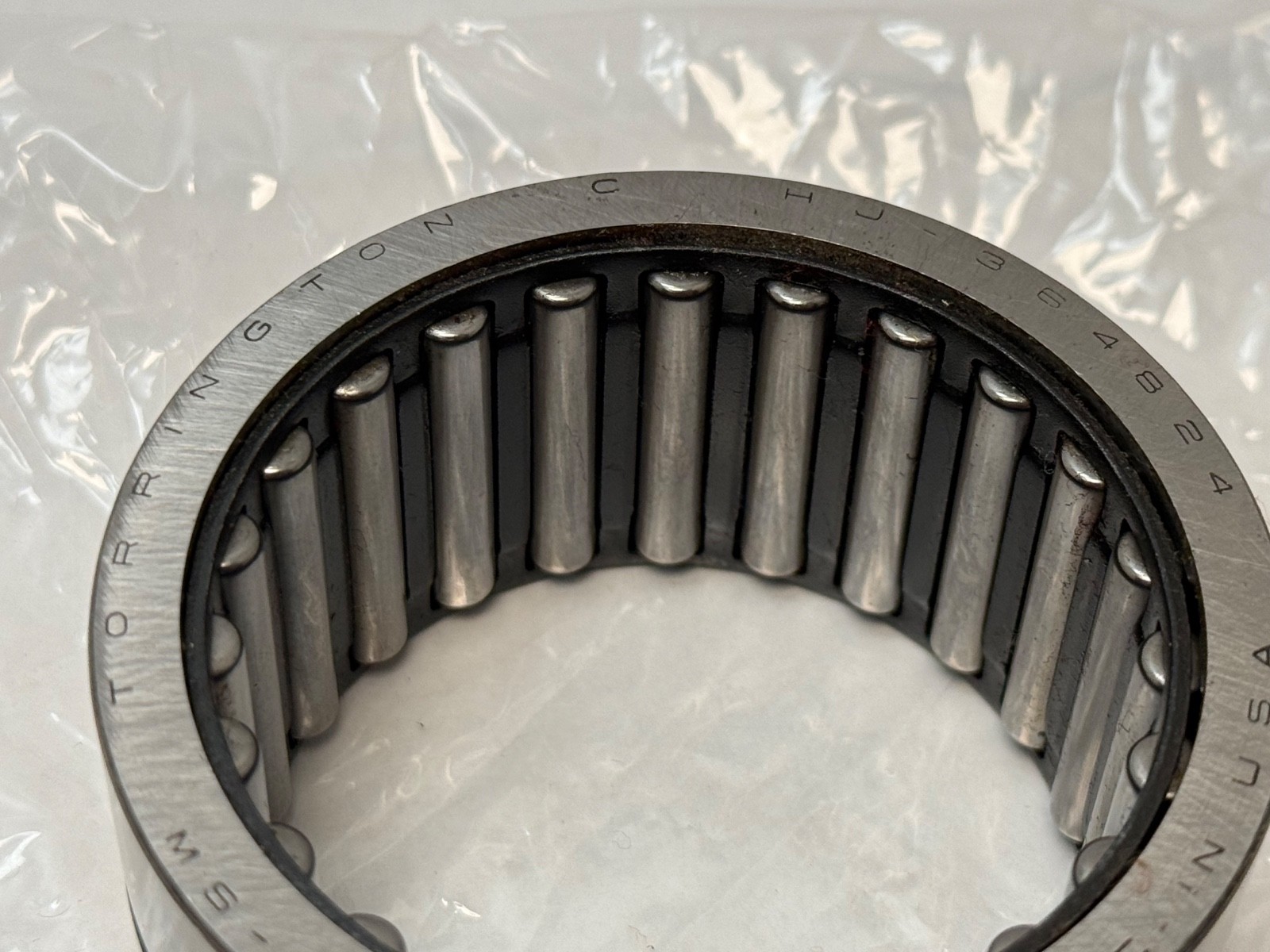

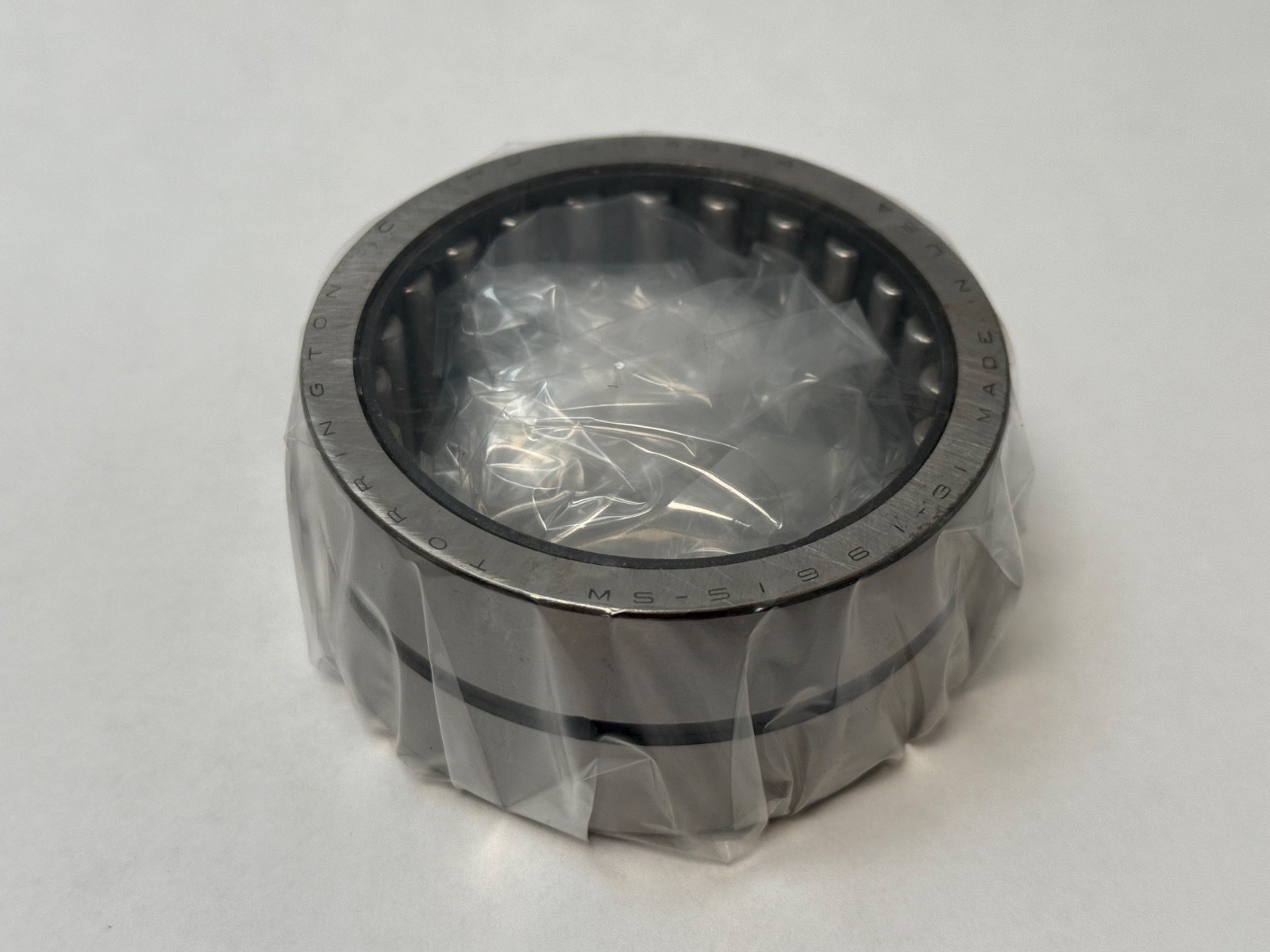

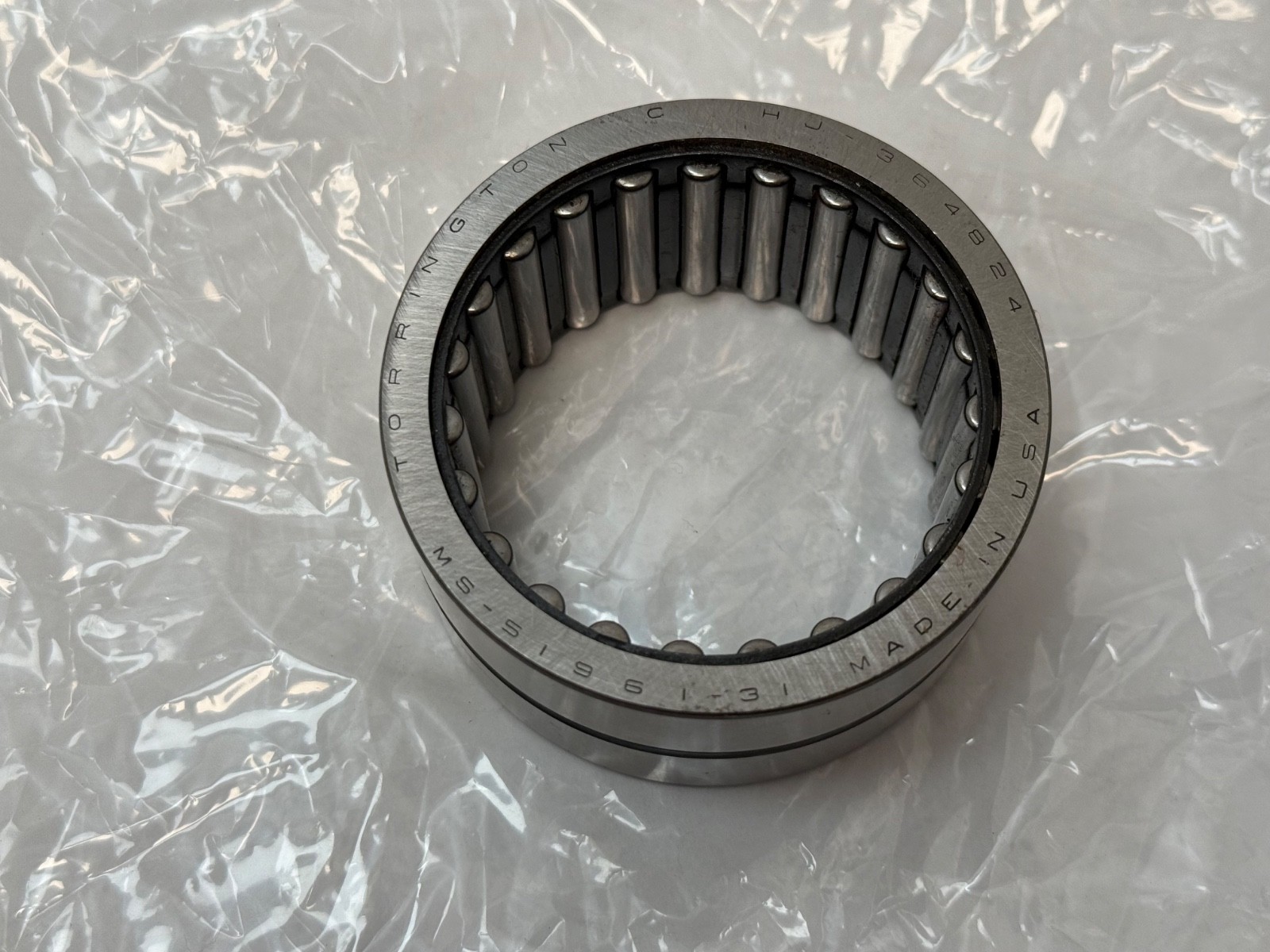

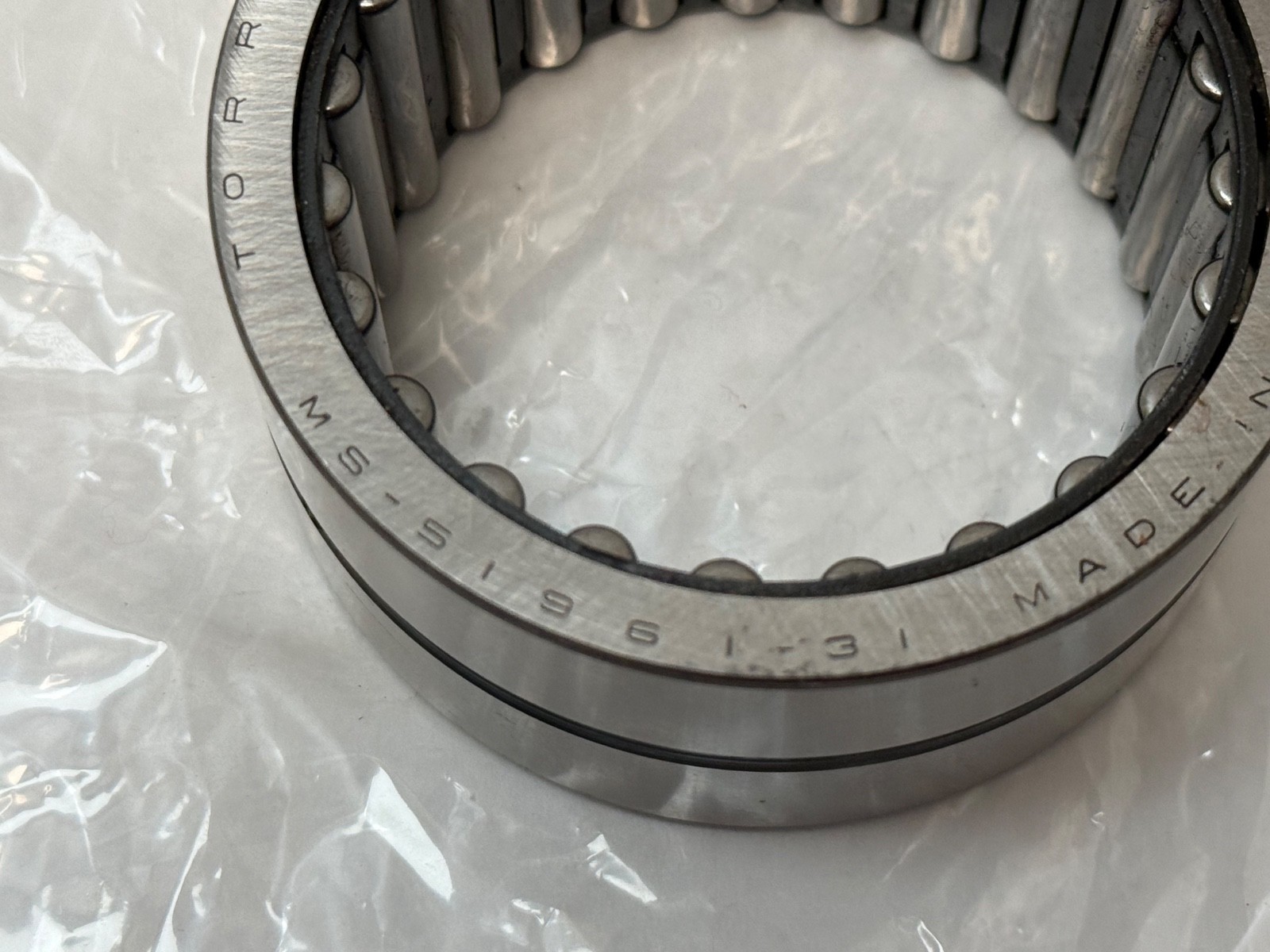

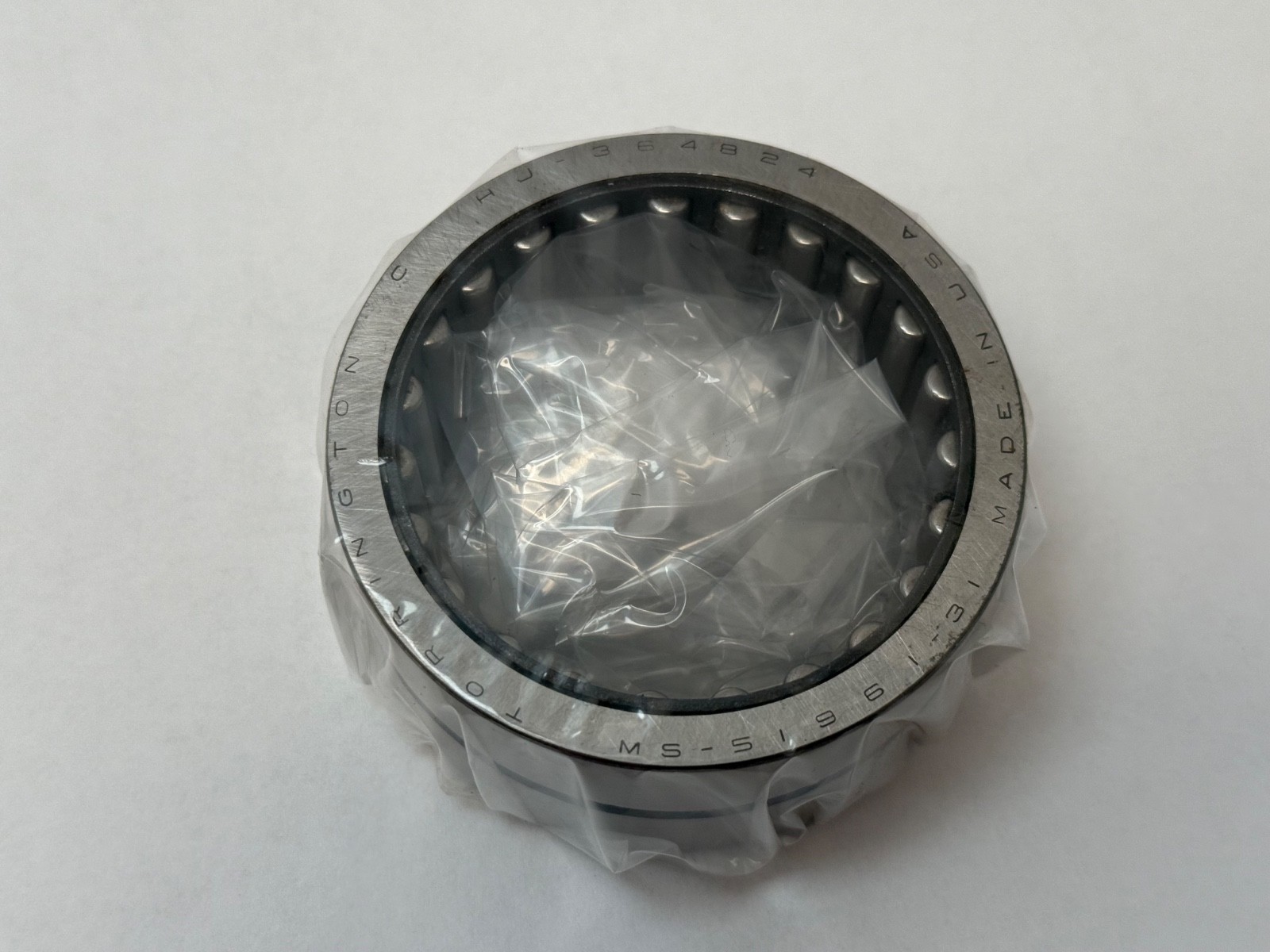

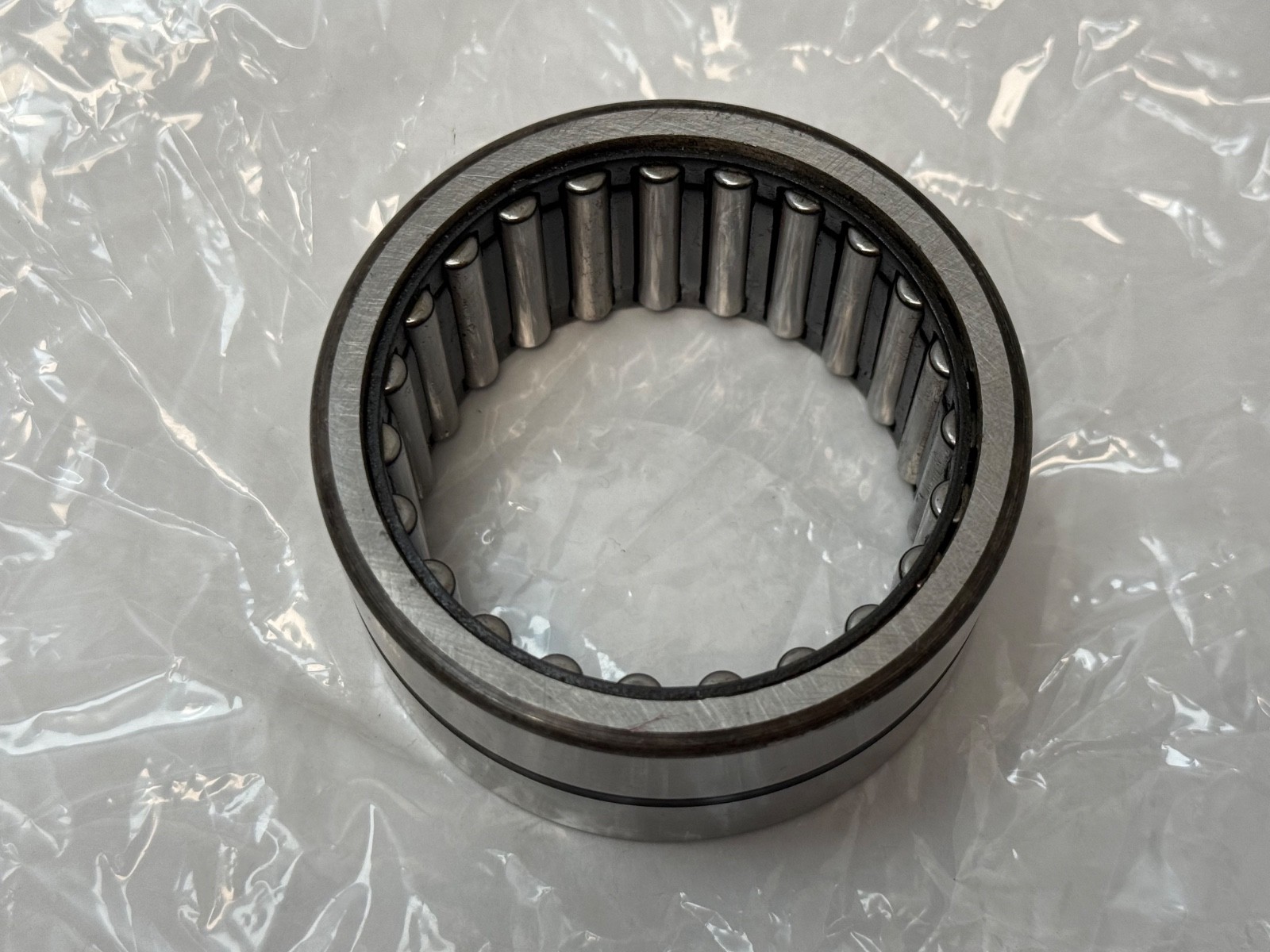

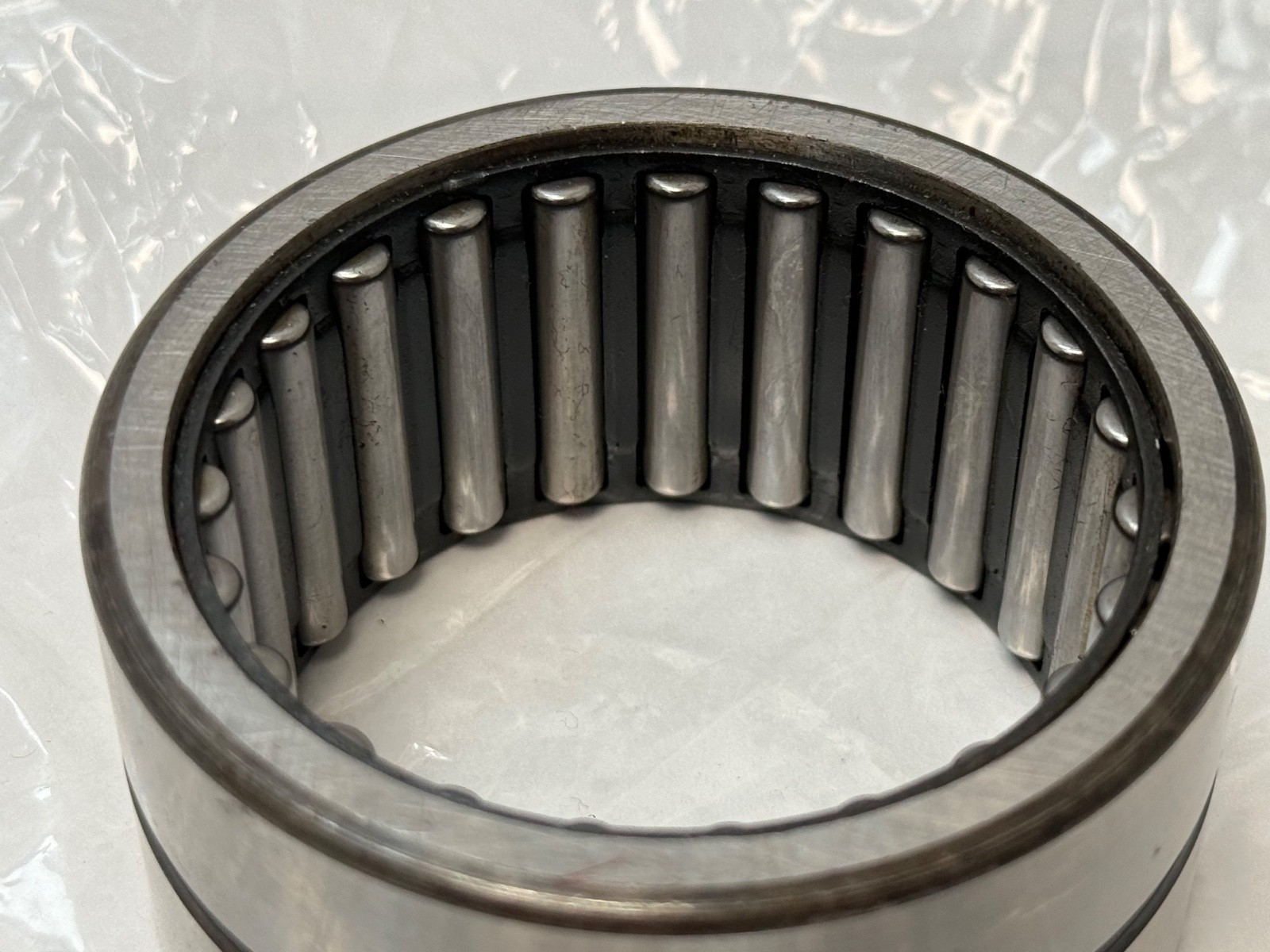

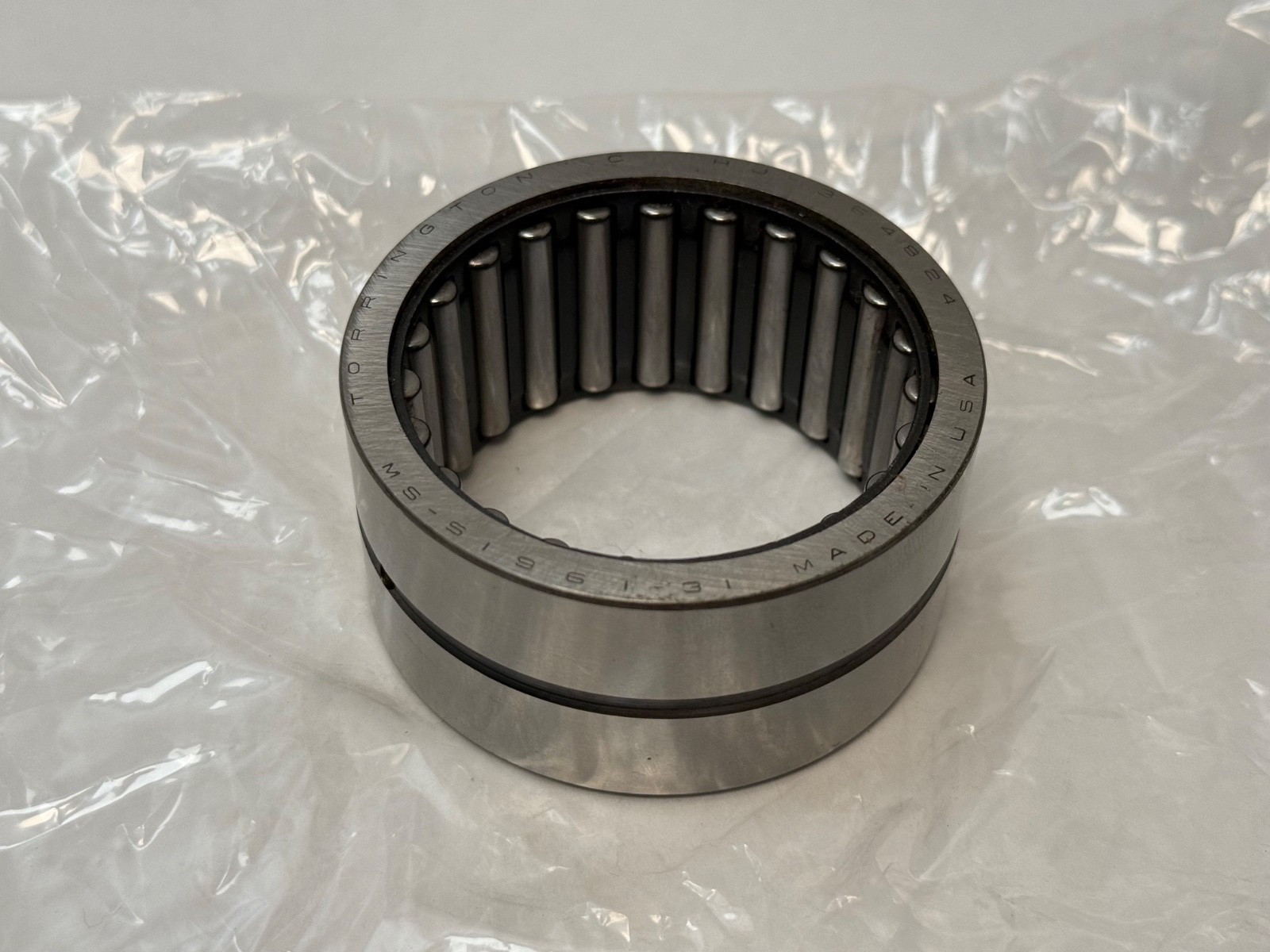

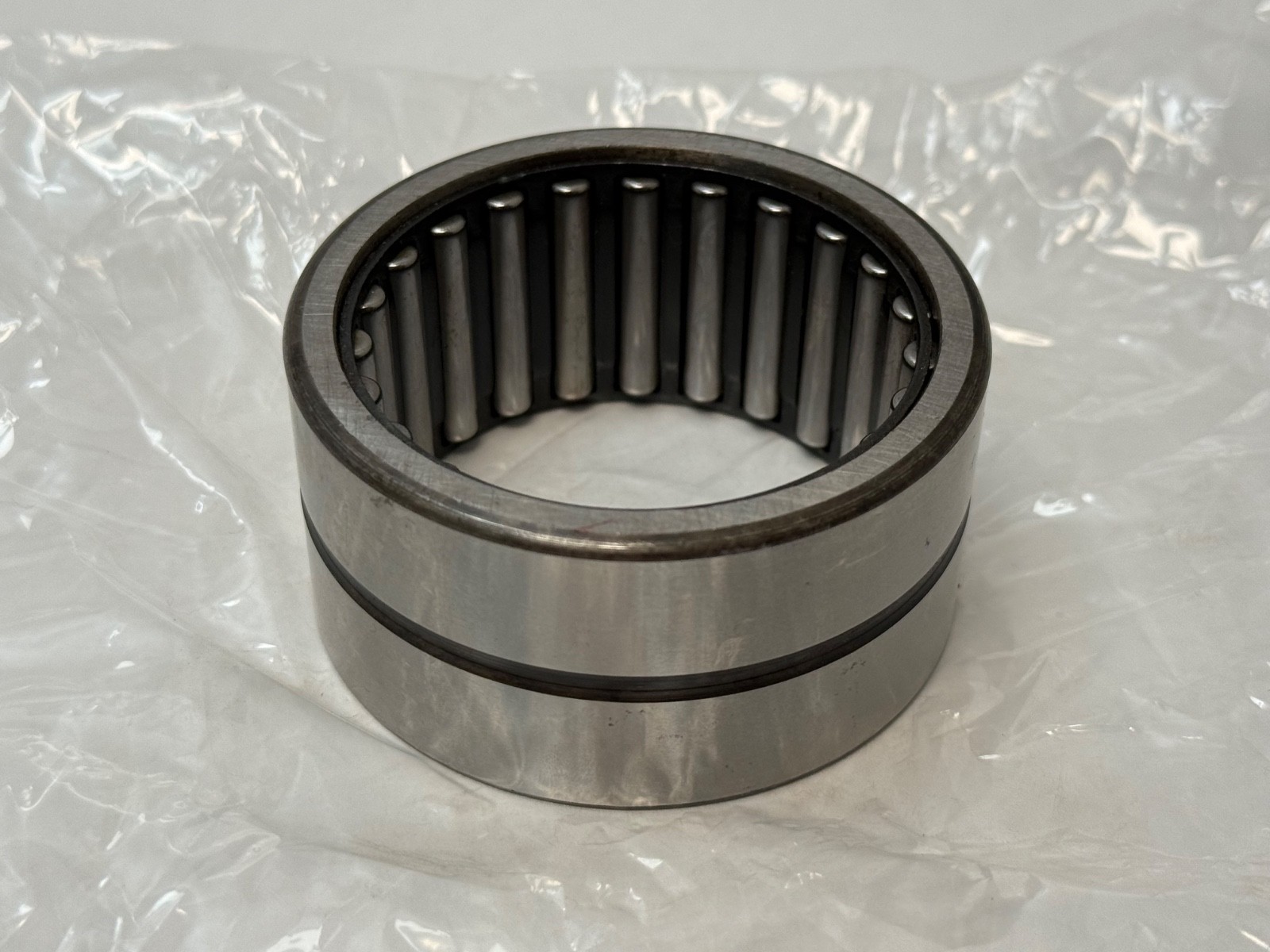

Torrington HJ-364824 heavy duty needle roller bearing. A one-piece channel-shaped machined outer ring with integral end flanges, a steel cage and a single row of needle rollers. No inner ring: the rollers run on a hardened shaft raceway (58 HRC minimum) or on a separate IR inner ring. The outer ring carries a lubrication groove and hole in the OD. Meets Military Standard MS 51961.
HJ — Torrington heavy duty needle roller bearing, inch nominal dimensions.
36 — roller complement bore Fw in sixteenths of an inch: 2.2500 in (57.150 mm).
48 — outside diameter in sixteenths: 3.0000 in (76.200 mm).
24 — width in sixteenths: 1.500 in (38.10 mm).
Bore Diameter: 2.2500 in (57.150 mm). Outside Diameter: 3.0000 in (76.200 mm). Overall Width: 1.500 in (38.10 mm). Dynamic Load Rating: 88,500 N (19,900 lbf, ISO 281). Static Load Rating: 161,000 N (36,200 lbf). Limiting Speed: 7,600 rpm. Rolling Elements: Needle Roller. Number Of Rows: 1. Cage Material: Steel. The thick outer ring gives high radial capacity and shock resistance in a small radial section.
Housing Fillet ra max: 1.5 mm (0.06 in). Housing Shoulder Diameter: 68.3 mm (2-11/16 in). Clearance fit: shaft raceway 2.2493–2.2500 in, housing bore 3.0000–3.0012 in. Tight transition fit: shaft raceway 2.2481–2.2488 in, housing bore 2.9985–2.9997 in. Matching inner ring: IR-283624.
Unit Quantity: 1 Pc. New old stock, open box.
Torrington heavy duty needle roller bearings are now produced by Koyo/JTEKT and listed by Timken under the same HJ-364824 number, 2-1/4 x 3 x 1-1/2 in.
