Availability:
1 in stock
Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, open, C4 internal clearance, W33 outer-ring lubrication groove with three holes.
List Price
$68.18
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CC/C4W33 |
| Model | 22209 CC/CJ/C C4 W33 22209CC/C4W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Unspsc | 31171504 |
| Base Number | 22209 |
| Industry Terms | Spherical roller bearing; SRB; self-aligning roller bearing |
| Common Misspellings | 22209 cc c4 w33, 22209CC4W33, 22209 CCC4W33, 2220 9CC C4, 22209 CC/C4 W33 |
| Application Types | Kiln and dryer rolls, hot fans, crushers, vibrating screens |
| Bore Shaft Size | 45 mm, cylindrical (straight) bore |
| Mpn Variants | 22209CC/C4W33, 22209 CC C4 W33, 22209CCC4W33, 22209-CC-C4-W33 |
| Manufacturer Status | CC cage code superseded by E design in current SKF range |
| Compatible With Replaces | 22209 W33 straight-bore positions specified for C4 clearance |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Harmonization Code | 8482.30.0000 |
| Internal Clearance | C4 |
| Part Number | 22209 CC/C4W33 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Timken / Torrington 22209EJW33C4 (E cage design) |
|---|---|
| Cross Reference 2 | Steyr 22209-C-C4-W33 |
| Cross Reference 3 | 22209 CCK/C4W33, 22209 K (1:12 tapered bore, not interchange) |

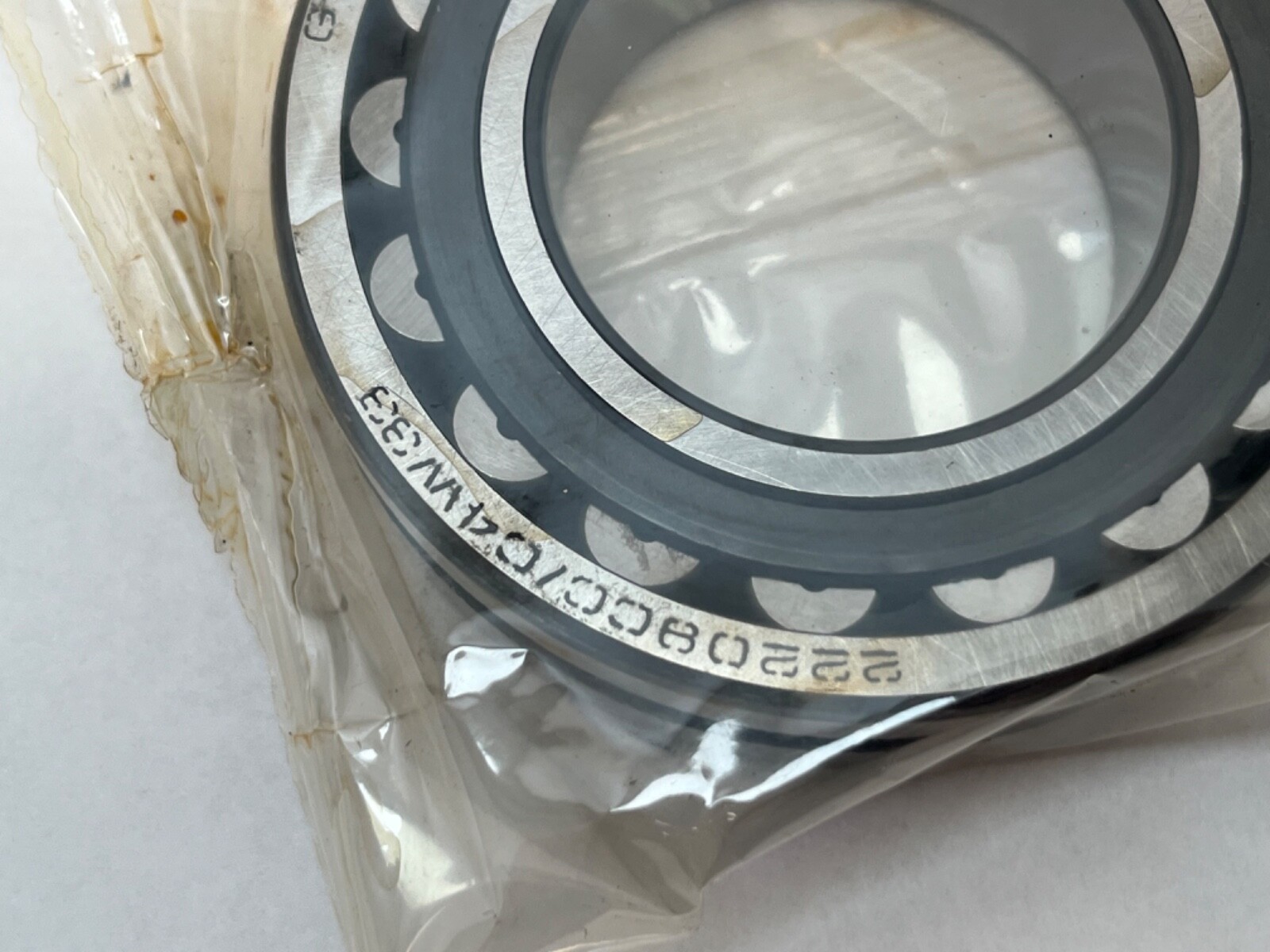

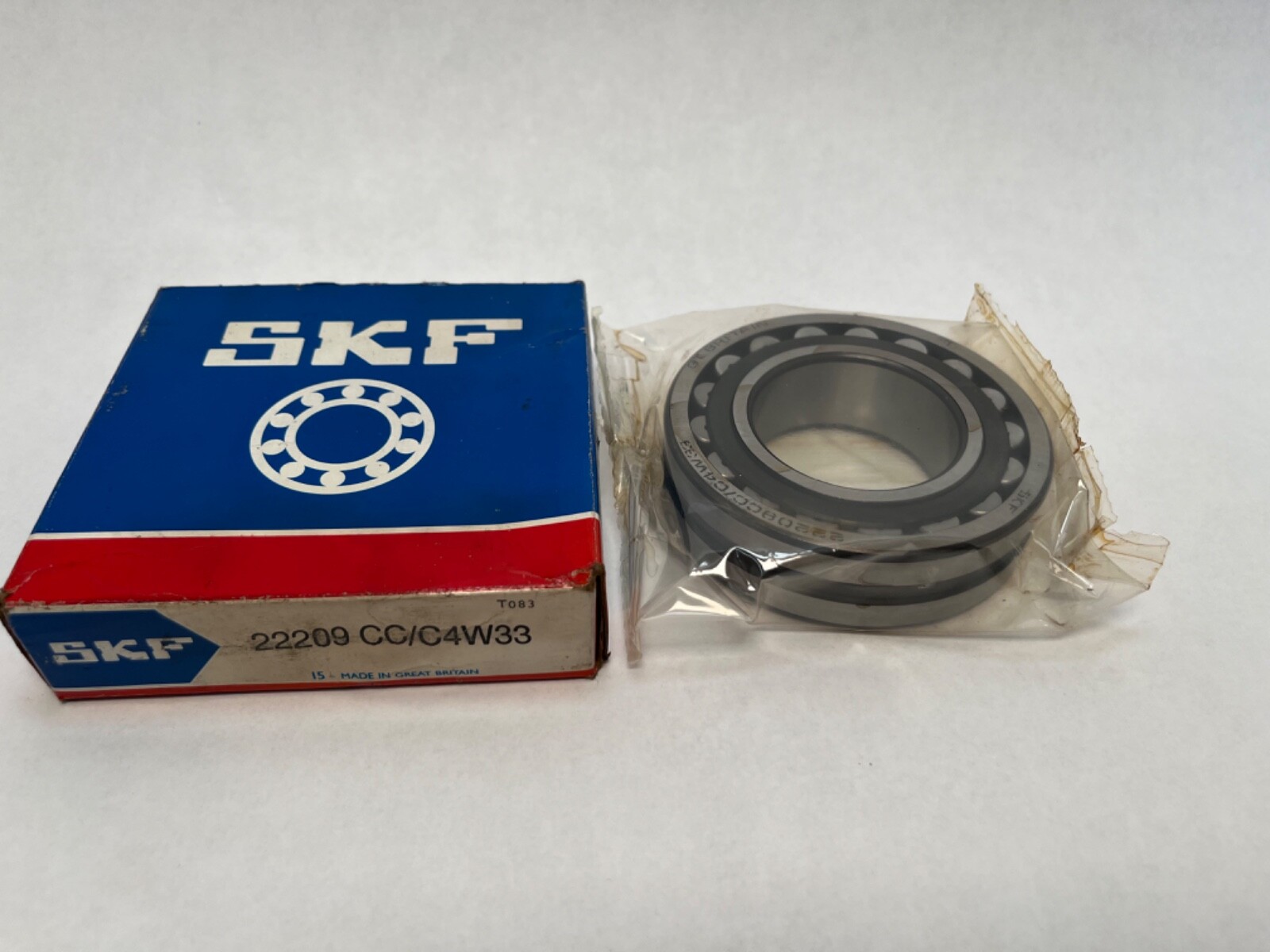

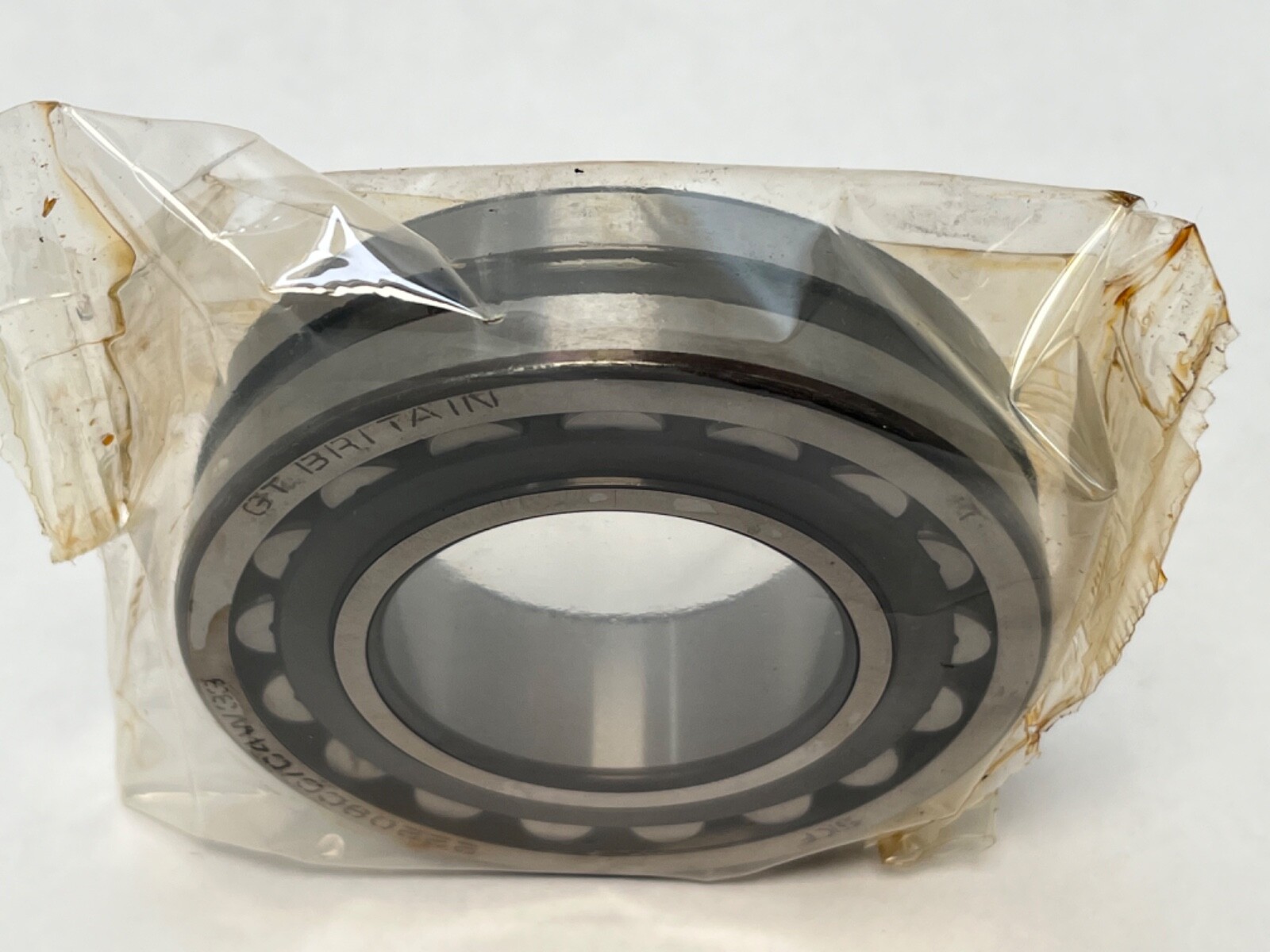

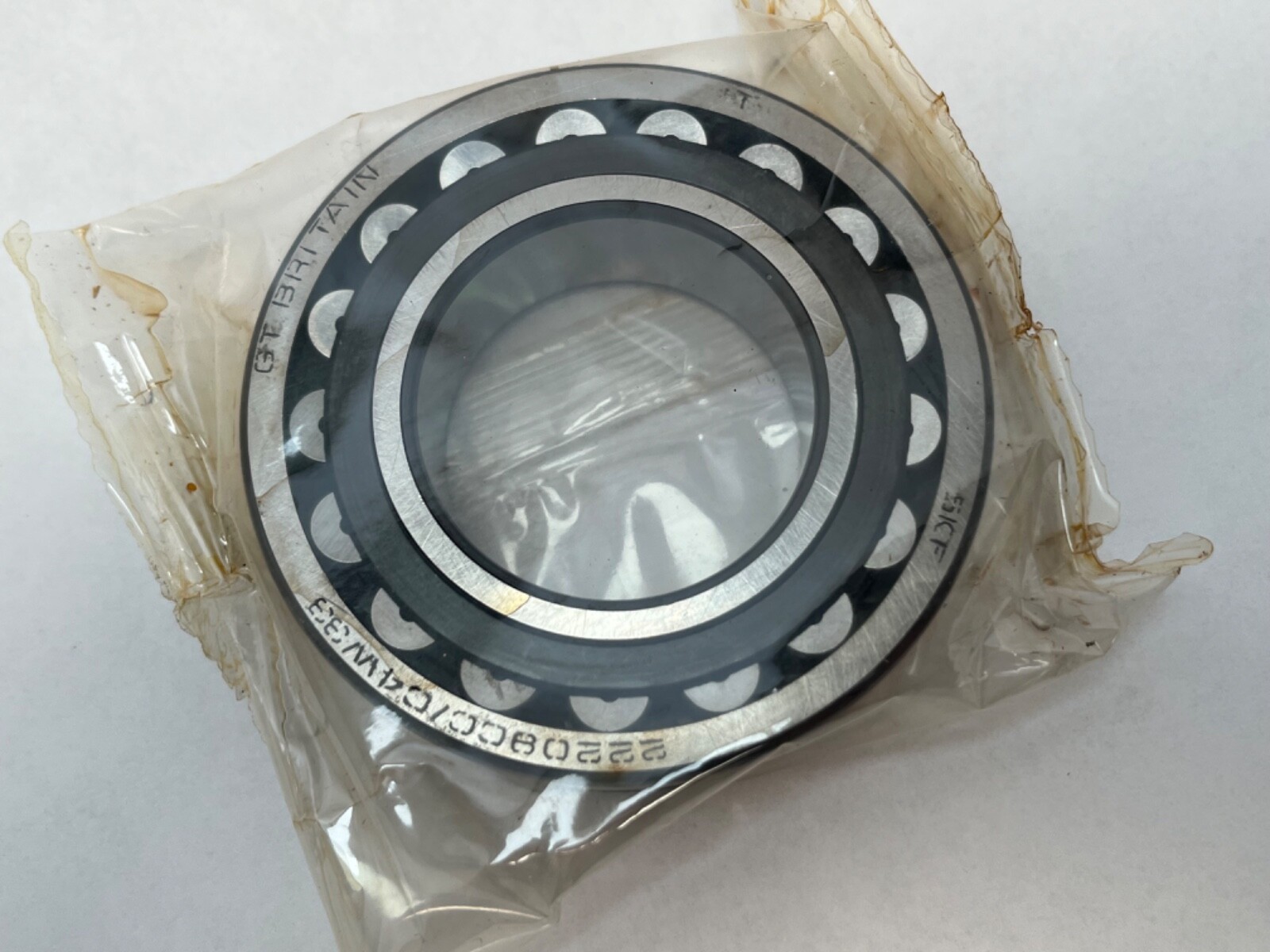

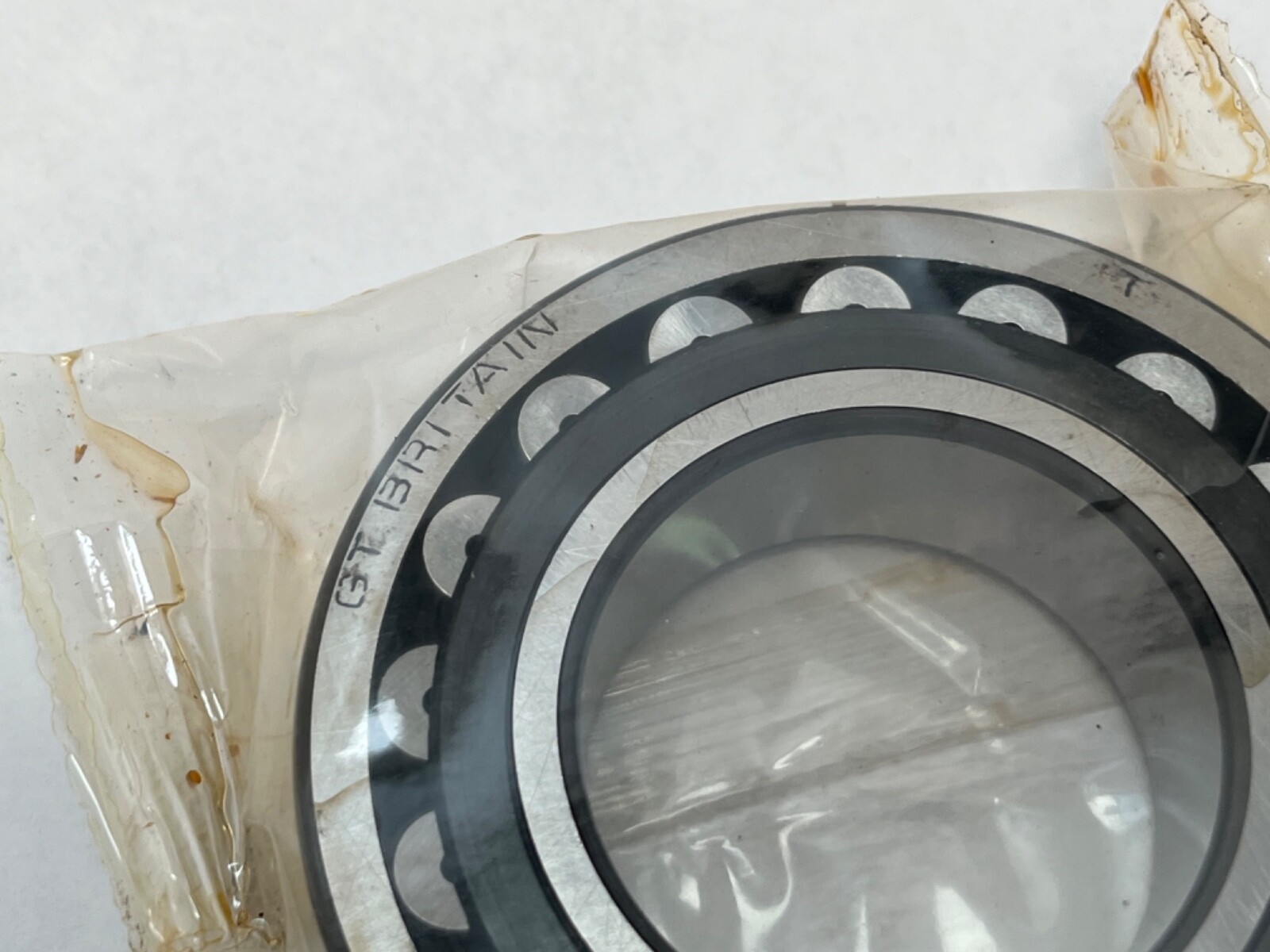

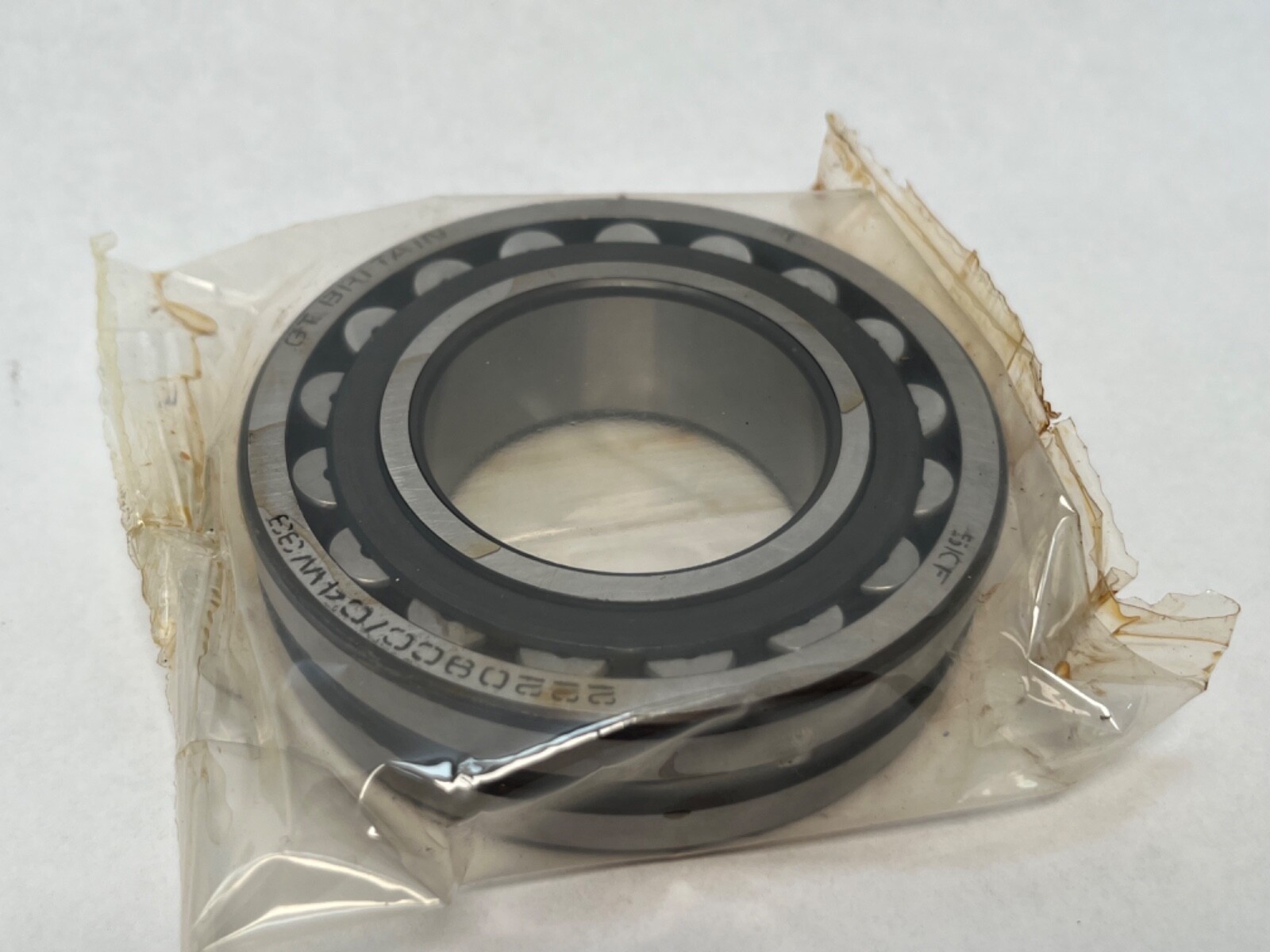

SKF 22209 CC/C4W33 double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, C4 radial internal clearance, with a W33 lubrication groove and three radial holes in the outer ring. Both roller rows run on a single spherical outer raceway, giving high radial capacity with tolerance of shaft deflection and housing misalignment (2°). One complete bearing. Unit Quantity: 1 Pc.
222 — ISO dimension series for spherical roller bearings.
09 — bore reference number; 9 × 5 = 45 mm bore.
CC — cage execution: two window-type pressed steel cages with a loose guide ring.
C4 — radial internal clearance one group wider than C3, which is itself wider than normal.
W33 — annular lubrication groove around the outer ring with three radial holes into the raceway.
Bearing Type: Spherical roller bearing. Series: 22200. Base Number: 22209. Number Of Rows: 2. Rolling Elements: Spherical rollers. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Internal Clearance: C4. Maximum Permissible Misalignment: 2°. Closure Type: Open. Harmonization Code: 8482.30.00. Unit Quantity: 1 Pc.
Bore Diameter: 45 mm, cylindrical, seating on a plain 45 mm shaft journal. Outside Diameter: 85 mm. Width: 23 mm. The W33 groove and its three radial holes give a relubrication path through the outer ring to both roller rows.
Timken / Torrington 22209EJW33C4 is the E cage design on the same envelope. Steyr 22209-C-C4-W33 is listed as a cross. The tapered-bore versions 22209 CCK/C4W33 and 22209 K share the 45 x 85 x 23 mm envelope with a 1:12 tapered bore. The C3 and normal-clearance versions, 22209 CC/C3W33 and 22209 CC/W33, share the same seats and differ in internal clearance. Also listed as 22209CC/C4W33, 22209 CC C4 W33, 22209CCC4W33 and 22209-CC-C4-W33.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
C4 is radial internal clearance one group wider than C3, which is itself wider than normal.
The bore is straight (cylindrical). There is no K in the designation.
