Availability:
1 in stock

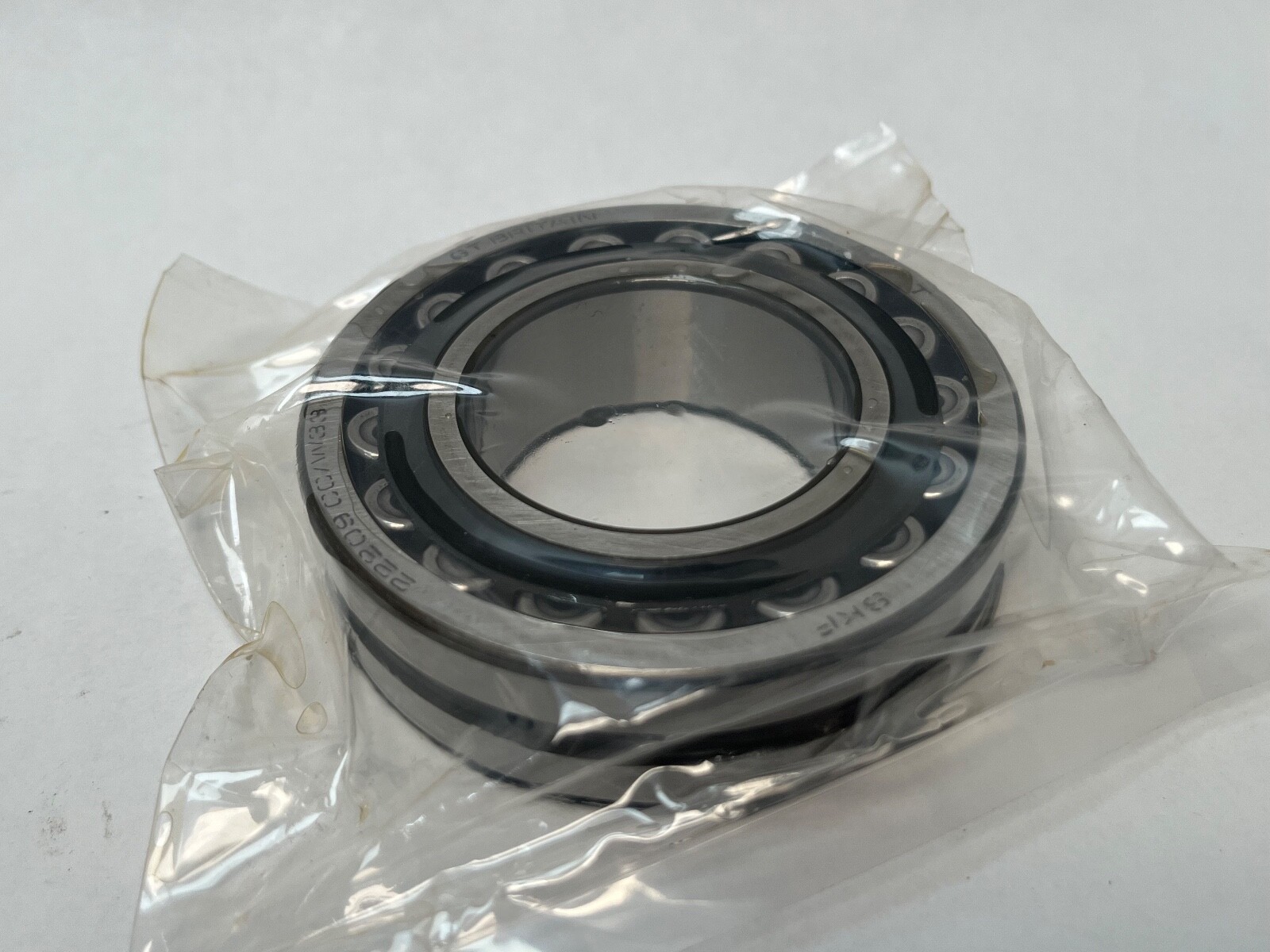

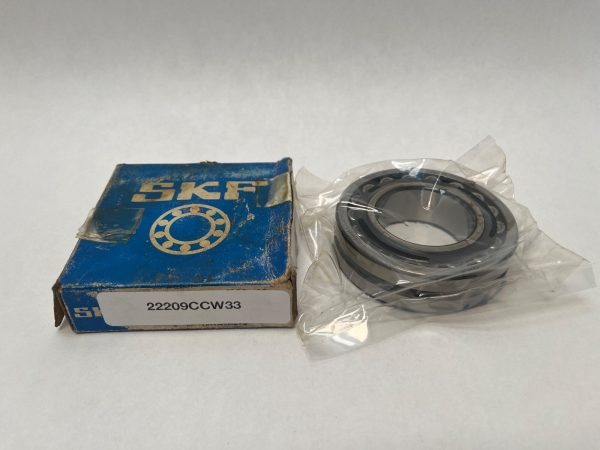

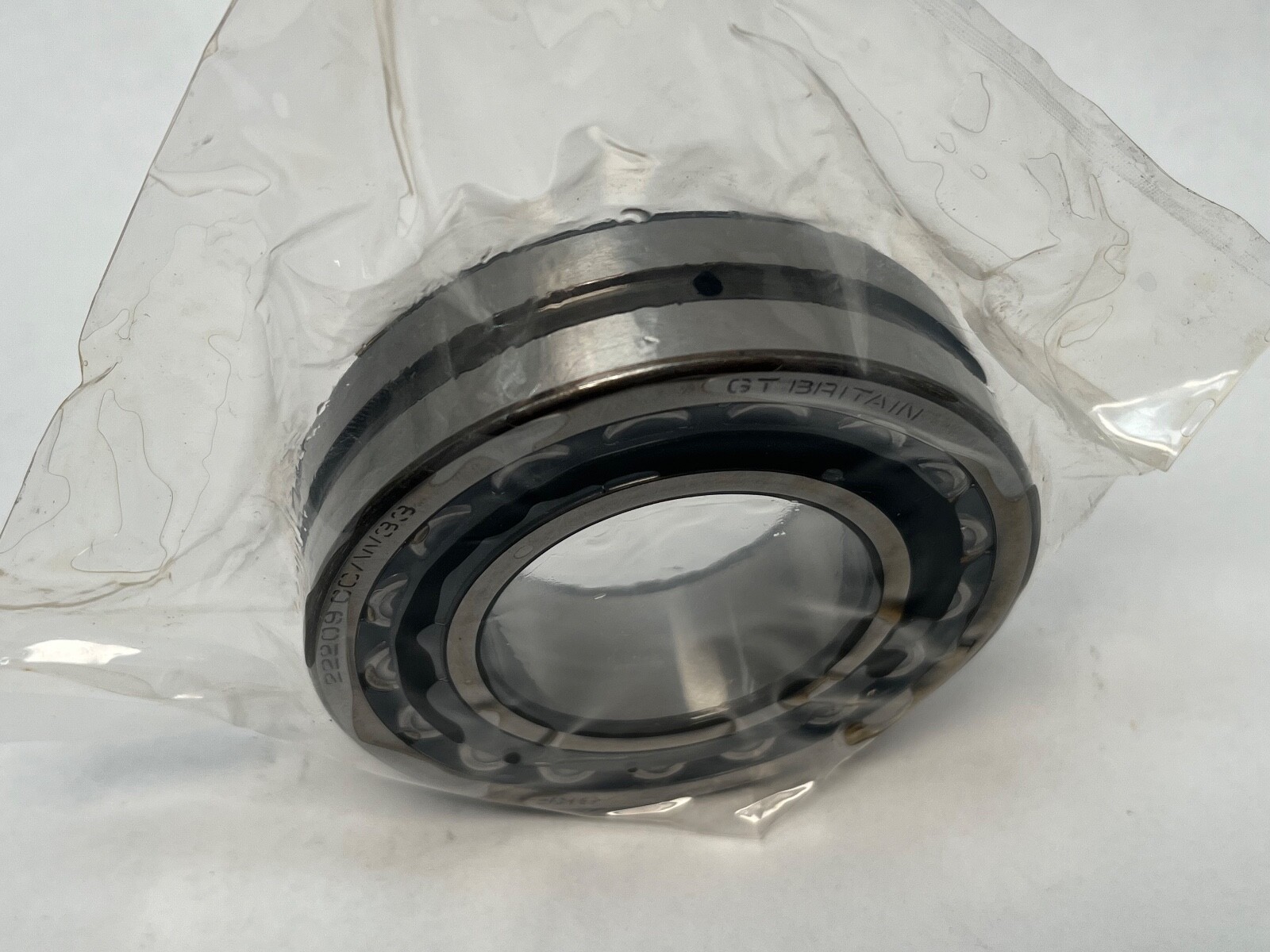

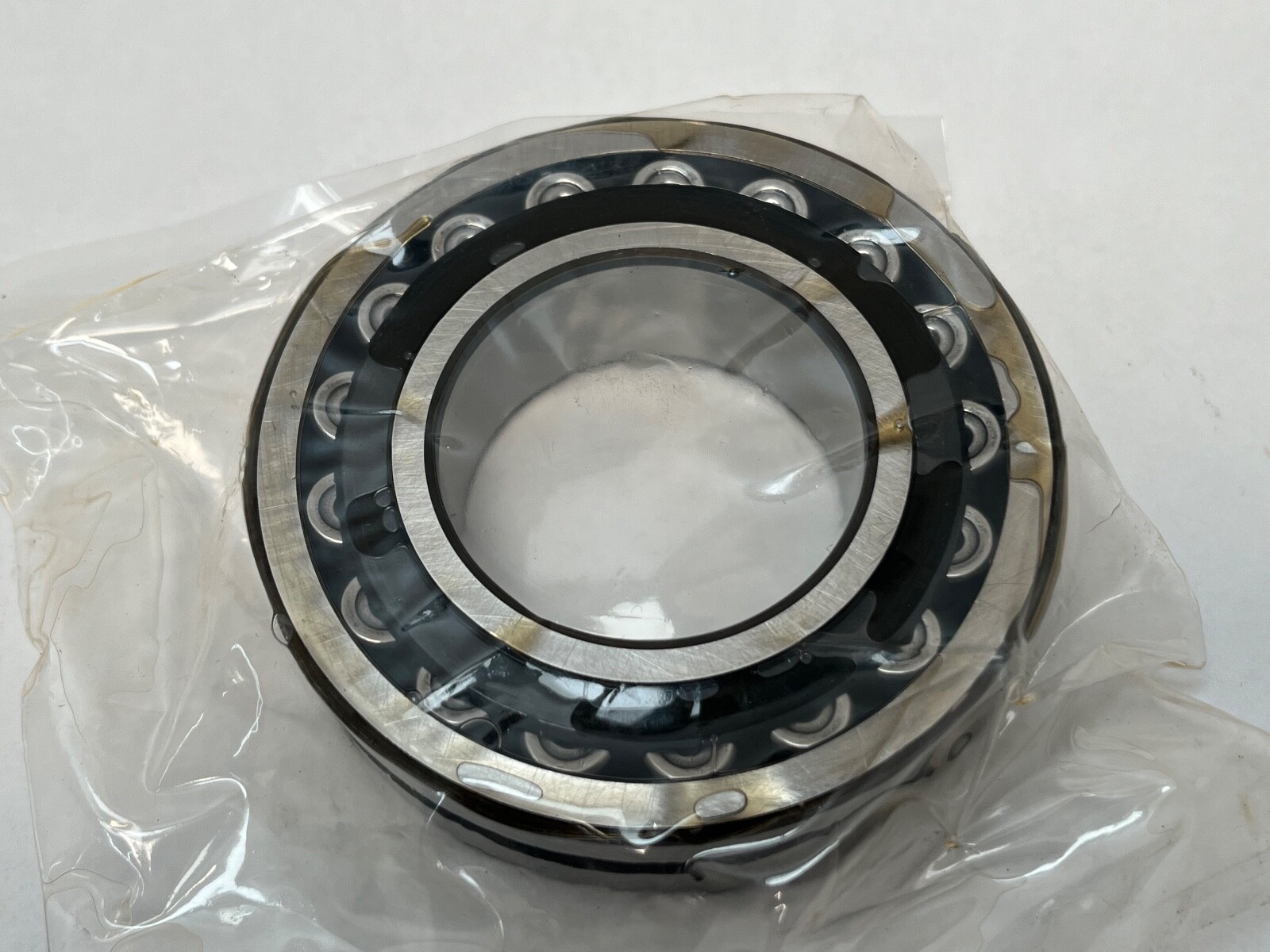

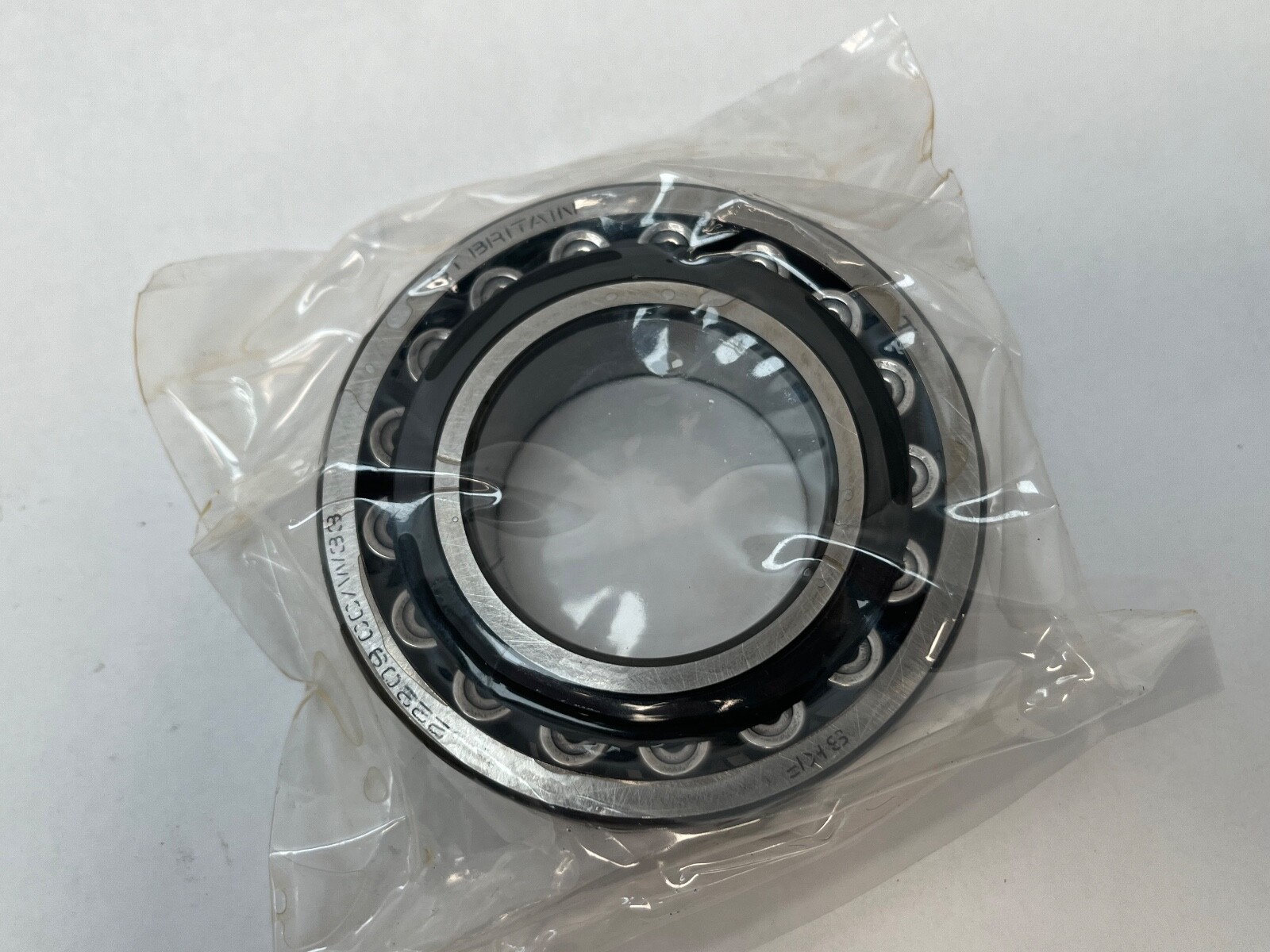

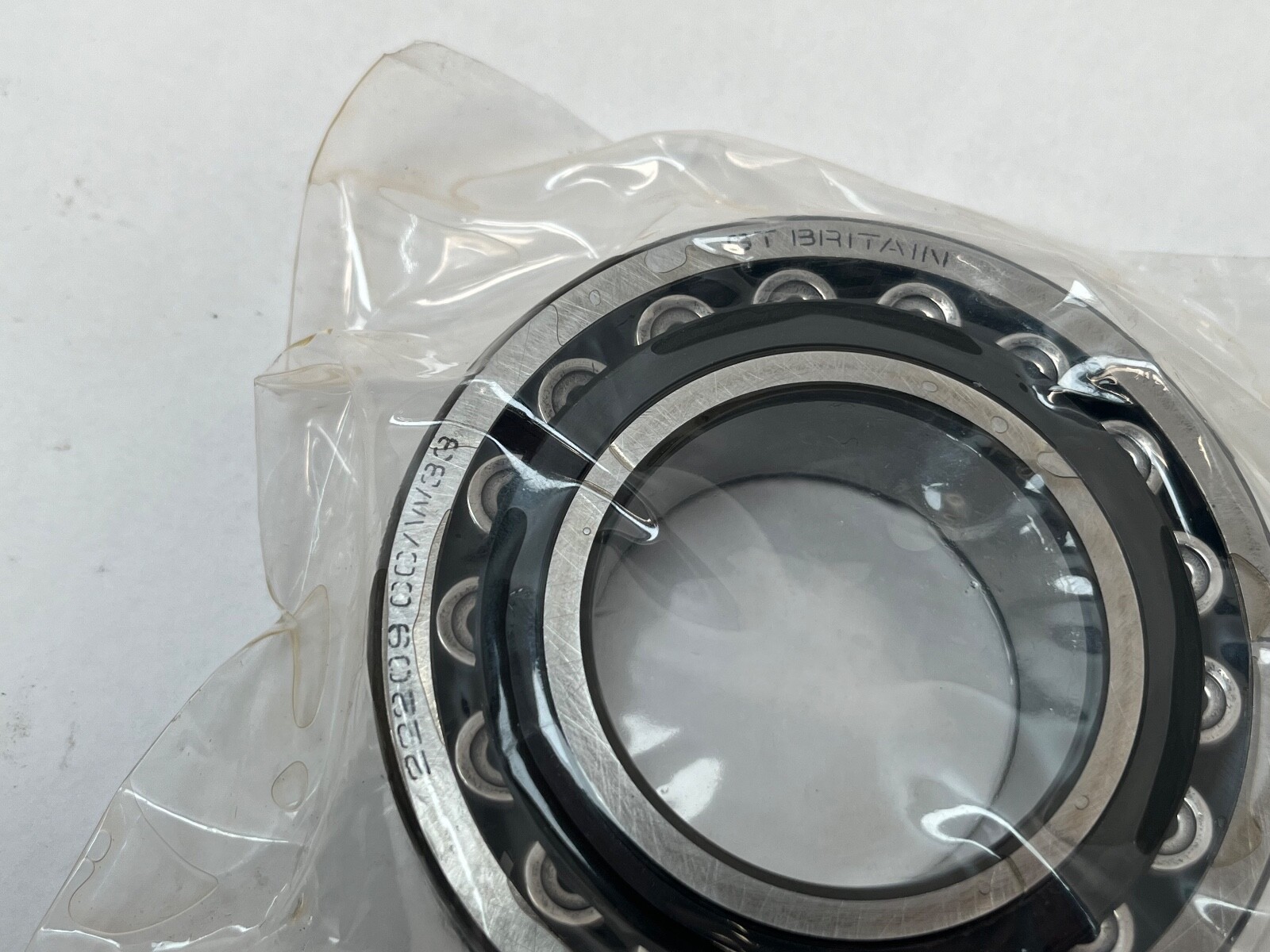

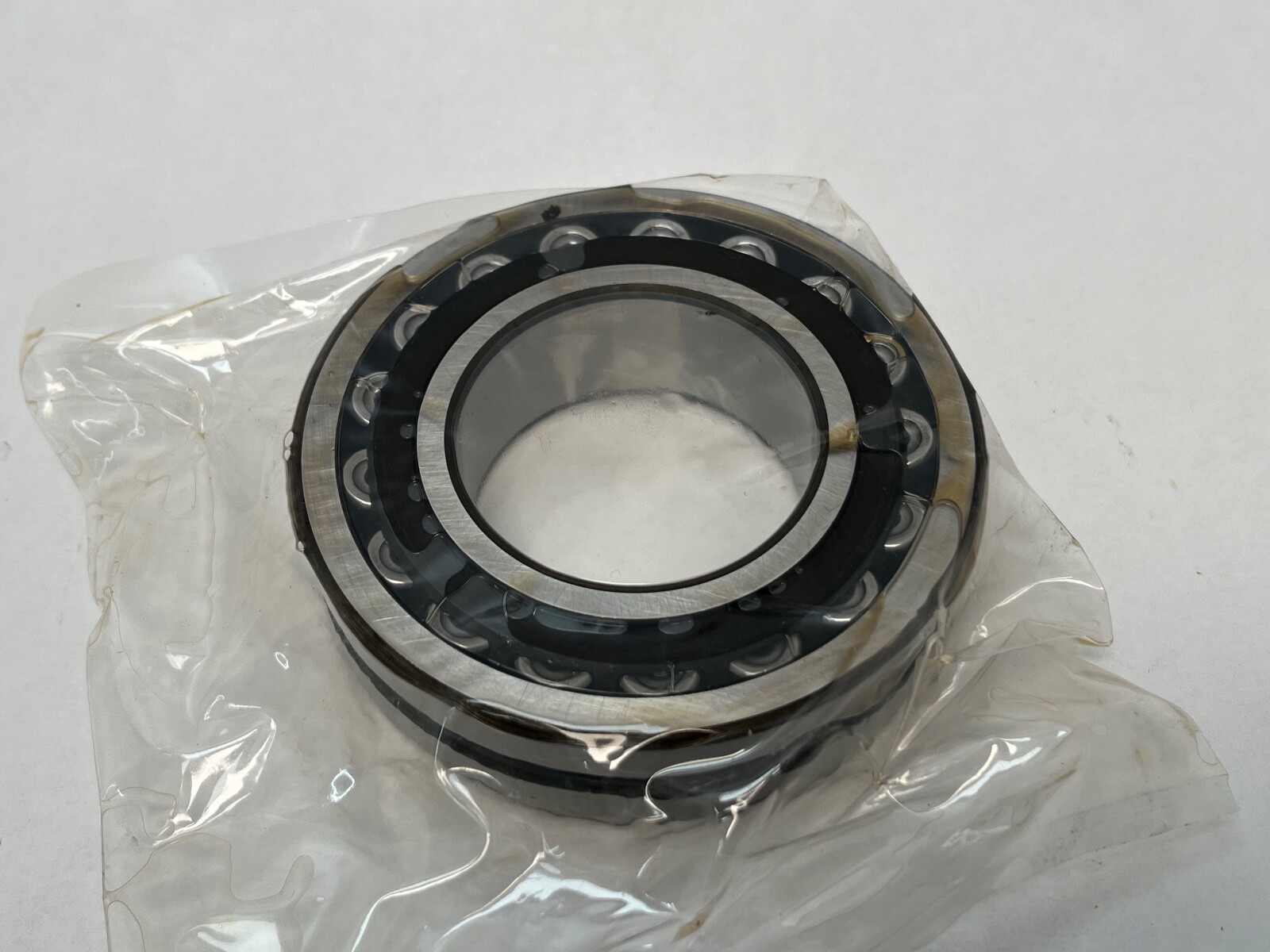

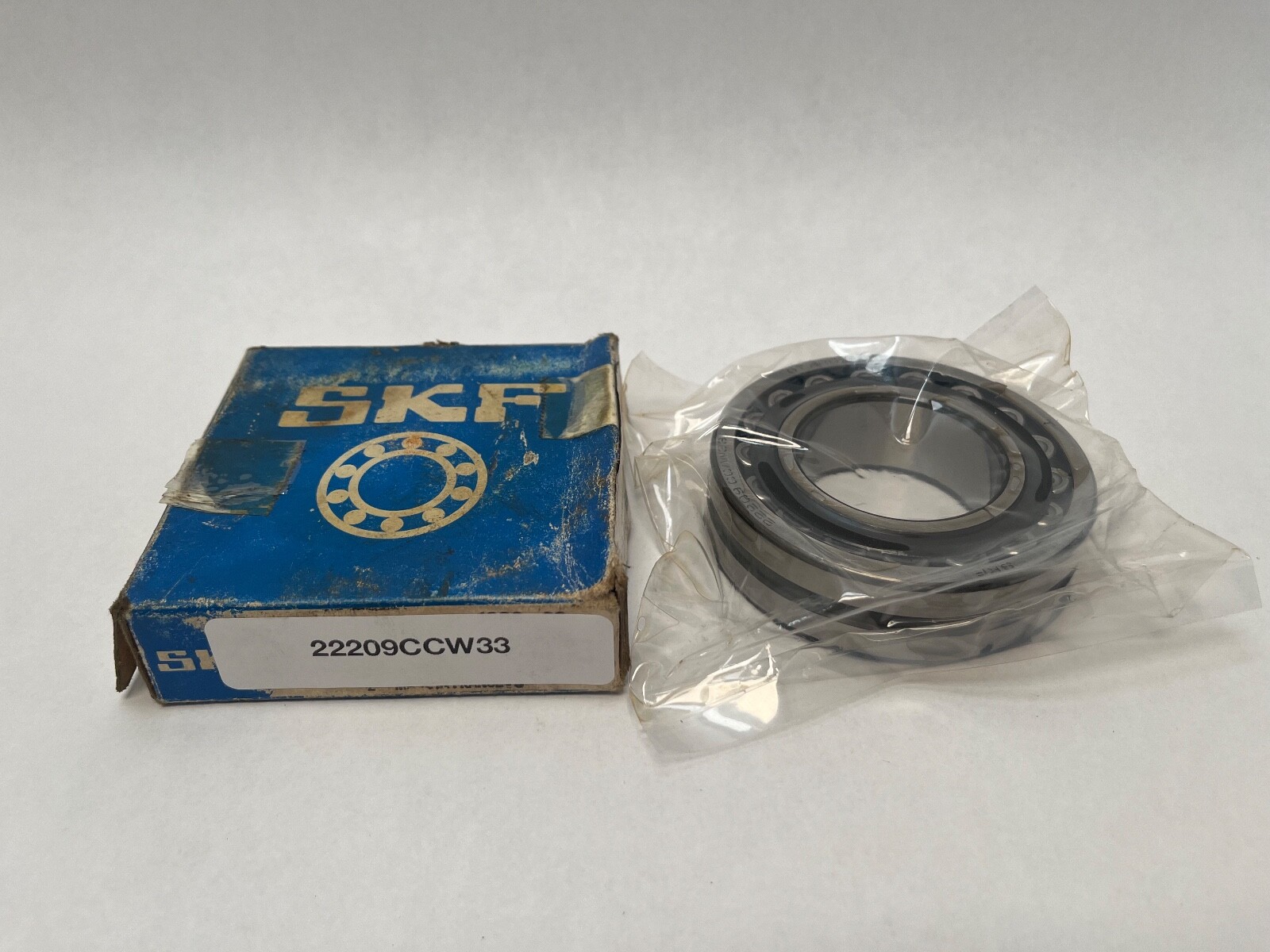

Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, open, normal internal clearance, outer-ring lubrication groove and three holes. 1 Pc.
List Price
$67.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CC/W33 |
| Model | 22209 CC/CJ/C W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing; self-aligning bearing; double row |
| Common Misspellings | 22209CC W33; 22209 CCW33; 22209 spherical bearing; 22209CJ W33 |
| Application Types | crushers and screens; fans and blowers; conveyor pulleys |
| Bore Shaft Size | 45 mm (1.7717 in) |
| Mpn Variants | 22209 CC/W33; 22209-CC-W33; 22209CCW33; 22209 CJ/W33; 22209CJW33 |
| Cage Type | Pressed steel window cages with guide ring |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Part Number | 22209 CC/W33 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | NSK 22209CDE4 |
|---|---|
| Cross Reference 2 | NTN 22209BD1 |
| Cross Reference 3 | Koyo 22209RHW33 |
| Cross Reference 4 | FAG 22209-E1-XL-W33 - E design, higher ratings |
SKF 22209 CC/W33 is a double-row spherical roller bearing with a straight cylindrical bore, a W33 lubrication groove with three radial holes, and pressed steel window cages with a guide ring. Two rows of barrel-shaped rollers run in a single spherical outer raceway, so the bearing accommodates shaft misalignment. Unit Quantity: 1 Pc.
222 — the wider, higher-capacity spherical roller dimension series.
09 — bore code, giving Bore Diameter: 45 mm.
CC — two window-type pressed steel cages with a guide ring.
CJ — alternate suffix on the same envelope, appearing on cartons of this size interchangeably with CC.
W33 — lubrication groove machined around the outer ring together with three radial feed holes through it.
No K — straight bore.
No clearance suffix — normal radial internal clearance, CN.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight cylindrical. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical Rollers. Series: 22200. Internal Clearance: CN. Cage Type: Pressed steel window cages with guide ring. Lubrication: grease or oil through the W33 groove and holes.
Envelope: 45 x 85 x 23 mm. The straight bore seats directly on a cylindrical shaft seat with no adapter sleeve. Open on both faces, with sealing handled by the housing. The W33 groove and holes feed grease or oil through the housing into the rolling elements.
Equivalents on the 45 x 85 x 23 mm straight-bore envelope with a pressed steel cage and W33-type lubrication provision: NSK 22209CDE4, NTN 22209BD1 and Koyo 22209RHW33. FAG 22209-E1-XL-W33 is the E design with higher ratings. The SKF 22209 CY/W33 is the pressed brass window-cage version of the same size, the 22209 CCK/W33 the 1:12 tapered-bore version, and the 22209 CC/C3 W33 the greater-clearance version. MPN variants: 22209 CC/W33, 22209-CC-W33, 22209CCW33, 22209 CJ/W33, 22209CJW33.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
W33 is a lubrication groove around the outer ring with three radial feed holes through it.
Internal Clearance: CN, normal radial internal clearance.
