Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, open, C3 clearance, W33 outer-ring lubrication groove with three holes. SKF 22209.
List Price
$67.26
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CY/C3/W33 |
| GTIN | 7316576651960 |
| Model | 22209CYC3W33 22209 CY/CC/CJ/CCJ C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Unspsc | 31171504 |
| Base Number | 22209 |
| Industry Terms | Spherical roller bearing, SRB, self-aligning roller bearing, double row barrel roller bearing, W33 lube groove bearing |
| Common Misspellings | 22209CY C3 W33, 2220 9CY, 22209 CYC3W33, 22209 cy/c3/w33, 22209CW33 |
| Application Types | Gearboxes, conveyors, fans and blowers, crushers, vibrating screens, pumps, paper machinery, mill and quarry drives |
| Bore Shaft Size | 45 mm, cylindrical (straight) bore |
| Mpn Variants | 22209CY/C3/W33, 22209 CY C3 W33, 22209CYC3W33, 22209-CY-C3-W33, 22209 CY/W33, 22209CY |
| Manufacturer Status | Current catalogue envelope; CY cage marking is a legacy SKF variant code |
| Compatible With Replaces | Any straight-bore 22209 W33 spherical roller bearing position with C3 internal clearance |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.0000 |
| Internal Clearance | C3 |
| Part Number | 22209 CY/C3/W33 |
| Maximum Permissible Misalignment | 1.5° |
| Closure Type | Open |
| Cross Reference 3 | NSK 22209EAE4C3 (E design with lube groove; C3) |
|---|---|
| Cross Reference 4 | FAG 22209-E1-XL-C3 (E design; no W33 groove; C3) |
| Cross Reference 6 | Koyo 22209RHRW33C3 (same envelope, W33 and C3) |
| Cross Reference 7 | Timken 22209EJW33C3 (E design; same W33 and C3) |

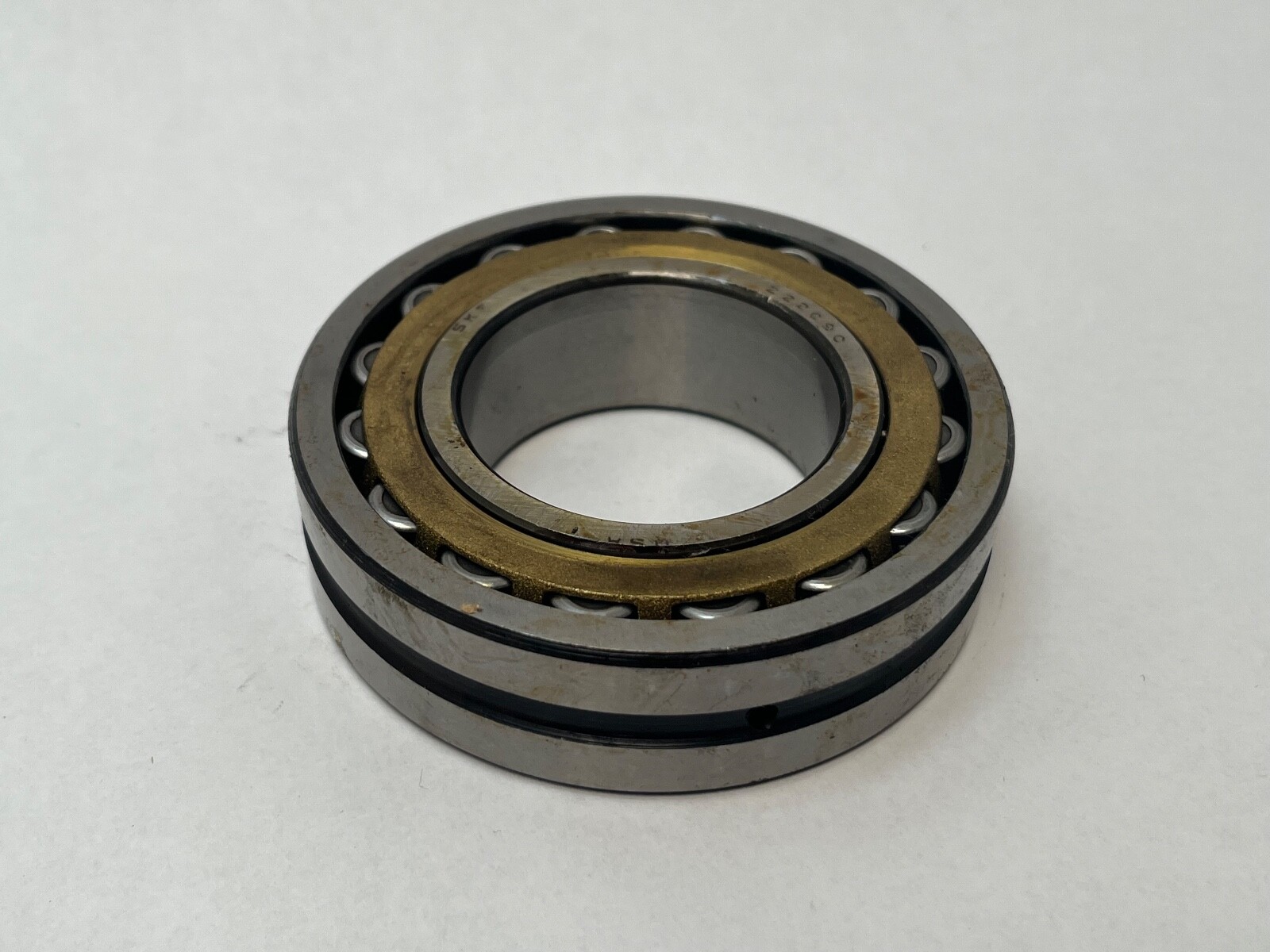

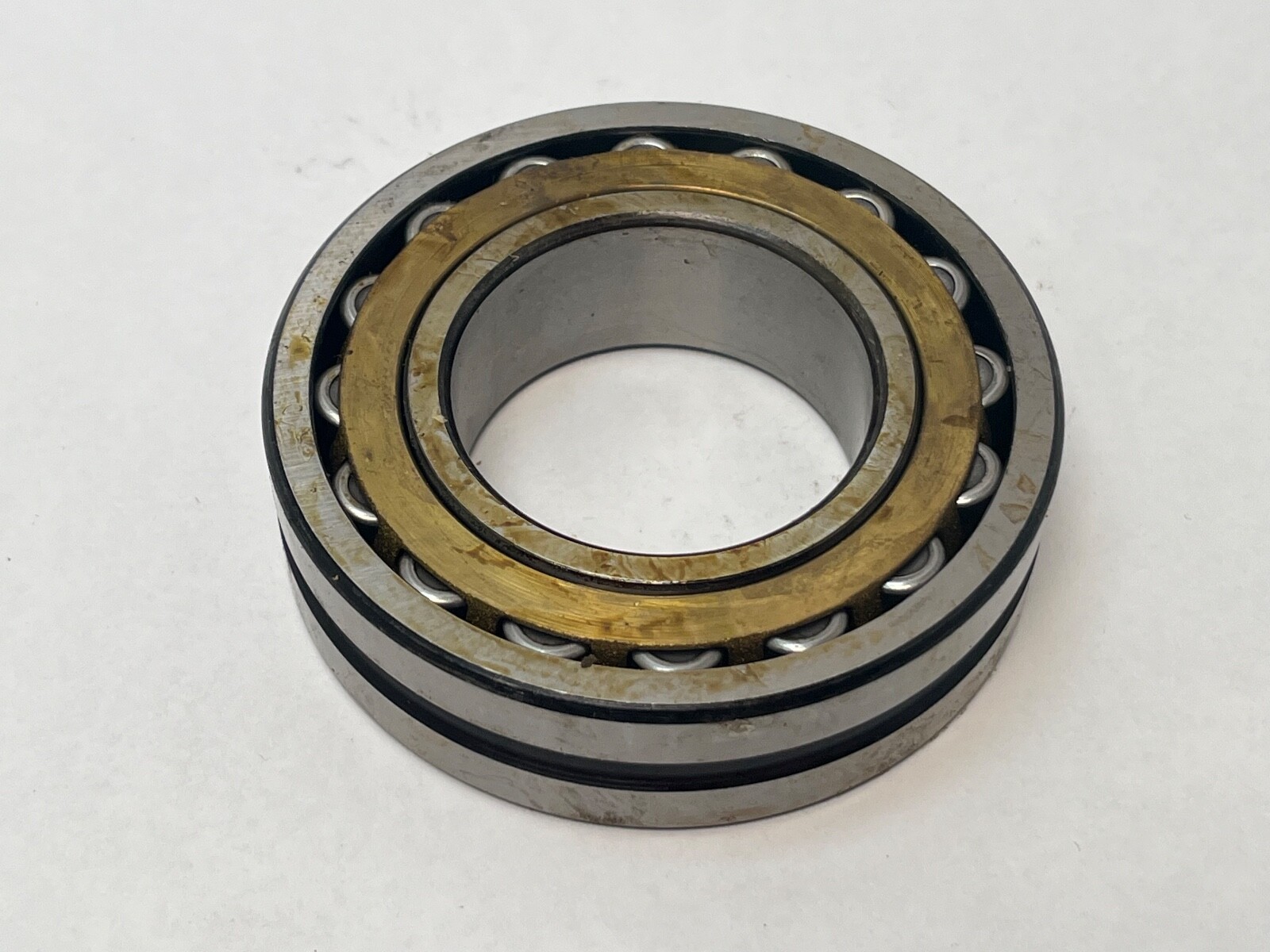

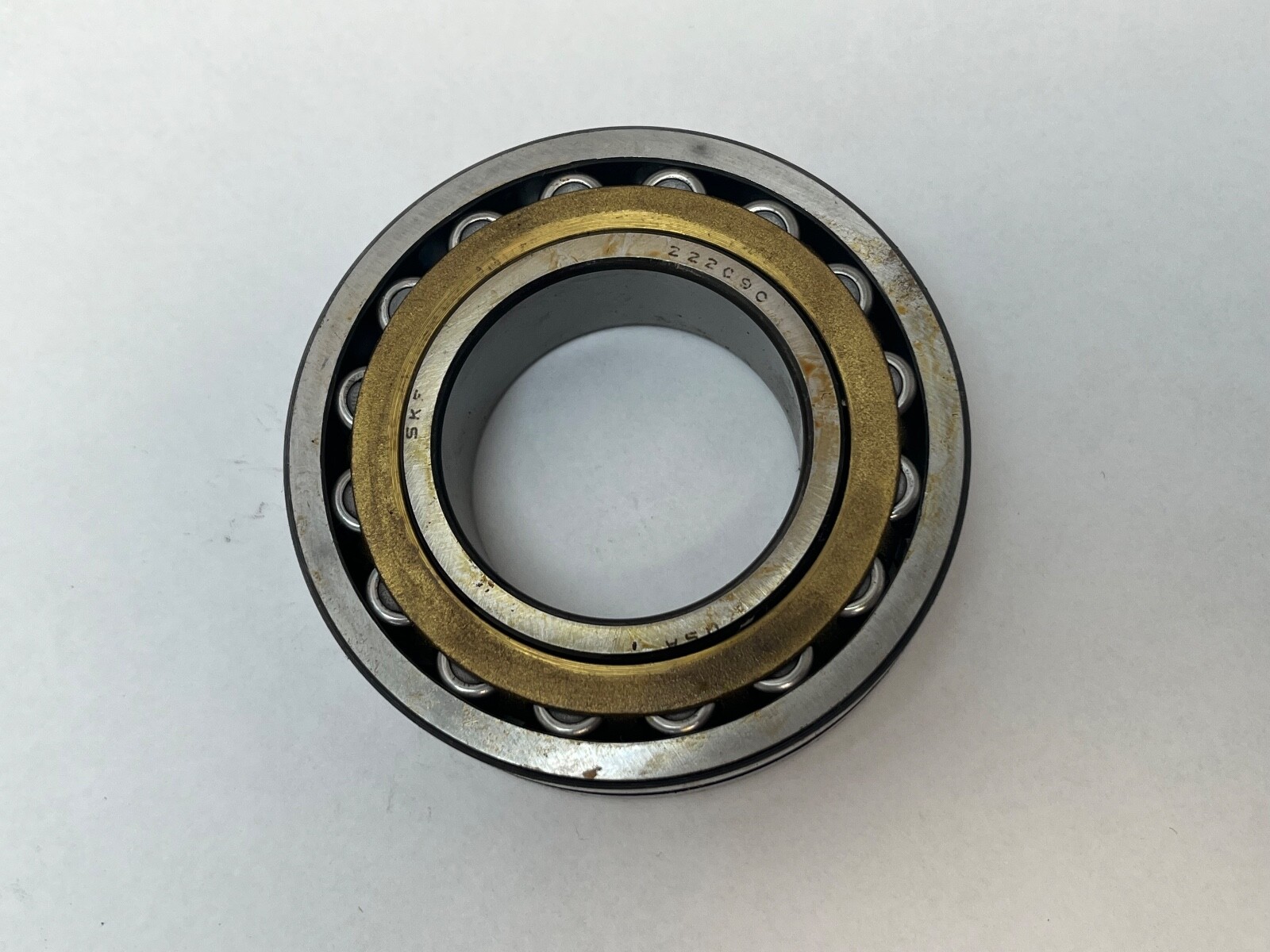

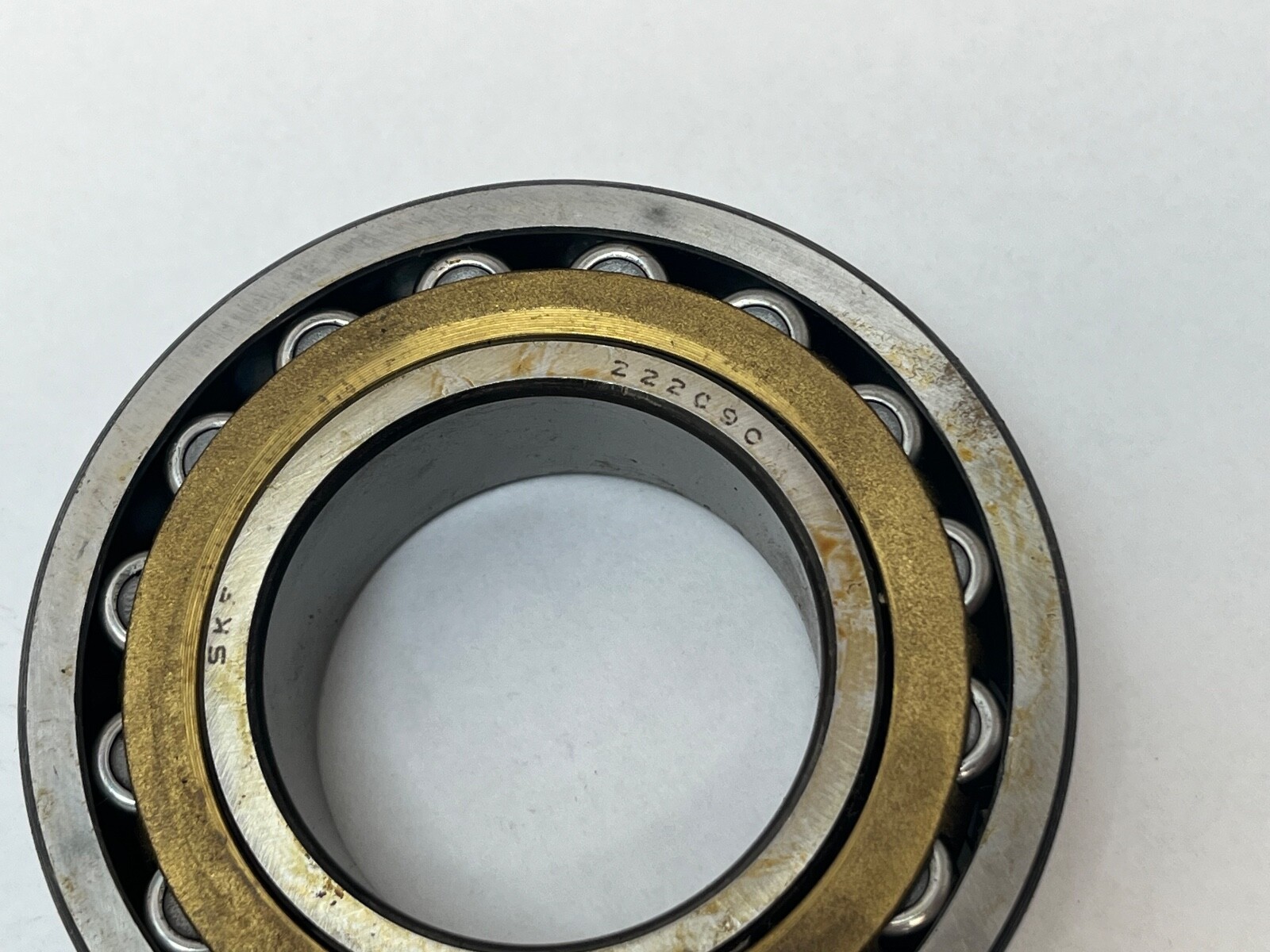

SKF 22209-CY/C3/W33 double-row spherical roller bearing, 45 mm straight bore, 85 mm outside diameter, 23 mm width. Both rows of barrel rollers run on a single spherical raceway in the outer ring, so the bearing is self-aligning. Open, C3 internal clearance, W33 lubrication groove in the outer ring. Unit Quantity: 1 Pc.
222 — ISO dimension series 3 spherical roller bearing, 222xx series.
09 — bore reference number; 9 x 5 = 45 mm bore.
C3 — radial internal clearance greater than normal.
W33 — annular lubrication groove around the outer ring with three radial holes into the raceway.
No K in the designation — cylindrical bore.
Bearing Type: Spherical roller bearing, double row. Rolling Elements: Barrel (spherical) rollers. Number Of Rows: 2. Bore Type: Straight. Closure Type: Open. Internal Clearance: C3. Lubricant: grease or oil. Series: 22200. Base Number: 22209. Maximum Permissible Misalignment: 1.5°.
Bore Diameter: 45 mm, cylindrical. Outside Diameter: 85 mm. Width: 23 mm. The cylindrical bore seats directly on a plain 45 mm shaft with an interference fit, without an adapter sleeve. The W33 groove and three holes feed lubricant between the two roller rows through the outer ring.
Straight-bore 22209 C3 spherical roller bearings from other makers: Timken 22209EJW33C3, Koyo 22209RHRW33C3, NSK 22209EAE4C3 and FAG 22209-E1-XL-C3. The designations 22209 CJ, 22209 CCJ, 22209 CC and 22209E W33 are carried as search terms. Tapered-bore 22209 K variants share the outside diameter and width but have a 1:12 bore. Searchable forms of the number: 22209CY/C3/W33, 22209 CY C3 W33, 22209CYC3W33, 22209-CY-C3-W33, 22209 CY/W33, 22209CY.
45 mm bore, 85 mm outside diameter, 23 mm width.

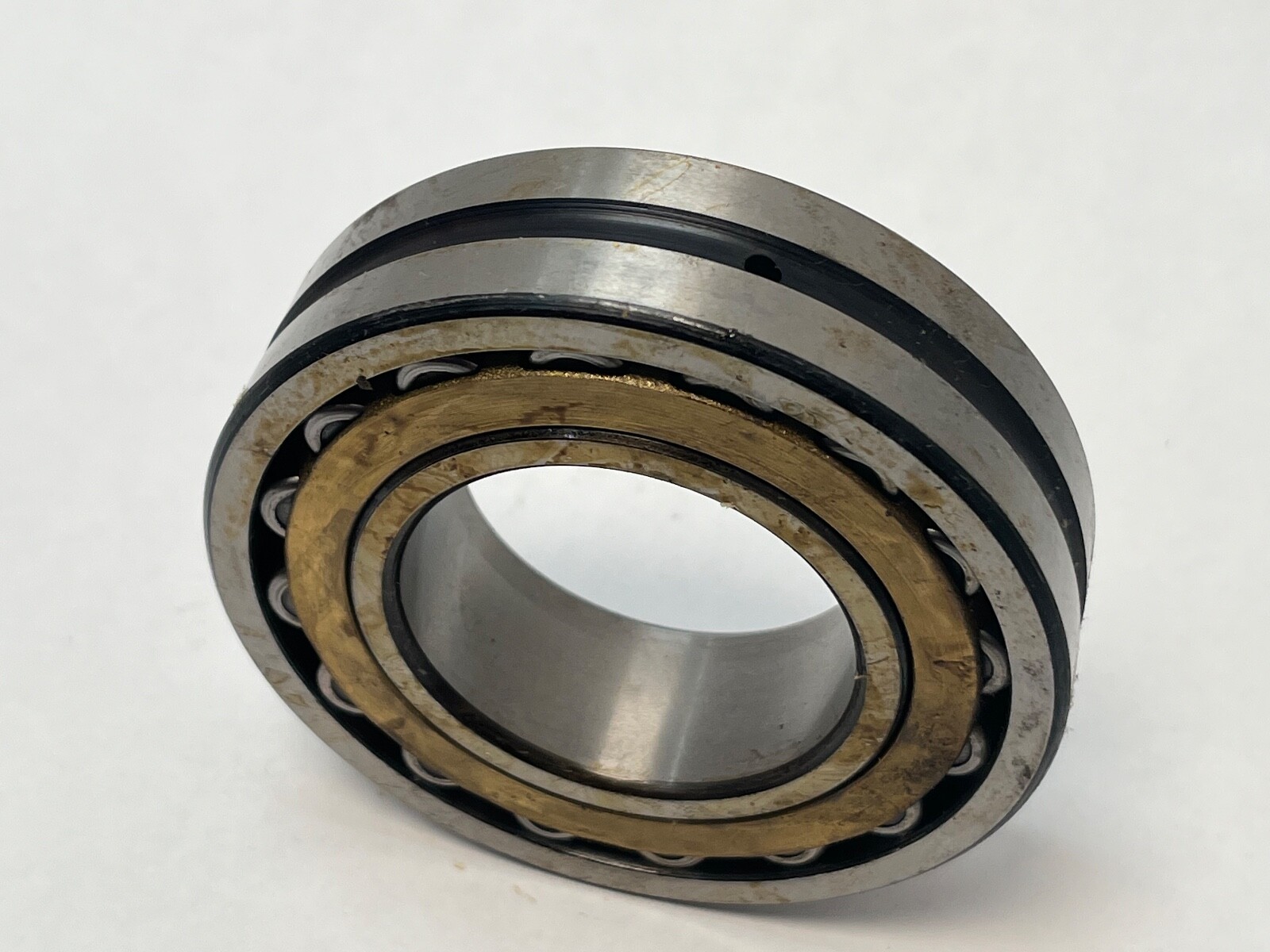

An annular lubrication groove in the outer ring with three radial holes into the raceway.
Straight (cylindrical) bore with C3 radial internal clearance, greater than normal.
