Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

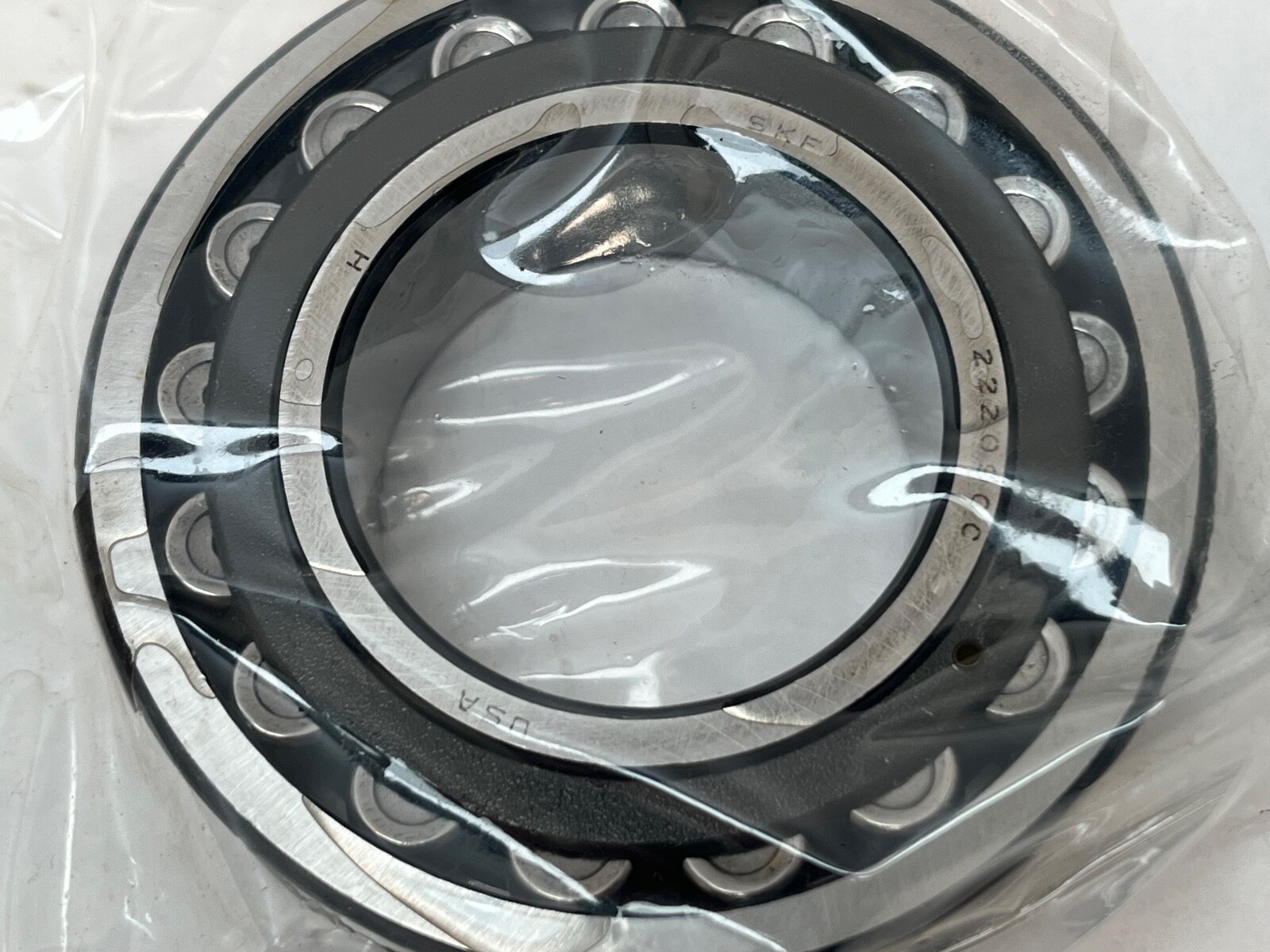

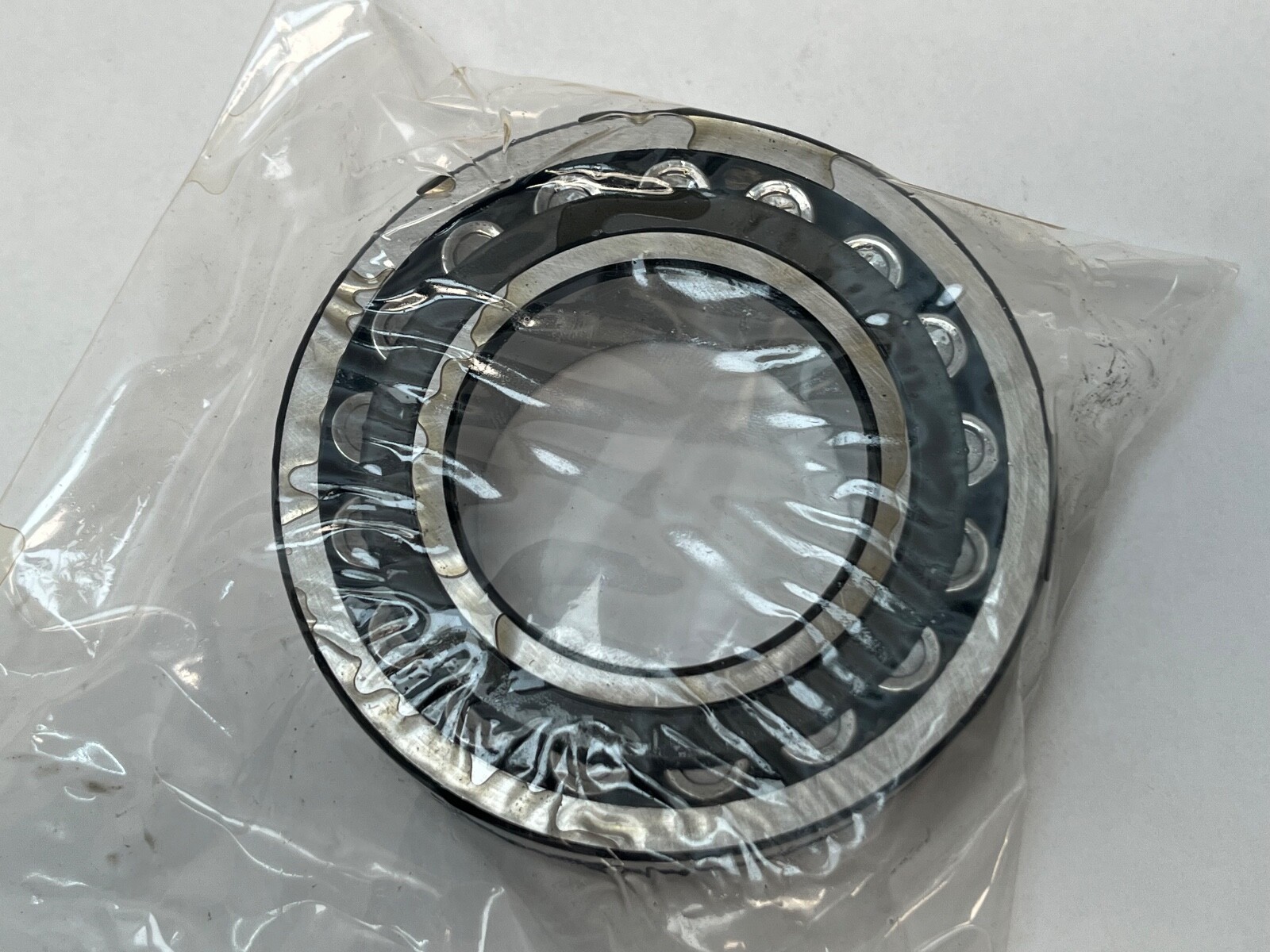

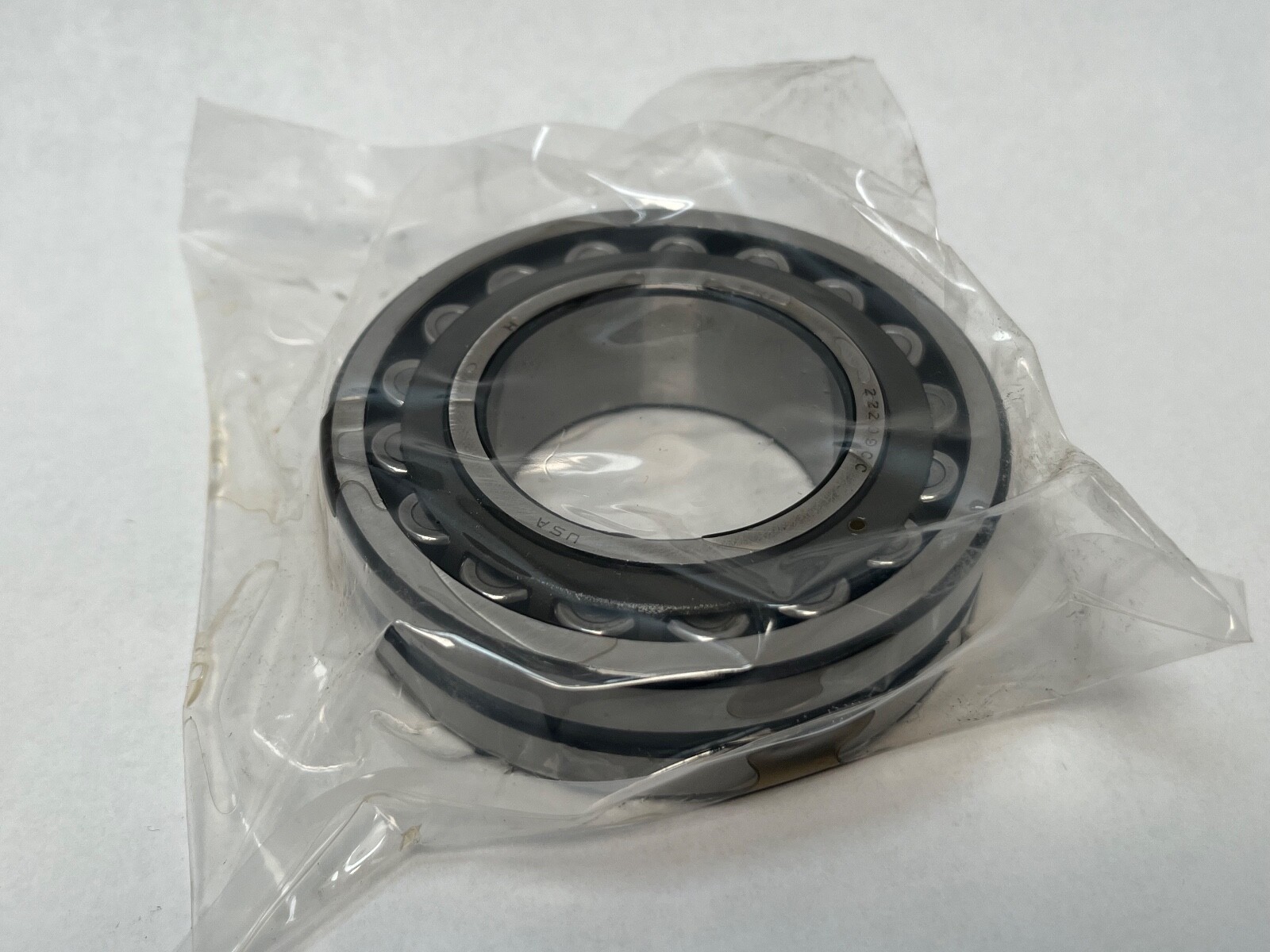

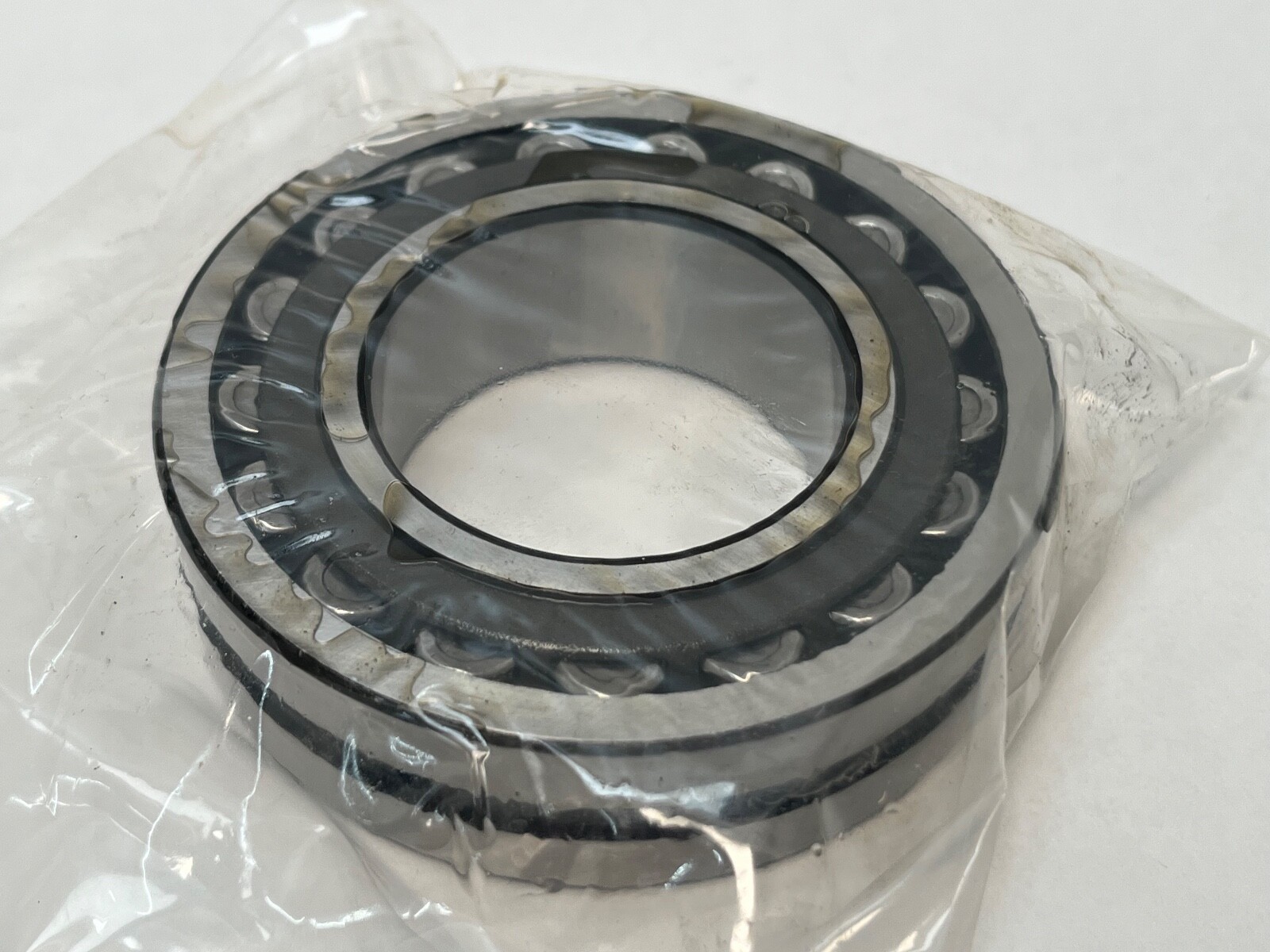

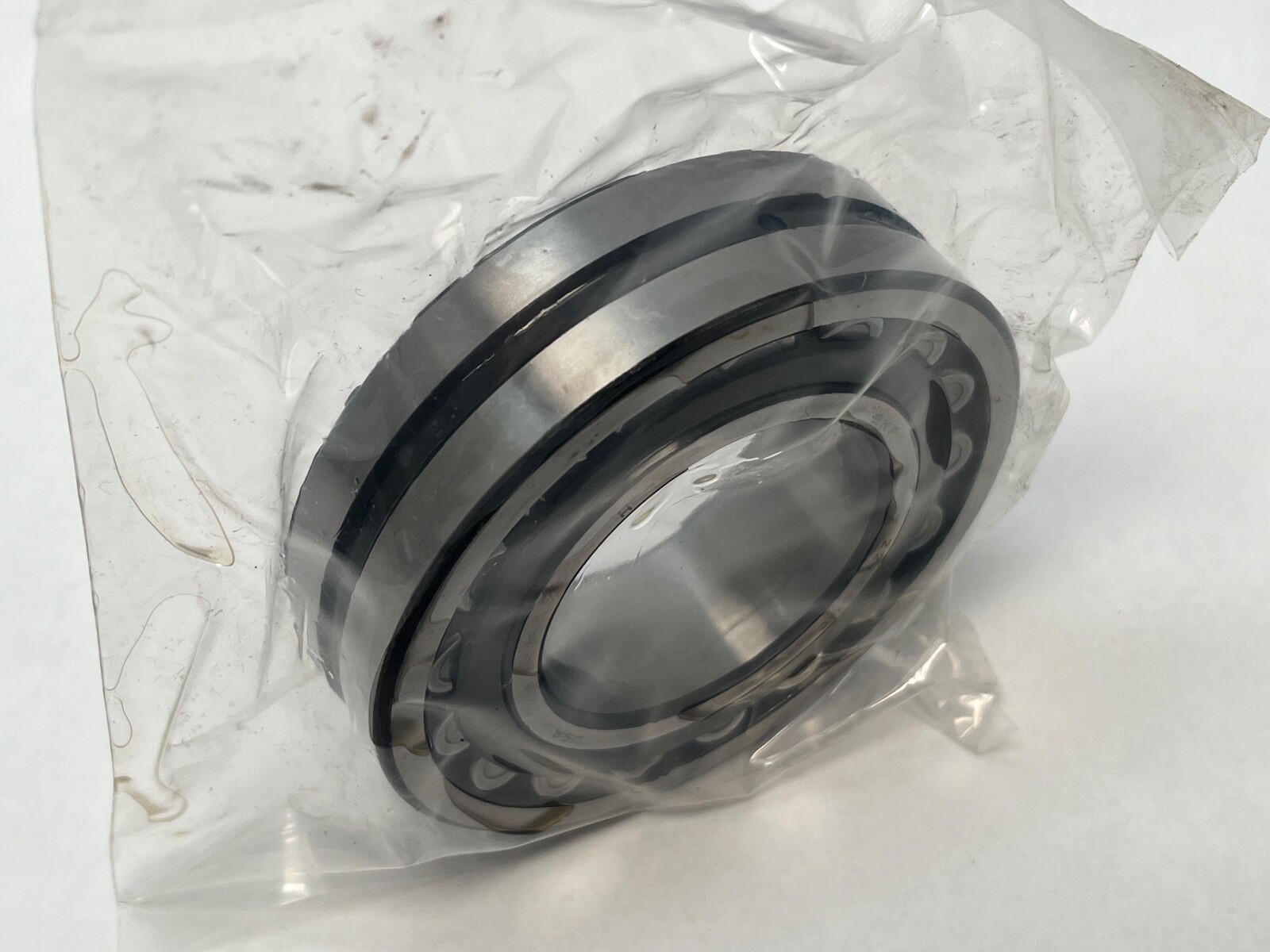

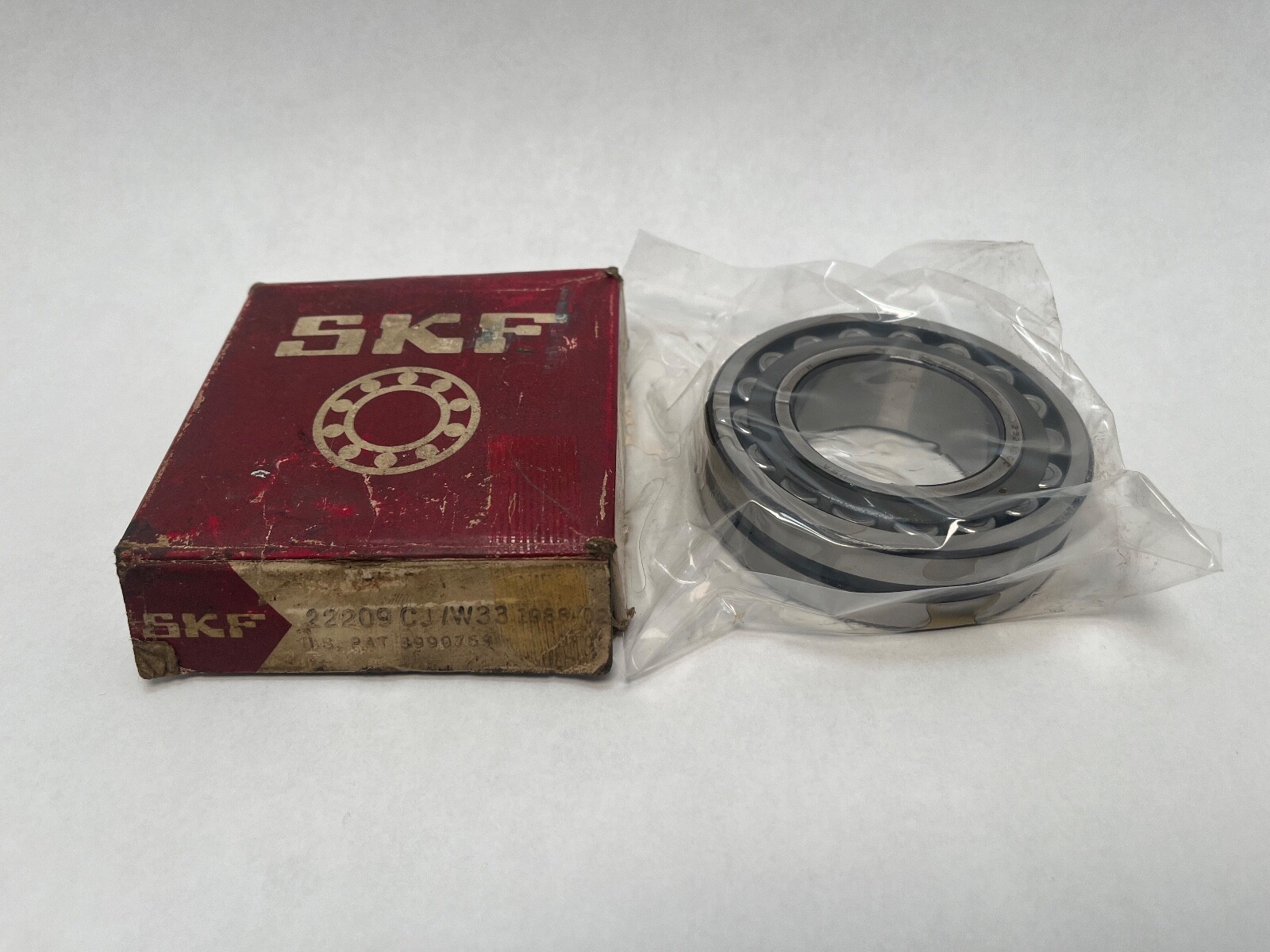

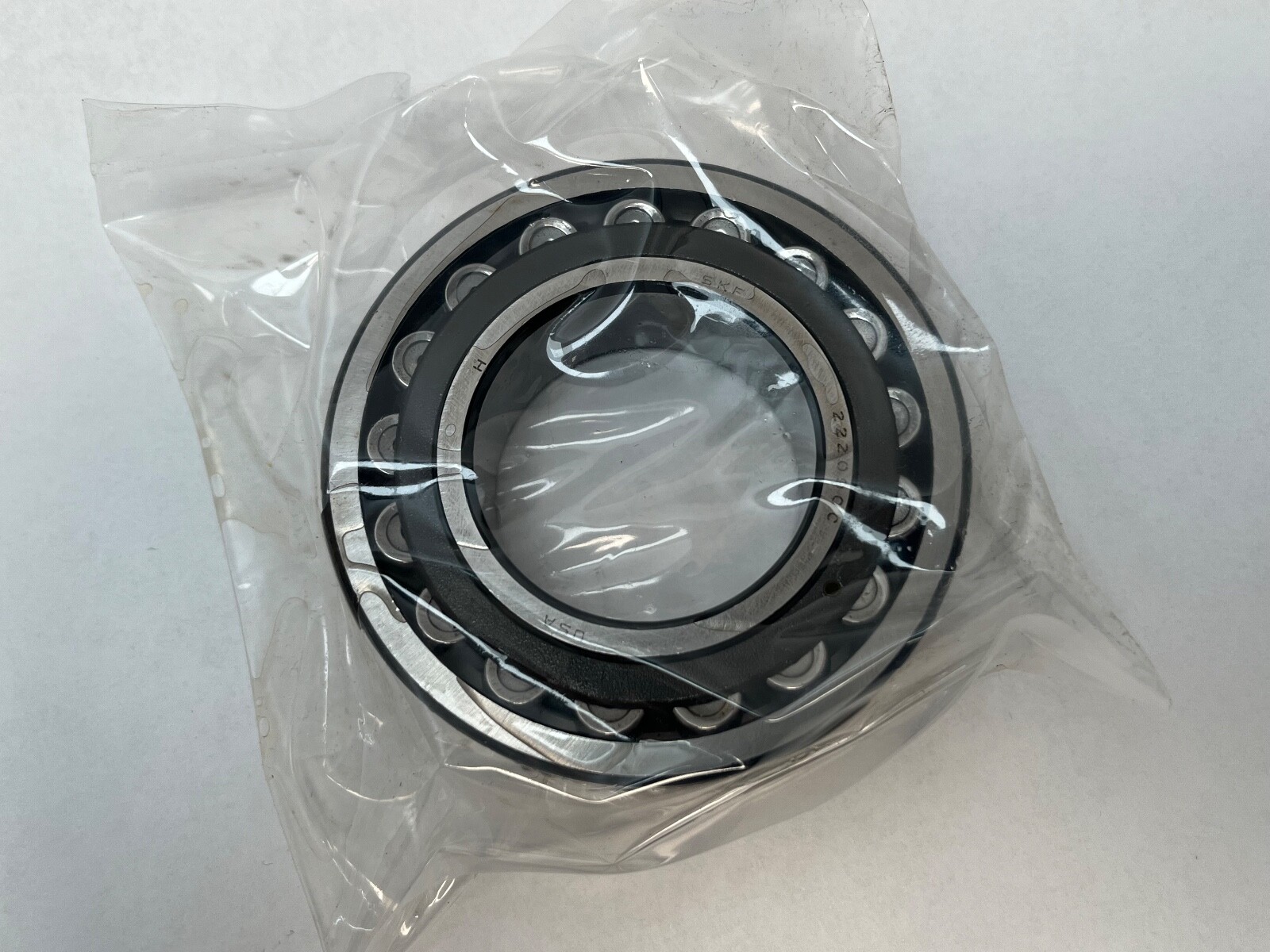

Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, CN clearance, W33 lubrication groove and three holes, pressed steel cage. 1 Pc.
List Price
$67.31
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22209 CJ/W33 |
| Model | 22209 CC/CJ/C W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 22200 |
|---|---|
| Material | Bearing Steel |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing; double row; self-aligning bearing |
| Common Misspellings | SFK 22209CJ/W33; 22209 CJW-33; 22209CJ W3 |
| Application Types | Vibrating screens; conveyor pulleys; fans and blowers; gearboxes |
| Bore Shaft Size | 45 mm (1.7717 in), straight bore |
| Mpn Variants | 22209-CJ-W33; 22209CJW33; 22209 CJ W33; 22209CJ/W33 |
| Cage Type | Pressed steel window cage |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Part Number | 22209 CJ/W33 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | Timken 22209EJW33 - E design, higher ratings |
|---|---|
| Cross Reference 2 | NSK 22209EAE4 - E design, higher ratings |
| Cross Reference 3 | FAG 22209-E1-XL - E design, higher ratings |
SKF 22209 CJ/W33 is a double-row spherical roller bearing with a straight bore, a W33 lubrication groove with three radial holes, and a pressed steel window cage. Unit Quantity: 1 Pc.
222 — the double-row spherical roller family.
09 — bore code, giving Bore Diameter: 45 mm.
CJ — pressed steel window cage, the same cage family as the CC code.
W33 — circumferential lubrication groove and three radial lubrication holes in the outer ring.
No K — straight bore.
No clearance suffix — normal radial internal clearance, CN.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Rollers. Series: 22200. Internal Clearance: CN. Cage Type: Pressed steel window cage. Lubrication: grease or oil through the W33 groove and holes. Closure Type: Open.
Envelope: 45 x 85 x 23 mm. The straight bore seats directly on a cylindrical shaft with no adapter sleeve. The W33 groove and holes allow grease or oil to reach the rollers through the housing with the bearing in place.
E-design equivalents on the same 45 x 85 x 23 mm straight-bore envelope with higher ratings: Timken 22209EJW33, NSK 22209EAE4 and FAG 22209-E1-XL. The tapered-bore 22209 CCK/W33 and the C3-clearance 22209 CC/C3W33 share the envelope and differ in bore form and clearance. MPN variants: 22209-CJ-W33, 22209CJW33, 22209 CJ W33, 22209CJ/W33.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
W33 is a circumferential lubrication groove with three radial lubrication holes in the outer ring.
Internal Clearance: CN, normal radial internal clearance.
$67.31
10 in stock
$94.03
19 in stock
