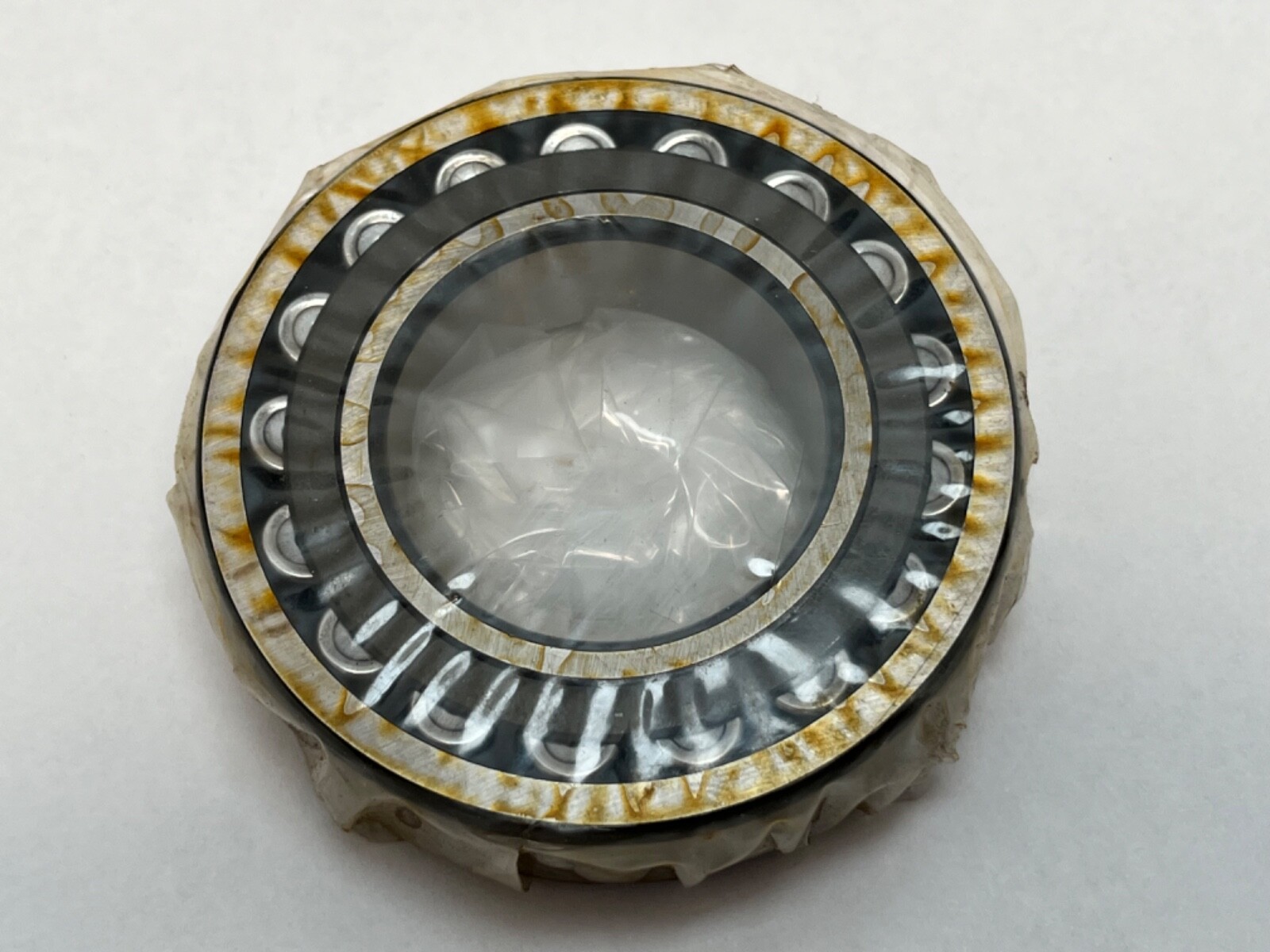

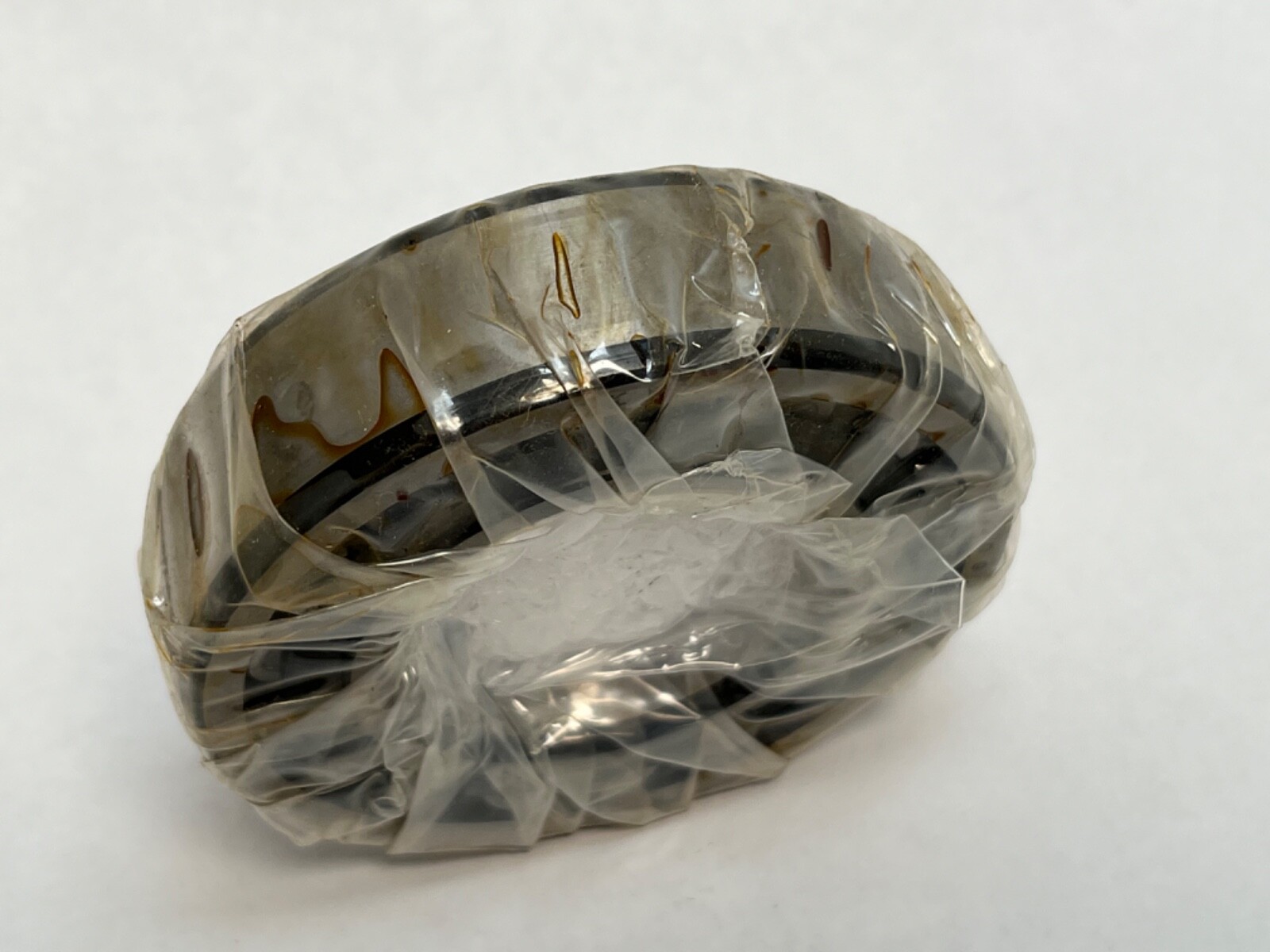

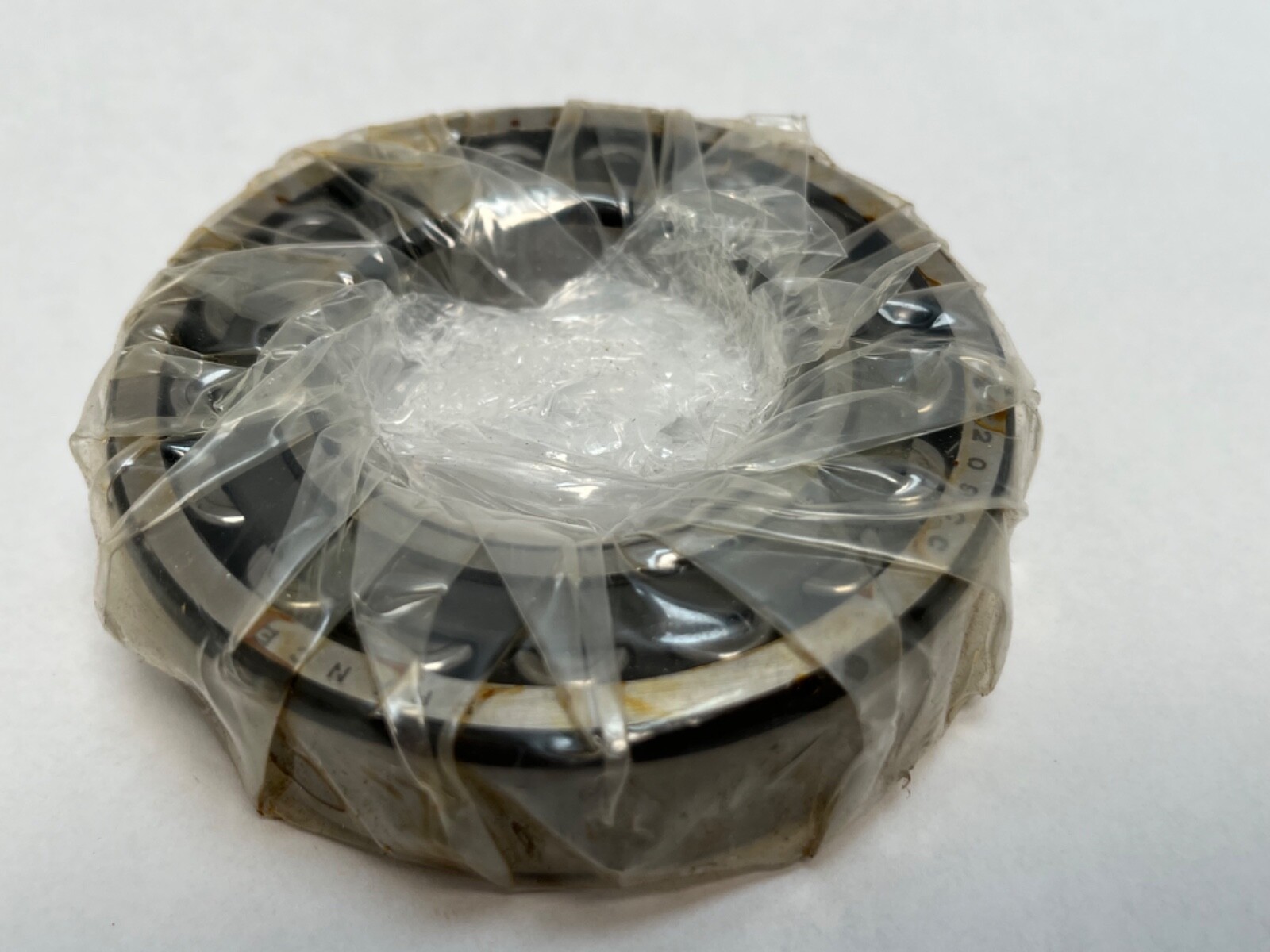

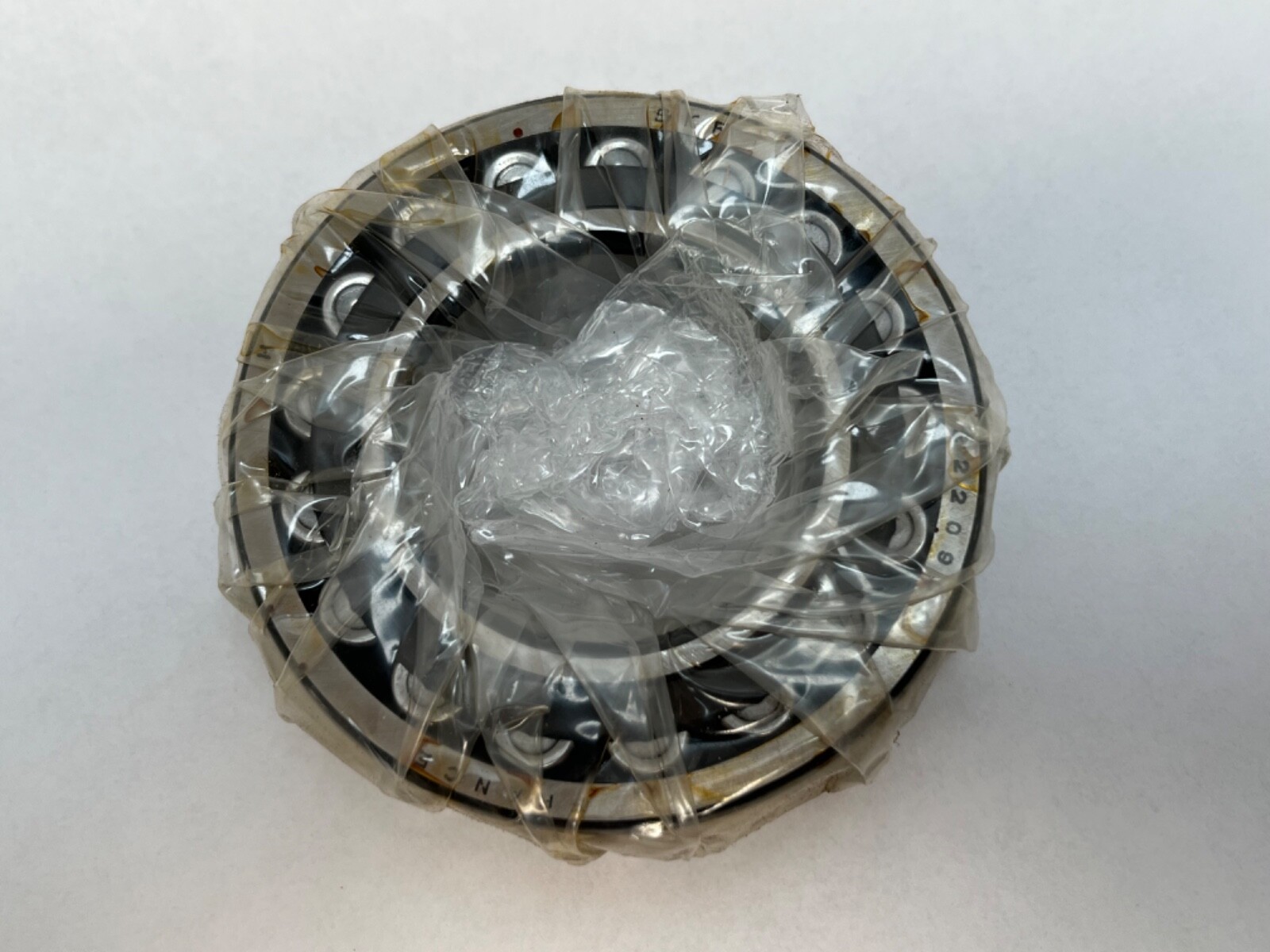

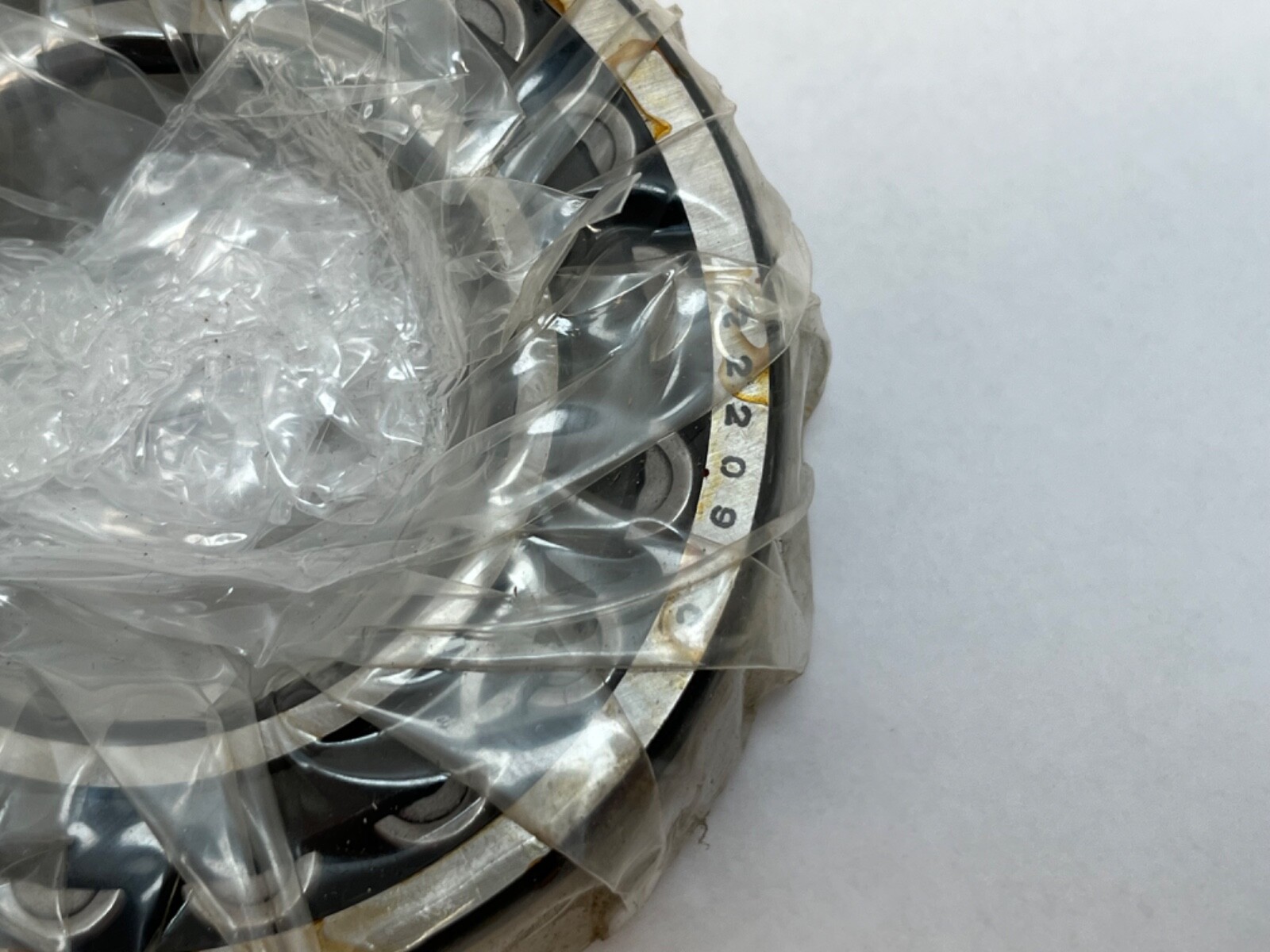

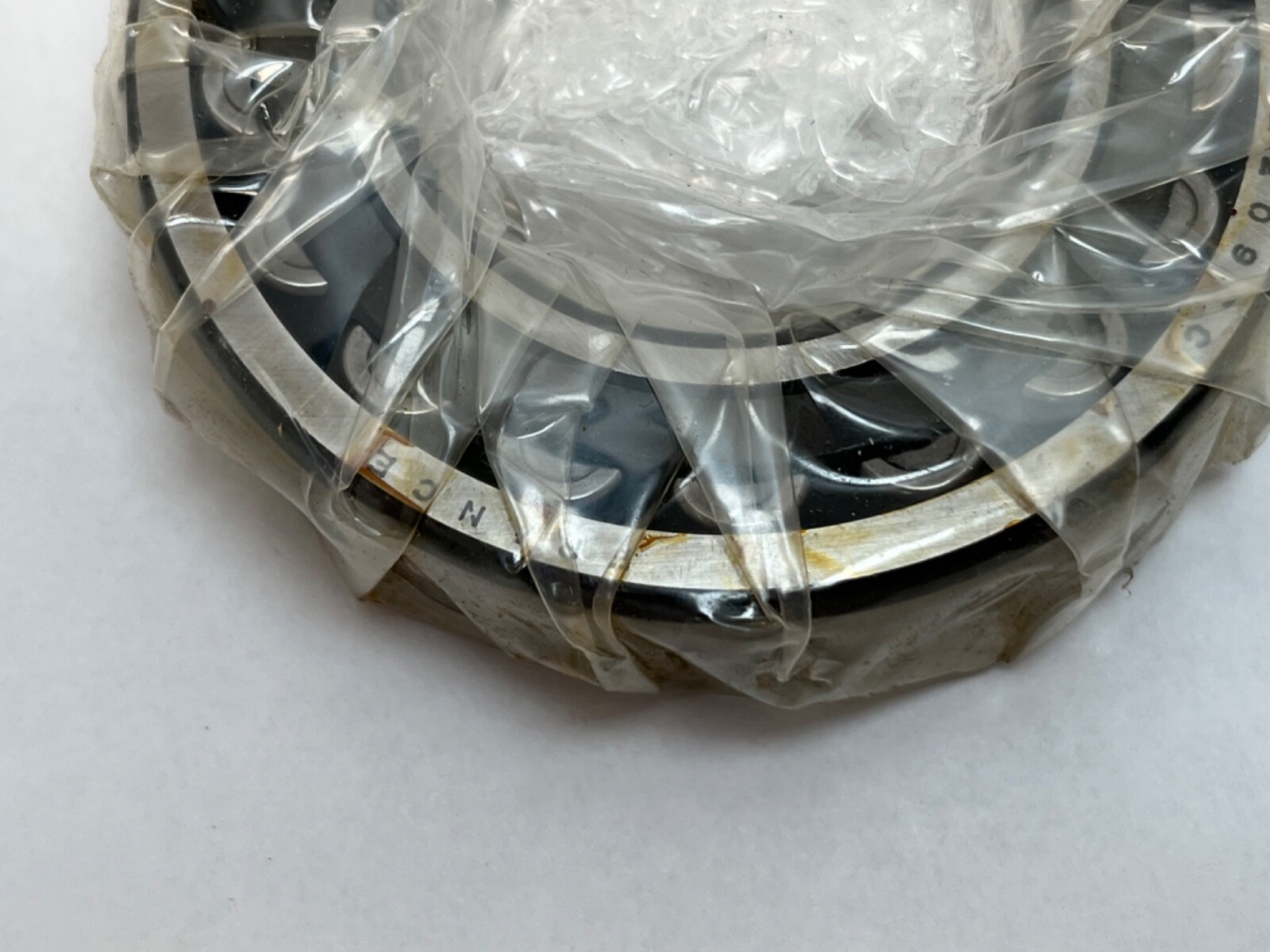

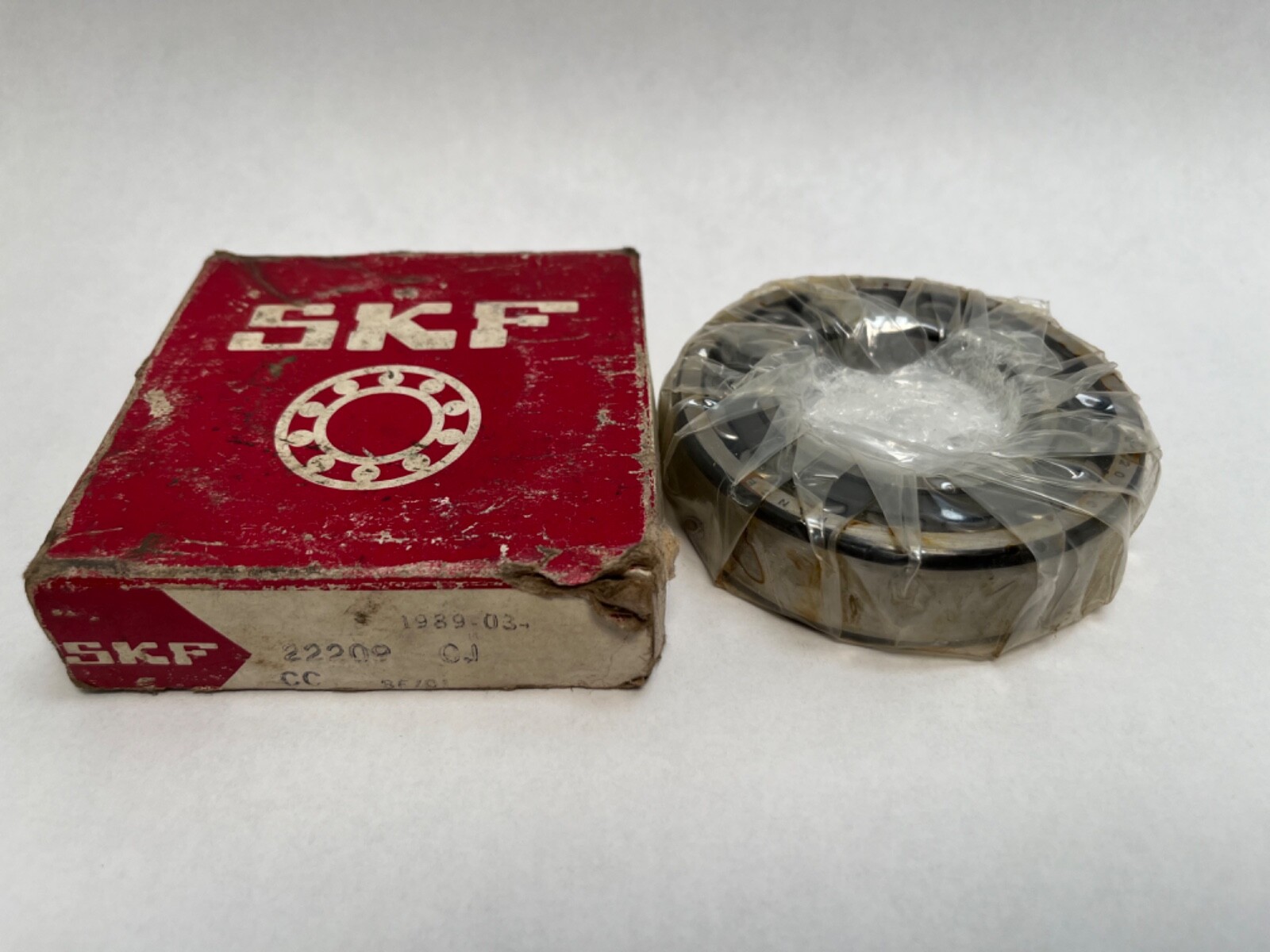

SKF22209 CJDouble-Row Spherical Roller Bearing 45 x 85 x 23 mm, Straight Bore, Pressed Steel Cage, CN Clearance

Condition: New

Availability:

1 in stock

Double-row spherical roller bearing, 45 x 85 x 23 mm, straight bore, pressed steel window cage, CN clearance, plain outer ring without groove. 1 Pc.

List Price

$63.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandSKF
MPN22209 CJ
Model22209 CC/CJ/C
Bearing TypeSpherical Roller Bearing, Open
ID45 mm
OD85 mm
Width23 mm

Technical Specifications

Series22200
MaterialBearing Steel
Base Number22209
Industry Termsspherical roller bearing; double row; self-aligning bearing
Common MisspellingsSFK 22209CJ; 22209 C-J; 22209CJ bearing
Application TypesConveyor pulleys and idlers; fans and blowers; gearboxes
Bore Shaft Size45 mm (1.7717 in), straight bore
Mpn Variants22209-CJ; 22209CJ; 22209 CJ; 22209 CC; 22209CC; 22209C
Cage TypePressed steel window cage
Rolling ElementsSpherical Rollers
Number Of Rows2
Bore TypeStraight
Snap Ring IncludedWithout Snap Ring
Harmonization Code8482.30.00
Part Number22209 CJ
Maximum Permissible Misalignment2°

Cross-References

Cross Reference 1FAG 22209-E1-XL - E design, higher rating
Cross Reference 2NSK 22209EAE4 - EA design, higher rating
Cross Reference 3Timken 22209EJ - E design, higher rating
Seller Part Number: B-AO2B5#IXLV7O

Product Description

What this part is:

SKF 22209 CJ is a double-row spherical roller bearing with a straight bore, a pressed steel window cage and a plain outer ring. Unit Quantity: 1 Pc.

Decoding the designation:

222 — the double-row spherical roller family.

09 — bore code, giving Bore Diameter: 45 mm.

CJ — pressed steel window cage.

No K — straight bore.

No clearance suffix — normal radial internal clearance, CN.

No W33 — plain outer ring, with no lubrication groove or lubrication holes.

Specifications:

Bearing Type: Spherical roller bearing, double row. Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Rollers. Bore Type: Straight. Internal Clearance: CN. Cage Type: Pressed steel window cage. Seal Type: Open. Maximum Permissible Misalignment: 2°.

Dimensions and mounting:

Bore Diameter: 45 mm (1.7717 in). Outside Diameter: 85 mm. Overall Width: 23 mm. The straight bore mounts directly onto a cylindrical shaft seat with no adapter sleeve.

Compatibility and replacement:

Related higher-rating E-design parts on the same 45 x 85 x 23 mm envelope: FAG 22209-E1-XL, NSK 22209EAE4 and Timken 22209EJ. The SKF 22209 CJ/W33 adds a lubrication groove and three holes, and the SKF 22209 CCK has a 1:12 tapered bore. MPN Variants: 22209-CJ, 22209CJ, 22209 CJ, 22209 CC, 22209CC, 22209C.

Frequently asked questions:

What are the dimensions of the SKF 22209 CJ?

Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.

Does the SKF 22209 CJ have a lubrication groove?

The outer ring is plain, with no lubrication groove and no lubrication holes.

What internal clearance does the SKF 22209 CJ have?

Internal Clearance: CN, normal radial internal clearance.
