Availability:
2 in stock

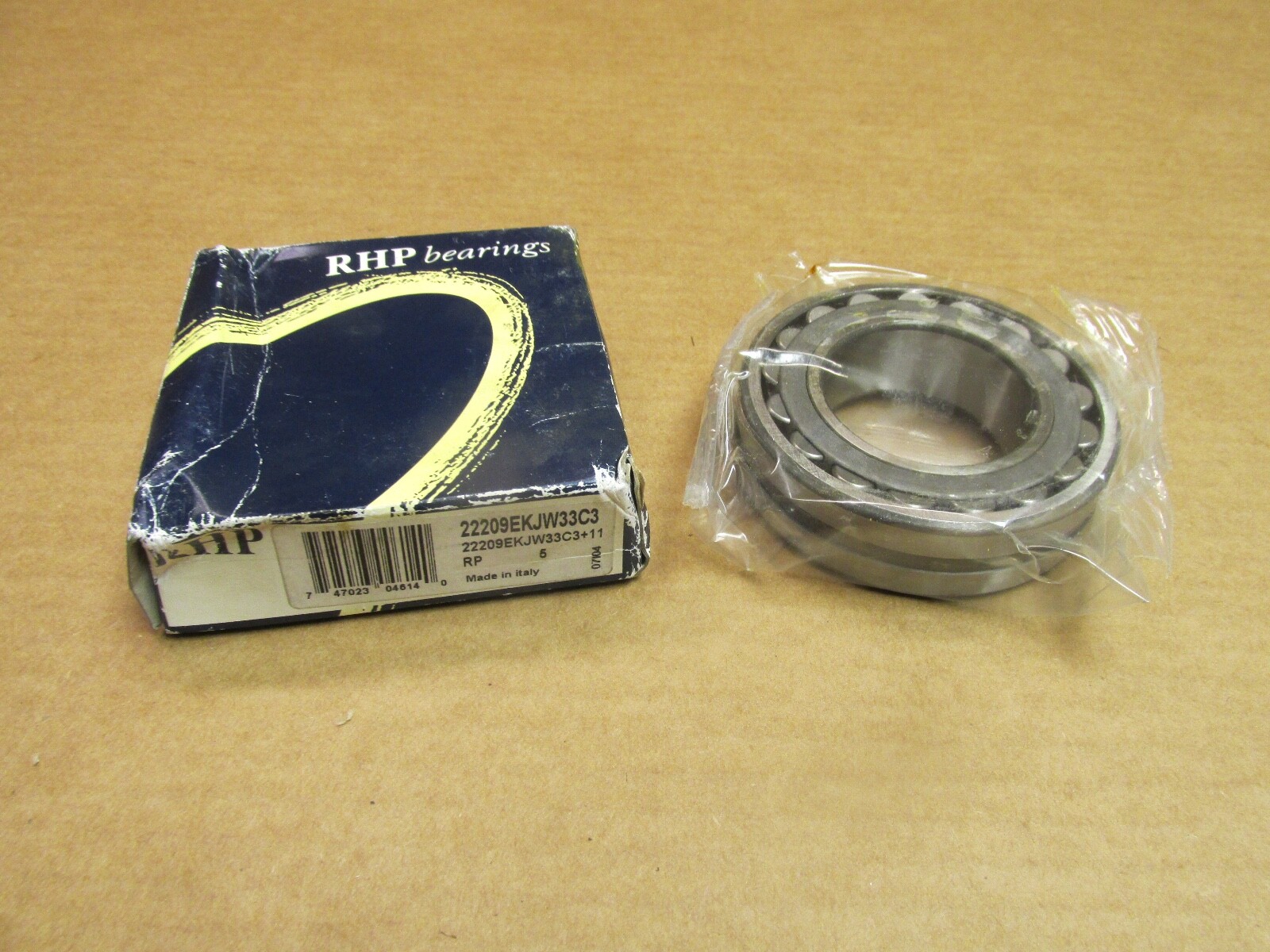

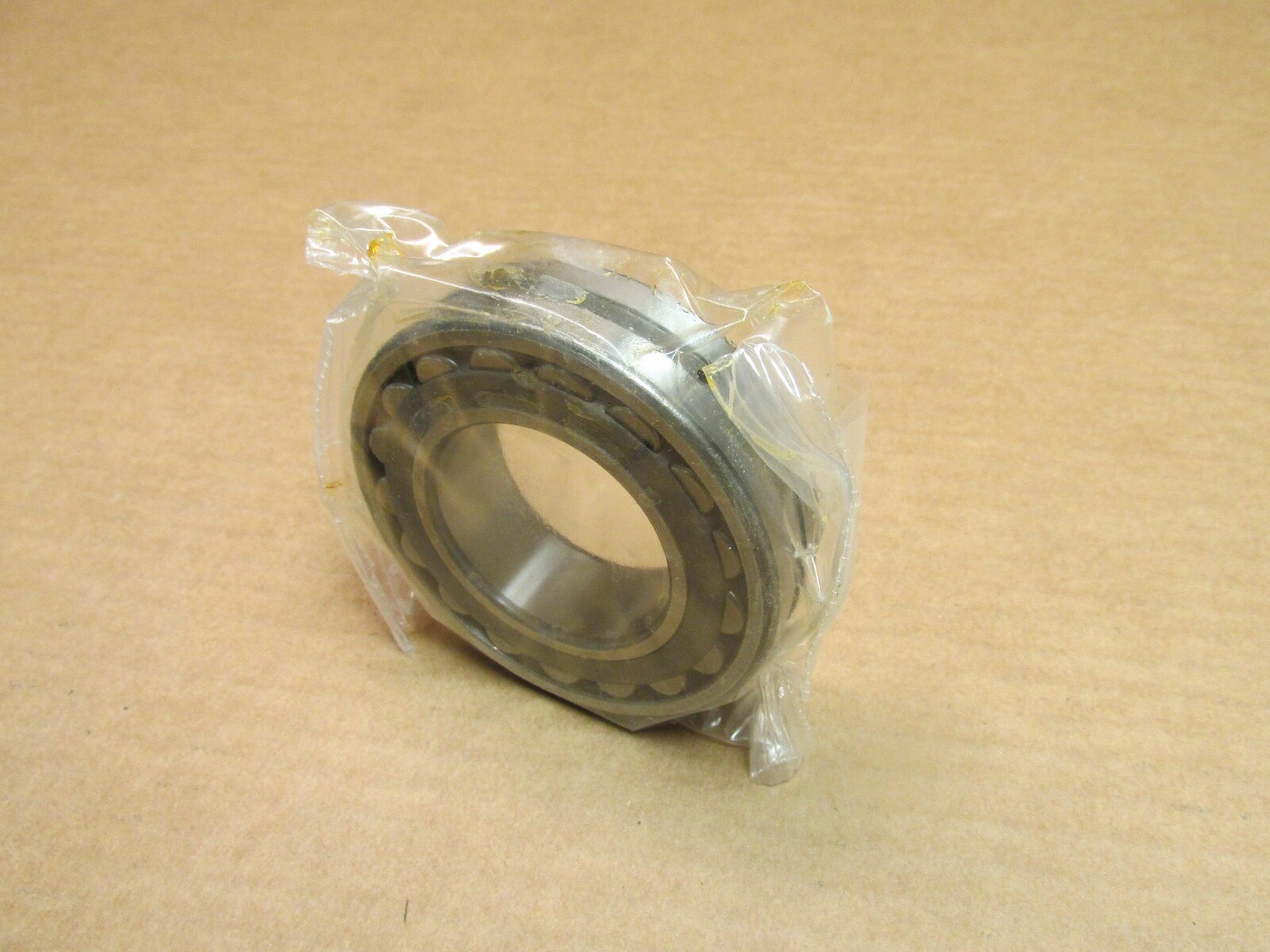

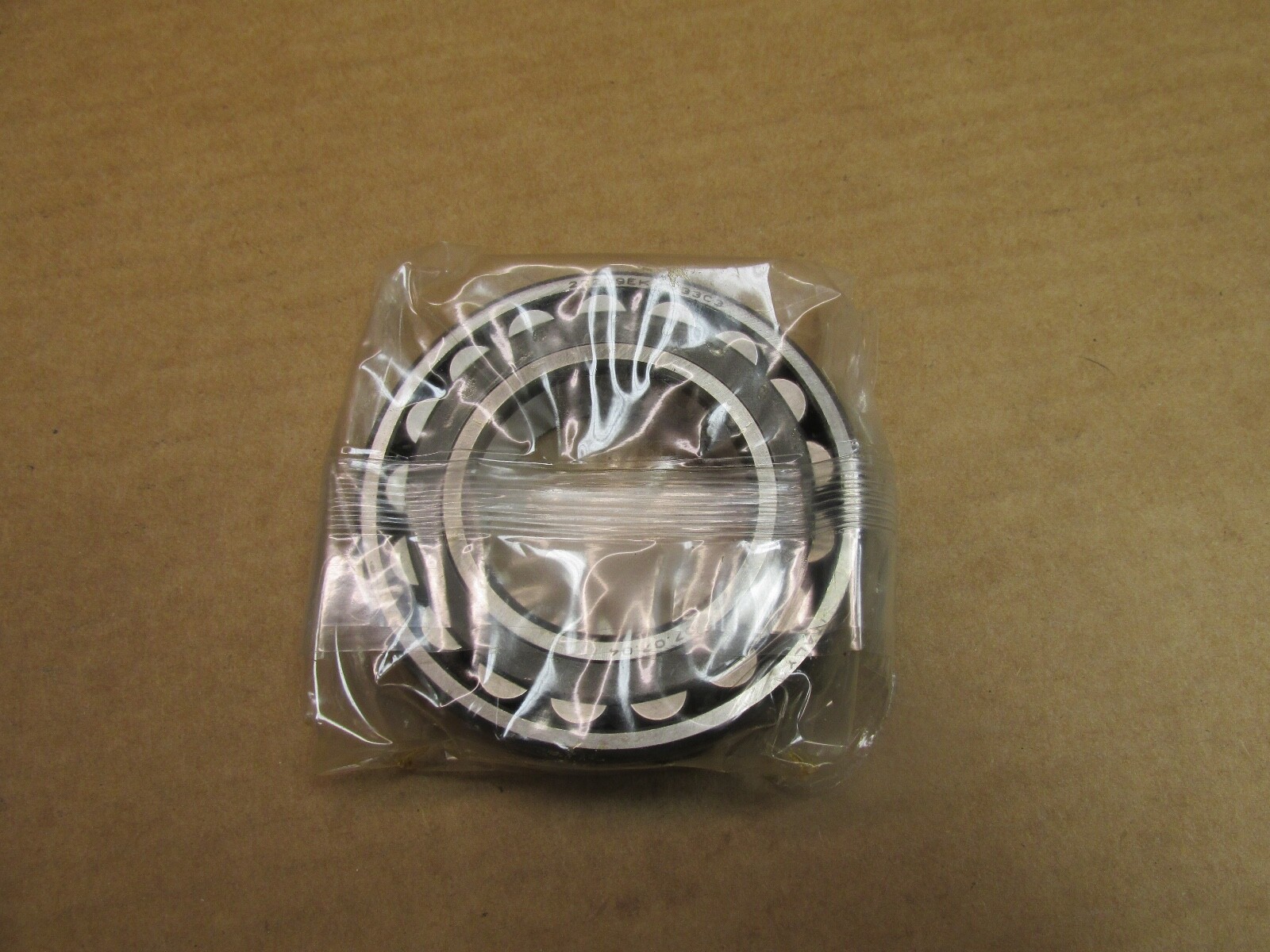

RHP 22209EKJW33C3 spherical roller bearing, 45 mm bore, 85 mm OD, 23 mm width, 1:12 tapered bore, C3 clearance, pressed steel cage, open design.
List Price
$44.18
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 22209EKJW33C3 |
| GTIN | 747023046140 |
| Model | 22209EKJ W33 C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Cage Type | Pressed steel, rolling-element centred |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Limiting Speed | 5,300 rpm grease; 6,700 rpm oil |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00.80 |
| Closure Type | Open |
| Mpn Variants | 22209EKJW33C3, 22209 EKJ W33 C3, 22209-EKJ-W33-C3, 22209K |
| Cross Reference 1 | Timken 22209EJW33 (cylindrical bore, normal clearance) |
|---|
RHP 22209EKJW33C3 double-row spherical roller bearing with a 1:12 tapered bore, C3 internal clearance and a W33 lubrication groove in the outer ring. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Unit Quantity: 1 Pc.
22209 — ISO 222-series spherical roller envelope, 45 x 85 x 23 mm.
E — higher radial load rating design.
K — tapered bore, 1:12 taper.
J — pressed steel cage, rolling-element centred.
W33 — lubrication groove and three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered Bore. Internal Clearance: C3. Seal Type: Open. Cage Material: Pressed steel. Cage Type: Pressed steel, rolling-element centred. Lubricant: Grease or oil. Series: 22200. Harmonization Code: 8482.30.00.80.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Bore Taper: 1:12.
Related part with a cylindrical bore and normal clearance: Timken 22209EJW33.
MPN Variants: 22209EKJW33C3, 22209 EKJ W33 C3, 22209-EKJ-W33-C3, 22209K.
K is a 1:12 tapered bore, W33 is a lubrication groove with three radial holes in the outer ring, and C3 is radial internal clearance greater than normal.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
J is a pressed steel cage, rolling-element centred.
