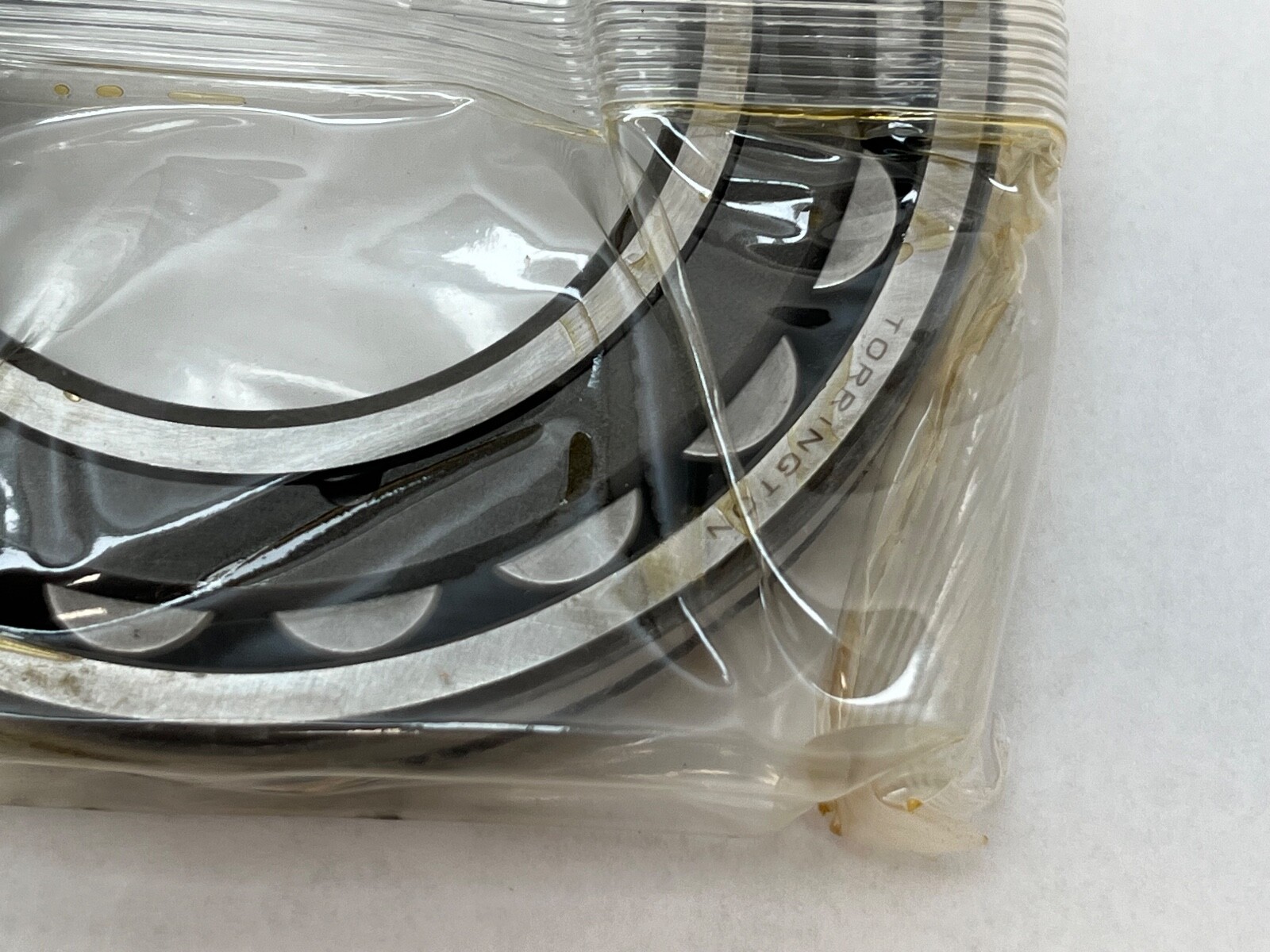

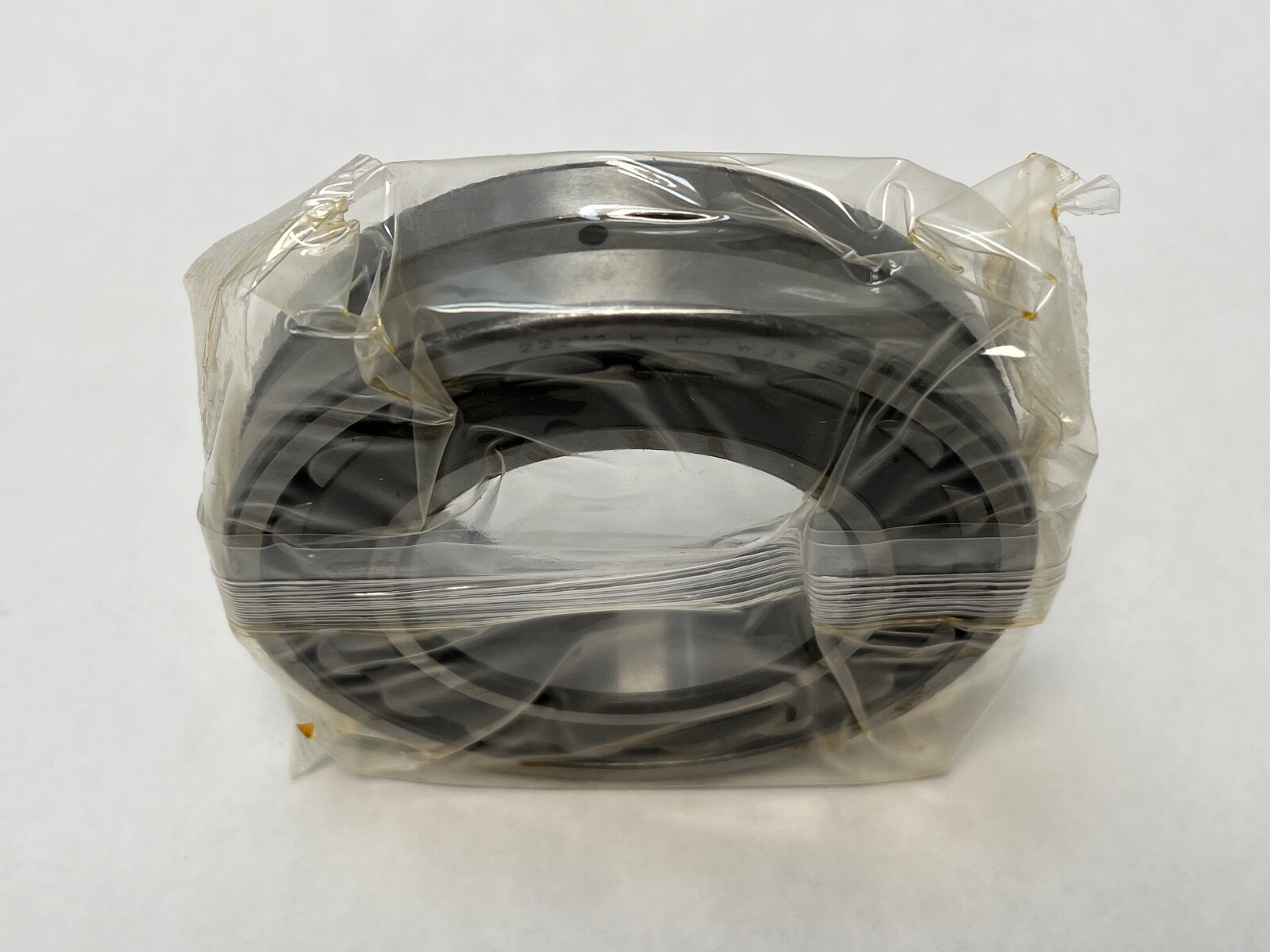

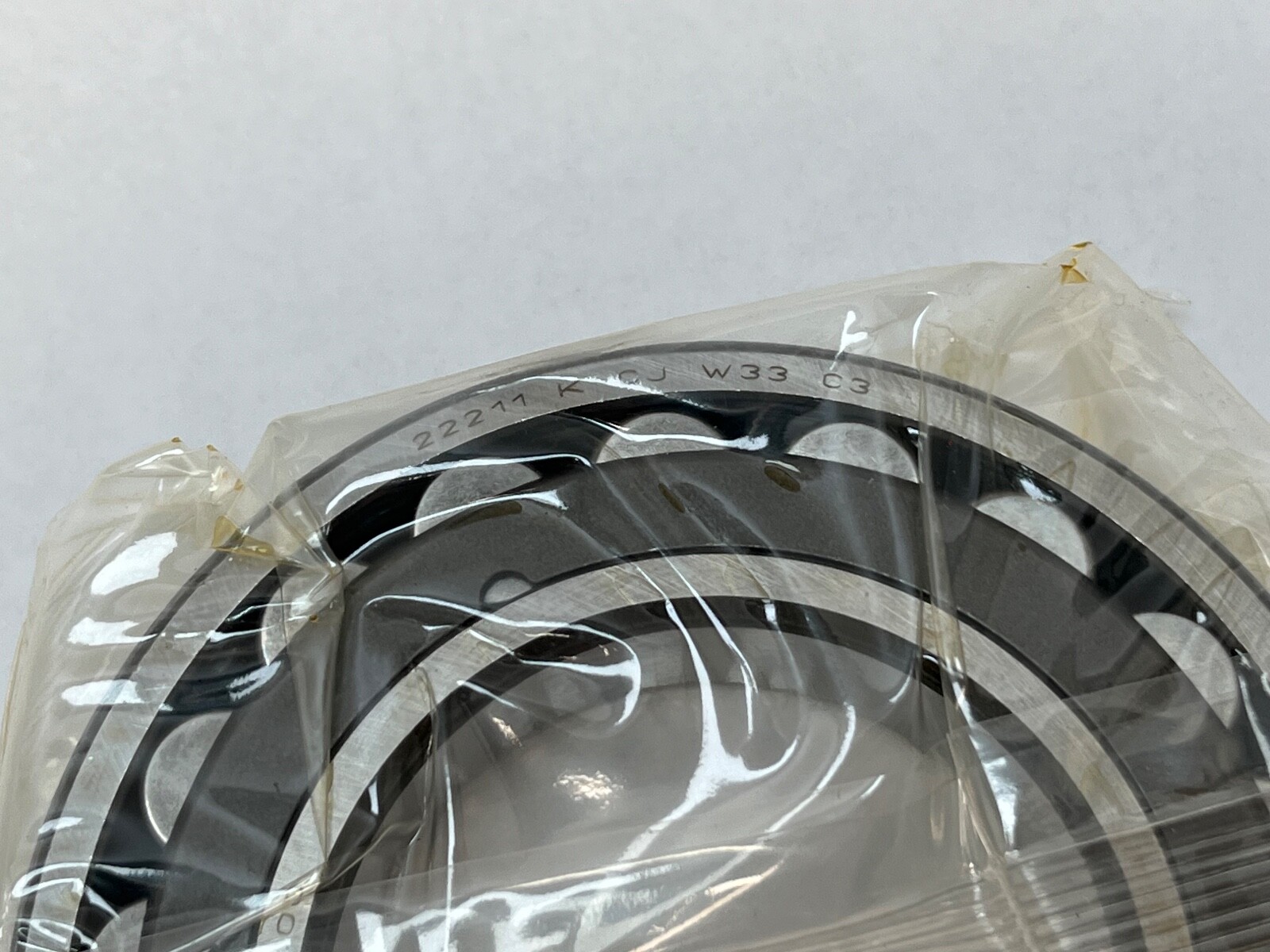

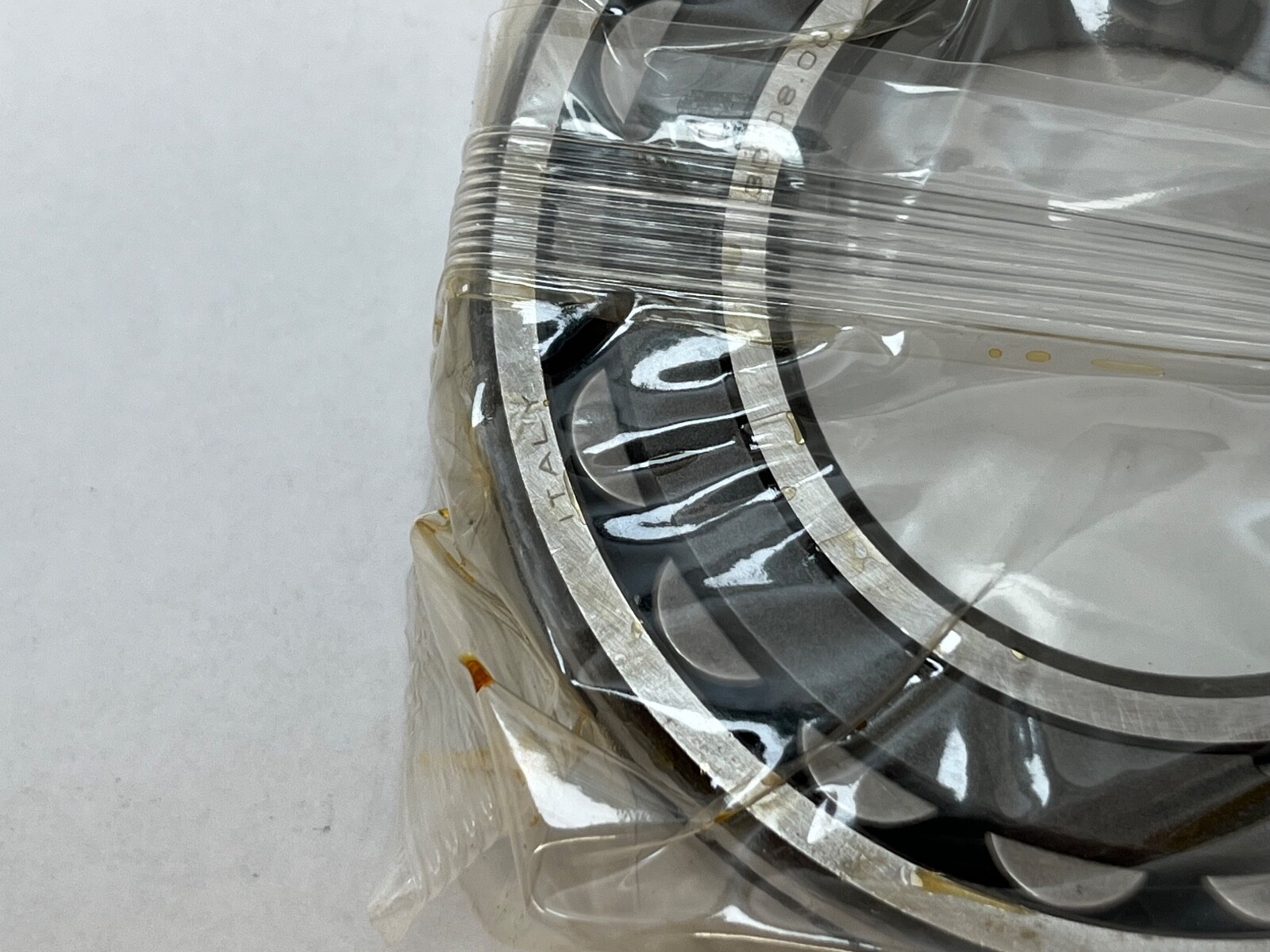

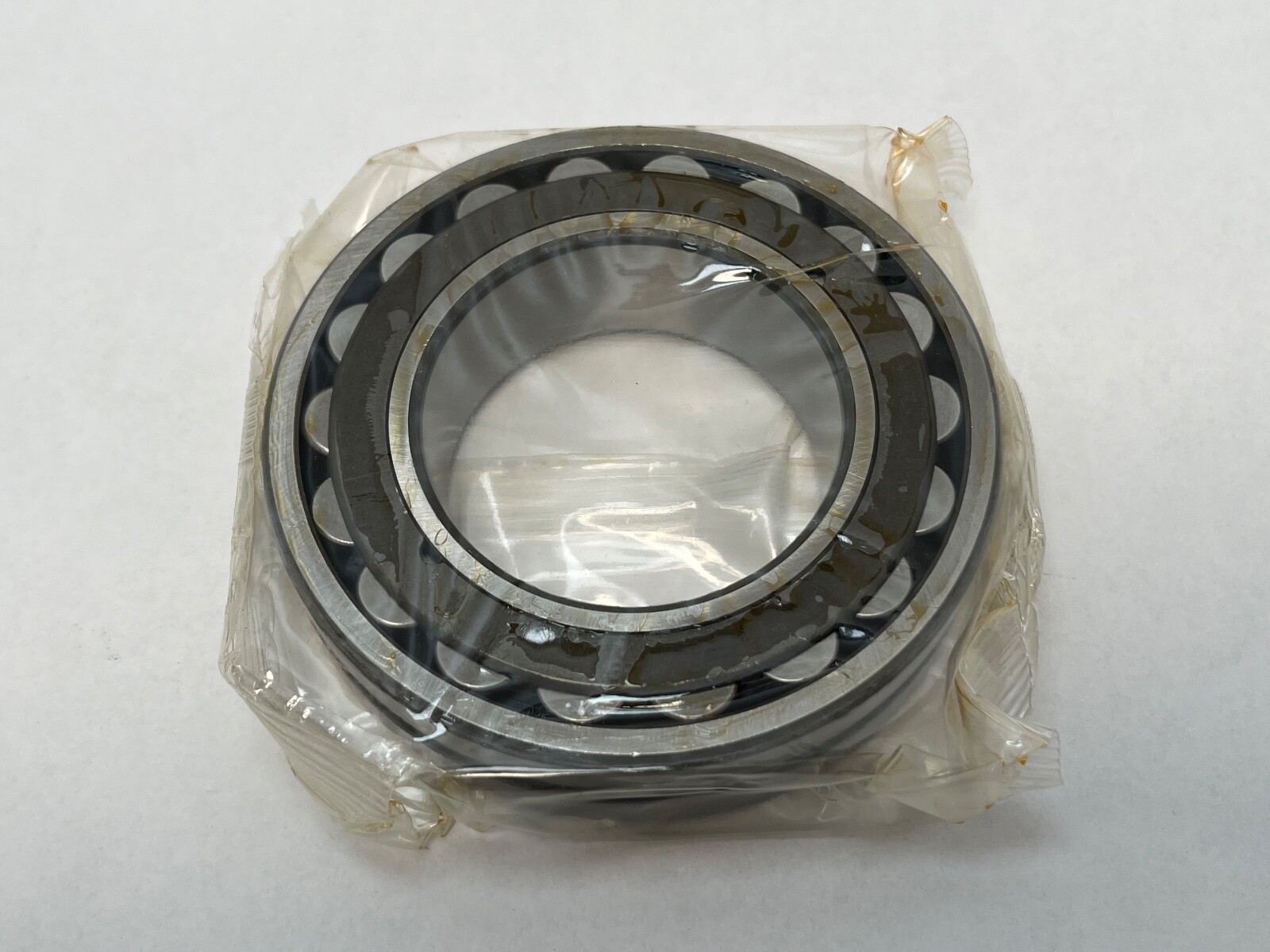

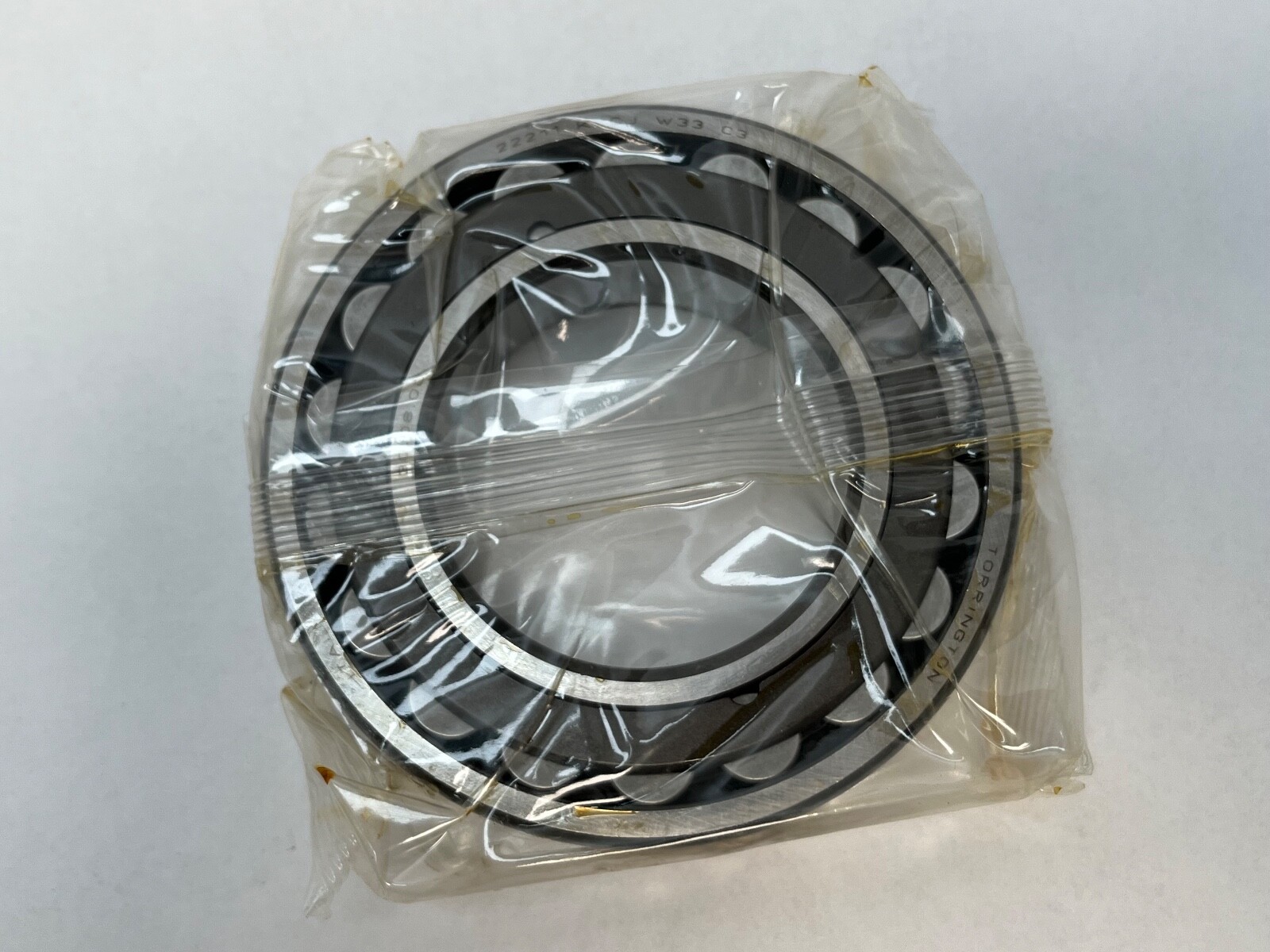

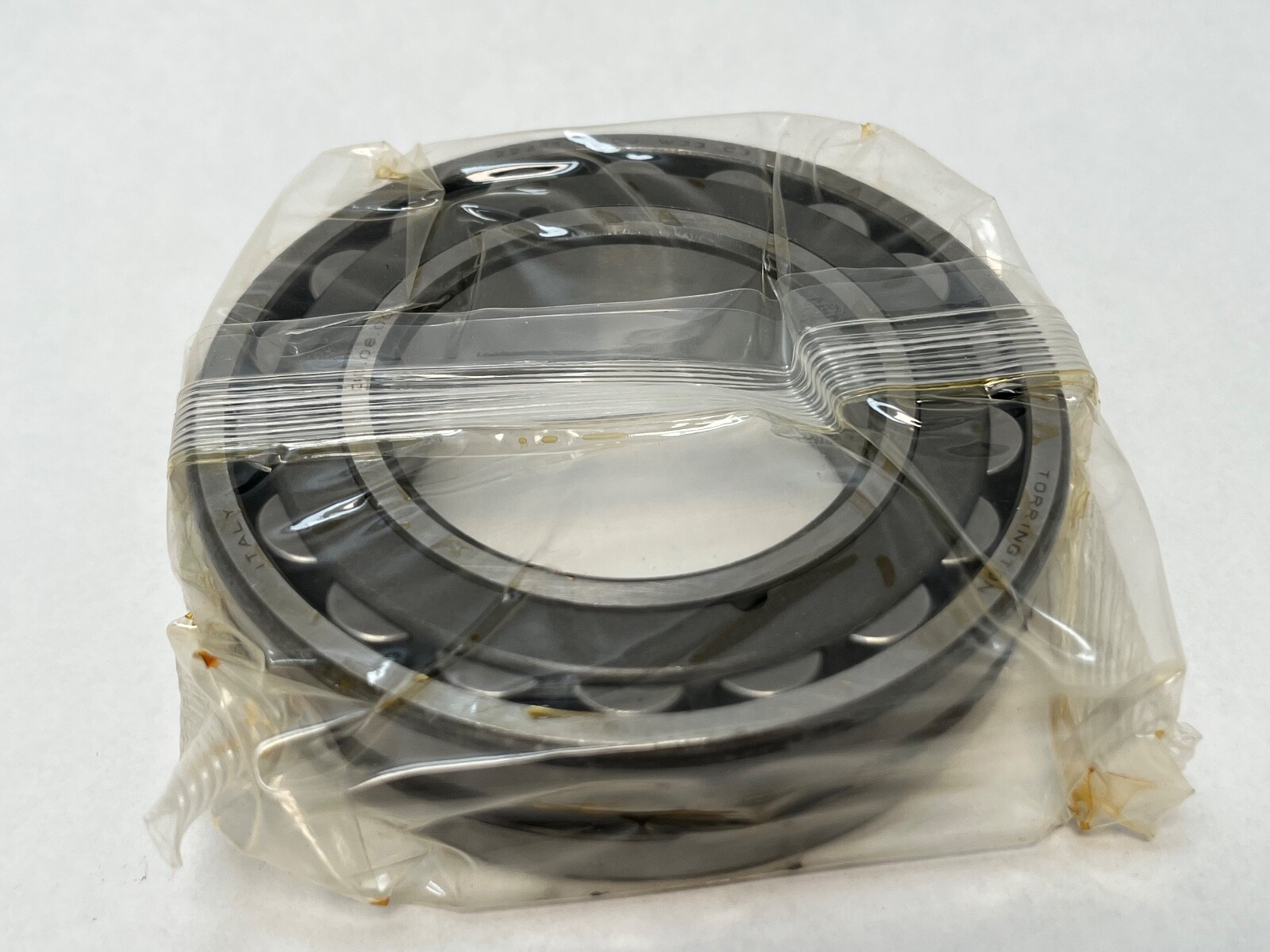

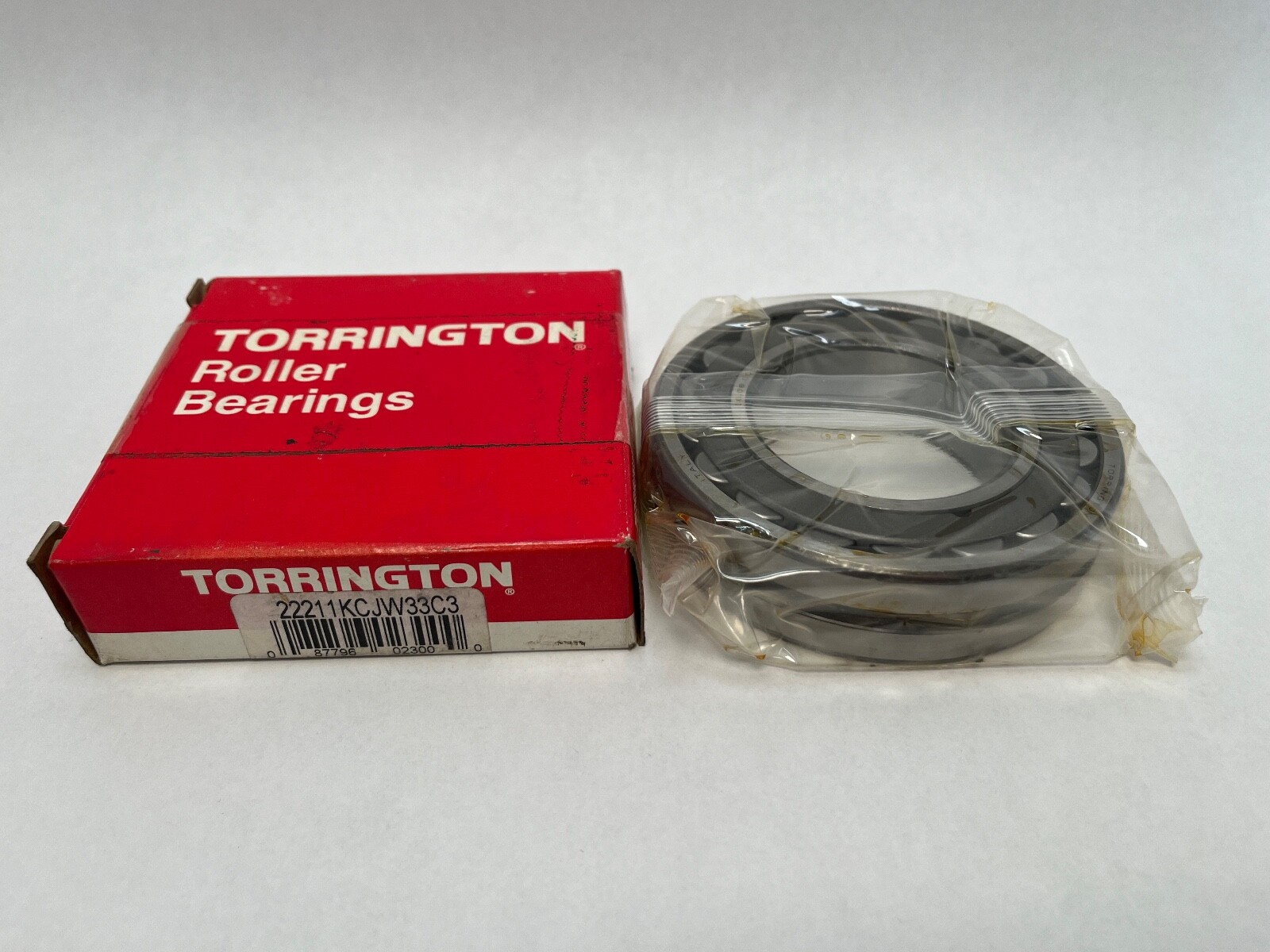

Torrington 22211KCJW33C3 spherical roller bearing, 55 mm tapered bore x 100 mm OD x 25 mm wide, steel cage, W33 groove, C3. Timken successor: 22211KEJW33C3.
List Price
$51.53
46 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| Model | 22211-K-C-J-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 25 mm |
| Series | 22200 |
|---|---|
| Lubricant | Grease |
| Closure Type | Open |
| Dynamic Load Rating | 140,000 N (Successor 22211KEJW33C3 data) |
| Static Load Rating | 142,000 N (Successor 22211KEJW33C3 data) |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | C3 |
| Mpn Variants | 22211KCJW33C3, 22211-K-C-J-W33-C3, 22211 K CJ W33 C3, 22211CKJ, 22211CKJW33C3 |
| Compatible With Replaces | Timken 22211KEJW33C3 (current successor design) |
| Additional Attributes | Successor 22211KEJW33C3 data: e factor 0.23; Y0 2.89; Y1 2.95; Y2 4.4; shaft backing shoulder 66 mm; housing backing shoulder 91 mm; max fillet radius 1.5 mm. Adapter sleeve: H311 |
| Design Units | Metric |
| Cross Reference 1 | Timken 22211KEJW33C3 |
|---|---|
| Cross Reference 2 | SKF 22211 EK/C3 |
| Cross Reference 3 | FAG 22211-E1-K-C3 |
| Cross Reference 4 | NSK 22211EAKE4C3 |
Torrington 22211KCJW33C3 double-row spherical roller bearing: 55 mm tapered bore, 100 mm outside diameter, 25 mm width, steel cage, W33 lubrication groove, C3 clearance. Torrington is a Timken brand; the current Timken design is 22211KEJW33C3.
222 — spherical roller bearing, ISO dimension series 22.
11 — bore code. 11 × 5 = 55 mm bore.
K — 1:12 tapered bore for adapter-sleeve or tapered-journal mounting.
CJ — Torrington internal design with steel cage.
W33 — lubrication groove with three radial holes in the outer ring.
C3 — radial internal clearance greater than normal.
Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil.
Successor 22211KEJW33C3 data: Dynamic Load Rating: 140,000 N. Static Load Rating: 142,000 N. Reference Speed: 4,700 rpm grease; 5,800 rpm oil. e factor: 0.23. Y1: 2.95. Y2: 4.4. Y0: 2.89.
The C3 clearance absorbs the ring expansion from a tapered-bore drive-up and from shaft-to-housing temperature difference. The W33 groove feeds grease or oil to the centre of both roller rows.
Successor 22211KEJW33C3 data: Shaft Backing Shoulder Diameter: 66 mm. Housing Backing Shoulder Diameter: 91 mm. Maximum Fillet Radius: 1.5 mm. Related part: H311 adapter sleeve with KM11 locknut and MB11 lockwasher.
Unit Quantity: 1 Pc. One complete bearing.
Same 55 × 100 × 25 mm tapered-bore C3 envelope: Timken 22211KEJW33C3, SKF 22211 EK/C3, FAG 22211-E1-K-C3, NSK 22211EAKE4C3, NTN 22211EAKW33C3.
