Double-row spherical roller bearing, 120 x 215 x 58 mm, straight bore, C3 clearance, W33 lubrication groove. Self-aligning for shafts that deflect.
List Price
$269.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22224-CY-C3W33 |
| Model | 22224CYC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | Oil/Grease |
| Base Number | 22224 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; double row barrel roller bearing; SRB; C3 clearance bearing; W33 lube groove bearing |
| Common Misspellings | 22224 bering; spherical bering; 22224CY C3 W-33; 22224 CY-MB-C3W33; SKF 2224-CY-C3W33 |
| Application Types | Gearboxes; conveyor head and tail shafts; fan and blower shafts; vibrating screens; pulp and paper machinery; crushers; mixers and agitators; heavy plummer-block positions |
| Bore Shaft Size | 120 mm, cylindrical (straight) bore |
| Mpn Variants | 22224-CY-C3W33; 22224 CY C3 W33; 22224CYC3W33; 22224-CY-MB-C3-W33; 22224 CY MB C3 W33; 22224CY; 22224 CY; 22224C3W33; 22224 C3 W33; 22224 |
| Manufacturer Status | Legacy SKF execution designation; SKF's current catalogue designation in this envelope is the 22224 CC/W33 family. MRC-branded equivalents trace to SKF. |
| Compatible With Replaces | Housings and shaft seats machined for an ISO 22224 (120 x 215 x 58 mm) straight-bore double-row spherical roller bearing specified with C3 clearance. The 232 series 23224 is a related size, wider and higher capacity in the same bore. |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Part Number | 22224-CY-C3W33 |
| Cross Reference 1 | SKF 22224 CC/W33 C3 - CC cage execution |
|---|---|
| Cross Reference 2 | FAG 22224-E1-C3 - E1 design |

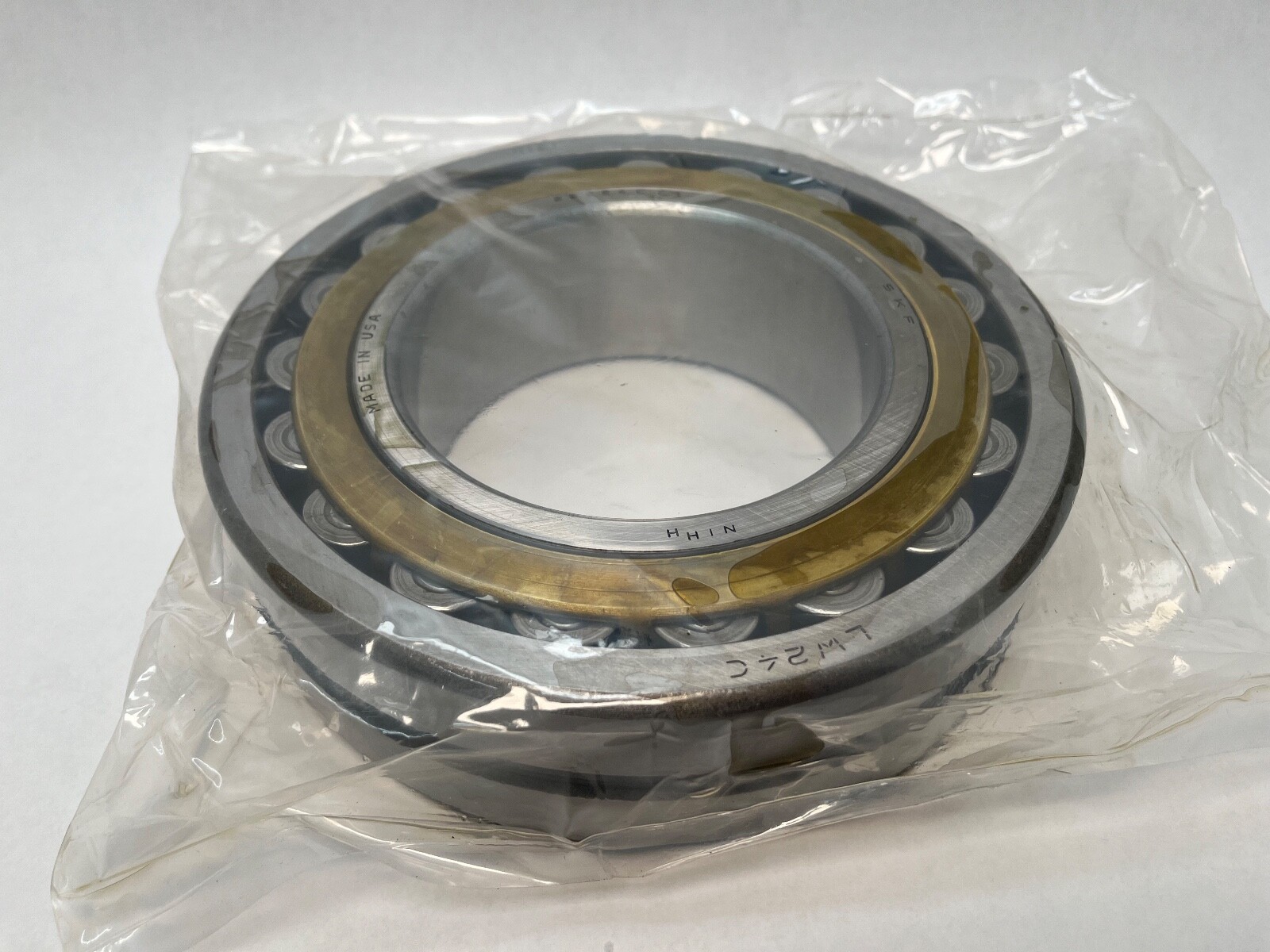

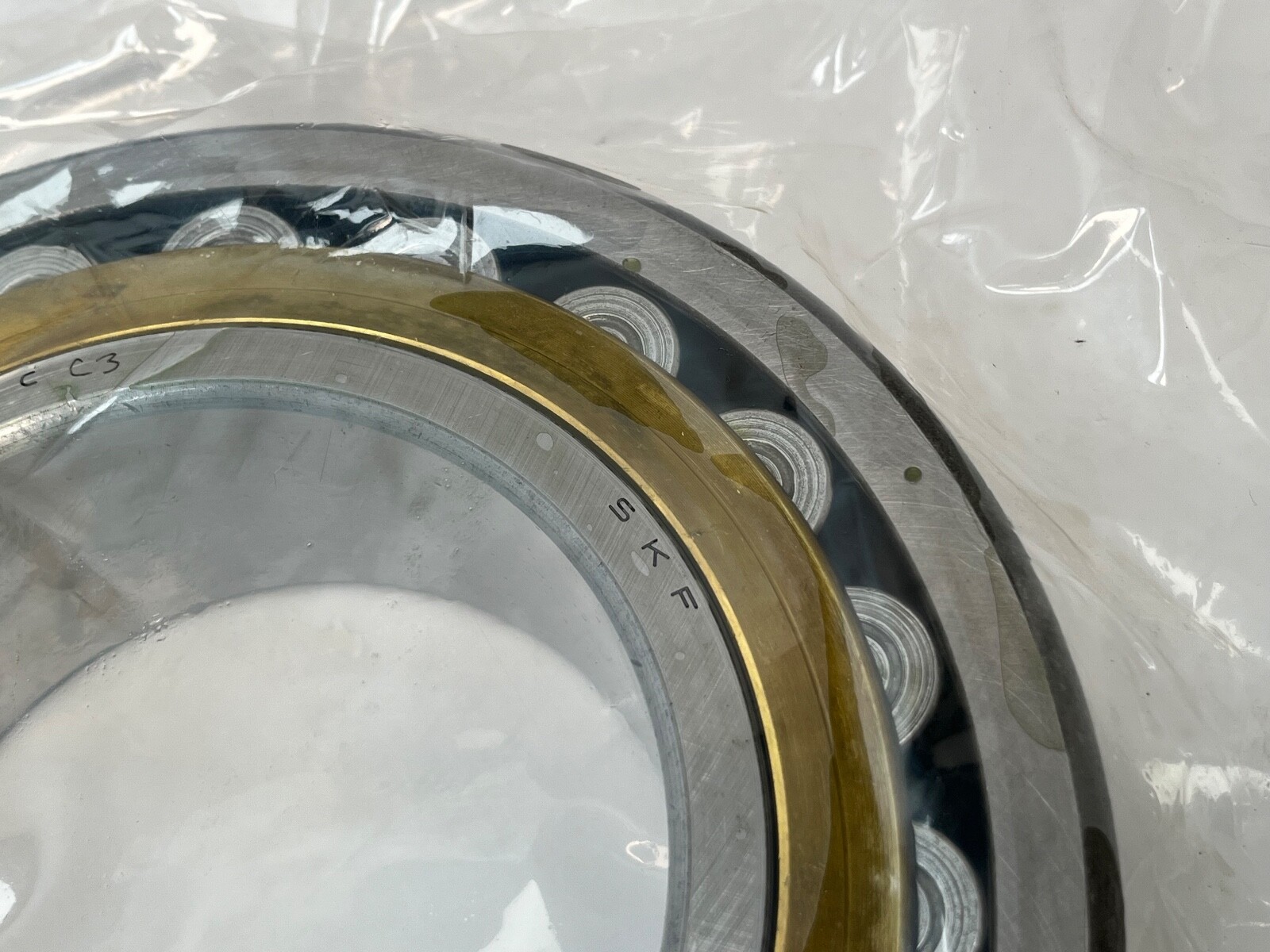

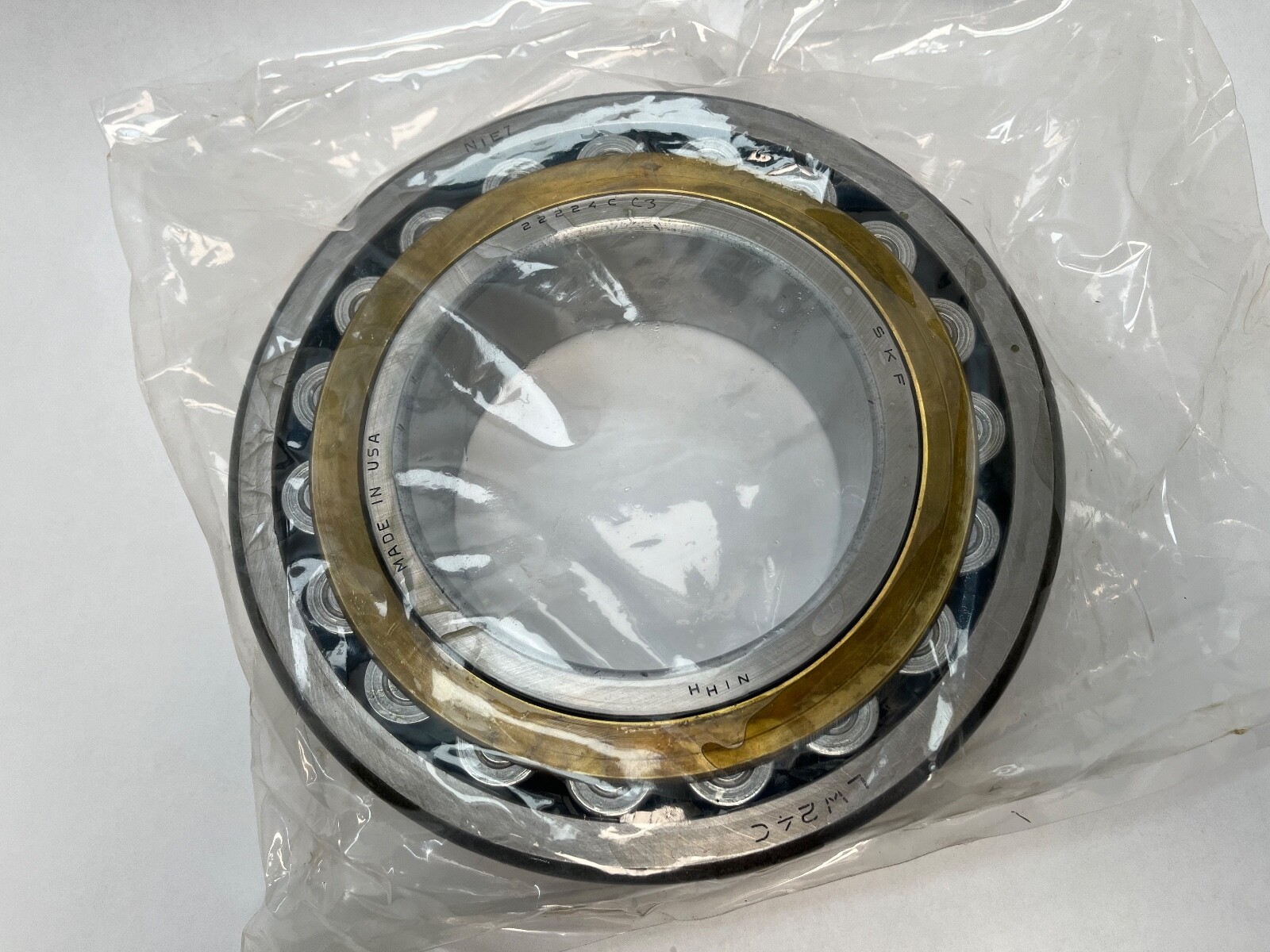

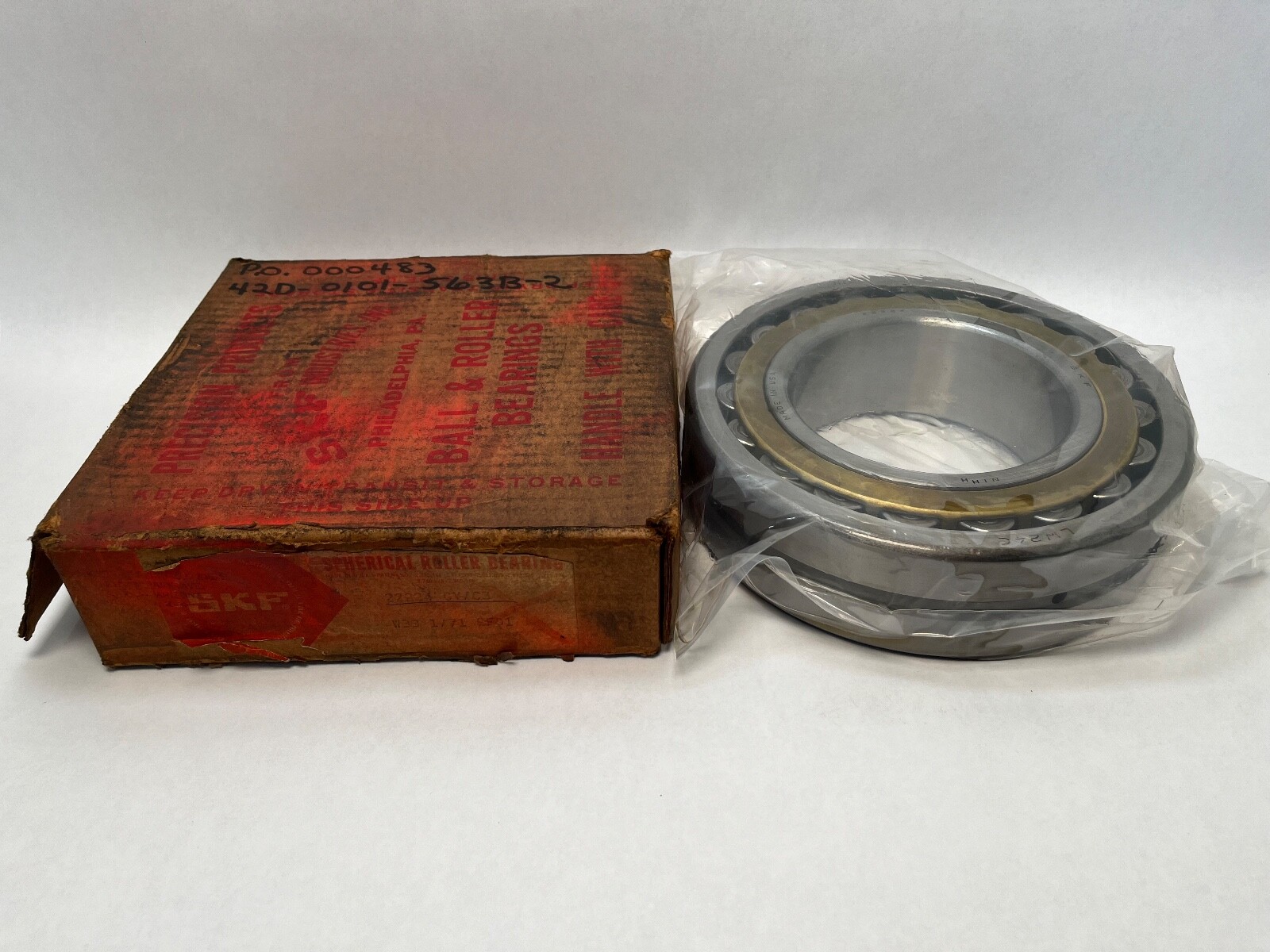

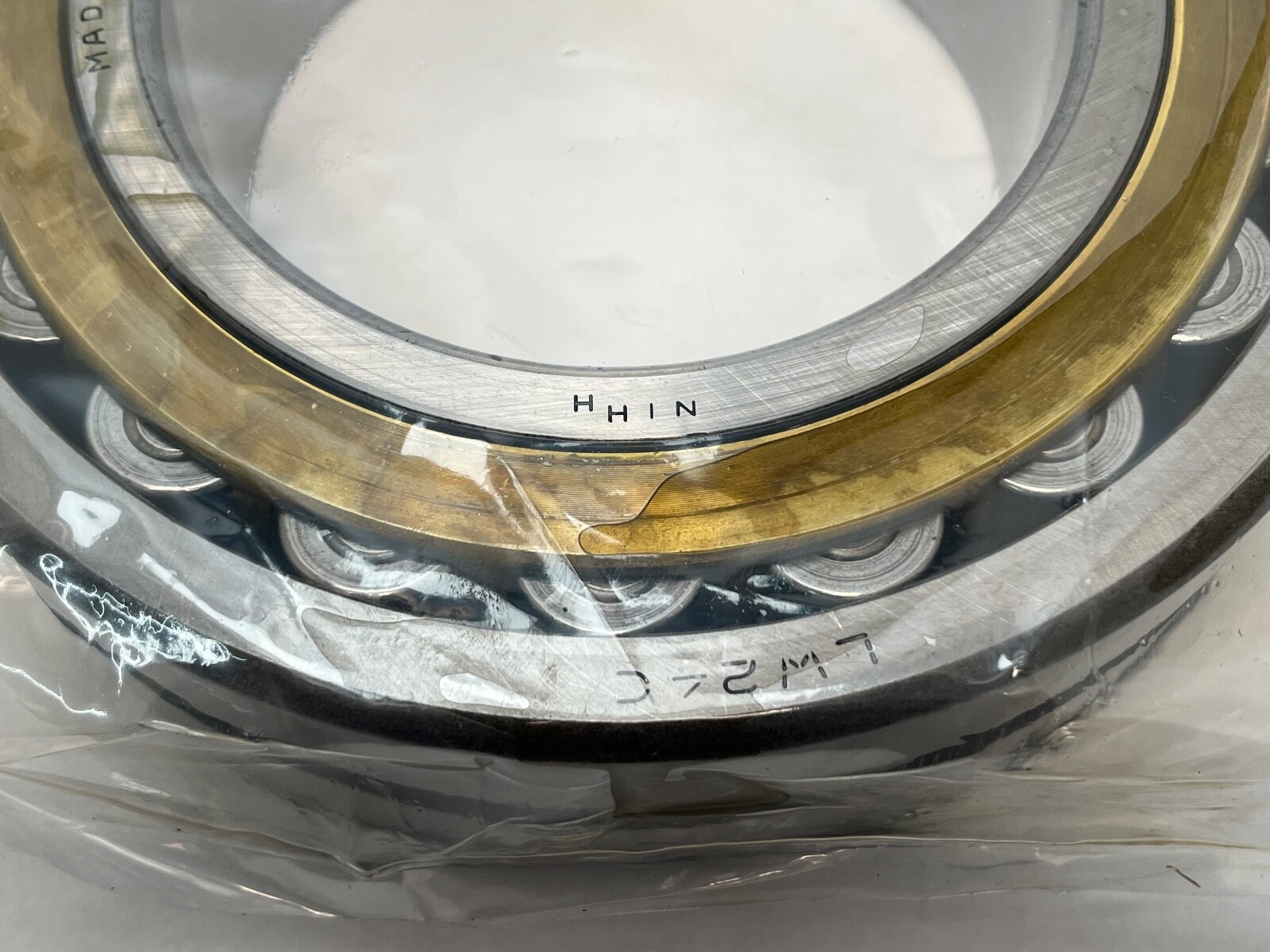

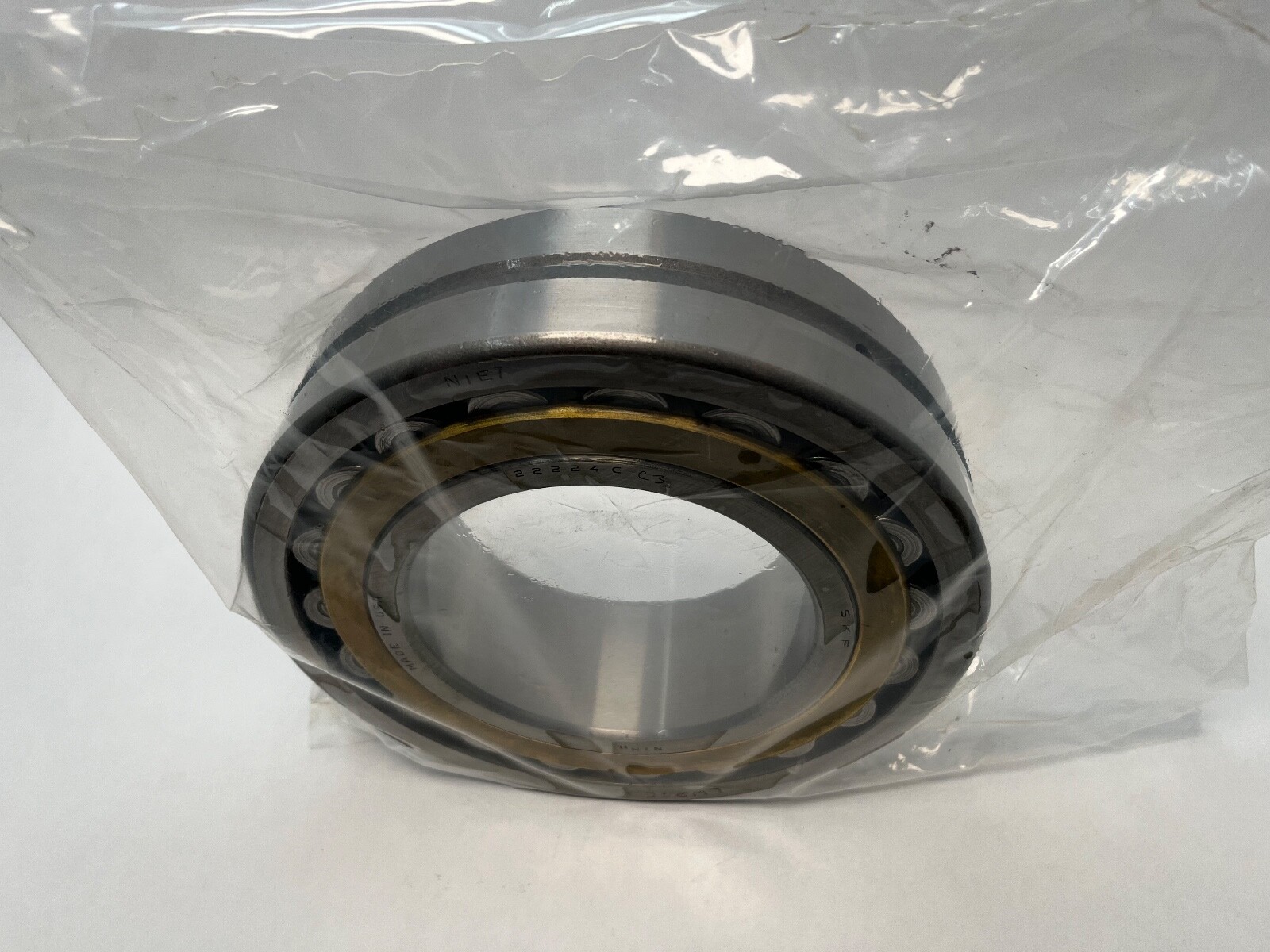

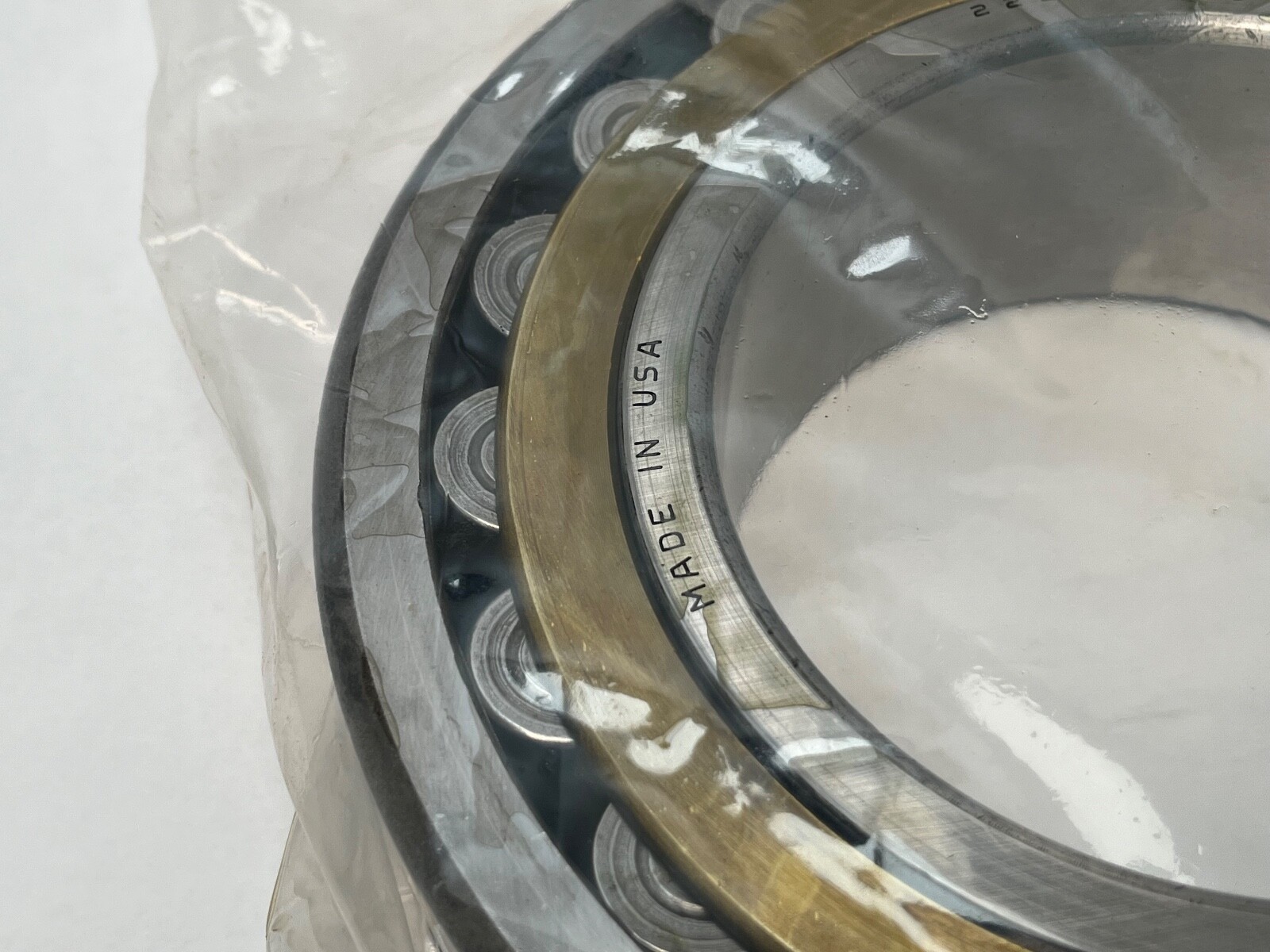

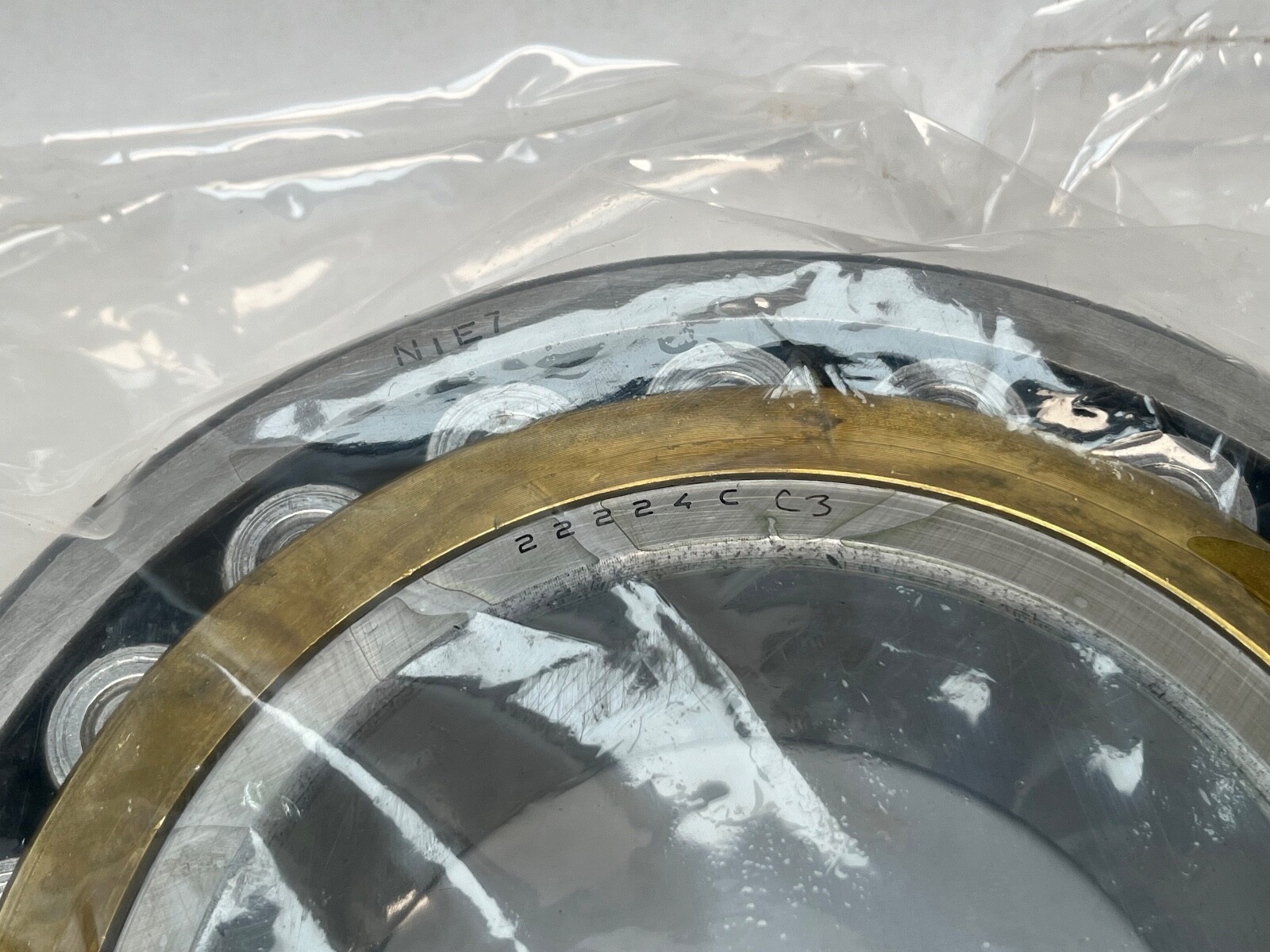

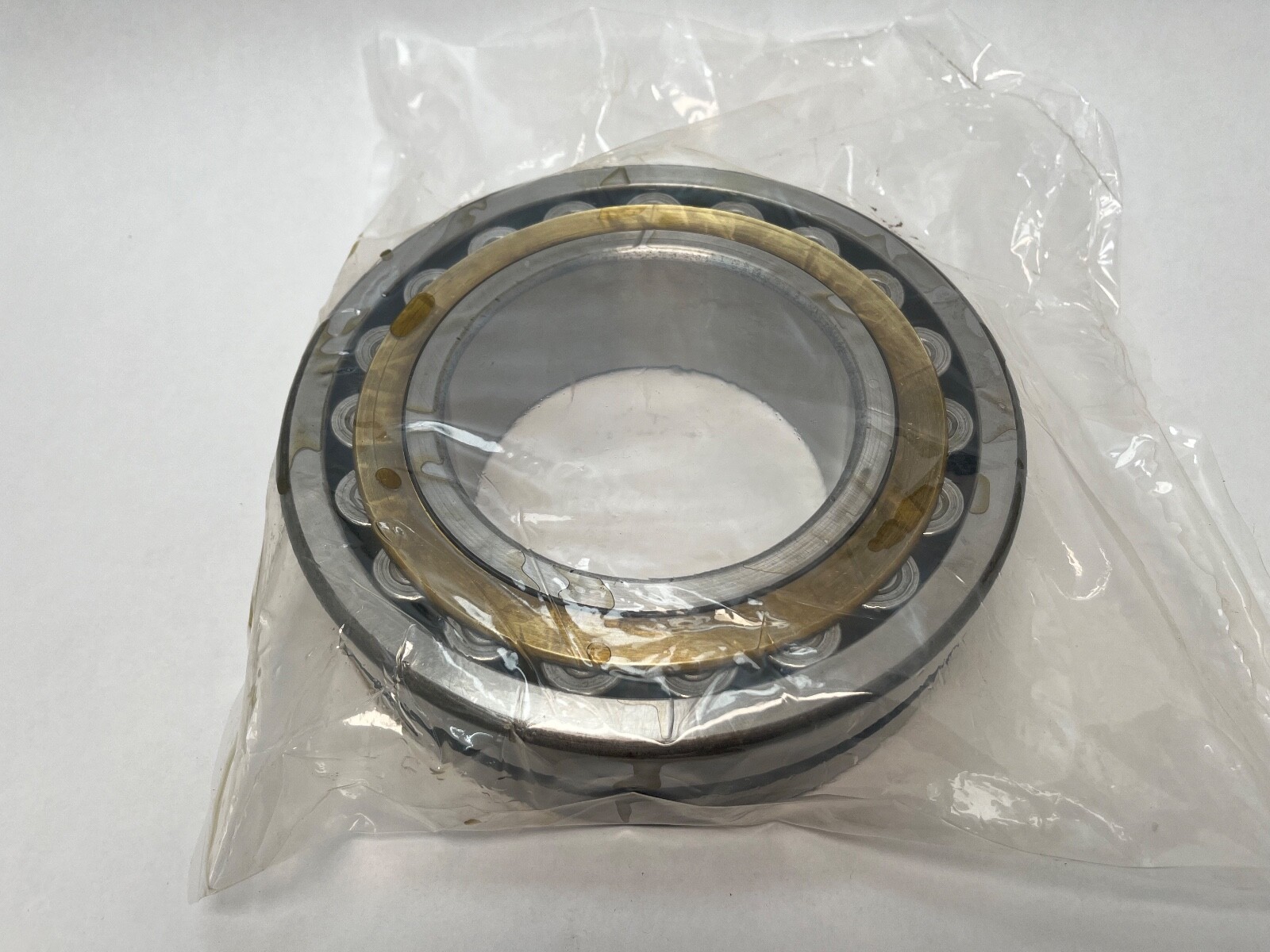

SKF 22224-CY-C3W33 is a double-row spherical roller bearing, 120 x 215 x 58 mm, with a straight cylindrical bore, open design, C3 radial internal clearance and a W33 lubrication groove with three radial holes in the outer ring. Unit Quantity: 1 Pc. The carton also reads 22224-CY-MB-C3-W33.
22224 — ISO base number: 222 series double-row spherical roller bearing, 120 mm bore.
C3 — radial internal clearance greater than normal.
W33 — annular groove with three radial holes in the outer ring for lubricant feed.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Width: 58 mm. Number of Rows: 2. Rolling Elements: Spherical Roller. Internal Clearance: C3. Bore Type: Straight. Closure Type: Open. Lubricant: grease or oil. Series: 222. Base Number: 22224. Harmonization Code: 8482.30.00.
Bore: 120 mm, straight cylindrical (no K in the designation). Outside Diameter: 215 mm. Width: 58 mm. Outer ring: W33 groove with three radial holes. Self-aligning: the inner ring and roller assembly swivel within the spherical outer raceway.
Cross-references: SKF 22224 CC/W33 C3 (CC cage execution); FAG 22224-E1-C3 (E1 design). Related: SKF 22224 CCK/W33 has the same envelope with a tapered bore. Also written 22224-CY-C3W33, 22224 CY C3 W33, 22224CYC3W33, 22224-CY-MB-C3-W33, 22224CY and 22224.
Bore 120 mm, outside diameter 215 mm, width 58 mm.
C3 radial internal clearance, and a W33 groove with three radial holes in the outer ring.
Straight cylindrical. The designation has no K suffix.
