NTN22224BKD1Double-Row Spherical Roller Bearing 120x215x58 mm, Tapered 1:12 Bore, Outer-Ring Lubrication Groove and Three Holes

Product Description

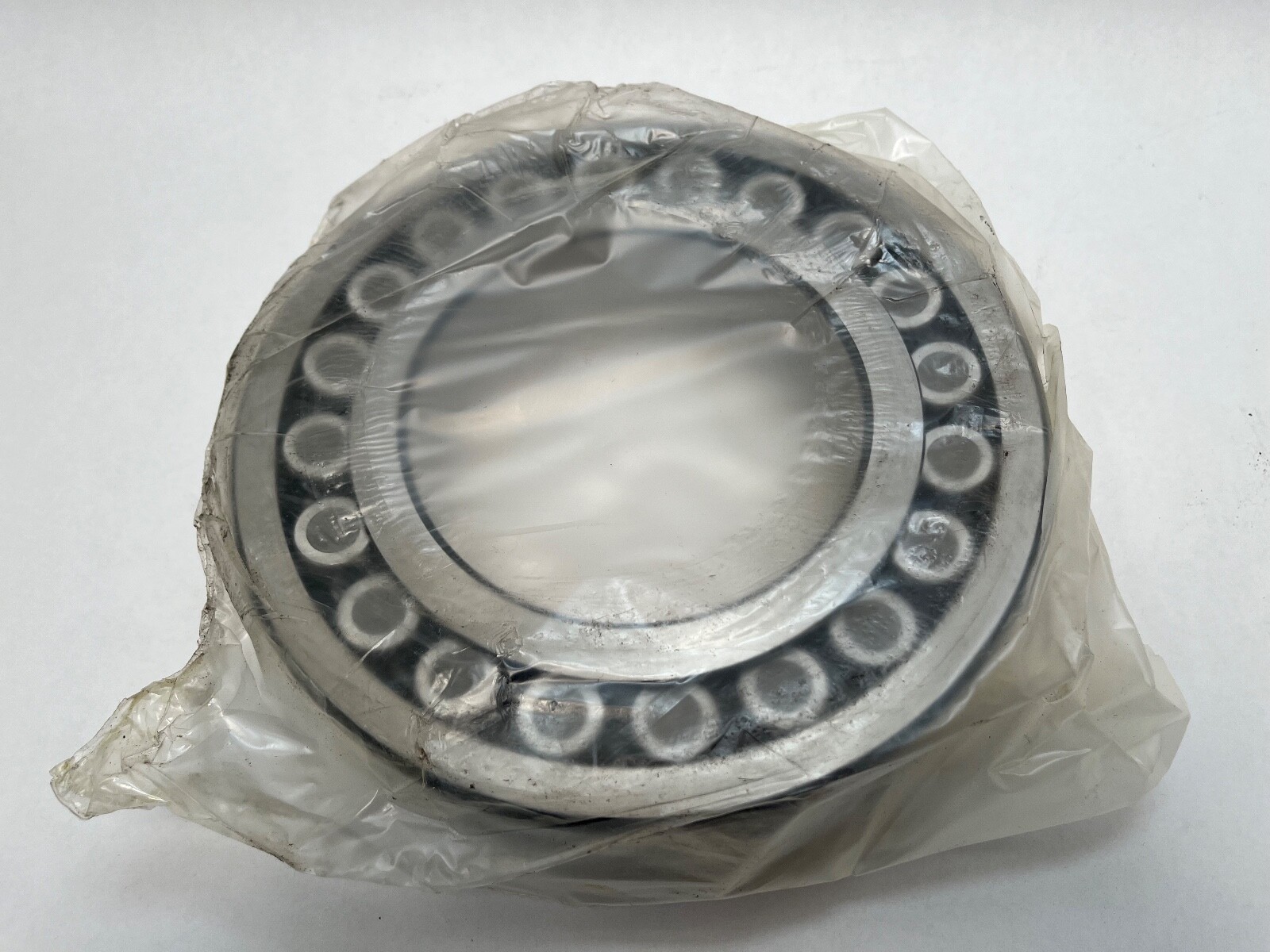

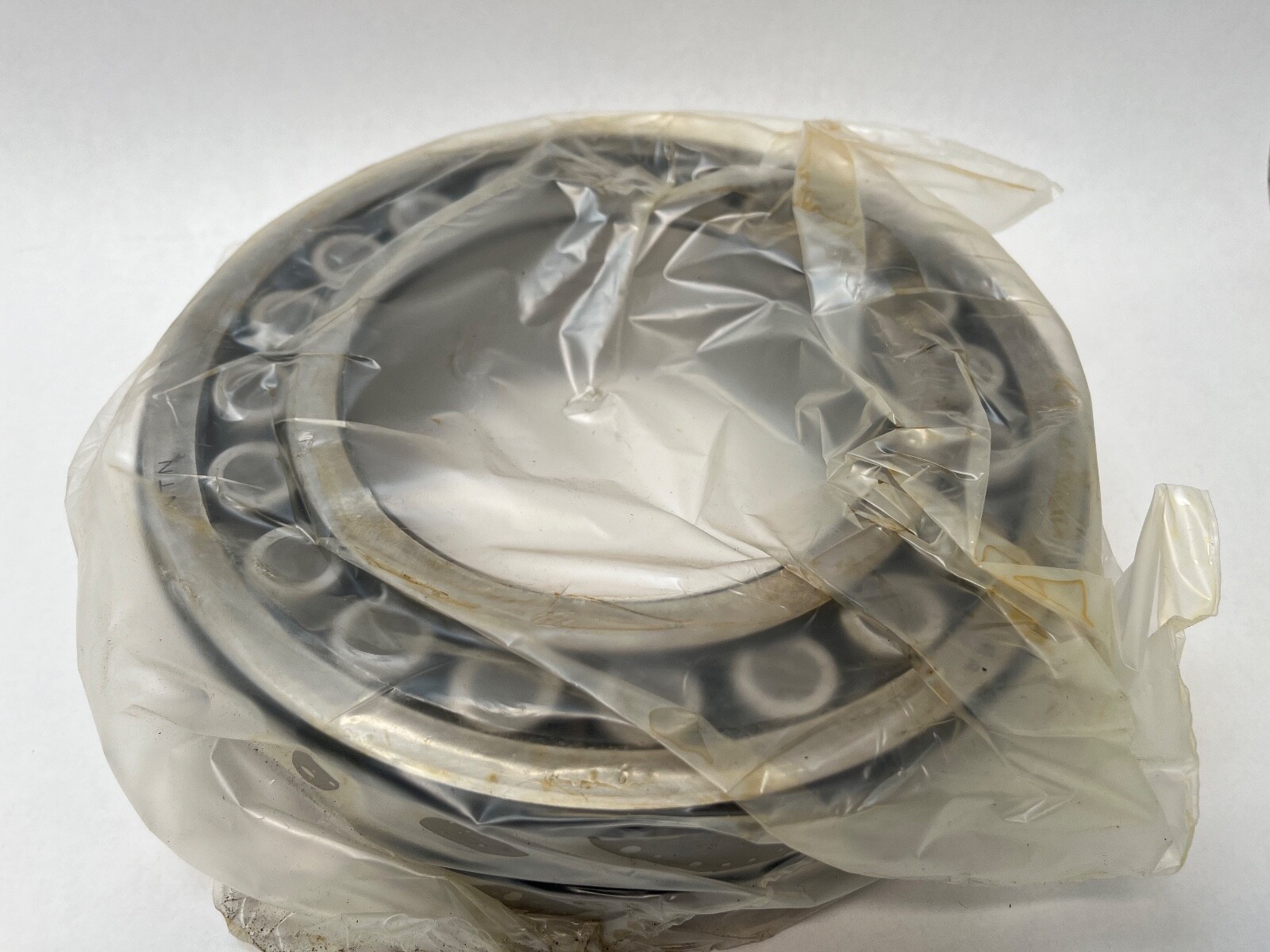

What this part is

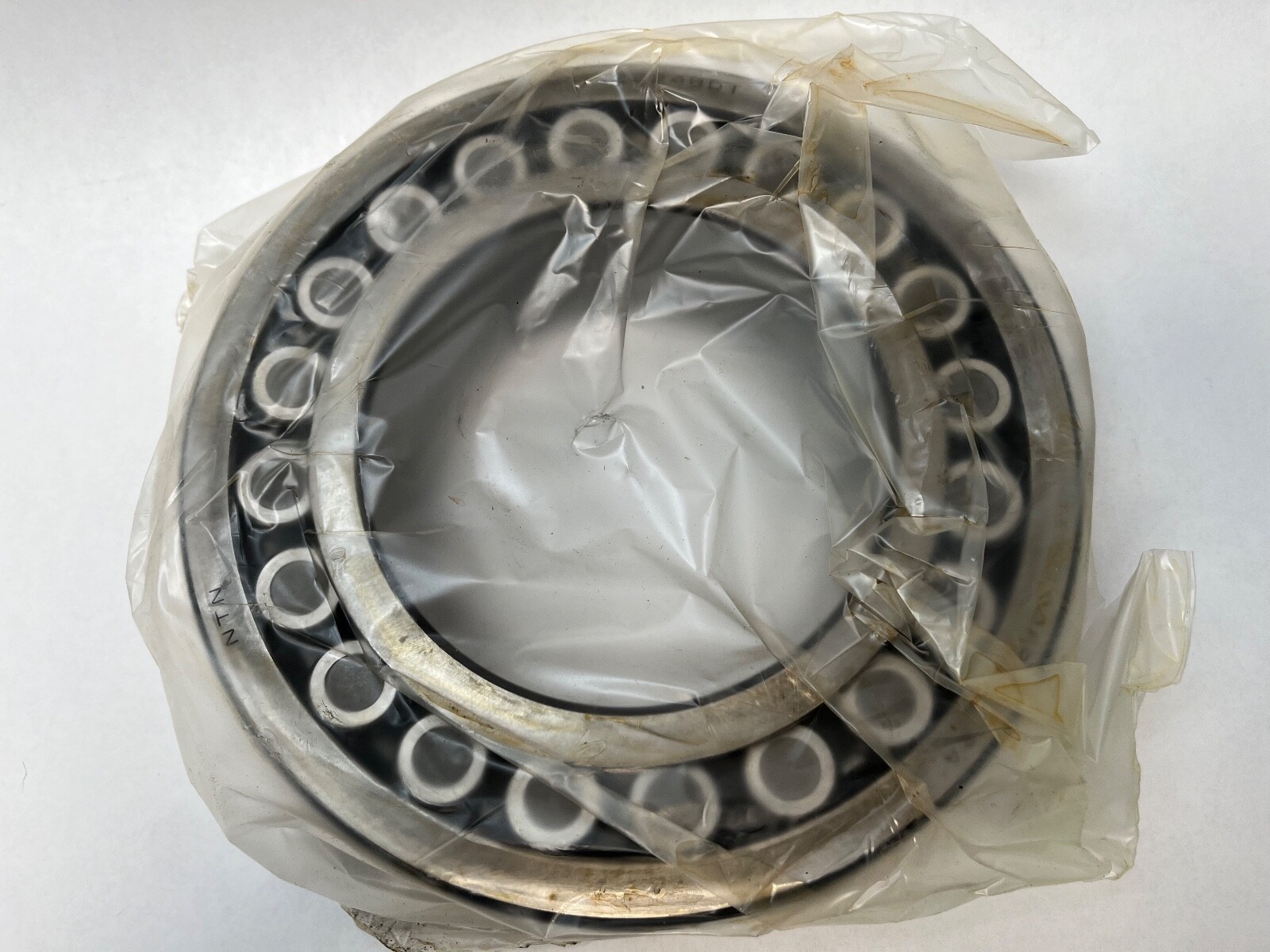

A 222-series double-row spherical roller bearing in the ISO 22224 envelope — 120 mm bore, 215 mm outside diameter, 58 mm width — with a tapered bore. Two rows of barrel rollers share one spherical outer raceway, so the inner ring and roller set swivel inside the outer ring. That swivel is the point of the family: it absorbs shaft deflection and housing misalignment that would edge-load a cylindrical roller bearing and shorten its life dramatically, while still carrying very high radial load and useful axial load in both directions.

Decoding the designation

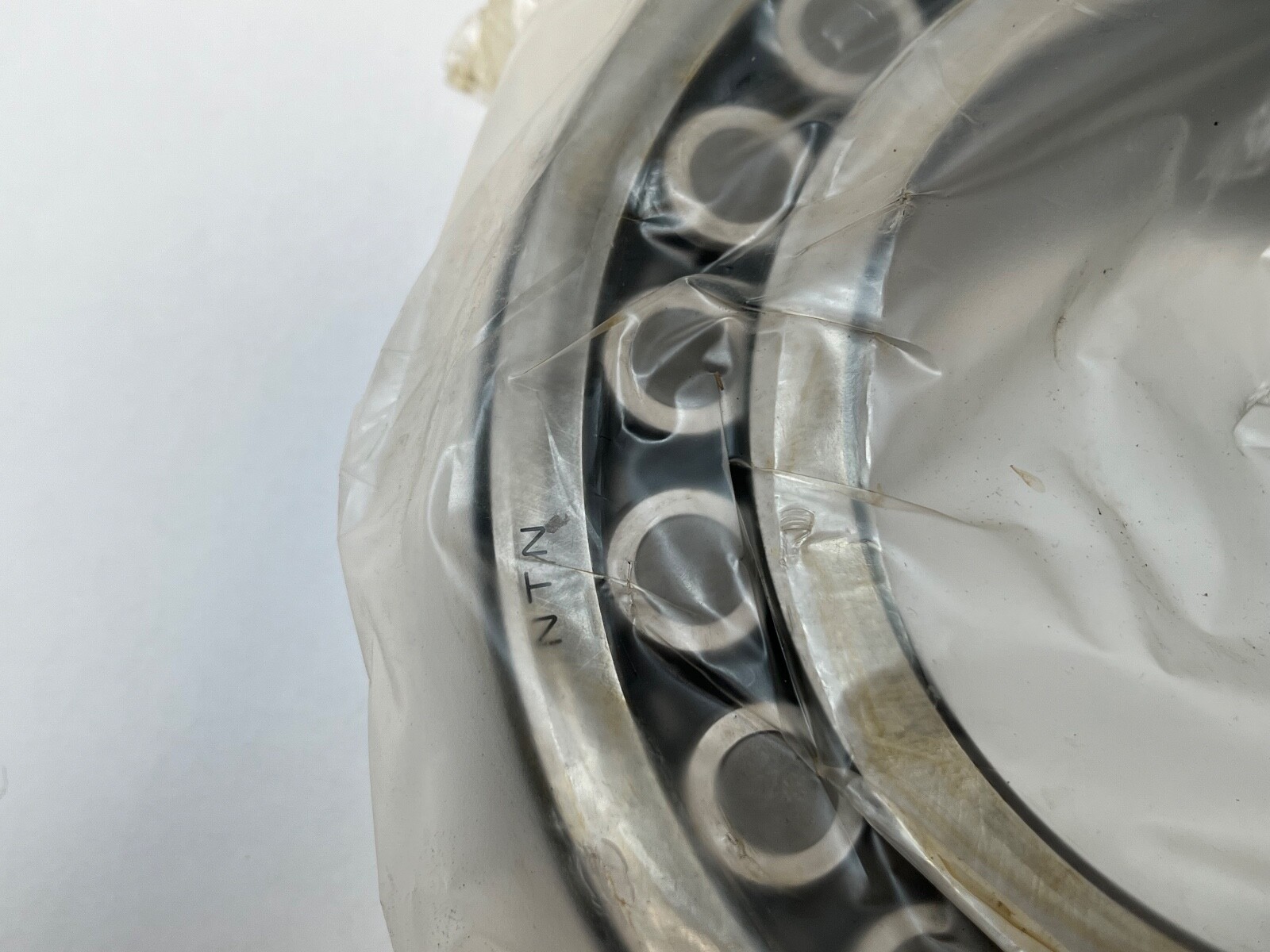

Read in NTN’s own scheme. NTN’s letters are not SKF’s or FAG’s, and cross-reading them is how the wrong bearing gets ordered.

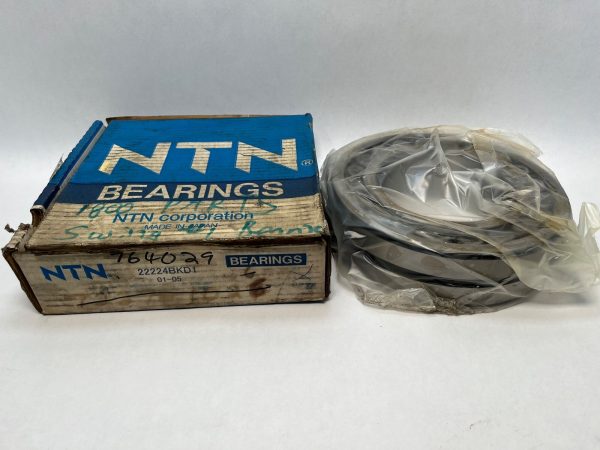

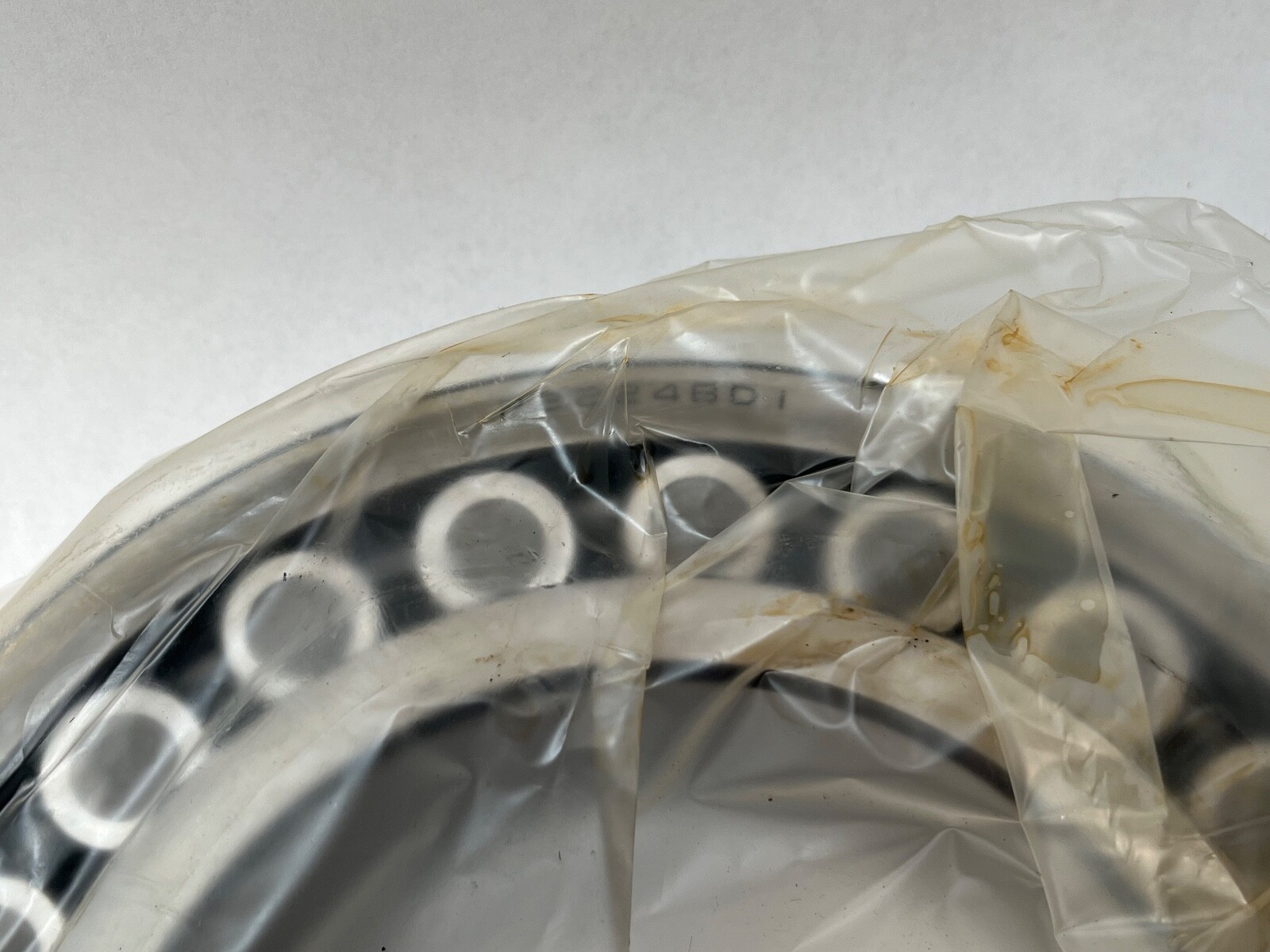

22224 — ISO base number: 222 series double-row spherical roller, 120 mm bore.B — NTN internal design execution for this series.K — tapered bore, 1:12 taper. This is the critical letter on this part.D1 — NTN execution suffix associated with the outer-ring lubrication feature (the annular groove and three radial holes, which other makers call W33). It is echoed in the carton designation as W33.W33 (as marked on the carton) — lubrication groove plus three feed holes in the outer ring. Useful only if the housing has a port aligned to the groove; in a plain housing bore the feature does nothing.

What a tapered bore buys you, and what it costs:
A 1:12 tapered bore lets you set the bearing’s radial internal clearance during mounting instead of accepting whatever a fixed interference fit produces. Drive the inner ring further up the taper and the ring expands, reducing clearance; back it off and clearance grows. That is why tapered-bore spherical rollers dominate positions where clearance has to be tuned — vibrating screens, mill and crusher shafts, paper machine rolls. The cost is that it cannot go straight onto a plain cylindrical shaft. It needs either a matching 1:12 tapered shaft seat, or an adapter sleeve with its lock nut and locking device, or a withdrawal sleeve arrangement. Mounting also becomes a measured operation: you drive up the taper while measuring the residual clearance or the axial drive-up, and overdriving preloads the rollers and cooks the bearing.

Component completeness

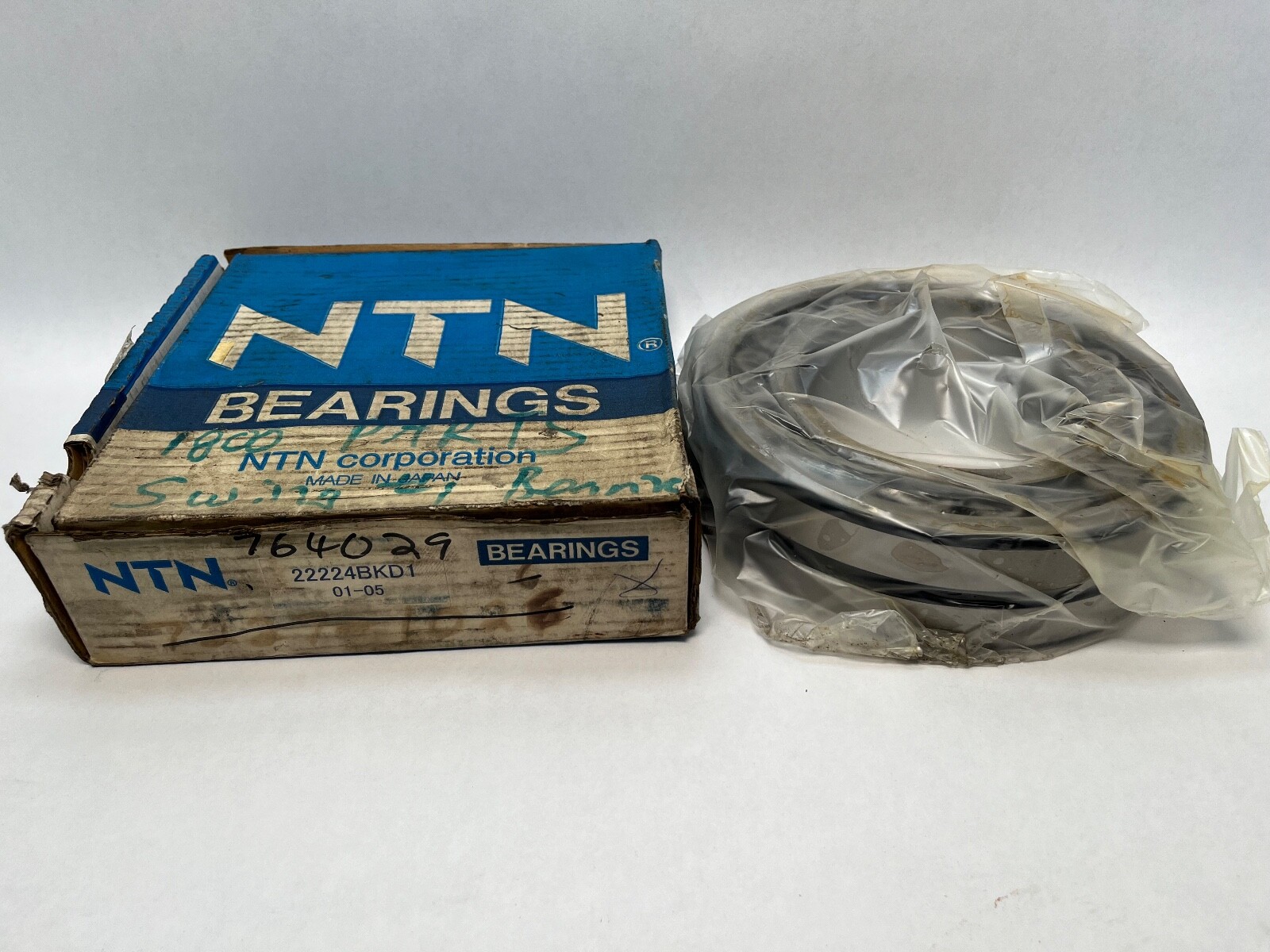

This listing is the bearing only. No adapter sleeve, lock nut, lock washer or withdrawal sleeve is included, and nothing in the photos has been confirmed to show one. If your shaft is not already machined with a 1:12 taper, you need the sleeve assembly as a separate purchase — the matching parts for a 120 mm tapered-bore 222-series bearing on a straight shaft are the H3124 adapter sleeve family (with HM/KM nut and MB lock washer) or an AH-series withdrawal sleeve. Ask us before ordering: if we have the matching sleeve in stock it should ship with the bearing as one set.

Correcting the source data

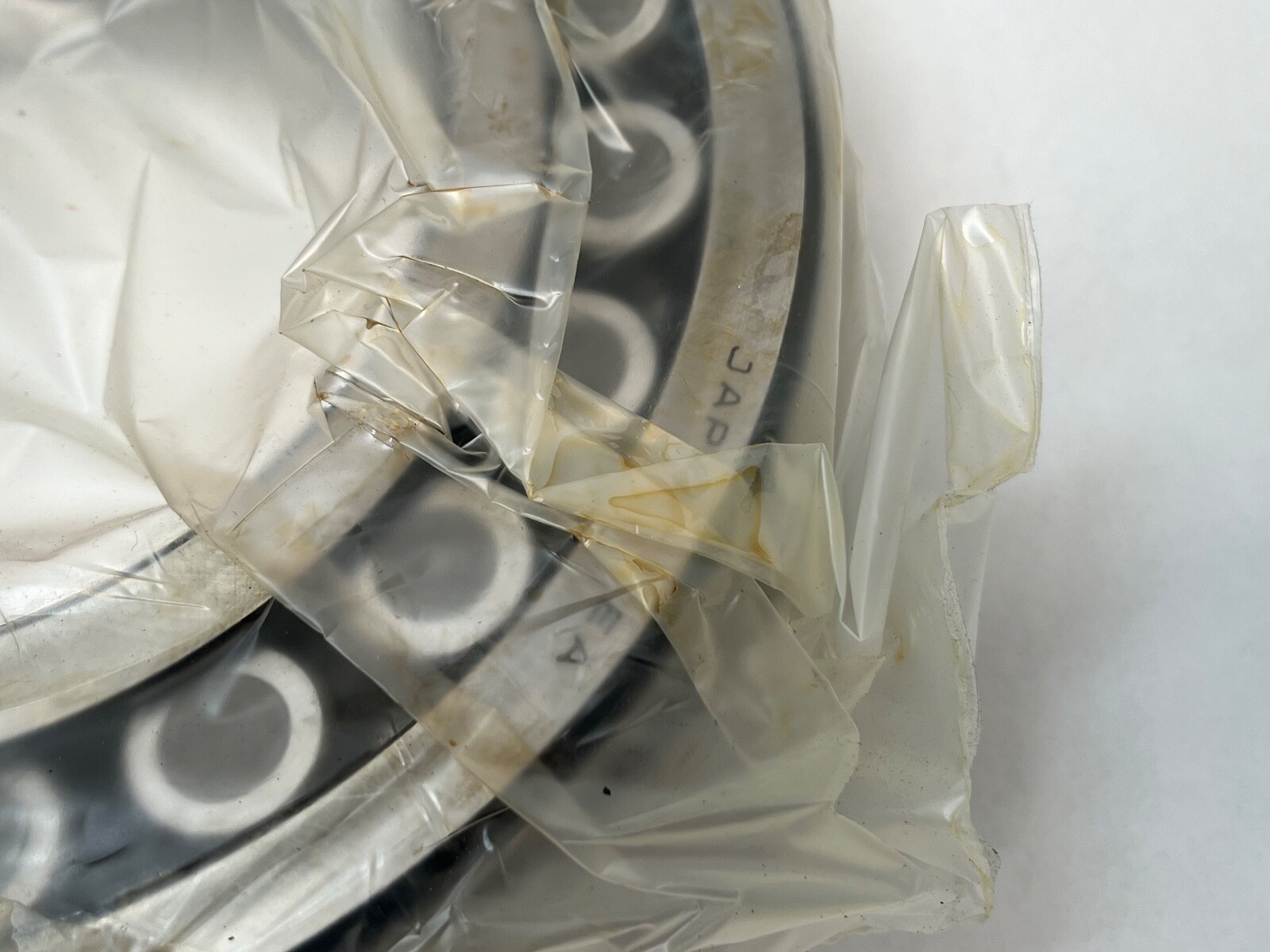

The old title asserted a country of origin that nothing on the record substantiates, so it has been removed — no origin is now claimed. The description consisted entirely of eBay-era boilerplate wrapped in dozens of nested font tags, including a dead store link, international and collect shipping promises and same-day shipping claims. All of it has been deleted.

Published ratings and mounting data

Bore d: 120 mm, tapered 1:12 · Outside diameter D: 215 mm · Width B: 58 mmRing chamfer r (min): 2.1 mm — ISO 22224 envelopeApproximate mass: 9.1 kg for the ISO 22224 envelopeLoad-calculation factors for the envelope: e 0.28, Y1 2.4, Y2 3.6, Y0 2.4NTN’s published basic dynamic and static load ratings for the 22224BKD1 execution could not be retrieved from NTN’s own catalogue interface, and no distributor figure we found was traceable to NTN data. Those cells are therefore left blank rather than filled with another brand’s numbers. If the rating is decision-critical for your application, ask and we will pull it from the NTN spherical roller catalogue directly.

Quantity and configuration

One bearing. It is a complete, non-separable bearing assembly — outer ring, both roller rows, cage, inner ring — but it is not a complete mounting: see the component note above regarding the sleeve.

Fitting notes

Mount by driving the inner ring up the taper with a hydraulic nut or a lock nut and proper spanner, measuring either the reduction in radial internal clearance with a feeler gauge or the axial drive-up distance against the maker’s table. Never estimate it by feel. Align the outer-ring lubrication holes with the housing port if one exists, and grease the free space around the rollers rather than flooding the housing.

Interchange guidance

Same-envelope tapered-bore alternates include SKF 22224 K, FAG 22224-E1-K, NSK 22224K, Timken 22224K and Rollway/Regal Rexnord 22224 MB K W33. A tapered-bore bearing and a straight-bore bearing of the same number are not interchangeable in either direction — the shaft arrangement decides. Do not substitute a 23224: the 232 series is wider in the same bore and will not fit a 222 housing.
